Lubrication-system accessories nipples, couplers, hoses, adapters & grease meters
A complete accessory range for grease guns and lubrication systems – grease nipples DIN 71412, 4-jaw gripping couplers, safety couplers, nozzle tubes, high-pressure armoured rubber hoses (300 mm to 10 m), CLS couplings, Lube-Shuttle® adapters, grease follower plates and precise grease meters DIGMET / PIUSI. Over 120 items.
Grease nipples & couplers
Hydraulic conical grease nipples H1/H2/H3 to DIN 71412 (from €0.42), protective caps, assortment boxes with 110–475 pcs. 4-jaw gripping couplers (€3.53), needle-point, precision and safety couplers Safelock, safeLOCK-L and Quick-Fix (€39–74). High-pressure lubrication gun standard/deluxe (€83.50–268).
Nozzle tubes & angle adapters
Nozzle tubes 150 mm straight and bent – with a 4-jaw coupler, pointed coupler or quick-change coupling (€3.81–32). Angle adapters eco and deluxe with a swivel joint (€6.31–12). Special nozzle tube F4020 for cardan shafts. Swivel joints, linear and multi-axis, for hard-to-reach nipples.
High-pressure hoses
Plastic armoured hose PH-30 (300 mm, €7.80), safety armoured rubber hoses RH-30C/RH-50 (300/500 mm, €13.50–15) up to long hoses RH-100 (1 m, €83), RH-350 (3.5 m, €134), RH-650 (6.5 m, €265) and RH-1000 (10 m, €384). Twin hose for LubeJet (€266).
Grease meters & measuring technology
Flow indicator M10×1/R1/8" (€74.50), DIGMET E35 built-in meter (€294.50), DIGMET E5 grease meter (€468.50–575), PIUSI K200 gram counter, calibratable (€357) and PIUSI Greaster gram-counter gun (€514) for the precise recording of grease quantities in industrial lubrication systems.
MATO Nozzle Tube F17 with Quick-Change Coupling and SK10 Slide Coupler
- Type: F17
- Weight: approx. 0.108 kg
- Nozzle tube F17 with quick-change coupling and SK10 slide coupler
- For secure connection to the safeLOCK safety hydraulic coupler or a 4-jaw hydraulic coupler
- Connection via grease nipple and sliding sleeve
Delivery time: 1-3 days
MATO Nozzle Tube F15 with Quick-Change Coupling and SK16 Slide Coupler
- Type: F15
- Weight: approx. 0.102 kg
- Nozzle tube F15 with quick-change coupling and SK16 slide coupler
- For secure connection to the safeLOCK safety hydraulic coupler or a 4-jaw hydraulic coupler
- Connection via grease nipple and sliding sleeve
Delivery time: 1-3 days

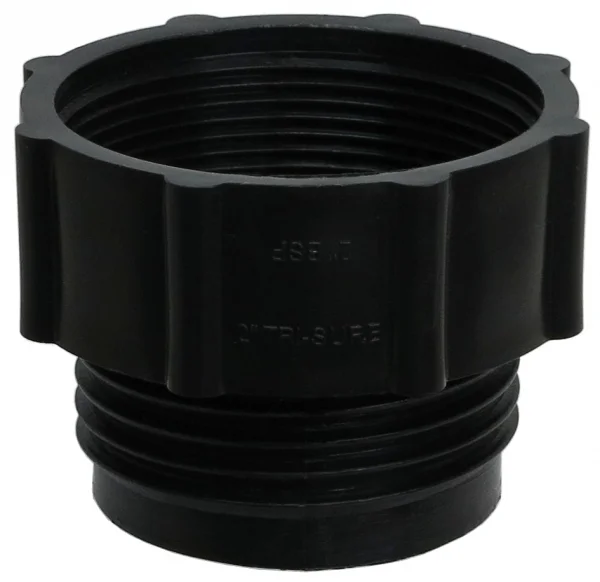

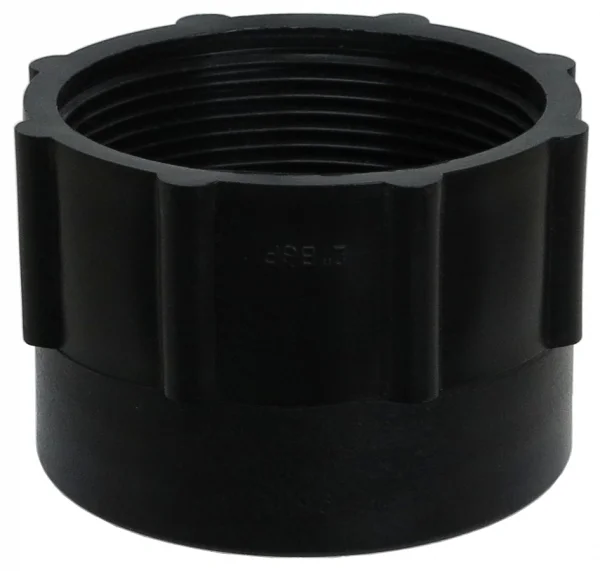

MATO Drum Adapter 2" BSP Female to DIN 61 Female, including Gasket for Drum and Canister Pumps
- Thread Size: 2" BSP (internal) according to DIN 61 (internal)
- Included Gasket
Delivery time: 1-3 days

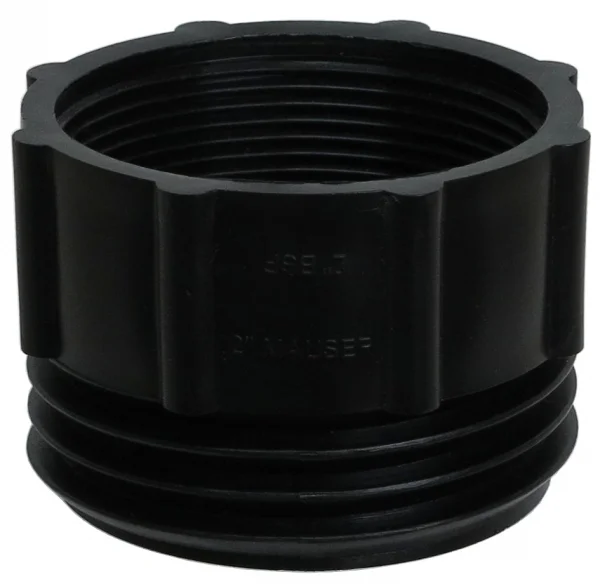

MATO Drum Adapter 2" BSP Female to 2" Mauser Male for Drum and Canister Pumps
- Drum Adapter 2" BSP Female to 2" Mauser Male
- Application: Canister and Drum Pumps
- Material: Sturdy and Durable Metal
Delivery time: 1-3 days
MATO Nozzle Tube F 4020 with Quick-Change Coupling
- Type: F 4020
- Diameter: tube Ø 8 mm
- Weight: approx. 0.074 kg
- F 4020 nozzle tube for cardan shafts, tube Ø 8 mm
- With quick-change coupling for safeLOCK or 4-jaw hydraulic coupler
Delivery time: 2-5 days
MATO High-Pressure Rubber Hose RH-30SK16, 300 mm
- Length: 300 mm
- Connection: R1/8"
- Burst pressure: 1,650 bar
- High-pressure safety hose Ø 13 mm, double steel braid
- Burst pressure 1,650 bar
Delivery time: 1-3 days

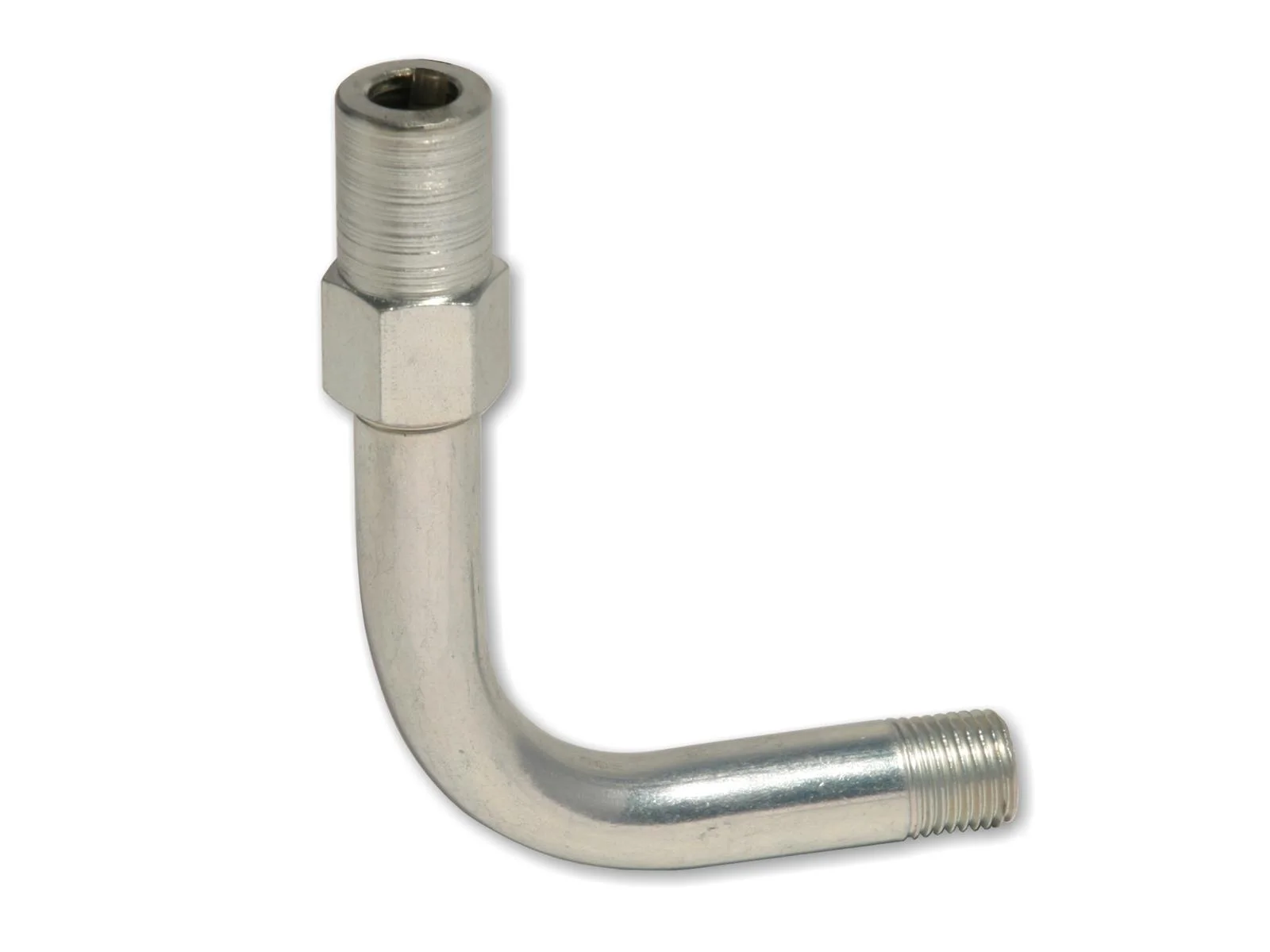

ecoFILL 5-50 Bent Filling Tube R1/4 with Cylindrical Filling Nozzle
- Connection: R1/4"
- Suitable for: filling/bleed nipple Ø 9 mm (DIN 1283)
- Weight: approx. 0.084 kg
- Curved version, R1/4" connection
- Cylindrical filling nozzle for filling/bleed nipples Ø 9 mm to DIN 1283
Delivery time: 2-5 days

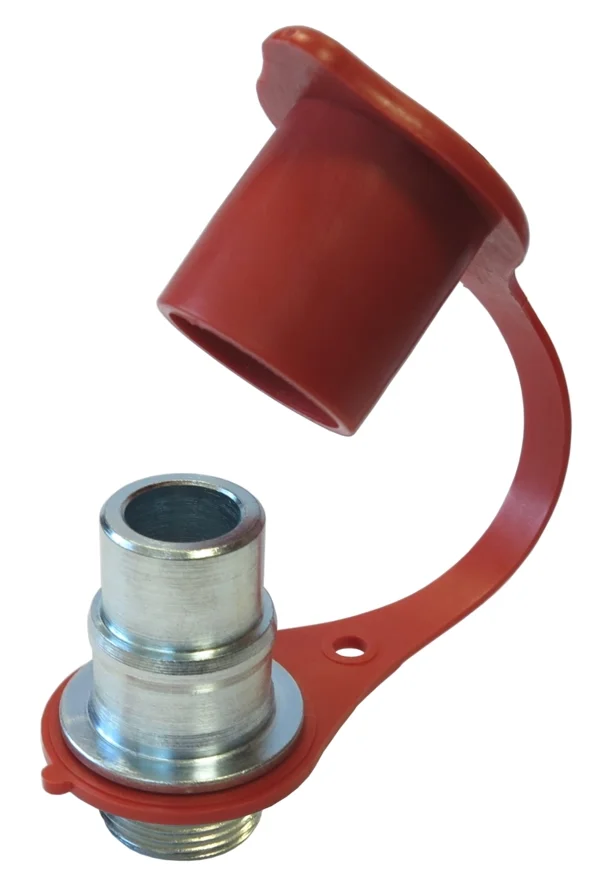

MATO Connector Plug M26 x 1.5 incl. Protective Cap
- Connection: M26 x 1,5
- Weight: approx. 0.08 kg
- Connector plug M26 x 1.5
- Incl. protective cap
- For MATO filling pumps to connect to the filling connector
Delivery time: 2-5 days

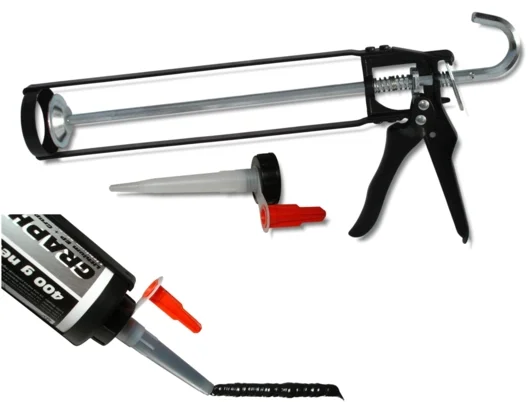

LubeShuttle Dispenser Lube-Shot 400
- Suitable for: Lube-Shuttle®-Kartuschen 400 g
- Weight: approx. 0.574 kg
- Universal grease dispenser for Lube-Shuttle® cartridges
- For open lubrication points, e.g. open rolling bearings
- No grease contamination as with open tins
Delivery time: 2-5 days

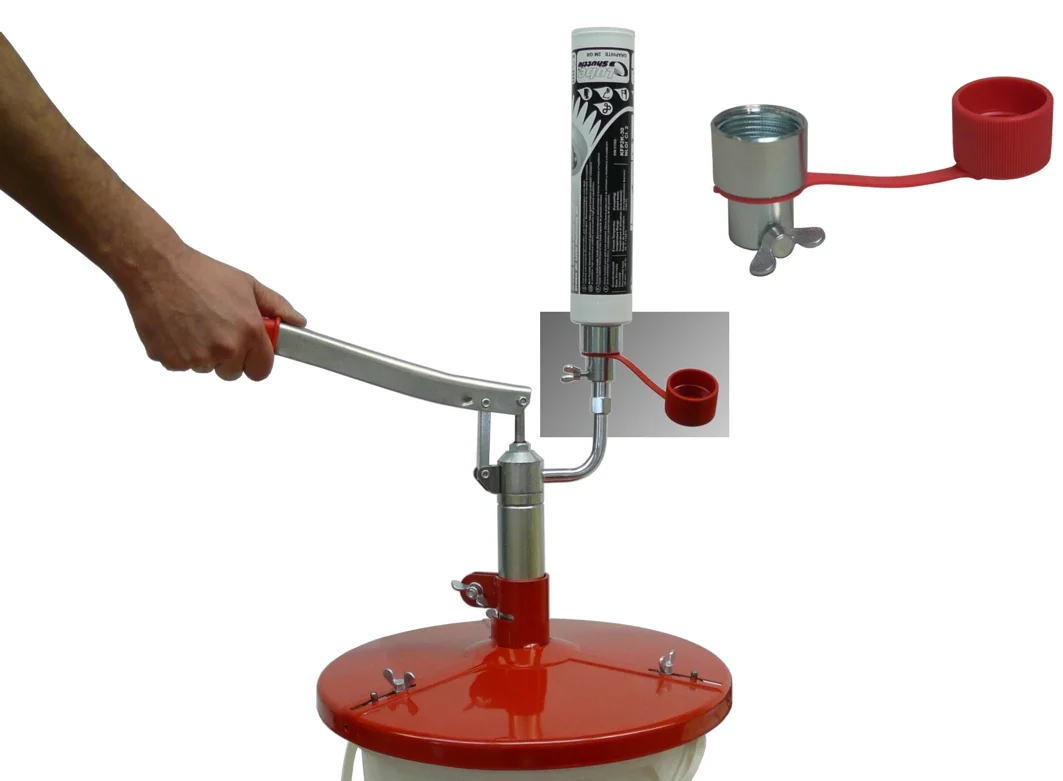

Lube-Shuttle Refill Adapter Set MATO
- Clean filling and refilling of Lube-Shuttle empty cartridges
Delivery time: 1-3 days

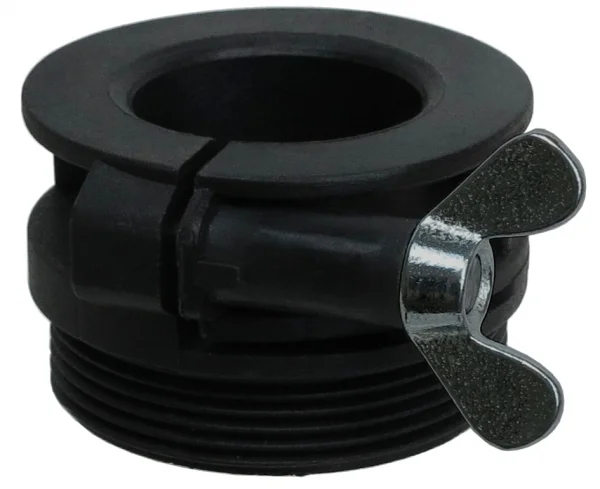

Barrel Adapter 2" BSP Male to 40 mm Inner Diameter for Canisters and Barrel Pumps
- Thread Type: BSP
- Thread Size: 2" External
- Internal Diameter: 40mm
- Usage: Canister and Barrel Pumps
Delivery time: 2-5 days
ZSA Plug with R1/4" Female, ISO Standard 7241B DN6/R1/4" MATO
- Connection: R1/4" innen, ISO 7241 B DN6
- Weight: approx. 0.039 kg
- ZSA plug to ISO 7241 B, DN6
- R1/4" female connection
- Accessory for centraFILL and pneuMATO-fill
Delivery time: 2-5 days
MATO Nozzle Tube F16 with Quick-Change Coupling and SK22 Slide Coupler
- Type: F16
- Weight: approx. 0.148 kg
- Nozzle tube F16 with quick-change coupling and SK22 slide coupler
- For secure connection to the safeLOCK safety hydraulic coupler or a 4-jaw hydraulic coupler
- Connection via grease nipple and sliding sleeve
Delivery time: 2-5 days
Brass Double Nipple with One-Sided Internal Cone R3/4" x R1" External MATO
- Connection: R3/4" x R1" male
- Material: brass
- Weight: approx. 0.14 kg
- Double nipple R3/4" x R1" male thread
- Brass, internal cone on one side
Delivery time: 2-5 days

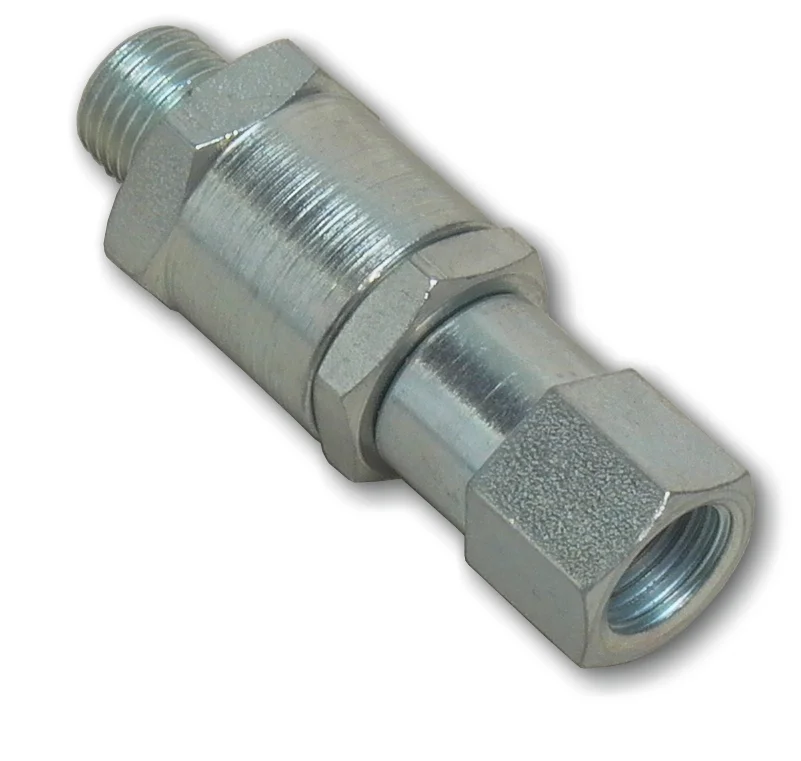

Linear Swivel Joint for Grease Guns R1/4"
- Type: linear
- Connection: R1/4"
- Weight: approx. 0.106 kg
- Heavy-duty version, ball-bearing
- Thread R1/4"
Delivery time: 1-3 days
G-Coupling Grease Gun Nozzle
- Connection: M 10 x 1
- Design: 4 jaws
- Wrench size (SW): 13mm
- Material: Steel, galvanized
- Diameter: 15mm
No longer available

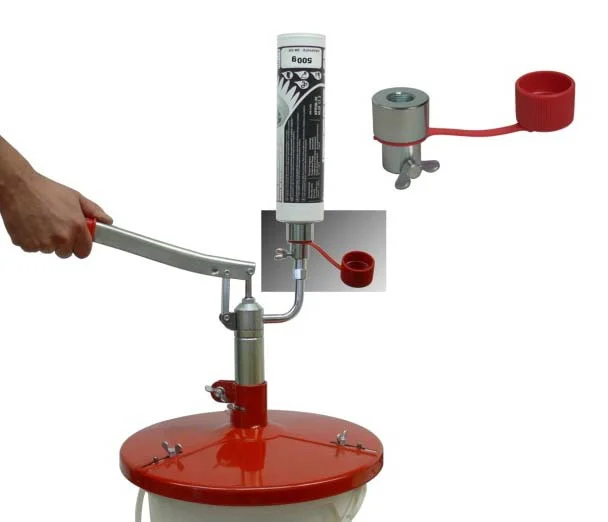

Refill Adapter for 500g Screw Cartridges - MATO Filling Adapter
- Refill adapter for 500g screw cartridges - MATO filling adapter
- Compatible with Mato ecoFill and pneuMato-fill filling devices
No longer available
High-Pressure Rubber Armored Hose 300 mm with Quick-Change Coupling and 4-Jaw Chuck RH-30CC
- Length: 300 mm
- Diameter: 13 mm
- Burst pressure: 1,650 bar
- High-pressure safety hose Ø 13 mm with double steel braid
- Burst pressure 1,650 bar
Delivery time: 2-5 days
Safelock - Hydraulic Safety Gripping Nozzle M10x1
- Four hardened gripping jaws made of tool steel
- High-performance hydraulic seal
- Integrated linear rotary joint
- Integrated check valve
- Internal spring and shock absorber
- Outer diameter in accordance with DIN standards
- Detachable up to over 600 bar
Delivery time: 1-3 days

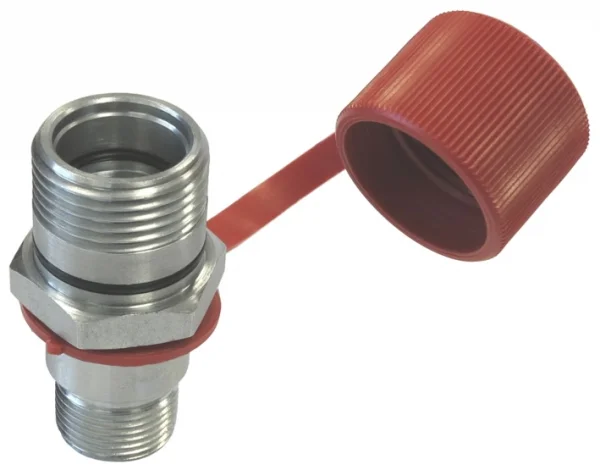

MATO Filling Connector for Central Lubrication Systems M20 x 1.5
- Connection: M20 x 1,5
- Weight: approx. 0.16 kg
- Filling connector M20 x 1.5 for central lubrication systems
- Incl. sealing screw cap
Delivery time: 2-5 days
MATO Filling Connector for Central Lubrication Systems M22 x 1.5
- Connection: M22 x 1,5
- Weight: approx. 0.16 kg
- Filling connector M22 x 1.5 for central lubrication systems
- Incl. sealing screw cap
Delivery time: 2-5 days
PREMIUM HDPE 300cc Liquid Atomizer
- Container made of HDPE
- Nickel-plated double pump mechanism
- Angled, rotatable suction tube
- Capacity: 0.3 liters
Delivery time: 5-10 Tage
MATO Dust Cover – mobile fillers and pneumatic grease pumps
- Material: sheet steel, powder-coated
- Dust cover of powder-coated sheet steel
- For mobile fillers and pneumatic grease pumps
- Protects the grease in the container from contamination
Delivery time: 2-5 days
Retrofitting Suction Pipe Set for AdBlue® Urea Solution Systems, Suitable for AdBlue® Urea Solution Drums and IBC Containers
- Suitable for retrofitting existing AdBlue® systems
- Compatible with AdBlue® urea solution drums and IBC containers
Delivery time: 1-3 days
The right lubrication-system accessory for your system
Which grease nipple – H1, H2 or H3?
H1 (straight, DIN 71412A): standard, screwed in vertically. H2 (45°, DIN 71412B): for points accessible at an angle. H3 (90°, DIN 71412C): lateral access. All R1/8" threads, galvanised. Individually (from €0.42) or an assortment box of 110–475 pcs.
Safety couplers – when are they needed?
Standard 4-jaw couplers can slip off under high pressure. Safelock (€39), safeLOCK-L (€49) and Quick-Fix (€49) lock mechanically. Recommended for high-pressure lubrication and overhead use.
Hose length by application
300 mm: compact work. 500 mm: workshop standard. 1–3.5 m: stationary systems/trucks. 6.5–10 m: high-pressure lubrication stations. From 100 bar, always use a safety armoured rubber hose RH – never a plastic hose.
CLS couplings for centralised lubrication systems
CLS connector R1/4" ISO 7241B DN6 (€30.50) and CLS hydraulic coupling (€73.50) – standardised quick couplings for centralised lubrication systems. Pressure-tight, tool-free connection with automatic closing on disconnection.
Grease meters – dosing and documentation
Flow indicator (€74.50): shows whether grease is flowing. DIGMET E35 (€294.50): electronic built-in meter. PIUSI K200 (€357): calibrated gram counter. PIUSI Greaster (€514): gram-counter gun. For maintenance documentation and precise grease-quantity specifications.
Lube-Shuttle adapters and accessories
Refill adapter set (€30), KAJO/LINZER adapters (€15) for filling from various containers. Spray-lance set LubeJet-eco (€334) for spray lubrication. Dispenser Lube-Shot 400 for a clean single-portion dispensing.
Frequently asked questions about lubrication-system accessories
The right accessories for your lubrication system
Our specialist team advises you free of charge – on nipple types, hose selection, couplings and measuring technology for your lubrication-technology infrastructure.
