Container tipping devices for forklifts wheelie-bin lifters & wheelie-bin tippers – for 80 to 360 litres
Wheelie-bin lifters and wheelie-bin tippers as forklift attachments – for the mechanical lifting, transport and emptying of 80-, 120-, 240- and 360-litre wheelie bins without manual work. The MH lifter series holds up to three bins at the same time; the wheelie-bin tippers empty bins in a controlled manner into containers or shafts.
Wheelie-bin lifters – transport without tipping
The wheelie-bin lifters MH 1, MH 2 and MH 3 pick up standard 80- to 360-litre wheelie bins and transport them by forklift – without tipping. Depending on the model, one, two or three bins can be picked up and moved at the same time, which considerably shortens transport routes.
Wheelie-bin tippers – emptying into containers

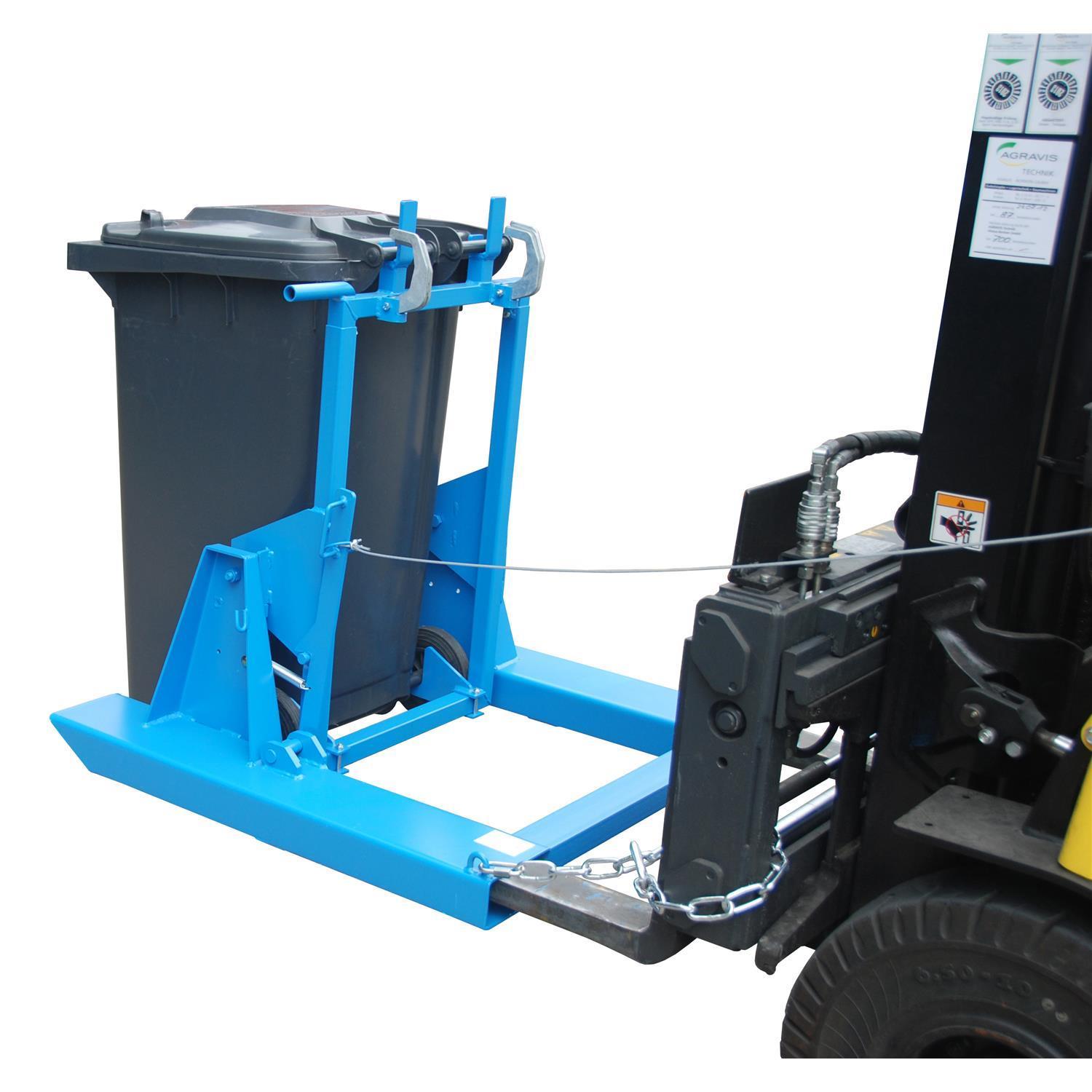

The wheelie-bin tippers enable the controlled emptying of 80/120-litre and 240-litre bins into large containers, shafts or presses – with the forklift and without manual physical effort. The bin is picked up, raised and tipped hydraulically or mechanically over the target container.
When a lifter, when a tipper?
A wheelie-bin lifter is suitable when bins only have to be moved and positioned – for example to make them available for waste collection or to reposition them in the warehouse. A wheelie-bin tipper is the right choice when bins are regularly emptied into containers, for instance in industry, on large construction sites or in operations without direct waste collection.
Compatible bin sizes
All devices are designed for standard DIN-standardised wheelie bins. The MH lifters take bins from 80 to 360 litres – this corresponds to the entire standard range, from the small residual-waste bin to the large 240/360 L bin. The tippers are specialised for one bin size (80/120 L or 240 L).
Waste Bin Lifter MH 1 1030x584x680mm
- Maximum number of 80 to 360-liter bins: 1
- Dimensions (L x W x H): 1030mm x 584mm x 680mm
- Load capacity: 200 kg
Delivery time: 3-4 weeks
Waste Bin Lifter MH 2 1030x1070x680mm
- Dimensions: 1030mm x 1070mm x 680mm
- Load Capacity: Up to 400 kg
- Weight: 71 kg
Delivery time: 3-4 weeks
Waste Bin Lifter MH 3 1030x1595x680mm
- Maximum number of 80 to 360-liter bins: 3
- Dimensions (LxWxH): 1030mm x 1595mm x 680mm
- Load capacity: 200 kg
- Weight: 79 kg
Delivery time: 3-4 weeks
Waste Bin Tipper 1000x930x925mm 120 Liter Container
- Maximum capacity: 1 x 80/120-liter waste bin
- Load capacity: 250 kg
- Weight: 61 kg
- Dimensions (LxWxH): 1000 mm x 930 mm x 925 mm
Delivery time: 3-4 weeks
Waste Bin Tipper 1000x1020x1060mm 240 Liter Container
- Maximum: One 240-liter garbage bin
- Load capacity: 250 kg
- Weight: 66 kg
- Finish: Painted
- Dimensions (LxWxH): 1000 mm x 1020 mm x 1060 mm
Delivery time: 3-4 weeks
The right tipping device for your operation
Lifter or tipper?
The wheelie-bin lifter transports bins by forklift – ideal for operations that have to bring bins to the collection point or reposition them on the premises. The wheelie-bin tipper lifts and tips bins into a target container – useful when waste has to be emptied regularly into larger containers or presses.
How many bins at once?
MH 1: one bin per trip – for smaller operations with few bins. MH 2: two bins at once at a 400 kg load capacity – considerably more efficient. MH 3: three bins at once – maximum time saving with large bin quantities. The forklift load capacity must be able to carry the total weight (lifter + full bins).
Tipper – 80/120 L or 240 L?
The wheelie-bin tippers are designed for one bin size: the 120 L tipper fits 80- and 120-litre bins (typical household and commercial bins). The 240 L tipper is designed for 240-litre large bins. The bin holder is specific to each model – both tippers have a 250 kg load capacity.
Check forklift suitability
For the lifter series: own weight 61–79 kg + bin weight. A full 240 L bin can weigh up to 150 kg – with three bins (MH 3) therefore up to 450 kg plus own weight. The forklift must be able to carry the total weight safely at the respective load distance. Always consult the forklift's load-capacity diagram.
Typical areas of use
Wheelie-bin lifters are used in: production operations and industry (moving bins to collection points), logistics centres, hospitals, shopping centres and wherever many bins are regularly repositioned. Wheelie-bin tippers are found in waste-disposal operations, on large construction sites and in production facilities with container disposal.
Time saving compared to manual work
Moving heavy, full wheelie bins by hand is physically demanding and time-consuming – especially over long distances or with many bins. Forklift tipping devices eliminate this manual work completely: with the forklift, one person can do in a few minutes what takes dozens of minutes on foot – and it spares the back and joints.
Frequently asked questions about container tipping devices
The right tipping device for your operation
Our specialist team advises you free of charge – whether a lifter or a tipper, how many bins, which size and which forklift fits.
☎ Call +49 36071 924340 Request a quote
