Oil dispensing equipment for workshop, fleet & industry – manual & electric
The complete spectrum of fresh-oil dispensing – from the simple oil can through mobile compressed-air and electric pumps to the complete compact oil system with a 1,500-litre tank. From MATO, PIUSI, Samoa-Hallbauer and Tecalemit. With or without a meter, calibratable on request.
Hand tools & mobile dispensing
Oil cans and oil squirters (from €2.99) for the smallest quantities, the PIUSI cylinder hand pump (€114) and gear-oil pumps (€139–355). Mobile oil dispensing units MATO pneuMATO 24 L, Samoa DA-25/DA-70 and PIUSI Viscotroll 70/200 (€451–1,006) as wheeled solutions for small to medium-sized workshops.
Electric gear pumps EP (MATO)
MATO EP100, EP200, EP300 and EP400 electric gear-pump systems for 200 L drums and IBC containers (from €1,275) – 11 or 22 l/min, mobile or wall-mounted, with a 4 m or 10 m hose reel. A professional workshop solution for daily fresh-oil dispensing.
Stationary systems
pneuMATO 3 stationary for a 1000 L tank (€771), Lube-Station P-200/IBC, the Pressol 230V oil system (€862) – for permanently installed dispensing points with an ongoing fresh-oil requirement. Fresh-oil tank systems EP100/EP300 with a 1000 L tank (from €2,243) as a unified system with a tank and pump.
DrumMobil 200 & compact systems
Tecalemit DrumMobil 200 EP/PP with TMS smart (from €2,061), calibratable MID variants PPe/EPe (€3,899). Compact oil systems EZP 0.4/0.5 (from €3,032), fresh-oil islands for 2 × 200 L drums (from €6,385) and the Tecalemit compact system 1,500 L with a can-filling table (€4,530).
Oil Can - Standard Oiler 375 ml Steel Red with Spray Tube
- Container: 375 ml
- Includes spray tube
- Durable and sturdy
Delivery time: 1-3 days
PIUSI BARREL PUMP Oil, Hand Pump with 16 kg Container for Oil
- Fluids: oil
- Capacity: 16 kg
- Material: steel, galvanised lever
- Ready to use, user-friendly, portable
- Container for up to 16 kg
Delivery time: 2-5 days
Gear Oil Pump for Plastic Canister SRL 500-6 l/min 🌟
- Pumping Capacity (liters/stroke): 0.05 (approximately 6 liters/minute)
- Pumped Media: Oils up to SAE 140
- Application: 20-liter plastic canister
- Suction Tube Length: 500 mm
- Round Thread Drum Fitting: M 60 x 5 internal
No longer available
SAMOA Gear Oil Pump DV-16, 16 l Steel Container, 100 cm³/Stroke, 1.5 m Hose with Shut-Off Valve
- Fluids: high-viscosity lubricants, gear oil
- Flow rate: 100 cm³/stroke
- Content: 16 l
- Medium-pressure lever pump, 100 cm³/stroke
- 16 l steel container with handle and foot rest
Delivery time: 1-3 days
SAMOA PumpMaster 2 DP 3:1, Air-Operated Piston Pump for Oil, approx. 30 l/min, with 2" Bung Adapter
- Fluids: hydraulic, engine, gear, vegetable oil
- Pressure ratio: 3:1
- Flow rate: approx. 30 l/min
- Double-acting piston pump 3:1
- Approx. 30 l/min, air motor Ø 51 mm, stroke 100 mm
Delivery time: 2-5 days
MATO pneuMATO Compressed Air Oil Transfer Pump
- Connection: R2" drum adapter
- Compressed-air oil pump for drum and tank extraction
- Pressure ratio 1:1, 1:3 or 1:5
- With R2" drum adapter, otherwise without accessories
Delivery time: 2-5 days
SAMOA Mobile Oil Dispenser DA-25, 25 l Lubricant Dispenser with Hand Pump, 1.5 m Hose
- Fluids: viscous lubricants up to SAE 140
- Tank: 25 l
- Pump: hand pump, 0.12 l/stroke
- 25 l tank, mobile unit
- Hand pump with 0.12 l/stroke
Delivery time: 2-5 days

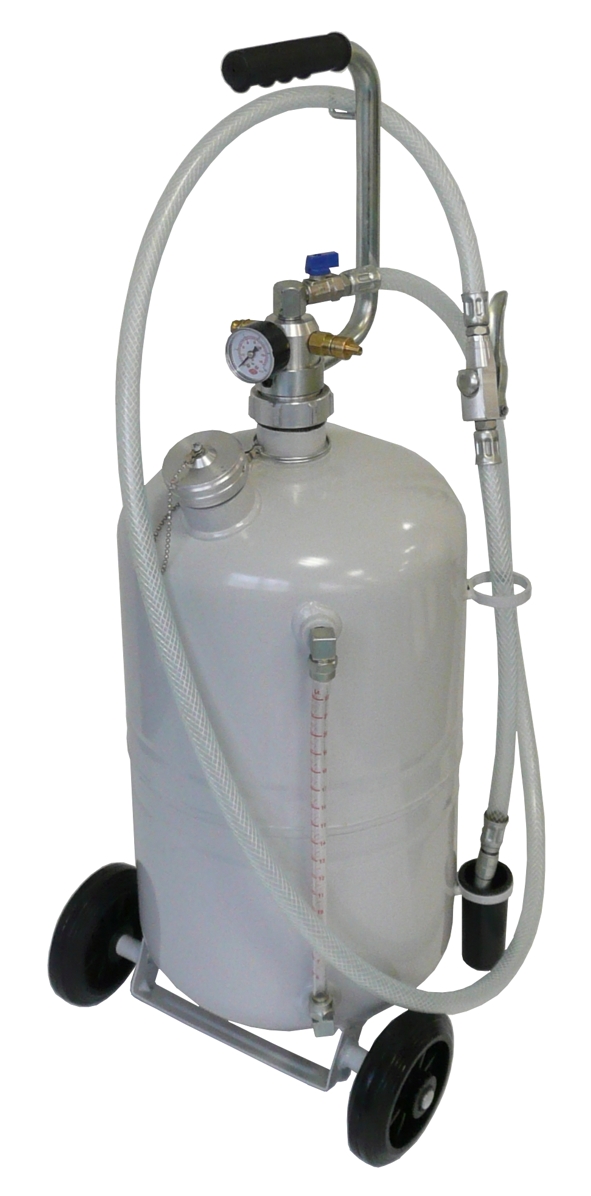

MATO 24-Liter Pneumatic Mobile Oil Dispenser
- Includes overpressure valve
- 2 m dispensing hose
- Flow rate: approx. 2 l/min
- Max. inlet pressure: 3 bar
- Flexible outlet with ball valve
- Transfer media: Diesel, engine, transmission, and hydraulic oils up to SAE 90
Delivery time: 5-10 Tage

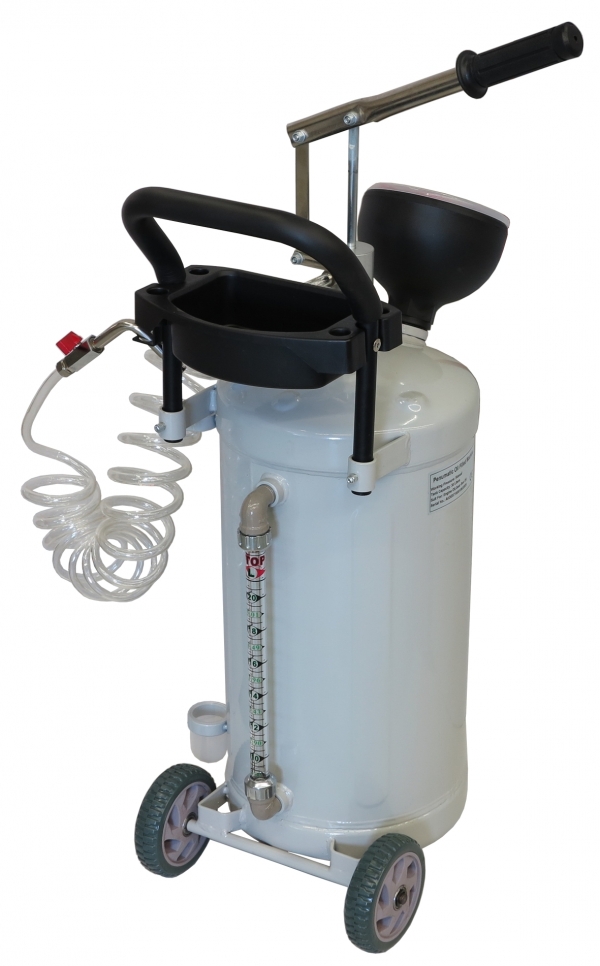

MATO 24L Oil Dispensing Unit with Hand Pump, Mobile
- Includes 2.5 m spiral hose, ball valve, and curved spout
- Compatible media: Diesel, engine, transmission, and hydraulic oils up to SAE 90
- Delivery rate: 250 cc/stroke
Delivery time: 5-10 Tage
PIUSI DRUM VISCOMAT 200/2, Oil Drum Kit, 230 V, 9 l/min, EASY OIL Nozzle
- Fluids: oil
- Flow rate: 9 l/min
- Electrical data: 230 V/50-60 Hz, 800/950 W, max. 3,8/4,6 A
- Powerful VISCOMAT 200/2 gear pump
- For high-viscosity oils up to 2,000 cSt
Delivery time: 2-5 days

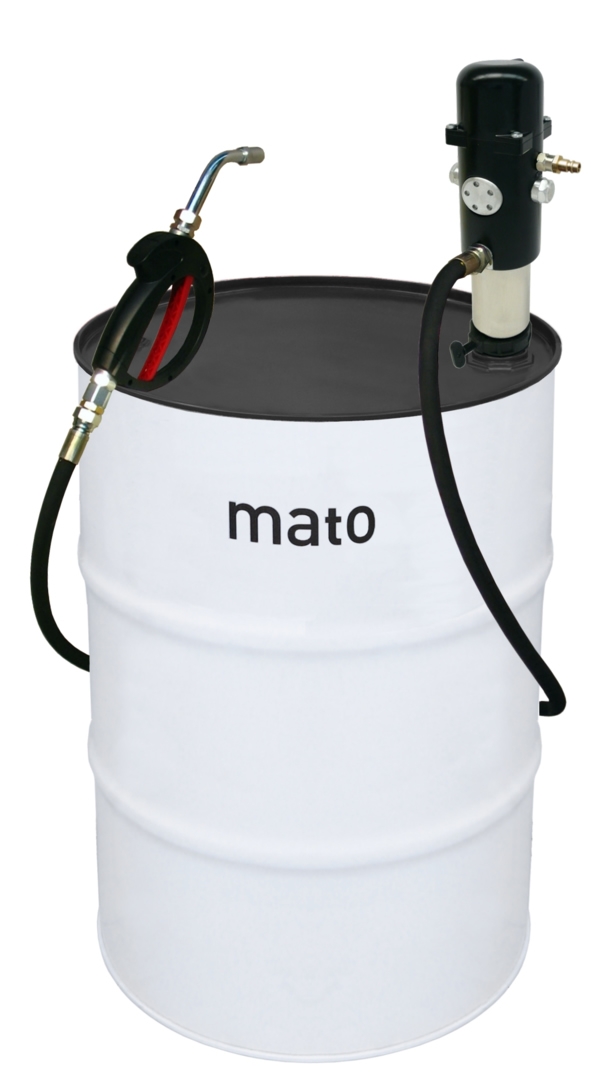

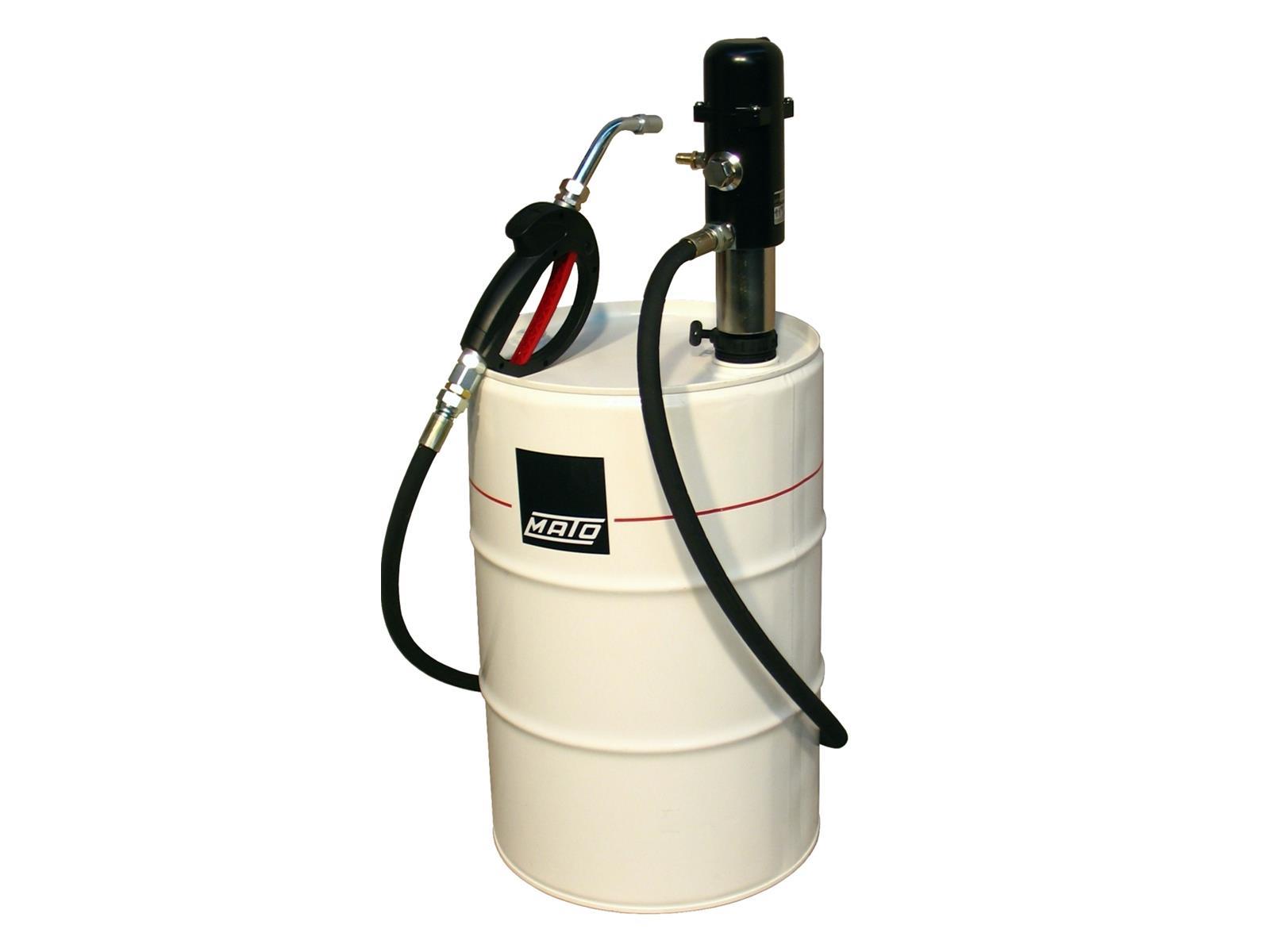

MATO pneuMATO Oil Transfer Pump for Drum Mounting for 50/60 and 200 Liter Drums
- Pump unit with telescopic suction pipe and suction strainer
- Adjustable between 520-800 mm
- Variable application capacity: suitable for 50/60 liter or 200 liter oil drums
- 2-meter pressure hose DN12 with R1/2" DKR union nut for easy and simple installation
Delivery time: 5-10 Tage
PIUSI DEPUROIL, Mobile Oil Filtration Unit 230 V with VISCOMAT Pump, 25 or 50 l/min
- Fluids: oil
- Filtration: 10 µm
- Electrical data: 230 V/50 Hz, 1.350 W, max. 6,2 A
- Portable filtration unit for one-step oil dialysis
- VISCOMAT vane pump, low noise
Delivery time: 1-3 days
PIUSI DRUM VISCOMAT DC, Oil Drum Kit with VISCOMAT 60/1 and EASY OIL / EASY K400 Nozzle
- Fluids: oil
- Flow rate: 4 l/min
- Pump: VISCOMAT 60/1 DC
- Oil dispensing kit for drum mounting
- DC gear pump VISCOMAT 60/1
Delivery time: 2-5 days
SAMOA Mobile Oil Dispenser DA-70, 70 l Lubricant Dispenser with Hand Pump, 1.5 m Hose
- Fluids: viscous lubricants
- Tank: 70 l
- Pump: hand pump
- 70 l tank, mobile unit
- Hand pump
Delivery time: 2-5 days
MATO pneuMATO 3 Lube-Station P-200, Stationary, Oil Pump System for 200 l Drums, 4 or 8 m Hose
- Pressure ratio: 1:3
- Output: approx. 18 l/min (free flow, pneuMATO 3 pump)
- Suction tube: steel suction tube for 200 l drum with foot valve and strainer
- Stationary oil pump system pneuMATO 3 with 1:3 pressure ratio for 200 l oil drums
- Steel suction tube with foot valve and strainer
Delivery time: 5-10 Tage
MATO pneuMATO 3 Lube-Station / Lube-Tank, Fresh Oil Pump System for 1,000 l Tank, with or without Tank
- Pump: pneuMATO 3, ratio 1:3, approx. 18 l/min (free flow)
- Media: engine, gear and hydraulic oils
- Oil pump system pneuMATO 3 with 1:3 pressure ratio (approx. 18 l/min)
- Steel suction tube for 1,000 l tank with foot valve and strainer
- Double-walled 1,000 l storage and disposal tank with level indicator and transport approval, drip tray with holder
Delivery time: 2-5 days
SAMOA Mobile Oil Dispenser DAZ-25, 25 l Lubricant Dispenser with Hand Pump and Inline Meter, 1.5 m Hose
- Fluids: viscous lubricants
- Tank: 25 l
- Pump: hand pump
- 25 l tank, mobile unit
- Hand pump
Delivery time: 2-5 days
Pressol Oil System Stationary 230V
- Voltage: 230 V
- Power consumption: 1.2 kW
- Flow rate at free discharge: 30 L/min
- Operating temperature range: +10 / +50 °C
Delivery time: 2-5 days

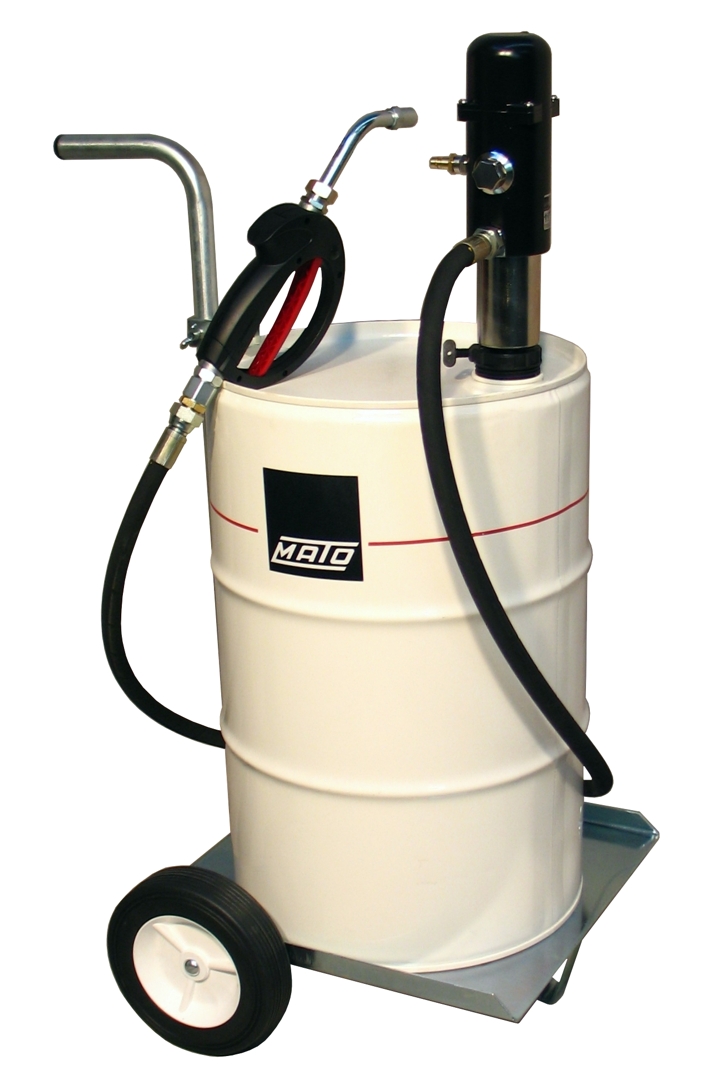

MATO pneuMATO Oil Transfer Pump, Mobile for 50/60 Liter Oil Drums
- Pump unit with telescopic suction pipe and suction basket
- Adjustable between 520-800 mm
- 2-meter pressure hose DN12 with R1/2" DKR union nut
- Equipped with a stable, galvanized trolley
- Complete with barrel holder
- pneuMATO 1 - mobile with oil filling gun and motor oil outlet
- pneuMATO 3 - mobile with oil filling gun and motor oil outlet
- pneuMATO 3 - mobile with DIGMET E35 and motor oil outlet
Delivery time: 5-10 Tage
PIUSI DRUM VISCOMAT 200/2 K400, Oil Drum Kit, 230 V, 9 l/min, EASY K400 Nozzle
- Fluids: oil
- Flow rate: 9 l/min
- Electrical data: 230 V/50-60 Hz, 800/950 W, max. 3,8/4,6 A
- Oil drum kit for high-viscosity oils
- VISCOMAT 200/2 gear pump
Delivery time: 2-5 days
PIUSI VISCOTROLL 70, Mobile Oil Dispenser 230 V, 25 l/min, with or without K33 Meter
- Fluids: oil
- Flow rate: 25 l/min
- Electrical data: 230 V/50 Hz, 750 W, max. 4,6 A
- Portable oil dispensing unit on sturdy trolley
- VISCOMAT 70 M vane pump for oil up to 500 cSt
Delivery time: 2-5 days
PIUSI VISCOTROLL 200/2 AC, Mobile Oil Dispenser, 9 l/min, 230 V/50 Hz, EASY OIL Nozzle
- Fluids: oil
- Flow rate: 9 l/min
- Electrical data: 230 V/50 Hz, 800 W, max. 3,8 A
- Portable oil dispensing unit on sturdy trolley
- VISCOMAT 200/2 gear pump, for oil up to 2,000 cSt
Delivery time: 2-5 days

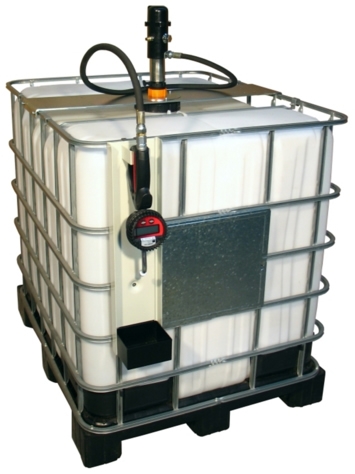

MATO Lube-Station IBC-1000 with DIGIMET E35, pneuMATO 3 Oil Pump System for 1,000 l IBC Containers
- Pump: pneuMATO 3, ratio 1:3, approx. 18 l/min (free flow)
- Media: engine, gear and hydraulic oils
- Oil pump system pneuMATO 3 (1:3) for 1,000 l IBC containers
- Mounting bridge incl. 2" TriSure adapter male to 2" BSP female
- Steel suction tube with foot valve and strainer, drip tray with holder
Delivery time: 5-10 Tage
MATO pneuMATO 3 Oil Pump System, Mobile, for 200 l Oil Drums, with 4 m Hose or 10 m Hose Reel
- Pressure ratio: 1:3
- Output: approx. 18 l/min (free flow, pneuMATO 3 pump)
- Suction tube: steel suction tube for 200 l drum with foot valve and strainer
- Mobile oil pump system pneuMATO 3 with 1:3 pressure ratio for 200 l oil drums
- Steel suction tube with foot valve and strainer
Delivery time: 5-10 Tage
The right oil dispensing device for your workshop
Occasional & manual
For occasional oil top-ups without a pump system: SW/S series oil squirter (€13.50) with a flexible or rigid metal tube, the PIUSI cylinder hand pump (€114) for 16 kg drums, or the SRL 500 gear-oil pump (€139, 6 l/min) for canisters.
Mobile dispensing – one to three oil types
For workshops without a fixed dispensing point, wheeled between lifting platforms: MATO pneuMATO 24 L (compressed air or hand pump, from €519), Samoa DA-25/DA-70 (from €513) or PIUSI Viscotroll 70 (€996) – compact, without elaborate installation.
Drum electric pump – several oil types daily
For daily fresh-oil dispensing from 200 L drums: MATO EP100/EP200 (11/22 l/min) mobile or EP300/EP400 wall-mounted – with a 4 m or 10 m hose reel. EP100-IBC for IBC containers. A clear system: EP100/300 = 11 l/min, EP200/400 = 22 l/min.
Stationary from a 1000 L tank
For car workshops with a high daily oil consumption and a fixed storage location: pneuMATO 3 stationary (€771) or fresh-oil tank system EP100/300 with a 1000 L tank (from €2,243) – a complete system, permanently installed, ready for immediate use.
With fluid management (TMS smart)
For digital consumption recording per mechanic and job: DrumMobil 200 EP/PP with TMS smart (from €2,061) – RFID user identification, all dispensing logged. MID-calibratable variants PPe/EPe (€3,899) for customer billing.
Compact system – several dispensing points
For larger workshops with several dispensing points: compact oil systems EZP 0.4/0.5 (from €3,032) with a 1000 L tank and a dispensing counter, or the fresh-oil island 22 EZP (from €6,385) for 2 × 200 L drums with two electric pumps and hose reels.
Frequently asked questions about oil dispensing equipment
The right oil dispensing device for your workshop
Our specialist team advises you free of charge – on oil type, viscosity, flow rate, mobility and the optimal overall solution for your operation.
☎ Call +49 36071 924340 Request a quote
