Schmiersystem-Zubehör Nippel, Mundstücke, Schläuche, Adapter & Fettzähler
Vollständiges Zubehörsortiment für Fettpressen und Schmiersysteme – Schmiernippel DIN 71412, 4-Backen-Greifmundstücke, Sicherheitsmundstücke, Düsenrohre, Hochdruck-Gummipanzerschläuche (300mm bis 10m), ZSA-Kupplungen, Lube-Shuttle®-Adapter, Fettfolgekolben und präzise Fettzähler DIGMET / PIUSI. Über 120 Artikel.
Schmiernippel & Mundstücke
Hydraulik-Kegel-Schmiernippel H1/H2/H3 nach DIN 71412 (ab 0,42 €), Schutzkappen, Sortimentskästen mit 110–475 Stk. 4-Backen-Greifmundstücke (3,53 €), Nadelspitz-, Präzisions- und Sicherheitsmundstücke Safelock, safeLOCK-L und Quick-Fix (39–74 €). Hochdruckabschmierpistole standard/deluxe (83,50–268 €).
Düsenrohre & Winkeladapter
Düsenrohre 150mm gerade und gebogen – mit 4-Backen-Mundstück, Spitzmundstück oder Schnellwechselkupplung (3,81–32 €). Winkeladapter eco und deluxe mit Drehgelenk (6,31–12 €). Spezial-Düsenrohr F4020 für Kardanwellen. Drehgelenke linear und mehrachsig für schwer zugängliche Nippel.
Hochdruckschläuche
Kunststoff-Panzerschlauch PH-30 (300mm, 7,80 €), Sicherheits-Gummipanzerschläuche RH-30C/RH-50 (300/500mm, 13,50–15 €) bis zu langen Schläuchen RH-100 (1m, 83 €), RH-350 (3,5m, 134 €), RH-650 (6,5m, 265 €) und RH-1000 (10m, 384 €). Doppelschlauch für LubeJet (266 €).
Fettzähler & Messtechnik
Durchflussanzeiger M10×1/R1/8" (74,50 €), DIGMET E35 Einbauzähler (294,50 €), DIGMET E5 Fettzähler (468,50–575 €), PIUSI K200 Grammzähler kalibrierbar (357 €) und PIUSI Greaster Grammzählerpistole (514 €) für die präzise Fettmengen-Erfassung in industriellen Schmiersystemen.
Assortment Box of Professional Cone Grease Nipples "Series H" and "Series M" SSK 170 pcs.
- Assortment of 170 pieces
- Made from precision steel (DIN 71412)
- Hardened
- Bright zinc-plated
- Passivated
Delivery time: 1-3 days
Rubber Armored Hose RH-350 3.5 m, Connection Thread R1/4"
- Connection thread R1/4" (internal & external)
- Union nut with sealing cone
- Length: 3.5 m
Delivery time: 2-5 days

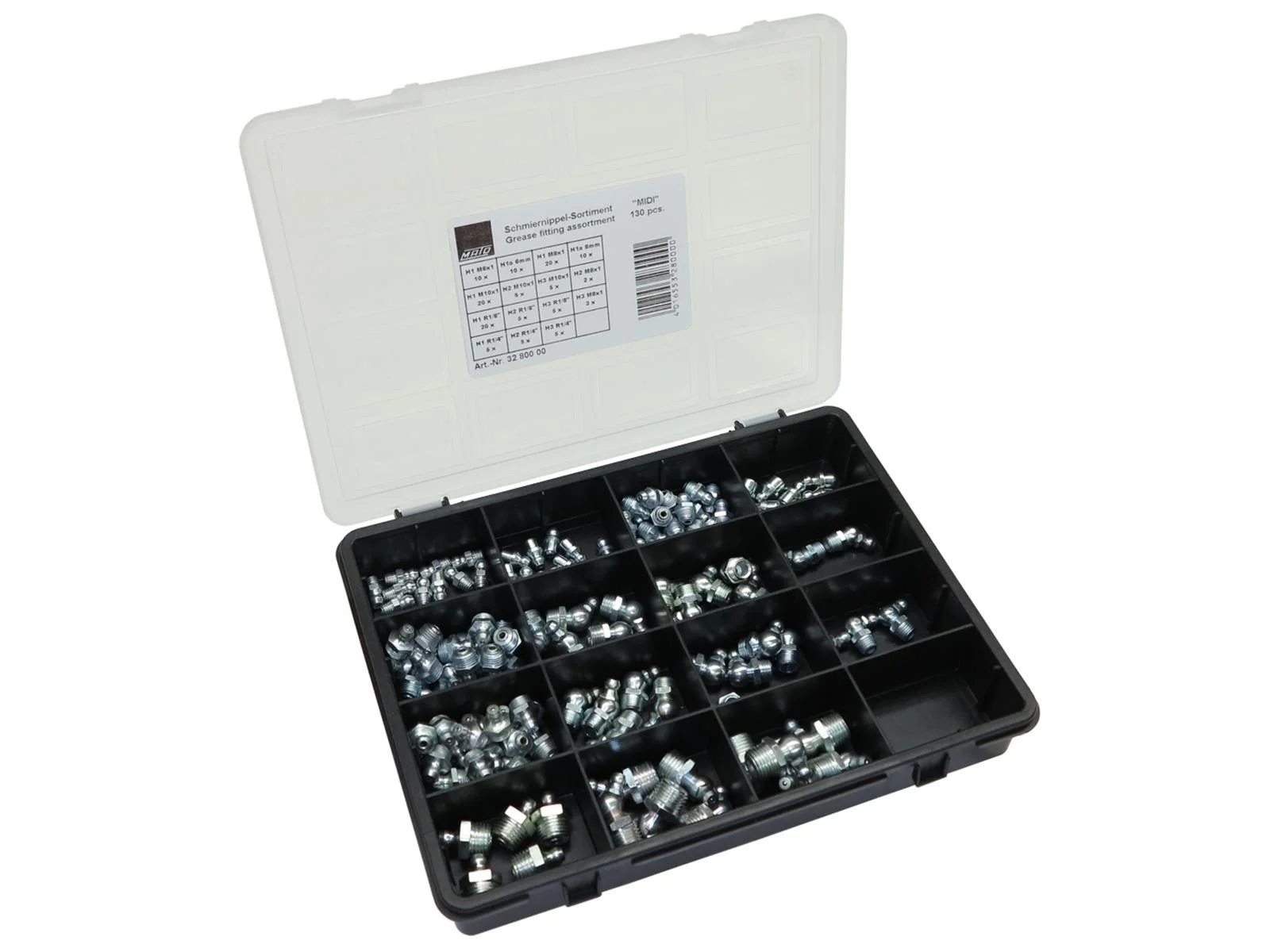

MATO Grease Nipple Assortment MIDI
- Assortment box containing 130 grease nipples
Delivery time: 2-5 days
Multi-Charger 12 - 240 Volt for 18 V Accu-Greaser
- with overcharge protection
- 12-240 V / 50-60 Hz including EU flat plug (2-pin) and connection socket for optional cable for cigarette lighter connection (12/24 V DC)
- 3 LED charging indicator lights and 2.0 m connection cable
Delivery time: 2-5 days

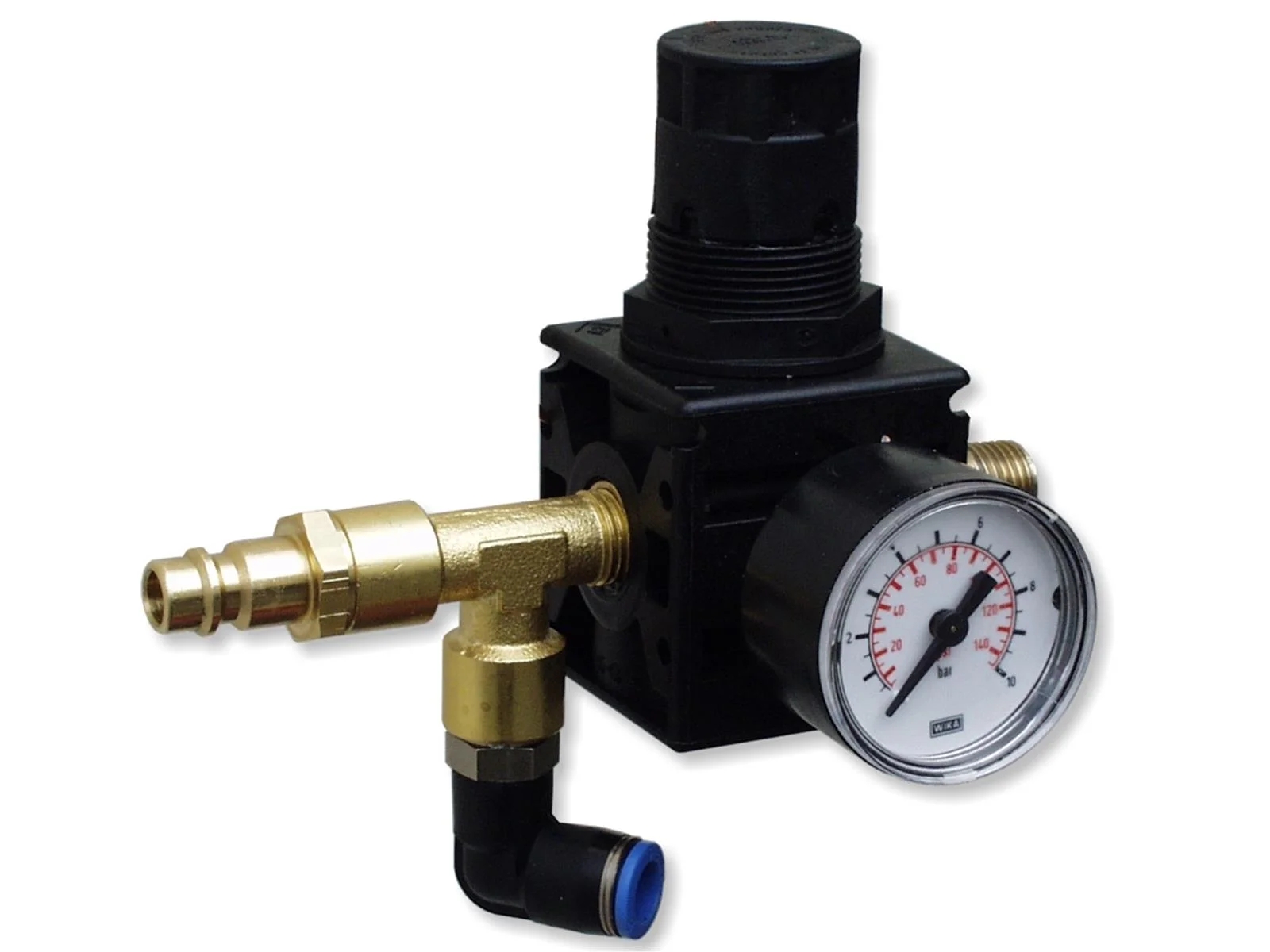

Pressure Limiter 5 Bar for pneuMATO 55 - LubeJet
- Air Pressure Limitation: Maximum 5 bar
- Compatibility: Specifically designed for pneuMATO 55 - LubeJet
- Connection: Equipped for the compressed air supply hose
Delivery time: 2-5 days
Cart for 12-60 L Containers with Wheels
- Capacity: 12-60 liters containers or 50 kg bucket
- Material: Steel tube frame, powder-coated
- Base: Open
- Retaining Loops: Height adjustable
- Wheels: 2 or 4 plastic wheels
Delivery time: 5-10 Tage

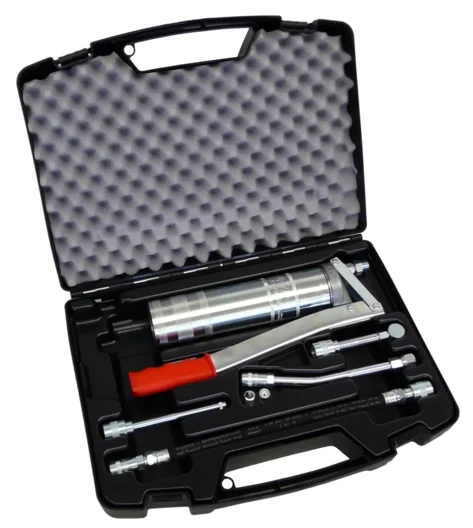

Lube-Shuttle Lubrication Kit Case
- LubeShuttle System Grease Gun with Connector Piece
- Nozzle Tube E4024 with Union Nut
- Safety Rubber Armored Hose RH30 CC with 4-Jaw Hydraulic Gripping Nozzle
- Nozzle Tube with Slide Coupling Sk16
- Nozzle Tube for Cardan Shafts F4020
- Quick-Change Coupling
- Pointed and Universal Nozzle
Delivery time: 2-5 days

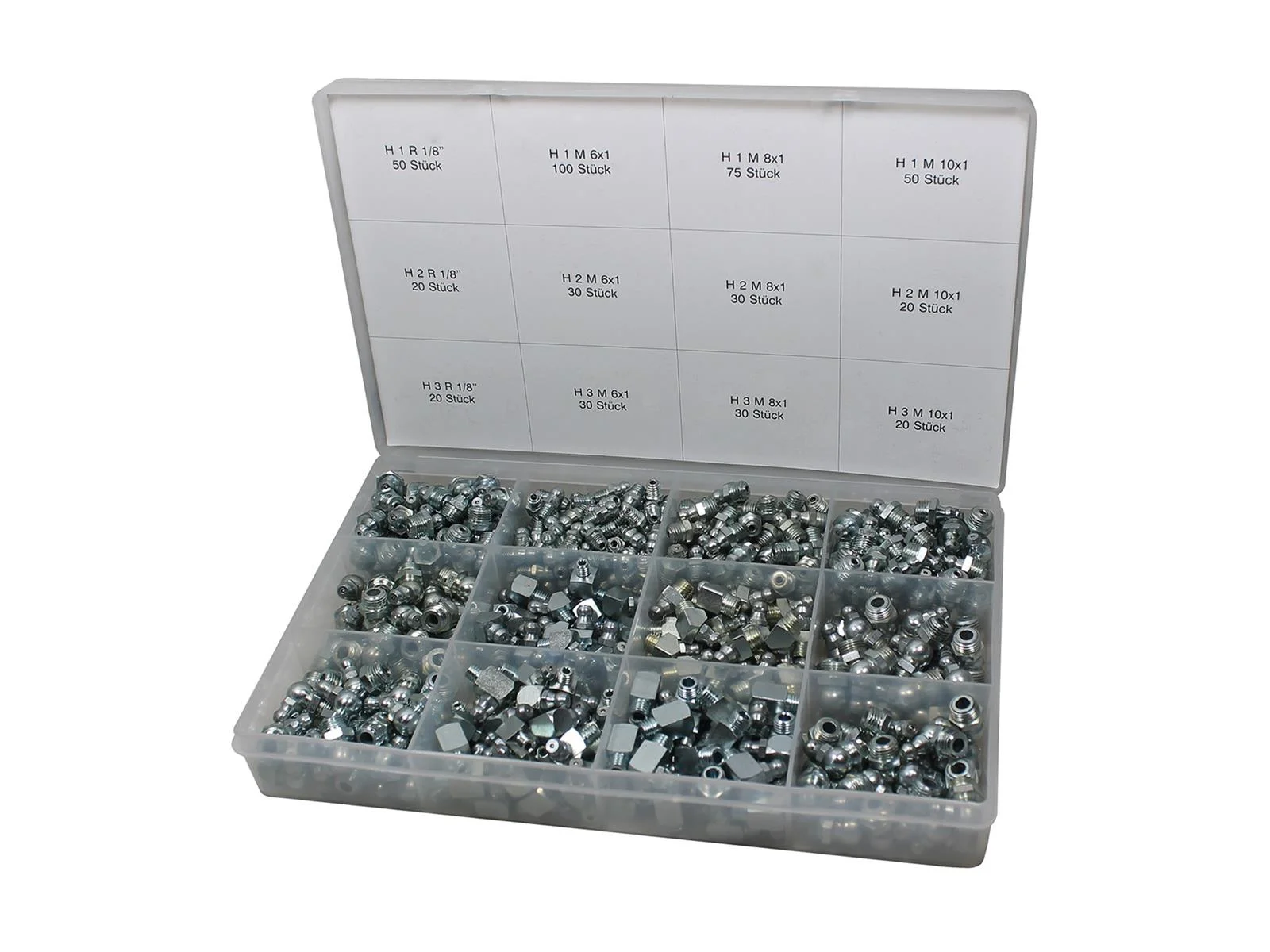

Assortment Box Professional Cone Grease Nipples "Series H" - 475 Pieces
- SSK 475 - 475 Cone Grease Nipples DIN 71412 (hexagonal)
- Made from precision steel (DIN 71412), hardened, bright zinc-plated, and passivated
Delivery time: 1-3 days

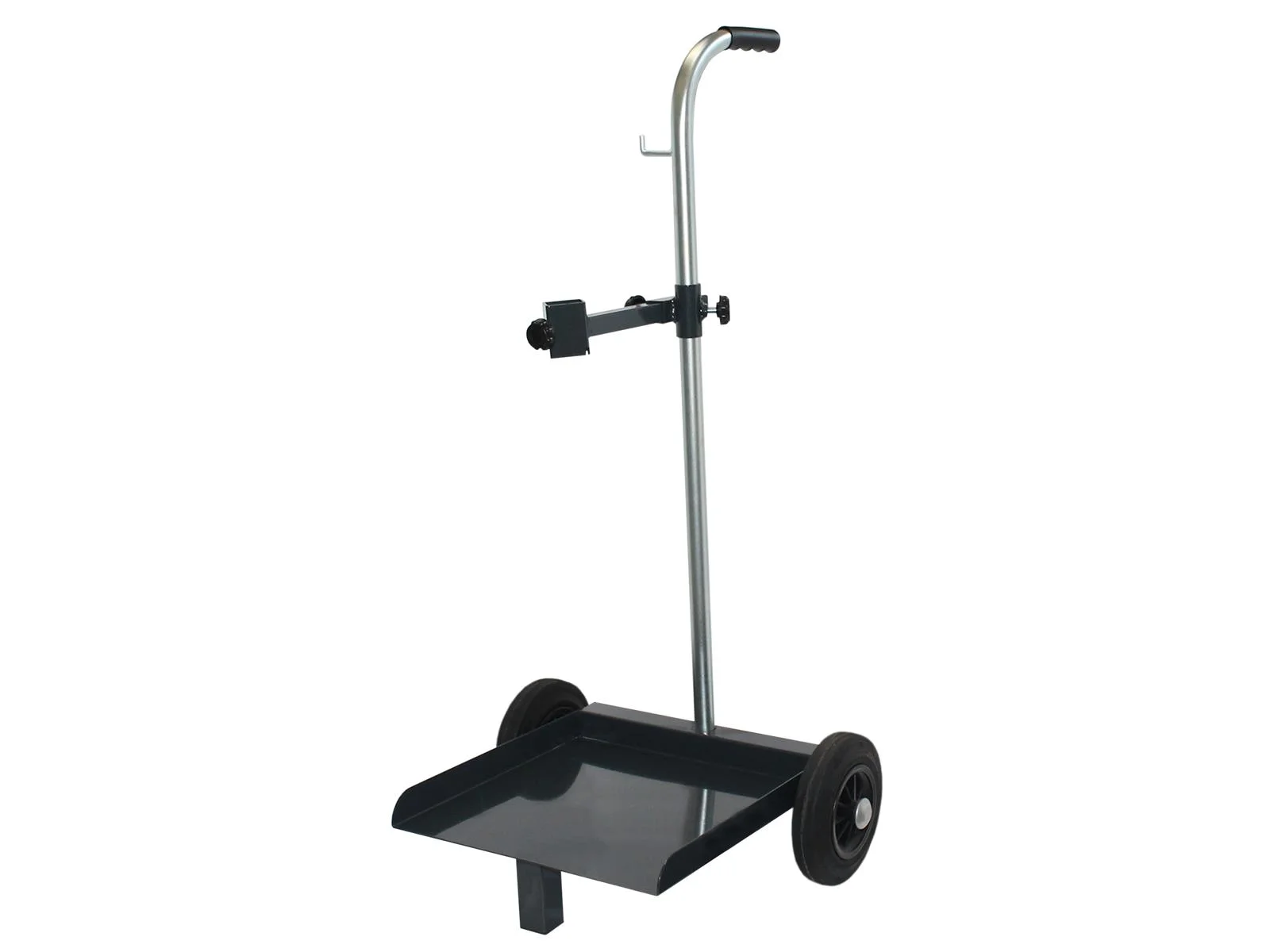

Trolley for Containers up to 60 Liters
- Two solid rubber wheels
- Enclosed base
- Powder-coated steel tube frame
- Includes pump holder
Delivery time: 5-10 Tage
MATO Lance with Grease Brush including Grease Handle for Cordless Grease Gun
- Components: 2-piece lance
- Length: 400/800 mm
- Connection: directly to the 750 mm high-pressure rubber armored hose of an Accu-Greaser
- Brush: PA6 nylon brush with a brush head diameter of 25 mm
Delivery time: 2-5 days
Suction Hose DN 20 for Bio-Diesel 1.5m MATO
- Diameter: DN 20
- Length: 1.5m
- Material: Suitable for bio-diesel
Delivery time: 2-5 days
Rubber Armored Hose RH-650 6.5 m, Connection Thread R1/4"
- High-pressure rubber armored hose DN 6 with steel mesh reinforcement
- Suitable for manual and pneumatic high-pressure lubrication devices (e.g., pneuMATO 55, pneuMATO 75, Bucket-Greaser, FP-06, FP-08, K-07)
- Burst pressure 1,650 bar
- Enhanced heavy-duty design
- Connection thread R1/4" (internal & external)
- Union nut with sealing cone
- Hose length: 6.5 m
Delivery time: 2-5 days

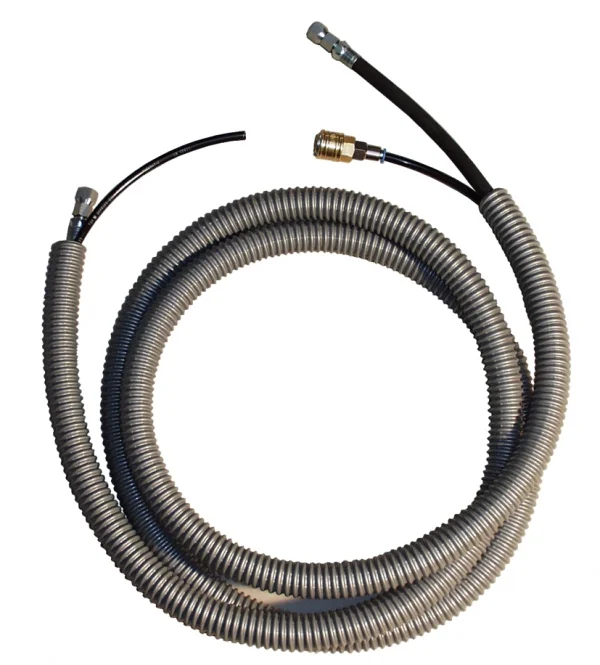

Dual Hose for pneuMATO 55 - LubeJet
- Length options: 3.5m, 6.5m, and 10m
- High-pressure grease hose with a burst pressure of 1650 bar
- Equipped with steel braid reinforcements for additional strength
- Accompanied by an efficient compressed air supply hose
- Outer cover with a high-quality protective sheath for secure encapsulation
- Integrated steel spiral enhances performance and durability
Delivery time: 2-5 days

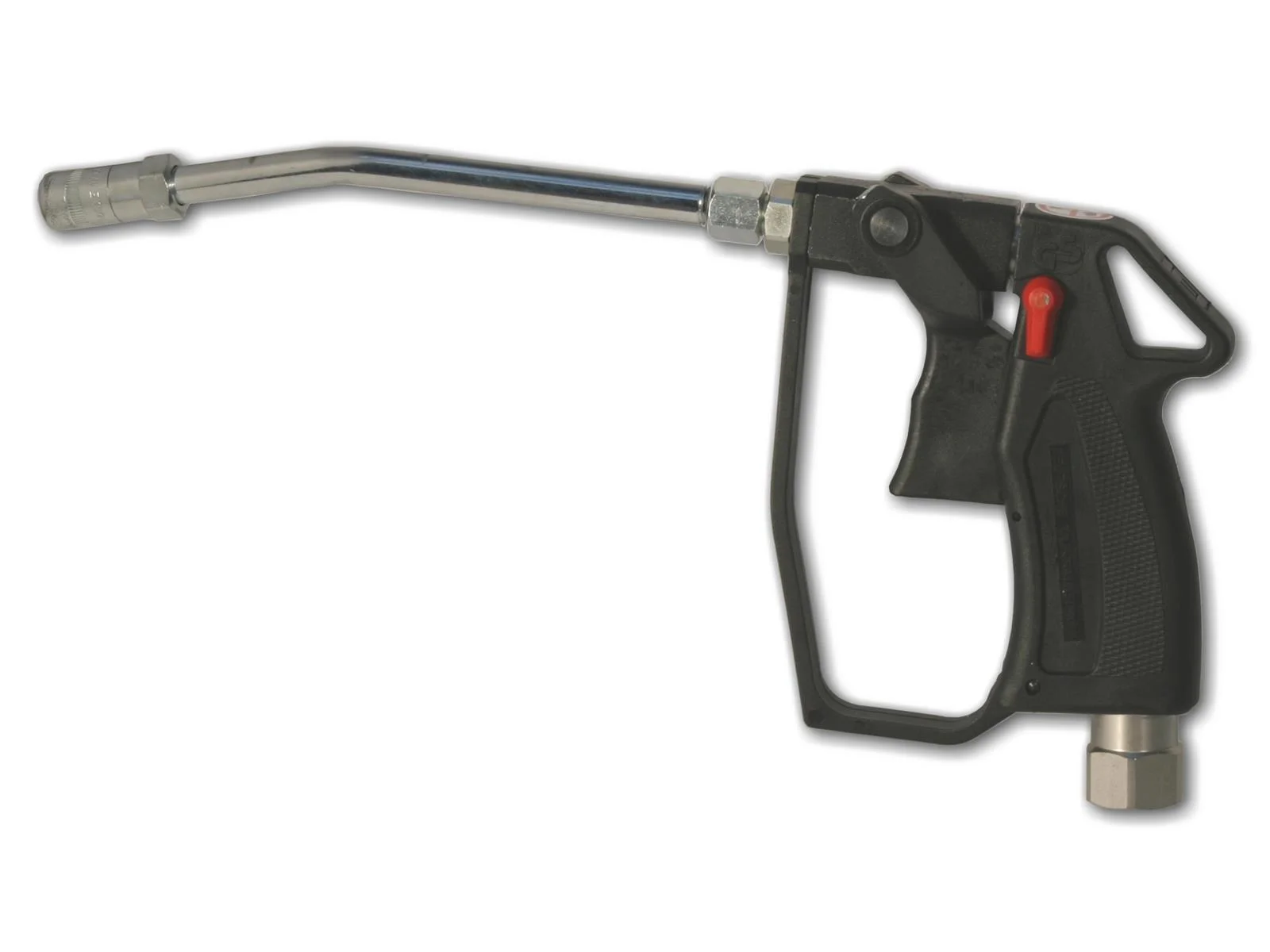

Deluxe High-Pressure Grease Gun
- Linear rotary joint for flexible mobility
- Nozzle tube E4024 R1/8" for precise applications
- 4-jaw hydraulic gripping chuck, connection R 1/4" female thread
- Maximum operating pressure: 600 bar
- Low actuation force, even at high pressure
Delivery time: 2-5 days
Grease Follower Plate FO 200 596 for Inner Diameter 550 - 590 mm MATO
- Suitable for suction pipe diameter of 40 mm
- For inner diameter of 550 - 590 mm
- Compatible with eco-/centraFILL, Bucket-Greaser, pneuMATO 55, pneuMATO 75, and pneuMATO-fill
Delivery time: 2-5 days

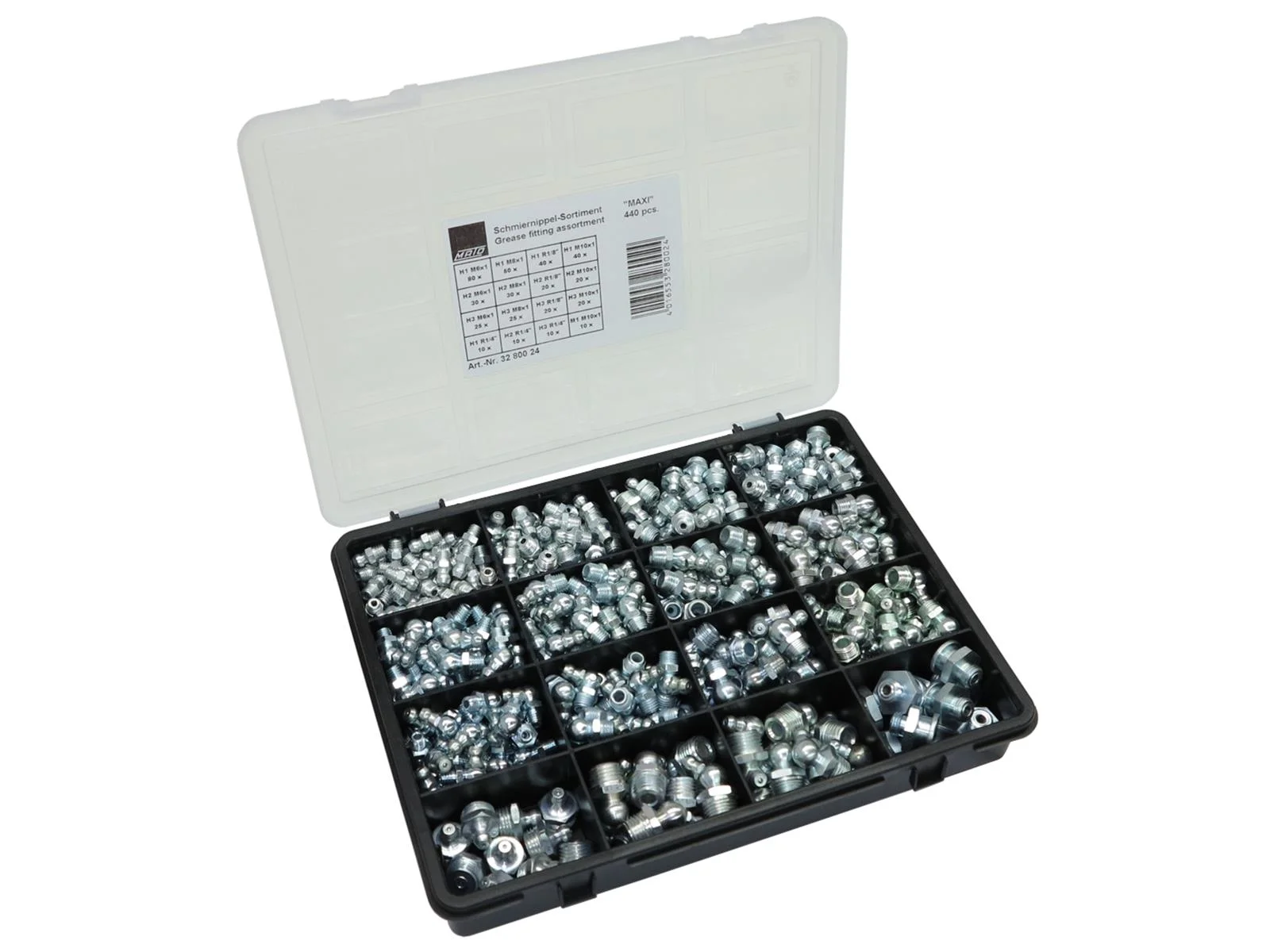

MATO Grease Nipple Assortment Maxi
- Assortment Box with 420 Grease Nipples
Delivery time: 2-5 days
MATO Electronic Built-in Meter DIGMET E35 Lubricating Oil Meter
- Resettable with LCD Display
- Swivel Joint
- Measuring Range up to 35 l/min
- 2 Counting Ranges (total and resettable)
- Measurement Accuracy +/- 0.5%
- Calibratable
Delivery time: 2-5 days
Spray Lance Set for Lube-Shuttle LubeJet-eco
- Three straight spray lances with lengths of 500 mm, 750 mm, and 1200 mm
- One curved spray lance with dimensions of 170 mm / 55 mm
- All lances have a diameter of 8 mm and are made of stainless steel
Delivery time: 5-10 Tage

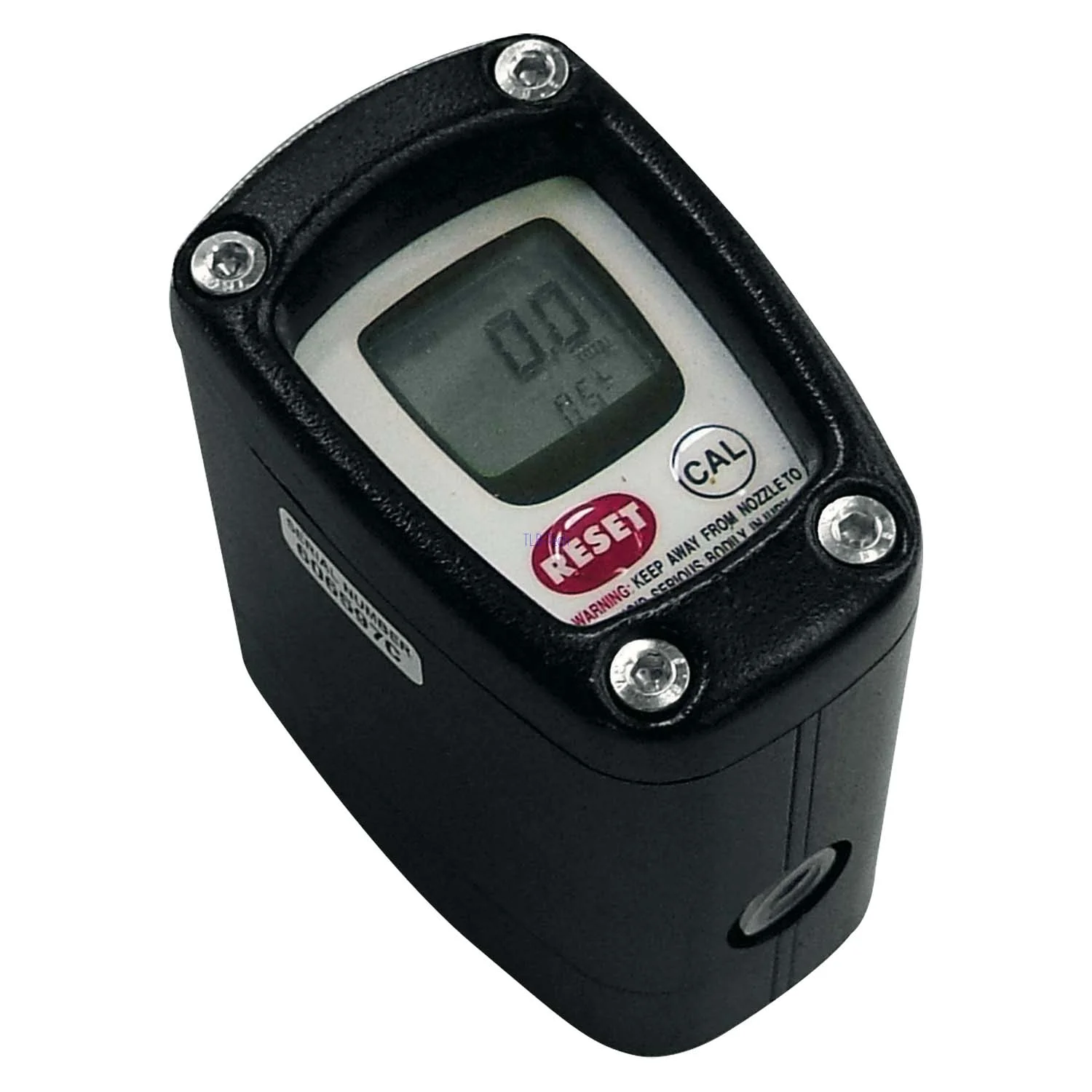

PIUSI K200 Calibratable Grease Gram Counter (g/kg)
- Type of Fluid: Grease
- Flow Rate: 0.1-2.5 kg/min
- Pressure: up to 500 Bar
- Battery Included
- Inlet-Outlet: 1/8" BSP
Delivery time: 2-5 days
Rubber Armored Hose RH-1000, 10 m, Connection Thread R1/4"
- High-pressure rubber armored hose DN 6 with steel braid reinforcement
- Length: 10 m
- Burst pressure: 1,650 bar
- Enhanced heavy-duty design for high stress applications
- Connection thread R1/4" (internal & external)
- Swivel nut with sealing cone for a secure connection
- Suitable for manual and pneumatic high-pressure lubrication devices (e.g., pneuMATO 55, pneuMATO 75, Bucket-Greaser, FP-06, FP-08, K-07)
Delivery time: 2-5 days

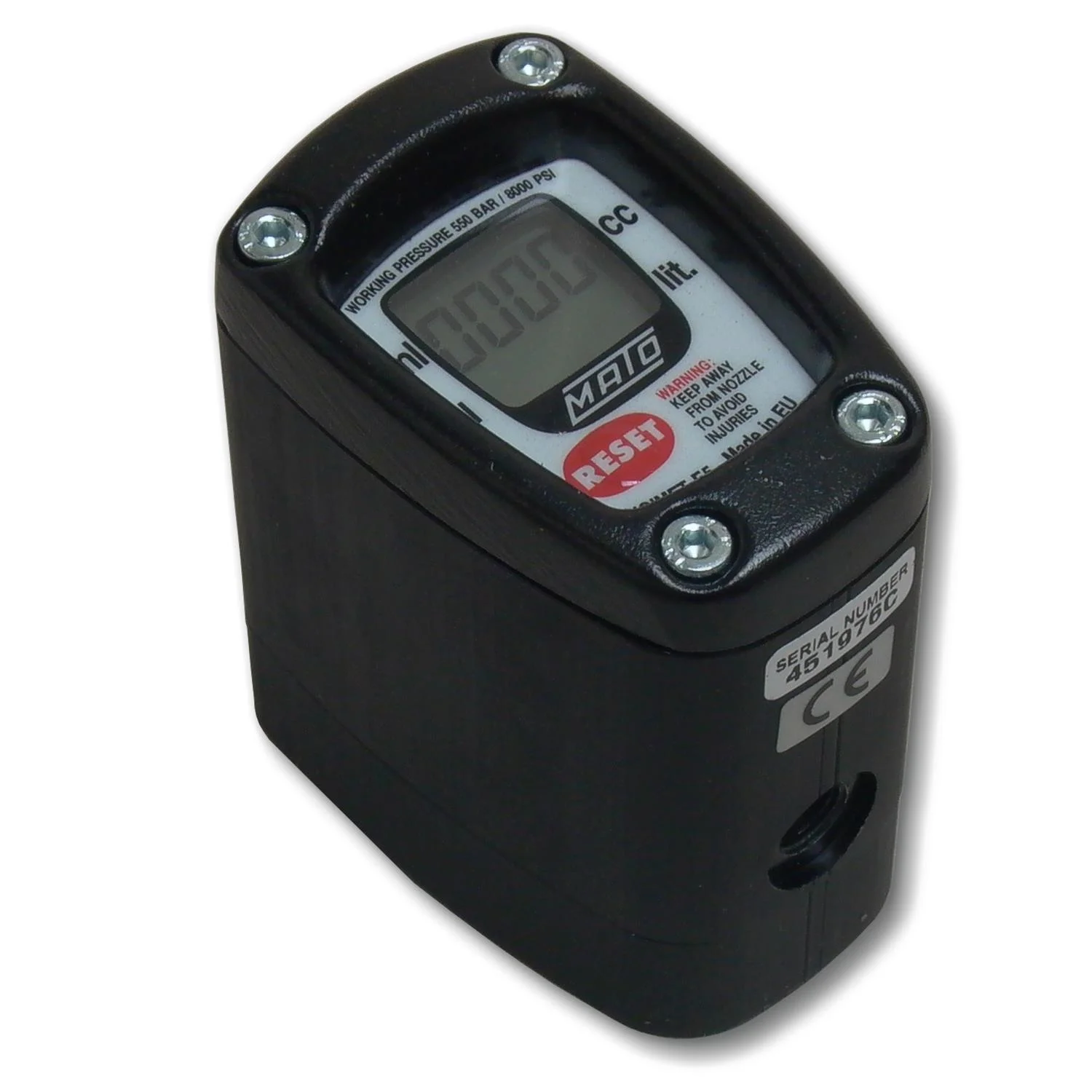

DIGMET E5 Inline - Fat Counter
- Display in ccm, resettable
- Connection on both sides R 1/8" internal
- Total volume in liters, non-resettable
- Operating pressure: max. 500 bar
- Burst pressure: min. 1000 bar
- Measurement accuracy: +/- 3%
- Max. permissible flow rate: 2000 ccm/min.
Delivery time: 2-5 days

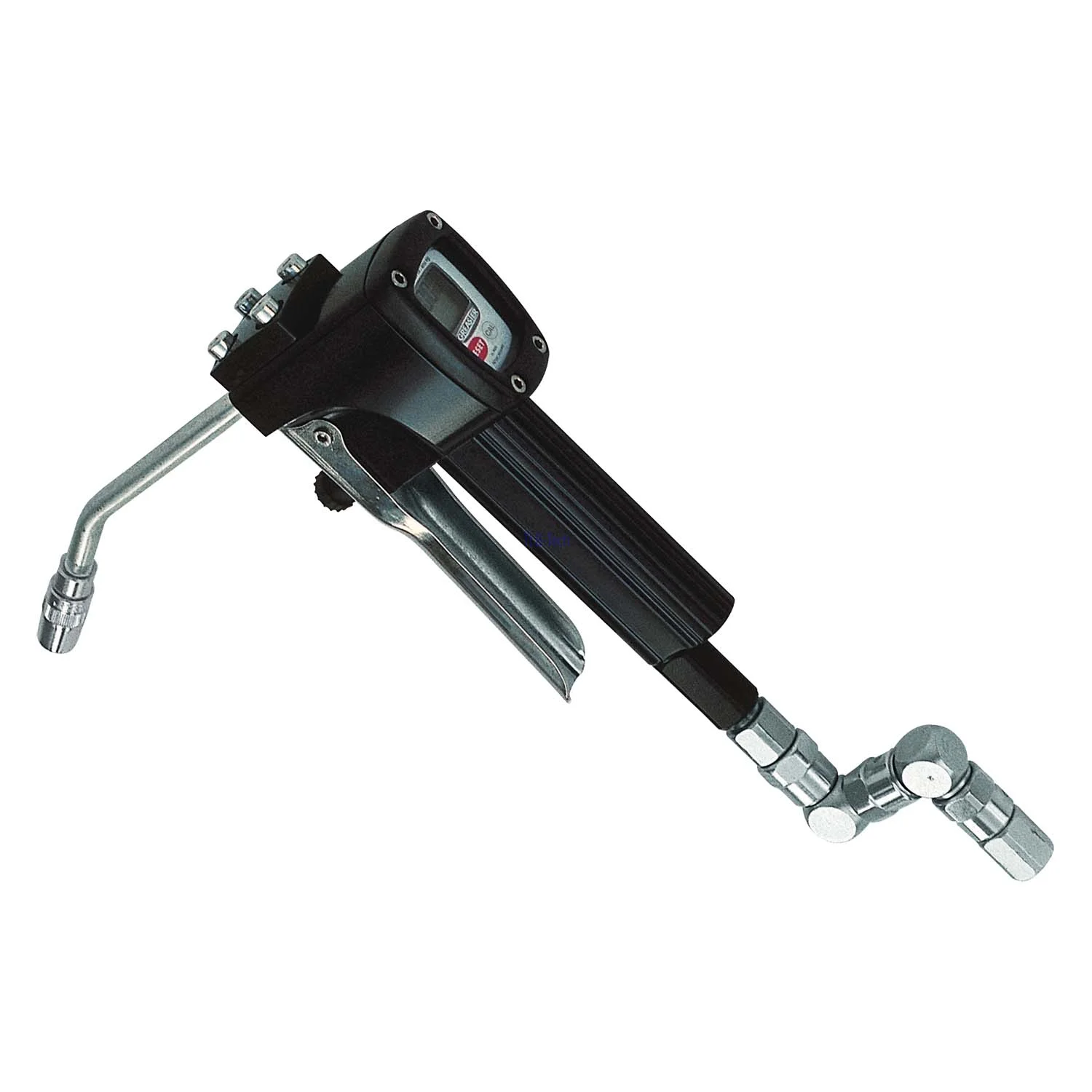

PIUSI Grease Metering Gun "Greaster" with Meter/Handle (g/kg) featuring Z-Joint and Outlet Pipe
- Type of Fluid: Grease
- Partial Quantity: GR
- Cumulative Total Quantity: KG
- Flow Rate: 0.1-2.5 kg/min
- Air Pressure: 550 Bar
- Inlet: 1/4" BSP
- Outlet: M 10x1
- Includes Z-joint and discharge pipe
Delivery time: 2-5 days

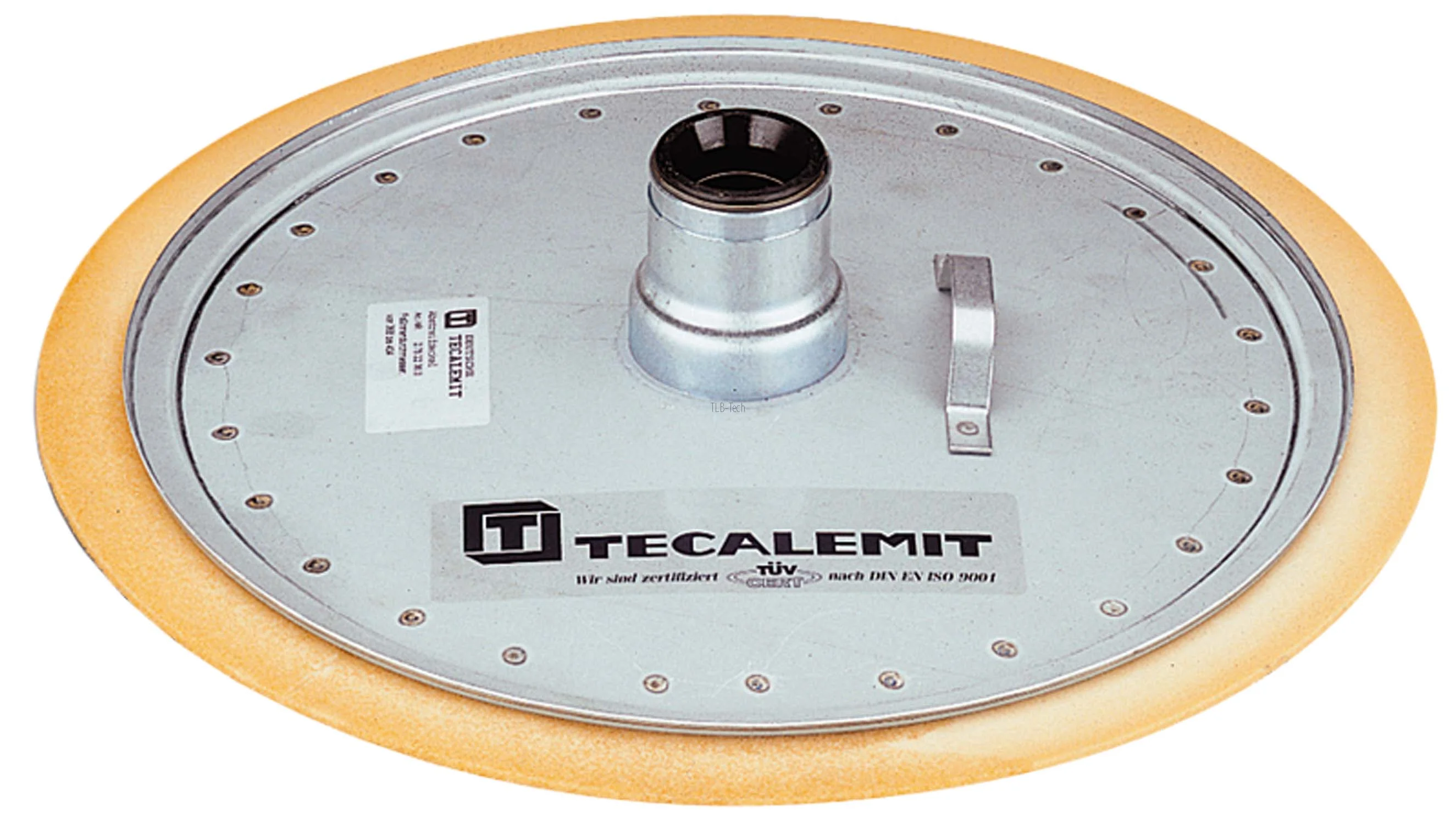

Wiper Lid for 560-574 mm Drum Inner Diameter
Delivery time: 2-5 days
DIGMET E5 Fat Counter
- Display in cubic centimeters, resettable
- Connection R 1/4" internal
- Total volume in liters, non-resettable
- Operating pressure: max. 500 bar
- Burst pressure: min. 1000 bar
- Measurement accuracy +/- 3%
- Max. permissible flow rate: 2000 ccm/min.
Delivery time: 2-5 days
Das richtige Schmiersystem-Zubehör für Ihre Anlage
Welcher Schmiernippel – H1, H2 oder H3?
H1 (gerade, DIN 71412A): Standard, senkrecht einschraubbar. H2 (45°, DIN 71412B): für schräg zugängliche Stellen. H3 (90°, DIN 71412C): seitlicher Zugang. Alle R1/8"-Gewinde, verzinkt. Einzeln (ab 0,42 €) oder Sortimentskasten 110–475 Stk.
Sicherheitsmundstücke – wann nötig?
Standard-4-Backen-Mundstücke können unter Hochdruck abrutschen. Safelock (39 €), safeLOCK-L (49 €) und Quick-Fix (49 €) verriegeln mechanisch. Empfehlenswert für Hochdruckschmierung und Einsatz über Kopf.
Schlauchlänge nach Einsatz
300mm: kompaktes Arbeiten. 500mm: Werkstatt-Standard. 1–3,5m: Stationäranlagen/LKW. 6,5–10m: Hochdruck-Abschmierstationen. Ab 100 bar immer Sicherheits-Gummipanzerschlauch RH verwenden – nie Kunststoffschlauch.
ZSA-Kupplungen für Zentralschmieranlagen
ZSA-Stecker R1/4" ISO 7241B DN6 (30,50 €) und ZSA-Hydraulikkupplung (73,50 €) – normierte Schnellkupplungen für Zentralschmieranlagen. Druckdichtes werkzeugloses Verbinden mit automatischem Schließen beim Trennen.
Fettzähler – Dosierung und Dokumentation
Durchflussanzeiger (74,50 €): zeigt ob Fett fließt. DIGMET E35 (294,50 €): elektronischer Einbauzähler. PIUSI K200 (357 €): kalibrierter Grammzähler. PIUSI Greaster (514 €): Grammzählerpistole. Für Wartungsdokumentation und präzise Fettmengen-Vorgaben.
Lube-Shuttle Adapter und Zubehör
Refill-Adapter Set (30 €), KAJO-/LINZER-Adapter (15 €) zum Befüllen aus verschiedenen Gebinden. Sprühlanzen-Set LubeJet-eco (334 €) für Sprühschmierung. Dispenser Lube-Shot 400 für saubere Einzelportion-Abgabe.
Häufige Fragen zum Schmiersystem-Zubehör
Das passende Zubehör für Ihr Schmiersystem
Unser Fachteam berät Sie kostenlos – zu Nippeltypen, Schlauchauswahl, Kupplungen und Messtechnik für Ihre Schmiertechnik-Infrastruktur.
