Grease filler units for cartridges, centralised lubrication systems & follower-plate containers
Grease filler units for the clean, air-free filling of grease-gun cartridges, follower-plate containers and centralised lubrication systems from the grease bucket – from grease follower plates (€39) through ecoFILL and centraFILL (MATO) to the Füllmeister FGZ Kombi (Samoa) and the pneumatic pneuMATO-fill (up to 4,000 g/min). For grease buckets from 5 to 200 kg.
Grease follower plates – basic accessory
MATO grease follower plates FO series in 9 sizes (€39–115) for grease-bucket internal diameters of 165–410 mm – they push the grease evenly downwards and prevent air pockets during intake. Compatible with ecoFILL, centraFILL, pneuMATO 55, pneuMATO 75 and Bucket Greaser. Suction-tube Ø 40 mm.
ecoFILL & centraFILL – MATO filler units
ecoFILL-standard (€145.50, 5–200 kg), ecoFILL-deluxe (€198.50, 10–50 kg), ecoFILL-deluxe JOKEY (€269.50, 18/20 kg JOKEY containers), centraFILL-deluxe (€294, 10–50 kg, with a CLS coupling) and centraFILL-mobile (€432) – for NLGI greases class 000–2, with a grease follower plate for a constant supply.
Füllmeister FG plus & FGZ Kombi
Samoa-Hallbauer Füllmeister FG plus stationary (€201–206, 50 cc/stroke) for 15/18 and 25 kg containers. FGZ Kombi (€381–612) for 15/18, 25 and 50 kg – mobile or stationary, works down to –20 °C, max. 35 bar, with a CLS coupling to ISO 7241B DN6 and a 2 m PVC grease hose.
pneuMATO-fill – pneumatic up to 4,000 g/min
MATO pneuMATO-fill as a unit (€598.50), wheeled 15–50 kg (€896.50) and as a filling pump 10–200 kg (€935) – a pneumatic high-performance grease filler unit with a 1:3 pressure ratio, up to 4,000 g/min flow rate. For large grease quantities and quick filling in industrial use.

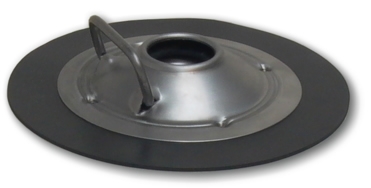

MATO Grease Follower Plate FO 5 205/150
- Type: FO 5
- Dimensions A/B: 205/150 mm
- For container inner Ø: 165 – 200 mm
- Grease follower plate with domed profile and bypass bore for residual emptying
- For suction tube Ø 40 mm
Delivery time: 5-10 Tage
MATO Grease Follower Plate FO 15 285/242
- Type: FO 15
- Dimensions A/B: 285/242 mm
- For container inner Ø: 255 – 282 mm
- Grease follower plate with domed profile and bypass bore for residual emptying
- For suction tube Ø 40 mm
Delivery time: 5-10 Tage
MATO Grease Follower Plate FO 20 312/242
- Type: FO 20
- Dimensions A/B: 312/242 mm
- For container inner Ø: 285 – 305 mm
- Grease follower plate with domed profile and bypass bore for residual emptying
- For suction tube Ø 40 mm
Delivery time: 5-10 Tage
MATO Grease Follower Plate FO 18 291/242
- Type: FO 18
- Dimensions A/B: 291/242 mm
- For container inner Ø: 265 – 285 mm
- Grease follower plate with domed profile and bypass bore for residual emptying
- For suction tube Ø 40 mm
Delivery time: 5-10 Tage
MATO Grease Follower Plate FO 15 273/204
- Type: FO 15
- Dimensions A/B: 273/204 mm
- For container inner Ø: 220 – 267 mm
- Grease follower plate with domed profile and bypass bore for residual emptying
- For suction tube Ø 40 mm
Delivery time: 2-5 days
MATO Grease Follower Plate FO 10 236/204
- Type: FO 10
- Dimensions A/B: 236/204 mm
- For container inner Ø: 215 – 230 mm
- Grease follower plate with domed profile and bypass bore for residual emptying
- For suction tube Ø 40 mm
Delivery time: 2-5 days
MATO Grease Follower Plate FO 25 338/285
- Type: FO 25
- Dimensions A/B: 338/285 mm
- For container inner Ø: 300 – 335 mm
- Grease follower plate with domed profile and bypass bore for residual emptying
- For suction tube Ø 40 mm
Delivery time: 5-10 Tage
MATO Grease Follower Plate FO 40 356/285
- Type: FO 40
- Dimensions A/B: 356/285 mm
- For container inner Ø: 305 – 350 mm
- Grease follower plate with domed profile and bypass bore for residual emptying
- For suction tube Ø 40 mm
Delivery time: 5-10 Tage
MATO Grease Follower Plate FO 50 415/354
- Type: FO 50
- Dimensions A/B: 415/354 mm
- For container inner Ø: 385 – 410 mm
- Grease follower plate with domed profile and bypass bore for residual emptying
- For suction tube Ø 40 mm
Delivery time: 2-5 days

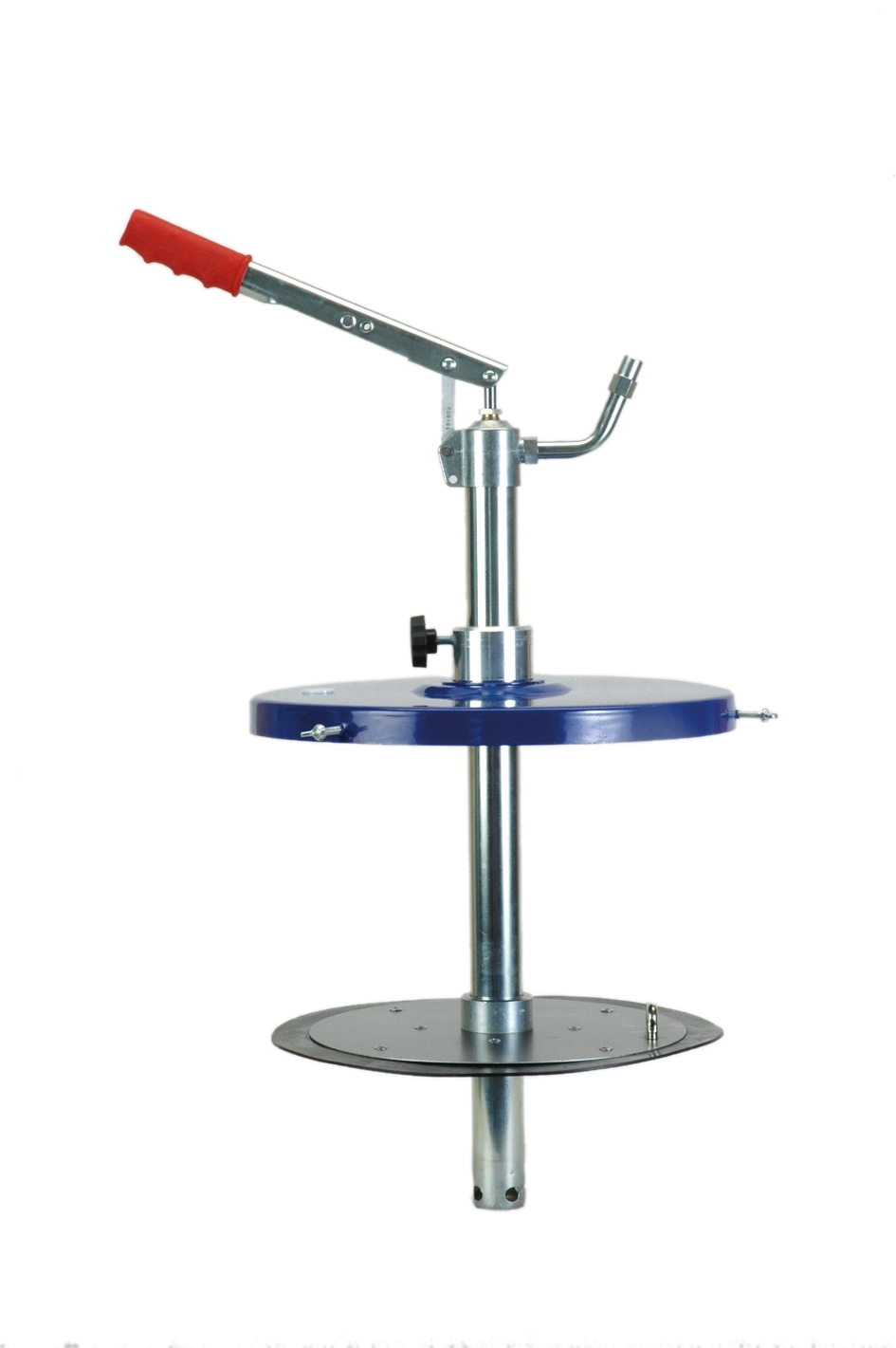

Grease Gun Filling Device ecoFILL Standard for 5 to 200 kg Grease Buckets
- For grease containers from 5 kg to 200 kg
- For greases of NLGI grade 000 - 2
- 3 lateral set screws for secure fastening
- Follower piston for consistent supply
Delivery time: 1-3 days

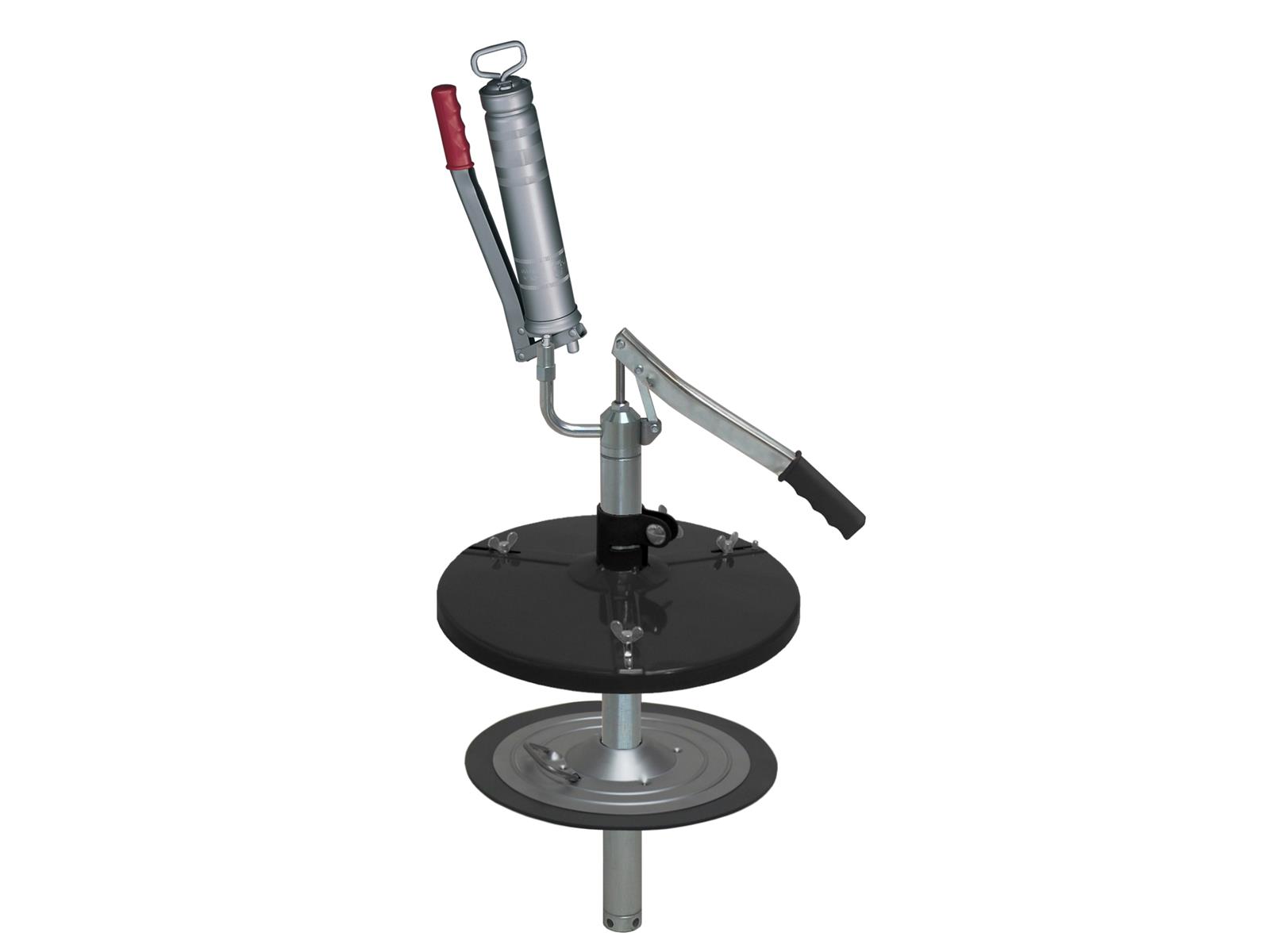

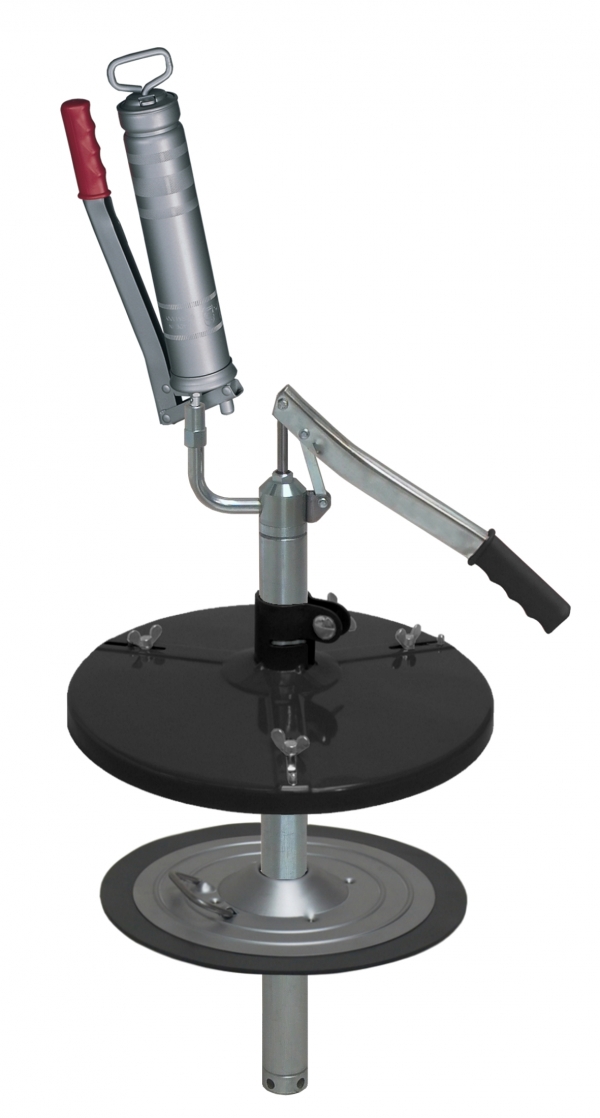

MATO Grease Gun Filler ecoFILL-deluxe, for 10 to 50 kg Grease Buckets
- Greases: NLGI grade 000 – 2
- Grease gun filler with centring lid (special mechanism for optimal centring of the pump unit)
- With follower plate for professional, economical and clean filling
- For greases of NLGI grade 000 – 2
Delivery time: 5-10 Tage
SAMOA Füllmeister FG plus 25, Grease Gun Filling Pump, 25 kg Pail, Stationary
- Fluids: greases up to NLGI 2 (incl. semi-fluid)
- Flow rate: approx. 50 cm³/stroke
- Delivery pressure: approx. 15 bar
- Approx. 50 cm³/stroke, delivery pressure approx. 15 bar
- For lever guns X-TRA 701, PEP 500, DFP 500 and DFP 1000
Delivery time: 5-10 Tage
SAMOA Füllmeister FG plus 15/18, Grease Gun Filling Pump, 15/18 kg Pail, Stationary
- Fluids: greases up to NLGI 2 (incl. semi-fluid)
- Flow rate: approx. 50 cm³/stroke
- Delivery pressure: approx. 15 bar
- Approx. 50 cm³/stroke, delivery pressure approx. 15 bar
- For lever guns X-TRA 701, PEP 500, DFP 500 and DFP 1000
Delivery time: 5-10 Tage
MATO Central Lubrication Filler centraFILL-standard
- Greases: NLGI grade 000 – 2
- Hose: PVC hose 2.0 m, ZSA coupling ISO 7241 B DN6 / R1/4"
- Filler for central lubrication systems with screw lid and 3 lateral adjusting screws
- With follower plate
- PVC hose 2.0 m with ZSA coupling to ISO 7241 B DN6 / R1/4"
Delivery time: 5-10 Tage
MATO Grease Gun Filling Device ecoFILL deluxe "JOKEY" for 18/20 kg JOKEY Plastic Containers
- Greases: NLGI 000 – 2
- Suitable for: JOKEY containers 18/20 kg
- Weight: approx. 5.6 kg
- Grease gun filler for 18/20 kg JOKEY plastic containers (Jet 2000)
- Centring lid with special retaining claws
Delivery time: 5-10 Tage

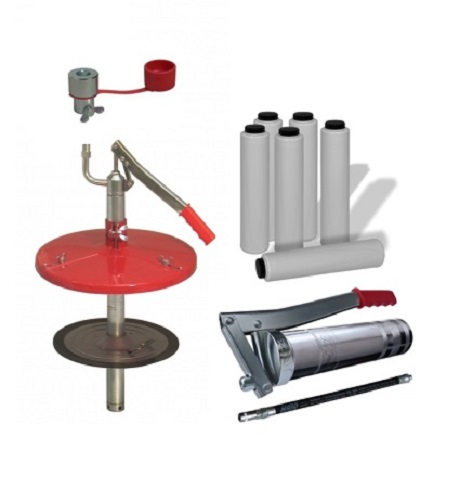

Grease Gun Filling Device ecoFILL 25kg Set with Grease Gun and Empty Cartridges
- Filling device for greases of NLGI class 000 - 2
- 25kg grease bucket, inner diameter 300-335mm
- 300mm safety rubber armored hose RH-30C (steel braid inserts, burst pressure 1,650 bar, Ø-13mm)
- 6 empty cartridges
- Lube-Shuttle refill adapter set
No longer available

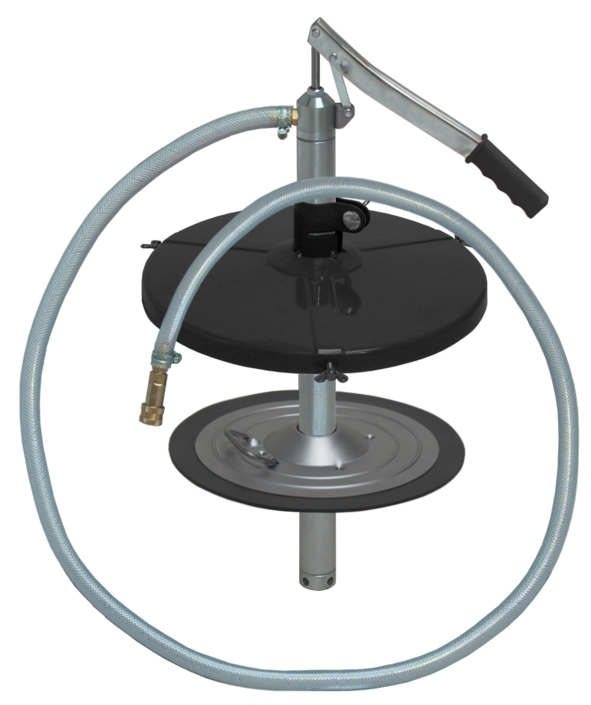

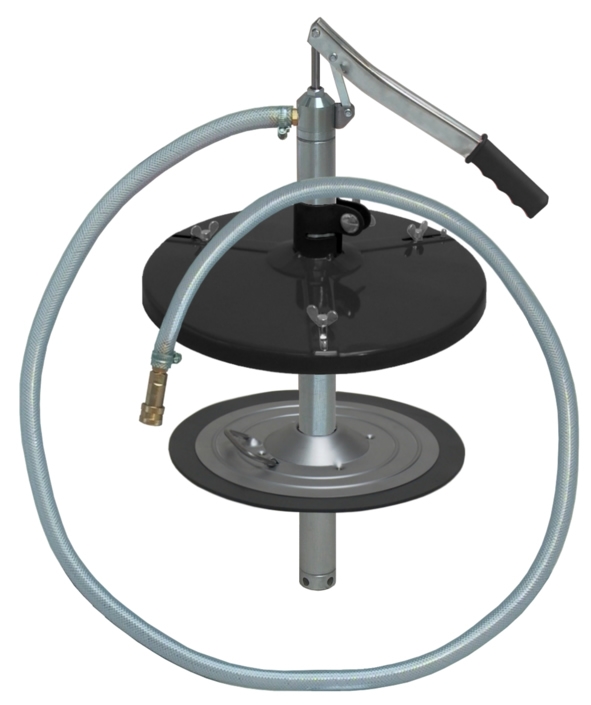

MATO Central Lubrication Filler centraFILL-deluxe, for 10 to 50 kg Grease Buckets
- Hose: PVC hose 2.0 m, ZSA coupling ISO 7241 B DN6 / R1/4"
- Greases: NLGI grade 000 – 2
- Central lubrication filler with centring lid and special centring mechanism
- With follower plate
- PVC hose 2.0 m with ZSA coupling to ISO 7241 B DN6 / R1/4"
Delivery time: 2-5 days

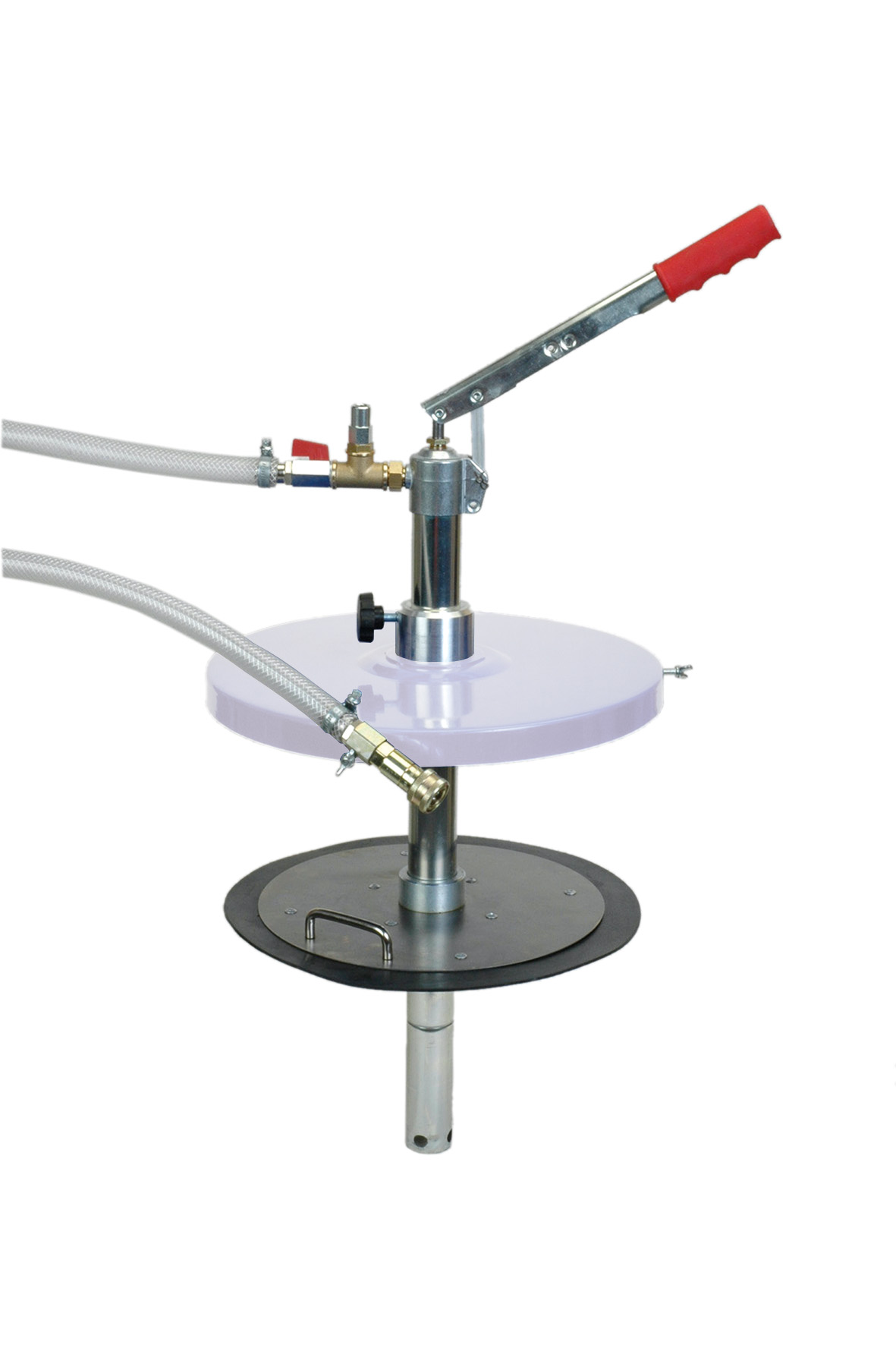

SAMOA Füllmeister FGZ Kombi plus 15/18 Stationary, Filling Pump for Grease Guns and Central Lubrication Systems, max. 35 bar
- Fluids: greases up to NLGI 2
- Flow rate: approx. 30 cm³/stroke
- Delivery pressure: max. 35 bar
- Approx. 30 cm³/stroke, max. 35 bar
- Combination connector with ball valve
Delivery time: 5-10 Tage
SAMOA Füllmeister FGZ Kombi plus 25, Filling Pump for Grease Guns and Central Lubrication Systems, max. 35 bar
- Fluids: greases up to NLGI 2
- Flow rate: approx. 30 cm³/stroke
- Delivery pressure: max. 35 bar
- Approx. 30 cm³/stroke, max. 35 bar
- Combination connector with ball valve
Delivery time: 5-10 Tage

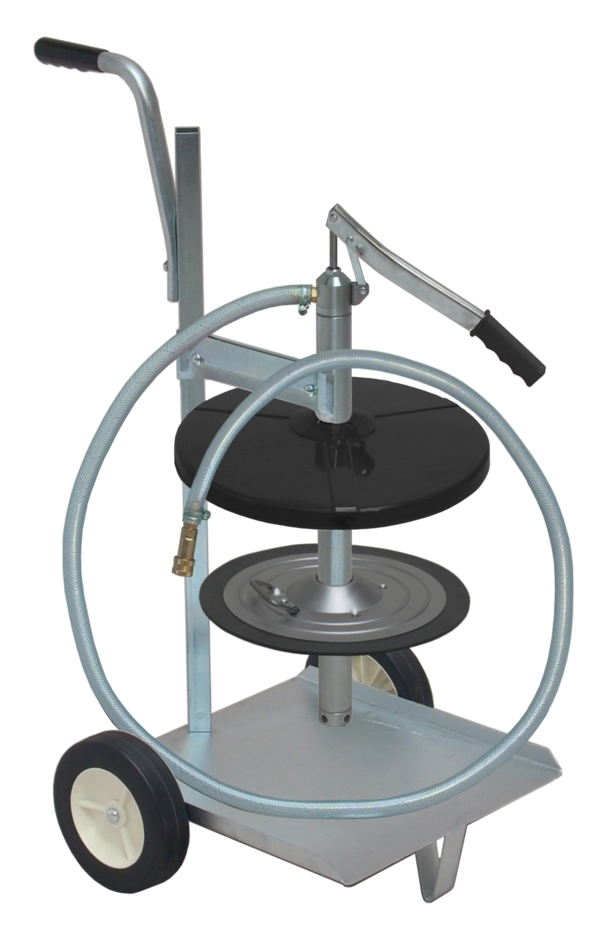

MATO Central Lubrication Filler centraFILL-M mobile, for 15 to 50 kg Grease Buckets
- Hose: PVC hose 2.0 m, ZSA coupling ISO 7241 B DN6 / R1/4"
- Greases: NLGI grade 000 – 2
- Mobile central lubrication filler with trolley
- Dust cover (without screws) and follower plate
- PVC hose 2.0 m with ZSA coupling to ISO 7241 B DN6 / R1/4"
Delivery time: 5-10 Tage
SAMOA Füllmeister FGZ Kombi plus 50, Filling Pump for Grease Guns and Central Lubrication Systems, max. 35 bar
- Fluids: greases up to NLGI 2
- Flow rate: approx. 30 cm³/stroke
- Delivery pressure: max. 35 bar
- Approx. 30 cm³/stroke, max. 35 bar
- Combination connector with ball valve
Delivery time: 5-10 Tage

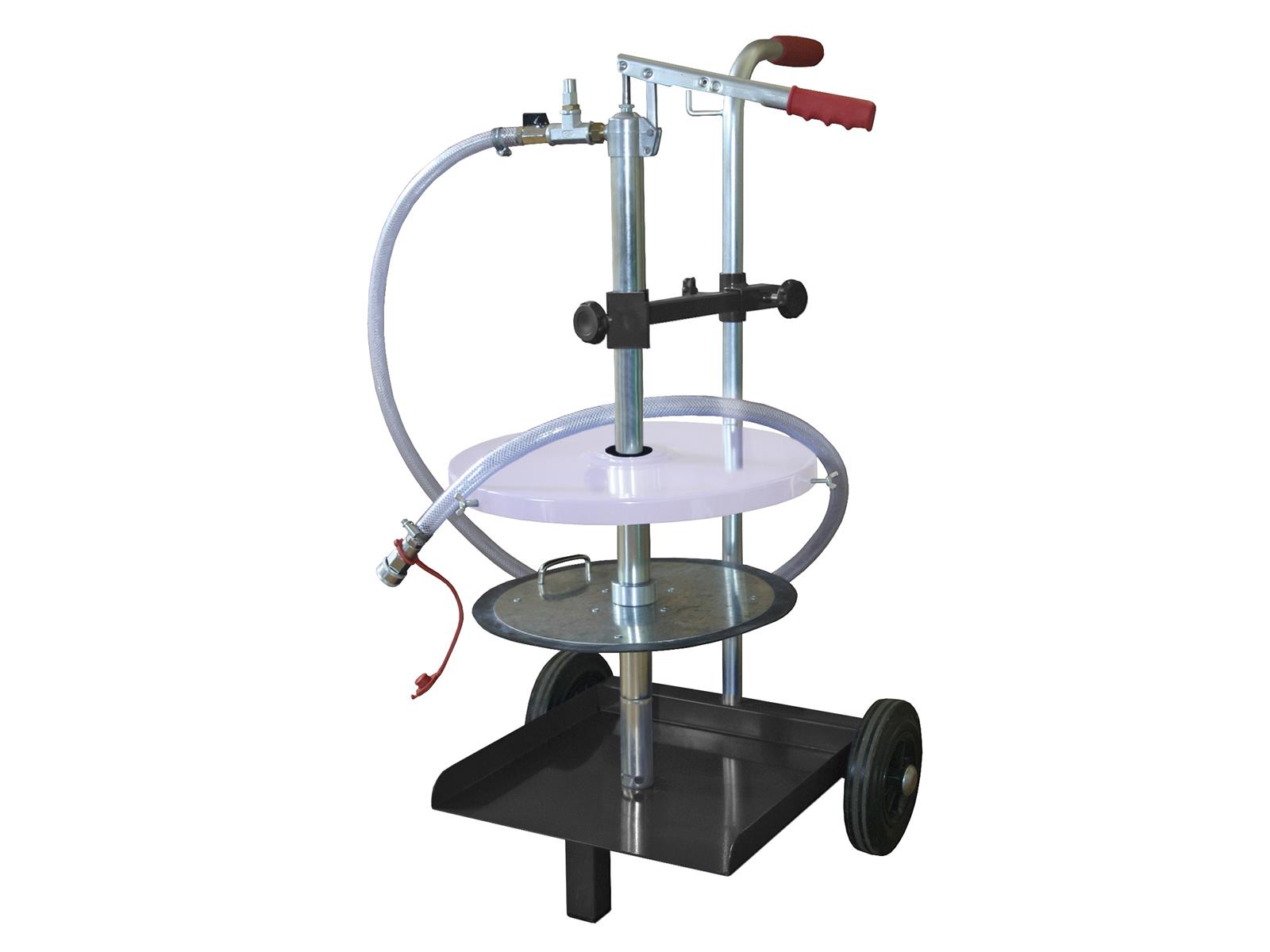

SAMOA Füllmeister FGZ Kombi plus 25 Mobile, Filling Pump for Grease Guns and Central Lubrication Systems, max. 35 bar
- Fluids: greases up to NLGI 2
- Flow rate: approx. 30 cm³/stroke
- Delivery pressure: max. 35 bar
- Approx. 30 cm³/stroke, max. 35 bar
- Combination connector with ball valve
Delivery time: 5-10 Tage

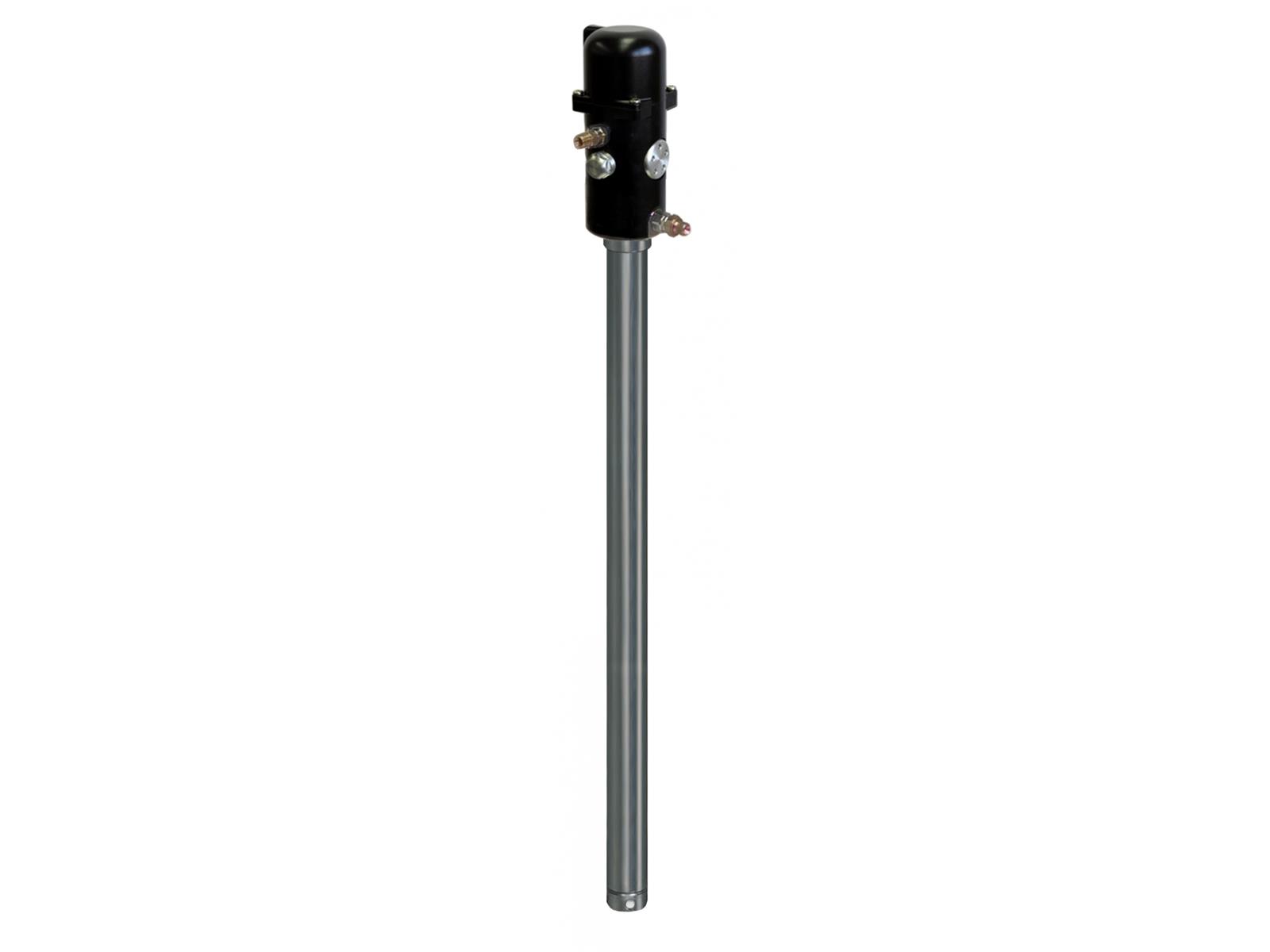

MATO Pneumatic Filler pneuMATO-fill, Pump Unit, for Grease Buckets, Drums and 1,000 l Tanks
- Pressure ratio: 1:3
- Output: approx. 4,000 g/min at approx. 8 bar (NLGI 2, 20 °C)
- Output pressure: approx. 24 bar
- Pneumatic filling pump (pump unit) – not a high-pressure greaser
- For greases up to NLGI 2, also for high-viscosity oils such as chain oil
Delivery time: 5-10 Tage
SAMOA Füllmeister FGZ Kombi plus 50 Mobile, Filling Pump for Grease Guns and Central Lubrication Systems, max. 35 bar
- Fluids: greases up to NLGI 2
- Flow rate: approx. 30 cm³/stroke
- Delivery pressure: max. 35 bar
- Approx. 30 cm³/stroke, max. 35 bar
- Combination connector with ball valve
Delivery time: 5-10 Tage
The right grease filler unit for your application
Why fill cartridges yourself?
Lubricating grease in buckets (5–200 kg) is cheaper than in 400 g cartridges. Anyone who regularly changes a battery or manual grease-gun cartridge: a grease filler unit pays for itself quickly. ecoFILL-standard (€145.50) for occasional filling, centraFILL-mobile (€432) or pneuMATO-fill (from €598) for continuous operation.
The right size – which grease bucket?
The grease-bucket internal diameter determines the necessary grease follower plate and the matching filler unit. 15/18 kg: FO 15 (255–282 mm), Füllmeister FG plus 15/18. 25 kg: FO 25 (300–335 mm), Füllmeister FG plus 25. 50 kg: FO 50 (385–410 mm), FGZ Kombi 50. 5–200 kg universal: ecoFILL-standard or pneuMATO-fill.
Filling centralised lubrication systems
For refilling follower-plate containers in stationary centralised lubrication systems (CLS): CENTRAFILL-Standard (€223, 5–50 kg) or centraFILL-deluxe/-mobile (€294–432) – both with a CLS coupling to ISO standard 7241B DN6 / R1/4" for direct connection to the lubricant container.
Cold-resistant down to –20 °C
For outdoor use and operation at sub-zero temperatures: Samoa Füllmeister FGZ Kombi (€381–612) – explicitly approved for –20 °C. Important in sectors such as forestry, municipal services and construction, where lubrication services are also carried out in winter.
Pneumatic – the highest flow rate
For large operations with a high grease throughput: pneuMATO-fill (from €598) with up to 4,000 g/min flow rate and a 1:3 pressure ratio. Fills cartridges, CLS containers and follower-plate tanks quickly and air-free. Suction-tube lengths selectable for all bucket sizes 5–200 kg.
Complete set – ready for immediate use
The ecoFILL 25 kg set (€270) is the ideal starter package: filler unit for 25 kg buckets + 300 mm safety armoured hose RH-30C (1,650 bar burst pressure) + 6 empty cartridges – get started straight away with no further purchases.
Frequently asked questions about grease filler units
The right grease filler unit for your operation
Our specialist team advises you free of charge – on bucket size, NLGI class, operating temperature and the optimal filler unit for your grease consumption.
