AdBlue® accessories hoses, connections, adapters & couplings
Complete installation and connection accessories for AdBlue® pump systems and dispensing units from PIUSI and Elaflex – dispensing hoses, hose connections, drum connectors, SEC couplings, suction tubes, swivel joints and complete sets. All parts made of AdBlue®-resistant materials to ISO 22241.
Dispensing hoses DN 19
Dispensing hose DN 19 by the metre (€14.50/m) for individual lengths, or as a ready-made 4 m hose (€56) – made of AdBlue®-resistant material for use on pumps and dispensers. Suction hoses with an integrated check valve in 0.3 m, 1.1 m, 1.5 m and 1.4 m lengths.
Hose connections & fittings
PIUSI hose connections in straight and 90° versions for 1" systems (€28–35), an INOX version 3/4" (€46) and connectors for pipework on AdBlue® systems. All made of PP or stainless steel, with union-nut and nipple variants.
Drum connectors AF2 & SEC couplings
PIUSI AF2 drum connectors (€63) in four thread sizes (2", 2"B, 2" 70x6, 56x4) incl. a suction tube – for the direct connection of the pump to 200 L drums and IBC containers. SEC coupling with a DN19 hose holder (€61) for a drip-free dry coupling.
Gravity Kit & small accessories
PIUSI Gravity Kit (€155) as a complete gravity-dispensing set with a 3 m hose, a manual nozzle and a foot-valve adapter – for natural outflow without a pump. A hose-clamp set (€8), an Elafix magnetic adapter (€28) and a protective cover for swivel joints as small accessories.

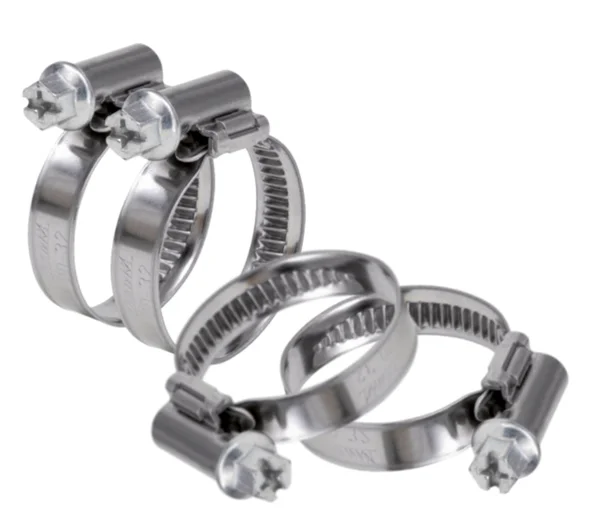

4-piece Hose Clamp Set for AdBlue® Urea Solution Systems
- Number of Parts: 4
- Attachment of the EPDM hose to the hose fittings of AdBlue® systems
- Material: High-strength steel for optimal stability and durability
Delivery time: 1-3 days
Adapter for AdBlue® Hand Pump for 200L Plastic Drums, 2" BSP Fine x Mauser Coarse Thread
- Thread Type 1: 2" BSP fine, female
- Thread Type 2: Mauser coarse, male
Delivery time: 1-3 days
Dispensing Hose DN 19, Sold by the Meter for AdBlue® Urea Solution
- Diameter: DN 19
- Available by the meter
- Specifically designed for AdBlue® urea solution
Delivery time: 1-3 days

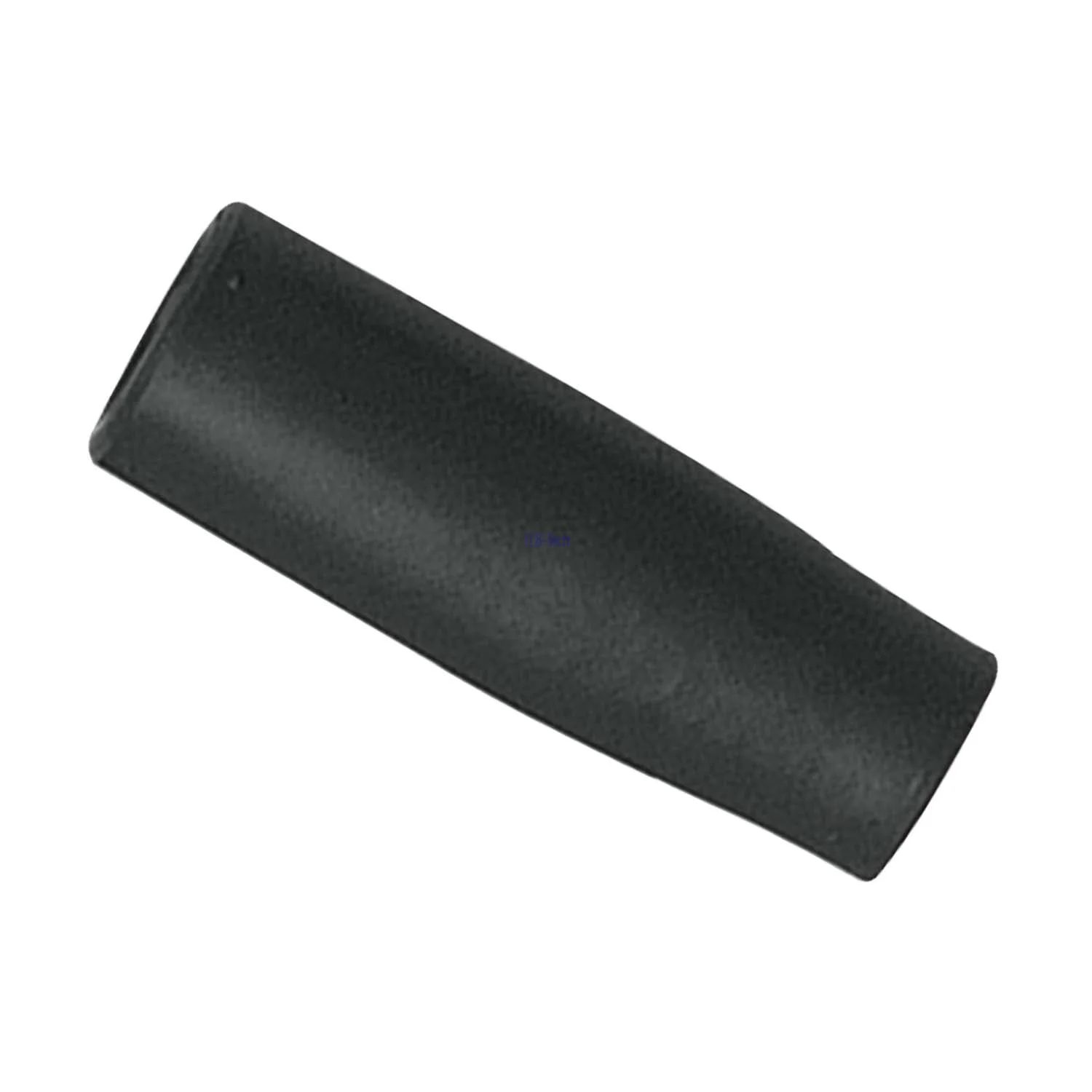

PIUSI Rubber Protector for 3/4" Hose, AdBlue® Accessory
- Fluids: AdBlue® (urea solution to ISO 22241)
- Suitable for: 3/4" hose
- Weight: approx. 0.03 kg
- Rubber protector for 3/4" hose
- Protects against kinking and abrasion
Delivery time: 1-3 days
ELAFLEX ELAFIX 40 Magnetic Adapter for AdBlue®, for Tank Filler Necks DN 40 and Larger to ISO 22241-4
- Suitable for: tank filler necks DN 40 and larger; ELAFLEX ZVA HV nozzle for AdBlue®
- Standard: ISO 22241-4
- Material: POM housing, encapsulated ring magnet
- Magnetic adapter to ISO 22241-4 for AdBlue® tank filler necks DN 40 and larger
- Opens the magnetic switch of the ELAFLEX ZVA HV for AdBlue®
Delivery time: 1-3 days
PIUSI Straight Hose Tail 1" BSP Female with Nut × Ø 20 mm for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: F 1" BSP (nut) / Ø 20 mm
- Weight: approx. 0.035 kg
- For AdBlue®, materials to ISO 22241
- Connection F 1" BSP (nut) / Ø 20 mm
Delivery time: 1-3 days

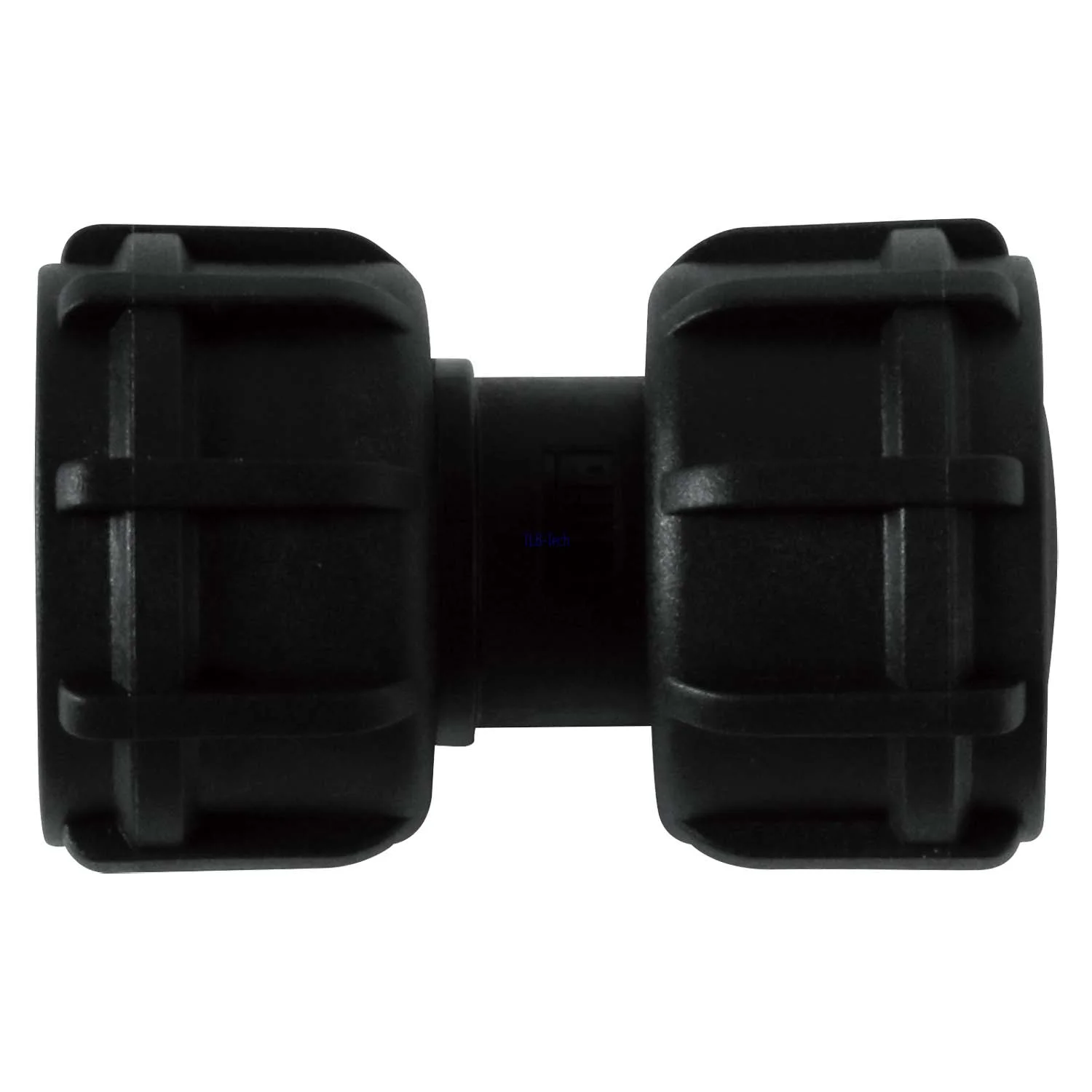

PIUSI Straight Connector with 2 Nuts 1" BSP Female for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: F 1" BSP / F 1" BSP
- Weight: approx. 0.056 kg
- For AdBlue®, materials to ISO 22241
- Connection F 1" BSP / F 1" BSP
Delivery time: 1-3 days

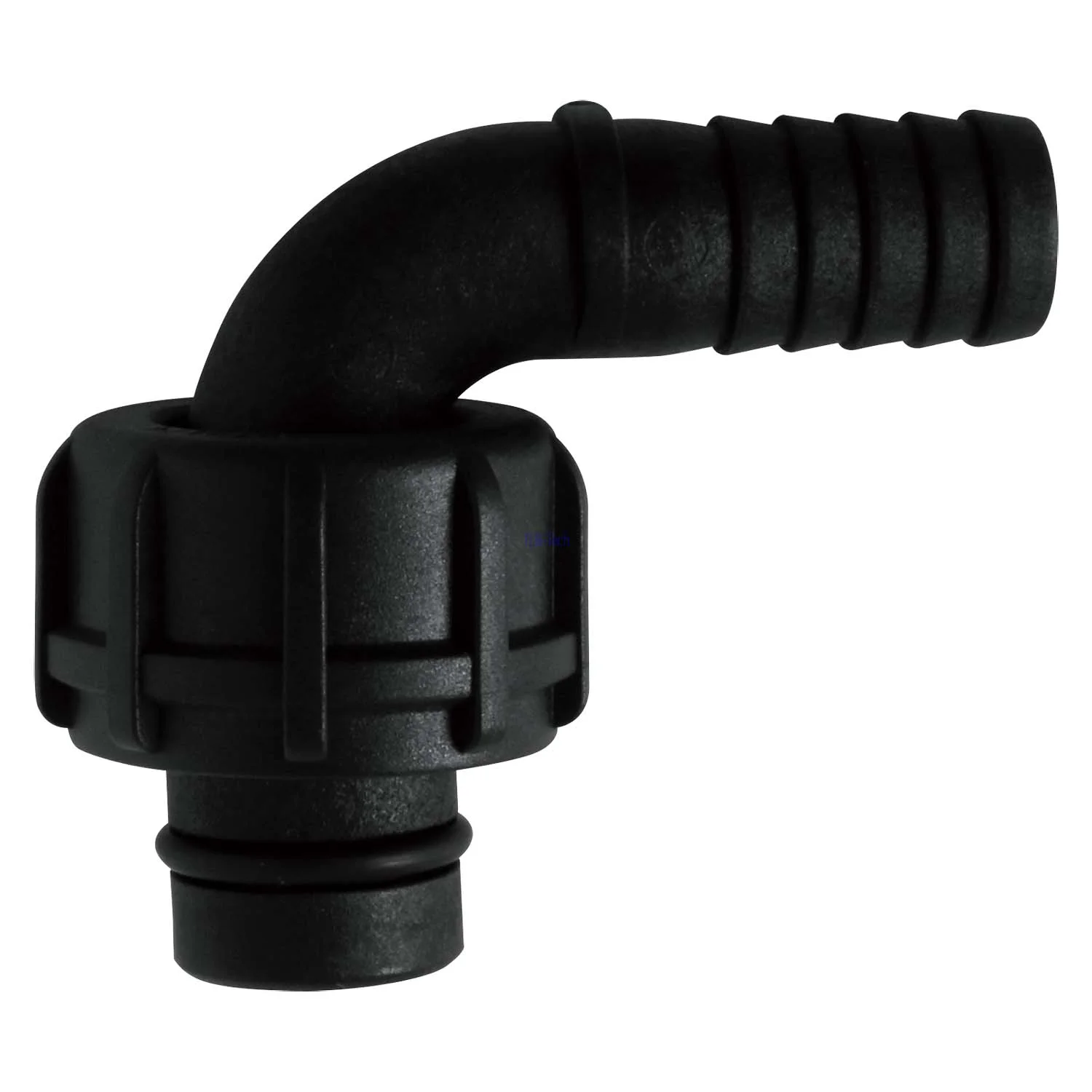

PIUSI 90° Hose Tail Ø 19 mm with 1" BSP Nut for K24 for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: F 1" BSP / Ø 19 mm
- Suitable for: PIUSI K24
- For AdBlue®, materials to ISO 22241
- Connection F 1" BSP / Ø 19 mm
Delivery time: 1-3 days

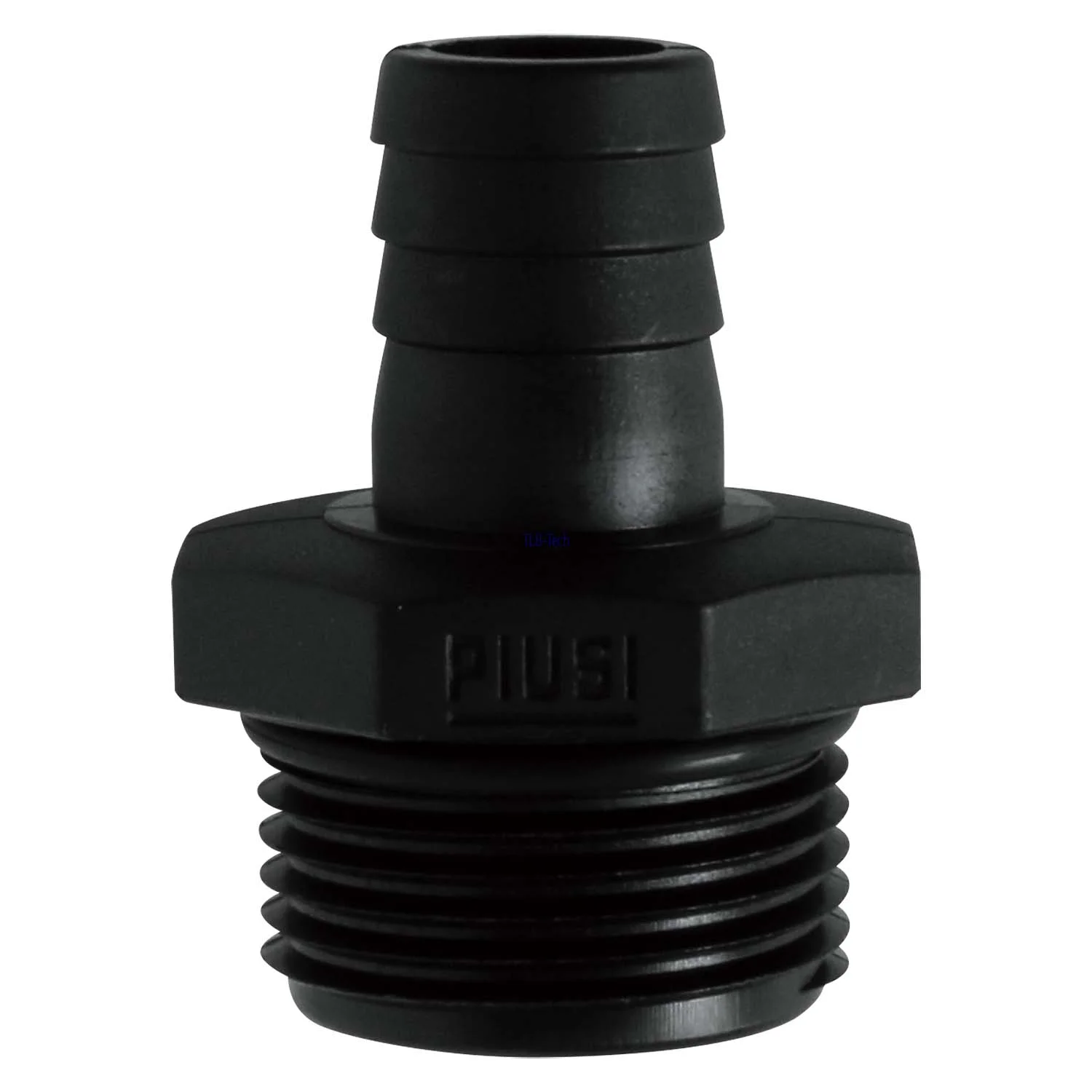

PIUSI Straight Hose Tail 1" BSP Male × Ø 20 mm, Plastic for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: M 1" BSP / Ø 20 mm
- Material: plastic
- For AdBlue®, materials to ISO 22241
- Connection M 1" BSP / Ø 20 mm
Delivery time: 1-3 days

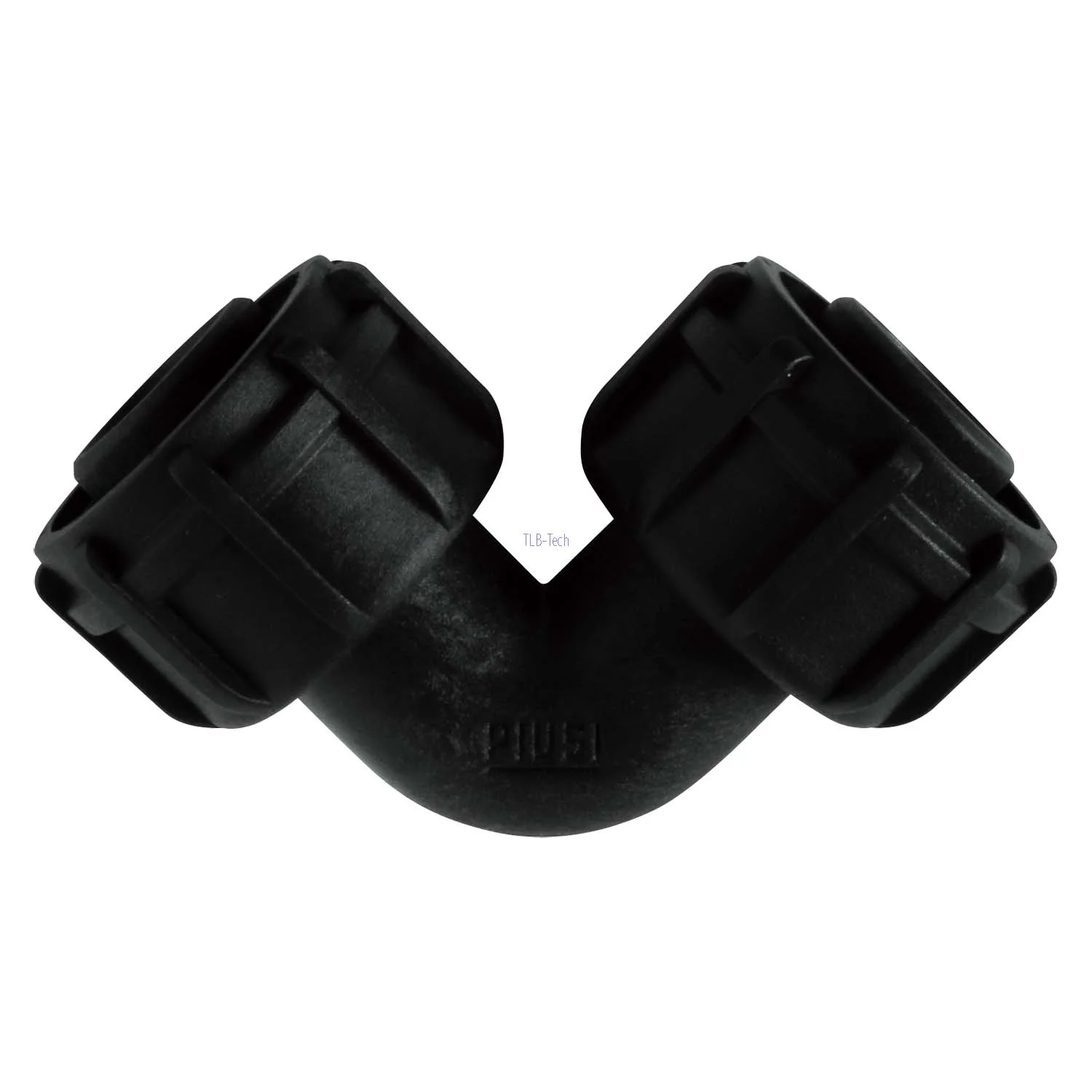

PIUSI 90° Elbow with 2 × 1" BSP Female and Ring Nut for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: 2 × F 1" BSP
- Weight: approx. 0.075 kg
- For AdBlue®, materials to ISO 22241
- Connection 2 × F 1" BSP
Delivery time: 1-3 days

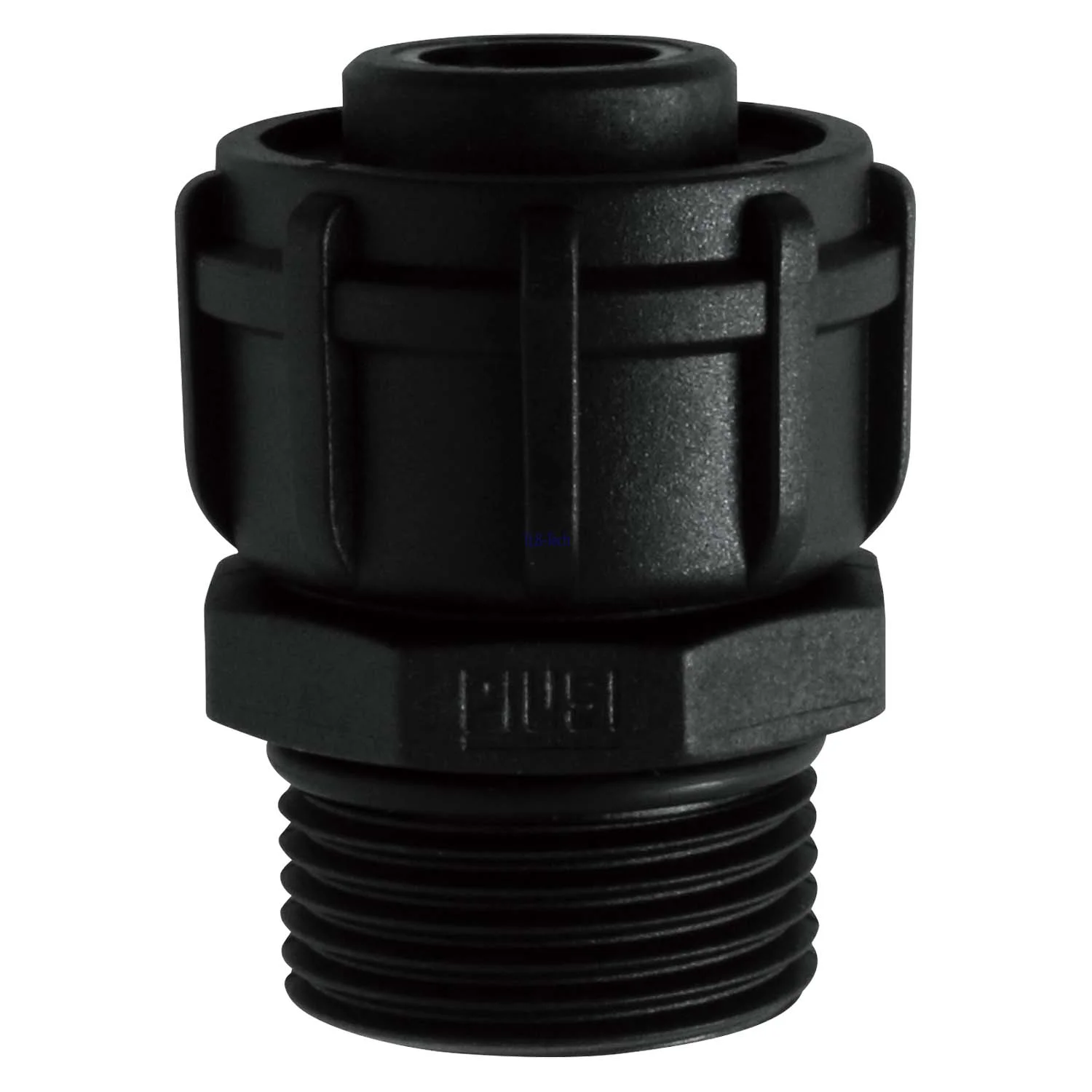

PIUSI Swivel Union 1" BSP Male/Female for Manual Nozzle, Plastic for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: M 1" BSP / F 1" BSP
- Material: plastic
- For AdBlue®, materials to ISO 22241
- Connection M 1" BSP / F 1" BSP
Delivery time: 1-3 days

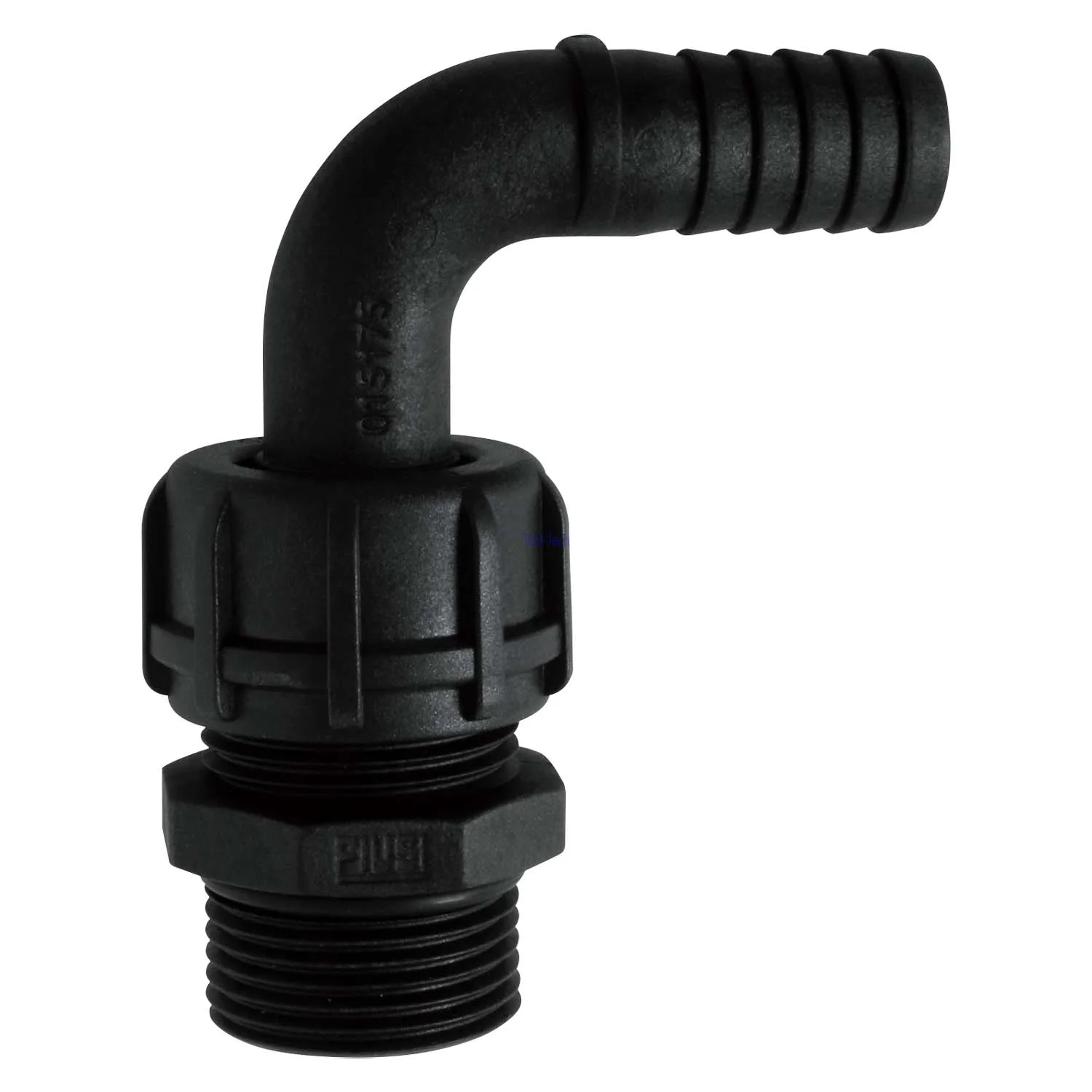

PIUSI 90° Hose Tail Ø 19 mm, 1" BSP with Nut and Nipple for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: 1" BSP with nut and nipple / Ø 19 mm
- Weight: approx. 0.07 kg
- For AdBlue®, materials to ISO 22241
- Connection 1" BSP with nut and nipple / Ø 19 mm
Delivery time: 1-3 days

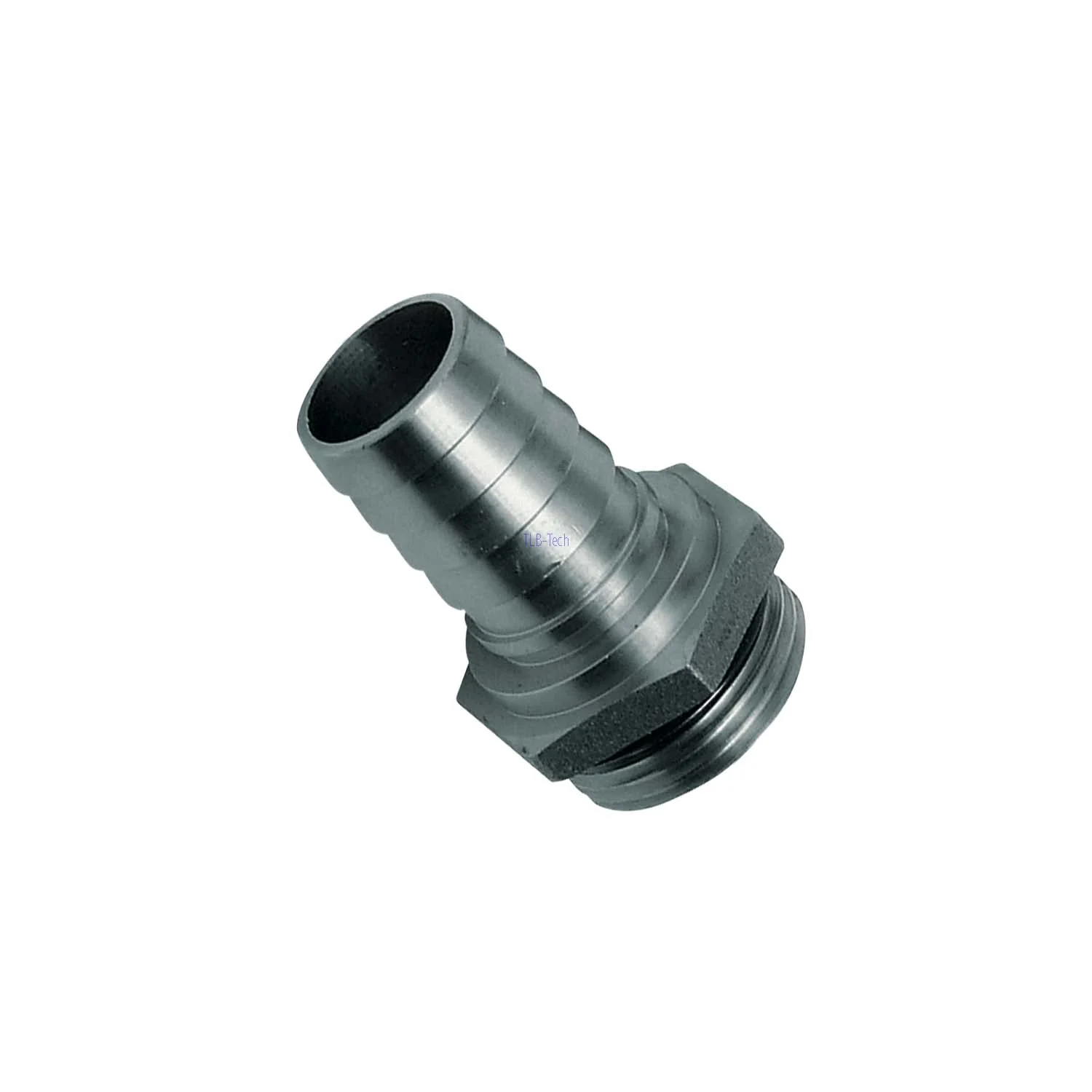

PIUSI Stainless Steel Swivel 3/4" BSP Male × Ø 19 mm Hose for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: M 3/4" BSP / hose tail Ø 19 mm
- Material: stainless steel
- For AdBlue®, materials to ISO 22241
- Connection M 3/4" BSP / hose tail Ø 19 mm
Delivery time: 1-3 days
Dispensing Hose DN 19, 4m AdBlue® Urea Solution
- Diameter: DN 19
- Length: 4 meters
- Specifically for AdBlue® urea solution
Delivery time: 1-3 days
TECALEMIT SEC Coupling with DN 19 Hose Connection, for AdBlue® Drums and IBCs
- Fluids: AdBlue®
- Connection: hose connection DN 19
- Weight: approx. 0.3 kg
- SEC coupling for AdBlue® containers (drum, IBC)
- DN 19 hose connection for the suction line
Delivery time: 1-3 days
SEC Suction Pipe Length 865mm
- Easy installation
- Optimized length
- Versatile application
- High performance
- Durable
Delivery time: 1-3 days
PIUSI AF2 Drum Connector 2" BSP / 1" BSP Male for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: 2" BSP / M 1" BSP
- Weight: approx. 0.385 kg
- AF2 connector 2" BSP to 1" BSP male
- Materials to ISO 22241
Delivery time: 1-3 days
PIUSI AF2 Drum Connector 2" Buttress / 1" BSP Male for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: 2" buttress / M 1" BSP
- Weight: approx. 0.6 kg
- AF2 connector 2" buttress to 1" BSP male
- Materials to ISO 22241
Delivery time: 1-3 days
PIUSI AF2 Drum Connector 2" 70 × 6 / 1" BSP Male for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: 2" 70 × 6 / M 1" BSP
- Weight: approx. 0.4 kg
- AF2 connector 2" 70 × 6 to 1" BSP male
- Materials to ISO 22241
Delivery time: 1-3 days
PIUSI AF2 Drum Connector 56 × 4 Buttress / 1" BSP Male for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: 56 × 4 buttress / M 1" BSP
- Weight: approx. 0.3 kg
- AF2 connector 56 × 4 buttress to 1" BSP male
- Materials to ISO 22241
Delivery time: 1-3 days

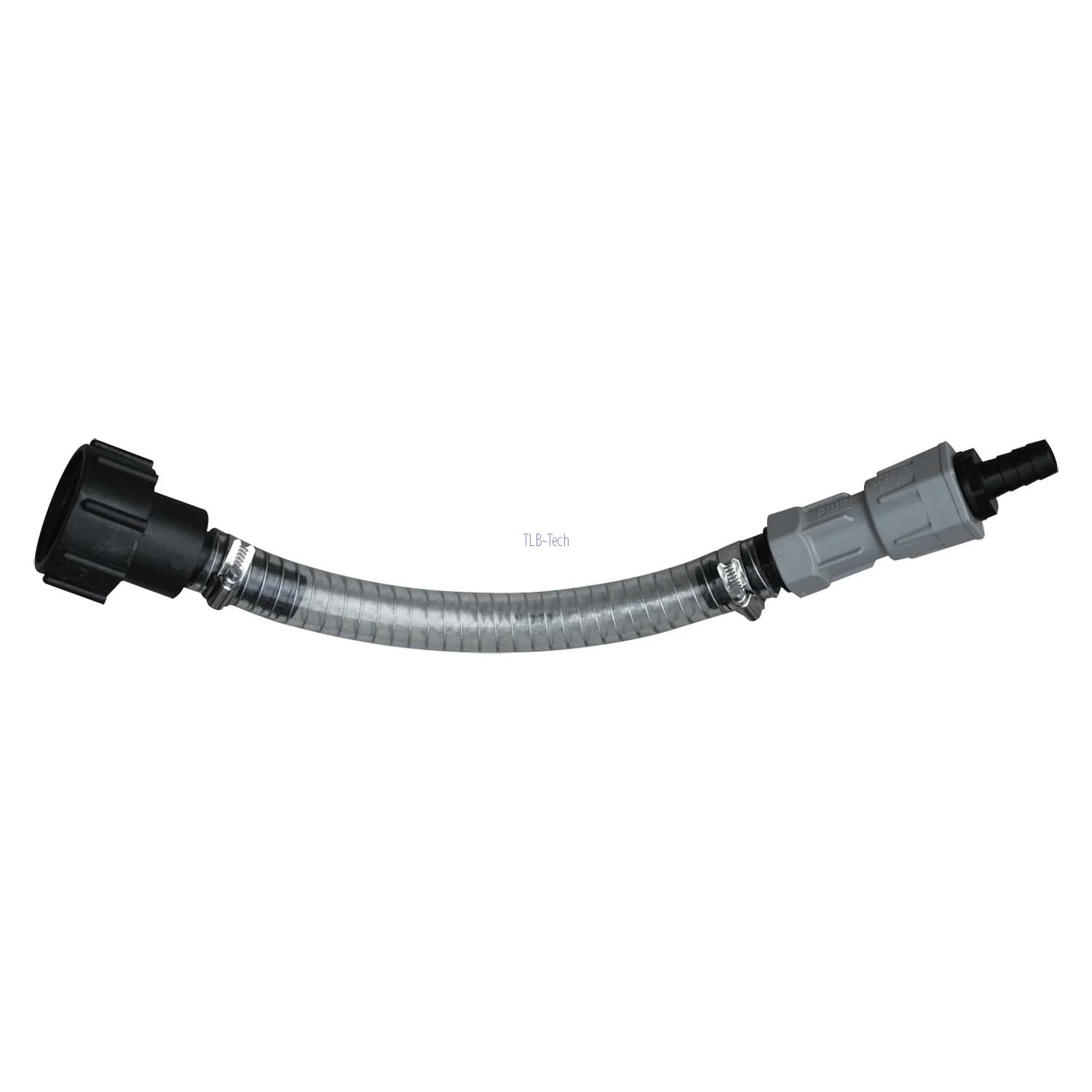

PIUSI IBC Bottom Connection Kit with Foot Valve, 0.3 m Suction Hose for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Length: 0,3 m
- Connection: F 2" BSP / 1" × Ø 25 mm
- External suction hose for the IBC bottom outlet
- With foot valve (check valve)
Delivery time: 1-3 days
PIUSI EPDM Suction Hose Kit 1.1 m with SEC Connector for AdBlue®, 3/4", Ø 19 mm
- Fluids: AdBlue® (urea solution to ISO 22241)
- Length: 1,1 m
- Hose: EPDM, 3/4", Ø 19 mm
- EPDM spiral hose 1.1 m, 3/4" (Ø 19 mm)
- With SEC connector
Delivery time: 1-3 days

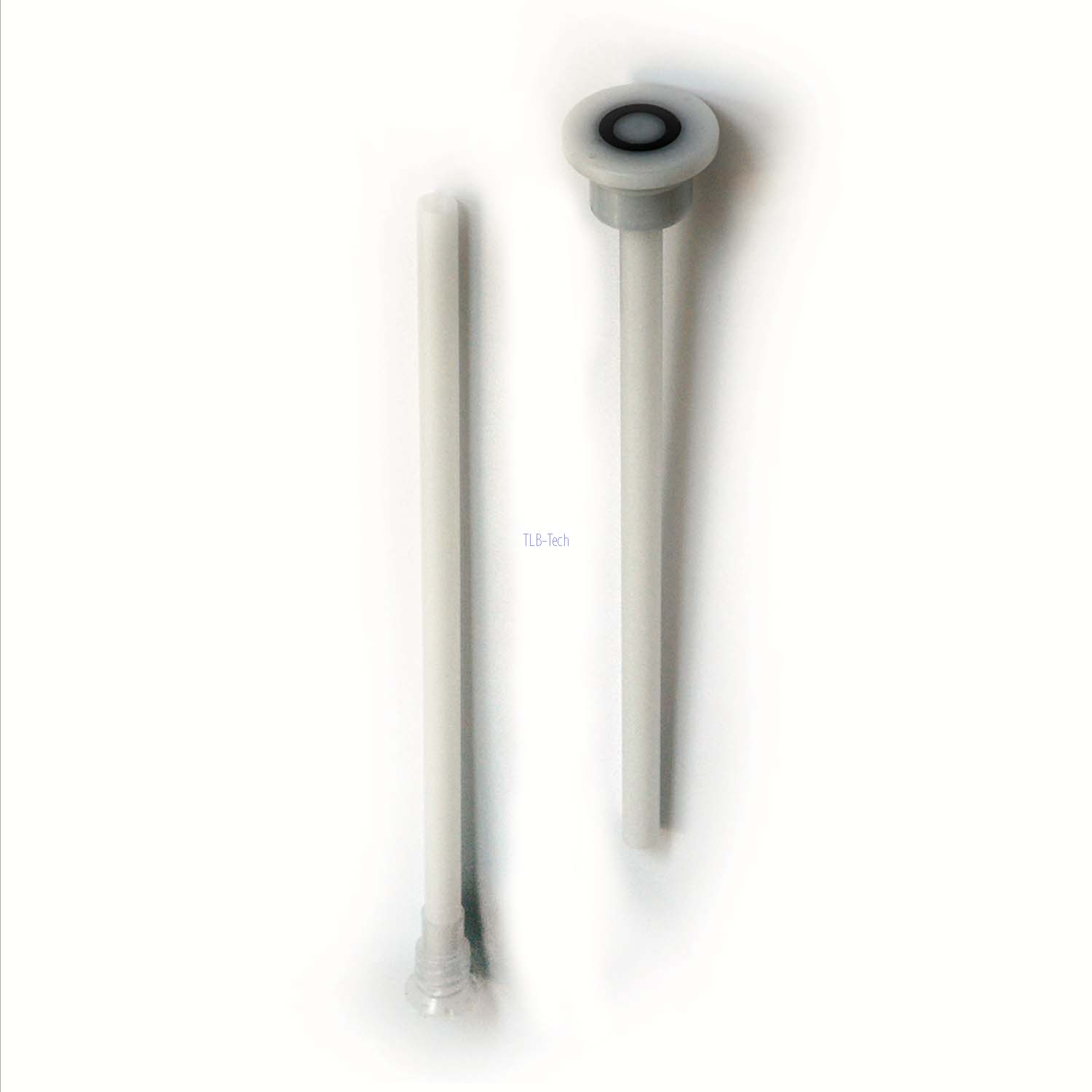

PIUSI SUZZARABLUE Suction Dip Tube 2" BSP / Ø 20 mm for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: 2" BSP / Ø 20 mm
- Weight: approx. 0.245 kg
- 2" BSP connection
- Ø 20 mm hose
Delivery time: 1-3 days
PIUSI SUZZARABLUE Suction Dip Tube 56 × 4 Buttress / Ø 20 mm for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: 56 × 4 buttress / Ø 20 mm
- Weight: approx. 0.25 kg
- 56 × 4 buttress connection
- Ø 20 mm hose
Delivery time: 1-3 days
The right accessories for your AdBlue® system
Dispensing hose – length & type
The dispensing hose DN 19 is the standard for most AdBlue® nozzles and pumps. By the metre (€14.50/m) for individual lengths or ready-made as a 4 m hose (€56). DN 19 = 19 mm internal diameter, suitable for all 3/4" and 1" connections. For pumps with a high flow rate (over 40 l/min), DN 25 is more sensible – then request the hose separately.
Choosing connections & fittings correctly
Hose connections join the hose and the pump outlet. Straight connections for a direct outlet, 90° connections for space-saving installation in tight housings. Pay attention to the thread system: union nut (ÜWM) or nipple, 1" or 3/4". PIUSI parts fit all PIUSI pumps and Suzzarablue systems.
Drum connectors for 200 L drums
The PIUSI AF2 drum connector (€63) is screwed into the drum's bung and enables the direct connection of the pump. Four thread sizes available: 2" BSP (standard thread), 2"B, 2" 70×6 (Mauser/coarse thread) and 56×4 (buttress). The correct size depends on the drum type – if in doubt, measure the thread or ask the drum manufacturer.
SEC couplings for IBC containers
The SEC coupling with a DN19 connection (€61) enables a drip-free connection to IBC containers with an SEC outlet valve – no AdBlue® escapes when disconnecting. The SEC suction tube 865 mm (€63.50) as a matching dip tube for the IBC container. The PIUSI DRUM suction tube (€87) in 2"BSP or 56×4 for various drum openings.
Elafix magnetic adapter – what is it?
The Elaflex Elafix 40 magnetic adapter (€28) is fitted into the vehicle's AdBlue® filler neck and enables the automatic locking of the matching nozzle – preventing incorrect refuelling with diesel or other media. Protection against confusing diesel and AdBlue® filler necks, especially in fleet operations.
Gravity Kit – refuel without a pump
The PIUSI Gravity Kit (€155) enables the dispensing of AdBlue® by gravity – no power, no pump required. With a 3 m hose (DN 19), a manual nozzle and a foot-valve adapter. For vehicles whose AdBlue® tank stands higher than the storage container, gravity is not suitable – then a pump is needed.
Frequently asked questions about AdBlue® accessories
The right accessories for your AdBlue® system
Our specialist team advises you free of charge – on compatibility, thread sizes and the complete equipping of your AdBlue® system.
