Fluid management systems TMS smart & oil management systems for the car workshop
Digital fluid management systems from Tecalemit โ from the RFID transponder and TMS smart meter through gateway and software to the complete oil management central unit for 4โ10 oil types. Mobile oil dispensing units (LubeMobil, DrumMobil) with integrated TMS smart metering technology, optionally calibratable (MID).
TMS smart โ a modular system
The Tecalemit TMS smart system connects RFID transponders (โฌ17/each) with dispensing meters, a gateway and software to form a complete workshop fluid management: every oil dispensing is recorded per driver or per job and logged in the TMS smart Control software. Repeaters (โฌ324) extend the ZigBeeยฎ range in large halls.
Mobile oil dispensing units
The LubeMobil 70 (60 L, 5 l/min, from โฌ2,785) for smaller workshops, the DrumMobil 200 (for 200 L drums, 10 l/min, from โฌ3,528) for a higher throughput. All with an integrated TMS smart meter for engine and gear oil. Calibratable MID variants available for billing to customers.
Oil management central unit
The TKS IV (4 oil types, from โฌ2,176) and TMS III (5 or 10 oil types, from โฌ4,042) as stationary central units for central oil management โ with pulse-generator inputs for flow meters, pump control and a graphic or text display. MID-calibratable and non-calibratable versions available.
Calibratable or non-calibratable?
For internal consumption recording (cost centres, fleet), a non-calibratable solution is sufficient. For billing oil to customers or for legally compliant invoicing, a MID-calibratable version (DrumMobil PPe/EPe, TMS III MID) is required by law.
TMS Smart RFID Transponder Tag
- TMS Smart RFID Transponder Tag
- User Identification for TMS Smart Meter
Delivery time: 5-10 Tage
TMS Smart USB RFID Reader
- Import of users and mechanics
- Supported software: TMS smart Control
- Compatible systems: Various transponder formats
Delivery time: 2-5 days

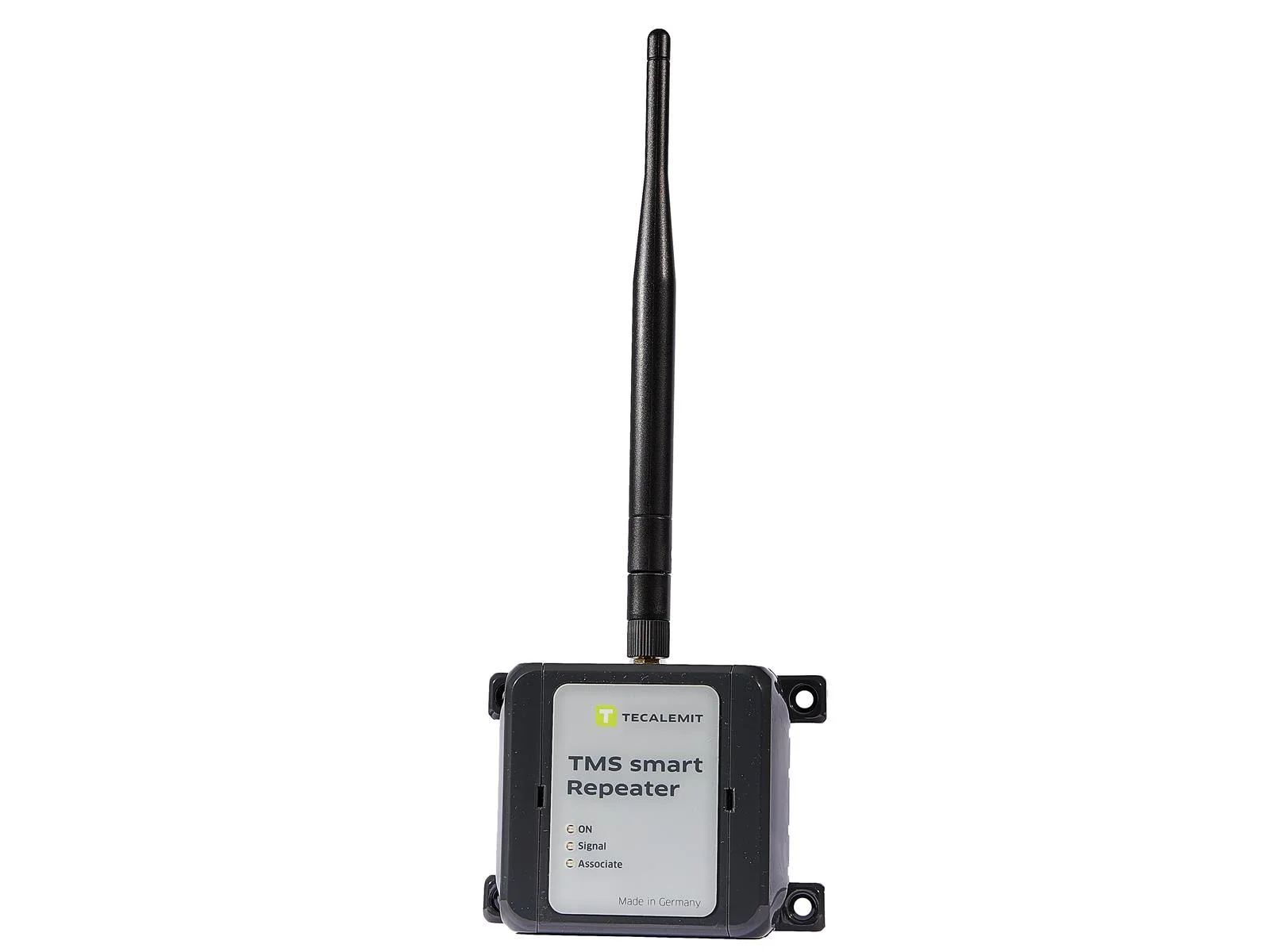

TMS Smart Repeater - Signal Booster for Zigbee Communication
- ZigBeeยฎ Signal Amplifier
- Wide-Range Plug-in Power Supply
- Includes Status Indicators (ON, CONFIG, ERROR)
- Includes Easy Detection of the Already Installed TMS Smart Gateway
- Signal Antenna
Delivery time: 5-10 Tage

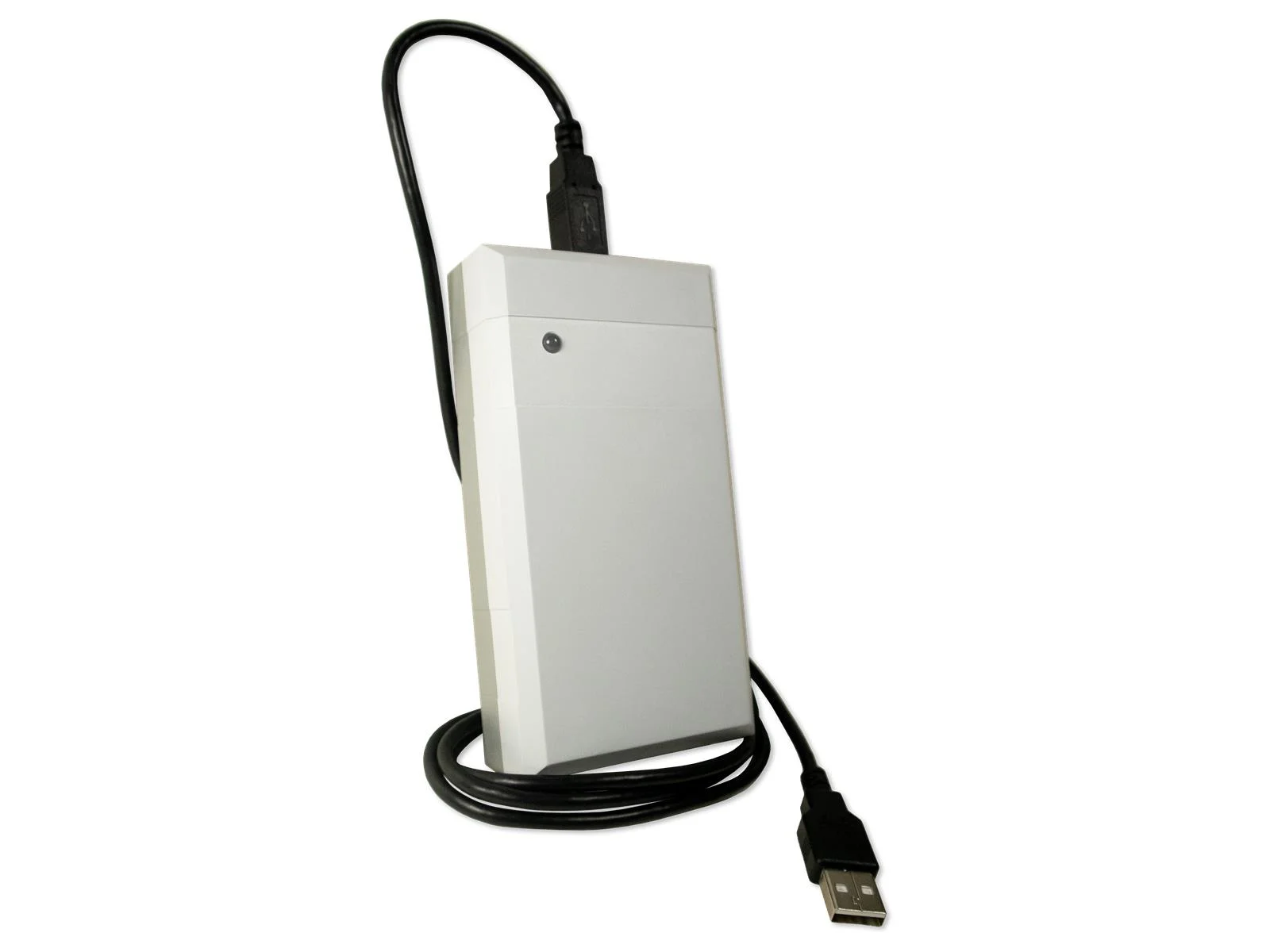

TMS Smart USB RFID Reading and Writing Station, including Software Module for Order Information
- USB RFID Reading and Writing Station
- Model: TMS Smart
- Includes Software Module for Order Information
- Requires an Available USB Port on the PC
Delivery time: 5-10 Tage

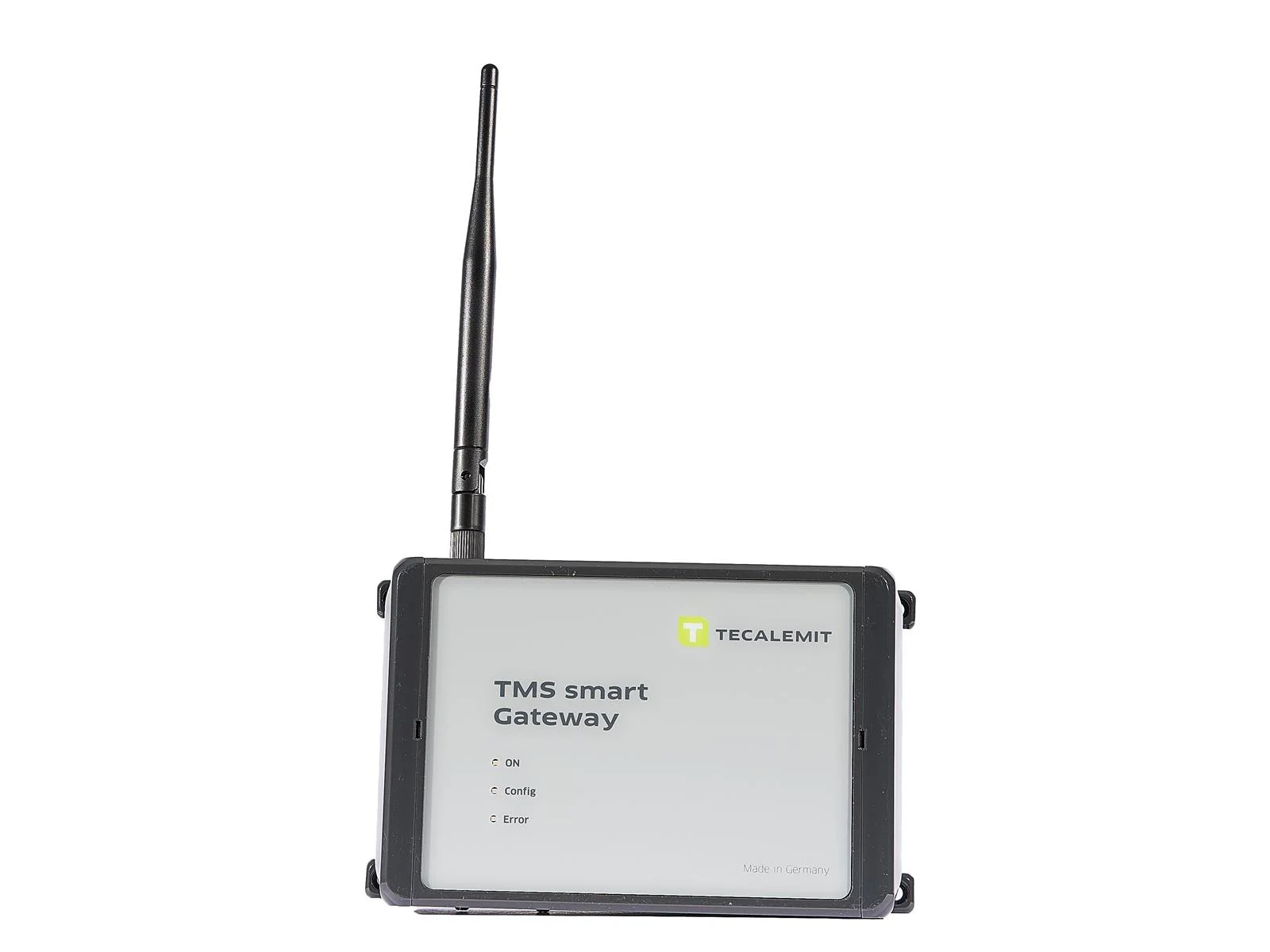

TMS Smart Gateway - Intelligent Automation & Security
- Central Control Unit
- Seamless Integration via LAN and WLAN
- Transmission of Essential Submission Information
- USB Port for Software Updates
Delivery time: 5-10 Tage

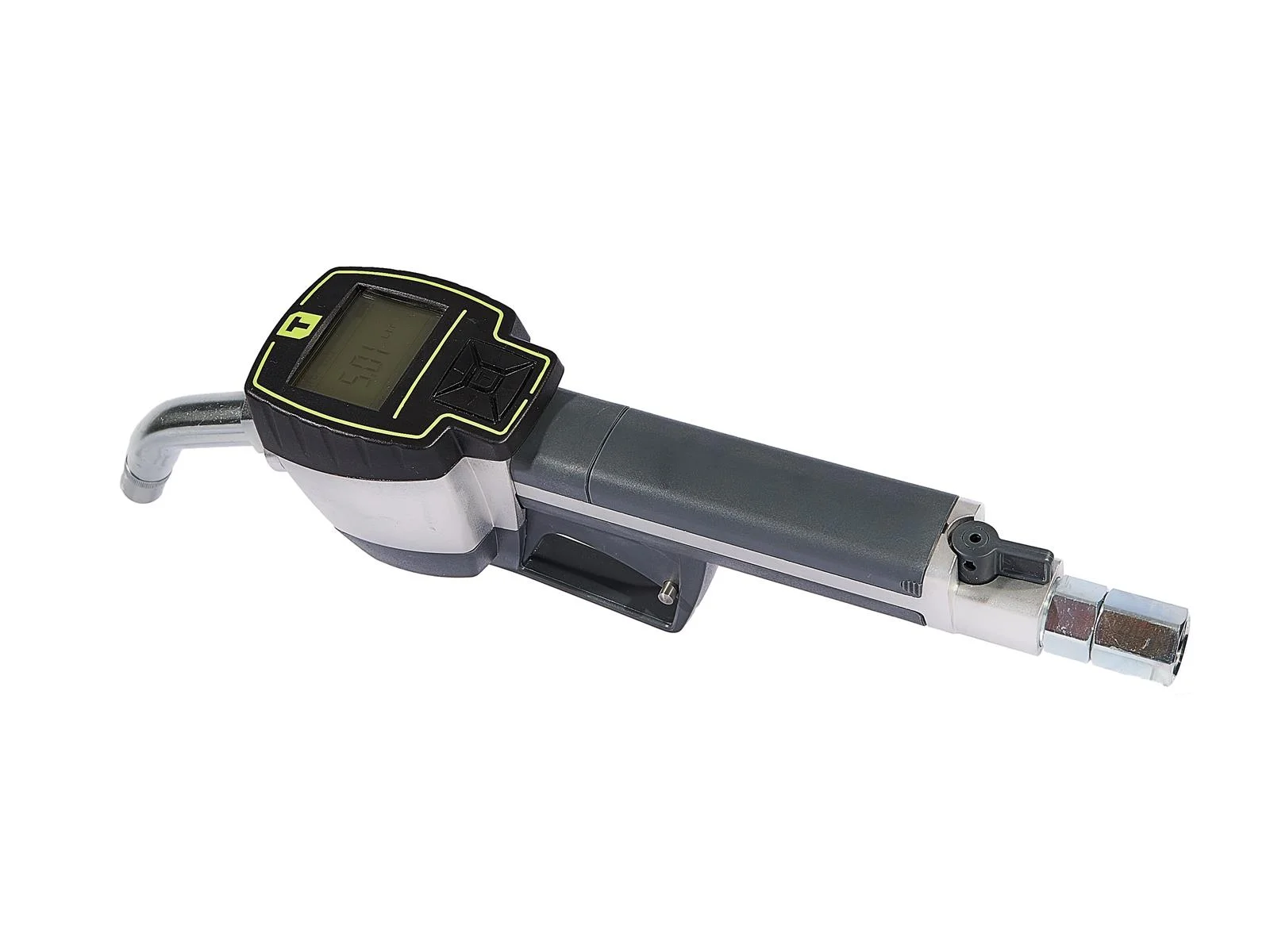

TMS Smart Meter Control and Dispensing Unit with Engine Oil Outlet
- Viscosity Range: 20-2000 mPas
- Flow Rate: max 10 l/min
- Operating Pressure: max 70 bar
- Thread Connection: G ยฝ" female
- Media: Engine oil, Gear oil, Hydraulic oil, and Antifreeze
- Measurement Accuracy: ยฑ 0.5% (after calibration)
- IP Protection: IP54
Delivery time: 5-10 Tage

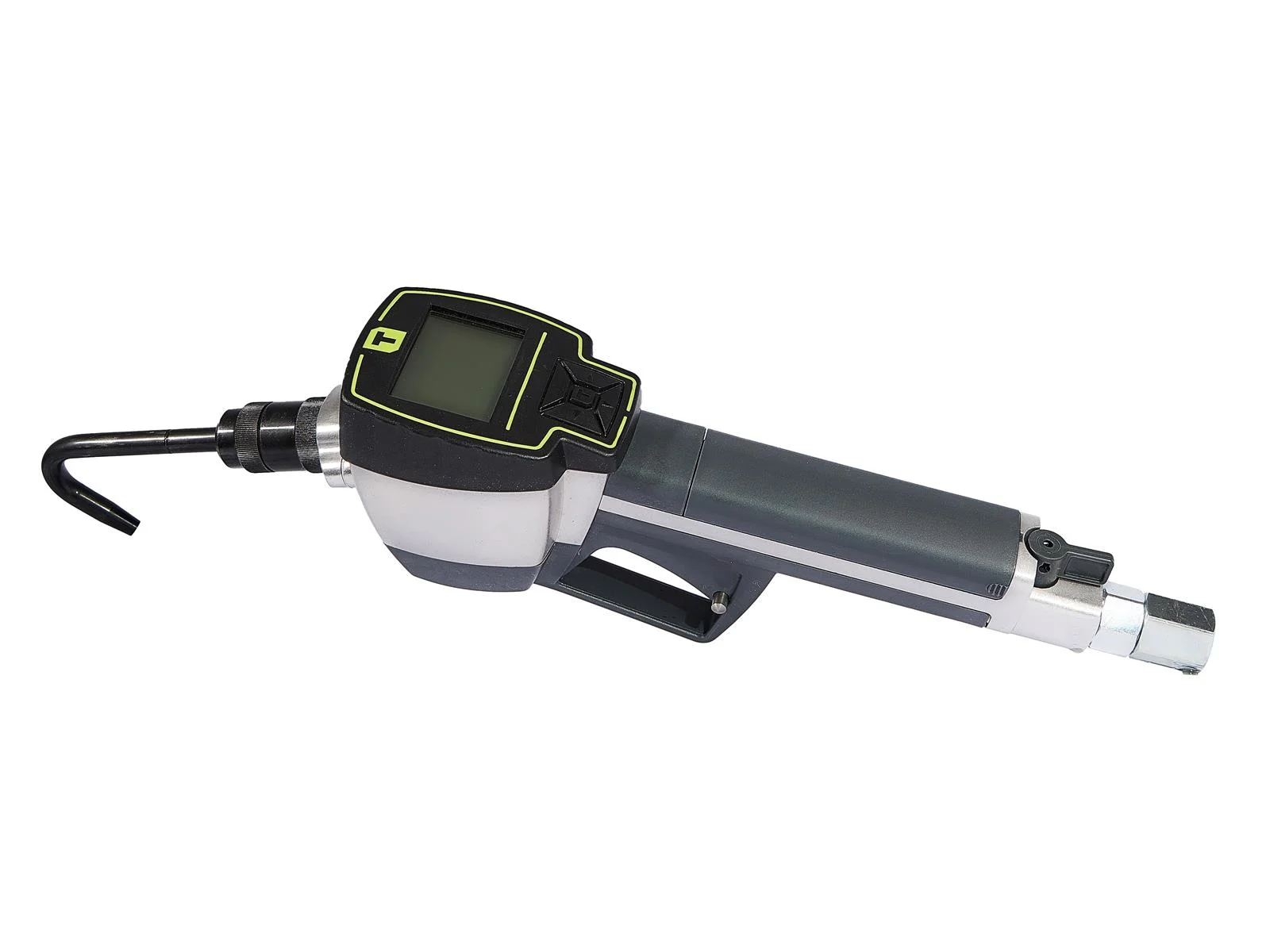

TMS Smart Meter Control and Dispensing Unit with Gear Oil Outlet
- Viscosity Range: 20-2,000 mPas
- Media: Engine Oil, Gear Oil, Hydraulic Oil, and Coolant
- Flow Rate: max. 10 l/min
- Operating Pressure: max. 70 bar
- Thread Connection: G ยฝ" internal
- Measurement Accuracy: ยฑ 0.5% (after calibration)
- IP Protection: IP54
Delivery time: 5-10 Tage
TMS Smart Control Software Pro for Integration with Dealer Management Systems
- TMS Smart Control Pro
- Extension for TMS Smart
- Easy to use
- No additional PC installation required
Delivery time: 5-10 Tage
Oil Management System for Fresh Oil TKS IV, Central Unit, MID
- Width: 200 mm
- Depth: 121 mm
- Height: 258 mm
- Weight: 3.2 kg
Delivery time: 5-10 Tage
Oil Management System for Fresh Oil TKS IV, Central Unit, Non-Calibratable
- Dispensing Points / Oil Types: 4
- Inputs: 4x Pulse Generator
- Outputs for Pump Control: 4
- Aluminum Housing, Graphic Display 240 x 64
- Highly Durable Membrane Keypad with 19 Keys
- Power Supply: Wide-Range Switching Power Supply
Delivery time: 5-10 Tage
Oil Dispensing Unit LubeMobil 70 S3 with TMS Smart
- Usable Capacity: 60 liters
- Flow Rate: 5 liters/min
- TMS Smart Meter
- Includes Motor and Gearbox Oil Outlet
- Operating Pressure: 2.0 bar
Delivery time: 5-10 Tage
Oil Dispensing Unit LubeMobil 70 Se3 with TMS Smart (MID)
- Net Capacity: 60 liters
- Flow Rate: 5 liters per minute
- Operating Pressure: 2.0 bar
- Inlet Pressure: 3-10 bar
Delivery time: 5-10 Tage
Oil Dispensing Unit DrumMobil 200 EP with TMS Smart Meter
- Universal Transport Cart
- Electric Gear Pump TZ 10
- Electric Smart Meter including Motors and Gear Oil Outlet
Delivery time: 5-10 Tage
Oil Dispensing Unit DrumMobil 200 PP with TMS Smart
- Universal Transport Cart
- Pneumatic Piston Pump
- Smart Meter including Motors with Gear Oil Drain
Delivery time: 5-10 Tage
Oil Dispensing Unit DrumMobil 200 PPe with TMS Smart (MID) Calibration-Ready
- Universal Transport Cart
- Pneumatic Piston Pump
- Delivery Hose: 3.15 m ย DN 12
- Includes Smart Meter
- Includes Engine and Gear Oil Outlet
- Suction and Return Line
- Pre-assembled and Ready for Connection
Delivery time: 5-10 Tage
Oil Dispensing Unit DrumMobil 200 EPe with TMS Smart (MID) Calibration Capable
- Includes TMS smart meter
- Calibratable
- Flow rate: 10 L/min
- Delivery pressure: max. 10 bar
Delivery time: 5-10 Tage

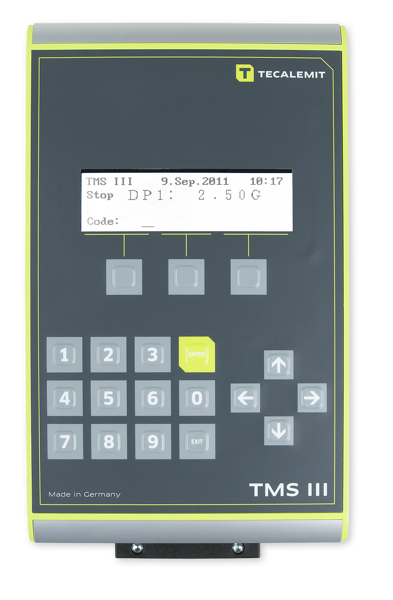

Oil Management System for Fresh Oil TMS III, Central Unit, MID
- Calibratable
- Dispensing Points / Oil Types: 5
- Pump Control: 5
- Dual Pulse Generator / Release Contacts: 5
Delivery time: 5-10 Tage

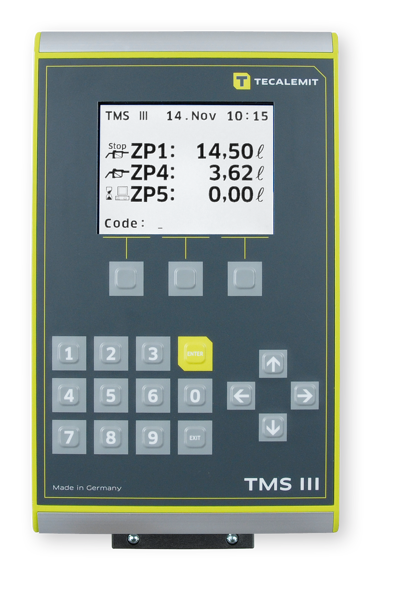

Oil Management System for Fresh Oil TMS III, Central Unit, Non-Calibratable, Text Display
- Not calibratable
- Dispensing points / Oil types: 10
- Pump control: 10
- Pulse generator: 10
Delivery time: 5-10 Tage
The right fluid management system for your workshop
Small workshop โ entry level
For workshops with 1โ3 oil types and few mechanics: TMS smart meter (โฌ1,599) as a single dispensing unit + TMS smart gateway (โฌ1,269) + RFID transponders (โฌ17/mechanic). All dispensing is assigned via RFID identification, without a complete central unit.
Mobile oil dispensing โ wheeled
For workshops that dispense oil flexibly at different lifting platforms: LubeMobil 70 with TMS smart (from โฌ2,785, 60 L, 5 l/min) for smaller quantities or DrumMobil 200 with TMS smart (from โฌ3,528, 200 L drum, 10 l/min) for a higher throughput โ wheeled, ready for immediate use.
Stationary multi-type management
For workshops with 4โ10 oil types at fixed dispensing points: TKS IV central unit (4 types, from โฌ2,176) or TMS III (5โ10 types, from โฌ4,042) โ controls pumps, records flow meters, displays consumption per oil type. With DMS integration via the TMS smart Control software.
Customer billing โ calibratable
For the legally compliant billing of oil on customer invoices: DrumMobil 200 PPe or EPe (MID-calibratable, โฌ3,899) or TMS III MID central unit (โฌ4,042). The MID approval is valid throughout the EU and permits billing by actual consumption to customers.
DMS integration & job data
For full integration into the dealer management system (e.g. Autodata, ADP, R+W): TMS smart Control software pro (โฌ1,800) + USB RFID read and write station with job information (โฌ612) โ oil dispensing is booked directly to jobs, job information is written to the transponder.
Large halls โ signal boosting
When the distance between the TMS smart meters and the gateway is more than 30โ40 m or concrete walls impair the radio connection: use the TMS smart repeater (โฌ324) as a ZigBeeยฎ signal booster. Status lights show the connection status immediately โ simple configuration without IT knowledge.
Frequently asked questions about fluid management systems
The right fluid management system for your workshop
Our specialist team advises you free of charge โ on the right system setup, the connection to your DMS and the calibration requirement for your situation.
โ Call +49 36071 924340 Request a quote
