AdBlue® meters for accurate quantity recording & consumption control
Electronic flow meters and pulse counters for urea solution AUS 32 – as a compact display unit, as a retrofit kit for HORNET systems or as a pulse counter for external display and control. From Tecalemit and PIUSI, for 5 to 120 l/min.
Electronic display meters
The Tecalemit FMT 3 III (€168) with a 6-digit LC display, a 2-line LED indicator and a wide measuring range of 5–120 l/min for diesel, AdBlue®, heating oil and water. The PIUSI K24 with a universal 1" connection (€204.50) is designed specifically for AdBlue® – direct reading of the delivered quantity.
Retrofit kit for the HORNET W85H
The Tecalemit FMT 3 III as a meter retrofit kit specifically for HORNET W85H INOX pump systems (€190) – a 1" thread, a measuring accuracy of ±1% after calibration, max. 10 bar. Retrofittable to existing HORNET systems without replacing the pump.
Pulse counter without a display
The PIUSI TURBINOX (€262) and TURBINOX 90° (€338) made of stainless steel – a pulse counter without its own display that transmits an output signal to an external counter, controller or fuel management system. 10–40 l/min, max. 20 bar, for installation in stationary dispensing systems and fleet management systems.
Which meter type when?
Display meters (FMT 3, K24) are suitable for simple, directly readable quantity recording without further infrastructure. Pulse counters (TURBINOX) are needed when the measurement data is to be passed on to a higher-level controller – e.g. a fuel management system, fleet management or a fuel-data collection system.
Electronic Flow Meter FMT 3 III
- Flow rate min./max. 5 – 120 l/min
- Suitable for diesel, heating oil El/L, AdBlue®, RME, antifreeze (concentrate), water
- Display: 2-line, LED illuminated, 6-digit LC display with 16 mm character height
No longer available
Electronic Flow Meter FMT 3 III - Counter Retrofit Kit HORNET W85H
- External Thread: 1 inch
- Internal Thread Diameter: 1 inch
- Flow Range: Min 5 – Max 120 l/min
- Measurement Accuracy: After Calibration ± 1%
- Nominal Pressure: Maximum 10 bar
No longer available
AdBlue® Urea Solution Meter K24 1" Male-Male/Female (1" Socket) PIUSI
- Specifically designed for AdBlue
- Accurately measures flow rates from 5 to 120 l/min
- Connection: Universal 1" fitting
Delivery time: 1-3 days
PIUSI TURBINOX Pulse Meter – Precise AdBlue® Measurement
- Flow Range: 10–40 l/min
- Max. Operating Pressure: 20 bar (290 psi)
- Housing Material: Stainless Steel
Delivery time: 2-5 days
Meter G1/2" Electric 50 l/min
Delivery time: 2-5 days

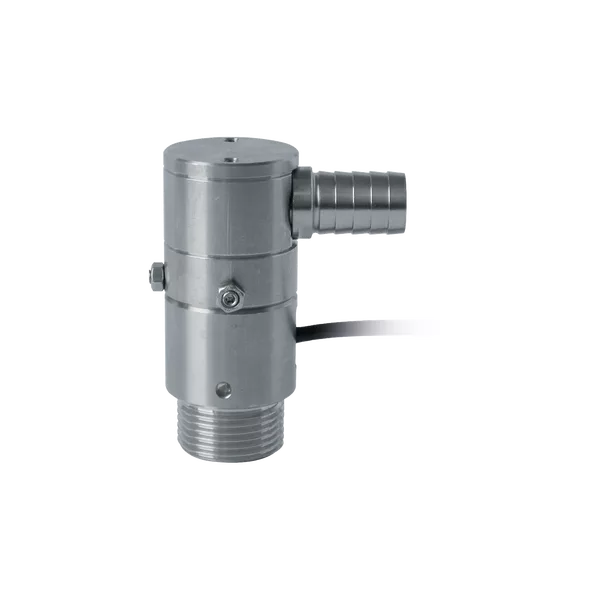

PIUSI TURBINOX 90° Pulse Meter (F0042001A) – For AdBlue® and Industrial Applications
- Flow Rate: 10–40 l/min
- Max. Pressure: 20 bar
- Dimensions (L x W x H): 80 x 80 x 75 mm
- Housing Material: Stainless Steel
Delivery time: 2-5 days
Which AdBlue® meter suits which application?
Simple quantity display
For direct reading of the dispensed quantity without a further system: Tecalemit FMT 3 III (€168) – a compact display, 2-line illuminated, for diesel, AdBlue® and other media. A low-cost entry into consumption recording without additional hardware.
Retrofitting the HORNET W85H
For operations with an existing TECALEMIT HORNET W85H INOX pump system without a flow meter: FMT 3 III retrofit kit HORNET (€190) – a matching 1" threaded connection, ±1% measuring accuracy after calibration, max. 10 bar. Direct mounting without a pump conversion.
Fleet with its own fuel management system
For systems with an existing fuel management system (TECALEMIT HDA eco, PIUSI MCBOX) or fleet management software: PIUSI TURBINOX pulse counter (€262) – passes a pulse signal on to an external controller, no display of its own. A stainless-steel housing for long continuous operation.
Space-saving installation – 90° connection
For cramped installation situations in compact systems or with difficult hose routing: PIUSI TURBINOX 90° (€338) – identical specification to the straight TURBINOX, but with a right-angled connection for more flexibility during installation.
Several media – one meter
The Tecalemit FMT 3 III is approved for diesel, heating oil, AdBlue®, RME, radiator antifreeze and water – ideal for operations that measure several liquids and want to keep only one device. The PIUSI K24 is optimised specifically for AdBlue®.
Meter integrated in the dispenser
Many dispensers and pump systems already have integrated meters – check before purchasing whether your system contains a meter. The HORNET W85H INOX with FMT 3 (€846) and the PIUSI DELPHIN PRO have integrated meters. A separate meter is only needed for systems without a meter or for retrofitting.
Frequently asked questions about AdBlue® meters
The right meter for your AdBlue® system
Our specialist team advises you free of charge – on compatibility with your system, the right connection and the optimal solution for your consumption recording.
☎ Call +49 36071 924340 Request a quote
