Air-operated pumps for oil, diesel, AdBlue® & explosive media
Piston pumps, double-diaphragm pumps and single-diaphragm pumps from GRACO, PIUSI, MATO, Samoa and TECALEMIT – for the cable-free, spark-free delivery from 200 L drums and IBC containers. Ideal for workshops, industry and explosion-protection areas.
Piston pumps for oil
PIUSI P3.5:1 / P5.5:1 and GRACO LD 3:1 / 5:1 for engine oil, gear oil and high-viscosity lubricating oils from 200 L drums. The transmission ratio determines the oil pressure – 5:1 for SAE 90/140. MATO pneuMATO flexibly selectable with 1:1, 1:3 and 1:5.
Double-diaphragm pumps
GRACO double-diaphragm pumps (57–189 l/min), MATO DP-60 and Samoa Directflo DF 50/100 for diesel, water, antifreeze, AdBlue® and oil. A pulsating volume flow, self-priming up to 8 m, for low- to medium-viscosity media.
EX protection for petrol & kerosene
PIUSI PRO ONE 15 (50 l/min) and PRO ONE 25 (160 l/min) – ATEX-approved double-diaphragm pumps for diesel, petrol and kerosene. Self-priming up to 7 m, max. 7 bar, for hazardous areas zone 1 & 2.
Complete sets & units

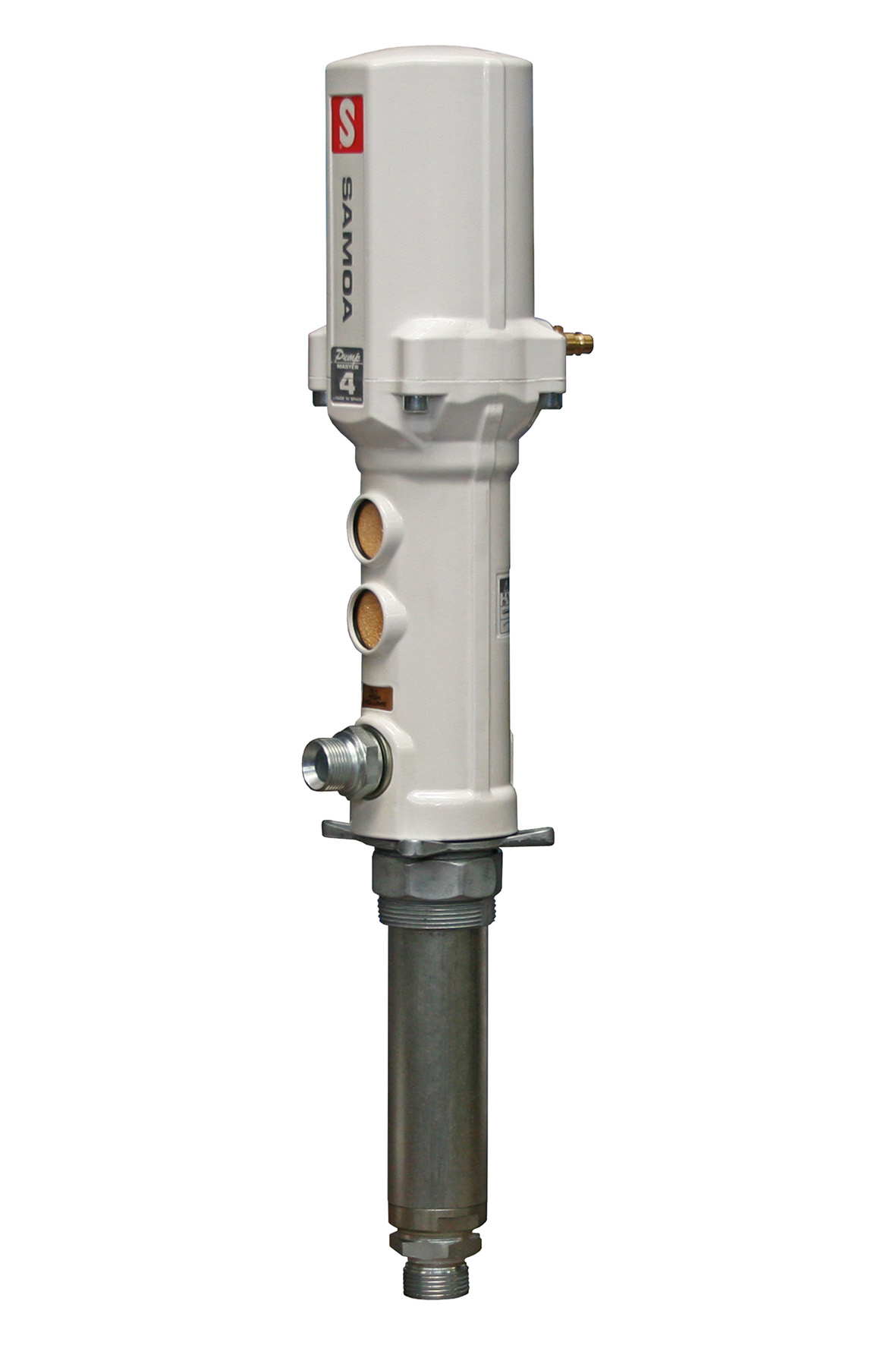

TECALEMIT TecPump DP16/36/56 eco as ready-made pump sets with a suction tube, 4 m hose, pressure regulator and oil nozzle. Samoa PumpMaster 2 & 4 as rugged units – ready to operate straight away for the workshop.
PIUSI P3.5:1 ST Air-Operated Oil Piston Pump, Ratio 3.5:1, 21,5 l/min, Suction Tube 175 mm
- Fluids: oil
- Ratio: 3.5:1
- Flow rate: 21,5 l/min
- Double-acting piston pump, low operating speed
- Long service life, maintenance-free, no oxidation
Delivery time: 1-3 days
PIUSI P5.5:1 ST Air-Operated Oil Piston Pump, Ratio 5.5:1, 15,5 l/min, Suction Tube 175 mm
- Fluids: oil
- Ratio: 5.5:1
- Flow rate: 15,5 l/min
- Double-acting piston pump, low operating speed
- Long service life, maintenance-free, no oxidation
Delivery time: 1-3 days
LD GRACO Oil Pump 3:1 with 3-Inch Air Motor Pneumatic Drum Pump 🚛
- Pneumatic piston pump
- Permissible operating pressure: 51.7 bar
- Pump transmission ratio: 3:1
Delivery time: 2-5 days
PIUSI P3.5:1 940 Air-Operated Oil Piston Pump, Ratio 3.5:1, 21,5 l/min, Suction Tube 940 mm
- Fluids: oil
- Ratio: 3.5:1
- Flow rate: 21,5 l/min
- Double-acting piston pump, low operating speed
- Long service life, maintenance-free, no oxidation
Delivery time: 1-3 days
PIUSI P5.5:1 940 Air-Operated Oil Piston Pump, Ratio 5.5:1, 15,5 l/min, Suction Tube 940 mm
- Fluids: oil
- Ratio: 5.5:1
- Flow rate: 15,5 l/min
- Double-acting piston pump, low operating speed
- Long service life, maintenance-free, no oxidation
Delivery time: 1-3 days
GRACO LD Oil Pump 5:1 with 3-Inch Air Motor Pneumatic Drum Pump 🚛🛢️
- Pneumatic piston pump
- Permissible operating pressure: 51.7 bar
- Pump ratio: 5:1
Delivery time: 2-5 days
MATO pneuMATO Compressed Air Oil Transfer Pump
- Connection: R2" drum adapter
- Compressed-air oil pump for drum and tank extraction
- Pressure ratio 1:1, 1:3 or 1:5
- With R2" drum adapter, otherwise without accessories
Delivery time: 2-5 days

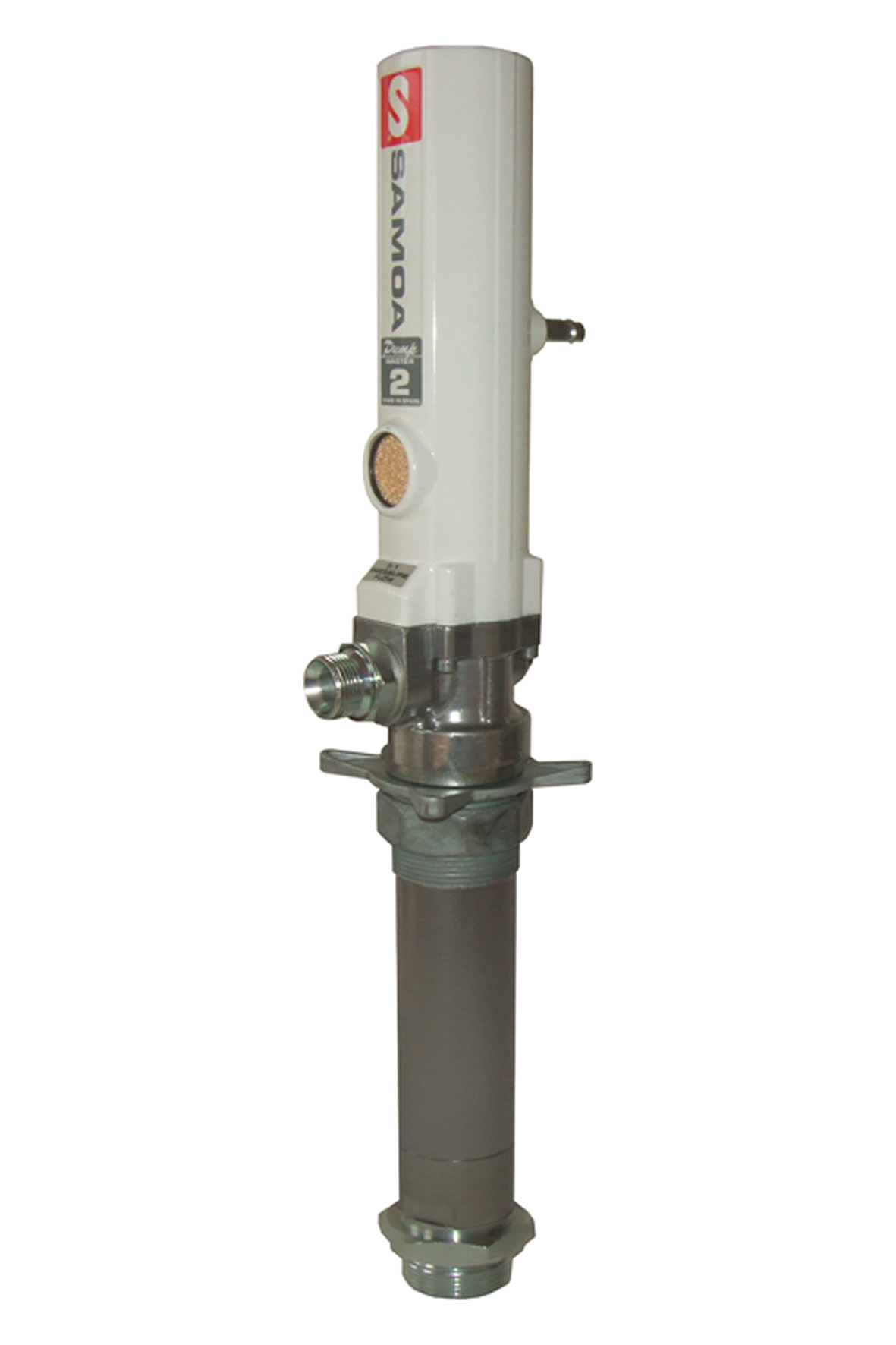

SAMOA PumpMaster 2 DP 1:1, Air-Operated Oil Pump (Unit), approx. 52 l/min, Air Pressure 1.5–10 bar
- Pressure ratio: 1:1
- Air pressure: 1.5–10 bar
- Flow rate: approx. 52 l/min (7 bar, SAE 20 at 20 °C)
- Ratio 1:1, air pressure 1.5–10 bar
- Approx. 52 l/min (7 bar, SAE 20 at 20 °C)
Delivery time: 2-5 days
SAMOA Directflo DF 30, Air-Operated Double Diaphragm Pump in Polypropylene, 38 l/min, for AdBlue® and Antifreeze
- Fluids: AdBlue®, antifreeze, coolant, screen wash
- Pressure ratio: 1:1
- Flow rate: approx. 38 l/min
- Double diaphragm pump 1:1, approx. 38 l/min
- Polypropylene housing
Delivery time: 1-3 days
GRACO Air-Operated Double Diaphragm Pump with Dual Inlet, 61 L/min 💧🔧
- Flow Rate: 60 L/min
- Inlet and Outlet: 3/4" G
- Medium: Antifreeze, Windshield Washer Fluid, Water, Oil
Delivery time: 2-5 days
GRACO Air-Operated Double Diaphragm Pump 61 L/min for Water, Antifreeze, Oil 🌊🛢️
- Flow Rate: 61 l/min
- Inlet Connection: 3/4 inch
- Outlet Connection: 3/4 inch
- Medium: Water, Antifreeze, Oil, Windshield Washer Fluid
Delivery time: 2-5 days

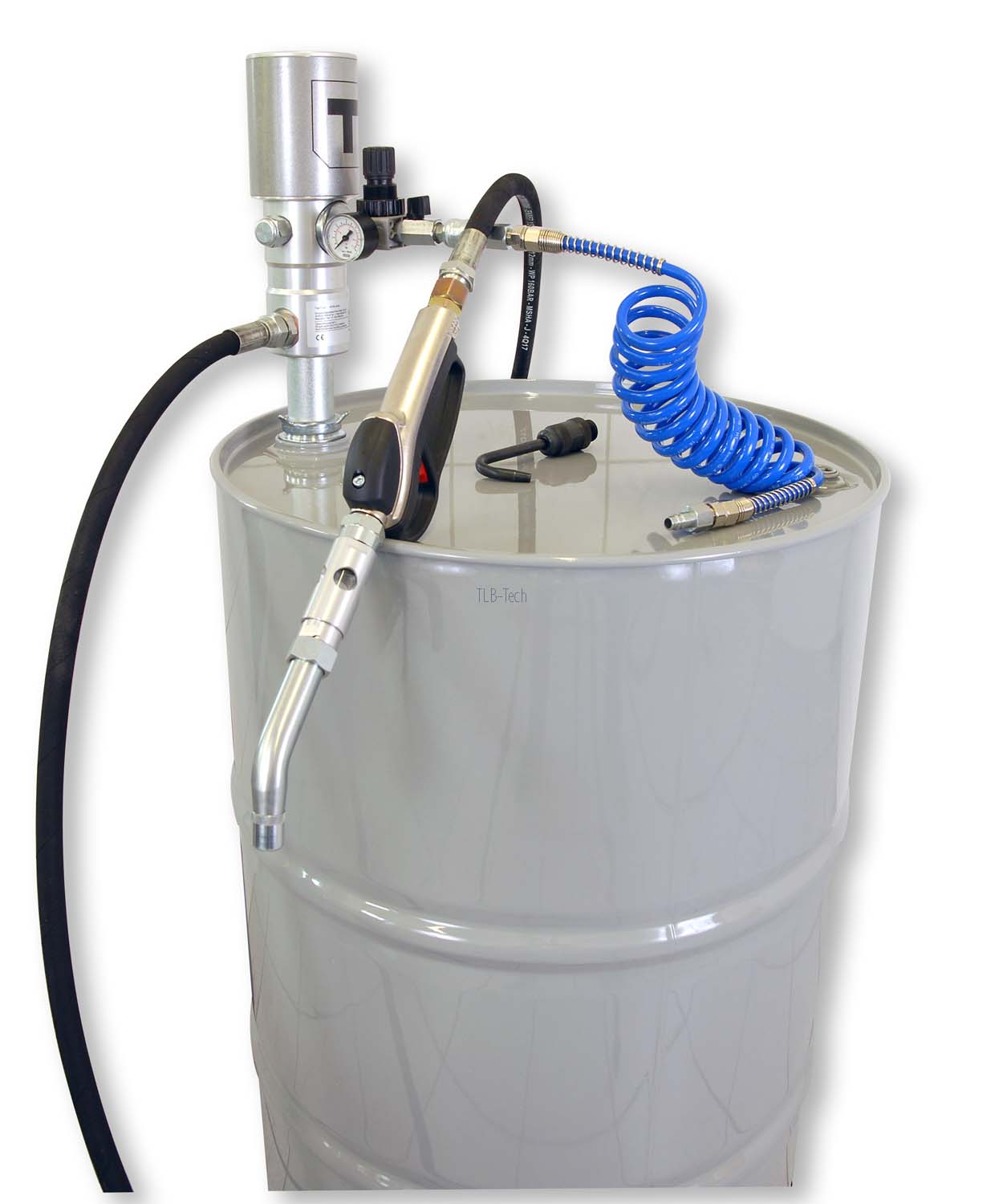

TECALEMIT TecPump DP 56 eco Air-Operated Pump Set, 5:1 Oil Pump for Drums, 4 m Hose with Oil Nozzle
- Version: TecPump DP 56 eco, complete set
- Pressure ratio: 5:1
- Viscosity: max. 5,000 mPa·s
- Pressure ratio 5:1, compressed-air operation at 6–8 bar
- For gear and engine oils up to SAE 50, up to 5,000 mPa·s
Delivery time: 2-5 days
GRACO Air-Operated Double Diaphragm Pump for AdBlue® Urea Solution
- Flow Rate: 57 liters/min
- Inlet Connection: 1/2“
- Outlet Connection: 1/2“
- Medium: AdBlue® Urea Solution
Delivery time: 2-5 days

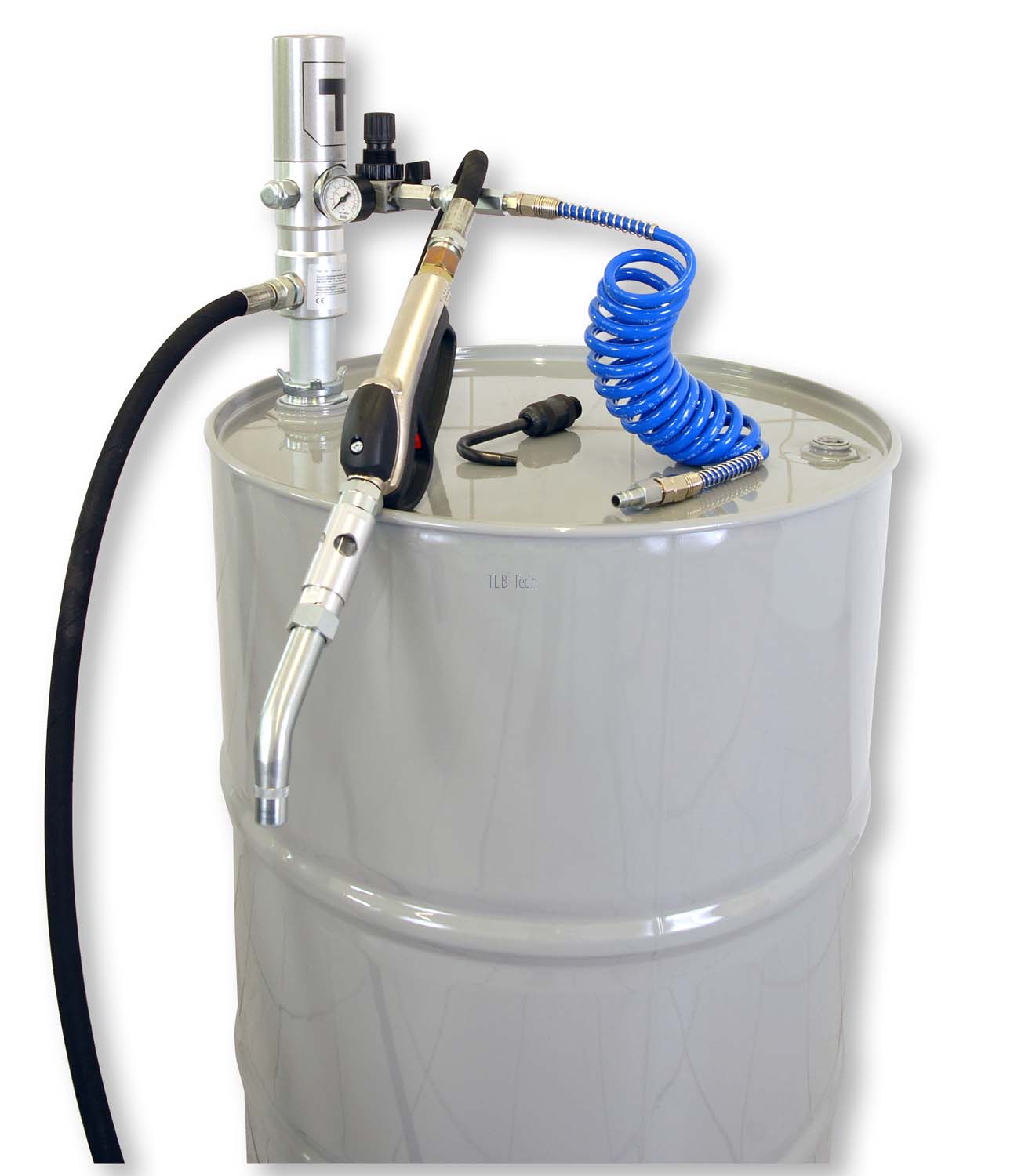

TECALEMIT TecPump DP 16 eco Air-Operated Pump Set, 1:1 Oil Pump for Drums, up to 16 l/min, 4 m Hose with Oil Nozzle
- Version: TecPump DP 16 eco, complete set
- Pressure ratio: 1:1
- Flow rate: up to 16 l/min
- Pressure ratio 1:1, compressed-air operation at 6–8 bar
- For gear and engine oils up to SAE 50, up to 5,000 mPa·s
Delivery time: 2-5 days
TECALEMIT TecPump DP 36 eco Air-Operated Pump Set, 3:1 Oil Pump for Drums, up to 13 l/min, 4 m Hose with Oil Nozzle
- Version: TecPump DP 36 eco, complete set
- Pressure ratio: 3:1
- Flow rate: up to 13 l/min
- Pressure ratio 3:1, compressed-air operation at 6–8 bar
- For gear and engine oils up to SAE 50, up to 5,000 mPa·s
Delivery time: 2-5 days
PIUSI PRO ONE 15 (EX), Air-Operated Double Diaphragm Pump 50 l/min, Aluminium
- Fluids: diesel, oil
- Flow rate: bis 50 l/min
- Air pressure: max. 7 bar
- Air-operated double diaphragm pump, ATEX (EX)
- Up to 50 l/min, self-priming up to 7 m
Delivery time: 5-10 Tage
MATO Pneumatic Double Diaphragm Pump DP-60
- Flow rate: approx. 60 l/min
- Pressure ratio: 1:1
- Max. operating pressure: 8 bar
- Flow approx. 60 l/min (free outlet)
- Handles contaminated media up to 1.5 mm particle size
Delivery time: 2-5 days
GRACO Air-Operated Double Diaphragm Pump with High Free Flow 🌊
- Flow Rate: 189 L/min
- Inlet Connection: 1"
- Outlet Connection: 1"
- Medium: Antifreeze, Windshield Washer Fluid, Water, Oil
Delivery time: 2-5 days
PIUSI MA 130 Air-Operated Diaphragm Pump, 50 l/min, Aluminium Body, 1/2" G
- Fluids: oil, diesel
- Flow rate: max. 50 l/min
- Connection: inlet/outlet 1/2" G F, air connection G 3/8" F
- Air-operated diaphragm pump, explosion-proof
- Interchangeable inlet/outlet, built-in diffuser
Delivery time: 2-5 days
PIUSI PRO ONE 25 (EX), Air-Operated Double Diaphragm Pump 160 l/min, Aluminium
- Fluids: diesel, oil
- Flow rate: bis 160 l/min
- Air pressure: max. 7 bar
- Air-operated double diaphragm pump, ATEX (EX)
- Up to 160 l/min, self-priming up to 7 m
Delivery time: 5-10 Tage
SAMOA Directflo DF 50, Air-Operated Double Diaphragm Pump in Aluminium, approx. 50 l/min, for Oil and Waste Oil
- Fluids: fresh oil, waste oil, antifreeze, screen wash
- Pressure ratio: 1:1
- Flow rate: approx. 50 l/min, approx. 0.1 l/stroke
- Double diaphragm pump 1:1, approx. 50 l/min
- Dry suction up to approx. 6 m, primed up to approx. 8 m
Delivery time: 2-5 days
PIUSI MA 140 Air-Operated Diaphragm Pump, 100 l/min, Polypropylene Body, 1" G
- Fluids: oil, diesel
- Flow rate: max. 100 l/min
- Connection: inlet/outlet 1" G F, air connection G 3/8" F
- Air-operated diaphragm pump, explosion-proof
- Interchangeable inlet/outlet, built-in diffuser
Delivery time: 2-5 days
SAMOA Directflo DF 100, Air-Operated Double Diaphragm Pump in Polypropylene, 100 l/min, ATEX, for AdBlue®
- Fluids: AdBlue®/DEF, antifreeze, screen wash, detergents
- Pressure ratio: 1:1
- Flow rate: max. 100 l/min, 0.5 l/cycle
- Max. 100 l/min, 0.5 l per cycle
- ATEX certified, polypropylene housing
Delivery time: 2-5 days
TECALEMIT TecPump DP 36 standard Air-Operated Pump Set, 3:1 Piston Pump for Engine and Gear Oil, up to 16 l/min, Drum Version
- Version: TecPump DP 36 standard, complete set
- Pressure ratio: 3:1
- Flow rate: up to 16 l/min
- Pressure ratio 3:1, compressed-air operation at 6–8 bar
- For gear and engine oils up to SAE 50, up to 5,000 mPa·s
Delivery time: 2-5 days
Which air-operated pump suits which application?
Workshop – oil change
For engine oil and lubricants from 200 L drums: TECALEMIT TecPump DP36 eco (3:1) or PIUSI P3.5:1 – fully equipped with a suction tube, hose and oil nozzle. No power connection, no spark risk.
High-viscosity oils & gear oil
For oils from SAE 90/140 and used oil: PIUSI P5.5:1 / MA130 or GRACO LD 5:1 – the higher transmission ratio overcomes the resistance of viscous media. PIUSI MA140 for 100 l/min used-oil delivery.
Diesel & fuels
For diesel and heating oil: GRACO double-diaphragm pump 61 l/min or MATO DP-60 – low-pulsation delivery, self-priming. Ideal for fuel transfer without a power connection in warehouses and EX areas.
Petrol & ATEX areas
For petrol, kerosene and other highly flammable media in EX areas: PIUSI PRO ONE 15 (50 l/min) or PRO ONE 25 (160 l/min) – ATEX-certified, self-priming up to 7 m, max. 7 bar. No electric spark.
AdBlue® & antifreeze
For AdBlue®, antifreeze and coolants: GRACO double-diaphragm for AdBlue® (57 l/min) or Samoa Directflo DF 100 (100 l/min) – made of AdBlue®-resistant materials, for IBC containers and drums.
Industry & high performance
For large volume flows and continuous operation: GRACO double-diaphragm pump 189 l/min or PIUSI MA140 (100 l/min) – for the oil and lubricant supply of industrial systems straight from the tank or IBC container.
