Drum-handling equipment for forklifts drum grabs · drum turners · drum tippers · drum lifters – for 60 to 220 litres
A complete range of drum-handling equipment for forklifts – from the simple drum trolley and scissor grab through drum crossbeams and drum grabs to drum-turning tongs, drum lifters, drum hoists and drum tippers with a 360° rotation range. For steel bung drums from 60 to 220 litres, load capacities up to 1600 kg. All devices available galvanised or painted.
Grabs, tongs & crossbeams
Drum grabs, drum tongs and drum crossbeams are the basic tool for lifting steel bung drums with the forklift. They grip the drum from the outside or suspend it by the bung opening – depending on the device type, one or two drums can be picked up at the same time. Available for 60-litre to 220-litre drums.
Drum lifters & drum hoists
Drum lifters of the RS series and drum hoists FH combine the gripping and lifting of the drum with a stable hold and high load capacities up to 1600 kg. They are the solution for heavy drums, intensive use and operations that regularly have to place drums on shelving, machines or raised filling stations.
Drum turners & drum-turning tongs
Drum turners and drum-turning tongs rotate drums from the upright into the horizontal position – or vice versa. This is necessary when drums are to be placed on roller conveyors, stored in drum racks or filled from a horizontal position. Available for 60-litre and 200-litre drums, single- or two-part.
Drum tippers
Drum tippers enable the controlled emptying of drums by 360° rotation with the forklift or crane. Various drive types are available: hand crank, endless chain or lifting cylinder. They are the solution when drum contents have to be poured into containers, machines or mixing units without tipping the drum manually.
BAUER Drum Dolly FRW Hot-Dip Galvanised, FRW-I, FRW-II or FRW-III, for Drums up to Ø 600 mm, 300 kg
- Dimensions (L × W × H): FRW-I 615 × 615 × 175 mm, FRW-II 645 × 620 × 210 mm, FRW-III 680 × 620 × 1045 mm
- Inner diameter: FRW-I 600 mm, FRW-II/-III 610 mm
- Construction height: 125 mm
- For moving drums up to Ø 600 mm
- Sheet steel construction, hot-dip galvanised
Delivery time: 3-4 weeks

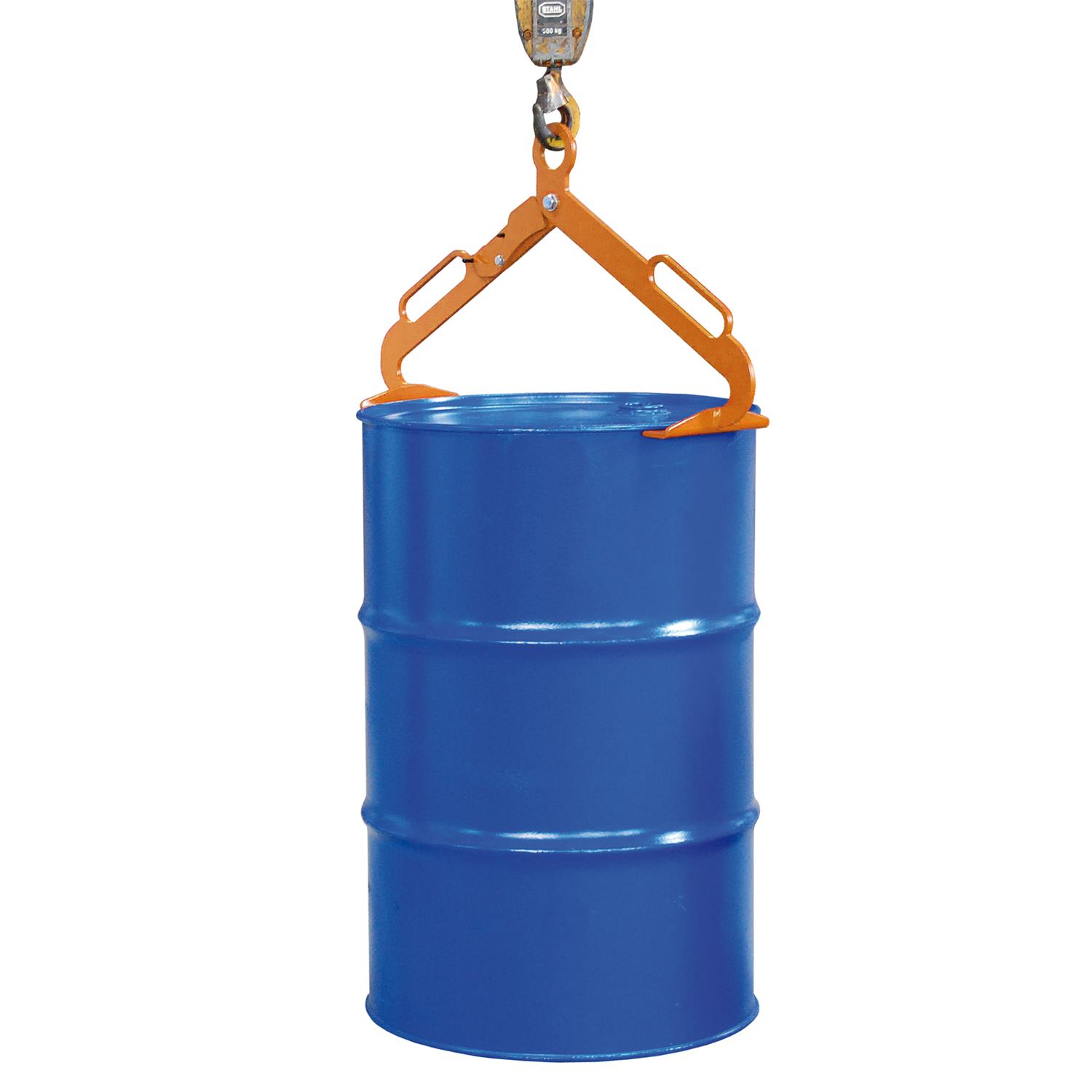

BAUER Drum Tongs LGZ 200, for Upright 200 l Drums, 300 kg, 740 × 200 × 410 mm, Painted or Galvanised
- Dimensions (L × W × H): 740 × 200 × 410 mm
- Load capacity: 300 kg
- Suitable drums: steel bung drums, steel lidded drums and plastic lidded drums
- For picking up upright 200 l drums
- For steel bung drums, steel lidded drums and plastic lidded drums
Delivery time: 3-4 weeks

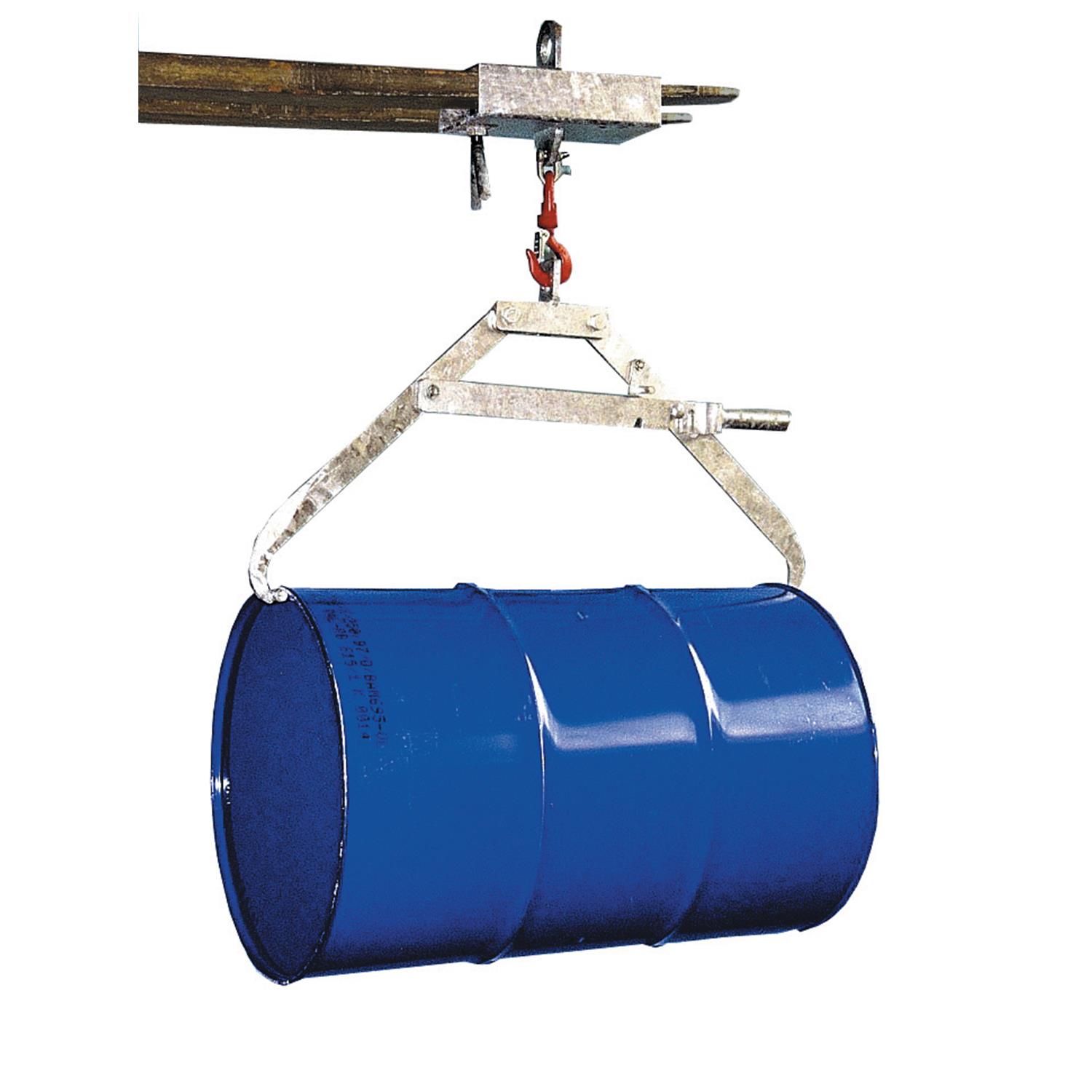

BAUER Scissor Drum Gripper LG 200, for Horizontal 200 l Steel Bung Drums, 360 kg, 1020 × 120 × 455 mm, Painted or Galvanised
- Dimensions (L × W × H): 1020 × 120 × 455 mm
- Load capacity: 360 kg
- Suitable drums: 200 l steel bung drums, horizontal
- For picking up horizontal 200 l steel bung drums
- For drum heights of 750 to 920 mm
Delivery time: 3-4 weeks

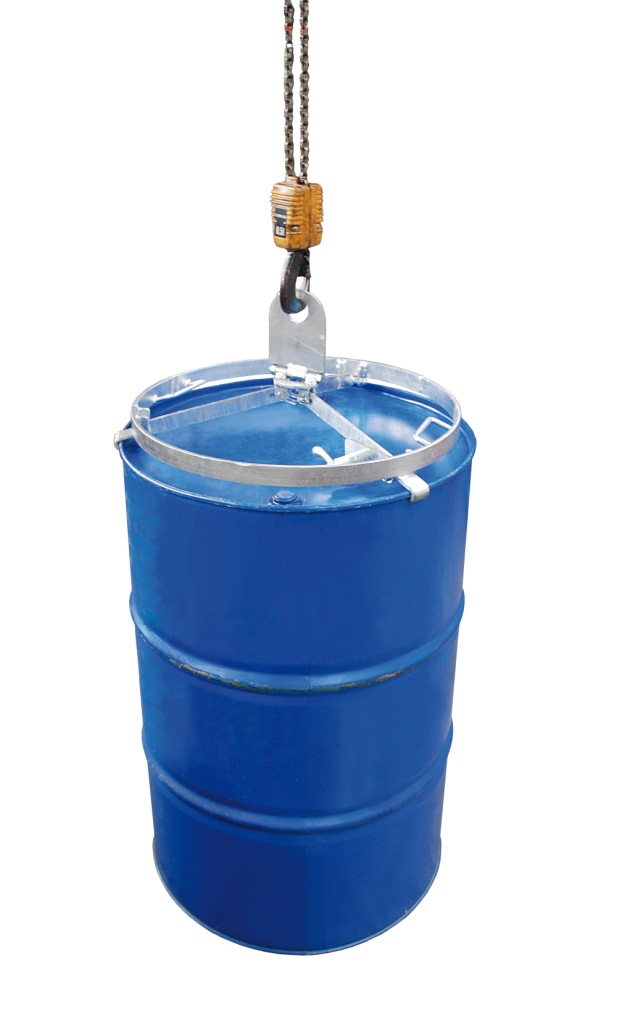

BAUER Drum Lifting Beam FT/M Hot-Dip Galvanised, for Upright Drums, 300 kg, 610 × 610 × 225 mm
- Dimensions (L × W × H): 610 × 610 × 225 mm
- Diameter: 610 mm
- Load capacity: 300 kg
- For picking up upright drums or loading containers
- Suitable for 200 l steel bung drums
Delivery time: 3-4 weeks

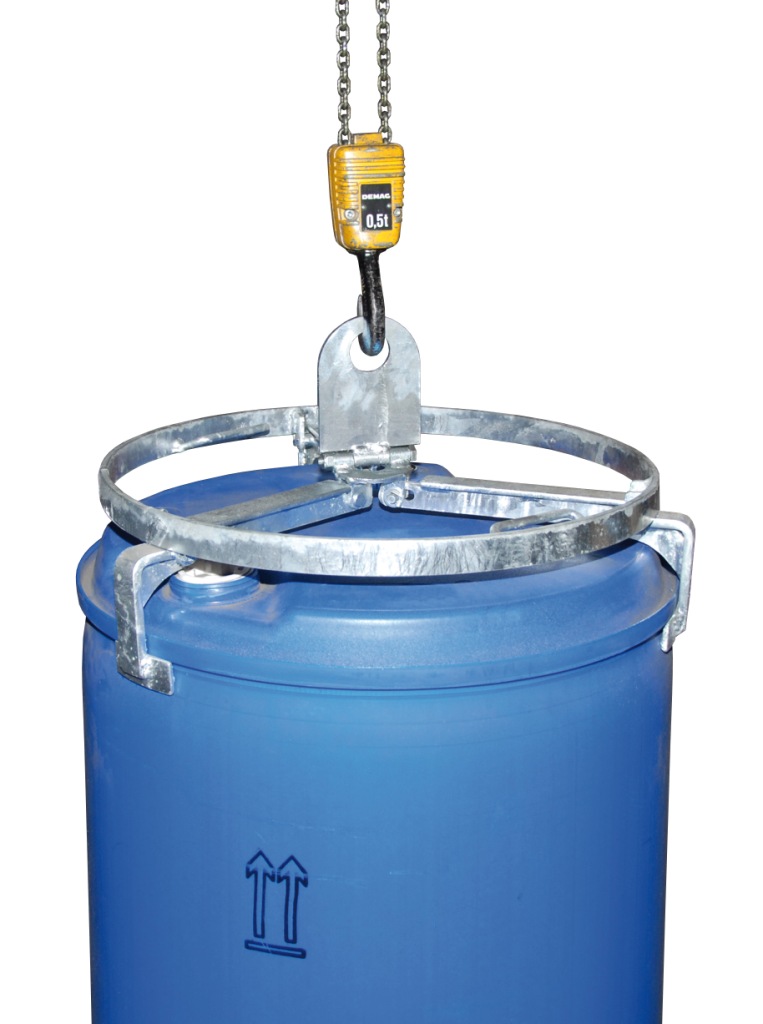

BAUER Drum Lifting Beam FT/MK Hot-Dip Galvanised, for Upright Drums, 300 kg, 610 × 610 × 270 mm
- Dimensions (L × W × H): 610 × 610 × 270 mm
- Diameter: 610 mm
- Load capacity: 300 kg
- For picking up upright drums or loading containers
- Suitable for 200 l steel bung drums and 220 l plastic L-ring and double L-ring drums
Delivery time: 3-4 weeks

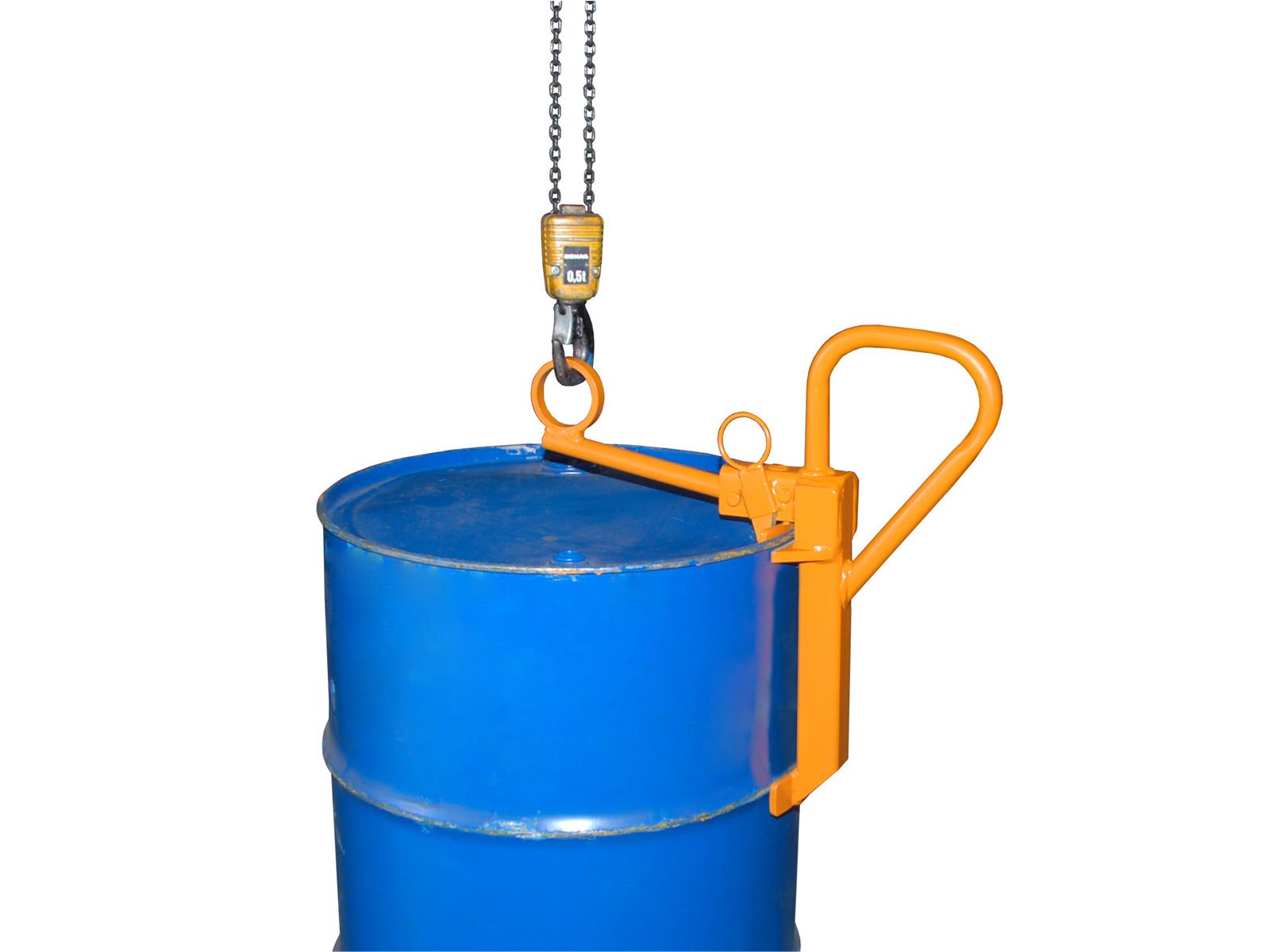

BAUER Drum Clamp FKL Painted RAL 2000 Yellow Orange, for Upright 200 l Steel Bung Drums, 350 kg, 130 × 540 × 465 mm
- Dimensions (L × W × H): 130 × 540 × 465 mm
- Load capacity: 350 kg
- Suitable drums: 200 l steel bung drums, upright
- For picking up upright 200 l steel bung drums
- Automatic safety lock
Delivery time: 3-4 weeks

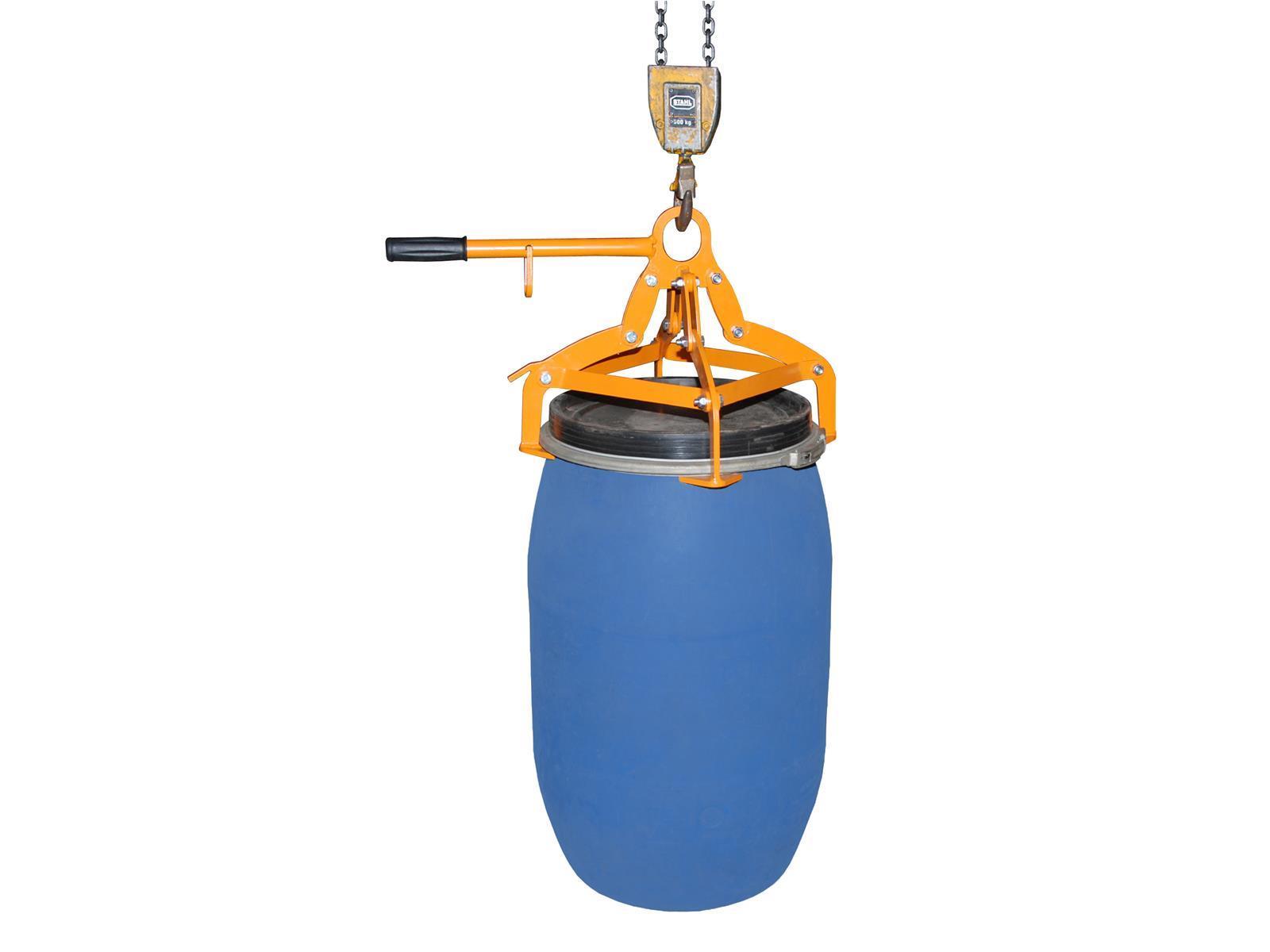

BAUER Drum Gripper 4P-D120, for 120 l Plastic Lidded Drums, 350 kg, 685 × 495 × 385 mm, Painted or Hot-Dip Galvanised
- Dimensions (L × W × H): 685 × 495 × 385 mm
- Load capacity: 350 kg
- Clamping range: 370–420 mm
- Safe handling of 120 l plastic lidded drums
- 4-point clamping system
Delivery time: 3-4 weeks
BAUER Drum Gripper 4P-D220, for 220 l Plastic Lidded Drums, 350 kg, 830 × 590 × 375 mm, Painted or Hot-Dip Galvanised
- Dimensions (L × W × H): 830 × 590 × 375 mm
- Load capacity: 350 kg
- Clamping range: 450–500 mm
- Safe handling of 220 l plastic lidded drums
- 4-point clamping system
Delivery time: 3-4 weeks

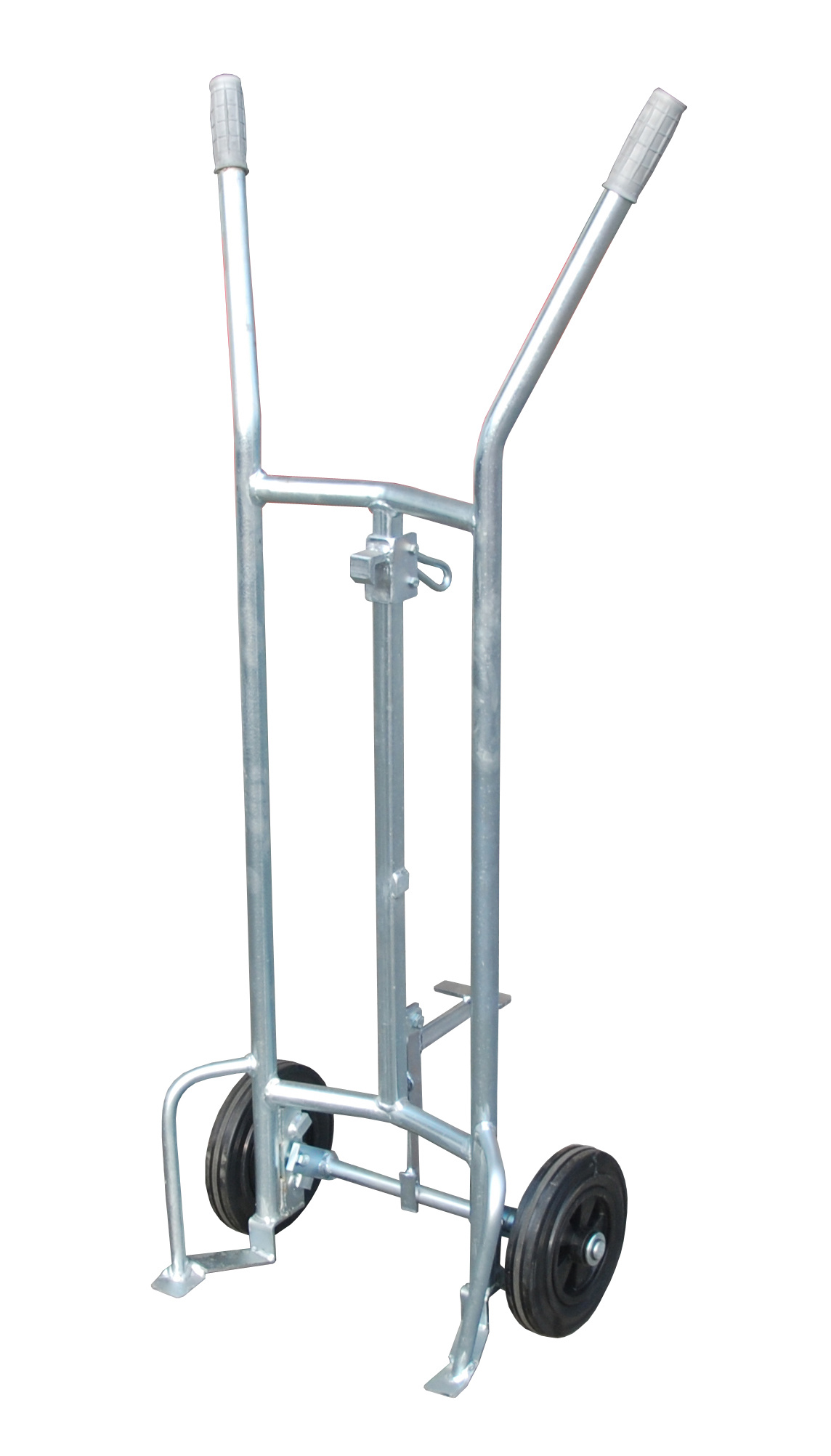

BAUER Drum Truck FP-V Galvanised, Solid Rubber Tyres, for 200 l Steel Bung Drums, 350 kg, 400 × 690 × 1565 mm
- Dimensions (L × W × H): 400 × 690 × 1565 mm
- Load capacity: 350 kg
- Suitable drums: 200 l steel bung drums
- For 200 l steel bung drums, 1 drum
- According to the manufacturer, considerably less effort when picking up drums
Delivery time: 3-4 weeks

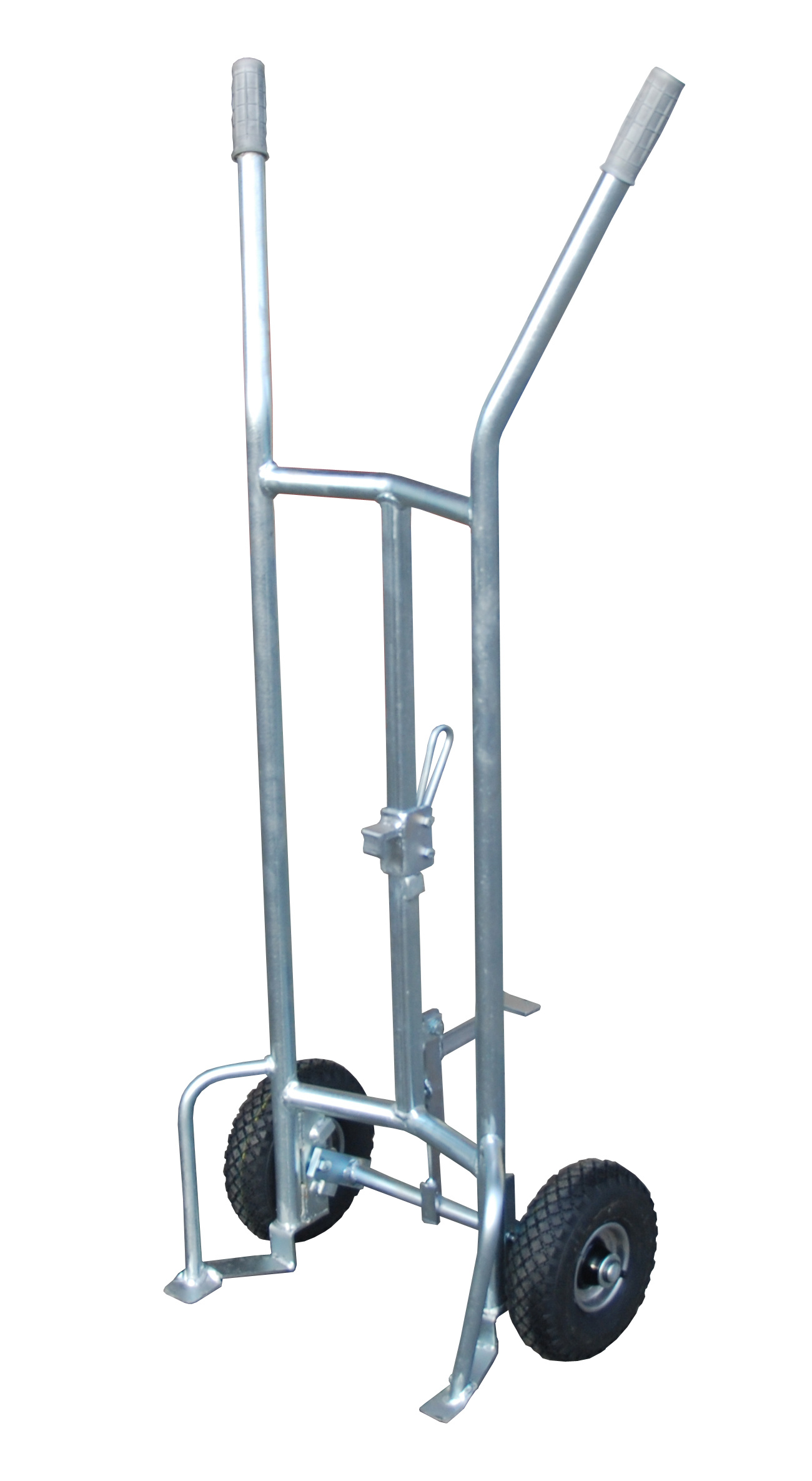

BAUER Drum Truck FP-L Galvanised, Pneumatic Tyres, for 200 l Steel Bung Drums, 350 kg, 400 × 690 × 1565 mm
- Dimensions (L × W × H): 400 × 690 × 1565 mm
- Load capacity: 350 kg
- Suitable drums: 200 l steel bung drums
- For 200 l steel bung drums, 1 drum
- According to the manufacturer, considerably less effort when picking up drums
Delivery time: 3-4 weeks

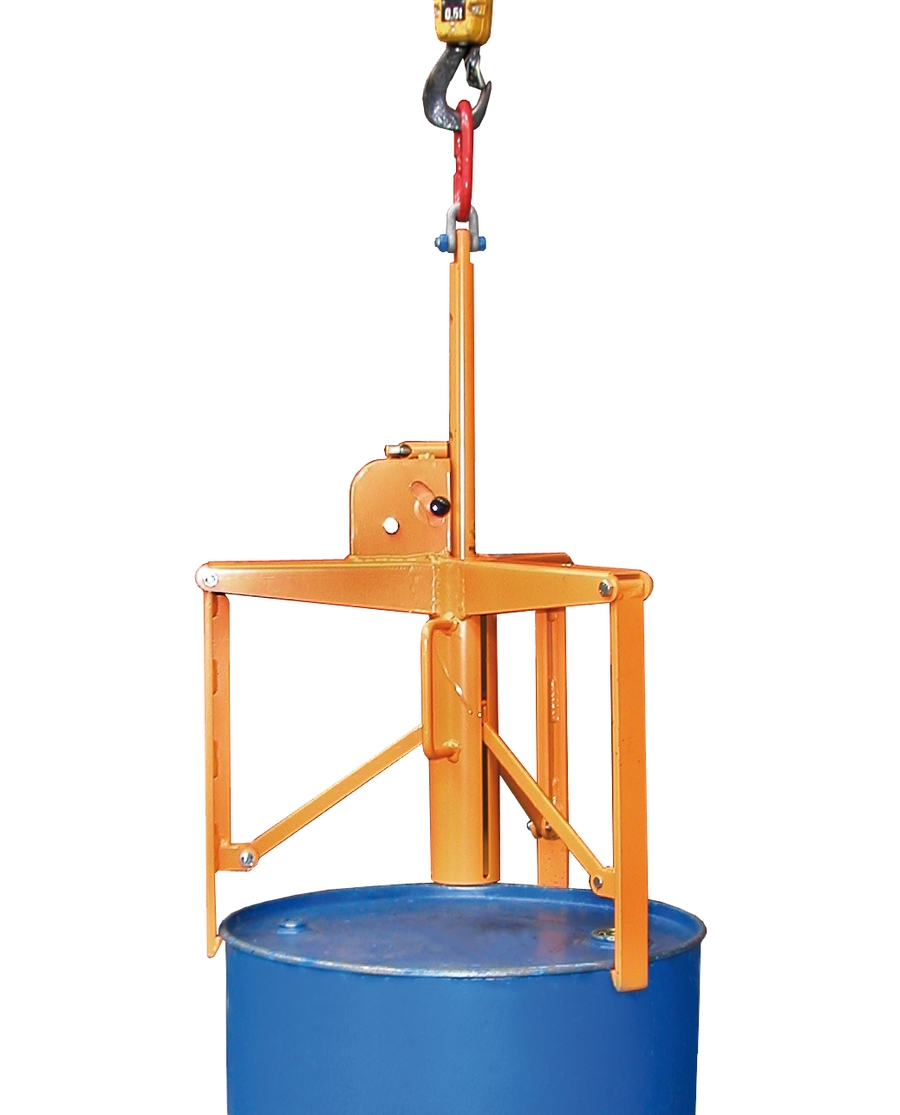

BAUER Drum Gripper 3P, Ø 680 × 915 mm, 400 kg, for 60–220 l Drums, Painted or Hot-Dip Galvanised
- Dimensions (Ø × H): 680 × 915 mm
- Load capacity: 400 kg
- Clamping range: 270–680 mm
- Safe handling of steel and plastic drums of 60 to 220 l
- For steel bung, steel lidded, rolling-hoop, plastic L-ring, plastic double L-ring and plastic lidded drums
Delivery time: 3-4 weeks
BAUER Drum Lifter RS 60-I, for 1 Drum 60 l, Forklift, 100 kg, 1050 × 410 × 460 mm, 5 RAL Colours or Hot-Dip Galvanised
- Dimensions (L × W × H): 1050 × 410 × 460 mm
- Load capacity: 100 kg
- Suitable drums: steel bung drums
- For filled 60 l steel bung drums
- Takes max. 1 drum (60 l)
Delivery time: 3-4 weeks

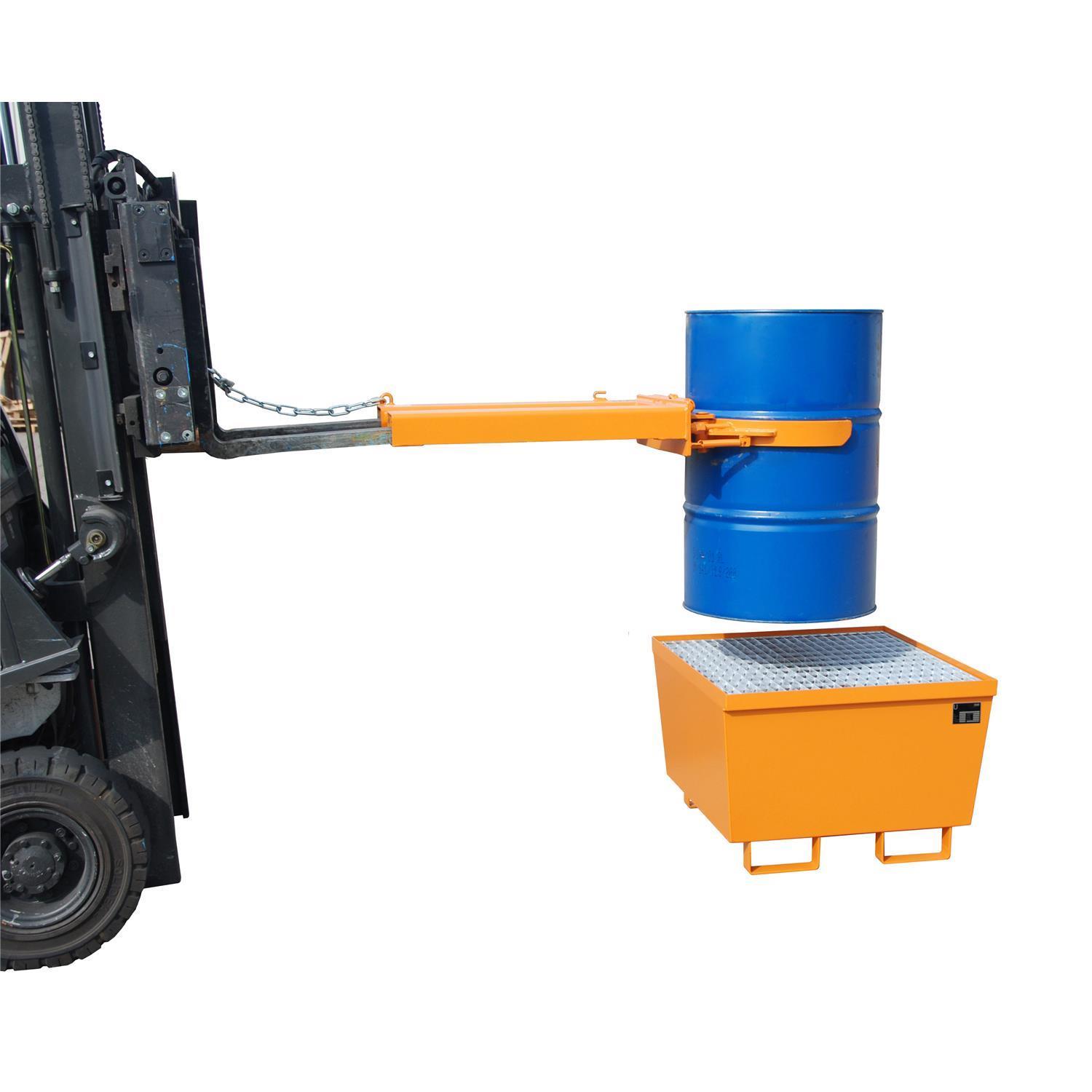

BAUER Drum Gripper FK-I, for 1 × 200 l Drum, Forklift, 500 kg, 1285 × 600 × 165 mm, Painted or Hot-Dip Galvanised
- Dimensions (L × W × H): 1285 × 600 × 165 mm
- Load capacity: 500 kg
- Suitable drums: steel bung drums, steel lidded drums and rolling-hoop drums
- Picks up and moves one 200 l drum with a forklift truck
- For steel bung drums, steel lidded drums and rolling-hoop drums
Delivery time: 3-4 weeks
BAUER Drum Turning Clamp FWZ-60, for 60 l Steel Drums, 100 kg, 320 × 805 × 905 mm, Painted or Hot-Dip Galvanised
- Dimensions (L × W × H): 320 × 805 × 905 mm
- Load capacity: 100 kg
- Suitable drums: steel bung drums and steel lidded drums
- Vertical and horizontal lifting and moving of 60 l drums
- For steel bung drums and steel lidded drums
Delivery time: 3-4 weeks

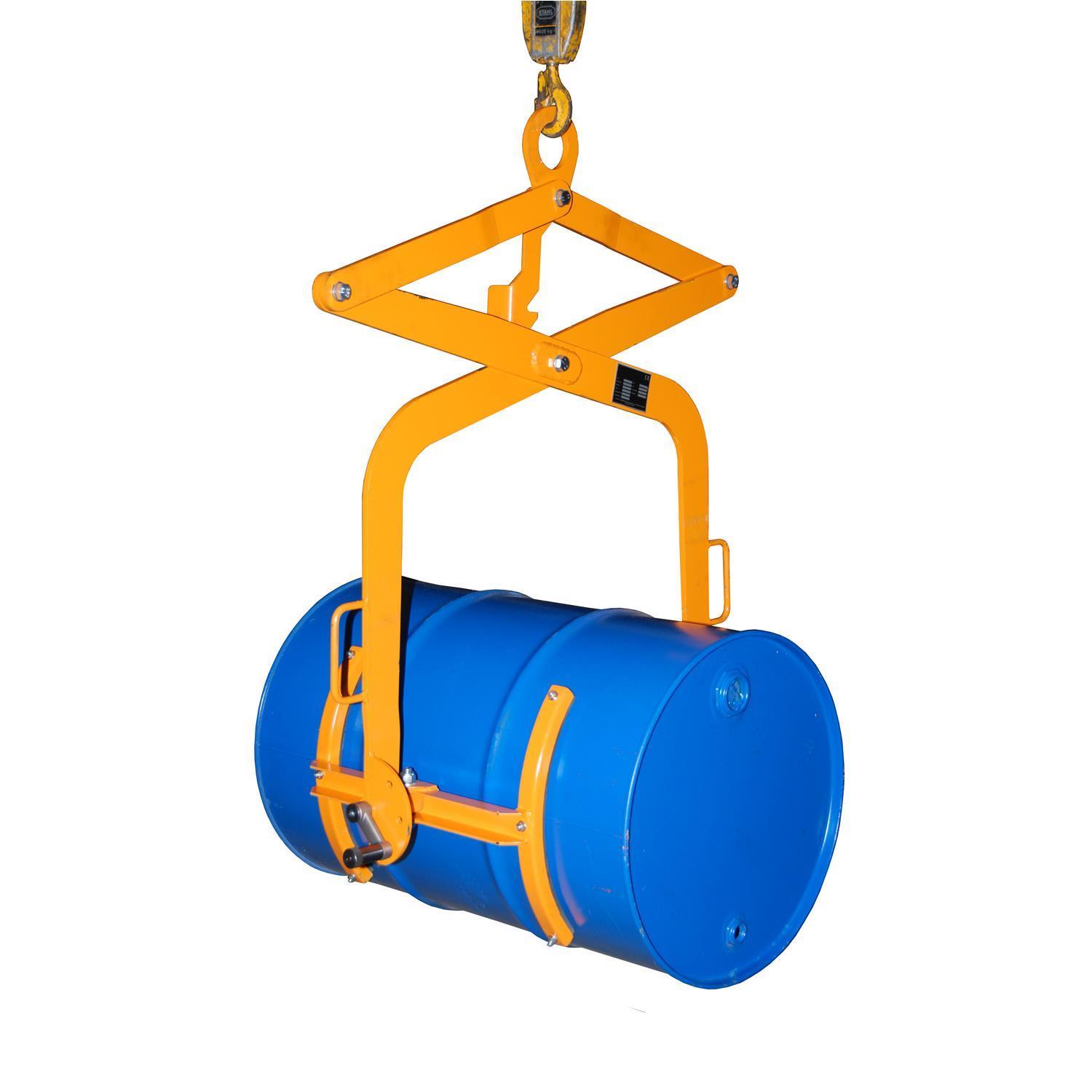

BAUER Drum Turning Clamp FWZ-200, for 200 l Steel Drums, 300 kg, 425 × 1105 × 1350 mm, Painted or Hot-Dip Galvanised
- Dimensions (L × W × H): 425 × 1105 × 1350 mm
- Load capacity: 300 kg
- Suitable drums: steel bung drums and steel lidded drums
- Vertical and horizontal lifting and moving of 200 l drums
- For steel bung drums and steel lidded drums
Delivery time: 3-4 weeks

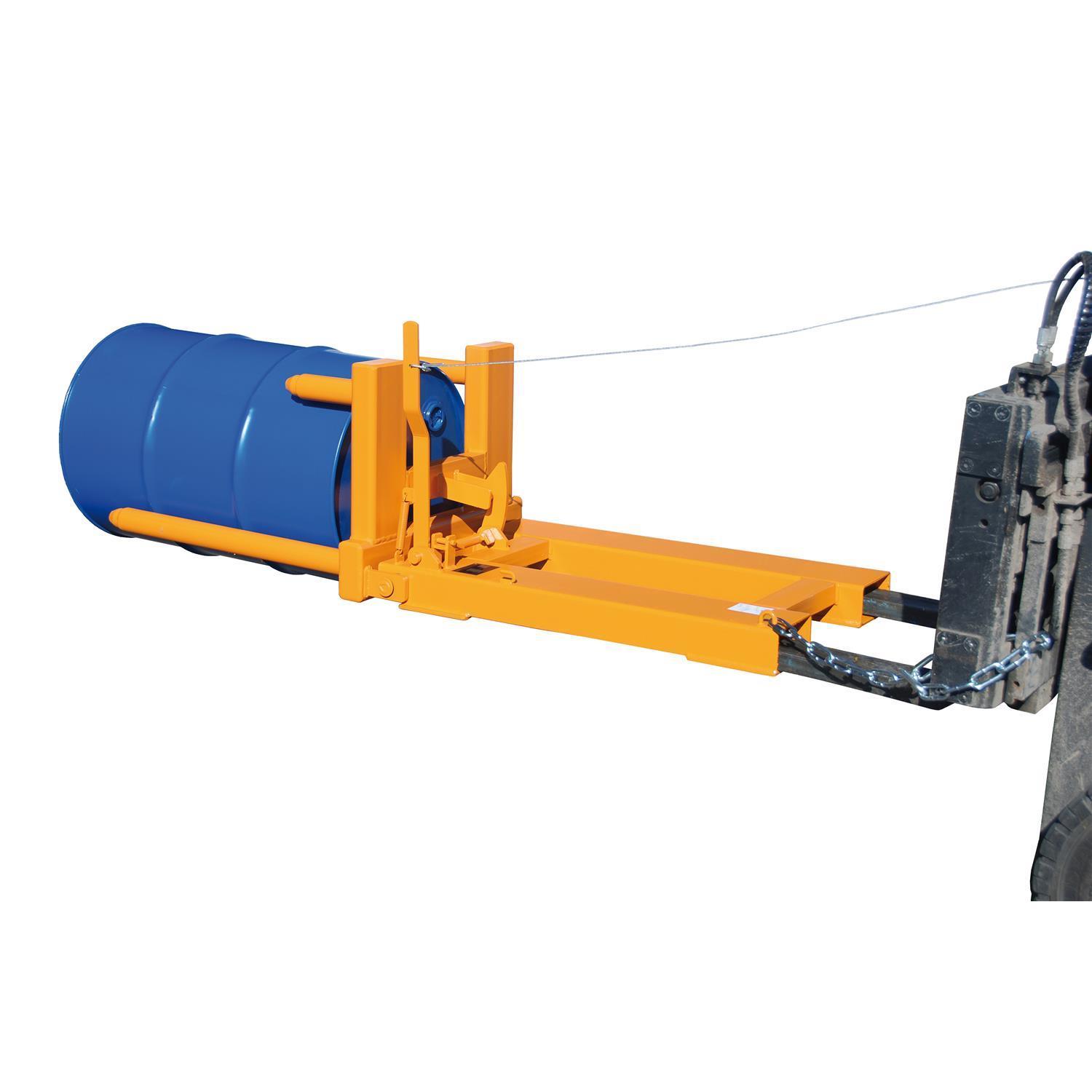

BAUER Drum Turner FW-I, for 1 × 200 l Drum, Forklift, 300 kg, 1865 × 700 × 545 mm, Painted or Hot-Dip Galvanised
- Galvanized or painted
- Max. 1 x 200-liter drum
- Load capacity: 300 kg
- Weight: 108 kg, galvanized 116 kg
Delivery time: 3-4 weeks

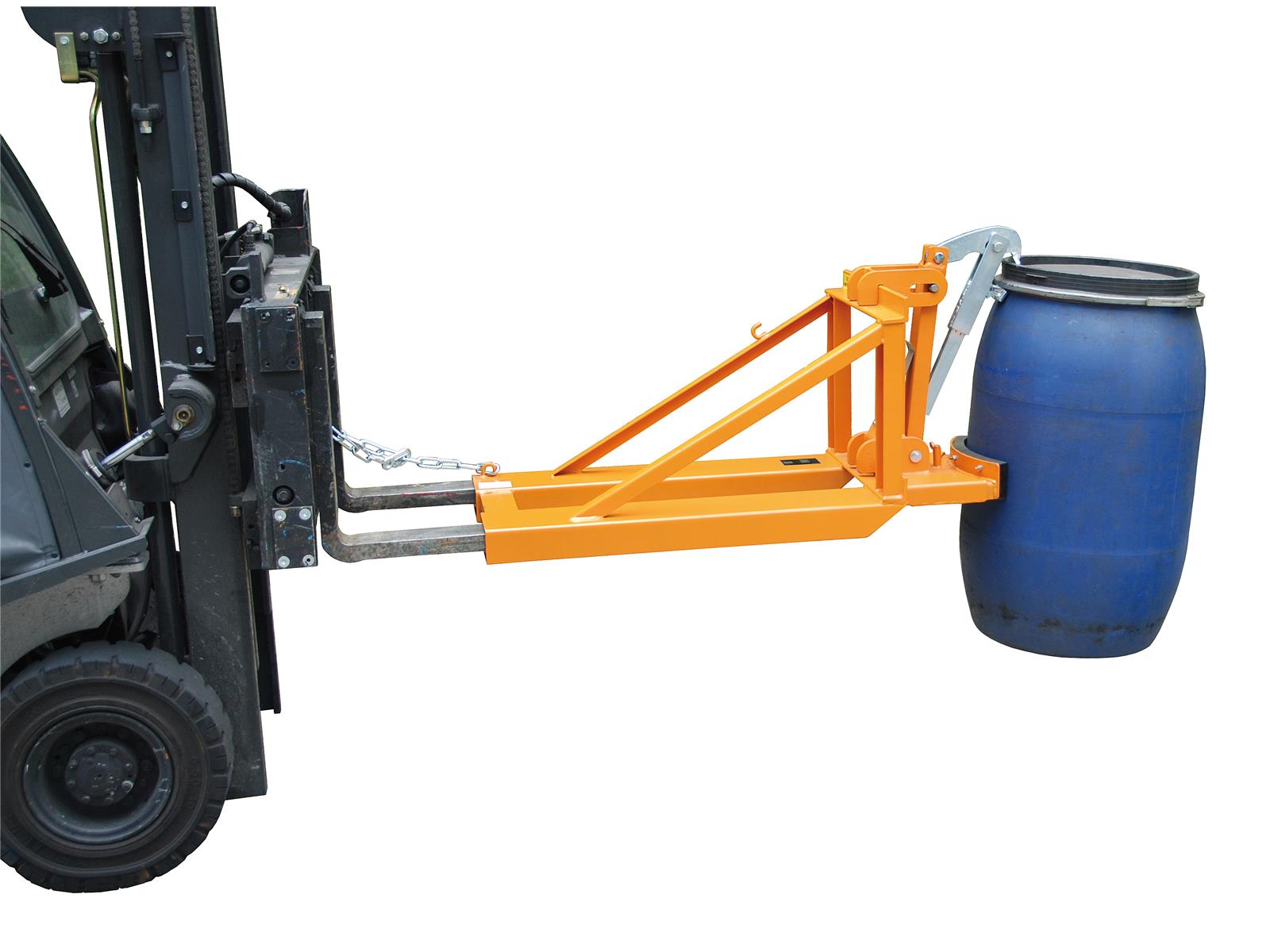

BAUER Drum Lifter RS-I/D 91, for 1 Drum 110–220 l, Forklift, 800 kg, 1285 × 585 × 810 mm, 5 RAL Colours or Hot-Dip Galvanised
- Dimensions (L × W × H): 1285 × 585 × 810 mm
- Load capacity: 800 kg
- Suitable drums: plastic lidded drums, conical lidded drums
- For filled plastic lidded drums and conical lidded drums
- Takes max. 1 drum (110, 120, 150, 200 or 220 l)
Delivery time: 3-4 weeks
BAUER Drum Gripper FK-II, for 2 × 200 l Drums, Forklift, 1,000 kg, 1320 × 1230 × 165 mm, Painted or Hot-Dip Galvanised
- Dimensions (L × W × H): 1320 × 1230 × 165 mm
- Load capacity: 1,000 kg
- Suitable drums: steel bung drums, steel lidded drums and rolling-hoop drums
- Picks up and moves 2 drums of 200 l with a forklift truck
- For steel bung drums, steel lidded drums and rolling-hoop drums
Delivery time: 3-4 weeks

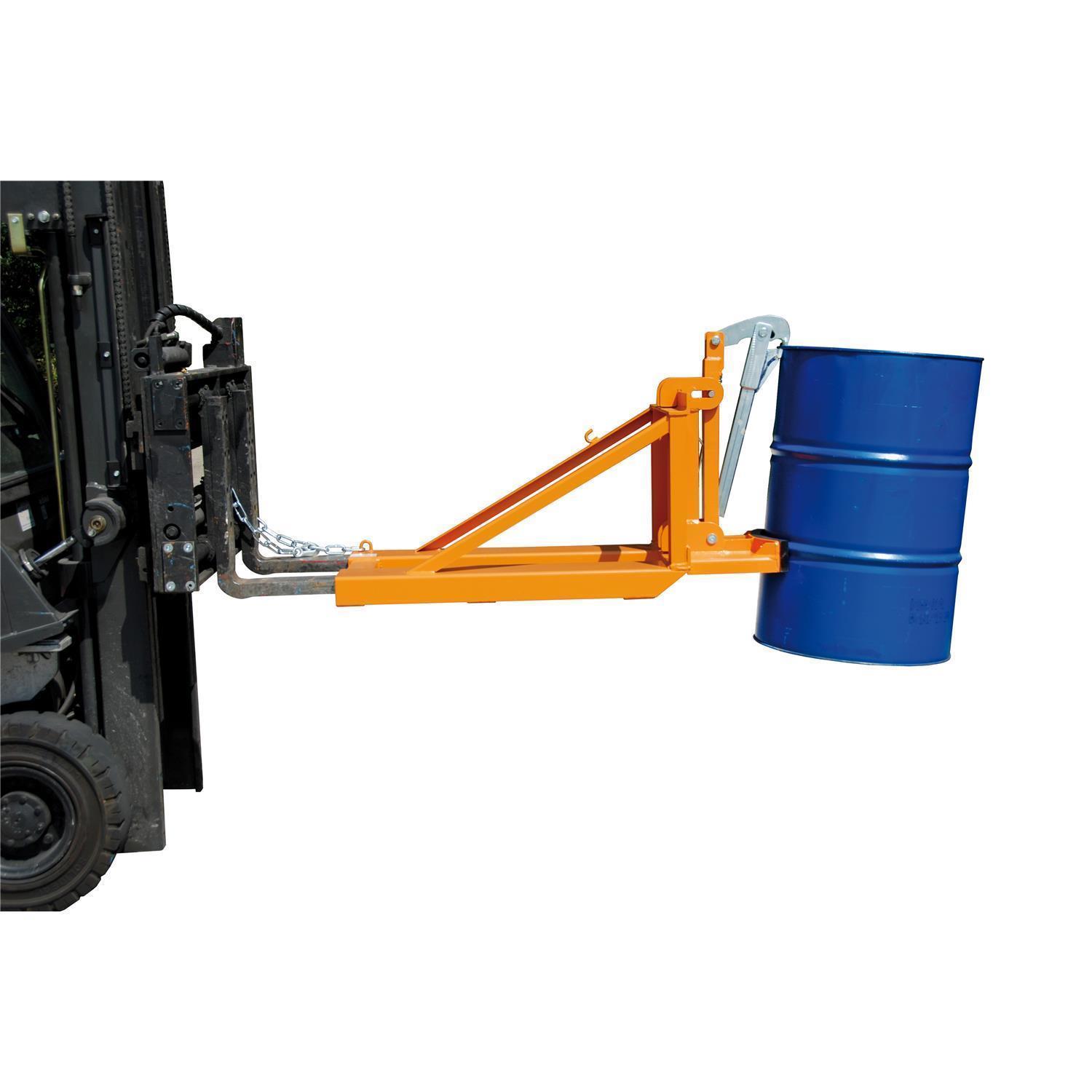

BAUER Drum Lifter RS-I/M, for 1 Drum 200/220 l, Forklift, 800 kg, 1295 × 585 × 925 mm, 5 RAL Colours or Hot-Dip Galvanised
- Dimensions (L × W × H): 1295 × 585 × 925 mm
- Load capacity: 800 kg
- Suitable drums: steel bung drums, steel lidded drums, rolling-hoop drums and plastic L-ring drums
- For filled 200 l steel bung, steel lidded and rolling-hoop drums as well as 220 l plastic L-ring drums
- Takes max. 1 drum (200 or 220 l)
Delivery time: 3-4 weeks

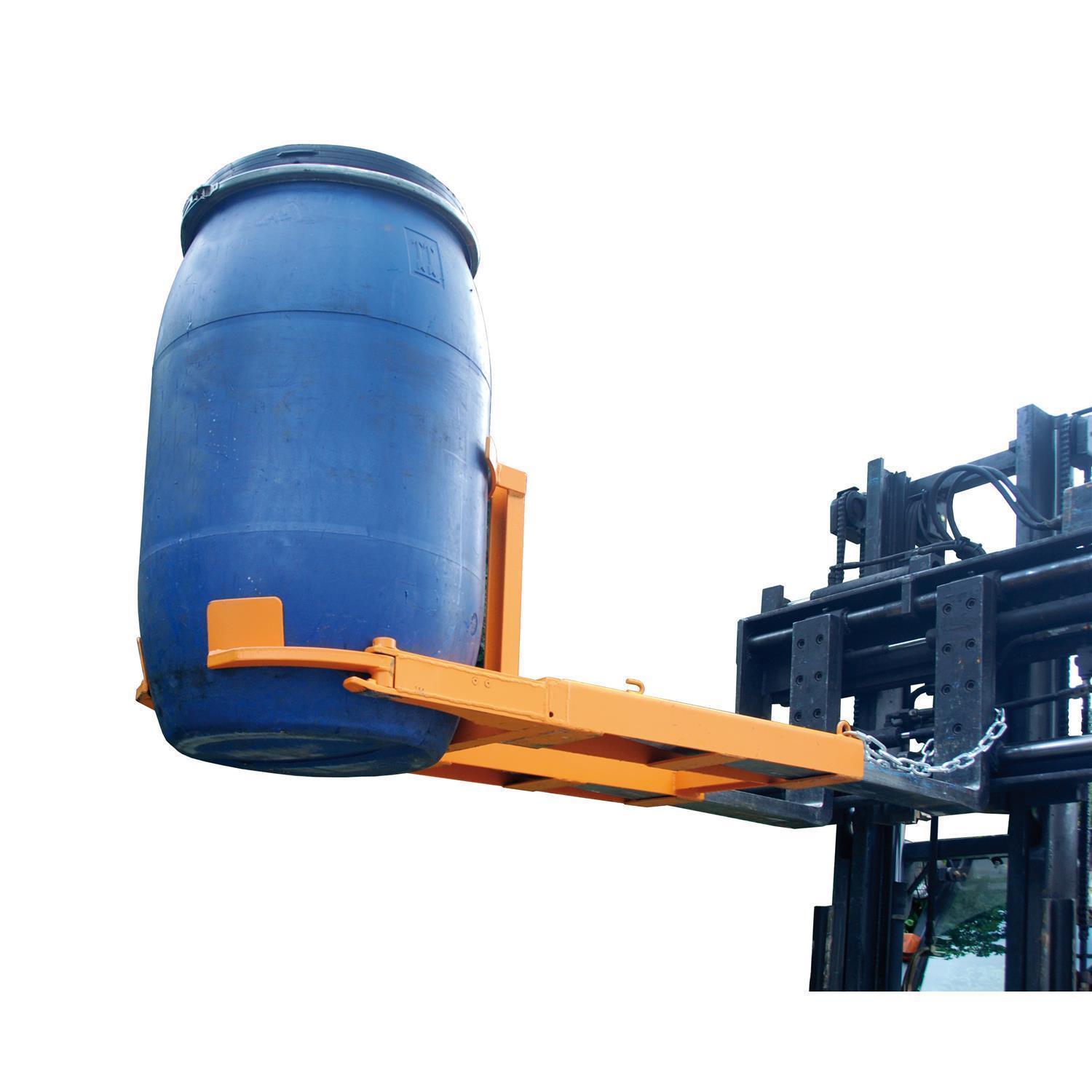

BAUER Drum Lifter FH-I 120, for 1 Plastic Drum 120/150 l, Forklift, 300 kg, 1330 × 505 × 380 mm, Painted or Hot-Dip Galvanised
- Dimensions (L × W × H): 1330 × 505 × 380 mm
- Load capacity: 300 kg
- Suitable drums: 120 or 150 l plastic drums
- Handling 120 or 150 l plastic drums with a forklift truck
- Takes one drum (120/150 l)
Delivery time: 3-4 weeks
BAUER Drum Lifter FH-I 220, for 1 Plastic Drum 220 l, Forklift, 360 kg, 1380 × 600 × 480 mm, Painted or Hot-Dip Galvanised
- Dimensions (L × W × H): 1380 × 600 × 480 mm
- Load capacity: 360 kg
- Suitable drums: 220 l plastic drums
- Handling 220 l plastic drums with a forklift truck
- Takes one drum (220 l)
Delivery time: 3-4 weeks

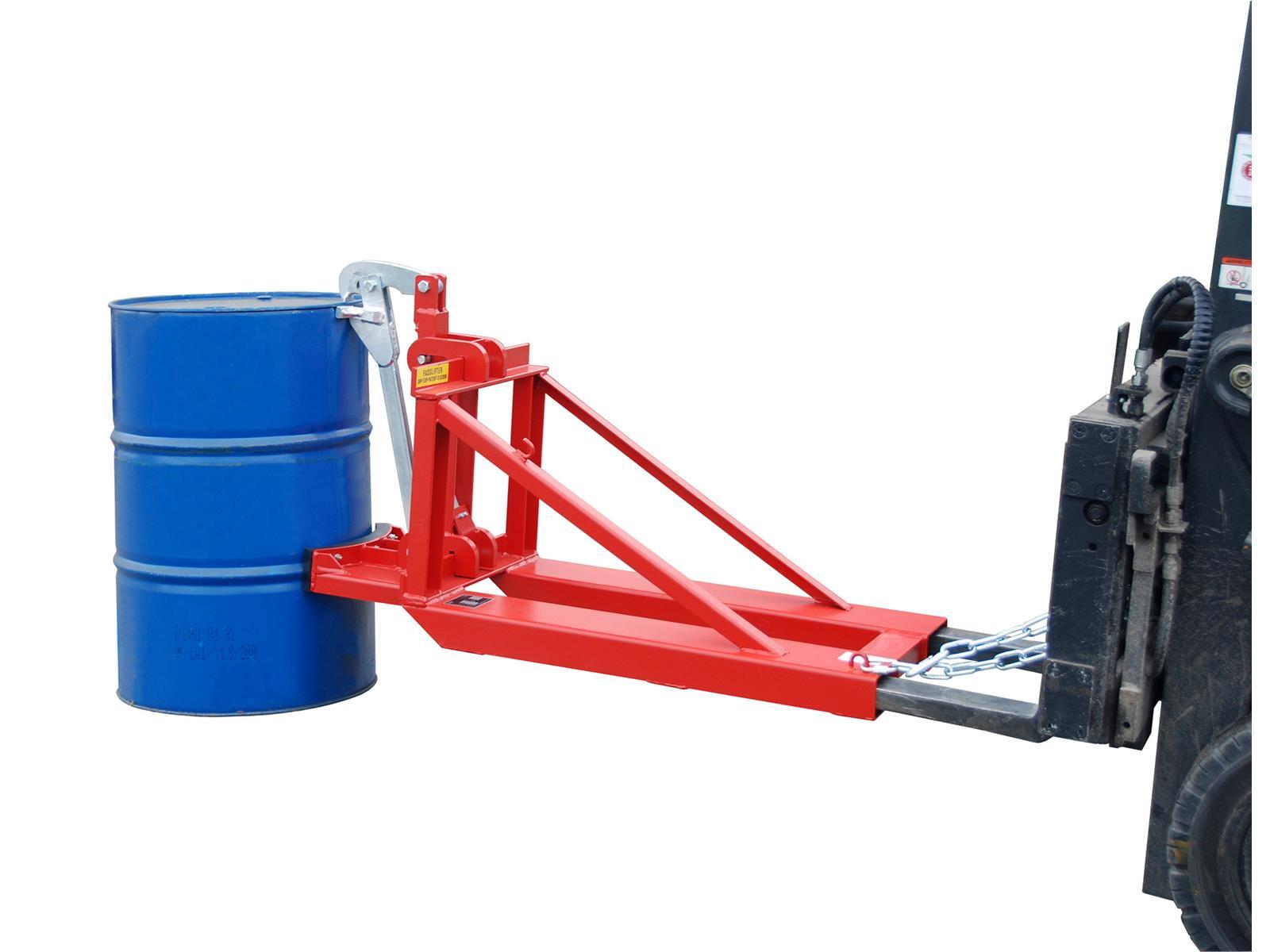

BAUER Drum Lifter RS-I/91, for 1 Drum 200/220 l, Forklift, 800 kg, 1295 × 585 × 925 mm, 5 RAL Colours or Hot-Dip Galvanised
- Dimensions (L × W × H): 1295 × 585 × 925 mm
- Load capacity: 800 kg
- Suitable drums: steel bung drums, steel lidded drums, plastic L-ring drums and plastic double L-ring drums
- For filled 200 l steel bung and steel lidded drums as well as 220 l plastic L-ring and double L-ring drums
- Takes max. 1 drum (200 or 220 l)
Delivery time: 3-4 weeks

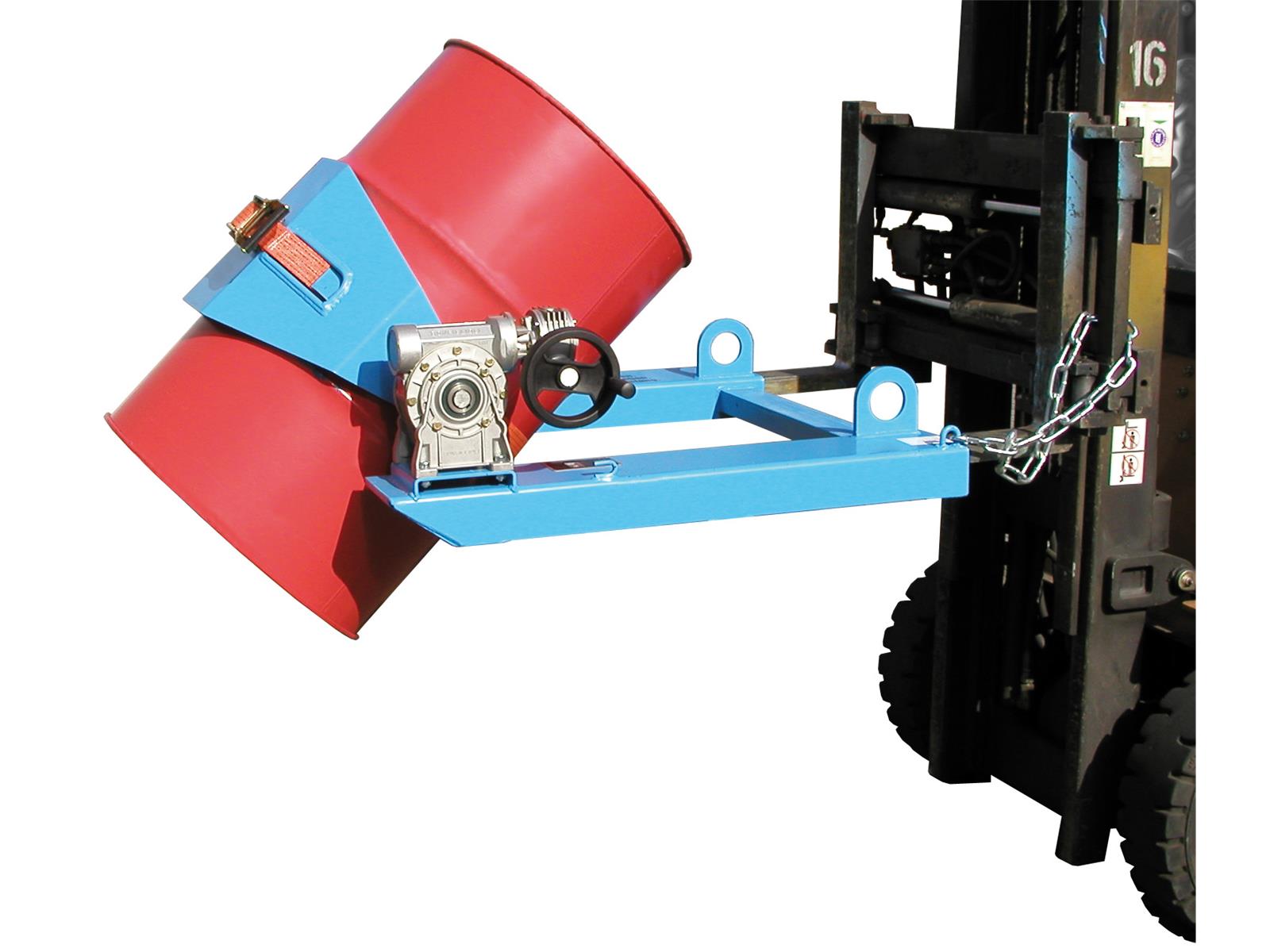

BAUER Drum Tipper FD-HK, for Forklift, Hand Crank, 200 l Drums, 360 kg, 1245 × 1000 × 540 mm, 5 RAL Colours or Hot-Dip Galvanised
- Galvanized or painted
- Load capacity: 360 kg
- Rotation range: 360°
- Weight: 72 kg, galvanized 78 kg
Delivery time: 3-4 weeks
BAUER Drum Turner FW-II, for 2 × 200 l Drums, Forklift, 600 kg, 1865 × 1320 × 545 mm, Painted or Hot-Dip Galvanised
- Galvanized or painted
- Load capacity: 600 kg
- Suitable for two 200-liter drums
- Weight: 150 kg, galvanized 162 kg
Delivery time: 3-4 weeks
The right drum-handling device for your task
Only lift & transport the drum?
For pure lifting and repositioning: drum tongs, scissor grab or drum crossbeam (from €242) – simple, light, affordable. For heavier continuous use: drum grab FK (1 or 2 drums, up to 1000 kg) or drum lifter RS (1–2 drums, up to 1600 kg). Choose according to drum size, weight and frequency of use.
Turning a drum – upright to horizontal?
Drum-turning tongs FWZ (from €1,496) rotate a drum from the vertical into the horizontal – for 60 L and 200 L. Drum turners FW 1/FW 2 (from €1,580) for 1 or 2 drums at the same time. Necessary for storage in drum racks, transfer to roller conveyors or filling from horizontal drums.
Emptying a drum – drum tipper
Drum tippers (from €2,224) rotate the drum by hand crank, endless chain or lifting cylinder into any position – a 360° rotation range, 300–360 kg load capacity. Available for forklift and crane use. The right choice when drum contents regularly have to be poured into containers, machines or reactors.
Which drum size?
The range covers all standard drum sizes: 60 litres (drum lifter RS 60, FWZ 60L), 120 litres (drum hoist FH, drum grab 4P-D), 200 litres (standard drum – the majority of devices), 220 litres (drum hoist FH, drum grab 4P-D). Always check the size of the drum to be handled and compare it with the device.
1 or 2 drums at the same time?
Many devices are available as a single or double version: drum grab FK (1 or 2 drums), drum lifter RS 1/RS 2 (800 or 1600 kg respectively), drum turner FW 1/FW 2, drum hoist FH (1 or 2×120L). Two drums at once halves the number of trips – useful with a high drum throughput. The forklift load capacity must cover the total weight.
Galvanised or painted?
Galvanised: lasting corrosion protection – recommended for aggressive or damp drum contents and outdoor use. About 4–20 kg extra weight compared to painted. Painted: sufficient for dry hall environments. For chemical substances or permanently damp conditions, always choose galvanised.
