Lubrication-system accessories nipples, couplers, hoses, adapters & grease meters
A complete accessory range for grease guns and lubrication systems – grease nipples DIN 71412, 4-jaw gripping couplers, safety couplers, nozzle tubes, high-pressure armoured rubber hoses (300 mm to 10 m), CLS couplings, Lube-Shuttle® adapters, grease follower plates and precise grease meters DIGMET / PIUSI. Over 120 items.
Grease nipples & couplers
Hydraulic conical grease nipples H1/H2/H3 to DIN 71412 (from €0.42), protective caps, assortment boxes with 110–475 pcs. 4-jaw gripping couplers (€3.53), needle-point, precision and safety couplers Safelock, safeLOCK-L and Quick-Fix (€39–74). High-pressure lubrication gun standard/deluxe (€83.50–268).
Nozzle tubes & angle adapters
Nozzle tubes 150 mm straight and bent – with a 4-jaw coupler, pointed coupler or quick-change coupling (€3.81–32). Angle adapters eco and deluxe with a swivel joint (€6.31–12). Special nozzle tube F4020 for cardan shafts. Swivel joints, linear and multi-axis, for hard-to-reach nipples.
High-pressure hoses
Plastic armoured hose PH-30 (300 mm, €7.80), safety armoured rubber hoses RH-30C/RH-50 (300/500 mm, €13.50–15) up to long hoses RH-100 (1 m, €83), RH-350 (3.5 m, €134), RH-650 (6.5 m, €265) and RH-1000 (10 m, €384). Twin hose for LubeJet (€266).
Grease meters & measuring technology
Flow indicator M10×1/R1/8" (€74.50), DIGMET E35 built-in meter (€294.50), DIGMET E5 grease meter (€468.50–575), PIUSI K200 gram counter, calibratable (€357) and PIUSI Greaster gram-counter gun (€514) for the precise recording of grease quantities in industrial lubrication systems.
MATO Sliding Coupling for Flat Grease Nipples SK-10M10 (M10x1 / 10 mm)
- Thread Size: M10x1
- Nipple Diameter: 10 mm
Delivery time: 2-5 days
Double Nipple R1/2" - R1/2" Male MATO
- Brass Double Nipple
- R1/2" - R1/2" external
- With internal cone on both sides
Delivery time: 1-3 days
300mm Plastic High-Pressure Reinforced Hose PH-30
- Material: Plastic (multi-layered)
- Length: 300mm
- Thread Connection: M10x1
- Burst Pressure: 1,000 bar
Delivery time: 1-3 days
Swivel Joint Linear R1/8" MATO
- Connection Size: R1/8"
- Product Type: Linear Rotary Joint
- Manufacturer: Mato
Delivery time: 2-5 days
4-piece Hose Clamp Set for AdBlue® Urea Solution Systems
- Number of Parts: 4
- Attachment of the EPDM hose to the hose fittings of AdBlue® systems
- Material: High-strength steel for optimal stability and durability
Delivery time: 1-3 days
Straight nozzle pipe with 4-jaw hydraulic gripping mouthpiece, R1/8"
- Thread Size: R1/8"
- Equipped with 4-Jaw Hydraulic Gripping Head
- Straight Design
Delivery time: 2-5 days

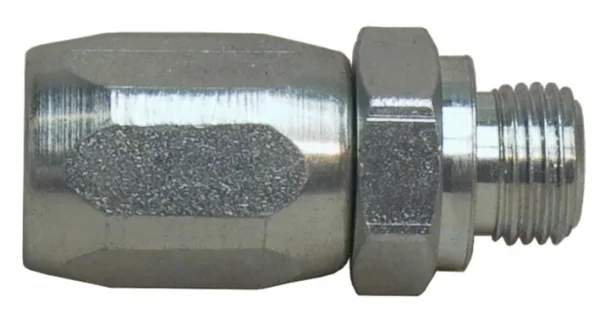

Linear Swivel Joint M10x1 MATO
- Linear Rotary Joint
- Thread: M10x1
- Full 360-Degree Rotation Possible
- Material: High-Quality Metal Alloy
Delivery time: 1-3 days
Brass Double Nipple with One-Sided Internal Crown R3/8" x R1/2" External MATO
- Double Nipple
- Connection Type: One-sided internal cone R3/8" x R1/2" external
Delivery time: 1-3 days
MATO Sliding Coupling for Flat Grease Nipples SK-22M10 (M10x1 / 22 mm)
- Thread: M10x1
- Length: 22 mm
- Application: Flat Grease Nipple
Delivery time: 1-3 days
Deluxe Angle Adapter with Linear Swivel Joint for 4-Jaw Hydraulic Gripping Mouthpiece M10x1
- Thread: M10x1
- For 4-jaw hydraulic gripping chuck
Delivery time: 1-3 days
Deluxe Angle Adapter with Linear Swivel Joint for 4-Jaw Hydraulic Gripping Nozzle R1/8"
- Thread: R1/8"
- For 4-jaw hydraulic gripping chuck
Delivery time: 2-5 days

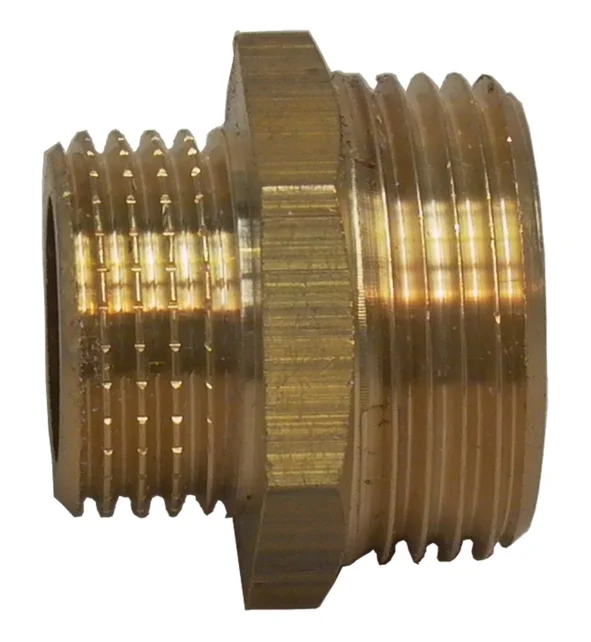

Double Nipple R1/2" - R3/4" Male MATO
- Double Nipple: R1/2" - R3/4" external
- Fitting: External thread
Delivery time: 2-5 days

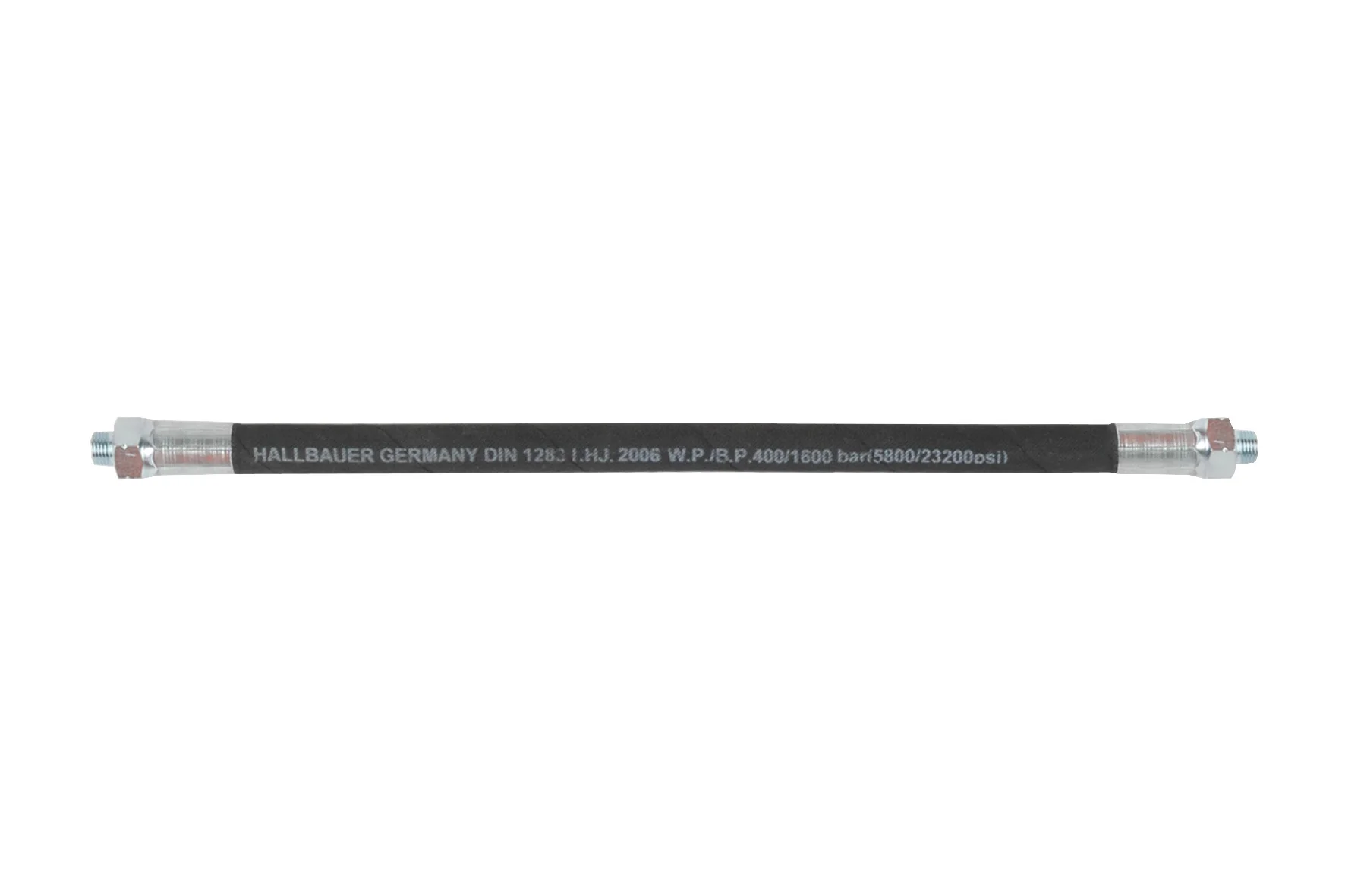

Safety Rubber Armored Hose, PZ 300/M HV Samoa-Hallbauer
- Without mouthpiece
- Length: 300 mm
- Connection thread: M 10 x 1
- Burst pressure: 1,600 bar
Delivery time: 2-5 days
Double Nipple R3/4" X R3/4" Male, Suitable for DP-60 MATO
- Double Nipple R3/4" X R3/4" MALE
- Suitable for DP-60 Devices
Delivery time: 2-5 days

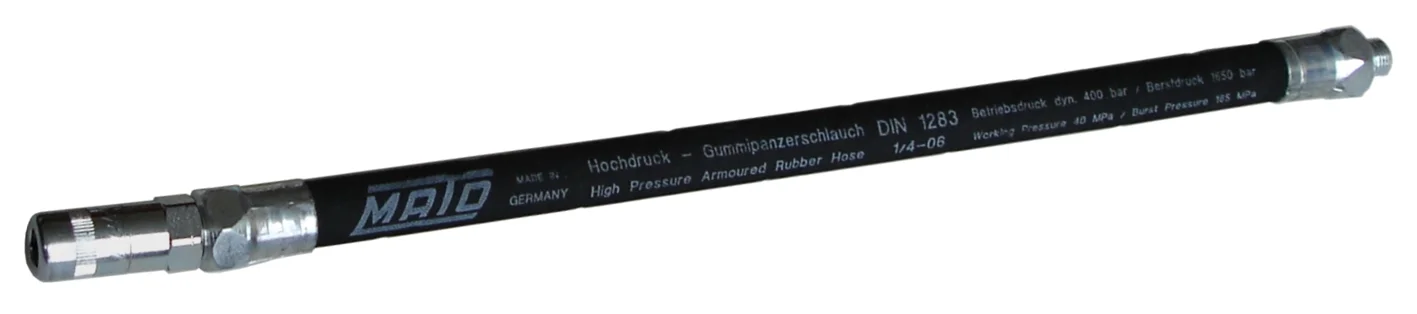

300mm Safety Rubber Armored Hose RH-30C
- Length: 300mm
- Diameter: 13mm
- Material: Rubber with steel mesh inserts
- Burst pressure: 1,650 bar
Delivery time: 1-3 days
5 pcs. 4-Jaw Hydraulic Gripping Chuck M10x1 Hydraulic Gripping Chuck
- Connection Thread: M10x1
- Operating Pressure: max. 15 bar
- Scope of Delivery: 5 pieces
Delivery time: 1-3 days
500mm Safety Rubber Armored Hose RH-50
- Length: 500 mm
- Burst Pressure: 1,650 bar
- Inner Diameter: 13 mm
- Construction: Steel braid inserts for maximum stability
- Connection: 4-jaw hydraulic gripping nozzle
Delivery time: 1-3 days
Lube-Shuttle Cartridge Adapter - KAJO to 1" Lube-Shuttle
- Cartridge Adapter
- Brand Compatibility: KAJO
- Target Device: 1" Lube-Shuttle
- Application Area: For conversion and accommodation of system cartridges
Delivery time: 1-3 days
Spray Nozzle Pipe F14 with Quick-Change Coupling and Universal Mouthpiece
- Nozzle Tube F14
- Quick-Change Coupling and Universal Nozzle
- Compatibility: Safety Hydraulic Gripping Nozzle safeLOCK, 4-Jaw Hydraulic Gripping Nozzle
- Mounting Options: via Grease Nipple, Sliding Sleeve
Delivery time: 1-3 days

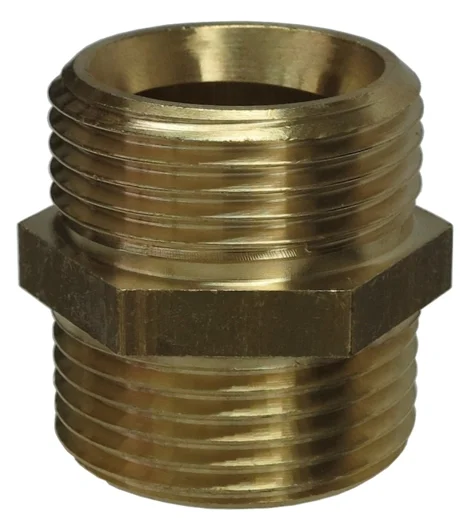

Brass Double Nipple with One-Sided Internal Cone R1" x R1" External MATO
- Material: Brass
- Size: R1" x R1" external
- Type: Double Nipple
- Internal Cone: One-sided
- Brand: MATO
Delivery time: 2-5 days
Nozzle Pipe F12 with Quick-Release Coupling and Tapered Nozzle MATO
- Nozzle Tube F12
- Quick-Change Coupling and Tapered Nozzle
- Usage: Connection to Safety Hydraulic Gripping Nozzle safeLOCK or 4-Jaw Hydraulic Gripping Nozzle
Delivery time: 2-5 days

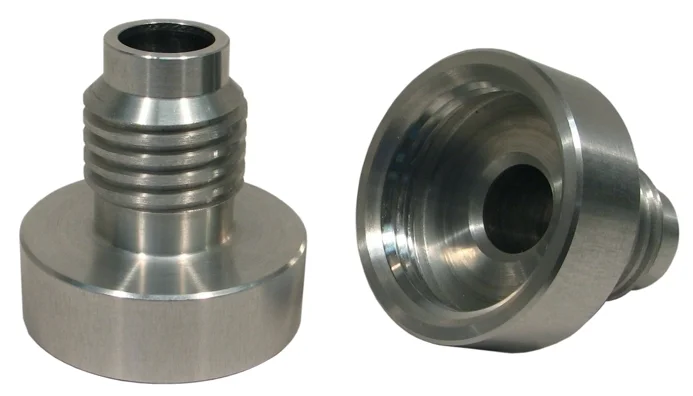

Lube-Shuttle Cartridge Adapter - LINCOLN/SKF to 1" Lube-Shuttle
- For retrofitting system cartridge
- Compatibility: LINCOLN/SKF
- Target device: 1" Lube-Shuttle
Delivery time: 1-3 days
Brass Double Nipple with One-Sided Internal Crown R1" x R 1/4" External MATO
- Thread Type: Single-Sided Internal Cronus
- Thread Size: R1" internal x R 1/4" external
Delivery time: 2-5 days

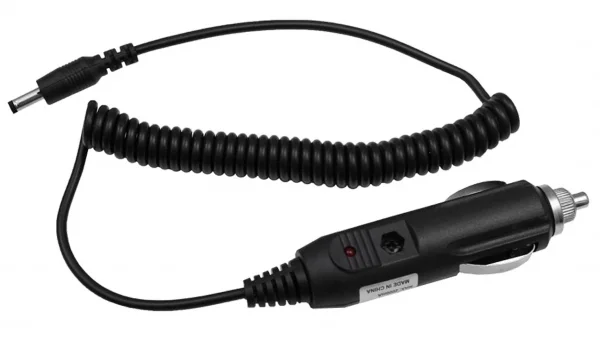

MATO 12/24 Volt Connection Cable for Multi Charger
- with kink plug
- compatible with Multi-Charger Accu Greaser 18 V
- includes standard plug for cigarette lighter socket
Delivery time: 2-5 days
The right lubrication-system accessory for your system
Which grease nipple – H1, H2 or H3?
H1 (straight, DIN 71412A): standard, screwed in vertically. H2 (45°, DIN 71412B): for points accessible at an angle. H3 (90°, DIN 71412C): lateral access. All R1/8" threads, galvanised. Individually (from €0.42) or an assortment box of 110–475 pcs.
Safety couplers – when are they needed?
Standard 4-jaw couplers can slip off under high pressure. Safelock (€39), safeLOCK-L (€49) and Quick-Fix (€49) lock mechanically. Recommended for high-pressure lubrication and overhead use.
Hose length by application
300 mm: compact work. 500 mm: workshop standard. 1–3.5 m: stationary systems/trucks. 6.5–10 m: high-pressure lubrication stations. From 100 bar, always use a safety armoured rubber hose RH – never a plastic hose.
CLS couplings for centralised lubrication systems
CLS connector R1/4" ISO 7241B DN6 (€30.50) and CLS hydraulic coupling (€73.50) – standardised quick couplings for centralised lubrication systems. Pressure-tight, tool-free connection with automatic closing on disconnection.
Grease meters – dosing and documentation
Flow indicator (€74.50): shows whether grease is flowing. DIGMET E35 (€294.50): electronic built-in meter. PIUSI K200 (€357): calibrated gram counter. PIUSI Greaster (€514): gram-counter gun. For maintenance documentation and precise grease-quantity specifications.
Lube-Shuttle adapters and accessories
Refill adapter set (€30), KAJO/LINZER adapters (€15) for filling from various containers. Spray-lance set LubeJet-eco (€334) for spray lubrication. Dispenser Lube-Shot 400 for a clean single-portion dispensing.
Frequently asked questions about lubrication-system accessories
The right accessories for your lubrication system
Our specialist team advises you free of charge – on nipple types, hose selection, couplings and measuring technology for your lubrication-technology infrastructure.
