Lubrication-system accessories nipples, couplers, hoses, adapters & grease meters
A complete accessory range for grease guns and lubrication systems – grease nipples DIN 71412, 4-jaw gripping couplers, safety couplers, nozzle tubes, high-pressure armoured rubber hoses (300 mm to 10 m), CLS couplings, Lube-Shuttle® adapters, grease follower plates and precise grease meters DIGMET / PIUSI. Over 120 items.
Grease nipples & couplers
Hydraulic conical grease nipples H1/H2/H3 to DIN 71412 (from €0.42), protective caps, assortment boxes with 110–475 pcs. 4-jaw gripping couplers (€3.53), needle-point, precision and safety couplers Safelock, safeLOCK-L and Quick-Fix (€39–74). High-pressure lubrication gun standard/deluxe (€83.50–268).
Nozzle tubes & angle adapters
Nozzle tubes 150 mm straight and bent – with a 4-jaw coupler, pointed coupler or quick-change coupling (€3.81–32). Angle adapters eco and deluxe with a swivel joint (€6.31–12). Special nozzle tube F4020 for cardan shafts. Swivel joints, linear and multi-axis, for hard-to-reach nipples.
High-pressure hoses
Plastic armoured hose PH-30 (300 mm, €7.80), safety armoured rubber hoses RH-30C/RH-50 (300/500 mm, €13.50–15) up to long hoses RH-100 (1 m, €83), RH-350 (3.5 m, €134), RH-650 (6.5 m, €265) and RH-1000 (10 m, €384). Twin hose for LubeJet (€266).
Grease meters & measuring technology
Flow indicator M10×1/R1/8" (€74.50), DIGMET E35 built-in meter (€294.50), DIGMET E5 grease meter (€468.50–575), PIUSI K200 gram counter, calibratable (€357) and PIUSI Greaster gram-counter gun (€514) for the precise recording of grease quantities in industrial lubrication systems.
Hydraulic Cone Grease Nipple H1 R1/8" DIN 71412A
- Connection Thread: R1/8"
- Wrench Size (SW): 11
- Surface Treatment: Hardened, zinc-plated, and chromated
Delivery time: 1-3 days
Red Protective Caps for Cone - Grease Nipples
- Compatible with cone grease nipples according to DIN 71412.
- Durable and long-lasting material.
- Color: Distinctive red for easy identification.
Delivery time: 1-3 days

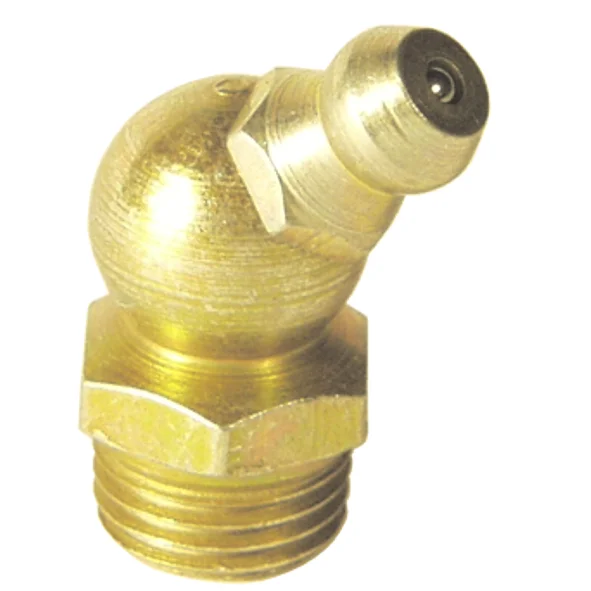

Hydraulic Cone Grease Nipple H2 R1/8" DIN 71412B
- Connection Thread: R1/8"
- Wrench Size: SW 11
- Finish: Galvanized and Chromated
Delivery time: 1-3 days

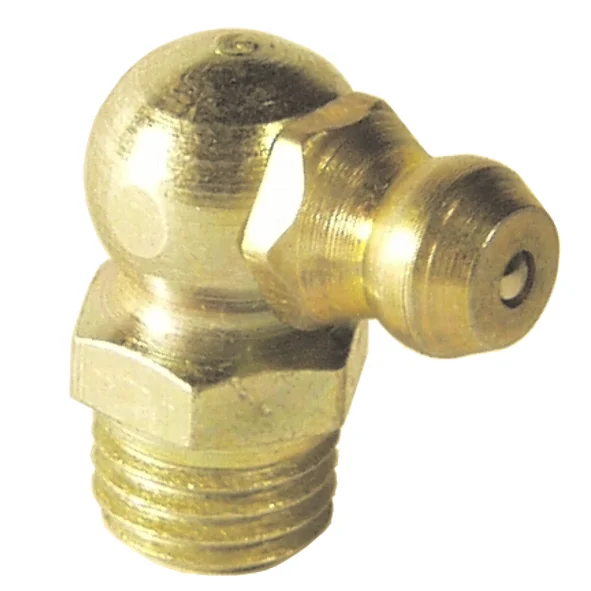

Hydraulic Cone Grease Nipple H3 R1/8" DIN 71412C
- Connection Thread: R1/8"
- Wrench Size (SW): 11
- Surface Treatment: hardened, zinc-plated, and chromated
Delivery time: 1-3 days
TECALEMIT Hydraulic Grease Nipple H 1 - 6 x 1 Self-Forming Thread
- Hydraulic Grease Nipple H 1 – 6 x 1 Self-Tapping Thread
- Dimensions: Diameter 6 mm, 1 Thread
- Material: High-Quality Steel
- Color: Standard Silver
- Weight: 0.01 kg per Piece
Delivery time: 1-3 days
MATO Tapered Nozzle for D-Type Grease Nipples M10x1
- Connection: M10x1
- Weight: approx. 0.004 kg
- Pointed nozzle for D-type grease nipples
- M10x1 connection
Delivery time: 1-3 days

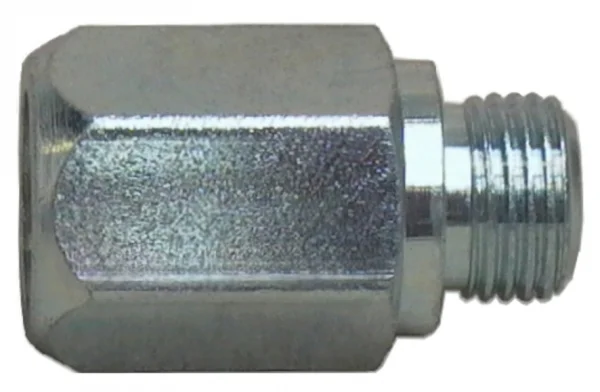

Reducing Nipple M10x1 External x R1/8" Internal, Zinc-Plated Steel
- Connection: M10x1 male x R1/8" female
- Material: galvanised steel
- Weight: approx. 0.015 kg
- Reducing nipple M10x1 male x R1/8" female
- Galvanised steel
Delivery time: 1-3 days

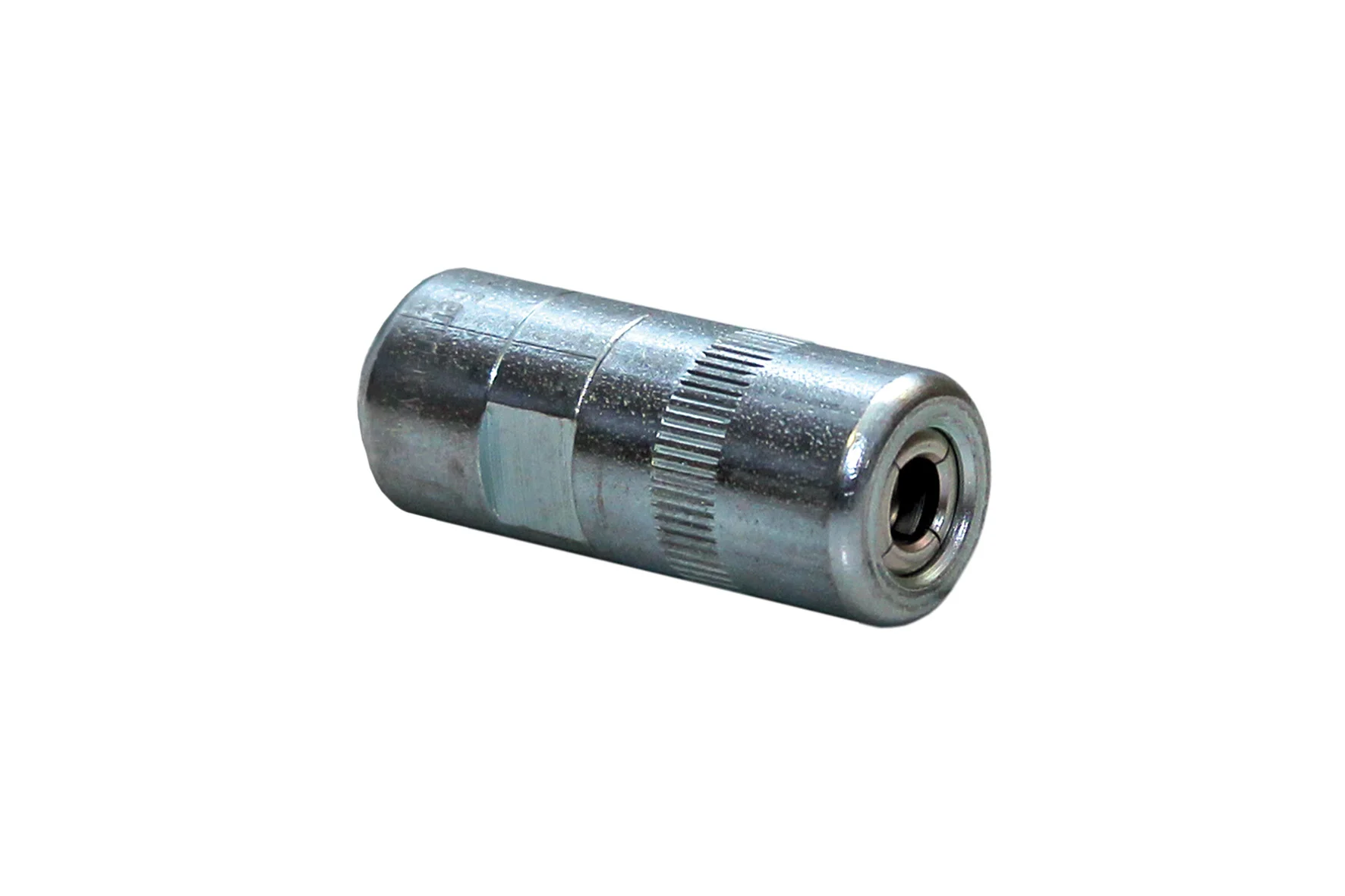

SAMOA 4-Jaw Professional Coupler 120/M, Connection M 10 x 1
- Type: 120/M
- Connection thread: M 10 x 1
- Weight: approx. 0.03 kg
- 4-jaw professional coupler
- Connection M 10 x 1
Delivery time: 2-5 days
4-Jaw Hydraulic Gripping Chuck M10x1 Hydraulic Gripping Chuck
- Standards: DIN 1283, DIN 71412
- Gripping Jaws: Turned and hardened
- Hexagon: SW15
- Thread: M10x1
Delivery time: 1-3 days
MATO Socket M10x1 Female, AF 14 x 13 – Galvanised Steel
- Connection: M10x1 female
- Material: galvanised steel
- Weight: approx. 0.01 kg
- Socket M10x1 female thread
- 14 mm across flats, length 13 mm
Delivery time: 1-3 days
Reducing Nipple M10x1 - R1/4" Male
- Thread Size: M10x1
- Connection Size: R1/4" external
Delivery time: 1-3 days

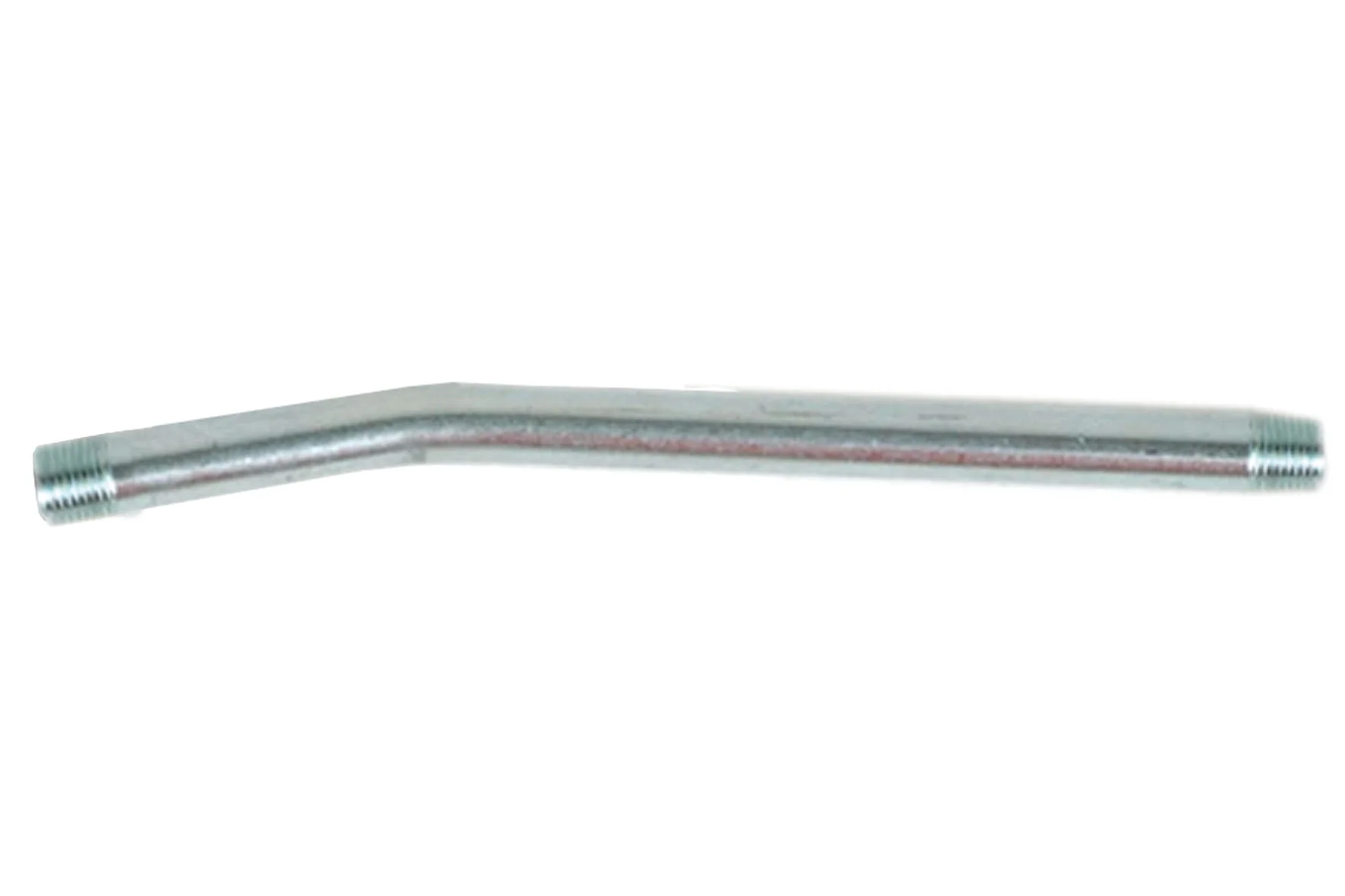

SAMOA Nozzle Tube 150/M Bent, without Coupler, M 10 x 1
- Length: 150 mm
- Connections: M 10 x 1
- Weight: approx. 0.044 kg
- Bent, 150 mm
- M 10 x 1 thread, without coupler
Delivery time: 2-5 days
E4024 Bent Nozzle Tube 150mm with 4-Jaw Hydraulic Gripping Mouthpiece
- 4-jaw hydraulic gripping piece for optimal hold
- Connection thread: M10x1
- Length: 150 mm
Delivery time: 1-3 days
MATO Straight Nozzle Tube 150 mm with 4-Jaw Hydraulic Coupler – M10x1
- Length: 150 mm
- Connection: M10x1
- Weight: approx. 0.078 kg
- Straight nozzle tube, 150 mm
- With 4-jaw hydraulic coupler
Delivery time: 1-3 days

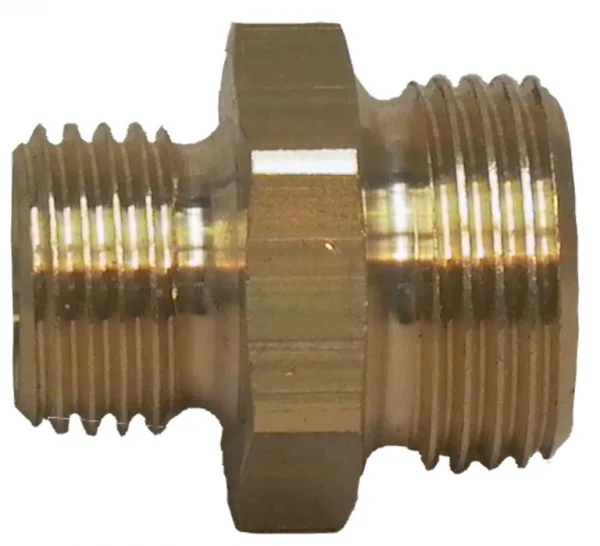

Brass Double Nipple with Internal Crown on Both Sides R1/4" x R3/8" External MATO
- Connection: R1/4" x R3/8" male
- Material: brass
- Weight: approx. 0.026 kg
- Double nipple R1/4" x R3/8" male thread
- Brass, internal cone on both sides
Delivery time: 2-5 days

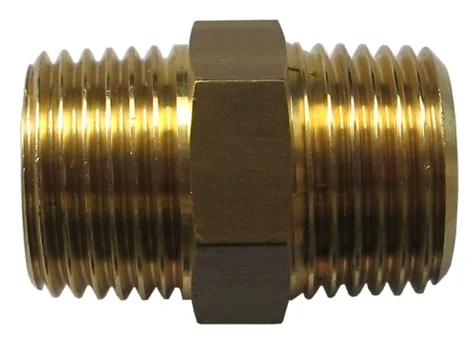

Brass Double Nipple with Internal Cone on Both Sides R 1/4" x R 1/4" External MATO
- Connection: R1/4" x R1/4" male
- Material: brass
- Weight: approx. 0.021 kg
- Double nipple R1/4" x R1/4" male thread
- Brass, internal cone on both sides
Delivery time: 1-3 days
Nozzle Set Lube Shot 400
- Suitable for: MATO Lube-Shot 400
- Weight: approx. 0.013 kg
- Nozzle with cap
- Adapter cap for Lube-Shuttle® system cartridges
Delivery time: 2-5 days
E4012 Bent Nozzle Tube, 150mm with Tapered Mouthpiece
- Mouthpiece: Pointed
- Connection Thread: M10x1
- Tube Length: 150mm
- Design: Curved
- Product Code: E4012
Delivery time: 2-5 days
Pressol Precision Coupler M 10 x 1 i, 4-Jaw Grease Gun Coupler for H Nipples, AF 13
- Connection 1: for H-nipple
- Connection 2: M 10 x 1 internal
- Design: 4 BA, turned
- Wrench size (SW): 13mm
Delivery time: 1-3 days

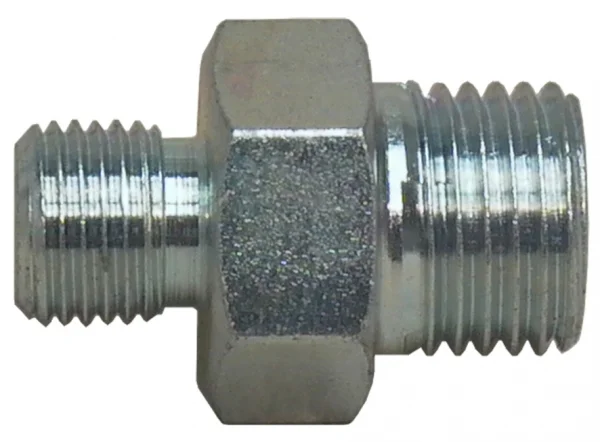

Reducing Nipple R1/4" Male x M15x1 Male, Zinc-Plated Steel
- Connection: R1/4" male x M15x1 male
- Material: galvanised steel
- Weight: approx. 0.026 kg
- Reducing nipple R1/4" male x M15x1 male
- Galvanised steel
Delivery time: 2-5 days

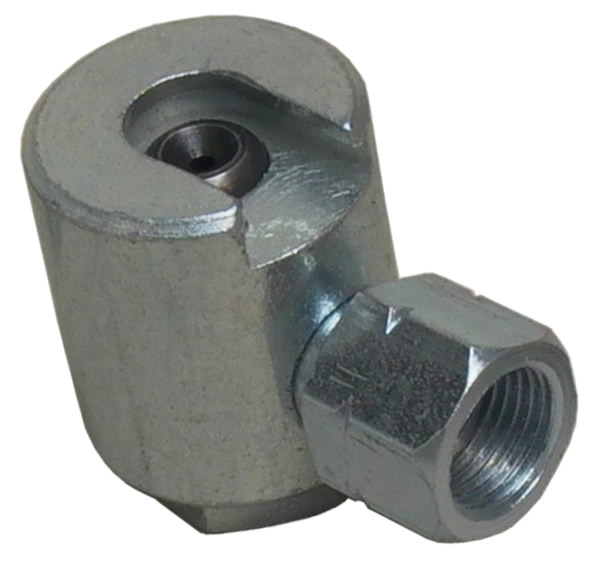

MATO Angle Adapter eco M10x1
- Connection: M10x1
- Weight: approx. 0.02 kg
- Eco angle adapter for 4-jaw hydraulic coupler
- Simple, secure mounting directly on the coupler
- Greasing even in confined spaces
Delivery time: 2-5 days

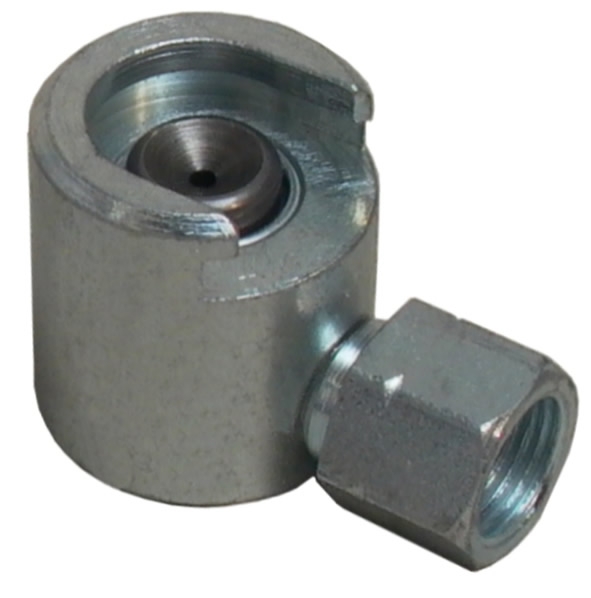

Eco Angle Adapter for 4-Jaw Hydraulic Gripping Nozzle R1/8" MATO
- Connection: R1/8"
- Weight: approx. 0.021 kg
- Eco angle adapter for 4-jaw hydraulic coupler
- For simple, secure mounting directly on the 4-jaw hydraulic coupler; greasing even in confined spaces
- Thread R1/8"
Delivery time: 2-5 days

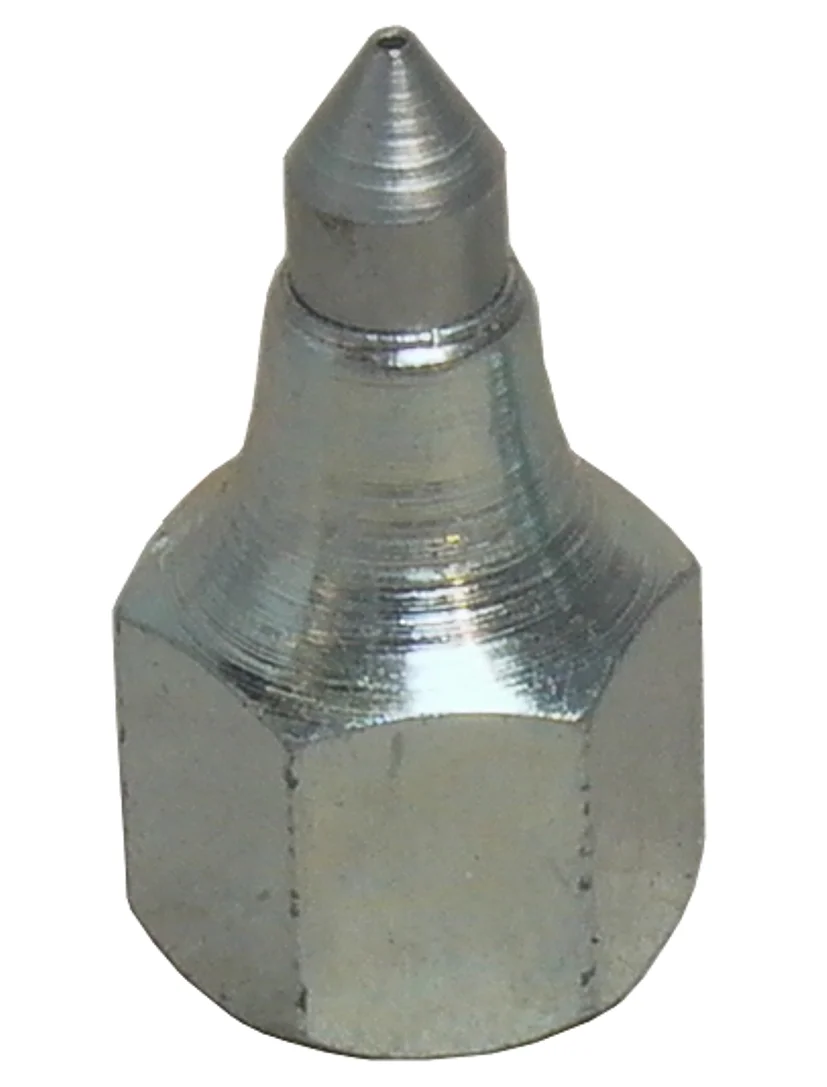

Two-Piece Needle Point Nozzle M10x1
- Needle-point mouthpiece
- Connection thread: M10x1
- Design: 2-piece
Delivery time: 1-3 days
MATO Slide Coupler SK-16M10 for Flat Grease Nipples
- Type: SK-16M10
- Connection: M10x1
- Weight: approx. 0.043 kg
- Slide coupler for 16 mm flat grease nipples
- M10x1 thread
Delivery time: 1-3 days
The right lubrication-system accessory for your system
Which grease nipple – H1, H2 or H3?
H1 (straight, DIN 71412A): standard, screwed in vertically. H2 (45°, DIN 71412B): for points accessible at an angle. H3 (90°, DIN 71412C): lateral access. All R1/8" threads, galvanised. Individually (from €0.42) or an assortment box of 110–475 pcs.
Safety couplers – when are they needed?
Standard 4-jaw couplers can slip off under high pressure. Safelock (€39), safeLOCK-L (€49) and Quick-Fix (€49) lock mechanically. Recommended for high-pressure lubrication and overhead use.
Hose length by application
300 mm: compact work. 500 mm: workshop standard. 1–3.5 m: stationary systems/trucks. 6.5–10 m: high-pressure lubrication stations. From 100 bar, always use a safety armoured rubber hose RH – never a plastic hose.
CLS couplings for centralised lubrication systems
CLS connector R1/4" ISO 7241B DN6 (€30.50) and CLS hydraulic coupling (€73.50) – standardised quick couplings for centralised lubrication systems. Pressure-tight, tool-free connection with automatic closing on disconnection.
Grease meters – dosing and documentation
Flow indicator (€74.50): shows whether grease is flowing. DIGMET E35 (€294.50): electronic built-in meter. PIUSI K200 (€357): calibrated gram counter. PIUSI Greaster (€514): gram-counter gun. For maintenance documentation and precise grease-quantity specifications.
Lube-Shuttle adapters and accessories
Refill adapter set (€30), KAJO/LINZER adapters (€15) for filling from various containers. Spray-lance set LubeJet-eco (€334) for spray lubrication. Dispenser Lube-Shot 400 for a clean single-portion dispensing.
