Hose reels for oil, grease, compressed air, diesel, water & screenwash
Hose reels and hose drums for all workshop media – compressed air (up to 17 bar), fresh and gear oil (up to 60 bar), grease (up to 400 bar), diesel, water, AdBlue® and screenwash. Open or enclosed, with or without a hose, wall-mounted or free-standing. From PCL, PIUSI, Samoa-Hallbauer and MATO.
Compressed air & water
PCL compressed-air hose reels compact (8 m, DN8, €85) and standard (15/20 m, DN10, from €144) as well as PCL Prestige (15 m, DN12). PIUSI enclosed reels (20 bar) for air and water in 12 m and 15 m. Samoa WD-15 for water/diesel (€1,822). For all compressed-air stations and water connections in the workshop.
Oil hose reels up to 60 bar
PIUSI oil reels in 3/8", 1/2" and 3/4" versions (60 bar) – open or enclosed, 10–20 m hose length, without or with a hose (€322–876). Samoa SiA open/enclosed for oil (1/2"), 10–18 m (€671–883). For fresh oil, engine oil, hydraulic oil, gear oil and used oil.
Grease hose reels up to 400 bar
PIUSI GREASE high-pressure grease reels (400 bar) in 1/4" and 3/8", 10–15 m (€342–544). Samoa Single-Arm open (€554–714) and SiA enclosed (€669–784) for grease hoses 1/4" and 3/8", 10–18 m. For all grease guns and centralised lubrication systems.
Special solutions
Hose drum eco (€687) for fresh oil and radiator antifreeze (10/15 m). Double hose drum RE D280/D340 (€1,420–1,502) for two media at once. Samoa SiA for screenwash (1/2", 10/15 m, €1,088–1,148). Series 507 with an electronic hand-held in-line meter (€1,255).

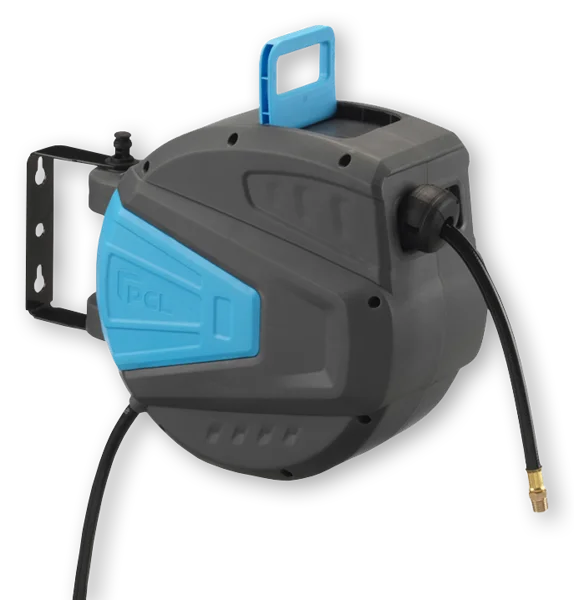

8m Compressed Air Hose Reel Compact (DN8) 1/4" Male PCL
- Connections: 1/4" male thread
- Max. working pressure: 8 bar
- Hose length: 8 m
- Hose diameter: DN 8
- Connection hose: 0.75 m - DN 8
- Weight: 3.4 kg
- Application: for compressed air applications
- Wall bracket: for swiveling up to 180°
- Dimensions: 320 x 165 x 278 mm
Delivery time: 5-10 Tage
15m Compressed Air Hose Reel Standard (DN10) 1/4" Male Thread PCL
- Max. Working Pressure: 17 bar
- Connections: 1/4 inch male thread
- Hose Diameter: DN 10
- Connection Hose: 1.0 m - DN 10
- Wall Bracket Swivelable up to 180°
- Hose Length: 15 m
- For Compressed Air Applications
- Weight: 7.45 kg
- Dimensions: Width 355 mm x Height 180 mm x Depth 490 mm
Delivery time: 5-10 Tage

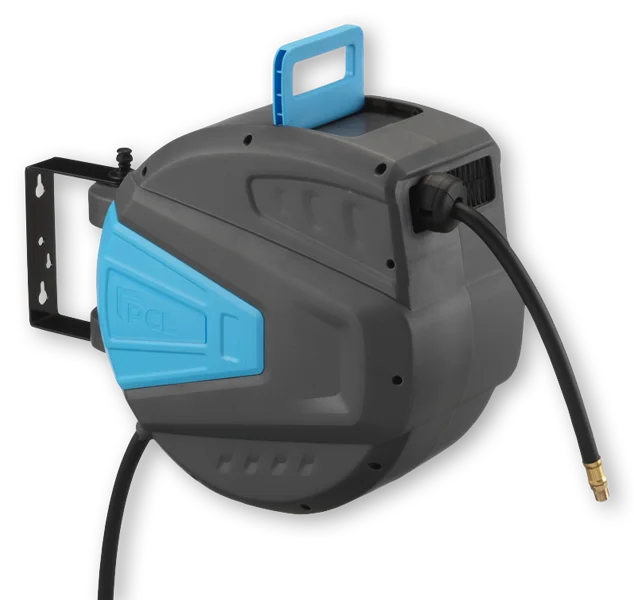

20m Standard Compressed Air Hose Reel (DN10) 1/4" Male Thread PCL
- Maximum Working Pressure: 17 bar
- Connections: 1/4" Male Thread
- Hose Length: 20 meters
- Connection Hose: 1.0 meter - DN10
- Hose Diameter: DN10
- Wall Bracket Swivel up to 180°
- For Compressed Air Applications
- Dimensions: 355 x 180 x 490 mm
- Weight: 7.45 kg
Delivery time: 1-3 days
PIUSI Enclosed Hose Reel 20 bar for Air/Water, with 15 m 8 × 12 mm air/water hose
- Fluids: air/water
- Max. pressure: 20 bar
- Hose: with 15 m 8 × 12 mm air/water hose
- Enclosed hose reel, max. 20 bar
- Powerful spring, durable steel hub
Delivery time: 5-10 Tage

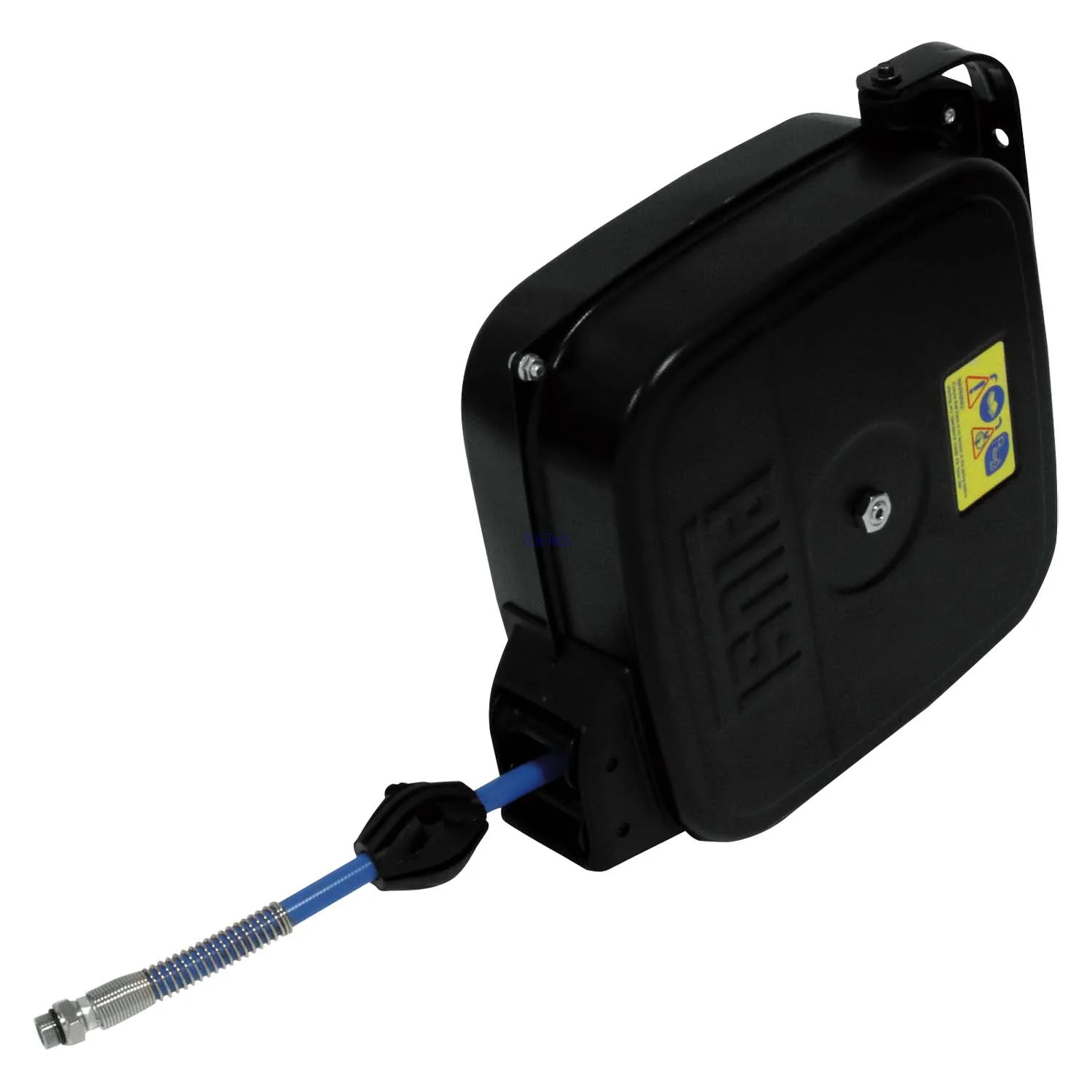

PIUSI Enclosed Hose Reel 20 bar for Air/Water, with 12 m 10 × 14 mm air/water hose
- Fluids: air/water
- Max. pressure: 20 bar
- Hose: with 12 m 10 × 14 mm air/water hose
- Enclosed hose reel, max. 20 bar
- Powerful spring, durable steel hub
Delivery time: 5-10 Tage

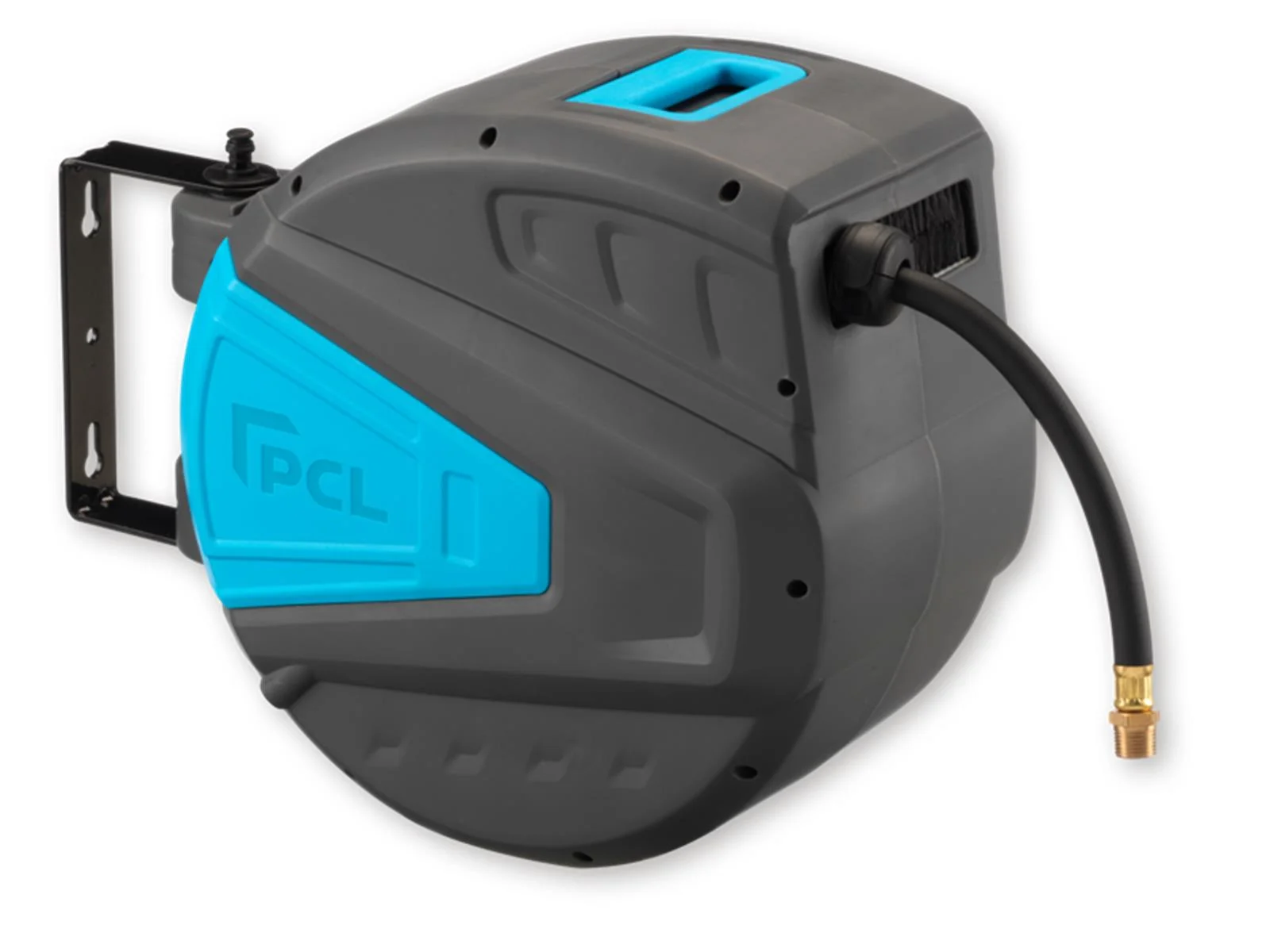

15m Compressed Air Hose Reel Prestige (DN12) 1/2" Male Thread PCL
- Max. Working Pressure: 17 bar
- Connections: 1/2" male thread
- Hose Diameter: DN 12
- Connection Hose: 1.0 m - DN 12
- Wall Bracket Swivel Range: up to 180°
- Hose Length: 15 m
- Weight: 9.80 kg
- For Compressed Air Applications
- Dimensions: 490 x 260 x 405 mm
Delivery time: 5-10 Tage
PIUSI Enclosed Hose Reel 400 bar for Grease, without hose, for max. 15 m 1/4" hose
- Fluids: grease
- Max. pressure: 400 bar
- Hose: without hose, for max. 15 m 1/4" hose
- Enclosed hose reel, max. 400 bar
- Powerful spring, durable steel hub
Delivery time: 1-3 days

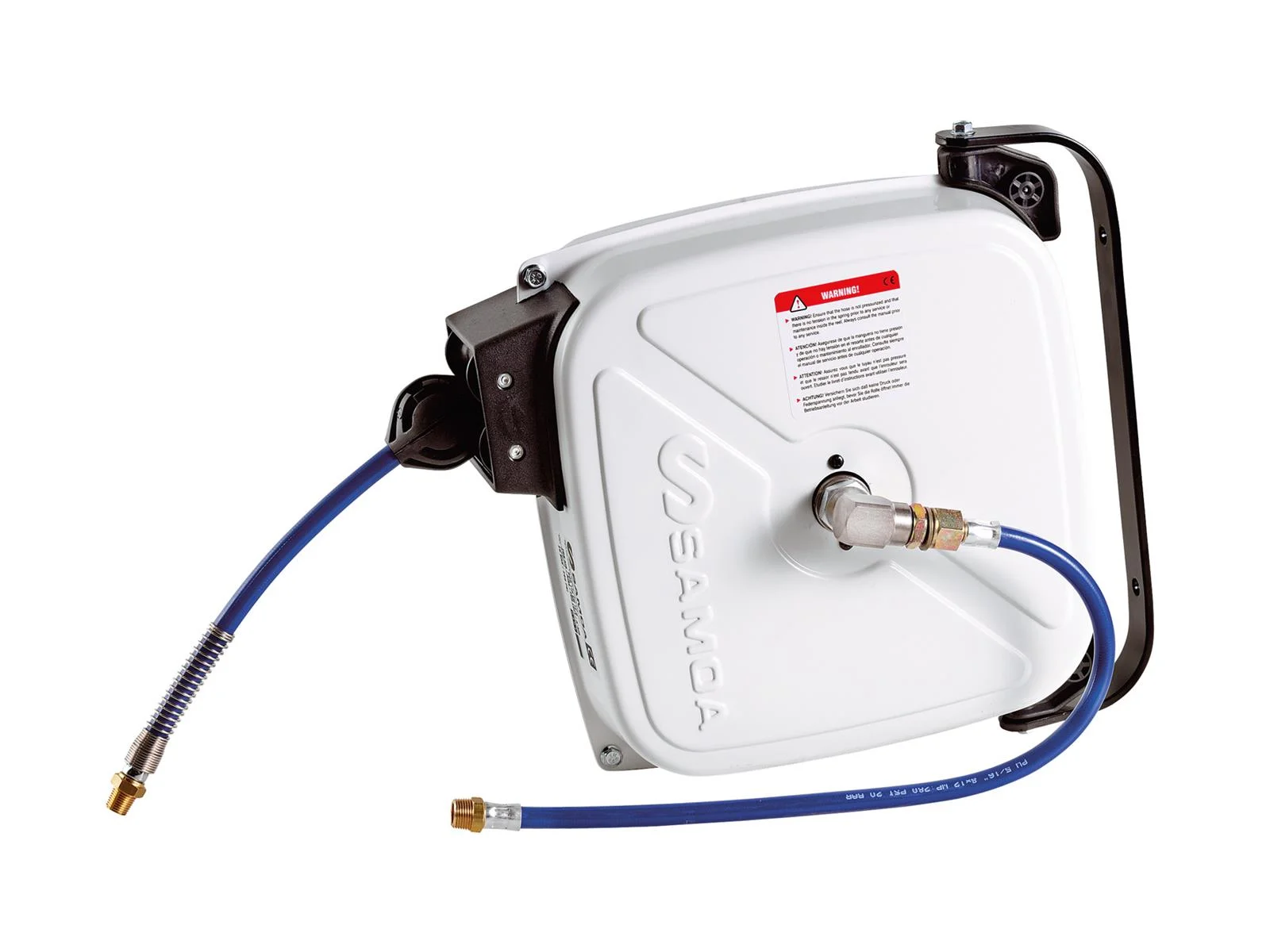

SAMOA Hose Reel Series 500 RM-38, Enclosed, 15 m PVC Hose 8 mm, for Compressed Air, 15 bar
- Fluids: compressed air, nitrogen
- Delivery hose: 15 m PVC, 5/16" (8 mm)
- Delivery pressure: max. 15 bar
- Enclosed steel housing, swivel wall bracket
- 15 m PVC hose 5/16" (8 mm)
Delivery time: 5-10 Tage
PIUSI Open Hose Reel 60 bar for Oil, without hose, for max. 15 m 3/8" hose
- Fluids: oil
- Max. pressure: 60 bar
- Hose: without hose, for max. 15 m 3/8" hose
- Open hose reel, max. 60 bar
- Powerful spring, durable steel hub
Delivery time: 5-10 Tage
PIUSI Open Hose Reel 60 bar for Oil, without hose, for max. 15 m 1/2" hose
- Fluids: oil
- Max. pressure: 60 bar
- Hose: without hose, for max. 15 m 1/2" hose
- Open hose reel, max. 60 bar
- Powerful spring, durable steel hub
Delivery time: 5-10 Tage
PIUSI Enclosed Hose Reel 60 bar for Oil, without Hose, for 12 m 1/2" Hose
- Fluids: oil
- Max. pressure: 60 bar
- Hose: none, for 12 m 1/2"
- Enclosed hose reel, max. 60 bar
- Powerful spring, steel hub
Delivery time: 5-10 Tage
PIUSI Open Hose Reel 400 bar for Grease, without hose, for max. 15 m 3/8" hose
- Fluids: grease
- Max. pressure: 400 bar
- Hose: without hose, for max. 15 m 3/8" hose
- Open hose reel, max. 400 bar
- Powerful spring, durable steel hub
Delivery time: 5-10 Tage
SAMOA Cable Reel 230/24 V with LED Hand Lamp, 60 W Transformer, 15 m H05RN-F 2 x 1 mm² Cable
- Transformer: 230 V → 24 V
- Power: 60 W
- Cable: 15 m, H05RN-F 2 x 1 mm²
- Transformer 230 V to 24 V, 60 W
- 15 m cable H05RN-F 2 x 1 mm²
Delivery time: 2-5 days

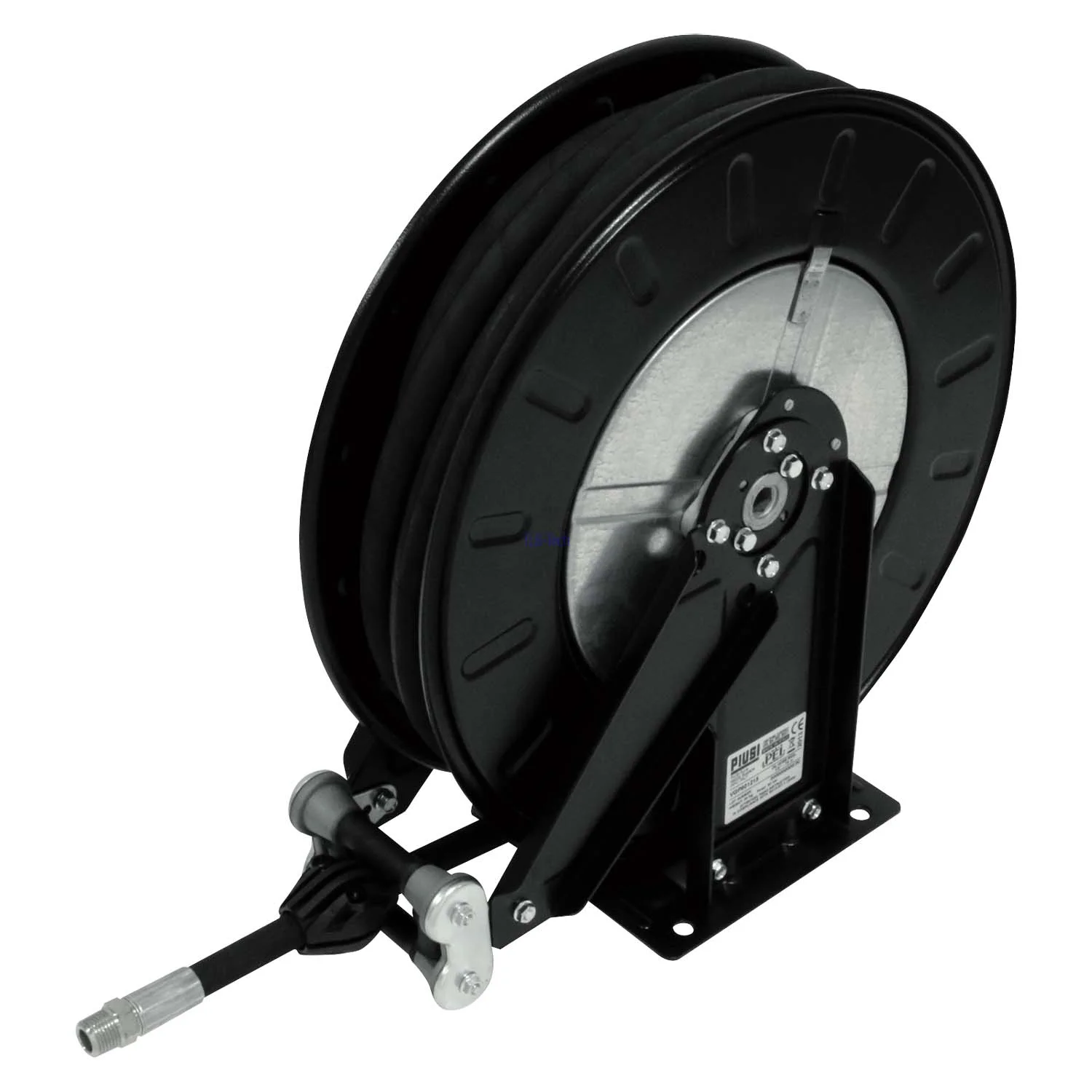

PIUSI Open Hose Reel 60 bar for Oil, with 10 m 1/2" oil hose
- Fluids: oil
- Max. pressure: 60 bar
- Hose: with 10 m 1/2" oil hose
- Open hose reel, max. 60 bar
- Powerful spring, durable steel hub
Delivery time: 5-10 Tage
PIUSI Enclosed Hose Reel 60 bar for Oil, with 12 m 1/2" oil hose
- Fluids: oil
- Max. pressure: 60 bar
- Hose: with 12 m 1/2" oil hose
- Enclosed hose reel, max. 60 bar
- Powerful spring, durable steel hub
Delivery time: 5-10 Tage

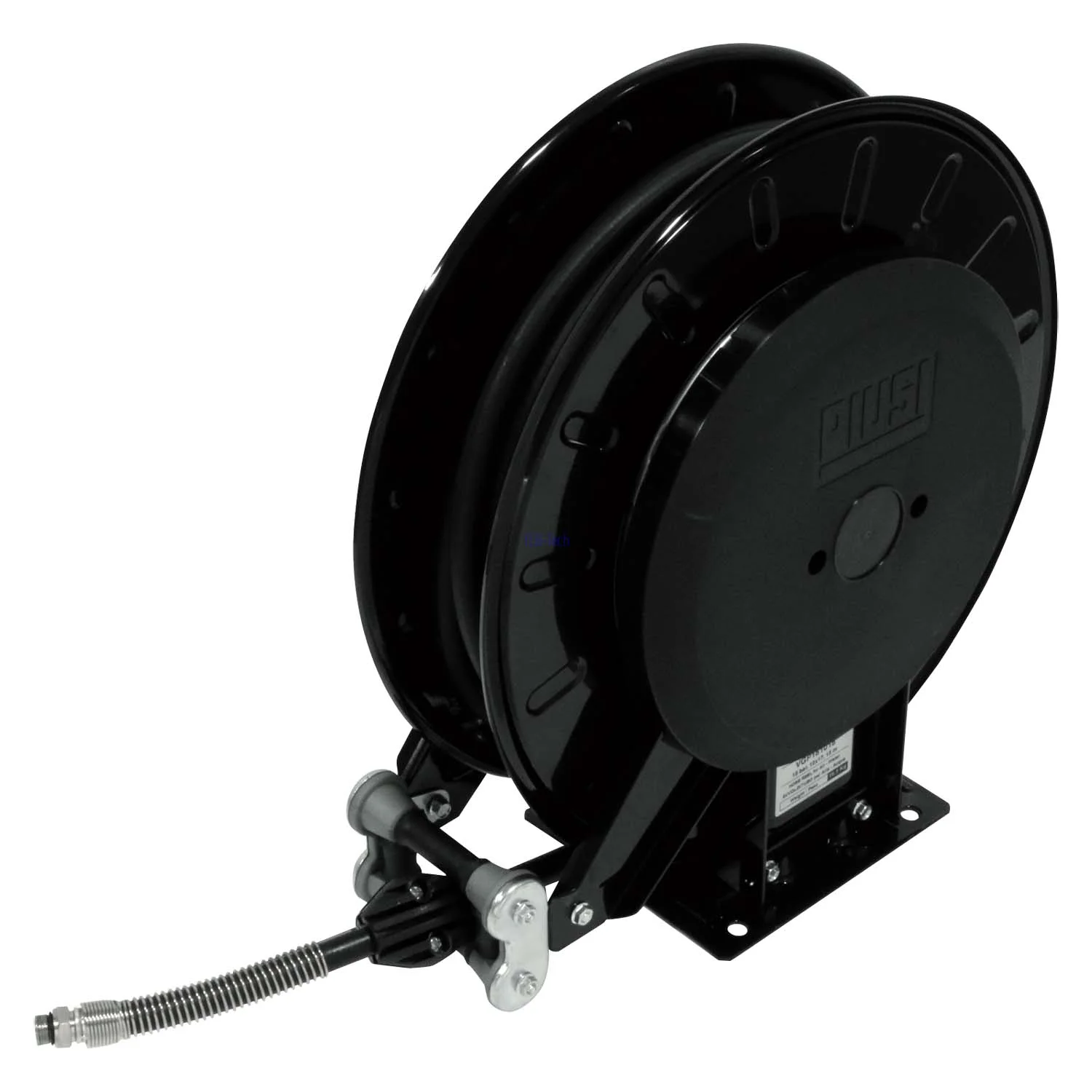

PIUSI Open Hose Reel 20 bar for Air/Water, with 15 m 1/2" air/water hose
- Fluids: air/water
- Max. pressure: 20 bar
- Hose: with 15 m 1/2" air/water hose
- Open hose reel, max. 20 bar
- Powerful spring, durable steel hub
Delivery time: 5-10 Tage
PIUSI Open Hose Reel 60 bar for Oil, with 15 m 1/2" oil hose
- Fluids: oil
- Max. pressure: 60 bar
- Hose: with 15 m 1/2" oil hose
- Open hose reel, max. 60 bar
- Powerful spring, durable steel hub
Delivery time: 5-10 Tage
PIUSI Open Hose Reel 400 bar for Grease, with 15 m 1/4" grease hose
- Fluids: grease
- Max. pressure: 400 bar
- Hose: with 15 m 1/4" grease hose
- Open hose reel, max. 400 bar
- Powerful spring, durable steel hub
Delivery time: 5-10 Tage
SAMOA Single-Arm Hose Reel, 10 m Grease Hose 1/4", max. 350 bar
- Fluids: grease and hydraulic oil
- Delivery hose: 10 m hose 1/4" + 0.8 m inlet hose
- Working pressure: max. 350 bar
- 10 m grease hose 1/4" + 0.8 m inlet hose
- Max. pressure 350 bar, inlet 1/4" BSP (M), outlet 1/4" BSP (M)
Delivery time: 2-5 days

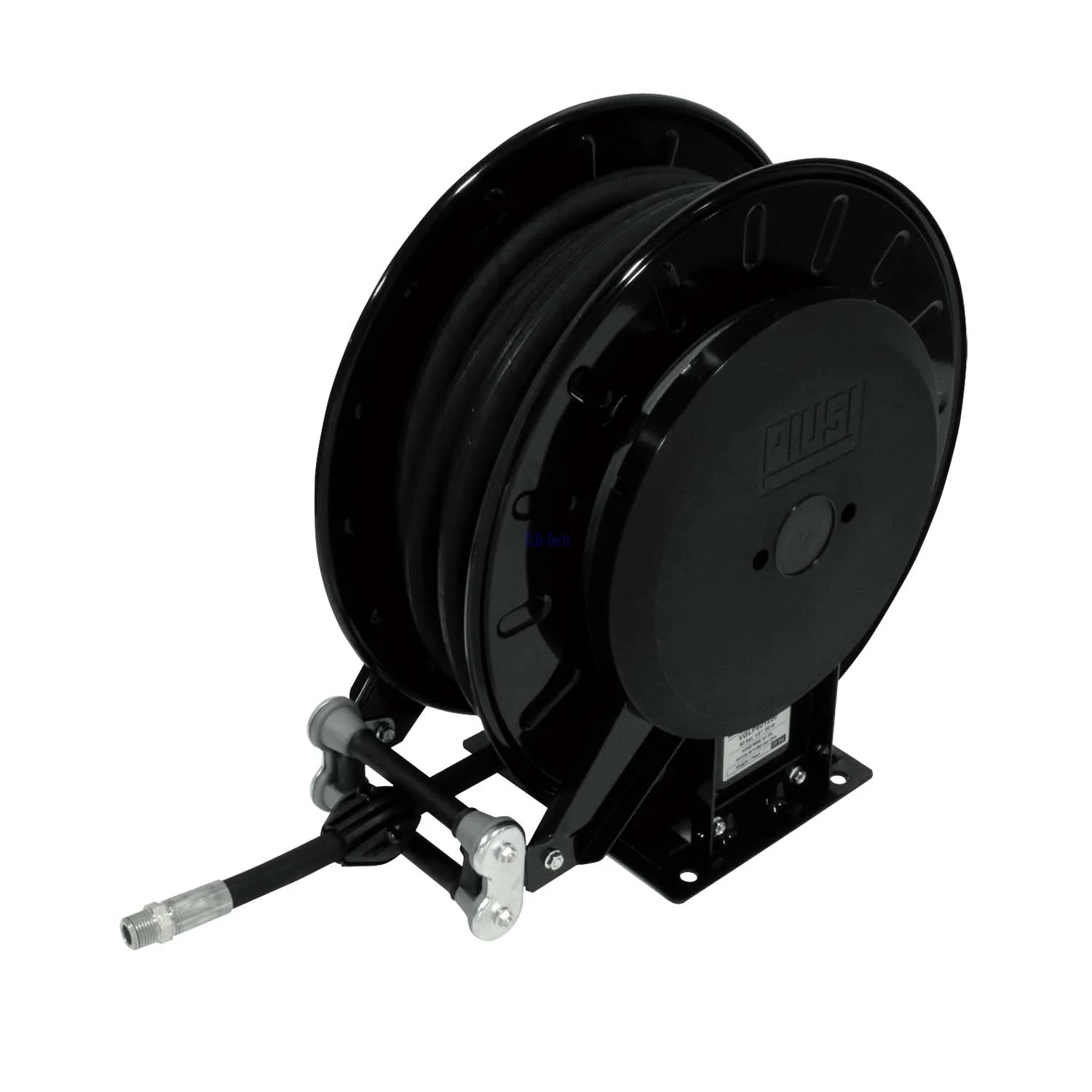

PIUSI Open Hose Reel 400 bar for Grease, with 15 m 3/8" grease hose
- Fluids: grease
- Max. pressure: 400 bar
- Hose: with 15 m 3/8" grease hose
- Open hose reel, max. 400 bar
- Powerful spring, durable steel hub
Delivery time: 5-10 Tage

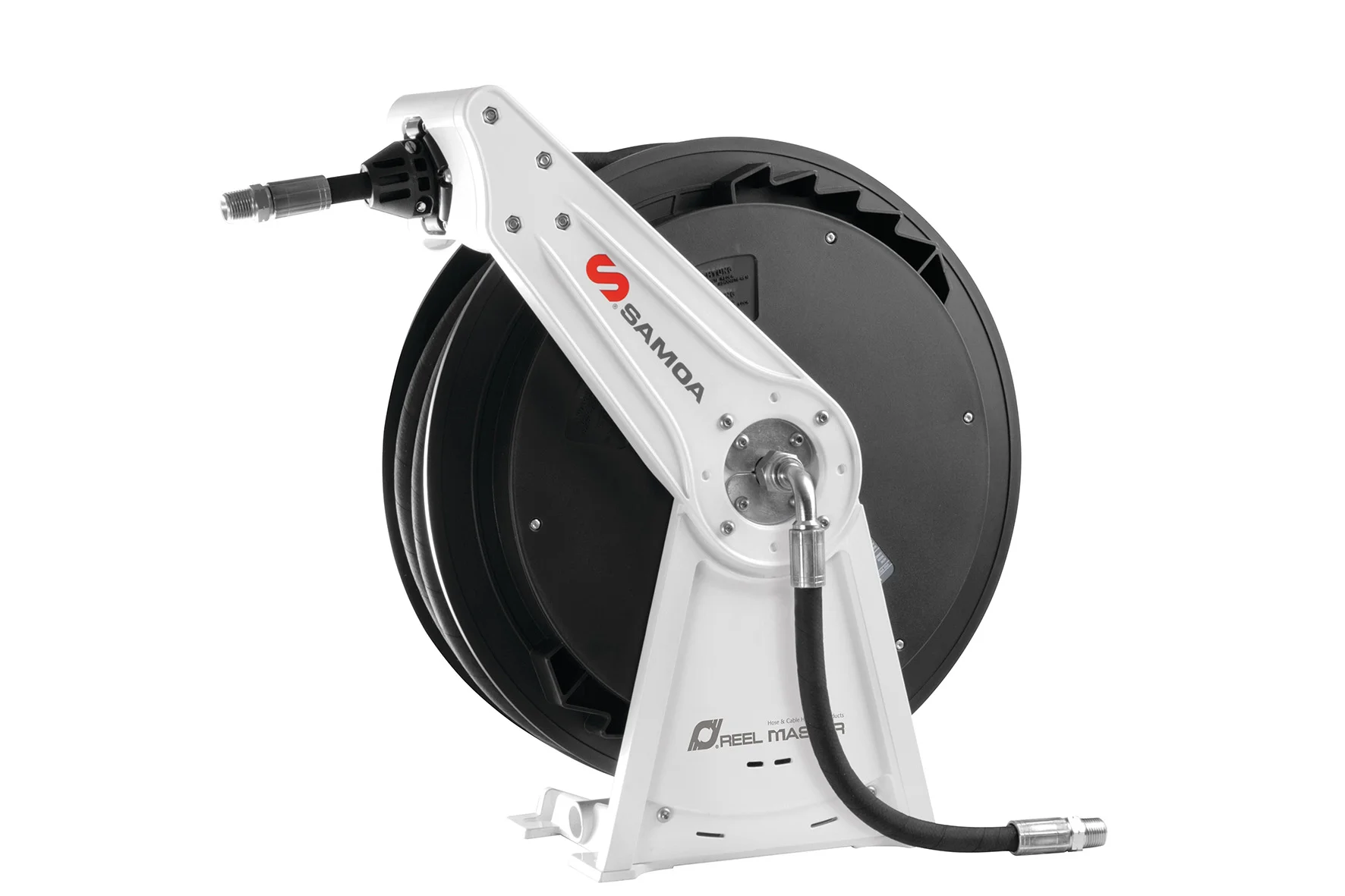

SAMOA Single-Arm Hose Reel, 10 m Grease Hose 3/8", max. 280 bar
- Fluids: grease and hydraulic oil
- Delivery hose: 10 m hose 3/8" + 0.8 m inlet hose
- Working pressure: max. 280 bar
- 10 m grease hose 3/8" + 0.8 m inlet hose
- Max. pressure 280 bar, inlet 3/8" BSP (M), outlet 1/4" BSP (M)
Delivery time: 2-5 days
MATO Grease Hose Reel, Open, without Hose
- Max. pressure: 500 bar
- Connection: swivel R1/4" female
- Mounting: wall, ceiling, floor
- Open grease hose reel with swivel and stopper, max. 500 bar
- For wall, ceiling and floor mounting
Delivery time: 5-10 Tage
MATO Open Hose Reel without hose, for max. 15 m hose DN12
- Max. pressure: 60 bar
- Hose: DN12, connection R1/2" DKR
- Connection: swivel R1/2" male
- Open hose reel with swivel and stopper, max. 60 bar
- For wall, ceiling and floor mounting
Delivery time: 5-10 Tage
MATO Open Hose Reel without hose, for max. 12 m hose DN16
- Max. pressure: 60 bar
- Hose: DN16, connection R3/4" DKR
- Connection: swivel R3/4" male
- Open hose reel with swivel and stopper, max. 60 bar
- For wall, ceiling and floor mounting
Delivery time: 5-10 Tage
Choosing the right hose reel for your medium
Compressed air – up to 17 bar
PCL compact DN8 (8 m, €85) for small workshops, PCL standard DN10 (15/20 m, from €144) as the standard solution, PCL Prestige DN12 (15 m, €288) for a higher flow. PIUSI enclosed (20 bar) also suitable for water. Choose a drip-tray model for ceiling or wall mounting.
Fresh oil – 60 bar
PIUSI oil reel 60 bar in 3/8" (from €322) or 1/2" (from €324), 10–20 m – open or enclosed, without or with a hose. Samoa SiA enclosed (€671–803) in 1/2", 10–18 m for continuous operation. Pay attention to the viscosity of the oil: for gear oil SAE 90, choose a larger cross-section (1/2").
Grease – 400 bar high pressure
PIUSI GREASE 400 bar in 1/4" or 3/8", 10–15 m (€342–544). Samoa Single-Arm open (€554–579) or SiA enclosed (€669–784). Note the hose size of the grease gun – 1/4" is the most common size, 3/8" for larger grease guns. For centralised lubrication systems: note the supply/return hose.
Diesel & water
PIUSI DN25 (10 m, 10 bar, €731) for diesel dispensing systems. Samoa WD-15 water/diesel (15 m, €1,822) combined. Hose drums DN12/16 (€619–802) for compressed air or water with a large cross-section. Always check the medium resistance of the hose.
Open or enclosed?
Open: a visible spring mechanism, easy maintenance access, lighter and cheaper. Enclosed (PIUSI, Samoa SiA): protection against contamination and damage, a tidy appearance, protects the reel from dripping oil. For customer areas or visible installations, the enclosed version is recommended.
Hose length & size
Hose length according to the working area: 10 m for fixed points, 15 m flexible, 20–25 m for large halls. Hose size according to flow rate: 3/8" low, 1/2" medium, 3/4" and 1½" for large systems. Longer hoses with a larger cross-section reduce pressure losses with high-viscosity media.
Frequently asked questions about hose reels
The right hose reel for your workshop
Our specialist team advises you free of charge – on medium, pressure, length, mounting position and the right combination of reel and hose.
☎ Call +49 36071 924340 Request a quote
