What is the difference between HDPE/steel sheet and PE plastic systems?

HDPE/steel sheet systems combine an HDPE inner container with a steel sheet outer casing up to 2,000 litres. PE plastic systems are made entirely from polyethylene, corrosion-free for 1,500–10,000 litres.

Which models have an integrated fuel management system?

Compact systems (Table 1) have no fuel management system. Kingspan Fuelmaster 2500, 5000 and 9000 offer an optional fuel management system.

What pump output is right for my business?

Compact systems up to 2,000 L: 32–68 l/min. Large systems: 55–72 l/min. Highest output with 72 l/min: Kingspan Fuelmaster.

All models with DIBT storage approval. Up to 1,000 litres generally permit-free. Over 1,000 litres notification requirement with the lower water authority.

Product Comparison 2025 · Compact Systems & Large Systems

Farm Fuel Stations 1,000 – 10,000 Litres in direct comparison

Compare HDPE/steel sheet compact systems and large PE systems from Roth, Schütz, Dehoust, Swimer, Kingspan, Pressol and Seppeler. All features at a glance – pump output, flow meter, fuel management system, tank wall and approval.

27 models compared 32 – 72 l/min 1,000 to 10,000 litres DIBT approved · double-walled

Jump to: HDPE/Steel Sheet Systems Large PE & Steel Systems Which system suits you? FAQ

ROTH Box di Sicurezza 50 Litri Omologata ADR in PE-HD, Kühlbox, Kühlbehälter, Griffdeckel, Metallverschluss, Quadratisches Muster

ROTH Safety Transport Box 50 Liters – ADR/BAM Approved

Filling Volume: 50 liters
Material: HDPE (High-Density Polyethylene)
External Dimensions (L × W × H): 280 × 400 × 625 mm
Maximum Load Capacity: 30 kg

Delivery time: 1-3 days

€69.95* €79.00*

€58.78 without VAT

Roth Service-Box - contenitore sicuro per rifiuti sanitari, ?

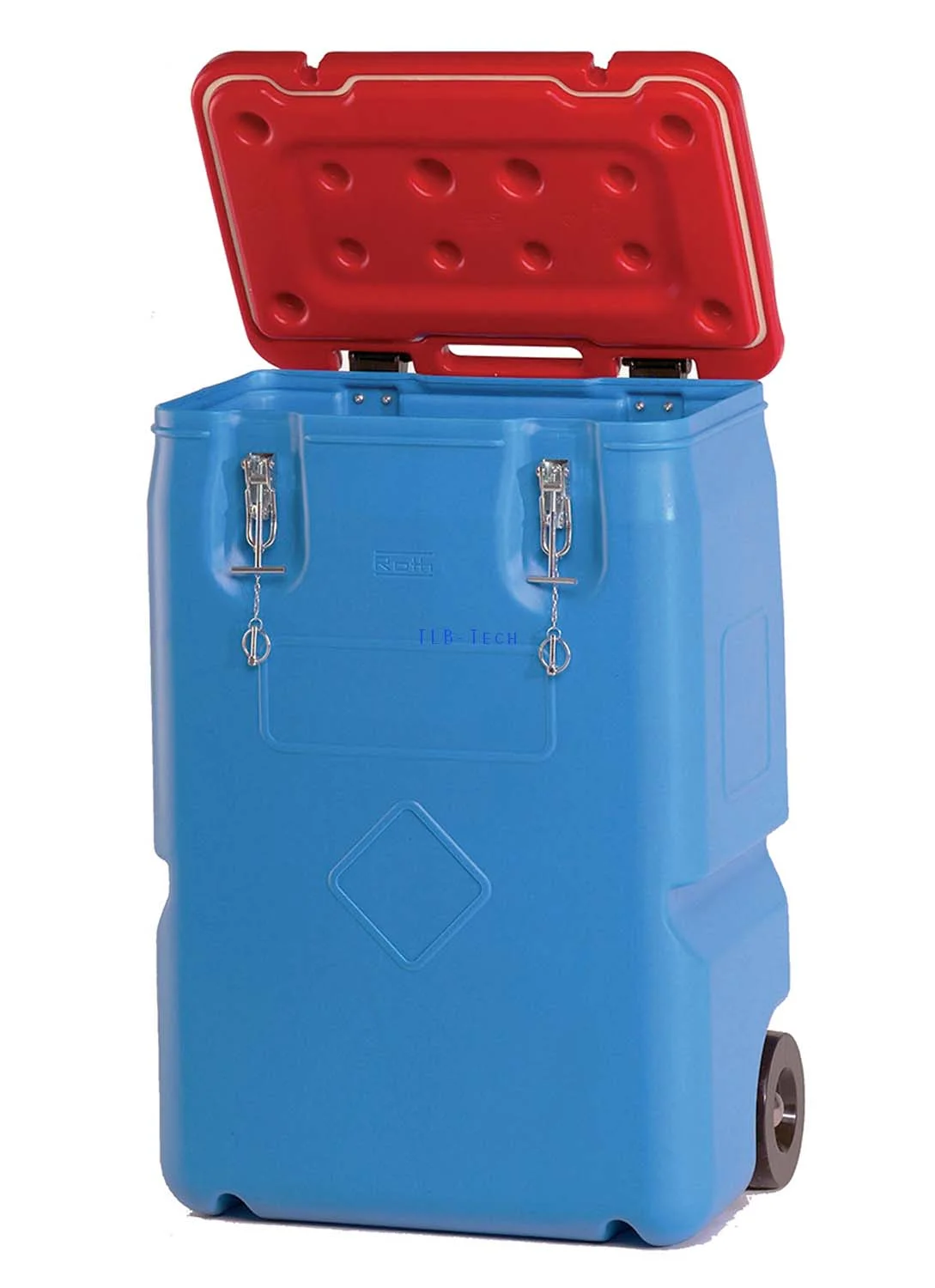

Roth Service Box - Safety Container for Medical Waste

Service box available in 170 or 250 liter versions
Safety container for healthcare waste

Delivery time: 5-10 Tage

€185.64* €248.00*

€156.00 without VAT

Details

Raccoglitore di olio esausto AS-T-SE da 440 e 990 litri, con punto di infiammabilità superiore a 55 °C., Öltank, Öltankd

Rietbergwerke AS-T-se Waste Oil Collectors 400 and 990 l, Double-Walled Collecting Tanks for se Liquids, DIN 6623-2

Type / capacity: AS-T-se 400 (400 l) and AS-T-se 990 (990 l)
Medium: se liquids (flash point above 55 °C, e.g. waste oil of known origin or diesel) and other water-polluting liquids
Approvals: DIN 6623-2
Manufactured to DIN 6623-2 and approved nationwide in Germany for storing se liquids (flash point above 55 °C) and other water-polluting liquids
Double-walled within the meaning of the German AwSV regulation, with permanent vacuum leak monitoring of both walls that needs no external power

Delivery time: 3-4 weeks

€2,937.00*

€2,468.07 without VAT

Details

Contenitore di raccolta antideflagrante per liquidi ad alta temperatura fino a 95 °C - Multisammler MS-T-SE, Multitank, Druckprüfer, Leiterplattform, Metalltank, Industrietank

Rietbergwerke MS-T-se 900, 1300, 2000 and 2400 Multi-Collectors, Painted RAL 7035, Double-Walled Collecting Tanks 900 to 2,400 l for se Liquids and Waste Oil up to 95 °C, Z-38.12-41

Type / capacity: MS-T-se 900, 1300, 2000 and 2400 (900 to 2,400 l)
Medium: se liquids (flash point above 55 °C, e.g. waste oil of known origin or diesel) and other water-polluting liquids
Operating temperature: waste oils up to an operating temperature of 95 °C
General building authority approval Z-38.12-41 as a storage tank for se liquids (flash point above 55 °C) and other water-polluting liquids
For waste oils up to an operating temperature of 95 °C

Delivery time: 4-6 Wochen

€3,963.00*

€3,330.25 without VAT

Details

Contenitore per sostanze pericolose GS-TP-ELH da 250 litri, 400 litri, 600 litri e 995 litri., Sammelbehälter, Rüsttank, Tank, Metalltank, Sammelbehälter Edelstahl

Rietbergwerke GS-T-elh 250/400 and GS-TP-elh 600/995 Hazardous Substance Collectors, Double-Walled Collecting Tanks for elh Liquids, Z-38.12-288

Type / capacity: GS-T-elh 250 and 400, GS-TP-elh 600 and 995 (250 to 995 l)
Medium: elh liquids (flash point below 55 °C, e.g. waste oil of unknown origin or petrol) and other water-polluting liquids
Approvals: general building authority approval Z-38.12-288
General building authority approval Z-38.12-288 as a storage tank for elh liquids (flash point below 55 °C) and other water-polluting liquids
Double-walled within the meaning of the German AwSV regulation, with permanent vacuum leak monitoring of both walls that needs no external power

Delivery time: 4-6 Wochen

€4,743.00*

€3,985.71 without VAT

Details

900 e 1300 litri Multisammler MS-T-SE, con punto di infiammabilità fino a 95 °C., Multitank, Tankensystem, Metall, Edelstahl, Treppenplattform

Rietbergwerke MS-T-se 900 and 1300 Multi-Collectors, Galvanised, Double-Walled Collecting Tanks 900 and 1,300 l for se Liquids and Waste Oil up to 95 °C, Z-38.12-41

Type / capacity: MS-T-se 900 and 1300 (900 and 1,300 l)
Medium: se liquids (flash point above 55 °C, e.g. waste oil of known origin or diesel) and other water-polluting liquids
Operating temperature: waste oils up to an operating temperature of 95 °C
General building authority approval Z-38.12-41 as a storage tank for se liquids (flash point above 55 °C) and other water-polluting liquids
For waste oils up to an operating temperature of 95 °C

Delivery time: 4-6 Wochen

€4,967.00*

€4,173.95 without VAT

Details

Contenitore di stoccaggio sicuro e facile da usare per liquidi infiammabili - deposito di sostanze pericolose GD-TP-ELH, Gefahrstoff-Depot, Abfüllbehälter, Metalltank, Gasdrucktank, Säbdler?

Rietbergwerke GD-TP-elh Hazardous Substance Depots 250 to 995 l, Double-Walled Collecting and Storage Tanks for elh Liquids, Z-38.12-288

Type / capacity: GD-TP-elh 250, 400, 600 and 995 (250 to 995 l)
Medium: elh liquids (flash point below 55 °C, e.g. waste oil of unknown origin or petrol) and other water-polluting liquids
Approvals: general building authority approval Z-38.12-288
General building authority approval Z-38.12-288, approved nationwide in Germany for storing elh liquids (flash point below 55 °C) and other water-polluting liquids
Double-walled within the meaning of the German AwSV regulation, with permanent vacuum leak monitoring of both walls that needs no external power

Delivery time: 4-6 Wochen

€5,950.00*

€5,000.00 without VAT

Details

Contenitore di raccolta antideflagrante per liquidi infiammabili - Multisammler MS-TP-ELH, verniciato, Multitank, Riettberg, Stahltank, Metall, Maschine, Multitank, Industrietank, Edelstahl, Deckelbehälter, Fußplattform

Rietbergwerke MS-TP-elh 900, 1300, 2000 and 2400 Multi-Collectors, Painted RAL 7035, Double-Walled Collecting Tanks 900 to 2,400 l for elh Liquids, Z-38.12-41

Type / capacity: MS-TP-elh 900, 1300, 2000 and 2400 (900 to 2,400 l)
Medium: elh liquids (flash point below 55 °C, e.g. waste oil of unknown origin or petrol) and other water-polluting liquids
Operating temperature: waste oils up to 95 °C
General building authority approval Z-38.12-41 (DIBt) as a storage tank for elh liquids (flash point below 55 °C) and other water-polluting liquids
For waste oils up to an operating temperature of 95 °C

Delivery time: 4-6 Wochen

€5,971.00*

€5,017.65 without VAT

Details

Raccoglitore di olio esausto AS-TP-SE – punto di infiammabilità superiore a 55 °C – 1.500–10.000 litri, tank, Speichertank, Metalltank, Industrietank, Druckbehälter

Rietbergwerke AS-TP-se Waste Oil Collectors 1,500 to 5,000 l, Double-Walled Collecting Tanks with Operator Platform, Z-38.12-325

Type / capacity: AS-TP-se 1500, 2000, 3000-100, 3000-125, 3500 and 5000-125 (1,500 to 5,000 l)
Medium: se liquids (flash point above 55 °C, e.g. waste oil of known origin or diesel) and other water-polluting liquids
Approvals: general building authority approval Z-38.12-325
General building authority approval Z-38.12-325, approved nationwide in Germany for storing se liquids (flash point above 55 °C) and other water-polluting liquids
Double-walled within the meaning of the German AwSV regulation, with permanent vacuum leak monitoring of both walls that needs no external power

Delivery time: 4-6 Wochen

€6,920.00*

€5,815.13 without VAT

Details

Rietbergwerke MS-TP-elh 900 and 1300 Multi-Collectors, Galvanised, Double-Walled Collecting Tanks 900 and 1,300 l for elh Liquids, Z-38.12-41

Type / capacity: MS-TP-elh 900 and 1300 (900 and 1,300 l)
Medium: elh liquids (flash point below 55 °C, e.g. waste oil of unknown origin or petrol) and other water-polluting liquids
Operating temperature: waste oils up to 95 °C
General building authority approval Z-38.12-41 (DIBt) as a storage tank for elh liquids (flash point below 55 °C) and other water-polluting liquids
For waste oils up to an operating temperature of 95 °C

Delivery time: 4-6 Wochen

€7,199.00*

€6,049.58 without VAT

Details

HDPE / Steel Sheet

Compact combination of an HDPE inner tank and steel sheet outer casing. Up to 2,000 litres, double-walled, for farm and agricultural use. Models from Roth, Schütz and Dehoust.

PE Plastic Tanks

Manufactured entirely from polyethylene – corrosion-free, low-maintenance, lighter than steel. Swimer TECA-Tank and Pressol Fuelstation for 1,500 to 10,000 litres.

Large Steel Systems

Seppeler KA systems in steel for 3,000 to 10,000 litres – robust long-term solution for trade, SMEs and industry. Analogue flow meter included as standard.

Fuel Management or Flow Meter?

Simple refuelling without monitoring: a flow meter is sufficient. Multiple drivers, vehicles or cost centres: a digital flow meter or optional fuel management system (Kingspan) is the better choice.

HDPE / Steel Sheet · Compact Systems

Comparison HDPE/Steel Sheet Systems – 1,000 to 2,000 Litres

Brands: Roth Schütz Dehoust

Feature	UNI Starter Package Roth · 1,000 L	Uni Plus W85 Roth · 1,000 L	Uni Premium Roth · 1,000 L	System 1000 Roth · 1,000 L	System 1500 Roth · 1,500 L	2000 Complete Roth · 2,000 L	Starter Package Horn Schütz · 1,000 L	Plus W85 Schütz · 1,000 L	Professional Horn Schütz · 1,000 L	Plus W85-TecSonic Schütz · 1,000 L	HDT-TECPUMP 600 VT Schütz · 1,000 L	Premium Horn Schütz · 1,000 L	Basic Dehoust Dehoust · 1,000 L
Brand (Tank)	Roth	Roth	Roth	Roth	Roth	Roth	Schütz	Schütz	Schütz	Schütz	Schütz	Schütz	Dehoust
Volume	1,000 L	1,000 L	1,000 L	1,000 L	1,500 L	2,000 L	1,000 L	1,000 L	1,000 L	1,000 L	1,000 L	1,000 L	1,000 L
Tank Material	HDPE/Steel	HDPE/Steel	HDPE/Steel	HDPE/Steel	HDPE/Steel	HDPE/Steel	HDPE/Steel	HDPE/Steel	HDPE/Steel	HDPE/Steel	HDPE/Steel	HDPE/Steel	HDPE/Steel
Dimensions (H×W×D)	1280×760×1420mm	1280×760×1420mm	1280×760×1420mm	1280×800×1470mm	1640×800×1910mm	2×1100×700×1600	1135×757×1625mm	1135×757×1625mm	1135×757×1625mm	1135×757×1625mm	1135×757×1625mm	1135×757×1625mm	1100×700×1600
Double-Walled	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔
Approval	DIBT	DIBT	DIBT	DIBT + Transport	DIBT + Transport	DIBT	DIBT + Transport	DIBT + Transport	DIBT + Transport	DIBT + Transport	DIBT + Transport	DIBT + Transport	DIBT
Integrated Flow Meter	optional	optional	✔ Analogue	Analogue/Digital	Analogue/Digital	✔ Analogue	optional	optional	✔ Analogue	optional	✗	✔ Analogue	✗
Integrated Fuel Management System	✗	✗	✗	✗	✗	✗	✗	✗	✗	✗	✗	✗	✗
Analogue Level Indicator	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔
Digital Level Indicator	optional	optional	optional	optional	optional	optional	optional	optional	optional	✔ incl.	optional	optional	optional
Pump Output	32 l/min	68 l/min	56 l/min	56 l/min	56 l/min	56 l/min	32 l/min	68 l/min	56 l/min	68 l/min	56 l/min	56 l/min	68 l/min
Power Supply	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V
Suitable for Large Fleets	✗	✗	✗	✗	✗	✗	✗	✗	✗	✗	✗	✗	✗
Recommended Use	Entry-level model	Farm, agriculture	Farm, agriculture	Farm, agriculture	Farm, agriculture	Trade, SME	Starter package	Farm, agriculture	Farm, agriculture	Farm, agriculture	Farm, agriculture	Farm, agriculture	Farm, agriculture
View Product	View	View	View	View	View	View	View	View	View	View	View	View	View

★ Yellow highlighted rows = key decision criteria | DIBT + Transport = storage and transport approval | All data according to manufacturer

Large Systems · PE Plastic & Steel

Comparison Large PE & Steel Systems – 1,500 to 10,000 Litres

Brands: Swimer Kingspan Pressol Seppeler

Feature	TECA-Tank 1500 Swimer · PE	TECA-Tank 2500 Swimer · PE	TECA-Tank 3500 Swimer · PE	TECA-Tank 5000 Swimer · PE	TECA-Tank 10000 Swimer · PE	Fuelmaster 2500 Kingspan · PE	Fuelmaster 5000 Kingspan · PE	Fuelmaster 9000 Kingspan · PE	Fuelstation 1500 Pressol · PE	Fuelstation 2500 Pressol · PE	Fuelstation 5000 Pressol · PE	KA 3000 Seppeler · Steel	KA 5000 Seppeler · Steel	KA 10000 Seppeler · Steel
Brand (Tank)	Swimer	Swimer	Swimer	Swimer	Swimer	Kingspan	Kingspan	Kingspan	Pressol	Pressol	Pressol	Seppeler	Seppeler	Seppeler
Volume	1,500 L	2,500 L	3,500 L	5,000 L	10,000 L	2,500 L	5,000 L	9,000 L	1,500 L	2,500 L	5,000 L	3,000 L	5,000 L	10,000 L
Tank Material	PE	PE	PE	PE	PE	PE	PE	PE	PE	PE	PE	Steel	Steel	Steel
Dimensions (H×W×D)	1950×1358mm	1990×1708mm	2100×2360×3100mm	2060×2318mm	2750×2550×3300mm	246×146×185cm	2850×2230×2340mm	3280×2480×2950mm	1720×1240×2400	1860×1460×2400	2400×2000×2400	2750×1250×1700mm	4350×1250×1700mm	6800×1400×1900mm
Double-Walled	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔
Approval	DIBT	DIBT	DIBT	DIBT	DIBT	DIBT	DIBT	DIBT	DIBT	DIBT	DIBT	DIBT	DIBT	DIBT
Integrated Flow Meter	✔ Digital	✔ Digital	✔ Digital	✔ Digital	✔ Digital	Analogue/Digital	Analogue/Digital	Analogue/Digital	✔ Analogue	✔ Analogue	✔ Analogue	✔ Analogue	✔ Analogue	✔ Analogue
Integrated Fuel Management System	✗	✗	✗	✗	✗	optional	optional	optional	✗	✗	✗	✗	✗	✗
Analogue Level Indicator	✔	✔	✔	✔	✗	✔	✔	✔	✗	✗	✗	✔	✔	✔
Digital Level Indicator	✗	✗	✗	✗	✔	✗	optional	optional	✔	✔	✔	✗	✗	✗
Pump Output	55 l/min	55 l/min	68 l/min	68 l/min	68 l/min	72 l/min	72 l/min	72 l/min	65 l/min	65 l/min	65 l/min	56 l/min	56 l/min	56 l/min
Power Supply	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V
Suitable for Large Fleets	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔
Recommended Use	Trade, SME	Trade, SME	Trade, SME	Trade, SME	Trade, SME	Trade, SME	Trade, SME	Trade, SME	Trade, SME	Trade, SME	Trade, SME	Trade, SME	Trade, SME	Trade, SME
View Product	View	View	View	View	View	View	View	View	View	View	View	View	View	View

★ Yellow = key decision criteria | All data according to manufacturer specifications

Which system suits which business?

🚜

Agriculture & Farm

For classic farm applications, Roth and Schütz compact systems from 1,000 L are ideal. Double-walled, DIBT approved and with optional flow meter for simple litre monitoring.

🔄

PE Plastic vs. Steel

PE tanks (Swimer, Pressol) are corrosion-free and low-maintenance – ideal for damp locations. Steel tanks (Seppeler) are more robust under mechanical stress in continuous industrial operation.

🏭

Fleet & Large Operations

For multi-user operation with cost control, Kingspan Fuelmaster with optional fuel management system is the best choice. Digital level measurement and flow meter already integrated.

📊

Digital Recording

Swimer TECA-Tank features a digital flow meter as standard. Pressol Fuelstation delivers digital level measurement. Ideal when consumption analysis is important.

⚡

Highest Pump Output

With 72 l/min, the Kingspan Fuelmaster models offer the highest flow rate of all large systems. For businesses that need to refuel many vehicles quickly.

💰

Cost-Effective Entry

The Roth UNI Starter Package and Schütz Starter Package Horn are the most affordable options – simple, complete and ready to use immediately for 1,000 litre diesel storage.

Frequently Asked Questions about Farm Fuel Stations

HDPE/steel sheet systems (Table 1) combine an HDPE inner container with a steel sheet outer casing – compact, up to 2,000 litres, ideal for farm and agricultural use. PE plastic systems (Table 2) are made entirely from polyethylene, corrosion-free and designed for 1,500–10,000 litres in the commercial and industrial sector.

Schütz models (Starter Package Horn, Plus W85, Professional etc.) carry an additional transport approval alongside the DIBT storage approval – these tanks may be used mobile on vehicles. Roth and Dehoust models are approved for stationary use only.

In Table 1, the Schütz Plus W85-TecSonic is the only model with digital level measurement as standard. In Table 2, the Swimer TECA-Tank 10000 and the entire Pressol Fuelstation range (1500–5000 L) have digital level measurement as standard. On Kingspan Fuelmaster 5000 and 9000 it is available as an optional add-on.

In Table 1 no model has an integrated fuel management system – this class is designed for simple single-user operation. In Table 2, the Kingspan Fuelmaster 2500, 5000 and 9000 offer an optional fuel management system for fleet management with access control.

Compact systems up to 2,000 L deliver 32–68 l/min – sufficient for 1–5 vehicles per day. Large systems offer 55–72 l/min. The highest throughput with 72 l/min is achieved by the Kingspan Fuelmaster models. Seppeler KA systems provide 56 l/min and are suitable for continuous operation.

All models carry DIBT storage approval. Tanks up to 1,000 litres are generally permit-free (depending on the federal state). For tanks over 1,000 litres there is a notification requirement with the lower water authority; from 10,000 litres formal permit approval is often required. Your local district authority will advise on local regulations.
