What is the difference between a pull-off and a Lube-Shuttle cartridge?

Pull-off (400 g DIN 1284): standard format, compatible almost everywhere, the base is pulled off. Air bubbles possible. Lube-Shuttle: internal piston, completely air-free, a clean change, no grease loss. Only usable in Lube-Shuttle-compatible guns.

What do K2K-30, KP2K-30, KFP2K-30 (DIN 51502) mean?

K = lithium/calcium soap, P = EP additives (Extreme Pressure), F = solid lubricant (graphite), 2 = NLGI class 2, K-30 = suitable down to -30°C. KP2K-30 = lithium grease with EP, KFP2K-30 = lithium grease with graphite and EP.

When do I need EP additives in the lubricating grease?

For heavily loaded lubrication points with high surface pressure: joints, journals with impact loading, gears, sliding contacts. Without EP the lubricating film collapses under extreme pressure. Rule of thumb: where standard grease wears out quickly, use EP grease.

Can I use different grease types in the same grease gun?

Different soap types should not be mixed - when changing, empty and clean the grease gun completely. With Lube-Shuttle cartridges, the type can be changed without a complete cleaning, as the mixture in the nipple is minimal.

Category · Grease cartridges – lubricating greases for battery, pneumatic & hand grease guns

Grease cartridges pull-off 400 g · Lube-Shuttle® · 500 g screw – for all grease guns

Grease cartridges in all common formats – 400 g pull-off (DIN 1284), Lube-Shuttle® booster pack and 500 g screw cartridge – in five grease types from multi-purpose through high-temperature and graphite to water resistance. Suitable for MATO, Samoa, Pressol and all common grease guns.

✅ Pull-off 400 g · Lube-Shuttle® · 500 g screw ✅ NLGI 2 · –30 to +200 °C ✅ Standard · EP · graphite · high temp · WR ✅ Empty cartridge for self-filling

Jump to: MULTI basic 2M MULTI PLUS EP GRAPHITE HIGH TEMP PROTECT WR Empty cartridges FAQ

Formats: pull-off, Lube-Shuttle® & 500 g screw

All grease types are available as a Lube-Shuttle® booster pack (air-free, a clean change) and/or as a 400 g pull-off DIN 1284 (standard, compatible with almost all grease guns). MULTI basic 2M is also available as a 500 g screw cartridge (for the DFP 500 PAT-SHV and Samoa guns).

Standard & EP greases

MULTI basic 2M (€7.85–9.88): a lithium multi-purpose grease for general lubrication points. MULTI PLUS EP-2M (€8.30–11): the same base, but with EP additives (Extreme Pressure) – for heavily loaded nipples, joints and gears with high surface pressures.

Graphite & high temperature

GRAPHITE 2M GR (€8.19–11): a lithium grease with a graphite solid lubricant, –30 to +130 °C (+150 briefly) – for lubrication points with heavy wear, joints under impact loading. HIGH TEMP EP-2L HT (€9.71, only Lube-Shuttle®): a lithium complex, –30 to +150 °C (+200 briefly) – for bearings on hot machines.

Water resistance & empty cartridges

PROTECT EP-2L WR (€12, only Lube-Shuttle®): a semi-synthetic calcium grease with EP additives – excellent water resistance for damp and wet environments (agricultural machinery, outdoor bearings). Lube-Shuttle® empty cartridge (€1.20) for self-filling from the bucket, plus a screw cap (€1.13).

Lube-Shuttle Screw Caps MATO

Screw cap closures
for securely resealing the refilled Lube-Shuttle® cartridges

Delivery time: 1-3 days

€1.13*

€0.95 without VAT

Lube-Shuttle® Empty Cartridge MATO

Lube-Shuttle® - Empty Cartridge without Pressure
Follower piston fully inserted
Lid included separately

Delivery time: 1-3 days

€1.20*

€1.01 without VAT

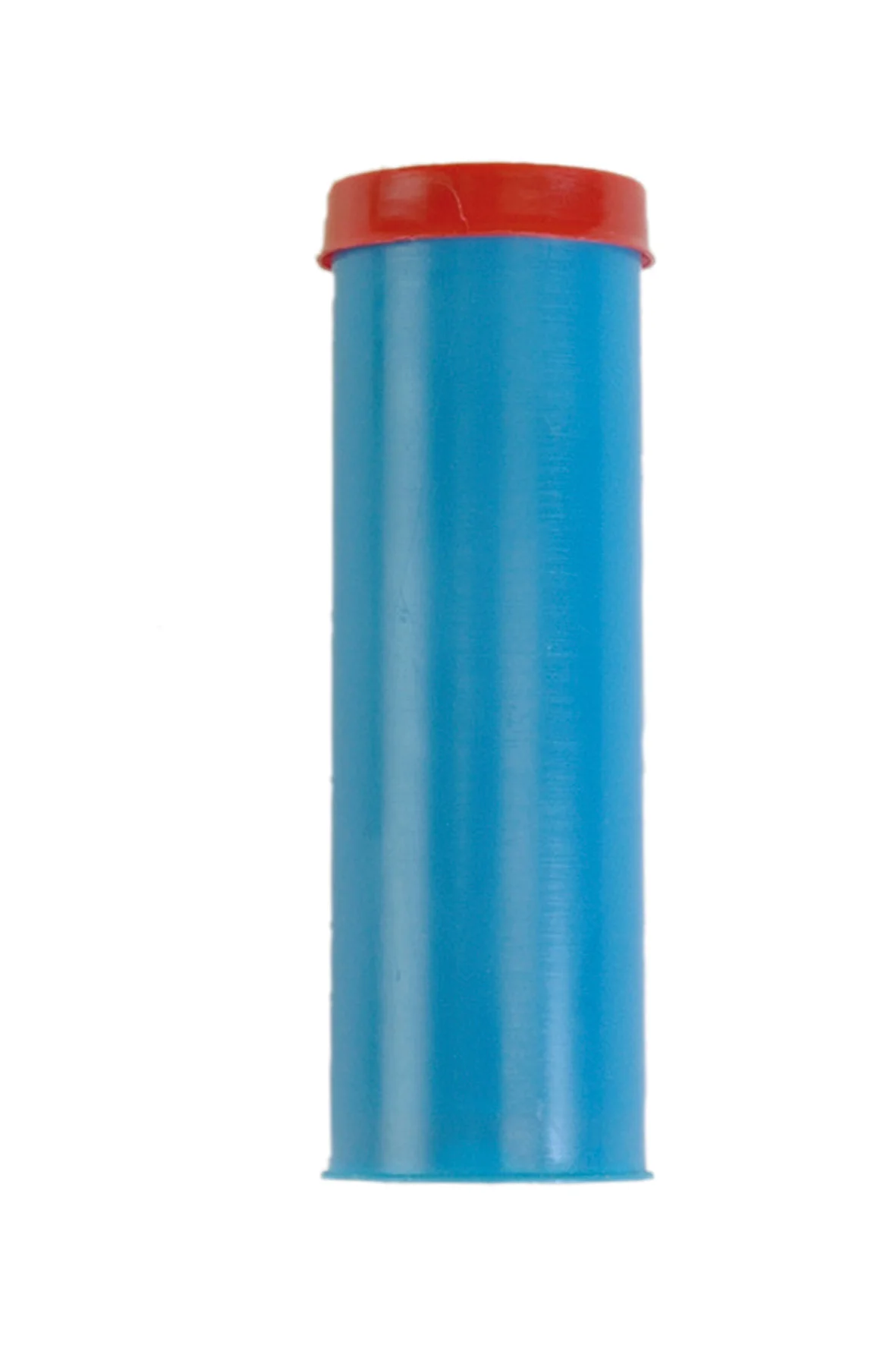

Cartuccia di grasso saponato al litio multiuso Samoa-Hallbauer

Grease Cartridge with Lithium-Based Multipurpose Grease Samoa-Hallbauer

filled with lithium-based multi-purpose grease
Dimensions: 28.5 x 90mm
compatible with professional grease guns F60, K60, and PEP100

Delivery time: 1-3 days

€4.56*

€3.83 without VAT

Pacchetto Booster Lube-Shuttle MULTI basic 2M MATO

Lube-Shuttle Booster Pack MULTI Basic 2M MATO

Lithium multi-purpose grease based on mineral oil
Base oil viscosity: 100 mm²/s (40°C)
Operating temperature range: -30 to +120°C (briefly up to +130°C)

Delivery time: 1-3 days

€7.85*

€6.60 without VAT

Lube-Shuttle Confezione Booster grafite da 2 m GR cartuccia di grasso

Lube-Shuttle Booster Pack Graphite 2M Grease Cartridge

Base oil viscosity: 110 mm²/s (at 40°C)
Operating temperature range: -30 to +130°C (short-term up to +150°C)
Designation according to DIN 51502 KPF2K -30 NLGI 2 Class:

Delivery time: 1-3 days

€8.19*

€6.88 without VAT

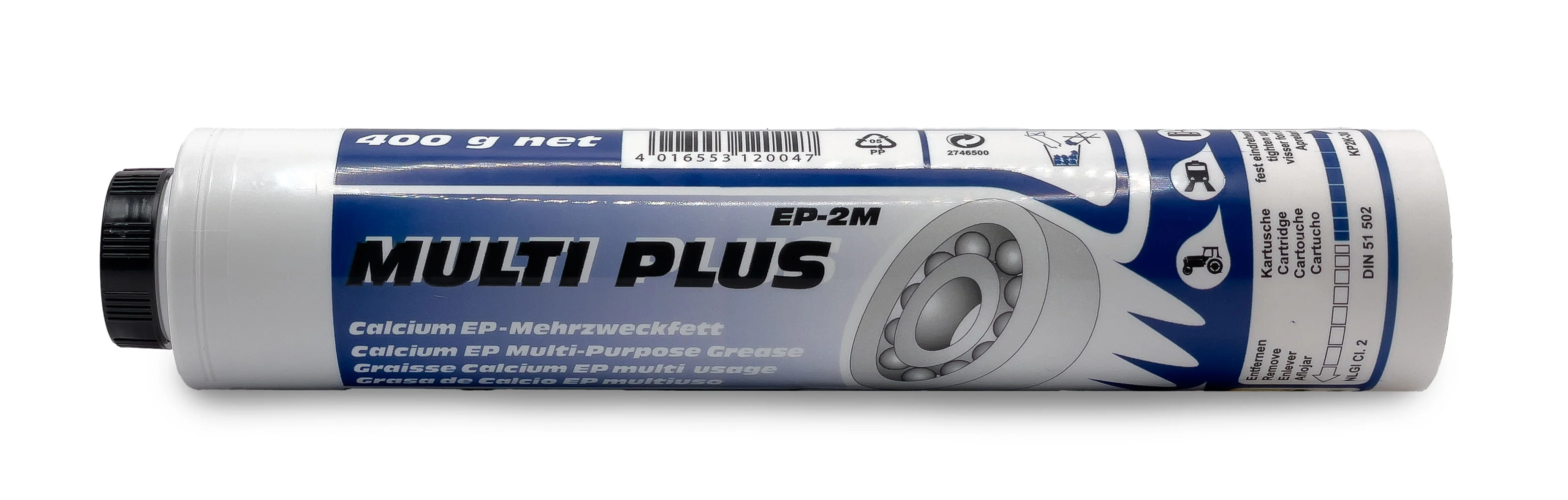

LubeShuttle Pacchetto di potenziamento MULTI PLUS EP-2M

LubeShuttle Booster Pack MULTI PLUS EP-2M Grease

Base oil viscosity: 200 mm²/s (40°C)
Operating temperature range: -30 to +120°C. It can withstand up to +130°C for short periods
Designation according to DIN 51502: KP2K-30 NLGI Grade 2

Delivery time: 1-3 days

€8.30*

€6.97 without VAT

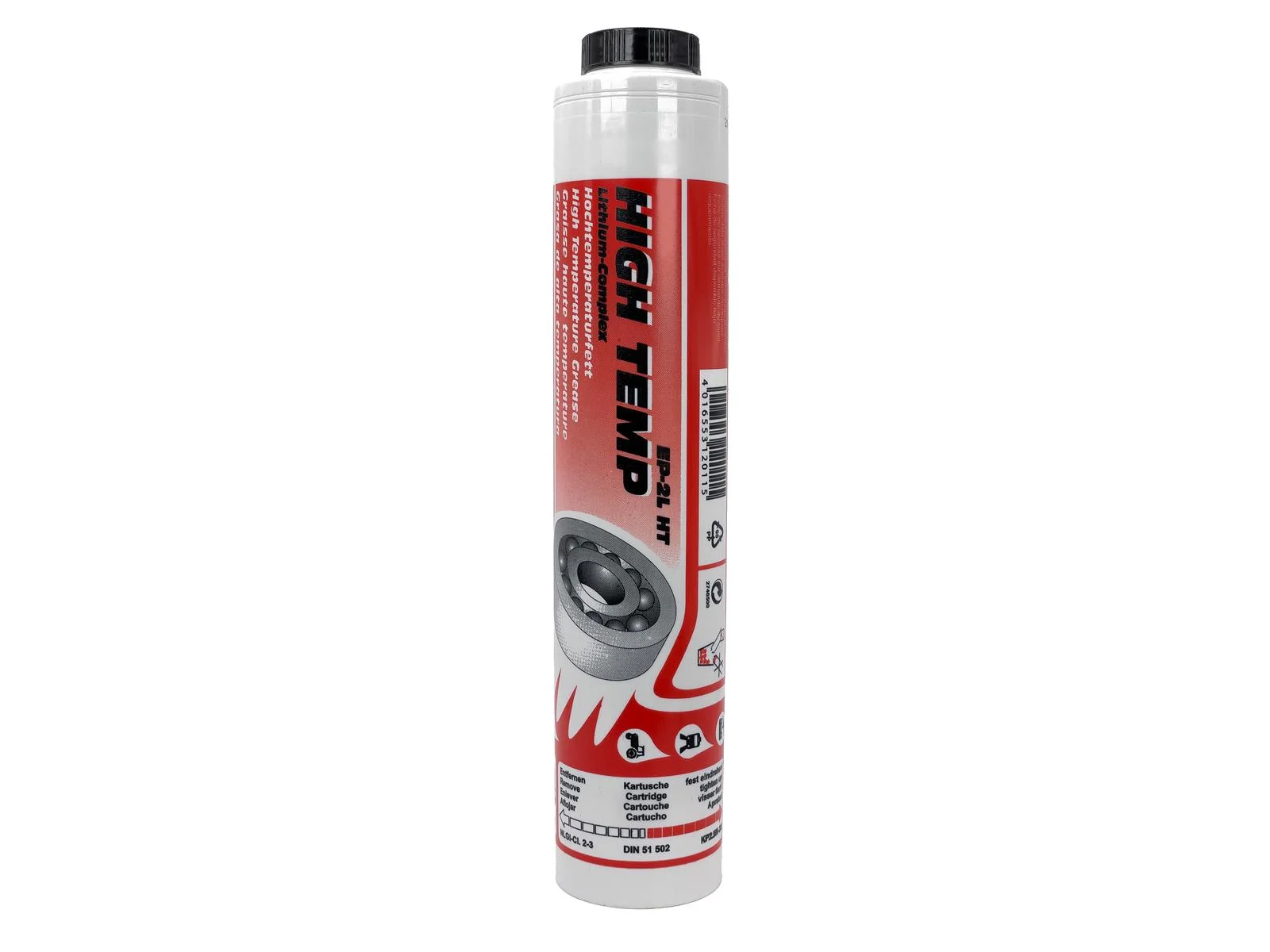

Pacchetto Booster Lube-Shuttle HIGH TEMP EP-2L HT MATO

Lube-Shuttle Booster Pack HIGH TEMP EP-2L HT MATO

Lithium complex high-temperature grease based on mineral oil
Base oil viscosity: 200 mm²/s (40°C)
Operating temperature range: -30 to +150°C (briefly up to +200°C)

Delivery time: 1-3 days

€9.71*

€8.16 without VAT

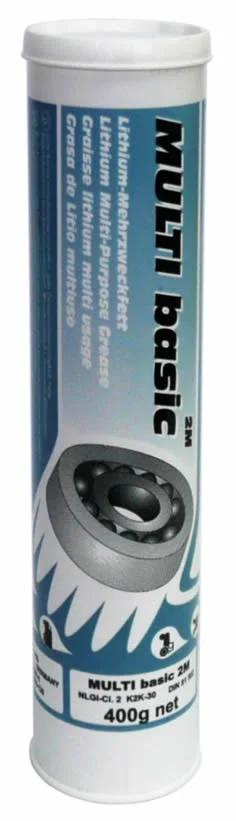

Cartuccia di grasso Pull-Off da 400 g MULTI basic 2 M K2K-30

400 g Pull-Off Grease Cartridge MULTI Basic 2 M K2K-30

Base oil viscosity: 110 mm²/s (40°C)
Operating temperature range: -30 to +120°C (briefly up to +130°C)
Designation according to DIN 51502: K2K-30 NLGI grade: 2

Delivery time: 1-3 days

€9.88*

€8.30 without VAT

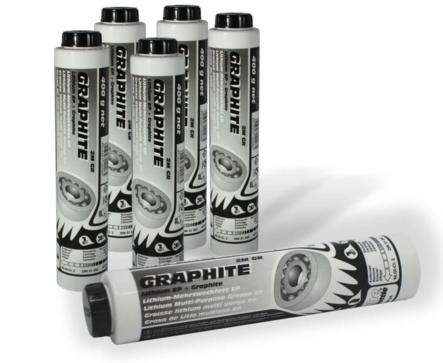

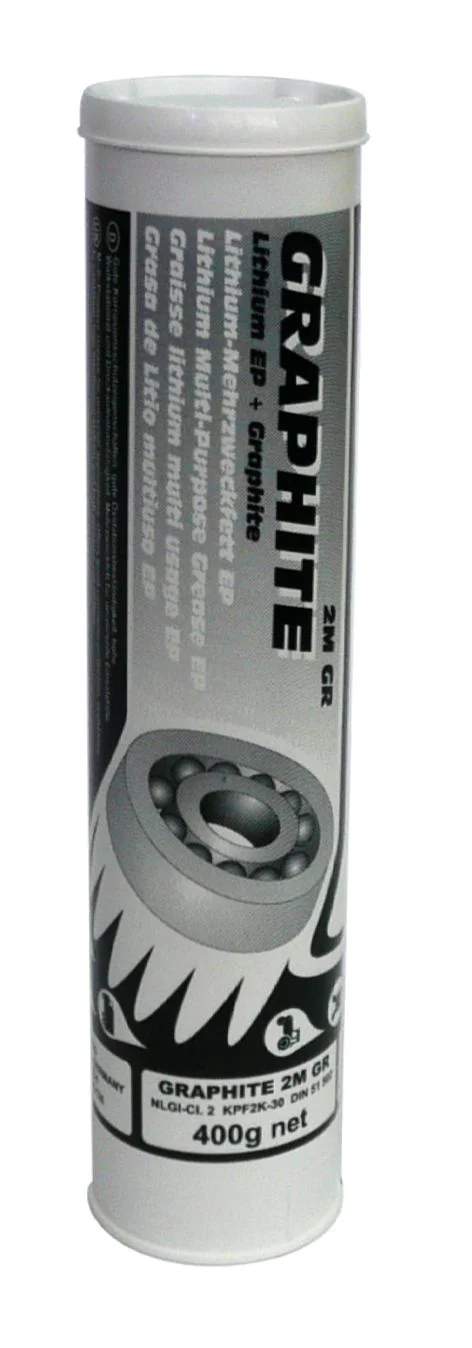

Cartuccia di grasso Pull-Off da 400 g grafite 2M GR KFP2K-30

Pull-Off Grease Cartridge 400 g GRAPHITE 2M GR KFP2K-30

Base oil viscosity: 120 mm²/s (at 40°C)
Temperature range: -30 to +130°C (briefly up to +150°C)
Designation according to DIN: KFP2K-30
NLGI class: 2

Delivery time: 1-3 days

€11.00*

€9.24 without VAT

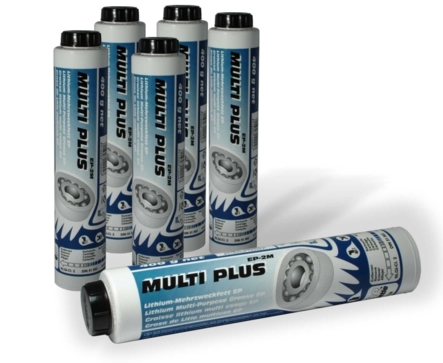

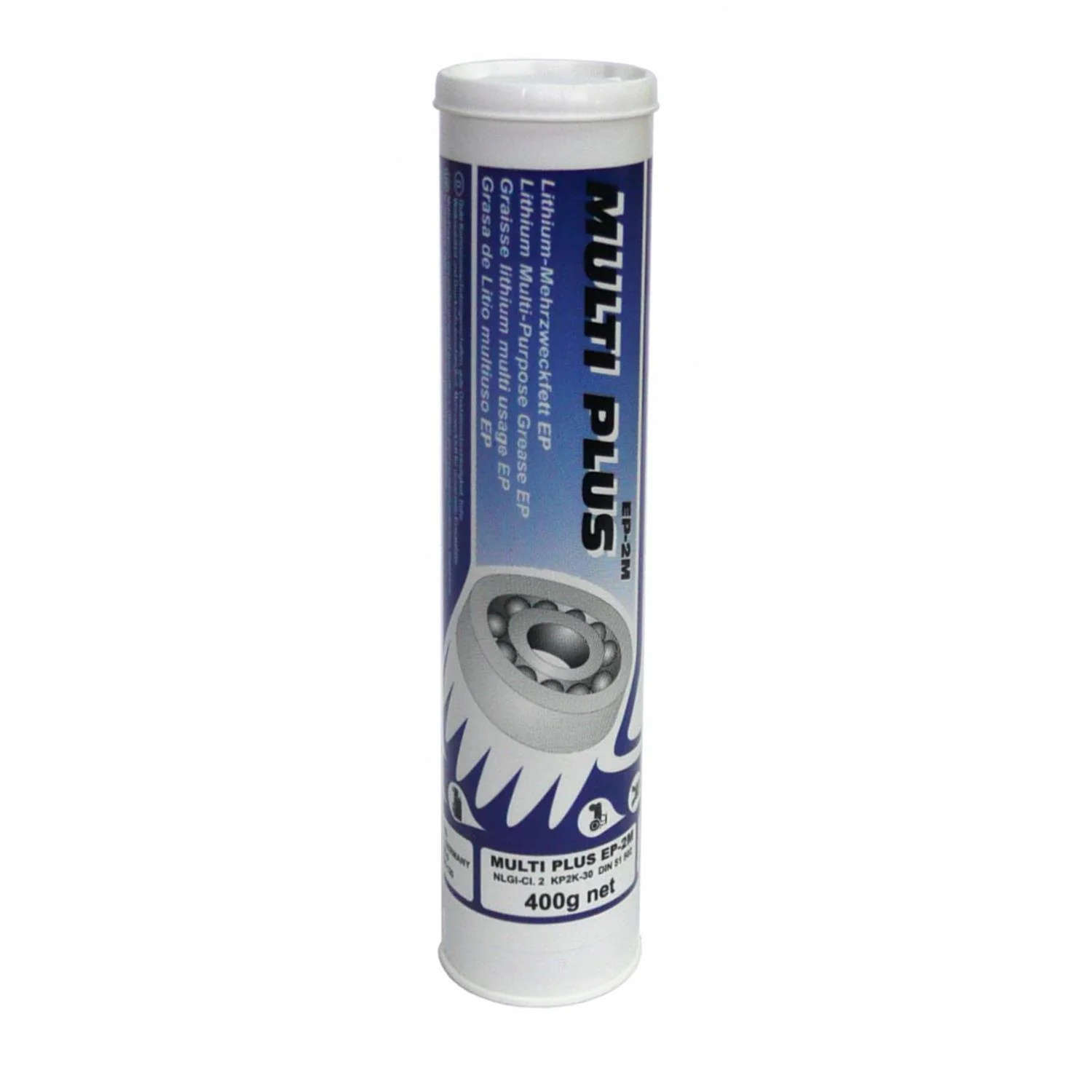

Pull Off cartuccia di grasso 400 g MULTI PLUS EP-2M KP2K-30

Pull-Off Grease Cartridge 400g MULTI PLUS EP-2M KP2K-30

Lithium multi-purpose grease based on mineral oil with EP additives
Significantly increased mechanical stability compared to MULTI basic
Good corrosion protection and oxidation resistance
Very high mechanical stability and high pressure absorption capacity

Delivery time: 1-3 days

€11.00*

€9.24 without VAT

Booster-Pack Lube-Shuttle PROTECT EP-2L WR

Lube-Shuttle Booster Pack PROTECT EP-2L WR

Semi-synthetic calcium grease with EP additives
Operating temperature range: -30 to +120°C (briefly up to +125°C)
Designation according to DIN 51502: KHCP2K-20 NLGI grade: 2

Delivery time: 1-3 days

€12.00*

€10.08 without VAT

The right grease cartridge for every lubrication point

⚙️

General lubrication points – MULTI basic

For most grease nipples on vehicles, agricultural machinery and industrial plants: MULTI basic 2M – a lithium multi-purpose grease, NLGI 2, –30 to +120 °C, DIN 51502 K2K-30. The standard grease for daily workshop work. As Lube-Shuttle® (€7.85) or pull-off 400 g (€9.88).

💪

High surface pressure – MULTI PLUS EP

For heavily loaded lubrication points with high pressure and impact loading (joints, journals, pivot bearings, gears): MULTI PLUS EP-2M – EP additives (Extreme Pressure) significantly reduce wear at high surface pressure. Compared to MULTI basic, higher shear stability and pressure-absorption capacity.

⚡

Wear & friction – GRAPHITE

For lubrication points with heavy abrasion, slow movement and high surface pressure, where conventional lubricants fail: GRAPHITE 2M GR – a graphite solid lubricant forms a durable protective film. For brake linkages, hinges, tractor PTO shafts and heavily stressed bolt connections.

🌡️

High temperature – HIGH TEMP

For bearings and lubrication points near heat sources (furnaces, brakes, close to the engine, ceramic production plants): HIGH TEMP EP-2L HT – a lithium-complex grease, up to +150 °C continuously and briefly up to +200 °C. Standard lithium greases oxidise and fail at these temperatures.

💧

Damp & water – PROTECT WR

For lubrication points in a damp, wet or water-flooded environment (agricultural machinery, construction, shipbuilding, outdoor bearings): PROTECT EP-2L WR – a calcium base with a semi-synthetic base oil, excellently water-resistant, is not washed out, EP additives for mechanical loading.

🗃️

Self-filling – empty cartridge

Buy grease cheaply from the bucket and fill the Lube-Shuttle® empty cartridge (€1.20) yourself – with an ecoFILL or centraFILL filler unit. After filling, screw on the screw cap (€1.13). A significant cost saving compared to ready-made cartridges with high grease consumption.

Frequently asked questions about grease cartridges

Pull-off cartridge (400 g DIN 1284): the standard format, compatible with almost all grease guns. The base is pulled off (pull-off), the piston pushes the grease out. Cheap, widespread. Disadvantage: air bubbles can form when inserting. Lube-Shuttle® booster pack: a patented system with an internal piston – filled completely air-free. No grease escapes when inserting and removing. The cleanest cartridge change, no air bubbles in the line, less grease loss. Lube-Shuttle® cartridges can only be used in MATO Lube-Shuttle®-compatible guns. Pull-off cartridges fit almost all grease guns (Samoa, Pressol, MATO standard).

NLGI 2: a consistency class according to the National Lubricating Grease Institute – NLGI 2 is semi-solid, the most common class for grease nipples and bearings. K2K-30 (DIN 51502): K = calcium or lithium soap, 2 = NLGI class 2, K-30 = suitable down to –30 °C. KP2K-30: KP = lithium soap with EP additives (Extreme Pressure), 2 = NLGI 2, K-30 = down to –30 °C. KFP2K-30: KFP = lithium soap with a solid lubricant (F) and EP additives (P). The designation according to DIN 51502 therefore indicates the soap type, consistency and low-temperature behaviour.

EP additives (Extreme Pressure, also high-pressure additives) are chemical additives that activate under high surface pressure and temperature and form a protective reaction film on metal surfaces. They are necessary for: joints and journals with impact-type loading, slow-running bearings under high load, gears (hypoid gears), sliding contacts with high surface pressure. Without EP additives (as with MULTI basic), the lubricating film collapses under extreme pressure – wear and seizing are the result. As a rule of thumb: where standard grease wears out quickly, use EP grease.

High-temperature greases (HIGH TEMP EP-2L HT) often have a higher base-oil viscosity and different flow properties – at low temperatures they can be more viscous and not flow optimally to lubrication points. They are also considerably more expensive. For normal applications (up to +120 °C), the standard grease MULTI basic 2M is sufficient. Only use high-temperature grease where temperatures above +120 °C actually occur permanently – e.g. on oven bearings, brake-disc bearings or in metalworking. Standard grease would not be sufficient there, HIGH TEMP is absolutely necessary there.

Graphite grease (GRAPHITE 2M GR) contains finely ground graphite as a solid lubricant. Graphite has an extremely low coefficient of friction and forms a stable lubricating film even under extreme pressure and at high temperatures. Areas of application: brake linkages and brake cams (high pressure, heat), bolts and hinges with slow sliding movement, tractor PTO shafts, screw connections (assembly grease), joint bearings with impact loading. Not suitable for ball bearings – graphite particles can damage the raceway.

In principle, different grease types should not be mixed – different soap types (lithium, calcium, barium) and additives can react when mixed and impair the lubricating properties or cause the grease to soften. When changing the grease type: empty the grease gun completely and clean it thoroughly before the new grease is filled in. In practice, for different lubrication points, using different cartridges (Lube-Shuttle®) without cleaning the gun is sufficient – the mixture in the nipple is minimal and not critical in small quantities.

The right grease cartridge for your lubrication points

Our specialist team advises you free of charge – on the right grease type for your application, temperature ranges and the matching cartridge format for your grease guns.

☎ Call +49 36071 924340 Request a quote
