Folding-bottom containers for forklifts RB · BKB · FB · SB – 0.3 to 2 m³ · up to 2000 kg · bottom-side emptying
Folding-bottom containers empty their contents downwards through a folding base – ideal for bulk material, granulate, chips and waste that is to be delivered precisely into a container, skip or machine standing below. Four series from 0.3 to 2 m³: round container RB, flat-bottom container BKB, the narrower FB series and the robust heavy-duty SB series up to 2000 kg.

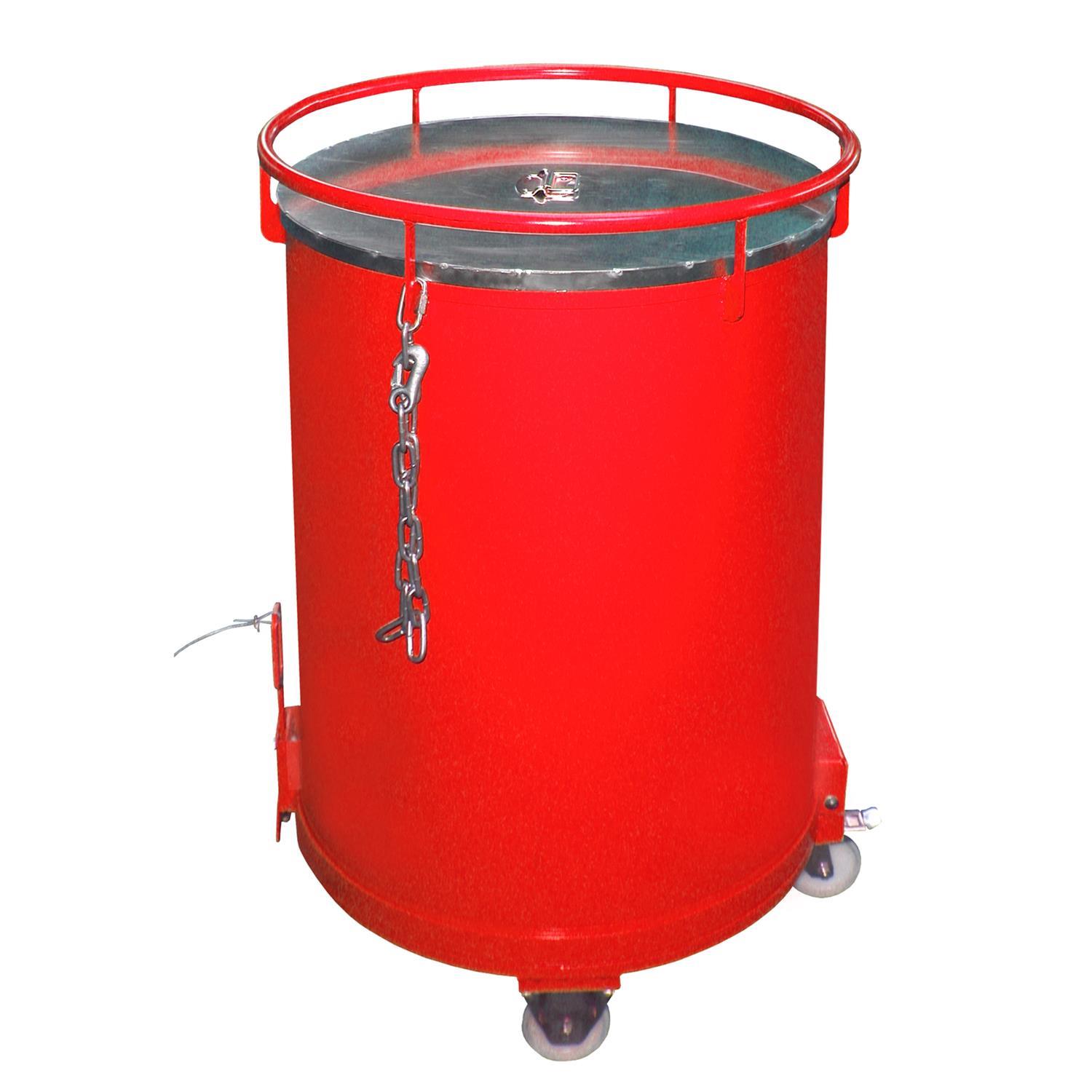

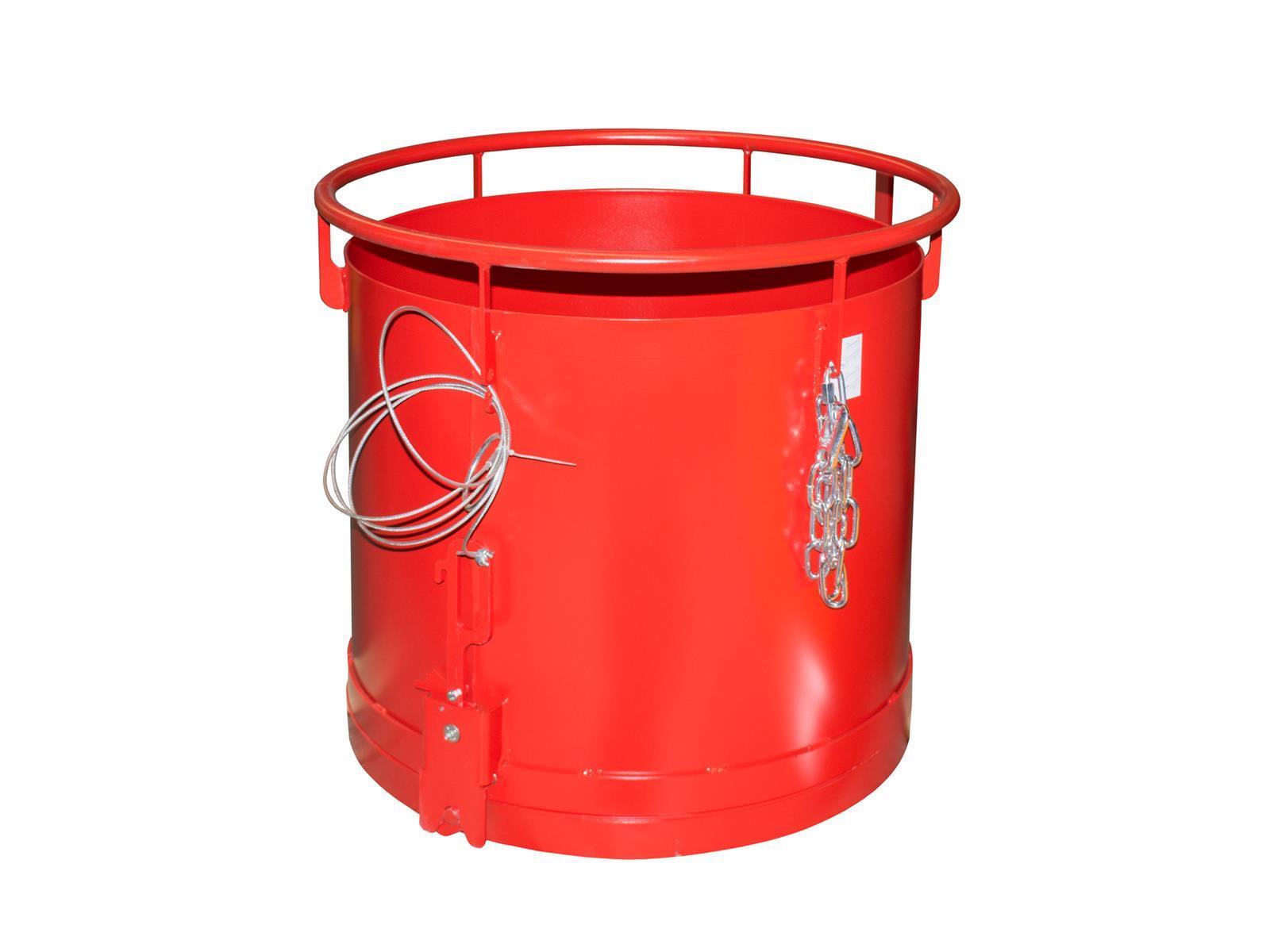

Round container RB – round & conical
The round containers RB 300 and RB 450 have a round, conical shape with a folding base – this promotes the complete, residue-free discharge of granulate, powder and fine-grained bulk material that sticks in rectangular corners. At Ø 865 mm they fit through standard openings and into tight filling positions.

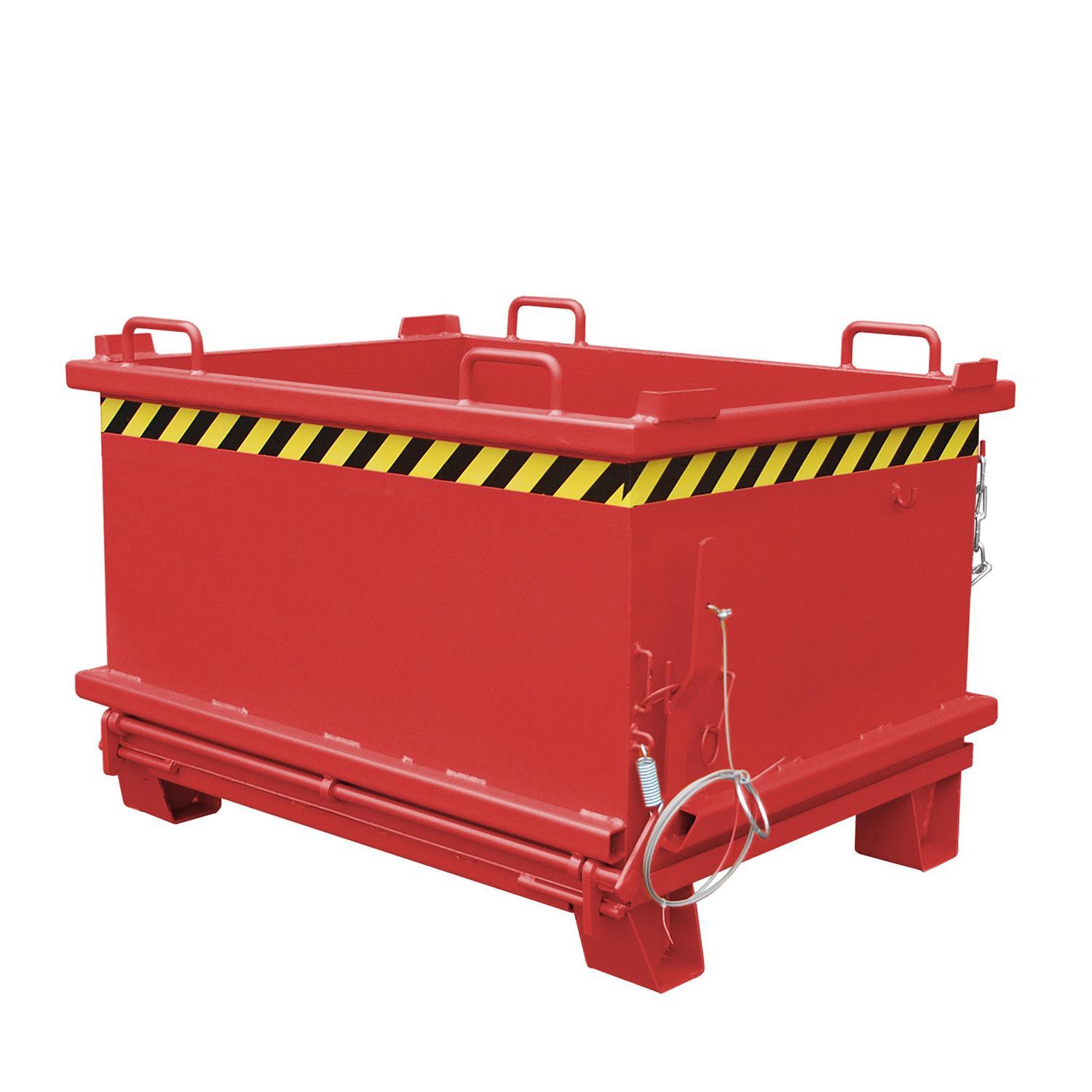

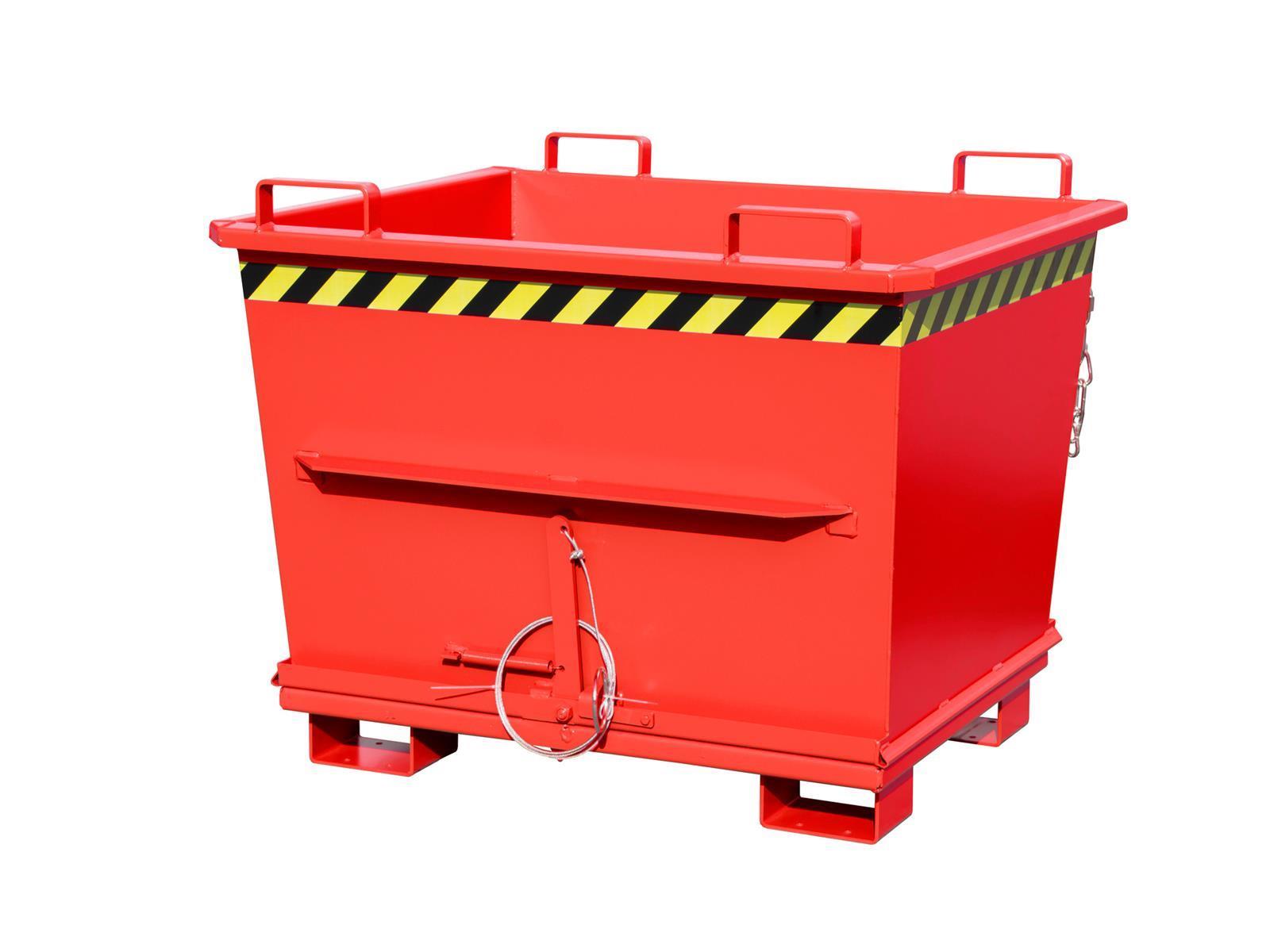

BKB series – wide & flat
The BKB containers (500, 700, 1000 litres) have a wide, rectangular base of 1040×1200 mm and a large folding-base area – ideal for coarse bulk material that is to be emptied quickly and completely. With load capacities up to 2000 kg, they are also suitable for heavy materials.

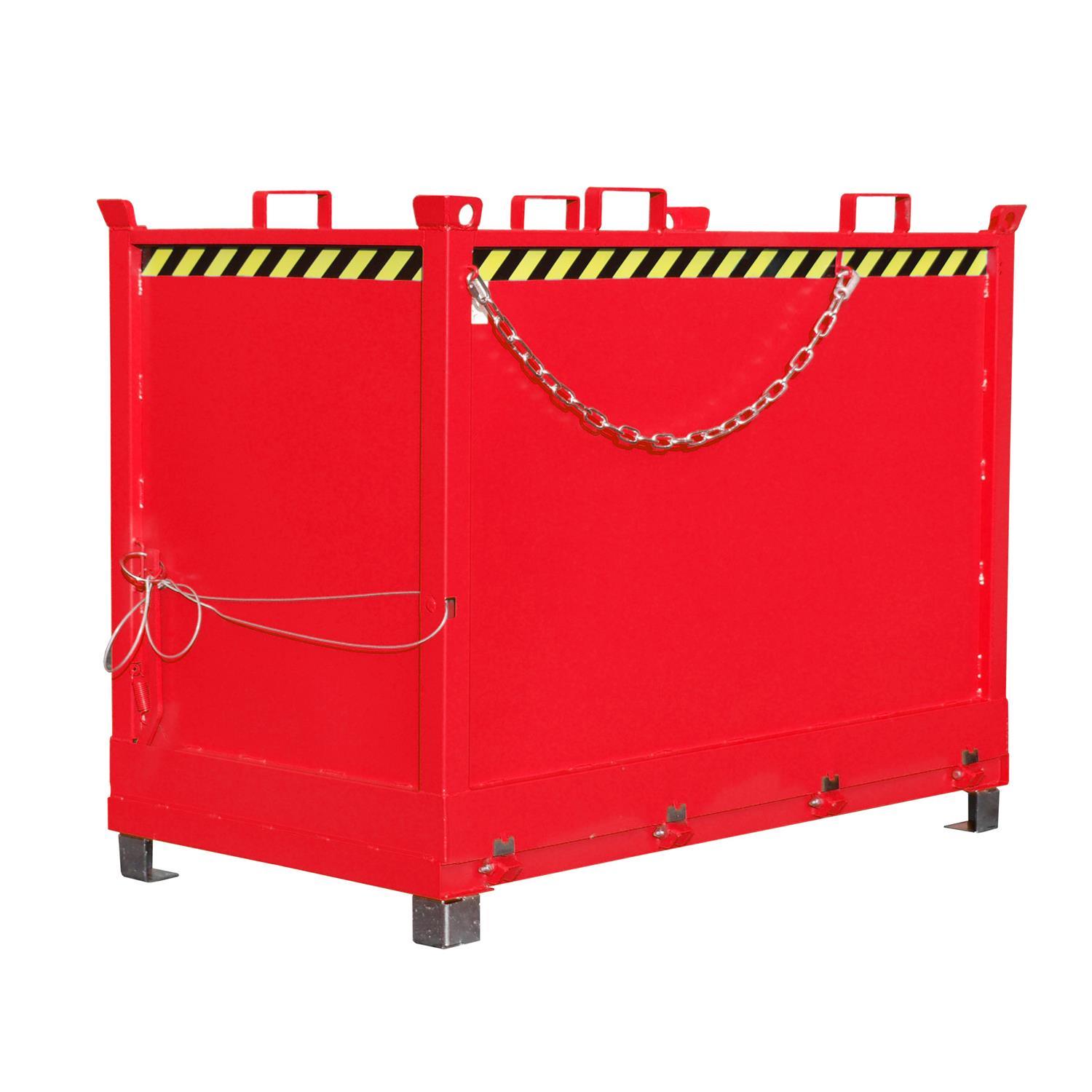

FB series – slim & large
The FB series covers 0.5 to 2 m³ in a narrower design (width 840–1245 mm) and is suitable for more cramped standing areas. Load capacities up to 1500 kg. At 2 m³ (FB 2000) it is the largest slim folding-bottom variant – for high throughput without much footprint.

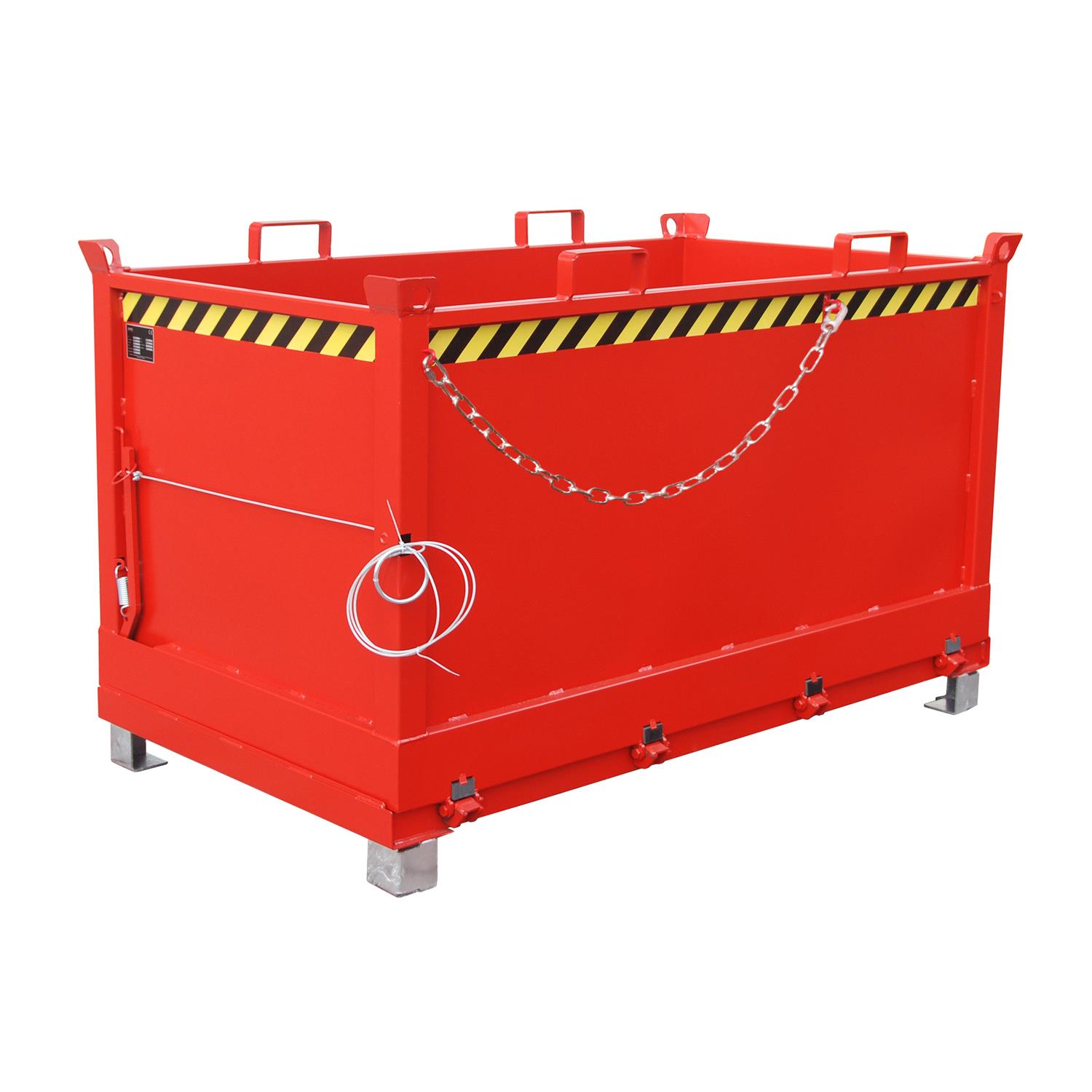

SB series – maximum robustness
The SB series is the most robust design in the range – with load capacities up to 2000 kg and own weights up to 344 kg (galvanised) for continuous use under harsh conditions. From 0.5 to 2 m³ with a uniform base (1035×1310 mm). The heavy construction prevents deformation even under permanent full filling.
Round Container RB 300 0.30m³ 865x775mm
- Galvanized or painted
- Capacity: 0.30 m³
- Load capacity: 500 kg
- Dimensions (ØxH): 865 mm x 775 mm
- Weight: 60 kg or galvanized: 64 kg
Delivery time: 3-4 weeks
Round Container RB 450 0.45m³ 865x1085mm
- Galvanized or painted
- Capacity: 0.45 m³
- Load capacity: 500 kg
- Weight: 70 kg or galvanized: 74 kg
- Dimensions (ØxH): 865mm x 1085mm
Delivery time: 3-4 weeks
Folding Bottom Container BKB 500 0.50m³ 1040x1200x715mm
- Galvanized or painted
- Capacity: 0.5 m³
- Load capacity: 1000 kg
- Weight: 126 kg or galvanized: 136 kg
- Dimensions (LxWxH): 1040mm x 1200mm x 715mm
Delivery time: 3-4 weeks
Folding Bottom Container FB 500 0.50m³ 840x1245x845mm
- Galvanized or painted
- Capacity: 0.5 m³
- Load capacity: 1000 kg
- Weight: 125 kg (painted) or 135 kg (galvanized)
- Dimensions (LxWxH): 840mm x 1245mm x 845mm
Delivery time: 3-4 weeks
Folding Bottom Container BKB 700 0.70m³ 1040x1200x970mm
- Galvanized or painted
- Capacity: 0.7 m³
- Load capacity: 1500 kg
- Weight: 145 kg or galvanized: 156 kg
- Dimensions: 1040mm x 1200mm x 970mm
Delivery time: 3-4 weeks
Folding Bottom Container FB 750 0.75m³ 840x1245x1145mm
- Galvanized or painted
- Capacity: 0.75 m³
- Load capacity: 1000 kg
- Weight: 144 kg or galvanized: 154 kg
- Dimensions (LxWxH): 840mm x 1245mm x 1145mm
Delivery time: 3-4 weeks
Folding Bottom Container BKB 1000 1m³ 1040x1200x1270mm
- Galvanized or painted
- Capacity: 1 m³
- Load capacity: 2000 kg
- Weight: 169 kg or galvanized: 182 kg
- Dimensions (LxWxH): 1040mm x 1200mm x 1270mm
Delivery time: 3-4 weeks
Folding Bottom Container FB 1000 1.00m³ 1040x1245x1145mm
- Galvanized or painted
- Capacity: 1 m³
- Load capacity: 1250 kg
- Weight: 158 kg / galvanized: 173 kg
- Dimensions: 1040mm x 1245mm x 1145mm
Delivery time: 3-4 weeks
Folding Bottom Container SB 500 0.50m³ 1035x1310x700mm
- Galvanized or painted
- Capacity: 0.5 m³
- Load capacity: 1000 kg
- Weight: 168 kg or galvanized: 181 kg
- Dimensions (LxWxH): 1035mm x 1310mm x 700mm
Delivery time: 3-4 weeks
Folding Bottom Container FB 1500 1.50m³ 1040x1845x1145mm
- Galvanized or painted
- Capacity: 1.5 m³
- Load capacity: 1500 kg
- Weight: 203 kg or galvanized: 218 kg
- Dimensions (LxWxH): 1040mm x 1845mm x 1145mm
Delivery time: 3-4 weeks
Folding Bottom Container SB 750 0.75m³ 1035x1310x930mm
- Galvanized or painted
- Capacity: 0.75 m³
- Load capacity: 1500 kg
- Weight: 192 kg or galvanized: 207 kg
- Dimensions: 1035mm x 1310mm x 930mm
Delivery time: 3-4 weeks
Folding Bottom Container FB 2000 2.00m³ 1040x1845x1445mm
- Galvanized or painted
- Capacity: 2 m³
- Load capacity: 1500 kg
- Weight: 232 kg, galvanized: 255 kg
- Dimensions (LxWxH): 1040mm x 1845mm x 1445mm
Delivery time: 3-4 weeks
Folding Bottom Container SB 1000 1.00m³ 1035x1310x1160mm
- Galvanized or painted
- Capacity: 1 m³
- Load capacity: 2000 kg
- Weight: 215 kg or 231 kg when galvanized
- Dimensions (LxWxH): 1035mm x 1310mm x 1160mm
Delivery time: 3-4 weeks
Folding Bottom Container SB 1500 1.50m³ 1035x1910x1160mm
- Galvanized or painted
- Capacity: 1.5 m³
- Load capacity: 2000 kg
- Weight: 281 kg, galvanized 302 kg
Delivery time: 3-4 weeks
Folding Bottom Container SB 2000 2.00m³ 1035x1910x1465mm
- Galvanized or painted
- Capacity: 2.00 m³
- Load capacity: 2000 kg
- Weight: 320 kg, galvanized 344 kg
Delivery time: 3-4 weeks
The right folding-bottom container for your application
How does folding-base emptying work?
The container is positioned with the forklift over the target container, skip or machine hopper and raised. Via a release mechanism, the base opens – the contents fall vertically downwards into the target container. Precise positioning over the target is the key advantage: no swivelling, no lateral tipping – precise transfer from above.
Round or rectangular?
The round container RB is ideal for fine-grained goods such as granulate, pellets or powder – the conical shape guides the material completely to the centre, no residual material sticks in corners. Rectangular containers (BKB, FB, SB) are more suitable for coarser bulk material and offer more volume. For mixed goods and coarse chips: rectangular. For bulk material that has to drain completely: round.
Which series – BKB, FB or SB?
BKB: wide (1040×1200 mm), low centre of gravity, large folding field – for the fast emptying of coarse goods up to 2000 kg. FB: narrow (840 mm width), for cramped standing areas, up to 2 m³ and 1500 kg. SB: the heaviest construction (up to 344 kg own weight), up to 2000 kg load capacity – for continuous use and the harshest conditions. BKB for standard, SB for heavy-duty, FB when space is tight.
Choosing the volume correctly
Rule of thumb: the volume depends on the batch size of the material to be disposed of. 0.3–0.5 m³: for smaller quantities, compact dimensions. 0.75–1 m³: the most-used range for industrial operations. 1.5–2 m³: for high throughput. Always note: load capacity = volume fill × bulk density. For heavy materials (metal chips, stones), check the load capacity carefully.
Tipping container vs. folding-bottom container
A tipping container tips to the side – the material falls diagonally forward and does not have to be positioned exactly. A folding-bottom container empties vertically downwards – precise transfer into tight hoppers, machines or containers that are not accessible from the side. The folding bottom is the better choice when the target has to be approached from above and there is little lateral clearance.
Galvanised or painted?
Galvanised: lasting corrosion protection – recommended for damp goods, chemically loaded materials and outdoor use. Painted: cheaper, sufficient for dry indoor applications. Extra weight when galvanised: about 4–24 kg depending on the container size. For continuous use with changing goods, always choose galvanised.
