Filling stations for fuel, diesel & heating oil – indoor & outdoor
Certified filling and refuelling bays for on-site and farm fuel stations – as a compact edge-threshold solution (TAW/KPS) or a modular sump system (KAP ECO/KAP GIRO) with up to 10 t wheel load. For indoor installation, covered areas and open-air mounting. Fully hot-dip galvanised, with a collection sump and drive-over ramps.
Type TAW & KPS – compact
A rugged steel construction with drive-over edge thresholds (on 3 sides) as simple filling protection without a separate sump system – for indoor and sheltered areas. Three size variants, slip-resistant, from €4,016.
KAP ECO – modular sump system
Two collection sumps with 150 L volume each and drive-over ramps, maximum wheel load 10 t, fully hot-dip galvanised. For indoor and sheltered areas (KAP ECO) or open air with hinged covers (KAP ECO Outdoor). Modular and expandable from €7,054.
KAP GIRO – large-area for heavy trucks
Four collection sumps with 210 L volume each and heavy-duty gratings. Maximum vehicle weight 40 t, wheel load 6.5 t. For refuelling operations with heavy trucks and large vehicles. For indoor and outdoor installation from €8,967.
Complete package – ready to operate straight away
KAP ECO as a complete package for indoor (€11,429) or outdoor (€15,696) – including a splash-guard wall, ASS fitting, double-hose system for the pressure line and splash/lead-through protection for the fill line. No additional parts required.

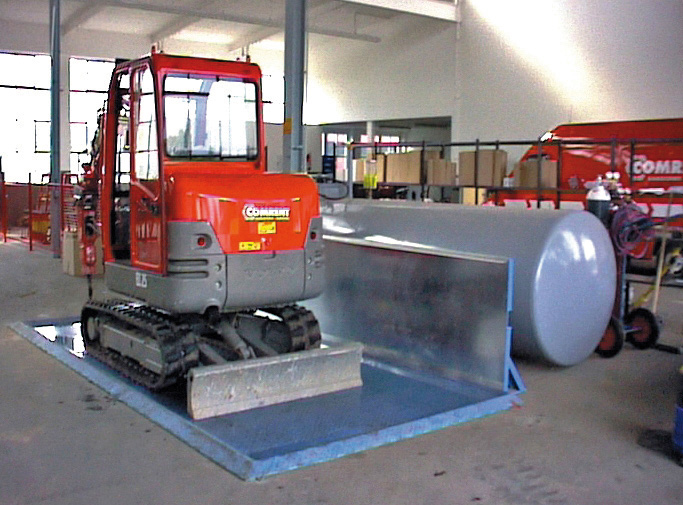

Filling Station Type TAW -Under Roof Installation- Unloading Station
- Durable steel construction
- Slip-resistant
- Drive-over edge thresholds: 3
- Available in three variants
Delivery time: 4-6 Wochen

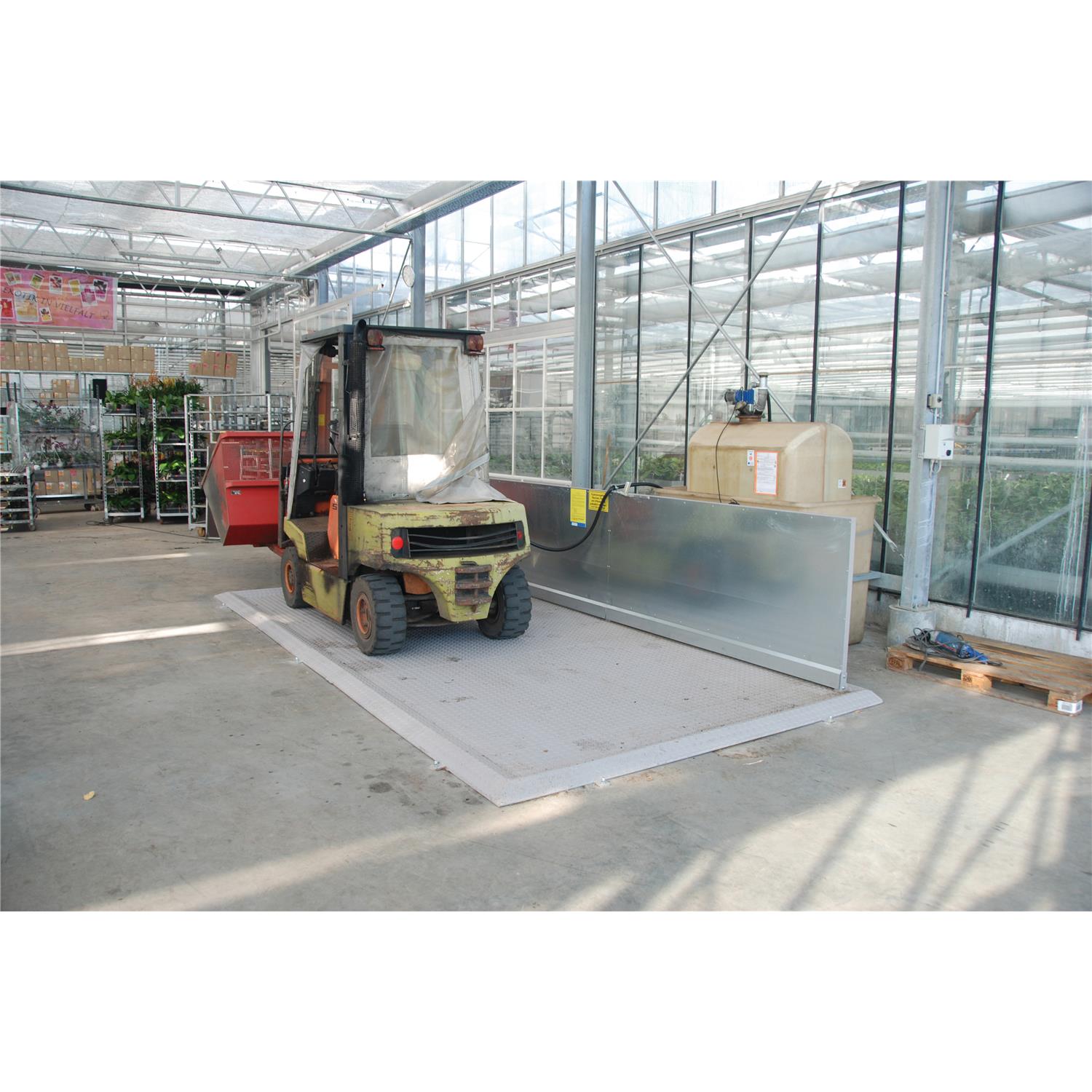

Filling Station Type KPS -Under Roof Installation- Unloading Bay 🚛
- For indoor use or under a roof
- Drive-over edge thresholds, 3-sided
- Durable steel construction
- Slip-resistant
Delivery time: 4-6 Wochen

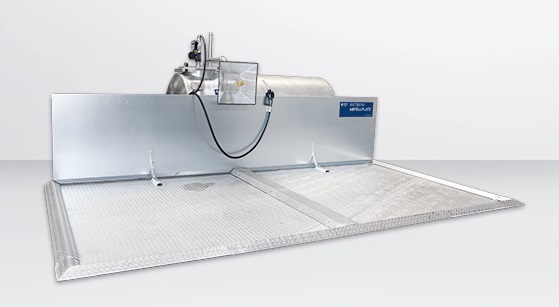

Filling Station KAP ECO -Under Roof Installation- Diesel Dispensing Station Unloading Area 🚛💧
- Basic Equipment
- Construction: Modular
- Troughs: 2 with drive-over ramps, made of tread plate
- Splash Guard Wall: Optional
- Collection Volume: 150 liters per trough
- Maximum Wheel Load: 10 tons
- Surface: Fully hot-dip galvanized
- Design: KAP ECO under roof
- Weight: 680 kg
- Dimensions (LxWxH): 5200 mm x 2600 mm x 60 mm
- Accessories: 2 troughs including drive-over ramps
Delivery time: 4-6 Wochen

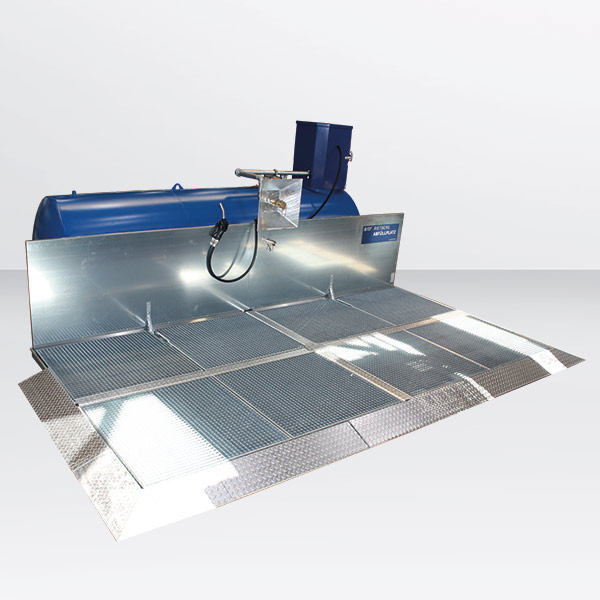

Filling Station KAP GIRO -Installation Under Roof- Unloading Area
- Basic Equipment
- Modular Design
- 4 steel tubs, each equipped with 2 heavy-duty grates
- Optionally equipped with a splash guard
- Collection volume: 210 liters per tub
- Maximum permissible axle load: 6.5 tons
- Maximum permissible vehicle weight: 40 tons
- Fully galvanized for high durability
Delivery time: 4-6 Wochen

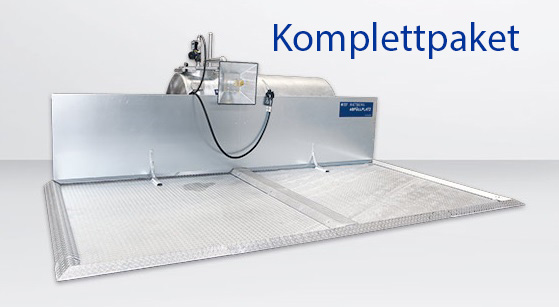

Fuel Filling Station KAP-ECO Indoor Setup - Complete Package 🌟
- Complete package
- 2 tubs with drive-over ramps,
- Splash guard wall,
- ASS fitting,
- Double hose system for the pressure line,
- Splash protection for the filling line
Delivery time: 4-6 Wochen

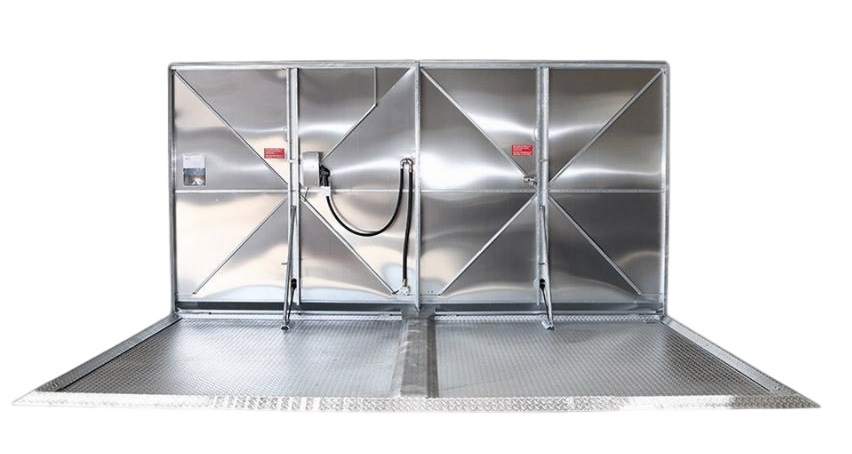

Filling Station KAP ECO -Outdoor Installation- Diesel Dispensing Area 🚛
- Basic Equipment
- Modular Design
- 2 Tubs with Drive-Over Ramps
- Folding Lid
- Maximum Permissible Wheel Load 10 tons
- Collection Volume 150 liters per Tub
Delivery time: 4-6 Wochen

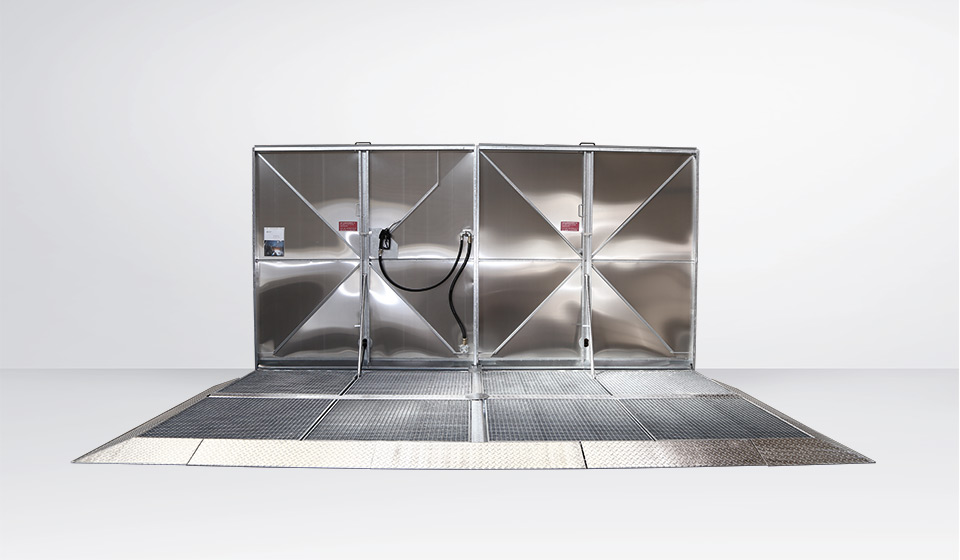

Filling Station KAP GIRO -Outdoor Installation- Diesel Dispensing Area Unloading Station 🚛⛽
- Basic Equipment
- Modular design with 4 steel tubs, each equipped with 2 heavy-duty grates.
- Folding lid to limit the operational area and to cover when not in use.
- Integrated aluminum sheet covers on a galvanized steel frame.
- Collection volume: 210 liters per tub.
- Maximum permissible wheel load: 6.5 tons.
- Maximum permissible vehicle weight: 40 tons.
- Fully hot-dip galvanized for additional safety and durability.
Delivery time: 4-6 Wochen
Fuel Filling Station KAP-ECO Outdoor Installation Complete Package ⛽️
- Complete Package
- 2 Tubs with Drive-Over Ramps
- 2 Folding Lids
- ASS Fitting
- Double Hose System for the Pressure Line
- Pass-Through for the Filling Line
Delivery time: 4-6 Wochen
Which filling station suits which application?
Small operation – simple filling protection
For operations that need a simple, approved standing area when refuelling tractors or light vehicles: Type TAW or KPS (from €4,016) – a compact edge-threshold construction made of steel, slip-resistant, for indoor and covered areas.
Trucks & heavy commercial vehicles
For refuelling operations with trucks up to 40 t gross weight: KAP GIRO (from €8,967) – four sumps with heavy-duty gratings, 210 L collection volume per sump. The wheel load of 6.5 t at 40 t vehicle weight meets the requirements of heavy fleet operations.
Industry & construction machinery
For wheel loaders, excavators and other construction machinery with a high axle load: KAP ECO (from €7,054) – 10 t wheel load, 150 L collection volume, fully hot-dip galvanised. For indoor installation in halls or outdoors with hinged-cover protection (KAP ECO Outdoor from €12,779).
Open-air installation
For operation without a roof, only the outdoor versions with hinged covers are suitable (KAP ECO Outdoor from €12,779, KAP GIRO Outdoor from €14,692) – the hinged covers protect the collection sumps from rainwater and prevent overfilling.
Ready to operate straight away – complete package
For quick operation without planning individual parts: KAP ECO complete package (indoor €11,429, outdoor €15,696) – sumps, drive-over ramps, splash-guard wall, ASS fitting and double-hose system included. No additional accessories required.
WHG compliance & approval
Filling stations must be built in accordance with § 18 AwSV (the German installation ordinance) and have a sufficient collection volume. The KAP ECO/GIRO systems meet these requirements. For the specific approval situation, we recommend consulting the responsible lower water authority.
Frequently asked questions about filling stations
Find the right filling station for your operation
Our specialist team will advise you free of charge – on collection volume, wheel load, WHG requirements and the right model for your location.
