- Thread: 2" male thread
- Suitable for: SCHÜTZ and ROTH tanks with 2" female threaded socket
- Material: plastic
- 2" male thread
- For 2" female threaded sockets on tanks
No longer available

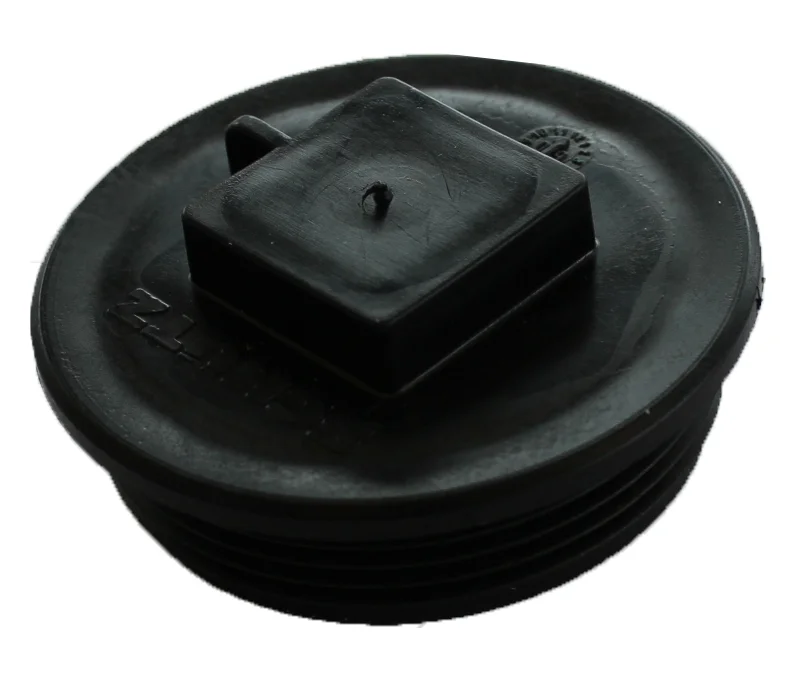

- Catalogue designation: Blanking Plug 2"
- Suitable for: 2" threaded socket on SCHÜTZ battery tanks built 1975–1995
- Packing unit (manufacturer): 1 piece
- Blanking Plug 2", SCHÜTZ part no. 9806
- For closing the 2" threaded socket
No longer available

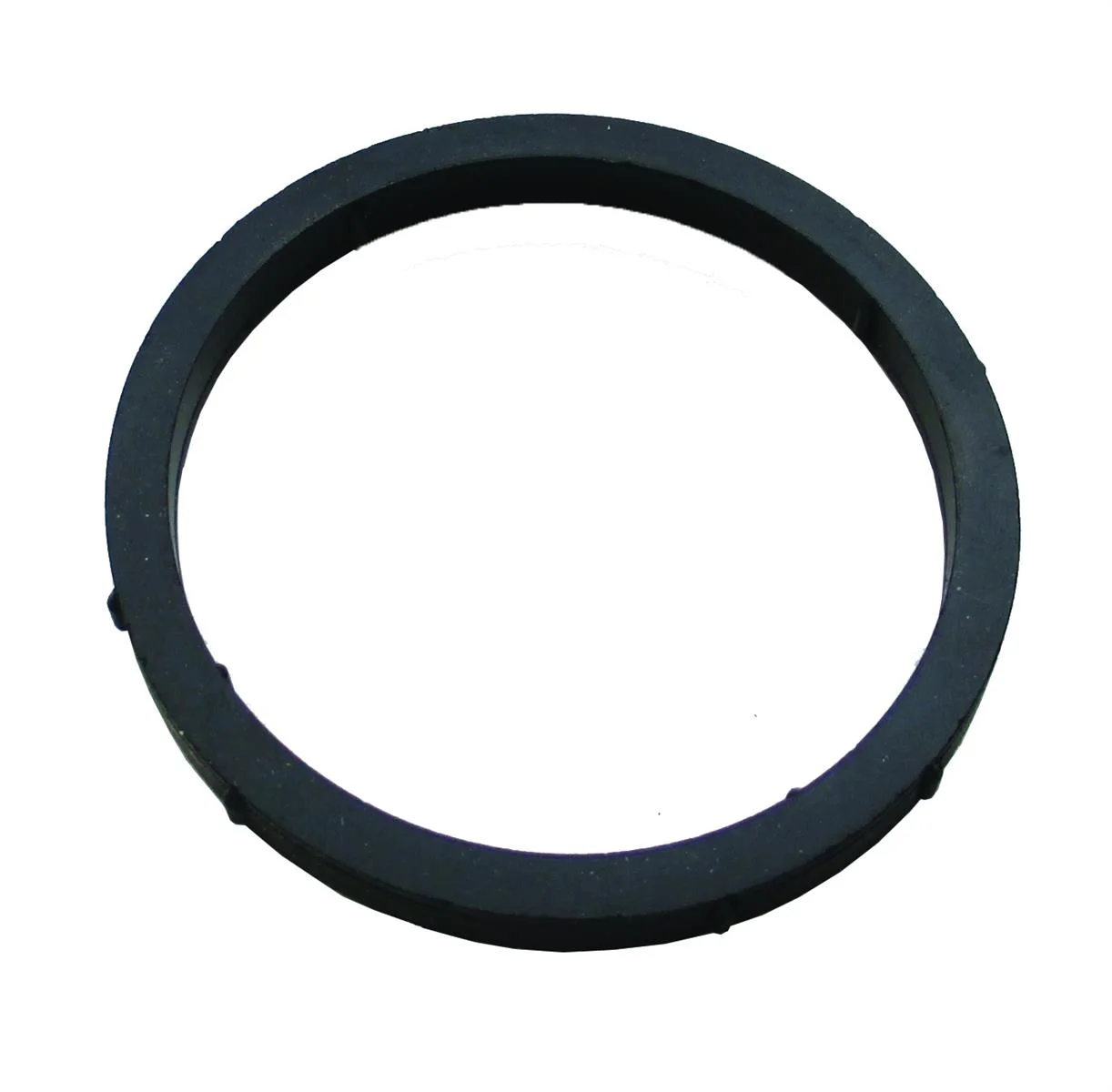

- Catalogue designation: Flat seal Ø 63.25 x Ø 54.5 x 5.5 mm
- Suitable for: TIT-K plastic Standard/Compact; TIT-K plastic Special; TIT steel 700/1,000 l; module tank (NIV-O-QUICK, built 2003–2011); battery tank and Cubic Tank from 1996; battery tanks built 1970–1995 with NIV-O-QUICK
- Assembly: Filling system (NIV-O-QUICK)
- Flat seal Ø 63.25 x Ø 54.5 x 5.5 mm, SCHÜTZ part no. 3142064
- Assembly: filling system (NIV-O-QUICK)
Delivery time: 2-5 days
- Catalogue designation: Flat seal Ø 14 x Ø 10 x 6 mm
- Suitable for: TIT-K plastic Standard/Compact; TIT-K plastic Special; TIT steel 700/1,000 l; module tank (NIV-O-QUICK, built 2003–2011); battery tank and Cubic Tank from 1996; battery tanks built 1970–1995 with NIV-O-QUICK
- Assembly: Extraction system
- Flat seal Ø 14 x Ø 10 x 6 mm, SCHÜTZ part no. 9792
- Assembly: extraction system
Delivery time: 2-5 days

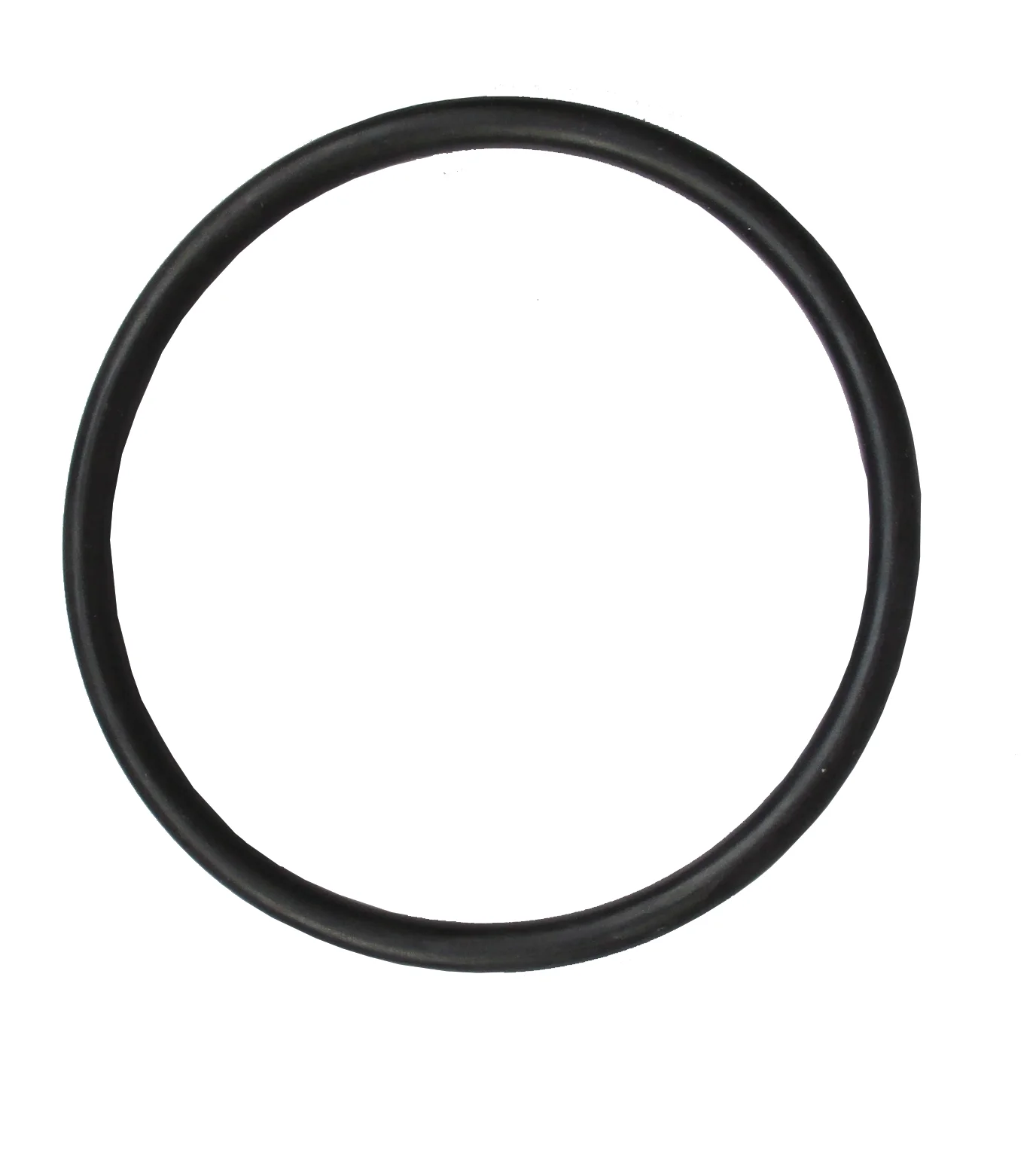

- Catalogue designation: O-ring seal Ø 53 x 3.5 mm
- Suitable for: TIT-K plastic Special up to 2011; TIT steel 700/1,000 l up to 2011; battery tanks built 1970–1995 with NIV-O-QUICK
- Assembly: Filling system (NIV-O-QUICK)
- O-ring seal Ø 53 x 3.5 mm, SCHÜTZ part no. 557447
- Assembly: filling system (NIV-O-QUICK)
Delivery time: 2-5 days

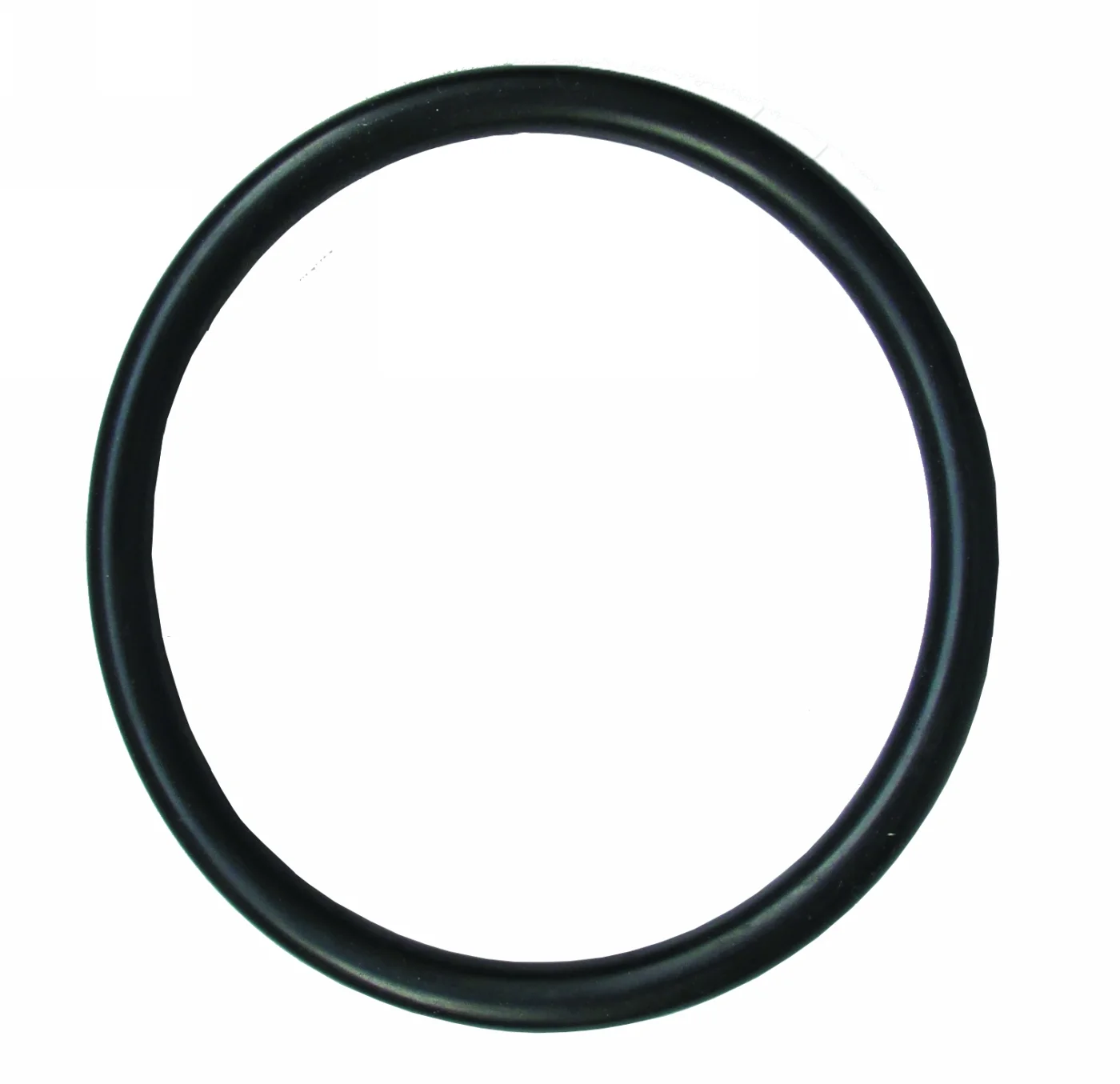

- Catalogue designation: O-ring seal Ø 65 x 5.5 mm
- Suitable for: TIT-K plastic Standard/Compact; module tank (NIV-O-QUICK, built 2003–2011); battery tank and Cubic Tank from 1996; TIT-K plastic Special from 2012; TIT steel from 2012
- Assembly: Filling system (NIV-O-QUICK)
- O-ring seal Ø 65 x 5.5 mm, SCHÜTZ part no. 445215
- Assembly: filling system (NIV-O-QUICK)
Delivery time: 1-3 days

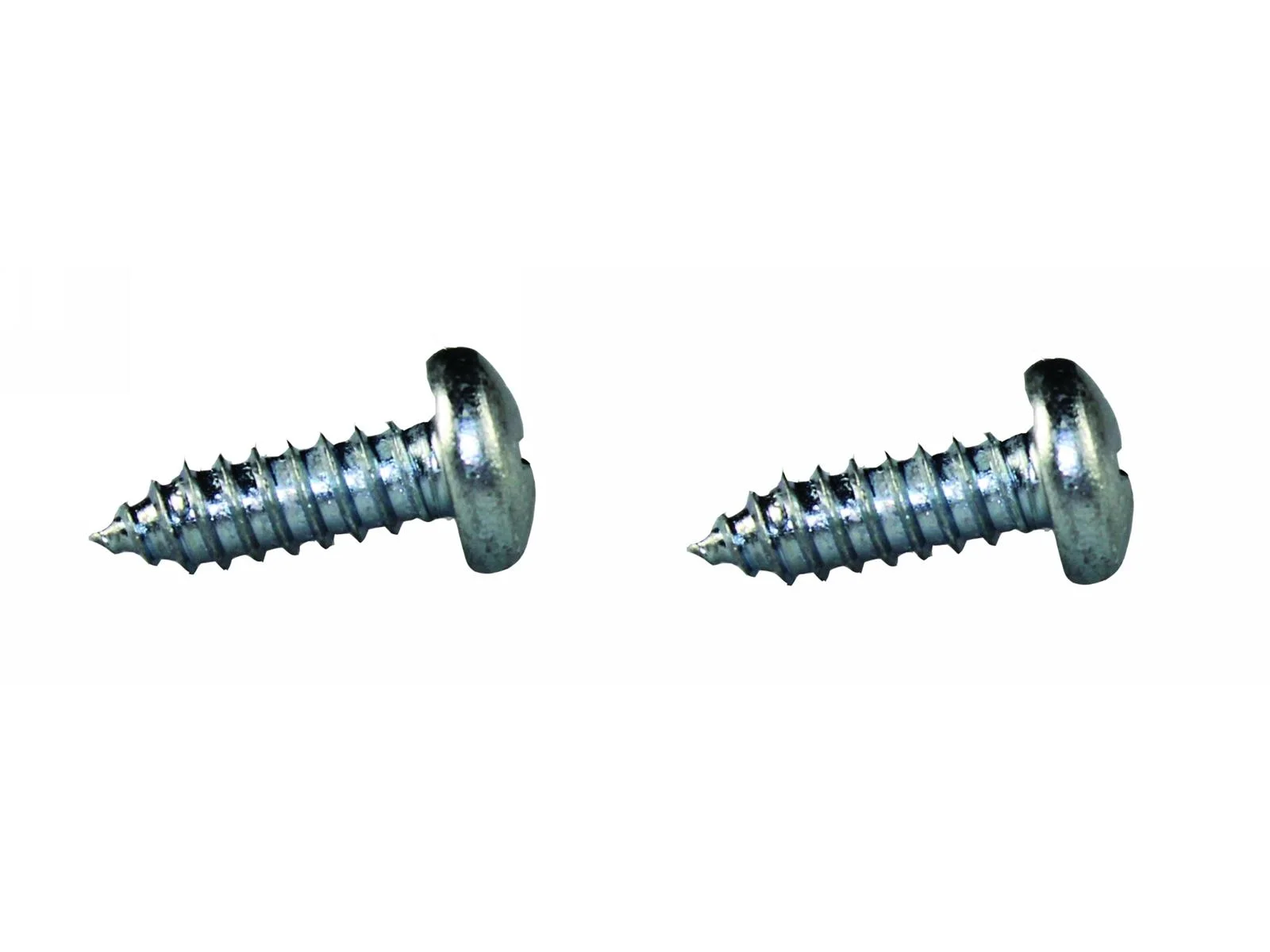

- Catalogue designation: Spacer mounting set
- Suitable for: TIT-K plastic Standard/Compact; TIT-K plastic Special
- Assembly: Optional accessories
- Spacer mounting set, SCHÜTZ part no. 680389
- Assembly: optional accessories
Delivery time: 2-5 days

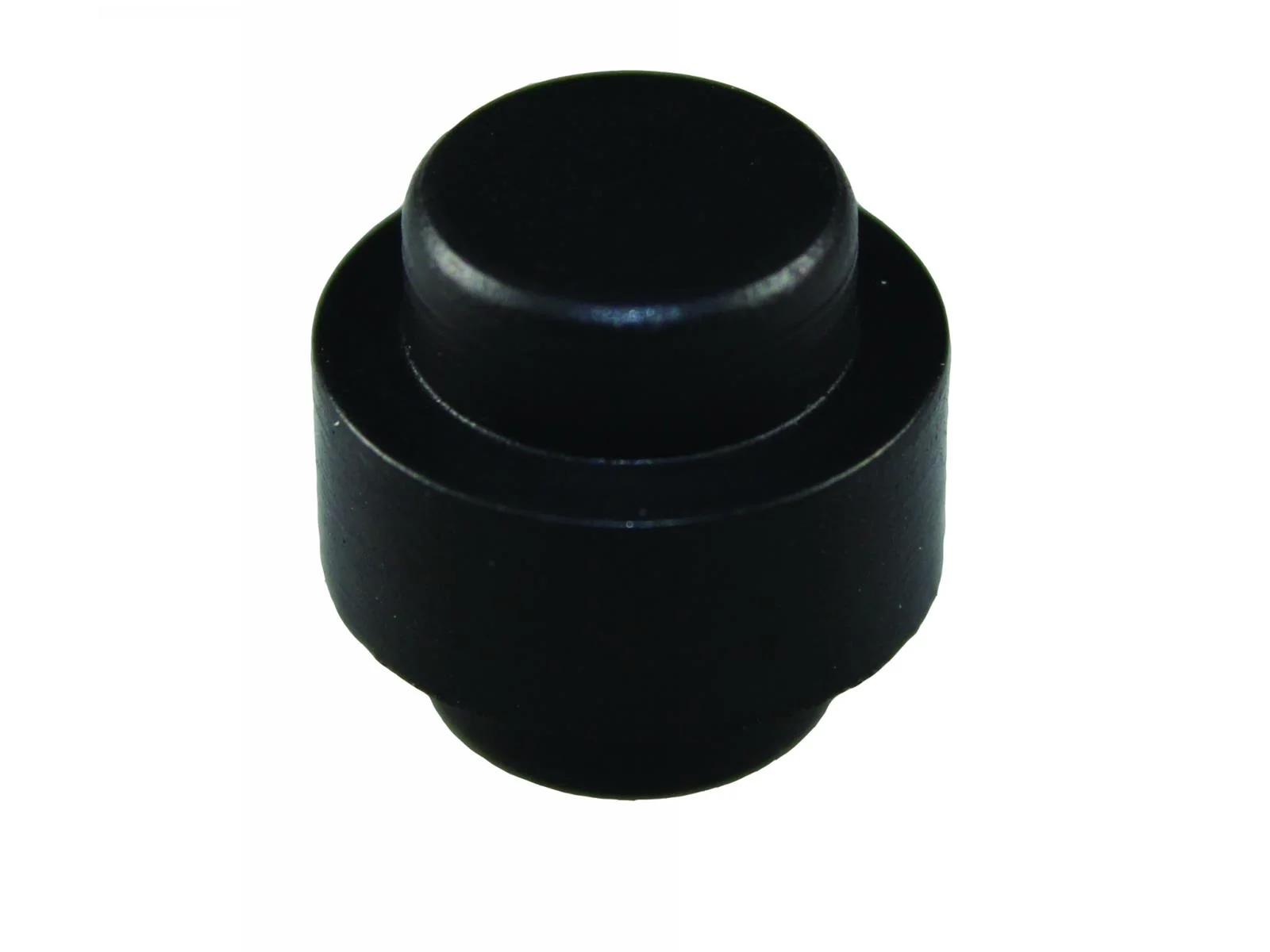

- Catalogue designation: Sealing plug
- Suitable for: TIT-K plastic Standard/Compact; TIT-K plastic Special; TIT steel 700/1,000 l; module tank (NIV-O-QUICK, built 2003–2011); battery tank and Cubic Tank from 1996; battery tanks built 1970–1995 with NIV-O-QUICK
- Assembly: Extraction system
- Sealing plug, SCHÜTZ part no. 9814
- Assembly: extraction system
Delivery time: 2-5 days

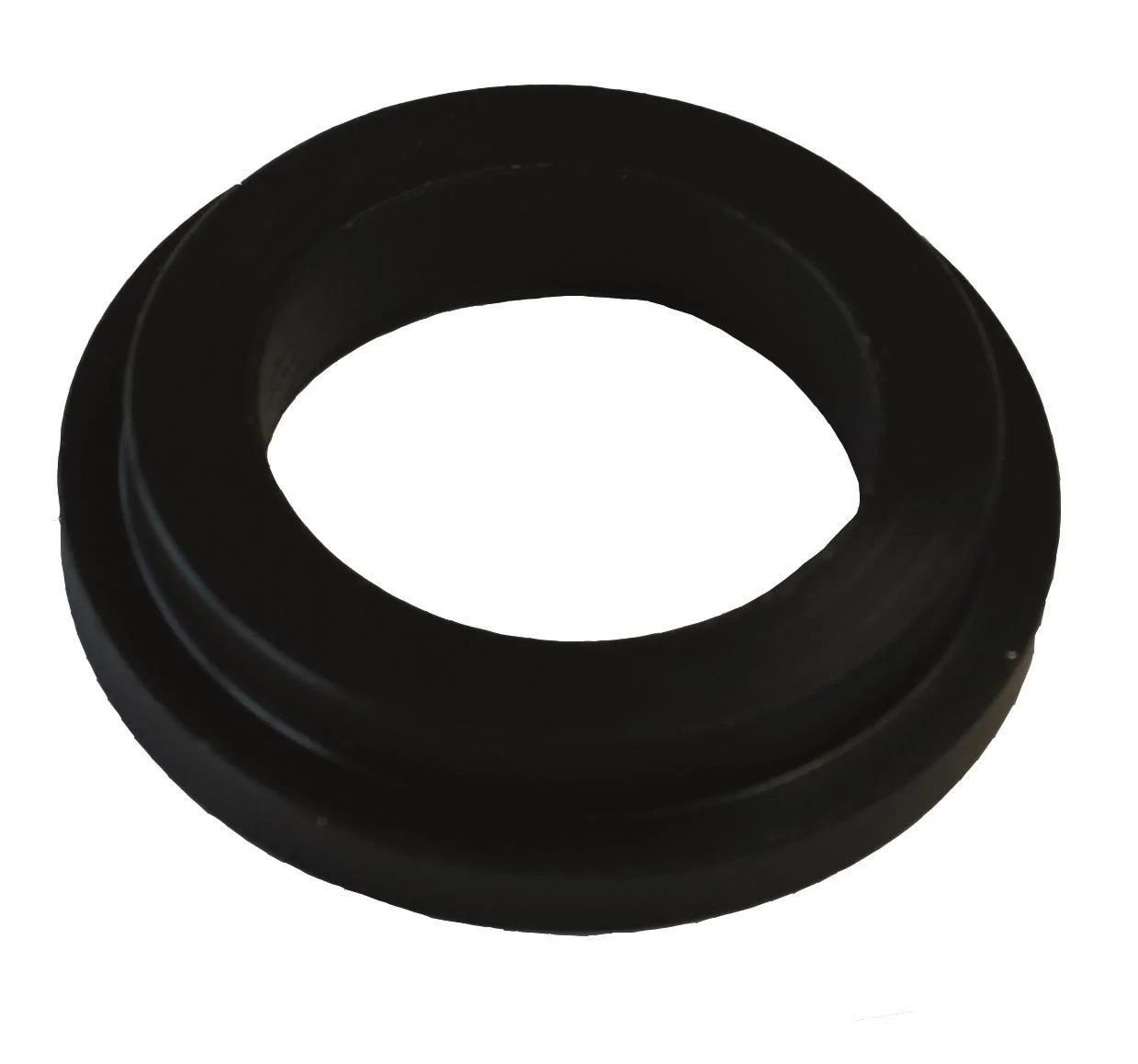

- Catalogue designation: Adapter ring for leak probe
- Suitable for: TIT steel 700/1,000 l, built 1997 to 2015
- Assembly: Optional accessories range
- Adapter ring for leak probe, SCHÜTZ part no. 3068271
- Assembly: optional accessories range
Delivery time: 2-5 days

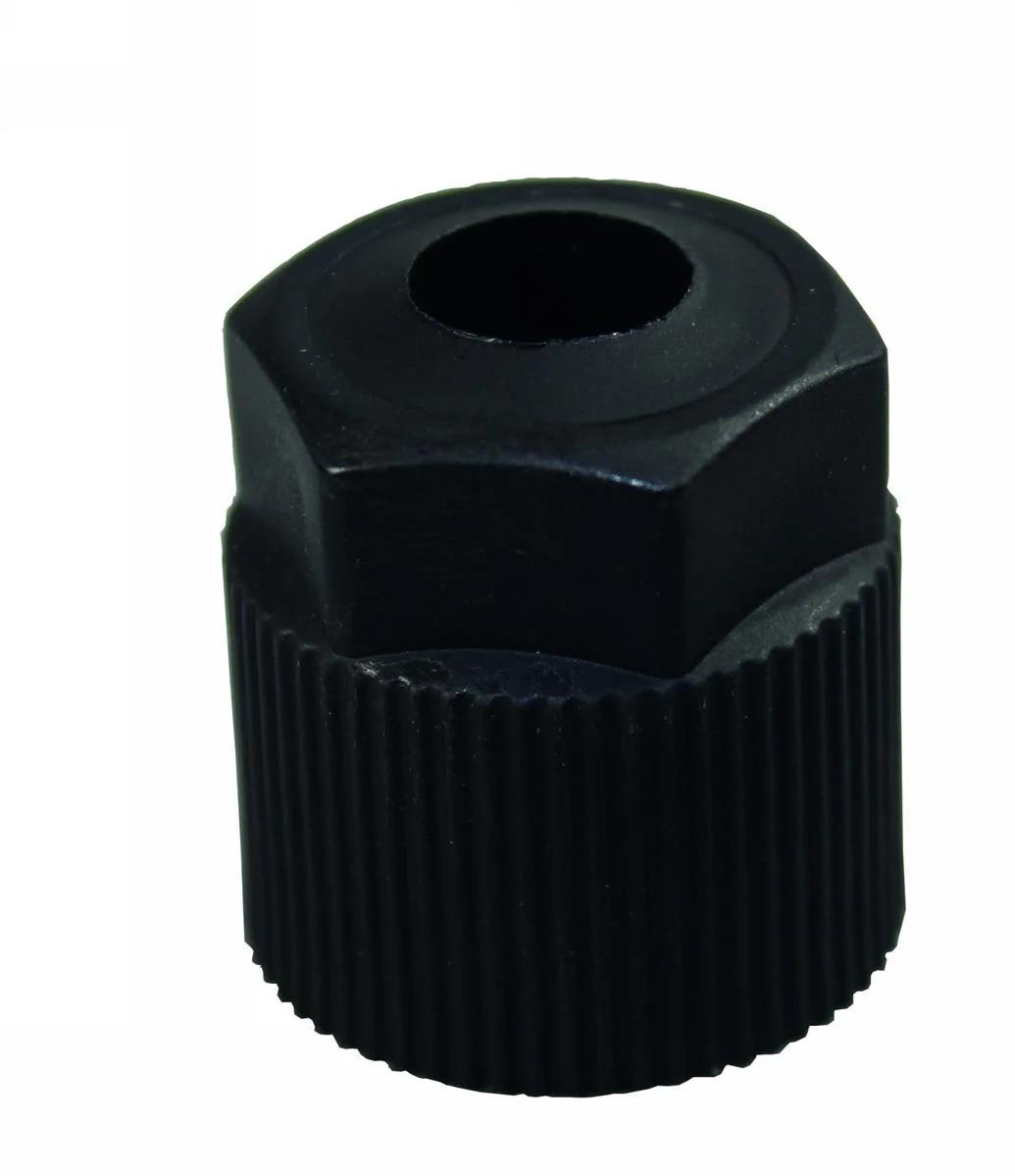

- Catalogue designation: Union nut M18 x 1.5 (female)
- Suitable for: TIT-K plastic Standard/Compact; TIT-K plastic Special; TIT steel 700/1,000 l; module tank (NIV-O-QUICK, built 2003–2011); battery tank and Cubic Tank from 1996; battery tanks built 1970–1995 with NIV-O-QUICK
- Assembly: Extraction system
- Union nut M18 x 1.5 (female), SCHÜTZ part no. 445398
- Assembly: extraction system
Delivery time: 2-5 days

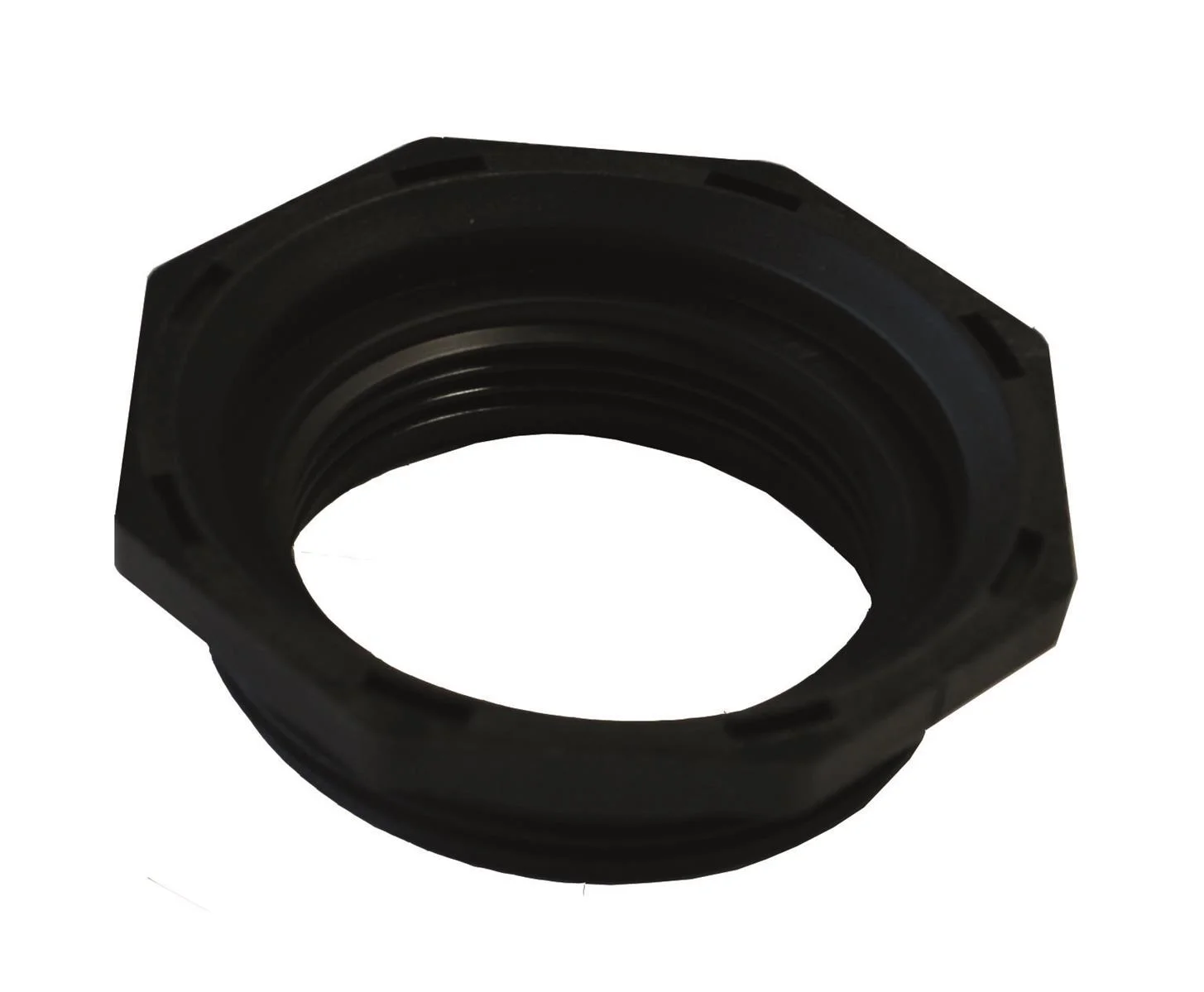

- Catalogue designation: Adapter to 2" (male) for extraction units
- Suitable for: TIT steel 700/1,000 l up to 2012
- Assembly: Extraction system
- Adapter to 2" (male) for extraction units, SCHÜTZ part no. 5004640
- Assembly: extraction system
Delivery time: 1-3 days

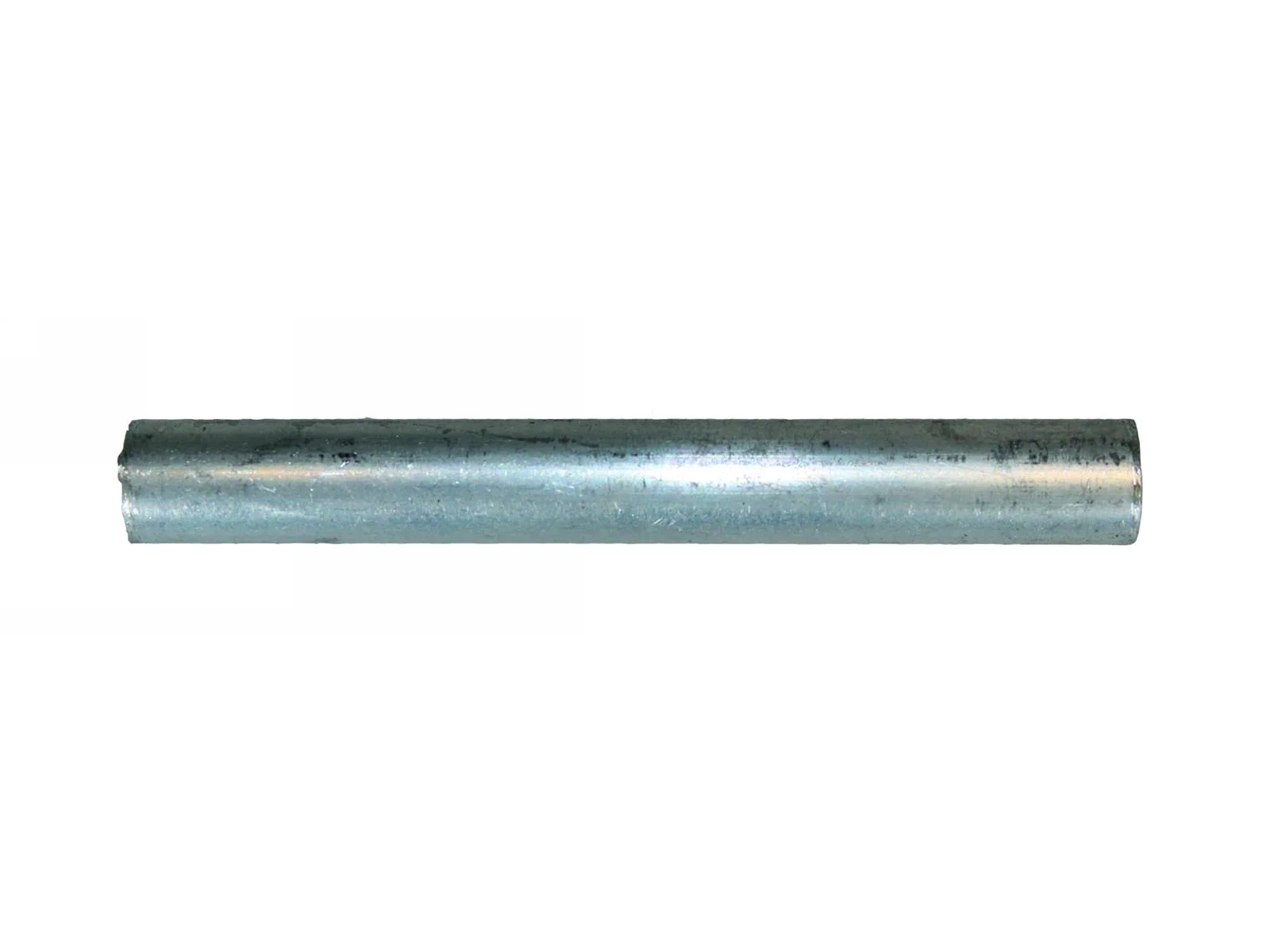

- Catalogue designation: Extraction line L = 100 mm
- Suitable for: TIT-K plastic Standard/Compact; TIT-K plastic Special; TIT steel 700/1,000 l
- Assembly: Extraction system
- Extraction line L = 100 mm, SCHÜTZ part no. 1013173
- Assembly: extraction system
Delivery time: 2-5 days
- Catalogue designation: Extraction line L = 610 mm
- Suitable for: TIT-K plastic Compact 750 l and 1,000 l; TIT steel 700/1,000 l
- Assembly: Extraction system
- Extraction line L = 610 mm, SCHÜTZ part no. 1013181
- Assembly: extraction system
Delivery time: 2-5 days
- Catalogue designation: Spacer 750 l / 1,000 l Compact
- Suitable for: TIT-K plastic Compact 750 l and 1,000 l
- Assembly: Optional accessories
- Spacer 750 l / 1,000 l Compact, SCHÜTZ part no. 3014585
- Assembly: optional accessories
Delivery time: 2-5 days

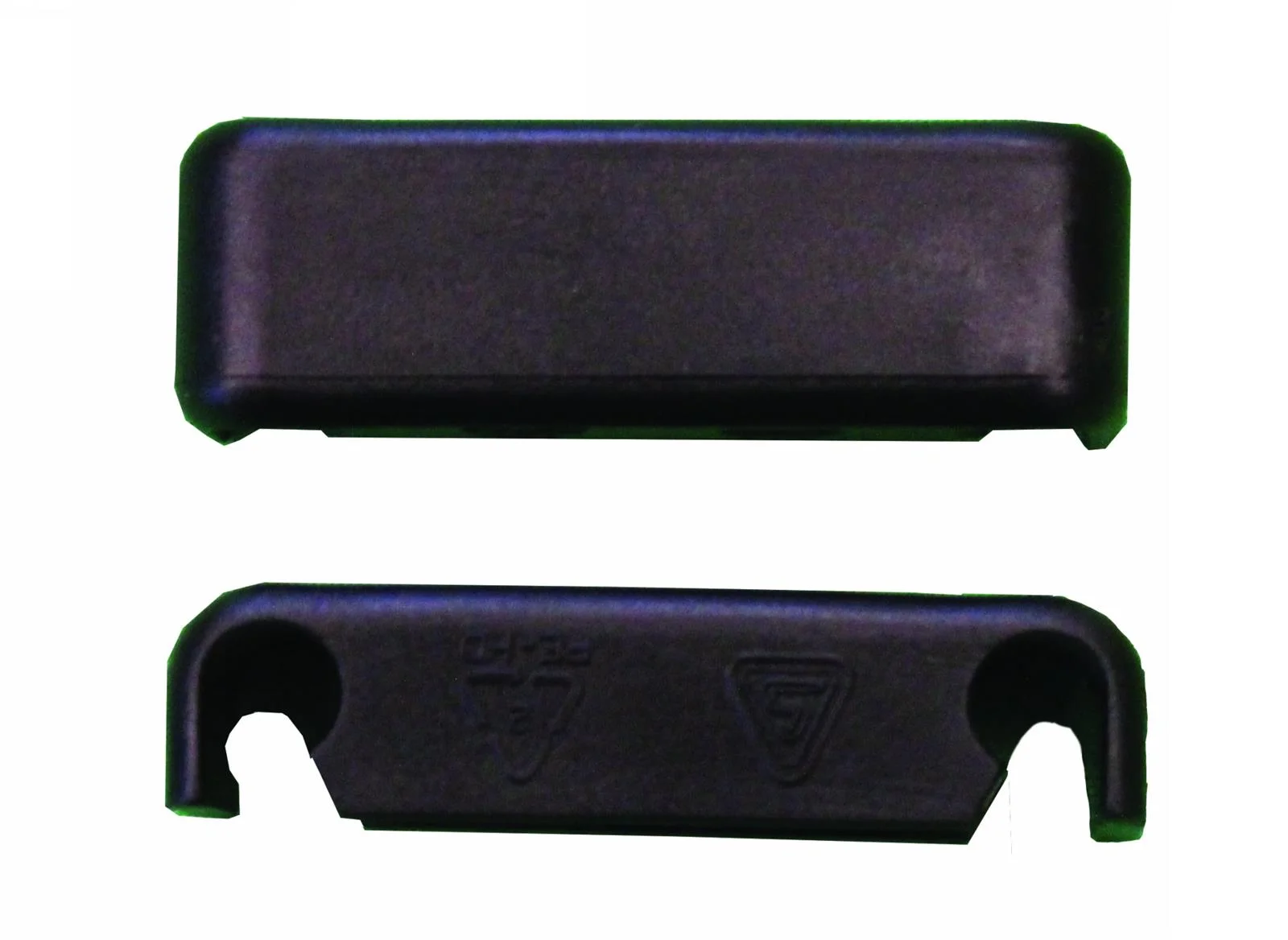

- Catalogue designation: Spacer
- Suitable for: TIT-K plastic Special 750 l (catalogue p. 124); TIT-K plastic Standard 1,000 l / 1,500 l (catalogue p. 122)
- Assembly: Optional accessories
- Spacer, SCHÜTZ part no. 3007202
- Assembly: optional accessories
Delivery time: 2-5 days

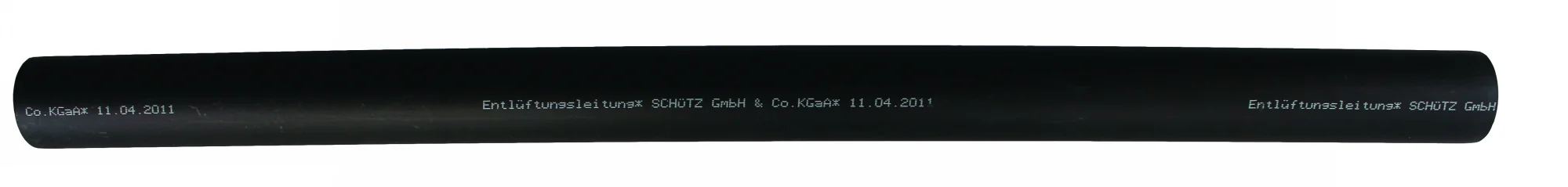

- Catalogue designation: Vent line L = 110 mm
- Suitable for: TIT-K plastic Standard/Compact; TIT-K plastic Special; TIT steel 700/1,000 l; module tank (NIV-O-QUICK, built 2003–2011)
- Assembly: Venting system (push-fit, black)
- Vent line L = 110 mm, SCHÜTZ part no. 3002362
- Assembly: venting system (push-fit, black)
Delivery time: 1-3 days

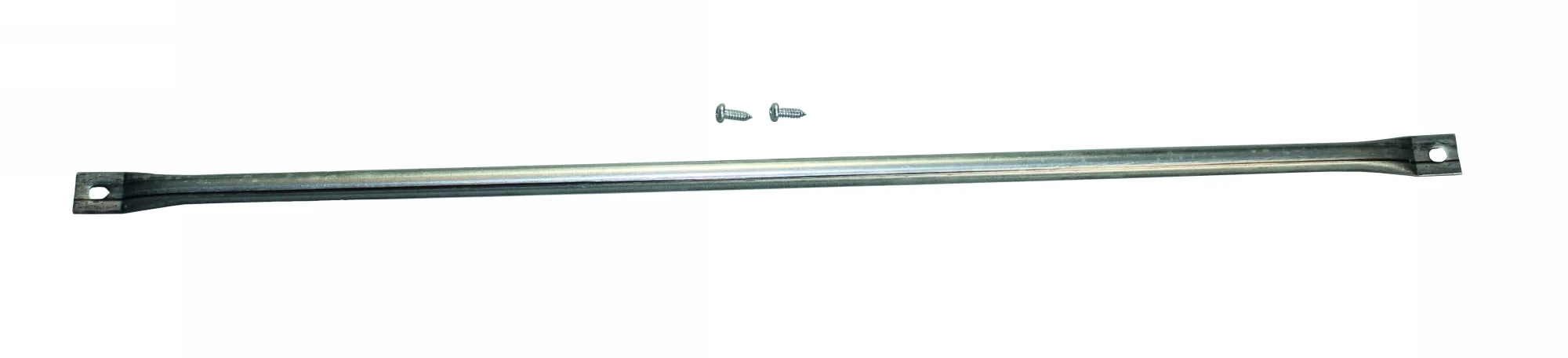

- Catalogue designation: Spacer 1,000 l Special
- Suitable for: TIT-K plastic Special 1,000 l
- Assembly: Optional accessories range
- Spacer 1,000 l Special, SCHÜTZ part no. 3014583
- Assembly: optional accessories range
Delivery time: 2-5 days
- Catalogue designation: Spacer
- Suitable for: TIT steel 700/1,000 l
- Assembly: Optional accessories range
- Spacer, SCHÜTZ part no. 401773
- Assembly: optional accessories range
Delivery time: 2-5 days

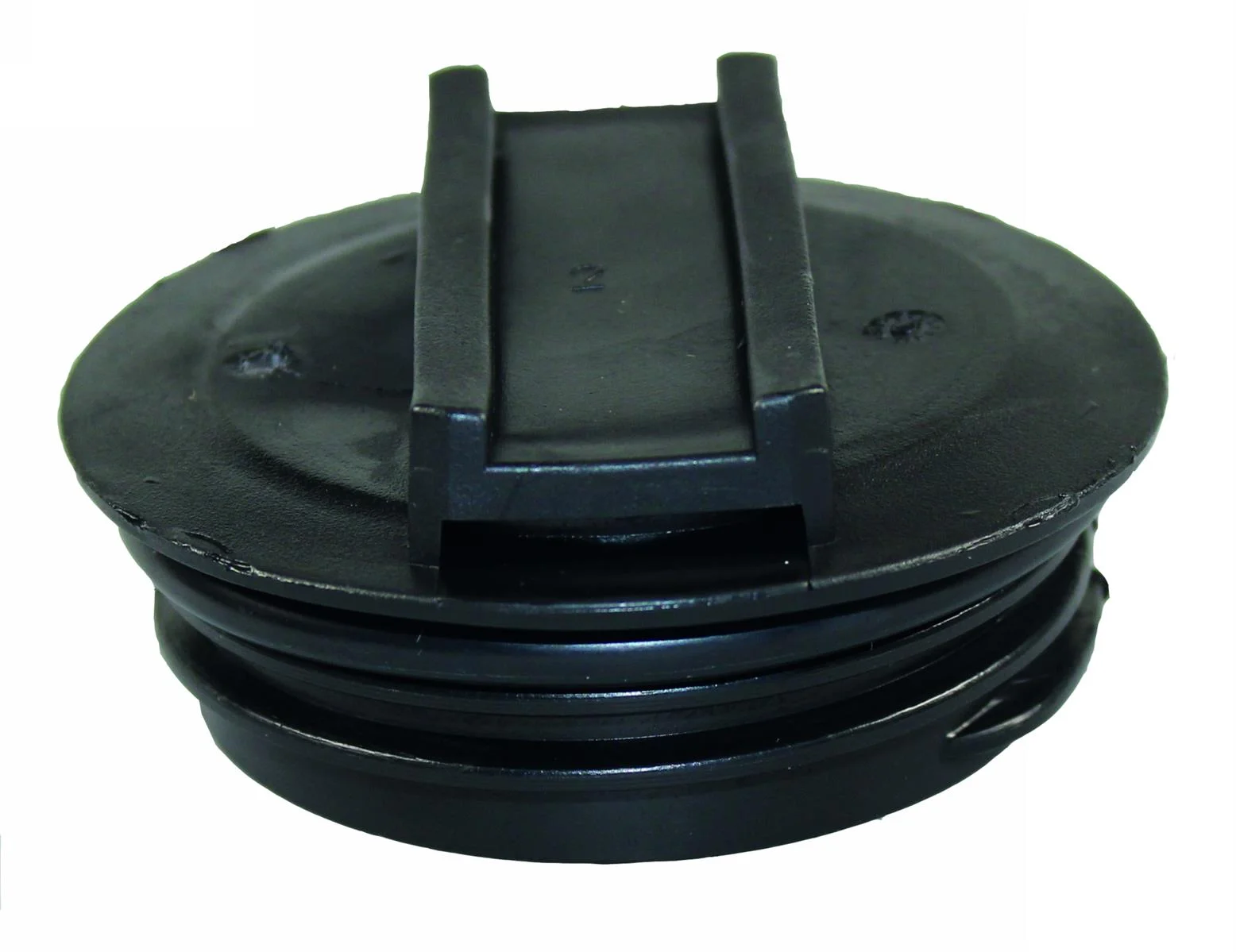

- Catalogue designation: Sealing plug S75 x 6 (male) with seal
- Suitable for: module tank (catalogue note “for MT from 2012”); battery tank and Cubic Tank from 1996
- Assembly: Optional accessories range
- Sealing plug S75 x 6 (male) with seal, SCHÜTZ part no. 3020143
- Assembly: optional accessories range
Delivery time: 2-5 days

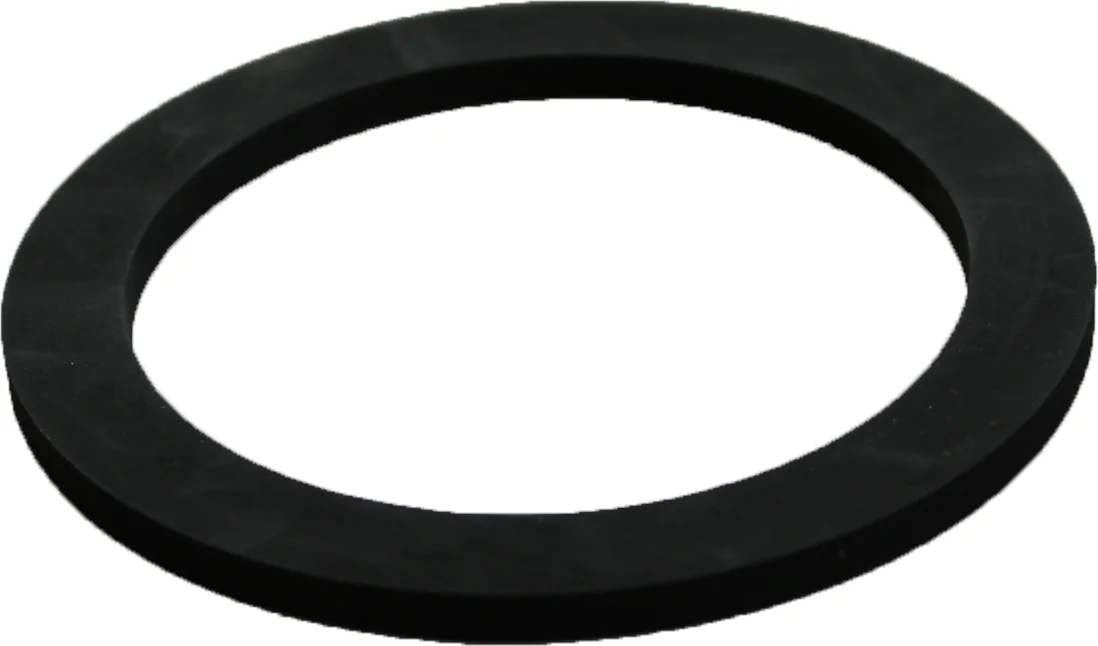

- Catalogue designation: Flat seal Ø 83 x Ø 64.5 x 4.3 mm
- Suitable for: TIT-K plastic Special 1,000 l up to 2011; TIT steel 700/1,000 l up to 2011; battery tanks built 1970–1995 with NIV-O-QUICK; battery tanks built 1975–1995, for tank sockets (optional accessory)
- Assembly: Filling system (NIV-O-QUICK)
- Flat seal Ø 83 x Ø 64.5 x 4.3 mm, SCHÜTZ part no. 968196
- Assembly: filling system (NIV-O-QUICK)
Delivery time: 2-5 days
- Catalogue designation: Closed Screw Cap S100 x 8
- Suitable for: tank neck with S100 x 8 male thread, SCHÜTZ battery tanks built 1975–1995
- Thread: for S100 x 8 male thread on the tank
- Closed Screw Cap S100 x 8, SCHÜTZ part no. 738131
- For closing a tank neck with S100 x 8 male thread
Delivery time: 2-5 days

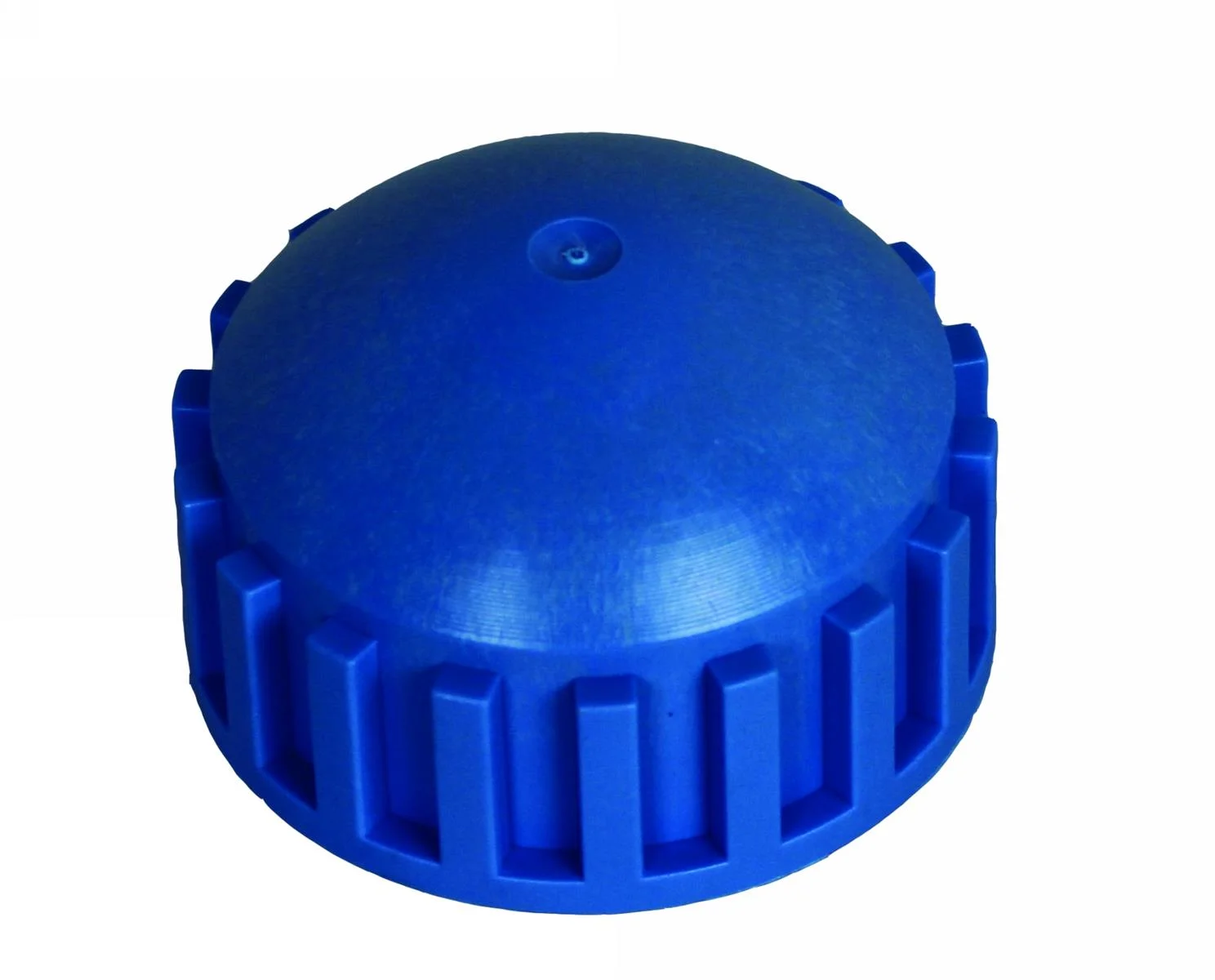

- Catalogue designation: Blue sealing cap
- Suitable for: battery tank and Cubic Tank from 1996; battery tanks built 1970–1995 with NIV-O-QUICK
- Assembly: Filling system (blue)
- Blue sealing cap, SCHÜTZ part no. 625167
- Assembly: filling system (blue)
Delivery time: 1-3 days

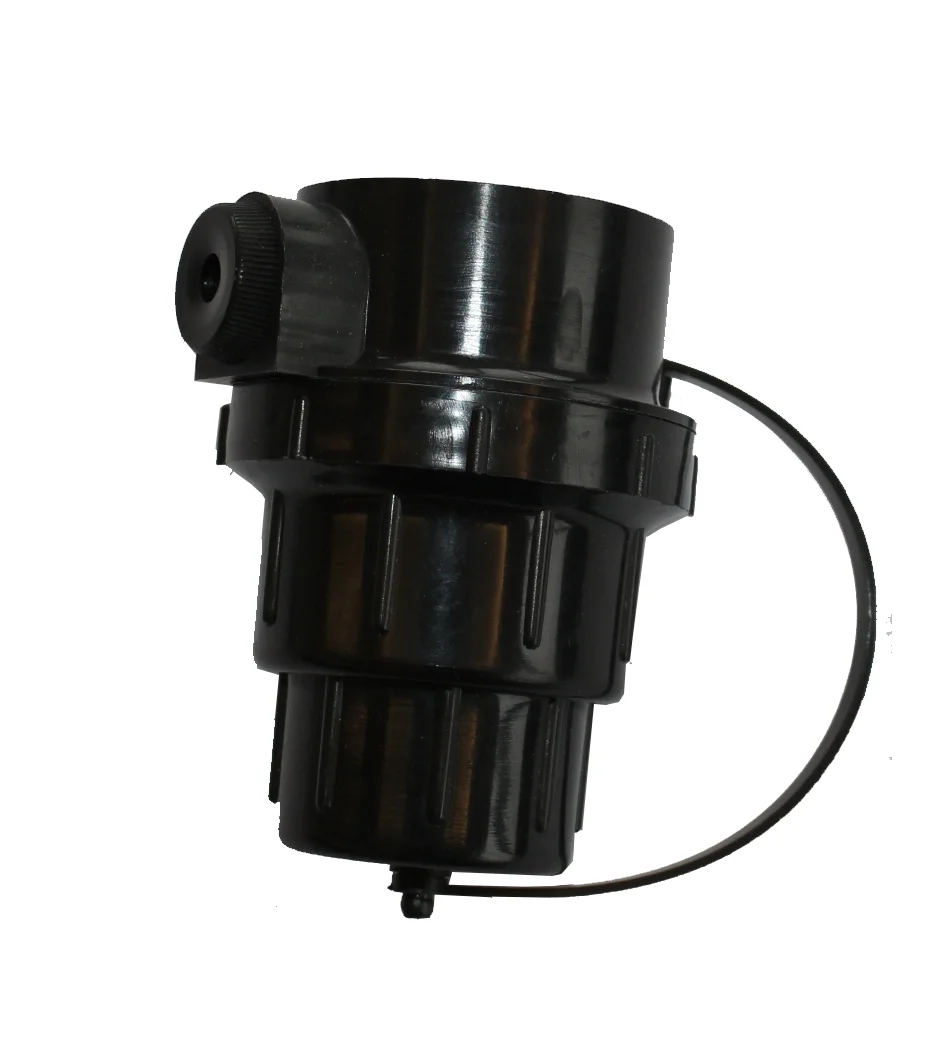

- Catalogue designation: Plug for Overfill Sensor
- Suitable for: overfill sensor (type not stated in the catalogue)
- Packing unit (manufacturer): 1 piece
- Plug for Overfill Sensor, SCHÜTZ part no. 8761
- Accessory for the overfill sensor (overfill protection)
Delivery time: 2-5 days
- Catalogue designation: Sealing cap (white filling system)
- Suitable for: TIT-K plastic Standard/Compact; TIT-K plastic Special; TIT steel 700/1,000 l; module tank (NIV-O-QUICK, built 2003–2011)
- Assembly: Filling system (NIV-O-QUICK)
- Sealing cap (white filling system), SCHÜTZ part no. 446696
- Assembly: filling system (NIV-O-QUICK)
Delivery time: 2-5 days
Schütz Spare Parts – Optimal Maintenance for Durable & Safe Tank Systems
Original spare parts for Schütz tank systems ensure reliable and compliant storage of heating oil, diesel, AdBlue®, and chemicals. Ideal for industrial, commercial, and agricultural operations.
Why Choose Schütz Spare Parts?
- Precisely Fitting Original Parts: 100% compatible with Schütz tank systems.
- High-Quality Manufacturing: Resistant to fuels and aggressive liquids.
- Enhanced Safety: Replacement of safety-critical components.
- Optimized Performance: Efficient maintenance for long-lasting use.
What Spare Parts Are Available?
- Pumps & Conveyance Systems: Efficient supply of fuels and lubricants.
- Filters & Safety Valves: Protection against contamination and leaks.
- Level Indicators & Sensors: Accurate monitoring of fluid levels.
- Seals & Closures: Secure protection against leakage and evaporation.
Find the Right Spare Parts for Schütz Now
Optimize your tank systems – discover the high-quality spare parts for Schütz!
