Fuel management systems for on-site fuel stations & fleet management
Access control, consumption recording and fuel management from PIUSI and TECALEMIT – as a retrofit solution for existing tank systems or integrated into new fuel dispensers. With PIN, transponder card or app access. For 1 to 5 dispensing points.
For existing tank systems
Fuel management systems are retrofit control modules – they are installed between the pump and the power supply and enable access control without a new dispenser. The PIUSI MCBOX Compact (€965) and the TECALEMIT HDA eco Kit with an FMOG 100 pulse generator are typical retrofit solutions.
Access control & logging
Every refuelling is stored with the user ID, date, time and quantity. The TECALEMIT HDA eco uses transponder cards (RFID), the PIUSI MCBOX Compact uses PIN codes. Data is stored locally and read out via USB or PC software.
Cloud & app management
The PIUSI MCBOX B.SMART (€2,394) connects via Bluetooth and app – fuelling data in real time, user management and consumption analysis via smartphone or web. For 1 or 2 pumps, 100–240V and 12–24V, making it suitable for mobile systems too.
Several dispensing points
The TECALEMIT HDA 5 eco (€3,224) controls up to 5 dispensing points centrally – ideal for large fleets with several dispensing points. With a built-in transponder reader, PC software and fuel-data logging. Not calibratable – for internal operational consumption recording.

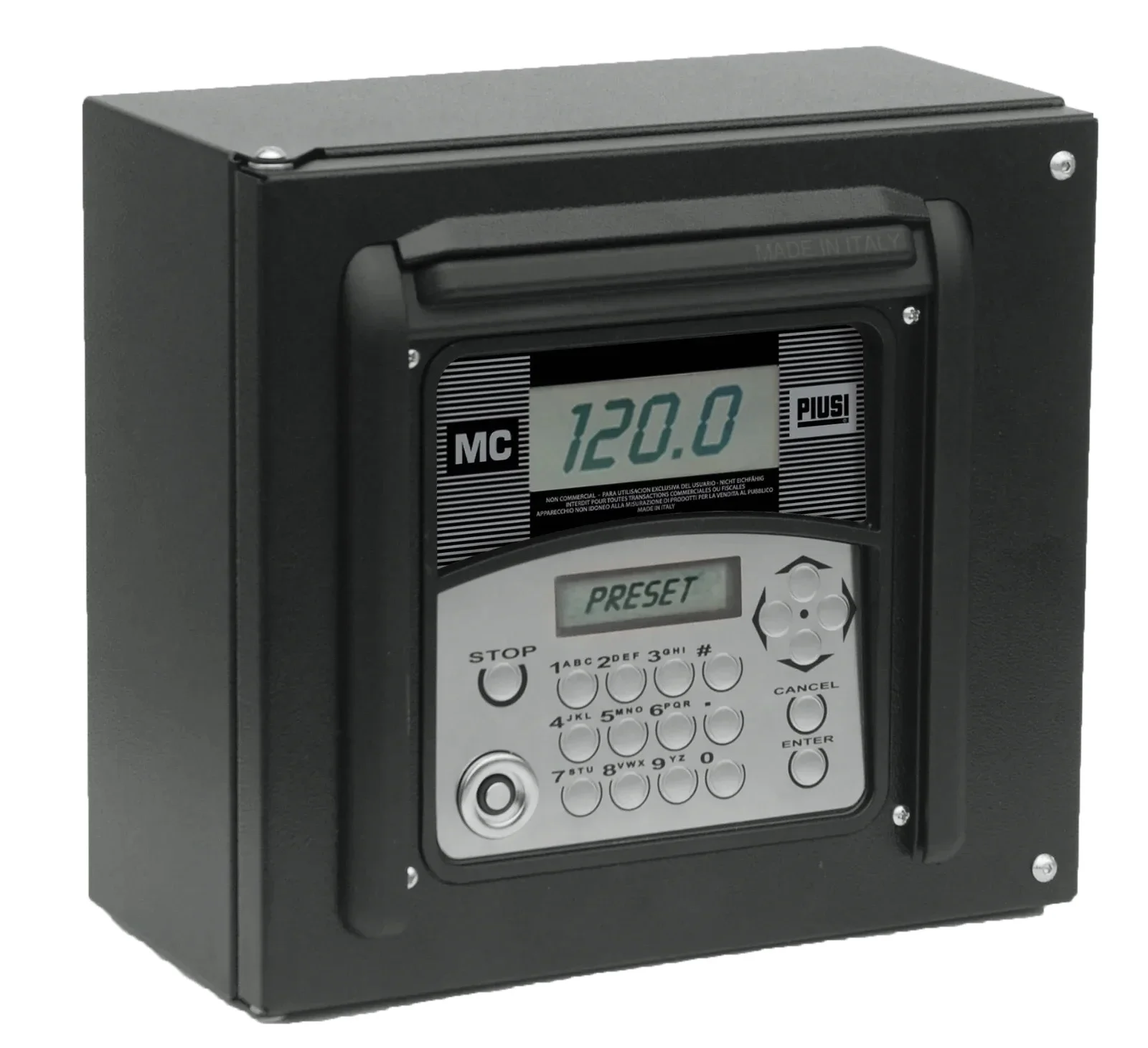

PIUSI MCBOX Compact – Fuel Management System 🚀
- Voltage: 100–240 V AC, 50/60 Hz
- Power: 15 A (maximum motor load)
- Dimensions: 260 × 240 × 170 mm
- Weight: 2.3 kg
Delivery time: 2-5 days
PIUSI MCBOX 100–240 V AGILIS – Fuel Management Controller for 80 Users
- Retrofit solution – controls existing pump, pulse meter and nozzle
- Up to 80 users – access control by PIN or magnetic key
- AGILIS-integrated – transaction logging and fleet management
Delivery time: 2-5 days
Fuel Dispenser HDA eco for One Dispensing Point, Fuel Data Collection ⛽
Delivery time: 5-10 Tage
HDA eco Fuel Dispenser for One Fueling Point, HDA eco Data Collection Kit (with FMOG 100, Pulse Generator Set) ⛽
- Complete Package
- Access to Basic Module
- Retrofit Solution for Existing Systems
Delivery time: 5-10 Tage
PIUSI MCBOX 12/24 V AGILIS – Fuel Management Controller for 250 Users
- Retrofit solution – controls existing pump, pulse meter and nozzle
- Up to 250 users – access control by PIN or magnetic key
- AGILIS-integrated – transaction logging and fleet management
Delivery time: 2-5 days
PIUSI MCBOX 100–240 V AGILIS – Fuel Management Controller for 250 Users
- Retrofit solution – controls existing pump, pulse meter and nozzle
- Up to 250 users – access control by PIN or magnetic key
- AGILIS-integrated – transaction logging and fleet management
Delivery time: 2-5 days

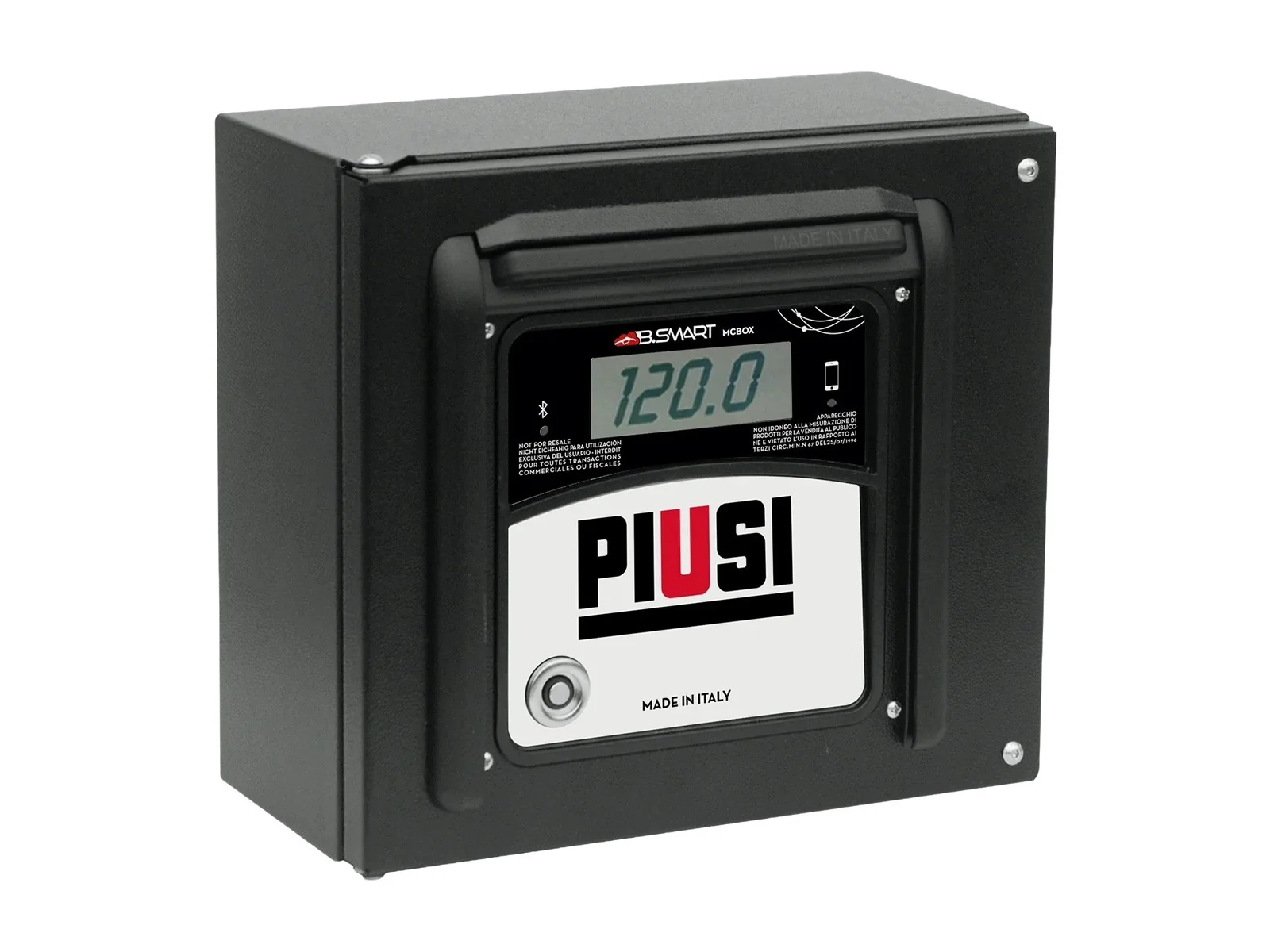

PIUSI MCBOX B.SMART – Centralized Fuel Management for Existing and New Tank Systems
- Power Supply: 100-240V 50/60 Hz, 12-24V
- Power Consumption: approx. 5 W
- Number of Controllable Pumps: 1 or 2 Pumps
- Bluetooth Interface
Delivery time: 2-5 days
Fuel Dispenser HDA 5 eco for up to 5 Dispensing Points, Non-Calibratable Fuel Data Collection ⛽️
- Not calibratable
- Includes PC software
- Built-in transponder reader
- Electrical connection: 230 V
- Medium: Diesel
Delivery time: 5-10 Tage
