Water Tank 6 areas – rainwater · drinking water · wastewater · retention · industry
Tanks for every type of water – from the small rain barrel for the garden to the stationary drinking-water reserve for trade and industry. Roth Twinbloc® flat tanks, AquaBank® large tanks, underground wastewater collection pits, retention tanks with a flow restrictor and complete accessories for pumps, filters and smart control.
Robuste Abwassertanks zur sicheren Sammlung und Lagerung von Schmutz- und Abwasser.
Langlebige Industriewassertanks für die zuverlässige Lagerung von Wasser in Gewerbe, Industrie und Landwirtschaft.
Praktische Regenwassertanks zur nachhaltigen Speicherung und Nutzung von Regenwasser.
Effiziente Retentionstanks zur kontrollierten Rückhaltung und Ableitung von Regen- und Oberflächenwasser.
Hygienische Trinkwasserbehälter für die sichere Lagerung von sauberem Wasser.
Passendes Zubehör für Wassertanks – von Anschlüssen bis Zubehörteilen für einen sicheren Betrieb.
What's behind the 6 water-tank categories?
Rainwater tanks
From simple garden barrels (50 L, from €95) through Roth garden tanks (750–3,000 L) and house tanks (for toilet & washing machine) to the Roth Twinbloc® flat tank (1,500–10,000 L, underground, car-driveable, DN 600 shaft). Several tanks can be coupled with KG pipe DN 100. Notification to the water utility required under § 13 TrinkwV for domestic use.
Drinking-water tanks
Food-grade certified tanks for safe drinking-water storage – Roth building tanks (750–2,000 L, KTW guideline + DVGW W270, narrow for the cellar) and AquaBank® drinking-water tanks (200–15,000 L, UV-resistant, NIZP-PZH certificate, 5-year warranty). For emergency reserves, construction sites and trade. The BBK recommends 2 L per person per day for 10 days as a minimum supply.
Industrial water tank
Modular Roth industrial tanks (base + extension, 2,000–3,000 L) for commercial rainwater use – expandable, flat-rectangular, DN 100 inlet, overflow siphon. AquaBank® 15,000 L: upright large tank, black (no algae growth), smart monitoring, 2"/3" ball valve, for agriculture, firefighting water and industrial buffer storage.
Wastewater tanks
Underground plastic collection pits and sewage tanks from Roth (900–5,000 L) for locations without a sewer connection – Monobloc (one-piece), Twinbloc (two-piece, fits through narrow accesses) and PLUS design. Including dome shaft DN 200/300/600. Subject to approval under § 55 WHG. Regular emptying by vacuum tanker is mandatory.
Retention tank
Roth retention tanks (RT 3,500–10,000 L) hold rainwater back and release it into the sewer with a time delay through a floating restrictor (1", 0.07–0.5 l/s) – for compliance with development-plan requirements for restricted discharge. 50% or 100% retention volume, with filter basket and DN 600 shaft. Calculation to DIN 1986-100.
Accessories for water tanks
Complete Roth accessory programme: downpipe filters in plastic/metal (0.315–0.55 mm), ECO filter upgrade pack (up to 200 m² of roof), Twinbloc® floating extraction (the clearest water from the middle of the tank), submersible pump (5.7 m³/h, 20 m), smart control with app (€625), smart drinking-water top-up (€520) and a 1,300 L soakaway tunnel pack for overflow infiltration.

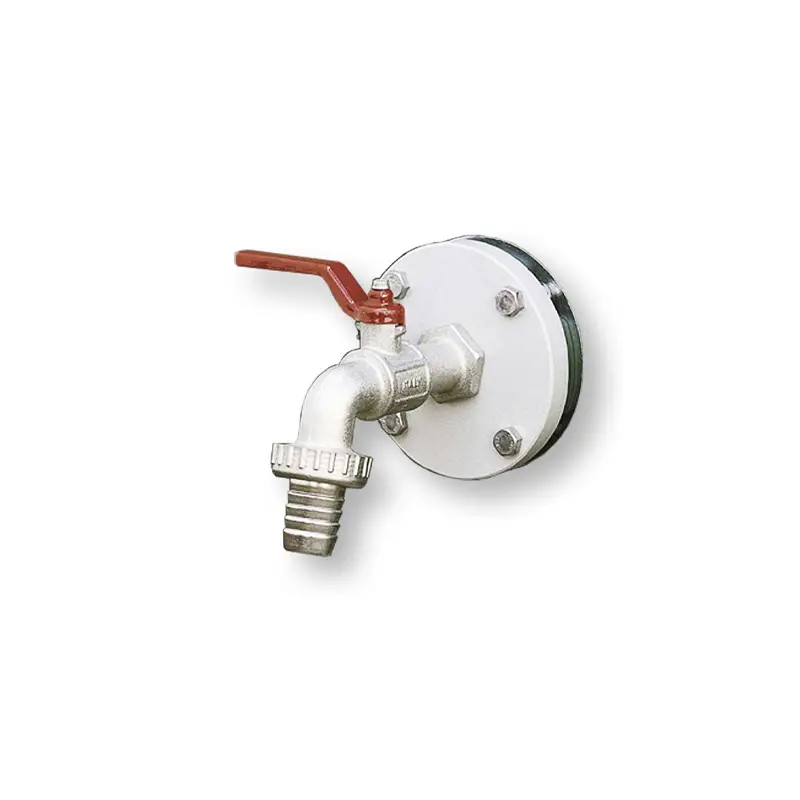

Roth Flange with 1" Ball Valve
- Suitable for storage capacities from 750 liters to 3000 liters
- 1" external thread
Delivery time: 1-3 days
Roth Suction Device for Collection Pit
- Material: Steel tubing ✔️
- Connection: Quick coupling DN 100 ✔️
- Additional connection: KG 2000 DN 100 ✔️
Delivery time: 1-3 days
220 Liter Garden Barrel Rainwater Tank DEHOUST Water Barrel Rainwater Collector
- Capacity: 220 liters
- Diameter: 580 mm
- Height: 1000 mm
- Weight: 6.5 kg
Delivery time: 1-3 days
1500-Liter Rainwater Tank Garden Storage ROTH Water Barrel Rain Barrel Garden Barrel
- Capacity: 1500 liters
- Container Dimensions (LxWxH): 1880 x 720 x 1480 mm
- Weight: 59 kg
- Material: UV-resistant polyethylene
Delivery time: 2-5 days
Roth PP Flange 1"
- Size: 1"
- Material: Polypropylene (PP)
- Compatibility: Suitable for all containers with lower flange connections
Delivery time: 1-3 days
Roth Ventilation and Aeration Unit for Drainage Block
- Nominal size/connection: DN 100 (KG pipe)
- Construction height: approx. 500 mm
- Design: Ventilation and aeration element
- Installation type: Direct installation in KG pipe
Delivery time: 1-3 days
Roth Expansion Kit Garden Filter
- Mesh size of the filter basket: 1 mm
- Installation in the dome shaft system of Roth underground tanks
- Scope of delivery: filter basket and connection accessories
- Suitable for filtering rainwater for garden irrigation
Delivery time: 1-3 days
150 Liter Garden Barrel Rainwater Tank DEHOUST Water Barrel Rainwater Collector
- Capacity: 150 liters
- Diameter: 497 mm
- Height: 960 mm
- Weight: 4.2 kg
Delivery time: 1-3 days
Red Manhole Cover, Suitable for Vehicle Traffic (600 kg Wheel Load)
- Wheel load up to 600 kg – suitable for passenger car traffic for safe use
- Suitable for DN 600 shaft (nominal diameter 600 mm)
- Easy installation/replacement with no additional accessories required
- Robust, durable design for drive-over areas
Delivery time: 1-3 days
1000 Liter Rainwater Tank Garden Storage ROTH Water Barrel Rain Barrel Garden Barrel
- Volume: 1000 liters
- Container Dimensions (LxWxH): 1240 x 720 x 1250 mm
- Material: Polyethylene, UV-resistant and rot-proof
- Weight: 36 kg
Delivery time: 2-5 days
Barrel Connection Kit with Drill for DEHOUST Water Barrel
- Flexible connection hose
- Hose nipple with threaded connection
- Durable locknuts and high-quality seals
Delivery time: 1-3 days
1000 Liter Garden Tank Rainwater Tank DEHOUST Water Barrel Rain Barrel
- Dimensions (LxWxH): 1050x770x1750 mm
- Capacity: 1000 liters
Delivery time: 1-3 days
3000 Liter Rainwater Tank Industrial Storage Base
- Container Dimensions (LxWxH): 2630 x 880 x 1650 mm
- Volume: 3000 liters
- Inspection Opening: Oval 500 x 400 mm
- Inlet and Overflow Siphon: DN 100
Delivery time: 2-5 days
Roth Screw Connection DN50 - Ideal for 750-3000L Home and Industrial Tanks
- Nominal Diameter (DN): 50
- Suitable for storage capacities from 750 to 3000 liters
- Versatile use for residential, industrial, and garden storage
Delivery time: 1-3 days
3000 Liter Rainwater Tank Industrial Storage Expansion Tank
- Expansion Tank
- Dimensions (LxWxH): 2630 x 880 x 1650 mm
- Volume: 3000 liters
- Weight: 122 kg
- Inspection Opening: oval 500 x 400 mm
Delivery time: 2-5 days
Roth Downpipe Filter – Plastic
- Material: High-quality plastic
- Compatible with downpipes with a diameter of 80 - 100 mm
- Connector with a diameter of 50 mm
- Mesh size: 0.55 mm
Delivery time: 1-3 days
Roth Submersible Pump, Medium-Cooled Submersible Pump for Garden and Home
- Maximum Flow Rate: 5.7 m³/h
- Maximum System Height: 20 m
- Maximum System Pressure: 3.6 bar
- Maximum Immersion Depth: 8 m
Delivery time: 1-3 days
750-liter drinking water tank for indoor storage. 💧
- Container dimensions (LxWxH): 730 x 730 x 1660 mm
- Capacity: 750 liters of water
- Weight: 25 kg
- Access opening: Ø 150 mm
Delivery time: 2-5 days
Roth Screw Connection for Submersible Pump
- Screw Connection with Hose Tail: 1-inch Diameter
- Compression Fitting for PE Water Pipe: 1-inch Diameter
Delivery time: 1-3 days
Roth Rainwater Home Storage Tank 750 to 2000 Liters
- Capacity: 750 to 2000 liters
- Material: UV-resistant polyethylene (PE)
- Installation: Suitable for both above-ground and underground placement
- Inspection opening: 150 mm for 750 L, 400 mm for 1100/1500/2000 L
Delivery time: 2-5 days
Rainwater - Twinbloc Storage Tank 1500 to 10,000 Liters 💧
- Capacity: 1500 to 10,000 liters ✔️
- Dimensions (e.g., 1500 liters: 2350 x 1395 x 695 mm) ✔️
- Inlet connection DN 100 and empty conduit connection DN 100 ✔️
- Includes access shaft DN 600 ✔️
Delivery time: 2-5 days
Roth Floating Suction for Roth Flat Storage Tank Twinbloc®
- Floating intake with PE float ball and suction filter; integrated brass check valve
- Compression fitting/connection suitable for 1" PE water pipe
- Special hose length: 1.30 m
- Pre-assembled unit ready for quick installation
Delivery time: 1-3 days
3000 Liter Rainwater Tank ROTH Garden Storage Water Barrel Rain Barrel Garden Barrel
- Capacity: 3000 liters
- Material: Polyethylene (rot-proof and UV-resistant)
- Dimensions: 2630 x 880 x 1650 mm
- Weight: 122 kg
Delivery time: 2-5 days
2000-liter drinking water tank for indoor storage. 💧🏠
- Container capacity: 2000 liters
- Container dimensions (LxWxH): 2050 x 720 x 1640 mm
- Material: Certified polyethylene for high drinking water quality
- Weight: 120 kg
Delivery time: 2-5 days
Frequently asked questions about water tanks
The right water tank for your project
Our specialist team will advise you free of charge – on volume, installation type, certifications and the optimum solution for your location.
☎ Call +49 36071 924340 Request a quote
