Hose reels for oil, grease, compressed air, diesel, water & screenwash
Hose reels and hose drums for all workshop media – compressed air (up to 17 bar), fresh and gear oil (up to 60 bar), grease (up to 400 bar), diesel, water, AdBlue® and screenwash. Open or enclosed, with or without a hose, wall-mounted or free-standing. From PCL, PIUSI, Samoa-Hallbauer and MATO.
Compressed air & water
PCL compressed-air hose reels compact (8 m, DN8, €85) and standard (15/20 m, DN10, from €144) as well as PCL Prestige (15 m, DN12). PIUSI enclosed reels (20 bar) for air and water in 12 m and 15 m. Samoa WD-15 for water/diesel (€1,822). For all compressed-air stations and water connections in the workshop.
Oil hose reels up to 60 bar
PIUSI oil reels in 3/8", 1/2" and 3/4" versions (60 bar) – open or enclosed, 10–20 m hose length, without or with a hose (€322–876). Samoa SiA open/enclosed for oil (1/2"), 10–18 m (€671–883). For fresh oil, engine oil, hydraulic oil, gear oil and used oil.
Grease hose reels up to 400 bar
PIUSI GREASE high-pressure grease reels (400 bar) in 1/4" and 3/8", 10–15 m (€342–544). Samoa Single-Arm open (€554–714) and SiA enclosed (€669–784) for grease hoses 1/4" and 3/8", 10–18 m. For all grease guns and centralised lubrication systems.
Special solutions
Hose drum eco (€687) for fresh oil and radiator antifreeze (10/15 m). Double hose drum RE D280/D340 (€1,420–1,502) for two media at once. Samoa SiA for screenwash (1/2", 10/15 m, €1,088–1,148). Series 507 with an electronic hand-held in-line meter (€1,255).
Hose Reel Set for Oil Systems "Series 507" with Electronic Handheld Flow Meter
- Handheld flow meter with outlet
- Pressure hose: 10m
- Connection hose: 0.8m
- Hose diameter: 1/2", NW 13
- Working pressure: 160 bar
- Inlet and outlet thread: 1/2" BSP (M)
Delivery time: 5-10 Tage

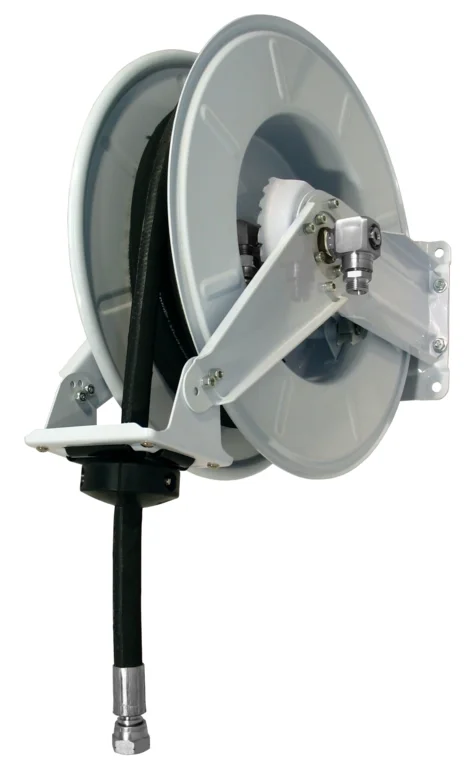

Open Hose Reel with Stainless Steel Shaft and 10 m Hose DN12
- Hose Length: 10m
- Maximum Pressure: 300 bar
- Conductive EPDM Hose, max. 20 bar
- Swivel Joint R1/2" made of Stainless Steel 1.4305
- Connection: R1/2" DKR
Delivery time: 5-10 Tage
Hose Reel with Stainless Steel Shaft, Open, with 15 m Hose DN12
- Hose Length: 15 m
- Maximum Operating Pressure: 300 bar
- Conductive EPDM Hose, max. 20 bar
- Swivel Joint R1/2" made of Stainless Steel 1.4305
Delivery time: 5-10 Tage

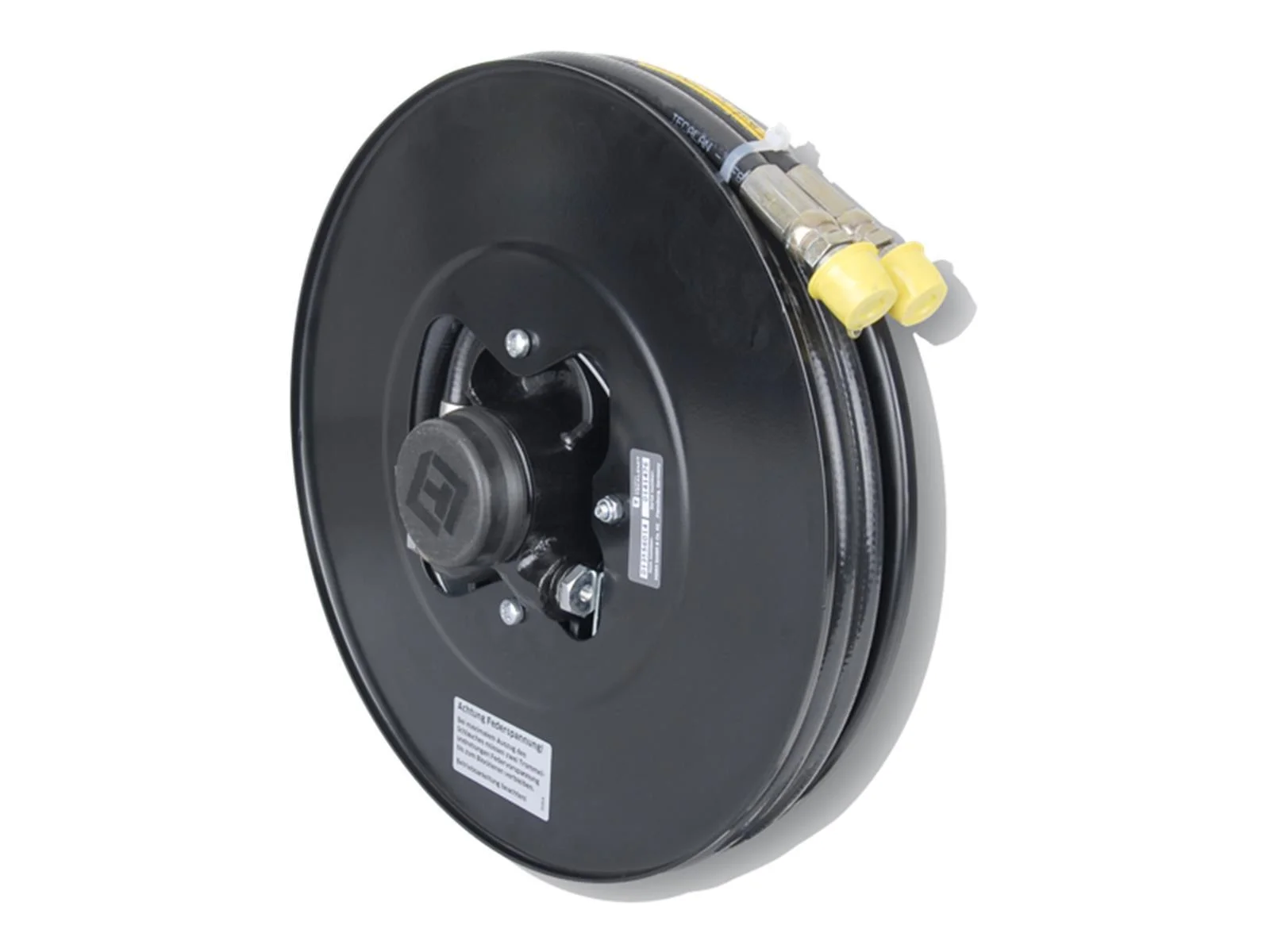

Dual Hose Reel Haspel RE D280
Delivery time: 5-10 Tage
Dual Hose Reel RE D340
Delivery time: 5-10 Tage
Open Hose Reel WD-15 Water/Diesel "Series 508" with 15 m Hose
- Operating pressure: 25 bar
- Hose diameter: 1″ / NW 25
- Inlet thread: 1″ BSP (F)
- Outlet thread: 1″ BSP (F)
- 15 m pressure hose
- 0.8 m connection hose
- Weight: 50.0 kg
Delivery time: 2-5 days
Open Oil Hose Reel with 20m of 3/4" Oil Hose, Samoa-Hallbauer
- Suitable for air, water, coolant, diesel, lubricants, and used oil
- Pressure hose: 20m
- Connection hose: 0.8m
- Hose diameter: 3/4" / NW 19
- Inlet thread: 1" BSP (F)
- Outlet thread: 3/4" BSP (F)
- Maximum working pressure: 100 bar
Delivery time: 2-5 days
Open Hose Reel Oil-25 with 25m Oil Hose 3/4" Samoa-Hallbauer
- For oil
- Hose length: 25 m
- Connection hose: 0.8 m
- Hose diameter: 3/4″ / NW 19
- Inlet thread: 1″ BSP (F)
- Outlet thread: 3/4″ BSP (F)
- Working pressure: 100 bar
- Weight: 57.0 kg
Delivery time: 2-5 days
Open Hose Reel for Oil - 15 m, 1 1/2" Oil Hose, 20 bar, Samoa-Hallbauer
- Pressure Hose Length: 15 m
- Connection Hose: 0.8 m
- Hose Diameter: 1 – 1 1/2” / NW 38
- Inlet Thread: 1 – 1 1/2” BSP (F)
- Outlet Thread: 1” BSP (F)
- Working Pressure: 25 bar
Delivery time: 2-5 days
Choosing the right hose reel for your medium
Compressed air – up to 17 bar
PCL compact DN8 (8 m, €85) for small workshops, PCL standard DN10 (15/20 m, from €144) as the standard solution, PCL Prestige DN12 (15 m, €288) for a higher flow. PIUSI enclosed (20 bar) also suitable for water. Choose a drip-tray model for ceiling or wall mounting.
Fresh oil – 60 bar
PIUSI oil reel 60 bar in 3/8" (from €322) or 1/2" (from €324), 10–20 m – open or enclosed, without or with a hose. Samoa SiA enclosed (€671–803) in 1/2", 10–18 m for continuous operation. Pay attention to the viscosity of the oil: for gear oil SAE 90, choose a larger cross-section (1/2").
Grease – 400 bar high pressure
PIUSI GREASE 400 bar in 1/4" or 3/8", 10–15 m (€342–544). Samoa Single-Arm open (€554–579) or SiA enclosed (€669–784). Note the hose size of the grease gun – 1/4" is the most common size, 3/8" for larger grease guns. For centralised lubrication systems: note the supply/return hose.
Diesel & water
PIUSI DN25 (10 m, 10 bar, €731) for diesel dispensing systems. Samoa WD-15 water/diesel (15 m, €1,822) combined. Hose drums DN12/16 (€619–802) for compressed air or water with a large cross-section. Always check the medium resistance of the hose.
Open or enclosed?
Open: a visible spring mechanism, easy maintenance access, lighter and cheaper. Enclosed (PIUSI, Samoa SiA): protection against contamination and damage, a tidy appearance, protects the reel from dripping oil. For customer areas or visible installations, the enclosed version is recommended.
Hose length & size
Hose length according to the working area: 10 m for fixed points, 15 m flexible, 20–25 m for large halls. Hose size according to flow rate: 3/8" low, 1/2" medium, 3/4" and 1½" for large systems. Longer hoses with a larger cross-section reduce pressure losses with high-viscosity media.
Frequently asked questions about hose reels
The right hose reel for your workshop
Our specialist team advises you free of charge – on medium, pressure, length, mounting position and the right combination of reel and hose.
☎ Call +49 36071 924340 Request a quote
