Hose reels for oil, grease, compressed air, diesel, water & screenwash
Hose reels and hose drums for all workshop media – compressed air (up to 17 bar), fresh and gear oil (up to 60 bar), grease (up to 400 bar), diesel, water, AdBlue® and screenwash. Open or enclosed, with or without a hose, wall-mounted or free-standing. From PCL, PIUSI, Samoa-Hallbauer and MATO.
Compressed air & water
PCL compressed-air hose reels compact (8 m, DN8, €85) and standard (15/20 m, DN10, from €144) as well as PCL Prestige (15 m, DN12). PIUSI enclosed reels (20 bar) for air and water in 12 m and 15 m. Samoa WD-15 for water/diesel (€1,822). For all compressed-air stations and water connections in the workshop.
Oil hose reels up to 60 bar
PIUSI oil reels in 3/8", 1/2" and 3/4" versions (60 bar) – open or enclosed, 10–20 m hose length, without or with a hose (€322–876). Samoa SiA open/enclosed for oil (1/2"), 10–18 m (€671–883). For fresh oil, engine oil, hydraulic oil, gear oil and used oil.
Grease hose reels up to 400 bar
PIUSI GREASE high-pressure grease reels (400 bar) in 1/4" and 3/8", 10–15 m (€342–544). Samoa Single-Arm open (€554–714) and SiA enclosed (€669–784) for grease hoses 1/4" and 3/8", 10–18 m. For all grease guns and centralised lubrication systems.
Special solutions
Hose drum eco (€687) for fresh oil and radiator antifreeze (10/15 m). Double hose drum RE D280/D340 (€1,420–1,502) for two media at once. Samoa SiA for screenwash (1/2", 10/15 m, €1,088–1,148). Series 507 with an electronic hand-held in-line meter (€1,255).
Open hose reel without hose for up to 12 m hose DN16
- Without hose
- Maximum pressure: 60 bar
- Installation: Wall, ceiling, and floor mounting
- Connections: Hose R3/4" DKR, Swivel joint R3/4" external
- Suitable for: Engine, transmission, and hydraulic oils, diesel, heating oil, antifreeze
Delivery time: 5-10 Tage
PIUSI Hose Reel 60 bar with 20 m 1/2" Oil Hose with Hose
- For oil.
- Maximum operating pressure: 60 bar
- Inlet with swivel joint: 1/2" male thread.
- Outlet hose connector: 1/2" male thread.
- Hose length: 20m
Delivery time: 5-10 Tage
Single-Arm Hose Reel with 6m Waste Oil Hose 5/8" Samoa-Hallbauer
- Inlet Thread: 1/2" internal/external
- Outlet Thread: 1/2" internal/external
- Operating Pressure: 100 bar
- Hose Length: 6 meters
- Connection Hose Length: 0.8 meters
- Hose Diameter: 5/8" / NW 16
- Weight: 14.1 kilograms
Delivery time: 2-5 days
Closed Hose Reel SiA with 10m Grease Hose 1/4" Samoa-Hallbauer
- For Grease
- With Guide Arm
- 10m Grease Hose with 1/4" Diameter (NW 6)
- Weight: 18.8 kg
Delivery time: 2-5 days
Hose Reel SiA Enclosed with 10m Oil Hose 1/2" Samoa-Hallbauer
- Pressure hose length: 10 m
- Hose diameter: 1/2" / NW 13
- Inlet thread: 1/2” BSP (M)
- Outlet thread: 1/2” BSP (M)
- Working pressure: 160 bar
- Suitable for water, fresh oil, air, and antifreeze
Delivery time: 2-5 days

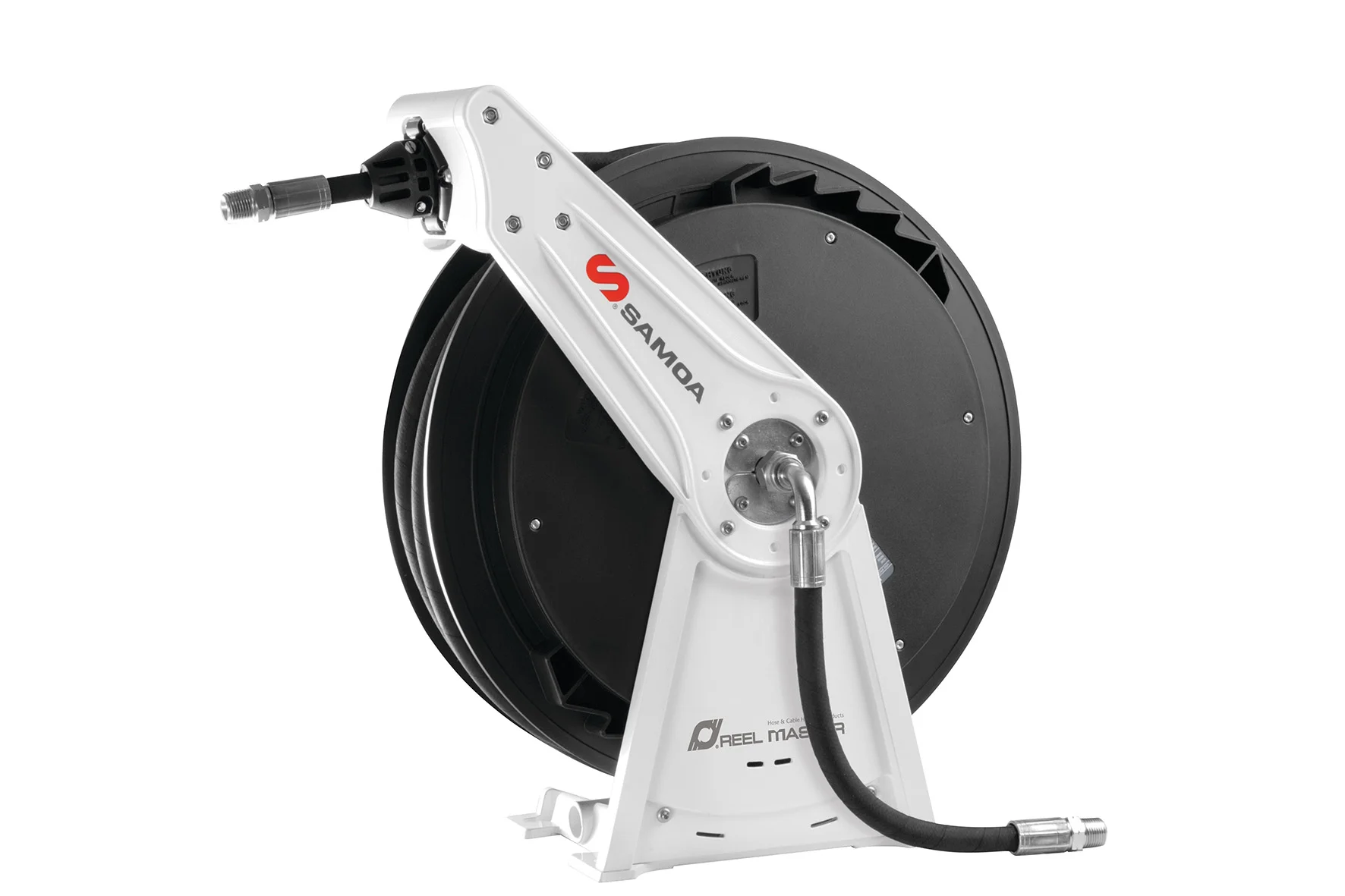

Single-Arm Hose Reel with 15m Grease Hose 3/8" Samoa-Hallbauer
- For Grease
- Equipped with Guide Arm
- Pressure Hose Length: 15m
- Hose Diameter: 3/8" / NW 10
- Weight: 16 kg
Delivery time: 2-5 days
Hose Reel Eco 10m and 15m for Fresh Oil and Coolant Concentrate
- Hose Length: 10m or 15m
- Hose Diameter: DN 12
- Hose Connection: 1/2"
- Maximum Operating Pressure: 150 bar
Delivery time: 5-10 Tage
Single-Arm Hose Reel with 18m Grease Hose 3/8" Samoa-Hallbauer
- For Grease
- 18m Pressure Hose
- Hose Diameter: 3/8" / NW 10
- Equipped with Guide Arm
- Weight: 17 kg
Delivery time: 2-5 days
Open Hose Reel F-10 with 10m Grease Hose 1/4"
- Hose Length: 10 m
- Supply Line: 0.8 m
- Hose Diameter: 1/4" / NW 6
- Inlet Thread: 1/2" BSP (M)
- Outlet Thread: 1/4" BSP (M)
- Working Pressure: 400 bar
- Weight: 19.2 kg
Delivery time: 2-5 days
Hose Reel SiA Enclosed with 10m Grease Hose 3/8" Samoa-Hallbauer
- For grease
- Pressure hose: 10m
- Hose diameter: 3/8" / NW 10
- Weight: 19.5 kg
- Equipped with a guide arm
Delivery time: 2-5 days

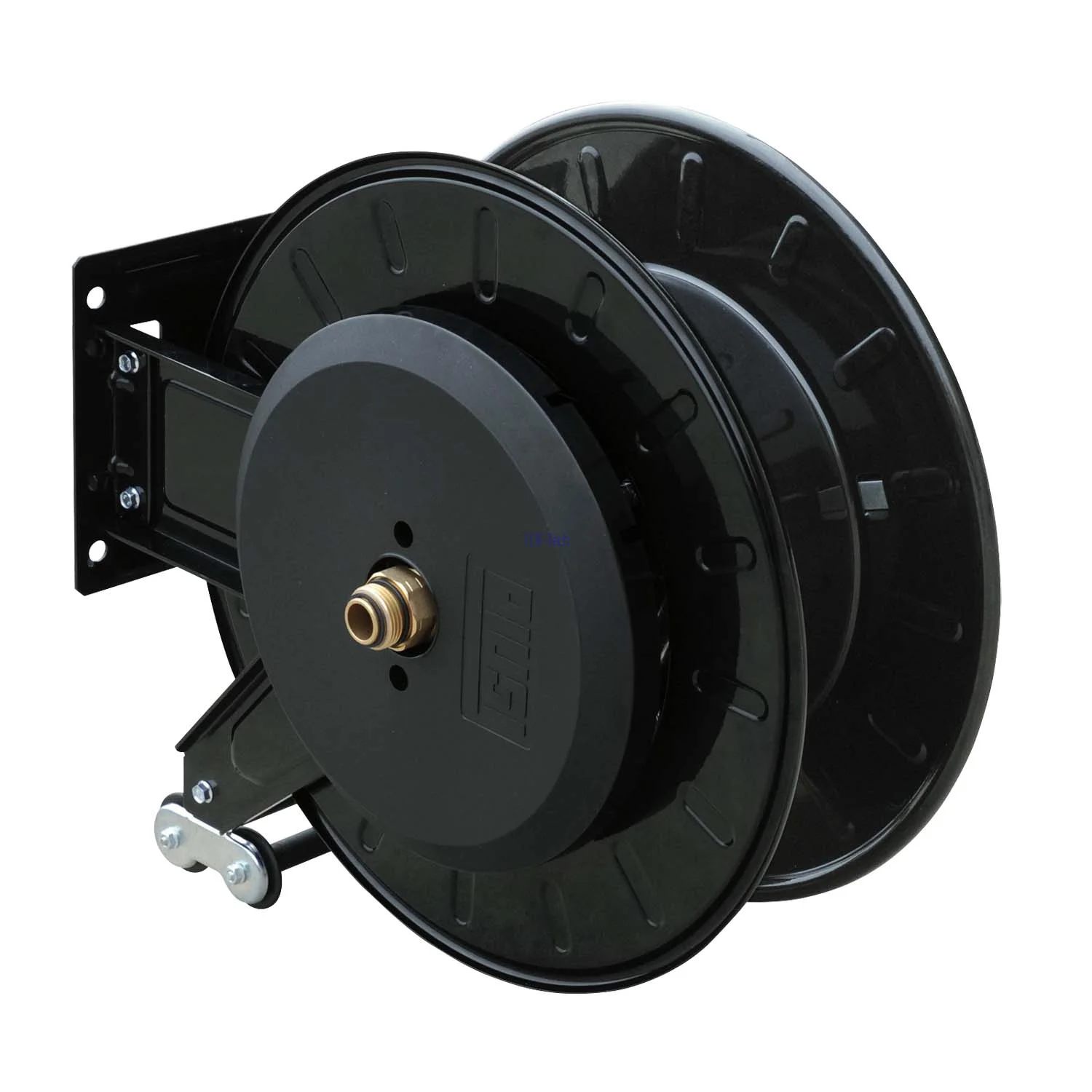

PIUSI Hose Reel 10 m DN 25 with Hose for Diesel 10 bar
- For Diesel
- Hose Length: 10m
- Inlet with Swivel Joint: 1" Female Thread
- Outlet Hose Connector: 1" Male Thread
- Max. Operating Pressure: 10 bar
Delivery time: 5-10 Tage
Closed Hose Reel SiA with 6m Waste Oil Hose 5/8" Samoa-Hallbauer
- Inlet Thread: 1/2" BSP (M)
- Outlet Thread: 1/2" BSP (M)
- Hose Diameter: 5/8" / NW 16
- Hose Length: 6m
- Connection Hose: 0.8m
- Weight: 19.1 kg
Delivery time: 2-5 days
Hose Reel SiA Enclosed with 15m Grease Hose 3/8" Samoa-Hallbauer
- For Grease
- With Guide Arm
- Hose Length: 15m
- Hose Diameter: 3/8" / NW 10
- Weight: 22.6 kg
Delivery time: 2-5 days
Open Grease Hose Reel with 10 m High-Pressure Hose DN 6
- Hose Length: 10m
- Maximum Pressure: 500 bar
- Mounting Options: Wall, Ceiling, and Floor Mounting
- Pressure Hose Connection: R1/4" external
- Swivel Joint Connection: R1/4" internal
Delivery time: 5-10 Tage
Open Hose Reel with 12 m Pressure Hose DN16
- Hose Length: 12m
- Maximum Pressure: 60 bar
- Mounting Options: Wall, Ceiling, and Floor Mounting
- Suitable for: Engine, Gear, and Hydraulic Oils, Diesel, Heating Oil, Antifreeze
- Connections: Hose R3/4" DKR, Swivel Joint R3/4" External
Delivery time: 5-10 Tage
Hose Reel SiA Enclosed with 15m Oil Hose 1/2" Samoa-Hallbauer
- Working Pressure: 160 bar
- Inlet Thread: 1/2" BSP (M)
- Outlet Thread: 1/2" BSP (M)
- Hose Diameter: 1/2" / NW 13
- Hose Length: 15 m
- Connection Hose: 0.8 m
- Weight: 21.4 kg
Delivery time: 2-5 days
Closed Hose Reel SiA with 18m Oil Hose 1/2" Samoa-Hallbauer
- Hose Length: 18 m
- Hose Diameter: 1/2" / NW 13
- Inlet Thread: 1/2" BSP (M)
- Outlet Thread: 1/2" BSP (M)
- Working Pressure: 160 bar
- Weight: 22.2 kg
Delivery time: 2-5 days
PIUSI Hose Reel 60 bar with 15 m 3/4" Oil Hose with Hose
- Medium: Oil
- Max. Operating Pressure: 60 bar
- Inlet with Swivel Joint: 1" male thread
- Outlet Hose Connector: 3/4" male thread
- Hose Length: 15m
Delivery time: 5-10 Tage
Single-Arm Hose Reel
Delivery time: 2-5 days

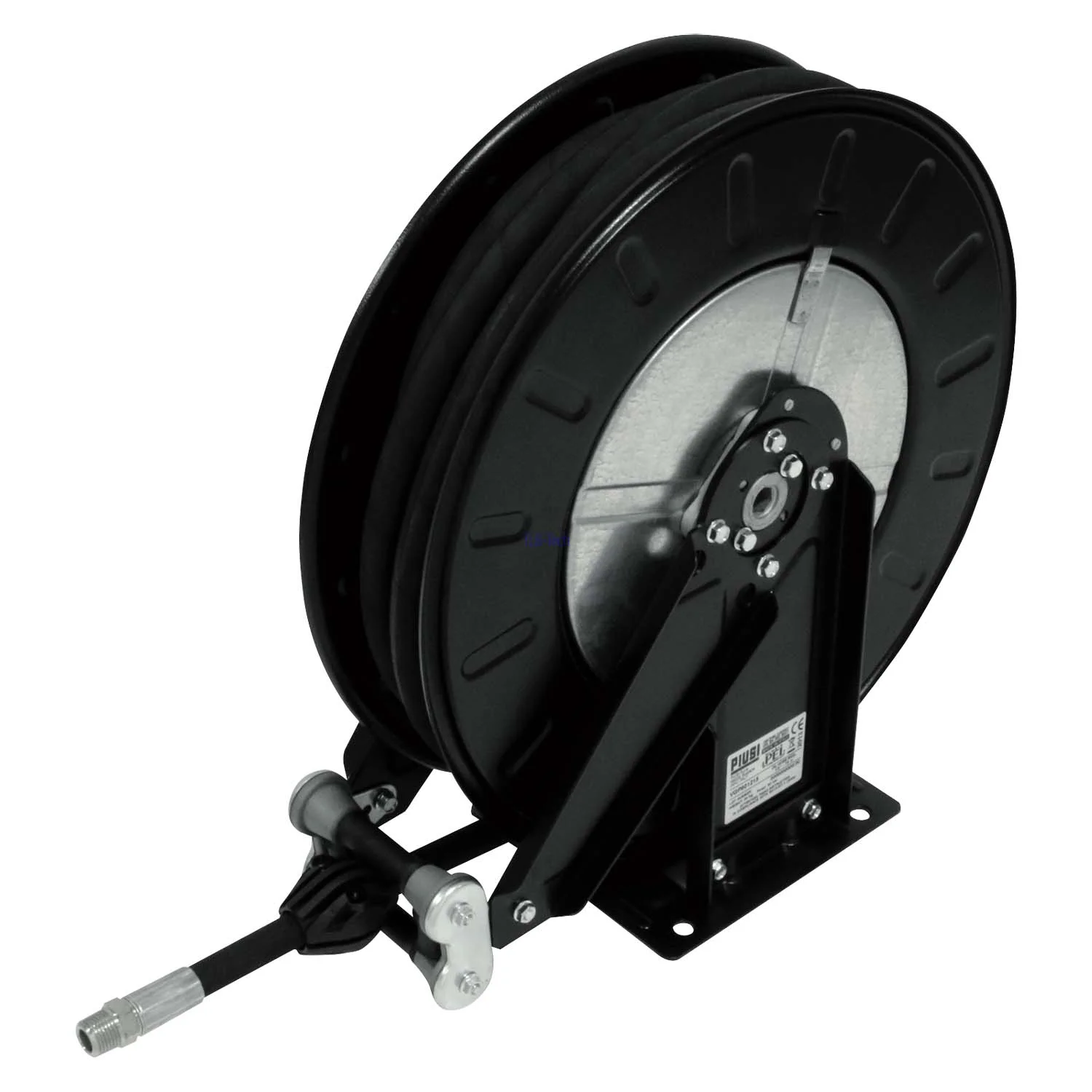

PIUSI Hose Reel 60 bar with 10 m 1" Oil Hose with Hose
- Medium: Oil
- Max. Operating Pressure: 60 bar
- Inlet with Swivel Joint: 1" Male Thread
- Outlet Hose Connector: 1" Male Thread
- Hose Length: 10m
Delivery time: 5-10 Tage
Open Grease Hose Reel with 15 m High-Pressure Hose DN 6
- Hose Length: 15m
- Maximum Pressure: 500 bar
- Mounting Type: Wall, Ceiling, and Floor Mounting
- Pressure Hose Connection: R1/4" external
- Swivel Joint Connection: R1/4" internal
Delivery time: 5-10 Tage
MATO Hose Reel, Enclosed with Buffer, Max. 60 bar | Versatile Mounting Options
- 8, 10, 15, and 12-meter hose
- Suitable for wall, ceiling, and floor installation
- Powder-coated steel sheet housing
- Convertible to three different outlet types
- Can be mounted in series without gaps
- Connection options: DN12 - R1/2" and DN16 - R3/4" external
- Dimensions: H/W/D 470 / 215 / 500 mm
Delivery time: 5-10 Tage
Hose Reel SiA Closed, Clear Disc, 10m Hose 1/2" Samoa-Hallbauer
- For windshield washer fluid, AdBlue
- Operating pressure: 20 bar
- Inlet thread: 1/2" BSP (M)
- Outlet thread: 1/2" BSP (M)
- Hose diameter: 1/2" / NW 13
- 10 m pressure hose
- 0.8 m connection hose
- Weight: 19.0 kg
Delivery time: 2-5 days
Hose Reel SiA Enclosed, Clear Disc, 15m Hose 1/2" Samoa-Hallbauer
- Pressure Hose: 15 m
- Connection Hose: 0.8 m
- Hose Diameter: 1/2″ / NW 13
- Inlet and Outlet Thread: 1/2″ BSP (M)
- Working Pressure: 20 bar
- Weight: 24.2 kg
Delivery time: 2-5 days
Choosing the right hose reel for your medium
Compressed air – up to 17 bar
PCL compact DN8 (8 m, €85) for small workshops, PCL standard DN10 (15/20 m, from €144) as the standard solution, PCL Prestige DN12 (15 m, €288) for a higher flow. PIUSI enclosed (20 bar) also suitable for water. Choose a drip-tray model for ceiling or wall mounting.
Fresh oil – 60 bar
PIUSI oil reel 60 bar in 3/8" (from €322) or 1/2" (from €324), 10–20 m – open or enclosed, without or with a hose. Samoa SiA enclosed (€671–803) in 1/2", 10–18 m for continuous operation. Pay attention to the viscosity of the oil: for gear oil SAE 90, choose a larger cross-section (1/2").
Grease – 400 bar high pressure
PIUSI GREASE 400 bar in 1/4" or 3/8", 10–15 m (€342–544). Samoa Single-Arm open (€554–579) or SiA enclosed (€669–784). Note the hose size of the grease gun – 1/4" is the most common size, 3/8" for larger grease guns. For centralised lubrication systems: note the supply/return hose.
Diesel & water
PIUSI DN25 (10 m, 10 bar, €731) for diesel dispensing systems. Samoa WD-15 water/diesel (15 m, €1,822) combined. Hose drums DN12/16 (€619–802) for compressed air or water with a large cross-section. Always check the medium resistance of the hose.
Open or enclosed?
Open: a visible spring mechanism, easy maintenance access, lighter and cheaper. Enclosed (PIUSI, Samoa SiA): protection against contamination and damage, a tidy appearance, protects the reel from dripping oil. For customer areas or visible installations, the enclosed version is recommended.
Hose length & size
Hose length according to the working area: 10 m for fixed points, 15 m flexible, 20–25 m for large halls. Hose size according to flow rate: 3/8" low, 1/2" medium, 3/4" and 1½" for large systems. Longer hoses with a larger cross-section reduce pressure losses with high-viscosity media.
Frequently asked questions about hose reels
The right hose reel for your workshop
Our specialist team advises you free of charge – on medium, pressure, length, mounting position and the right combination of reel and hose.
☎ Call +49 36071 924340 Request a quote
