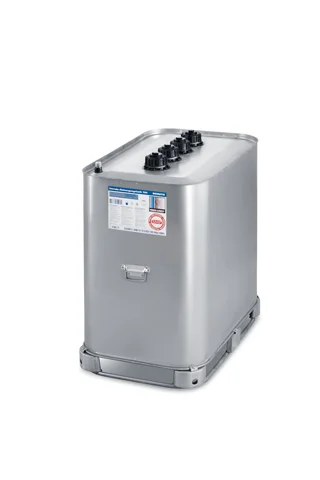

Diesel Tank - Heating Oil Tank - Multi 700 Liter - Storage Tank
€769.00*
- Capacity: 700 liters
- Dimensions: 1135x757x1210 mm
- Suitable for diesel, heating oil
Delivery time: 1-3 days
Convenient and Secure Storage with the Diesel Tank - Heating Oil Tank - Multi 700 Liter
This high-performance diesel tank for storing diesel, RME, and heating oil is specifically designed to safely store your heating oil even in water protection areas without the need for a containment basin. Approved for indoor or covered outdoor installation, this storage tank offers you maximum flexibility and security. With a dispensing valve, the tank can be filled easily and conveniently.
Technical Specifications
- Tank Capacity: 700 liters
- External Dimensions LxWxH (mm): 1135 x 757 x 1210 mm
- Outer Container Material: Galvanized steel sheet
- Inner Container Material: Plastic
- Filling: 2'' fill nozzle
- Standard Features: Level indicator, leakage sensor, integrated carrying handles
- Approved for the storage of: Heating oil, diesel fuel, lubricating oils, hydraulic oils
Special Features
- Double-walled safety with a corrosion-free inner container made of HDPE and a robust outer container made of galvanized steel sheet
- Equipped with pallet feet and level indicator
- 1,000-liter diesel tank station for indoor installation with odor barrier (odor-proof)
- Resistant to bio-oil
- Approved for storage and transport (without mounted control elements)
- With general building authority approval number Z-40.21-133 from DIBt, Berlin
- Transport approval number D/BAM/10104/31HA1

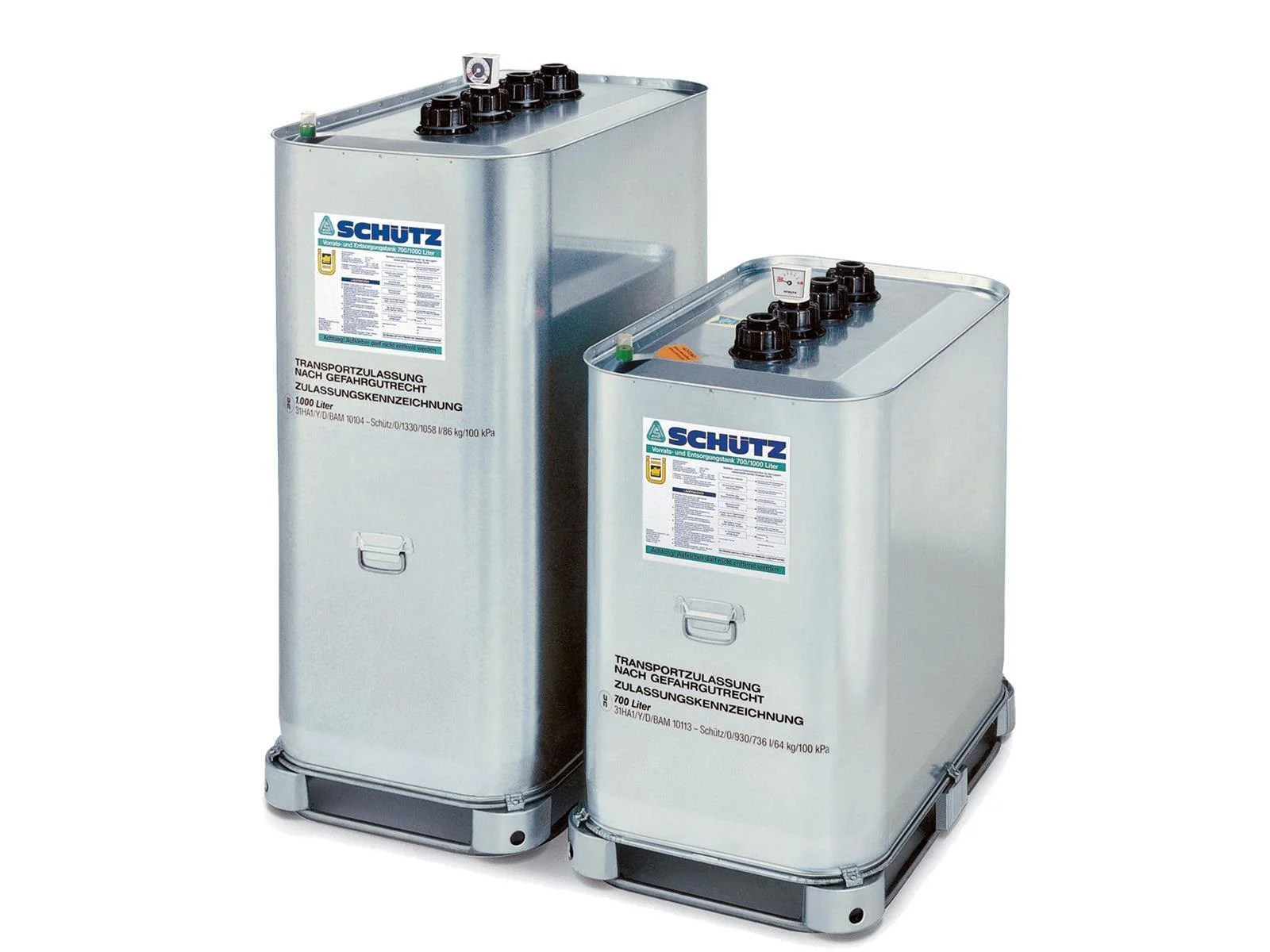

Schütz Tank with 700 Liter Capacity
The diesel tank from Schütz is a double-walled diesel tank with a 700-liter capacity, featuring an HDPE inner tank and a robust outer tank made of steel sheet. No containment basin is required as the tank is double-walled. It is approved for both storage and transport, the latter without mounted control elements. The diesel tank has integrated pallet feet, making it easy to move with a pallet jack or forklift. This heating oil tank can be installed both indoors and outdoors under a roof.
Schütz GmbH & Co. KGaA
Schützstraße 12
56242 Selters, Deutschland
Login
2 reviews
26 January 2024 09:38
Beeindruckende Leistung im Verkaufsgespräch! Der Mitarbeiter zeigte tiefgehendes Produktwissen.
18 May 2022 12:24
schneller Versand, freundlicher Kontakt
Tank kam auch in heutiger Zeit von längeren Lieferzeiten zügig an, wie bestellt, gerne wieder
Accessory products
- Detection of Leaks
- Optimal Control
- Acoustic and Visual Signaling
Delivery time: 1-3 days
- Temperature Range: -10 to +60°C
- Maximum Medium Temperature: -5 to +50°C
- Protection Rating: IP 40
- Electrical Connection: 230 / 50V / Hz
- Dimensions (W x D x H): 100 x 65 x 190mm
- Weight: 0.4kg
Delivery time: 1-3 days
- 2-piece filling and ventilation fittings combination
- 45° angle 2“ with fill pipe closure G2“ and bayonet coupling
- Secure closure with an effective plastic lid
- Fill pipe for a smooth inflow into the tank, reducing turbulence and splashing
Delivery time: 1-3 days
- Features a 2" thread for easy installation
- Float specifically designed for HD-PE storage tanks
- Compatible with models such as SCHÜTZ VET 1000 and VET 700
- Also suitable for SCHÜTZ heating oil tanks
- Graduated in liters
- Display adjustable for 700-liter or 1000-liter tanks
Delivery time: 1-3 days
- Flow Rate: approximately 68 liters/minute
- Voltage: 230V
- Includes automatic dispensing nozzle, suction hose, 4m delivery hose
- Compatible Media: Diesel, Heating Oil EL/L, Coolant (undiluted)
Delivery time: 1-3 days
- Type Approved
- Level Sensor
- Level Limiter
- Alarm Buzzer
- Warning Lamp
Delivery time: 1-3 days
- Tanker Truck Coupling
- Filler Neck Closure
- DN 50 x 2"
Delivery time: 1-3 days
- Filling funnel with sieve
- Galvanized
- Lockable
- 2" threaded socket
Delivery time: 1-3 days
- Connection Thread: 2" Male Thread
- Compatible with Storage Tanks from Schütz, Roth, Dehoust with 2" Fittings
Delivery time: 1-3 days
- 1 x Threaded Bushing Bung G2" Female Thread
- 1 x Union Nut S100x8 Female Thread Black Open
- 1 x Black Cap 2" Male Thread
- 1 x Flat Gasket NBR 40 - Stub Gasket - Black Dimensions: 83/64.5x4.3mm
Delivery time: 1-3 days
- Frequency: 2.412 to 2.462 GHz
- Software: mytecalemit web software
- Media: Diesel, Heating Oil, AdBlue®, Fresh Oil, Waste Oil, Water
- Weight: 0.27 kg
- Standards: Wi-Fi Standard: 802.11 b/g/n
- Connection Thread: 2''
- Protection Class: IP 67
Delivery time: 1-3 days
- Frequency: 850/900/1800/1900 MHz @GSM
- Software: mytecalemit web software
- Media: Diesel, Heating Oil, AdBlue®, Fresh Oil, Waste Oil, Water
- Weight: 0.503 kg
- Standards: GSM/GPRS (2G)
- Connection Thread: 1 1/4'', 1 1/2'', 2''
- Protection Class: IP 67
Delivery time: 1-3 days
Related products

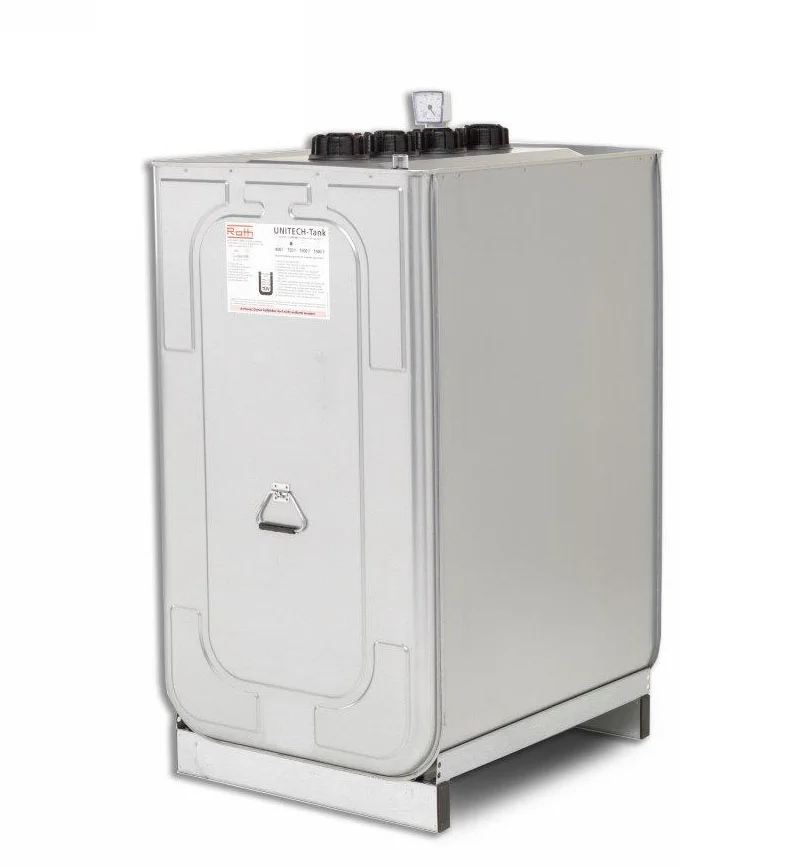

- 750-liter capacity
- Dimensions: 980x760x1420 mm
- For storage of diesel and heating oil
Delivery time: 1-3 days
- Capacity: 1000 liters
- Dimensions: 1135 x 757 x 1625 mm
- Suitable for diesel and heating oil
Delivery time: 1-3 days
- Capacity: 1000 liters
- Dimensions: 1280 x 760 x 1420 mm
- Suitable for diesel and heating oil
Delivery time: 1-3 days

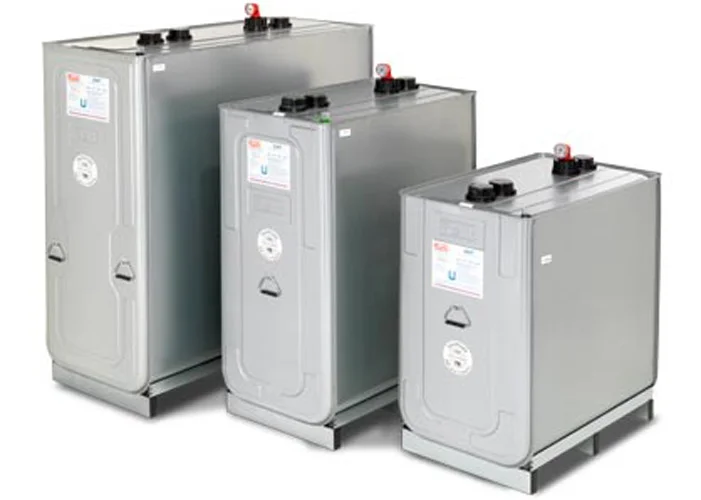

- Versions: 750, 1000 & 1500 liters
