Diesel Tank - Heating Oil Tank - Multi 1000 Liter - Storage Tank
Multi 1000 Liter Diesel and Heating Oil Tank - The Perfect Solution for Your Storage Needs
Technical Specifications:
- Capacity: 1000 liters
- External Dimensions (LxWxH): 1135 x 757 x 1625 mm
- Outer Tank Material: Galvanized Steel Sheet
- Inner Tank Material: Plastic
- Filling Connection: 2''
- Standard Features: Level Indicator, Leak Detector, Carrying Handles
- Approved for Storing: Heating Oil, Diesel, Lubricating Oils, Hydraulic Oil
Outstanding Features
- Double-walled design for maximum safety with a corrosion-resistant HDPE inner tank and a robust galvanized steel outer tank
- Equipped with pallet base and level indicator
- Suitable for indoor installation with an odor barrier function
- Resistant to bio-oil
- Approved for storage and transport (without installed control elements)
- General Building Authority Approval No. Z-40.21-133 from DIBt, Berlin
- Transport Approval Number: D/BAM/10104/31HA1

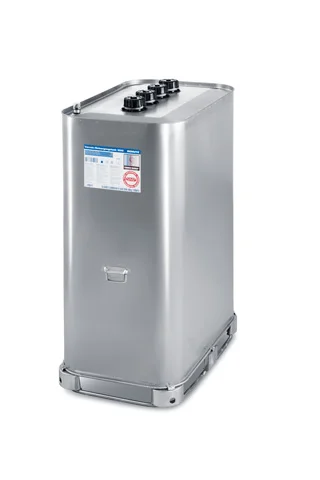

Schütz Tank with 1000 Liter Capacity
The 1000-liter Schütz diesel tank - robust, safe, and reliable. This tank features a double-walled construction with an HDPE inner tank and a sturdy galvanized steel outer tank, eliminating the need for an additional catch basin. It is approved for both storage and transport, but only without installed control elements during transport. Thanks to the integrated pallet base, the tank can be easily moved with a pallet jack or forklift. Suitable for installation both indoors and outdoors under a roof.
Login
1 review
23 November 2023 17:41
Tank mit Transportzulassung
Sehr praktisch,, passt fast überall hin. Geliefert mit Füllstandsanzeige und Leckagesonde. Top
Zubehör Artikel
- Type Approved
- Level Sensor
- Level Limiter
- Alarm Buzzer
- Warning Lamp
Delivery time: 1-3 days
- Tanker Truck Coupling
- Filler Neck Closure
- DN 50 x 2"
Delivery time: 1-3 days
- Filling funnel with sieve
- Galvanized
- Lockable
- 2" threaded socket
Delivery time: 1-3 days
- Connection Thread: 2" Male Thread
- Compatible with Storage Tanks from Schütz, Roth, Dehoust with 2" Fittings
Delivery time: 1-3 days
- 1 x Threaded Bushing Bung G2" Female Thread
- 1 x Union Nut S100x8 Female Thread Black Open
- 1 x Black Cap 2" Male Thread
- 1 x Flat Gasket NBR 40 - Stub Gasket - Black Dimensions: 83/64.5x4.3mm
Delivery time: 1-3 days
- Detection of Leaks
- Optimal Control
- Acoustic and Visual Signaling
Delivery time: 1-3 days
- Temperature Range: -10 to +60°C
- Maximum Medium Temperature: -5 to +50°C
- Protection Rating: IP 40
- Electrical Connection: 230 / 50V / Hz
- Dimensions (W x D x H): 100 x 65 x 190mm
- Weight: 0.4kg
Delivery time: 1-3 days

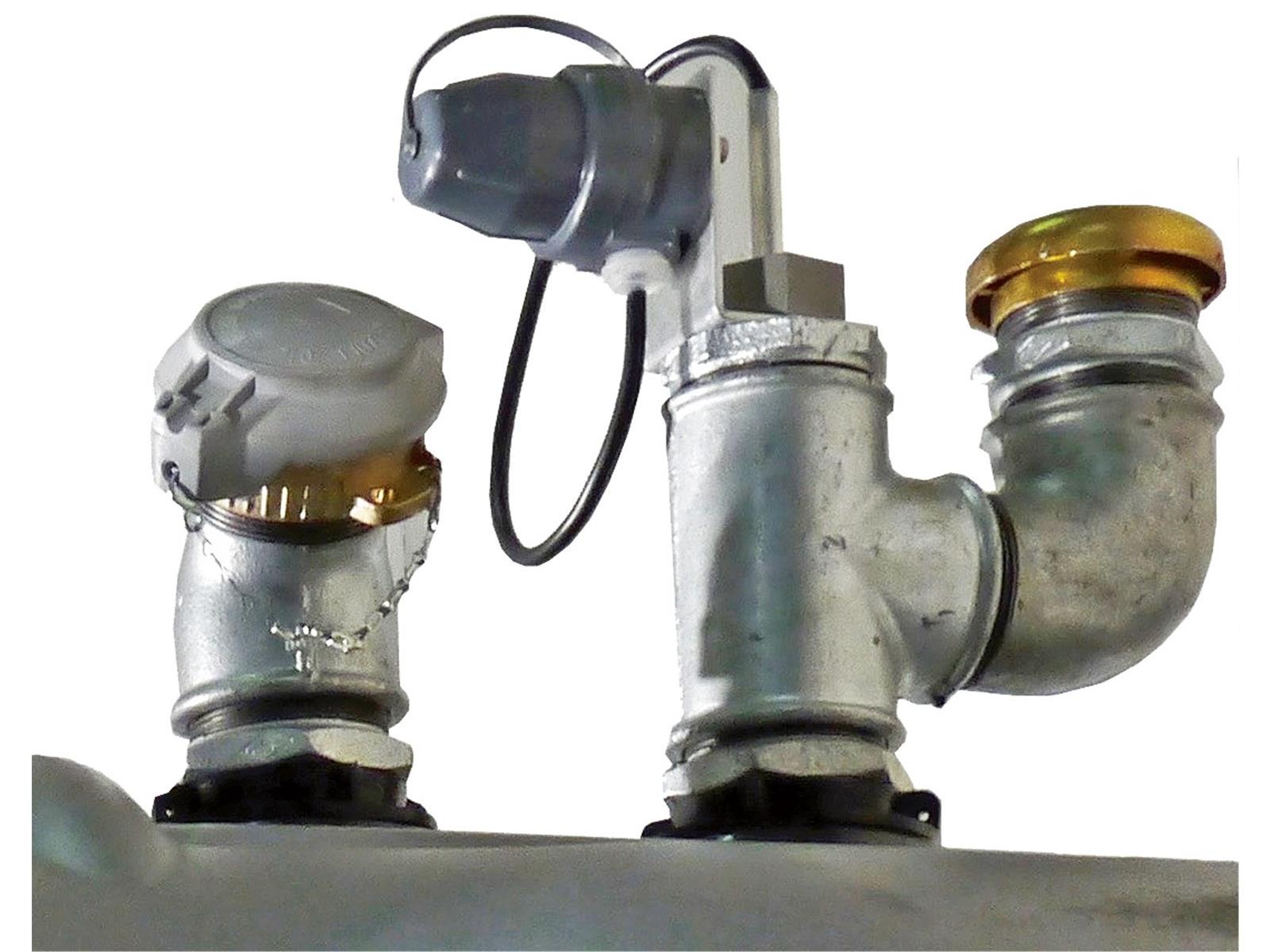

- 2-piece filling and ventilation fittings combination
- 45° angle 2“ with fill pipe closure G2“ and bayonet coupling
- Secure closure with an effective plastic lid
- Fill pipe for a smooth inflow into the tank, reducing turbulence and splashing
Delivery time: 1-3 days
- Features a 2" thread for easy installation
- Float specifically designed for HD-PE storage tanks
- Compatible with models such as SCHÜTZ VET 1000 and VET 700
- Also suitable for SCHÜTZ heating oil tanks
- Graduated in liters
- Display adjustable for 700-liter or 1000-liter tanks
Delivery time: 1-3 days
- Flow Rate: approximately 68 liters/minute
- Voltage: 230V
- Includes automatic dispensing nozzle, suction hose, 4m delivery hose
- Compatible Media: Diesel, Heating Oil EL/L, Coolant (undiluted)
Delivery time: 1-3 days
- Frequency: 2.412 to 2.462 GHz
- Software: mytecalemit web software
- Media: Diesel, Heating Oil, AdBlue®, Fresh Oil, Waste Oil, Water
- Weight: 0.27 kg
- Standards: Wi-Fi Standard: 802.11 b/g/n
- Connection Thread: 2''
- Protection Class: IP 67
Delivery time: 1-3 days
- Frequency: 850/900/1800/1900 MHz @GSM
- Software: mytecalemit web software
- Media: Diesel, Heating Oil, AdBlue®, Fresh Oil, Waste Oil, Water
- Weight: 0.503 kg
- Standards: GSM/GPRS (2G)
- Connection Thread: 1 1/4'', 1 1/2'', 2''
- Protection Class: IP 67
Delivery time: 1-3 days
