Diesel Tank - Heating Oil Tank - 1000L - Storage Tank
€740.00*
- Capacity: 1000 liters
- Dimensions: 1280 x 760 x 1420 mm
- Suitable for diesel and heating oil
Delivery time: 1-3 days
Roth Unitech Diesel Tank / Heating Oil Tank 1000 Litres, Double-Walled – Storage Tank without Collecting Tray
The Roth Unitech tank with 1000 litres is a double-walled storage tank with an HDPE inner tank and galvanised steel outer tank for diesel, heating oil and oils. It is approved for installation in buildings without an additional collecting tray and is supplied with leak probe, level indicator and base frame.
Product features
- Double-walled storage tank: HDPE inner tank, outer tank made of steel sheet galvanised on both sides
- Permanently firm, patented flanging of the steel outer tank
- Approved for installation without additional collecting tray (single tank in rooms of buildings)
- Supplied as standard with optical leak probe, level indicator and base frame
- 4 connections with 2" female thread (extraction, filling, level indicator, additional connection e.g. vent)
- Integrated carrying handles
Technical data
- Manufacturer: Roth Werke GmbH
- Manufacturer part number: 1115008668
- EAN: 4037115028168
- Nominal capacity: 1000 litres
- Dimensions (L x W x H): 1280 x 760 x 1420 mm (height on base frame)
- Empty weight: approx. 82 kg
- Approval (DIBt): general building authority approval Z-40.21-29
- Connections: 4 × G 2" female thread
- Stored media: Heating oil EL, diesel fuel, rapeseed methyl ester (RME), lubricating, engine and gear oils, hydraulic oils H/HL/HL-P, heat transfer oils Q, fully and semi-synthetic oils, used oil of known origin (according to approval)
Applications
- Storage of diesel and heating oil in companies, workshops and agriculture
- Private filling stations in combination with a pump
- Storage of lubricating, hydraulic and used oil in the workshop
Scope of delivery
- 1 × Roth Unitech tank 1000 litres with optical leak probe, level indicator and base frame
Notes
Minimum wall clearance 50 mm on three sides and 400 mm on one long side. Up to a filling volume of 1250 l, filling via a self-closing nozzle in free outlet at max. 200 l/min is permitted. Pump, extraction/vent kit and other accessories only included if listed separately in the quotation. Warranty according to Roth: 5 years. Technical data subject to change by the manufacturer.
Roth Werke GmbH
Am Seerain 2
35232 Dautphetal-Buchenau, Deutschland
Login
1 review
19 January 2024 11:58
Der 1000L Dieseltank ist sehr robust und perfekt für meinen Bedarf!
Accessory products
- Flow Rate: 12 liters per minute
- Pumping Media: Oils up to SAE 50
- Application: Suitable for containers of 60/200/220 liters and tanks
Delivery time: 1-3 days
- Material: galvanised steel
- Connections: 2" threaded spigot
- Suitable for: VET waste oil tanks
- Galvanised funnel
- Lockable lid
Delivery time: 1-3 days
- Type: vent fitting
- Suitable for: compact tank systems TE 1n, TE 2ne, fresh oil compact tank systems 1,000 l / 1,500 l
- Vent fitting for storage tanks
- Accessory for TECALEMIT compact tank systems
Delivery time: 1-3 days

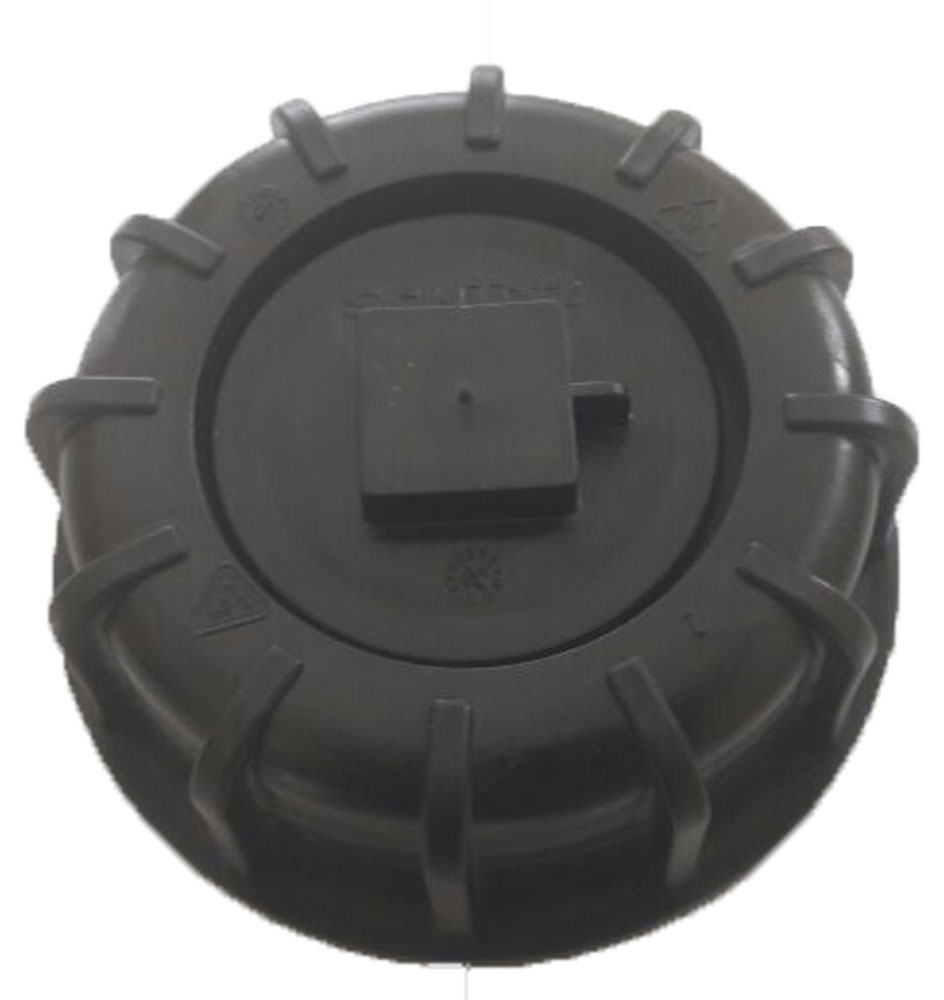

- Set contents: threaded socket G2" female, union nut S100 x 8 female, cap 2" male, flat seal 83 x 64.5 x 4.3 mm
- Suitable for: SCHÜTZ and ROTH tanks with S100 x 8 male thread connection
- Material: seal NBR; union nut and cap black
- 4-piece set for tank connections S100 x 8 male
- Threaded socket G2" female as 2" connection
Delivery time: 1-3 days
- Device Type: Level Indicator
- Compatibility: Unitech/Multitech 1000 Liter Tanks
- Manufacturer: Roth Werke
Delivery time: 1-3 days
- Type: Leak probe, optical
- Suitable for: Roth Unitech / Multitech 750 l and 1000 l
- Optical leak indicator for checking the interstitial space
- Matched to Unitech/Multitech 750 l and 1000 l
- Spare part for the standard leak probe
Delivery time: 1-3 days
- Extraction Fitting
- With Quick-Action Valve
- Without Limit Value Transmitter
- Ventilation Hood with Foam Filter
Delivery time: 1-3 days
- For Unitech/Multitech 750 L/1000 L
- Straight connector with tanker connection
Delivery time: 1-3 days
- For Unitech/Multitech Tank 750 L/1000 L
- Nozzle Angle: 45°
- With Tanker Coupling
Delivery time: 1-3 days
- Sensor: ultrasonic
- Wireless standard: Wi-Fi 802.11 b/g/n
- Software: myTecalemit
- Ultrasonic level measurement with Wi-Fi transmission
- Connection to the myTecalemit web software
Delivery time: 1-3 days
- Sensor: ultrasonic
- Data transfer: mobile network 2G (according to designation)
- Ultrasonic level gauge
- Data transmission via mobile network (2G)
Delivery time: 1-3 days
- Suitable for: Roth Unitech / Multitech
- Stored media: Diesel, heating oil
- Angled filling pipe with 12 mm nozzle and bayonet tanker coupling
- T-piece for mounting level limit sensor and vent cap incl. small animal barrier
- Level limit sensor as protection against overfilling
Delivery time: 1-3 days
- Angled fill pipe with 12mm nozzle
- Bayonet tank truck coupling
- Limit sensor for overfill protection
- Vent cap with small animal guard
Delivery time: 1-3 days
