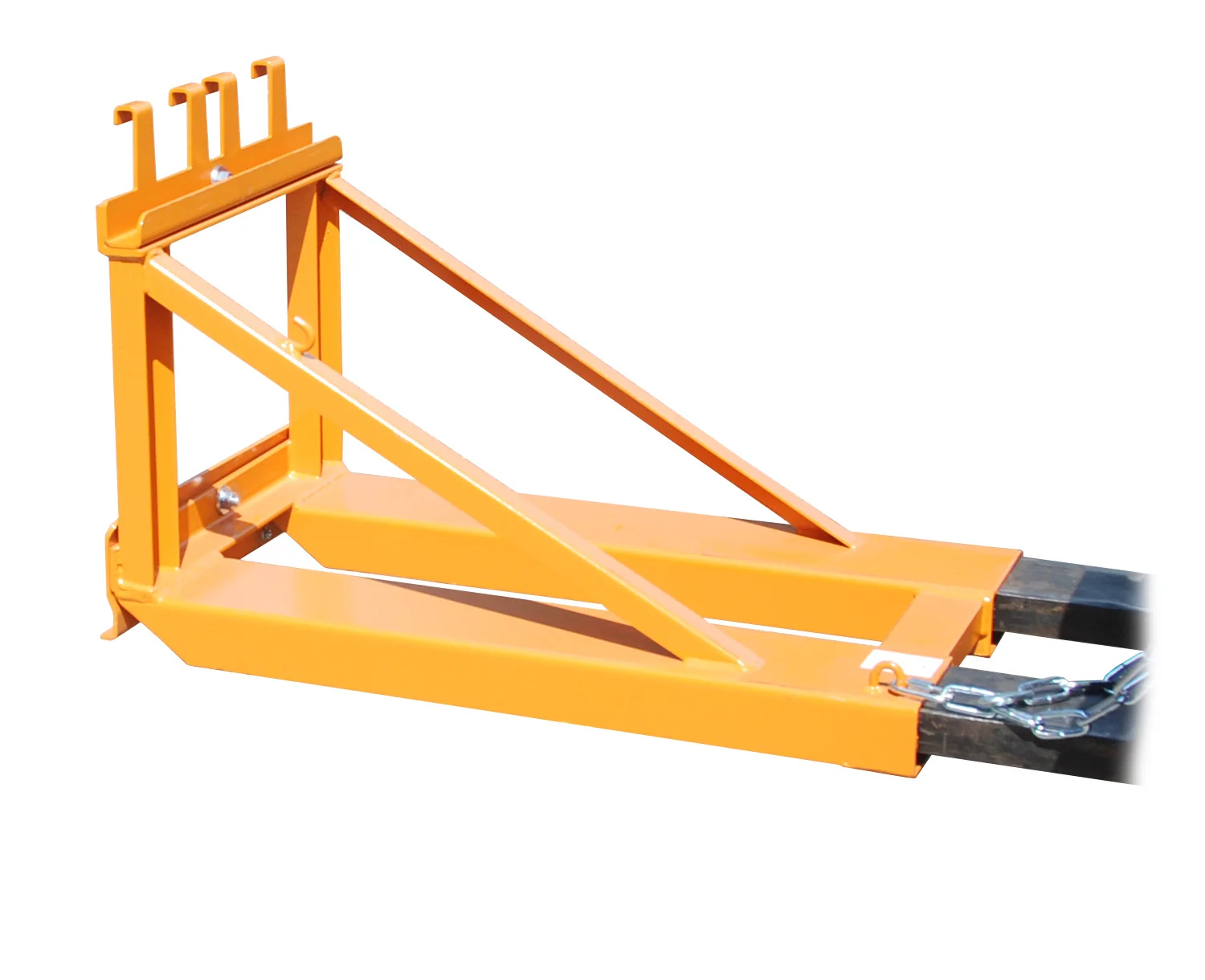

BAUER Wheelie Bin Lifter MH-I, Painted RAL 2000 Yellow Orange, 1 × Bin up to 360 l, 200 kg, 1030 × 585 × 680 mm
€740.63*
- Dimensions (L × W × H): 1030 × 585 × 680 mm
- Load capacity: 200 kg
- Bin capacity (MGB): one bin up to 360 l
- Version: painted RAL 2000 yellow orange
- Effortless, time-saving transport of wheelie bins (MGB)
Delivery time: 3-4 weeks
BAUER Wheelie Bin Lifter MH-I – 1 × Bin up to 360 l, 200 kg, 1030 × 585 × 680 mm, Painted in 5 RAL Colours
The BAUER wheelie bin lifter MH-I is designed for effortless, time-saving transport of wheelie bins (MGB) and holds one bin up to 360 l; its load capacity is 200 kg. The sturdy base frame has fork pockets at the bottom (lengthwise, not continuous) with an inner size of 170 × 75 mm and 230 mm inner spacing; the holding fixture is bolted to the base frame. It is fitted with a rubber stop and a safeguard against accidental slipping. It can be used for bins to DIN EN 840-1, namely 80 to 360 l plastic bins and 240 l metal bins. The bin lifter measures 1030 × 585 × 680 mm (L × W × H) with a front overhang of 1026 mm and is not stackable. Available painted in RAL 2000 yellow orange, RAL 3000 flame red, RAL 5012 light blue, RAL 6011 reseda green or RAL 7005 mouse grey. It is delivered assembled.
Product features
- Painted in 5 RAL colours (2000, 3000, 5012, 6011, 7005)
- Effortless, time-saving transport of wheelie bins (MGB)
- Capacity: one bin up to 360 l
- Load capacity 200 kg
- Sturdy base frame with fork pockets at the bottom (lengthwise, 170 × 75 mm)
- With rubber stop
- Holding fixture bolted to the base frame
- Safeguard against accidental slipping
- Forklift attachment, delivered assembled
Technical data
- Manufacturer: BAUER GmbH (Südlohn, Germany)
- Dimensions (L × W × H): 1030 × 585 × 680 mm
- Load capacity: 200 kg
- Bin capacity (MGB): one bin up to 360 l
- Suitable bins: Bins to DIN EN 840-1: 80 to 360 l plastic bins, 240 l metal bins
- Front overhang: 1026 mm
- Fork pockets: at the bottom, lengthwise, not continuous; inner size 170 × 75 mm (W × H), inner spacing 230 mm
- Holding fixture: bolted to the base frame
- Stop: rubber stop
- Safety feature: against accidental slipping
- Stackability: not stackable
- Surface finish: painted (RAL 2000 yellow orange, RAL 3000 flame red, RAL 5012 light blue, RAL 6011 reseda green, RAL 7005 mouse grey)
- Delivery condition: assembled
- Weight: approx. 65 kg
Available versions
| Item no. | Finish | Weight |
|---|---|---|
| 4496-05-0000-1 | painted RAL 2000 yellow orange | approx. 65 kg |
| 4496-05-0000-2 | painted RAL 3000 flame red | approx. 65 kg |
| 4496-05-0000-3 | painted RAL 5012 light blue | approx. 65 kg |
| 4496-05-0000-4 | painted RAL 6011 reseda green | approx. 65 kg |
| 4496-05-0000-5 | painted RAL 7005 mouse grey | approx. 65 kg |
Applications
- Effortless, time-saving transport of wheelie bins
- Pick-up with a forklift truck via the fork pockets (forklift attachment)
Notes
Observe the load capacity of 200 kg. The bin lifter is intended for transporting wheelie bins and has no tipping function. It is not stackable. Bins are not included. Technical data subject to change by the manufacturer.
