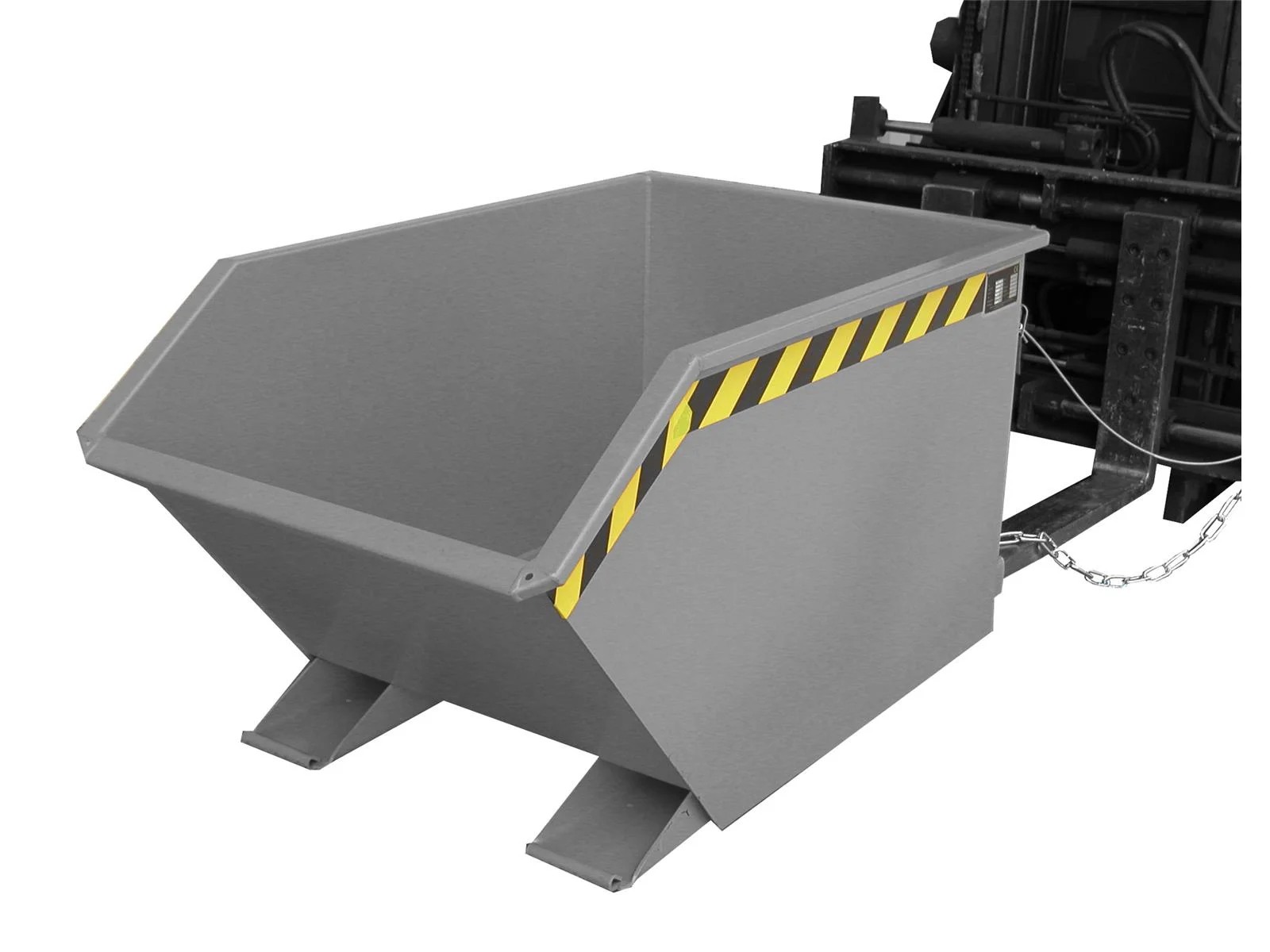

BAUER Tipping Skip GU 500, Painted RAL 7005 Mouse Grey, 0.50 m³, 1000 kg, Favourable Tipping Angle, 1440 × 780 × 680 mm
€1,027.42*
Exact shipping costs are calculated at checkout · tlb-overrides.shipping-info.all-shipping-costs
- Dimensions (L × W × H): 1440 × 780 × 680 mm
- Capacity: 0.50 m³
- Load capacity: 1000 kg
- Version: painted RAL 7005 mouse grey
- Tipping mechanism with a favourable tipping angle
Delivery time: 3-4 weeks
BAUER Tipping Skip GU 500 – 0.50 m³, 1000 kg, Favourable Tipping Angle, 1440 × 780 × 680 mm, 5 RAL Colours or Hot-Dip Galvanised
The BAUER tipping skip GU 500 is a tipping skip with a tipping mechanism and a favourable tipping angle for use with a forklift truck. It can be tipped at any height by pull rope from the forklift driver's seat; a safeguard protects against accidental slipping and tipping. The skip is made of a trough-shaped sheet-metal body with surrounding edge profile on a sturdy base frame; it is picked up via fork pockets at the bottom, lengthwise, not continuous, with an inner size of 200 × 60 mm and 150 mm inner spacing. Castors can be retrofitted. The tipping skip holds 0.50 m³, measures 1440 × 780 × 680 mm (L × W × H) with a discharge edge height of 495 mm and a load pick-up position of 725 mm, and has a load capacity of 1000 kg. It is not stackable. Available painted in RAL 2000 yellow orange, RAL 3000 flame red, RAL 5012 light blue, RAL 6011 reseda green or RAL 7005 mouse grey, or hot-dip galvanised. It is delivered assembled.
Product features
- Painted in 5 RAL colours (2000, 3000, 5012, 6011, 7005) or hot-dip galvanised
- Tipping mechanism with a favourable tipping angle
- Tips at any height by pull rope from the forklift driver's seat
- Safeguard against accidental slipping and tipping
- Trough-shaped sheet-metal body with surrounding edge profile, sturdy base frame with 200 × 60 mm fork pockets
- Castors can be retrofitted
- Capacity 0.50 m³, load capacity 1000 kg, discharge edge height 495 mm
- Forklift attachment, delivered assembled
Technical data
- Manufacturer: BAUER GmbH (Südlohn, Germany)
- Dimensions (L × W × H): 1440 × 780 × 680 mm
- Capacity: 0.50 m³
- Load capacity: 1000 kg
- Discharge edge height: 495 mm
- Load pick-up position: 725 mm
- Tipping mechanism: tipping mechanism, favourable tipping angle
- Emptying: tipping at any height by pull rope from the forklift driver's seat
- Fork pockets: at the bottom, lengthwise, not continuous; inner size 200 × 60 mm (W × H), inner spacing 150 mm
- Safety feature: against accidental slipping and tipping
- Construction: trough-shaped sheet-metal body with surrounding edge profile, sturdy base frame with fork pockets
- Castors: can be retrofitted (not included)
- Stackability: not stackable
- Accessories (separate): 2-piece lid 4409-02-0800 for type GU 500, galvanised, 1300 × 805 × 240 mm, approx. 17 kg; opens on two sides, front section can be locked in the open position
- Surface finish: painted (RAL 2000 yellow orange, RAL 3000 flame red, RAL 5012 light blue, RAL 6011 reseda green, RAL 7005 mouse grey) or hot-dip galvanised
- Delivery condition: assembled
- Weight: painted approx. 111 kg, hot-dip galvanised approx. 120 kg
Available versions
| Item no. | Finish | Weight |
|---|---|---|
| 4409-02-0000-1 | painted RAL 2000 yellow orange | approx. 111 kg |
| 4409-02-0000-2 | painted RAL 3000 flame red | approx. 111 kg |
| 4409-02-0000-3 | painted RAL 5012 light blue | approx. 111 kg |
| 4409-02-0000-4 | painted RAL 6011 reseda green | approx. 111 kg |
| 4409-02-0000-5 | painted RAL 7005 mouse grey | approx. 111 kg |
| 4409-02-0000-7 | hot-dip galvanised | approx. 120 kg |
Applications
- Picking up and moving with a forklift truck via the fork pockets
- Emptying by tipping at any lift height by pull rope from the driver's seat
Notes
Observe the load capacity of 1000 kg. The tipping skip is not stackable. The lid and castors are not included. Technical data subject to change by the manufacturer.
