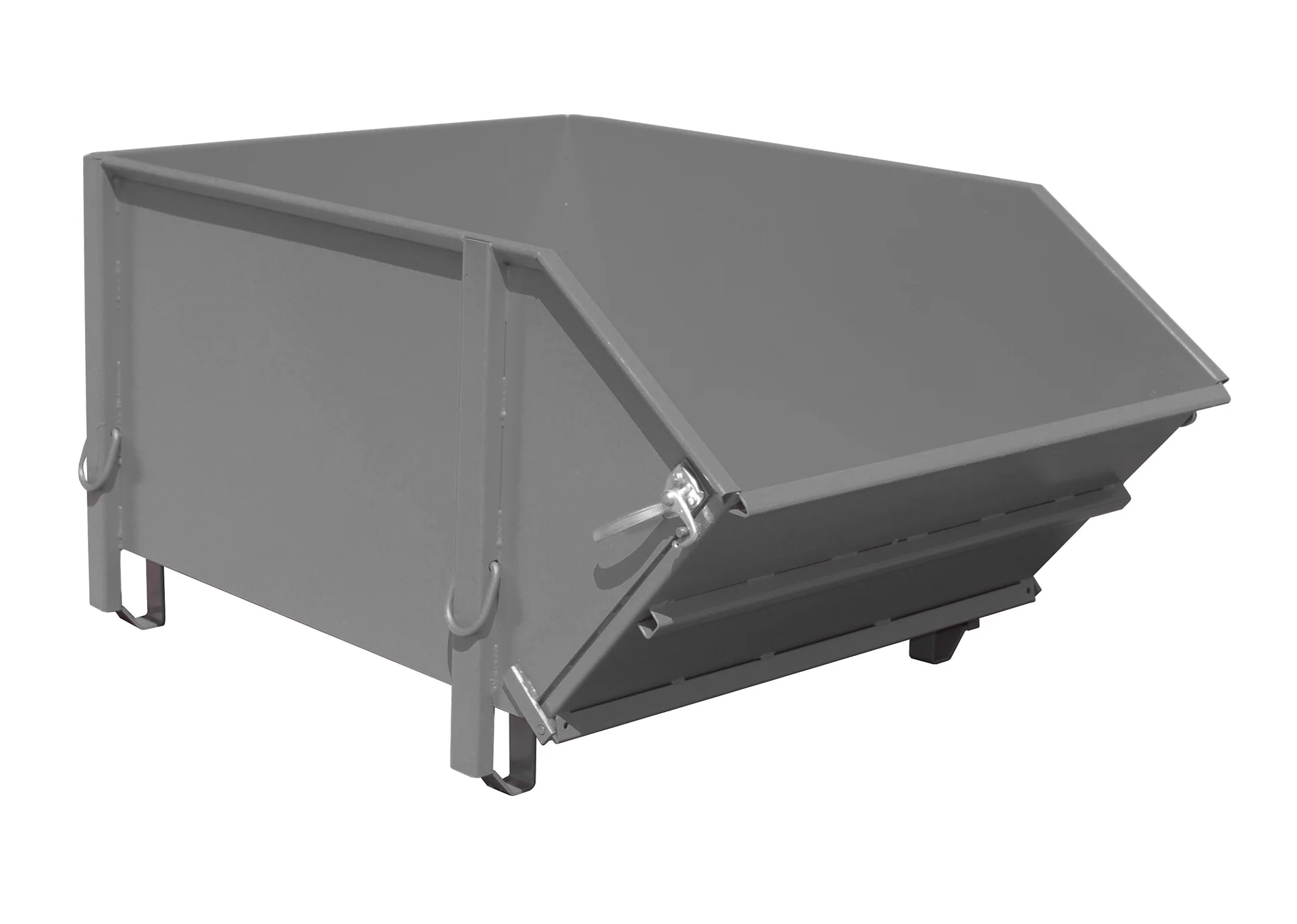

BAUER Building Material Container BBK 100, Painted RAL 7005 Mouse Grey, 1.00 m³, 1500 kg, Hinged Front Wall, Stackable, 1490 × 1110 × 800 mm
€607.20*
Exact shipping costs are calculated at checkout · All shipping costs
- Dimensions (L × W × H): 1490 × 1110 × 800 mm
- Capacity: 1.00 m³
- Load capacity: 1500 kg
- Version: painted RAL 7005 mouse grey
- For renovation, new-build or modernisation work
Delivery time: 3-4 weeks
BAUER Building Material Container BBK 100 – 1.00 m³, 1500 kg, Hinged Front Wall, Stackable, 1490 × 1110 × 800 mm, 5 RAL Colours or Hot-Dip Galvanised
The BAUER building material container BBK 100 is a forklift attachment for use in renovation, new-build or modernisation work. The sturdy construction made of profiled sheet steel holds 1.00 m³ and can be stacked three high (stacking load 4500 kg). A hinged front wall makes loading easier, e.g. with a wheelbarrow; the front flap has reinforced bracing on its underside and is locked on both sides. The container measures 1490 × 1110 × 800 mm (L × W × H), has a load capacity of 1500 kg and a tipping edge height of 555 mm; the load pick-up position is 660 mm. Available painted in RAL 2000 yellow orange, RAL 3000 flame red, RAL 5012 light blue, RAL 6011 reseda green or RAL 7005 mouse grey, or hot-dip galvanised. It is delivered assembled.
Product features
- Painted in 5 RAL colours (2000, 3000, 5012, 6011, 7005) or hot-dip galvanised
- For renovation, new-build or modernisation work
- Sturdy construction made of profiled sheet steel
- Hinged front wall for easy loading, e.g. with a wheelbarrow
- Front flap with reinforced bracing on the underside, locked on both sides
- Capacity 1.00 m³, load capacity 1500 kg
- Stackable three high, stacking load 4500 kg
- Tipping edge height 555 mm, load pick-up position 660 mm
- Dimensions 1490 × 1110 × 800 mm (L × W × H)
- Forklift attachment, delivered assembled
Technical data
- Manufacturer: BAUER GmbH (Südlohn, Germany)
- Dimensions (L × W × H): 1490 × 1110 × 800 mm
- Capacity: 1.00 m³
- Load capacity: 1500 kg
- Stacking load: 4500 kg
- Stackability: three high
- Tipping edge height: 555 mm
- Load pick-up position: 660 mm
- Material: profiled sheet steel
- Equipment: hinged front wall, front flap with reinforced bracing on the underside, front flap locked on both sides
- Surface finish: painted (RAL 2000 yellow orange, RAL 3000 flame red, RAL 5012 light blue, RAL 6011 reseda green, RAL 7005 mouse grey) or hot-dip galvanised
- Delivery condition: assembled
- Weight: painted approx. 110 kg, hot-dip galvanised approx. 118 kg
Available versions
| Item no. | Finish | Weight |
|---|---|---|
| 4511-20-0000-1 | painted RAL 2000 yellow orange | approx. 110 kg |
| 4511-20-0000-2 | painted RAL 3000 flame red | approx. 110 kg |
| 4511-20-0000-3 | painted RAL 5012 light blue | approx. 110 kg |
| 4511-20-0000-4 | painted RAL 6011 reseda green | approx. 110 kg |
| 4511-20-0000-5 | painted RAL 7005 mouse grey | approx. 110 kg |
| 4511-20-0000-7 | hot-dip galvanised | approx. 118 kg |
Applications
- Renovation, new-build and modernisation work
- Collecting, transporting and stacking building materials with a forklift truck
Notes
Observe the load capacity of 1500 kg and the stacking load of 4500 kg. Lock the front flap on both sides before transport. Technical data subject to change by the manufacturer.
