TECALEMIT Compressed Air Pump TecPump DP36 D 18L/min Oil Pump, Lubrication Pump 🚀
€478.00*
Delivery time: 2-5 days

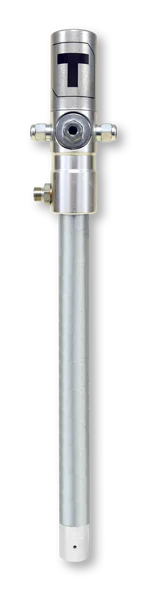

High-Performance Air-Operated Pump TecPump DP36 D – Optimized for Gear Oils and Engine Oils SAE 50
The TecPump DP36 D is a top-quality, highly efficient air-operated piston pump. It is perfectly suited for use with gear oils and engine oils SAE 50, boasting an impressive flow rate of up to 18 l/min.
Technical Specifications
- Flow Rate: Up to 18 l/min
- Suction Tube Length: 940 mm
- Transmission Ratio: 3:1
- Viscosity Range: Max. 5000 mPa·s
- Air Consumption: 330 l/min
- Operating Pressure: 6 - 8 bar
- Drum Fitting: 2"
- Suction Tube Diameter: 42 mm
Composition and Application of the TecPump DP36 D
The TecPump DP36 D consists of a pneumatically operated piston pump, a 940 mm long suction tube for 60 and 200-liter containers, and an adjustable drum fitting. Additionally, the pump includes a pressure connection for the dispensing hose 1/2" male and an air connection 1/4" female.
This device is designed to optimize your workflow and enhance your efficiency. Secure the TecPump DP36 D today and experience unparalleled performance and reliability in your operations. 🚀
