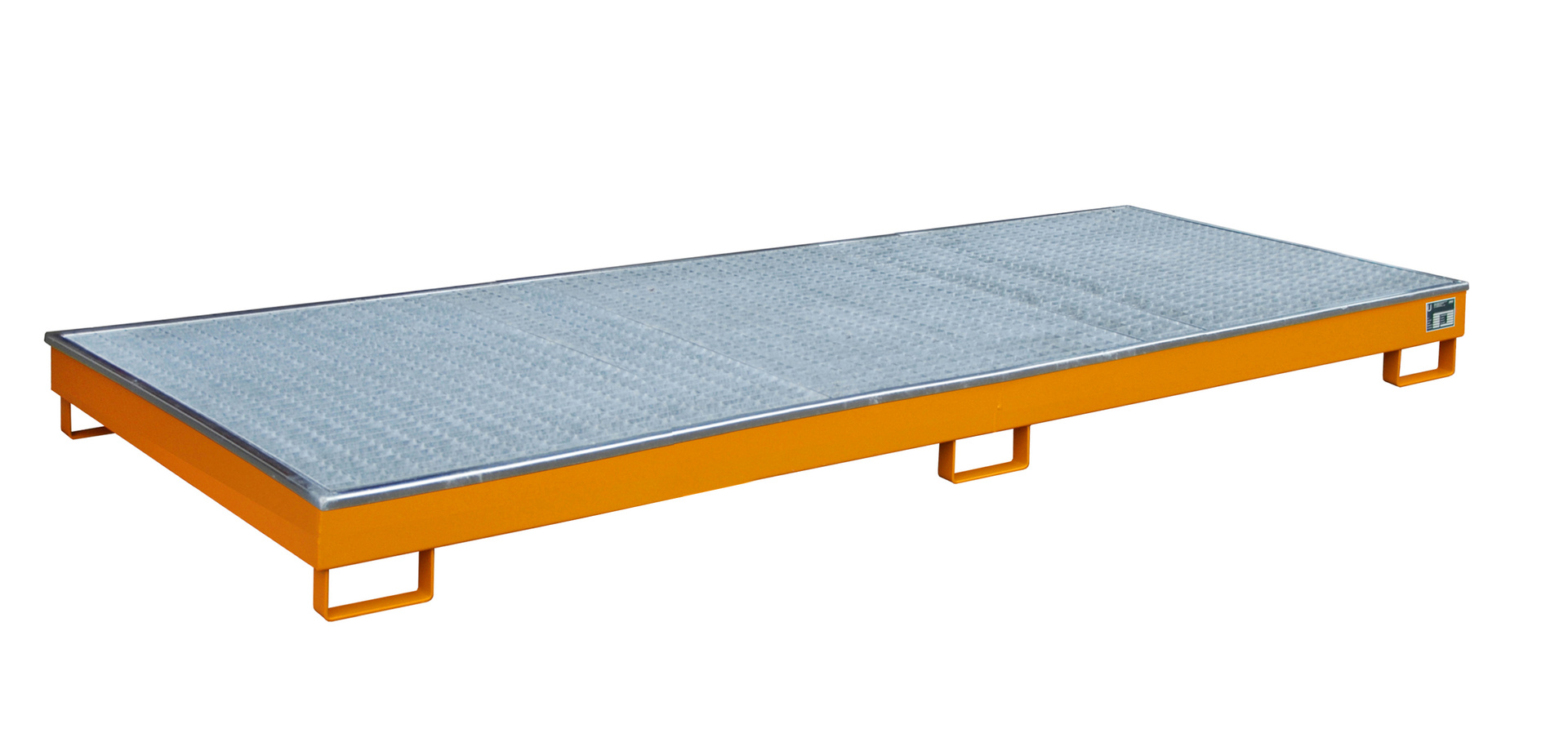

BAUER Shelf Sump with PE Insert and Grating RW-GR 3300-1 PE for 3300 mm Beam Length, Painted RAL 2000 yellow orange, 3265 × 1315 × 195 mm, 238 l
€2,215.64*
- Dimensions (W × D × H): 3265 × 1315 × 195 mm
- Sump capacity: 238 l (315 l to top of sump edge)
- Suitable for beam length: 3300 mm
- Upgrades existing shelving systems to meet legal requirements, suitable for 3300 mm beam length
- Made of 3 mm sheet steel with PE plastic insert
Delivery time: 5-10 Tage
BAUER Shelf Sump with PE Insert and Grating RW-GR 3300-1 PE for 3300 mm Beam Length – 3265 × 1315 × 195 mm, 238 l, Painted in 5 RAL Colours or Hot-Dip Galvanised
The BAUER shelf sump with PE insert and grating RW-GR 3300-1 PE is designed for a beam length of 3300 mm; shelf sumps allow existing shelving systems to be upgraded quickly and economically to meet legal requirements. Made of 3 mm sheet steel with a PE plastic insert and a galvanised clamping frame, it measures 3265 × 1315 × 195 mm (W × D × H) and offers a sump capacity of 238 l (315 l to the top of the sump edge) and 100 mm underside clearance. A galvanised grating with a load capacity of 1,000 kg/m² is included. Available painted in five RAL colours or hot-dip galvanised. With a declaration of conformity (ÜHP) according to StawaR, it is approved for flammable liquids (GHS categories 1–3), liquids hazardous to water (GHS categories 1–4) and corrosive liquids (GHS category 1) and is delivered assembled.
Product features
- Upgrades existing shelving systems to meet legal requirements, suitable for 3300 mm beam length
- Made of 3 mm sheet steel with PE plastic insert
- Sump capacity 238 l (315 l to top of sump edge)
- Galvanised clamping frame
- Galvanised grating, load capacity 1,000 kg/m²
- 100 mm underside clearance
- Declaration of conformity (ÜHP) according to StawaR
- Approved for flammable (GHS categories 1–3), water-hazardous (GHS categories 1–4) and corrosive liquids (GHS category 1)
- Delivered assembled, not stackable
- Painted in five RAL colours or hot-dip galvanised
Technical data
- Manufacturer: BAUER GmbH (Südlohn, Germany)
- Dimensions (W × D × H): 3265 × 1315 × 195 mm
- Sump capacity: 238 l (315 l to top of sump edge)
- Suitable for beam length: 3300 mm
- Insert: PE plastic insert
- Grating: yes, galvanised
- Grating load capacity: 1,000 kg/m²
- Underside clearance: 100 mm
- Material: 3 mm sheet steel; galvanised clamping frame
- Surface finish: painted (RAL 2000, 3000, 5012, 6011, 7005) or hot-dip galvanised
- Approval: Declaration of conformity (ÜHP) according to StawaR
- Approved for: flammable liquids GHS categories 1–3, liquids hazardous to water GHS categories 1–4 and corrosive liquids GHS category 1
- Delivery condition: assembled
- Stackable: no
- Weight: painted approx. 272 kg, hot-dip galvanised approx. 281 kg
Available versions
| Item no. | Finish | Weight |
|---|---|---|
| 4518-73-0000-1 | painted RAL 2000 yellow orange | approx. 272 kg |
| 4518-73-0000-2 | painted RAL 3000 flame red | approx. 272 kg |
| 4518-73-0000-3 | painted RAL 5012 light blue | approx. 272 kg |
| 4518-73-0000-4 | painted RAL 6011 reseda green | approx. 272 kg |
| 4518-73-0000-5 | painted RAL 7005 mouse grey | approx. 272 kg |
| 4518-73-0000-7 | hot-dip galvanised | approx. 281 kg |
Applications
- Retrofitting existing shelving systems for storing flammable, water-hazardous and corrosive liquids in stores, workshops and production
Notes
Shelving and containers not included. Please check the compatibility of the stored liquid with the PE insert before use. Technical data subject to change by the manufacturer.
