Hazardous Material Storage Unit GD-TP-ELH 250 Liter 🔒
Product number:
R-73353
Hazardous Material Depot: Outstanding Combination of Safety and Efficiency
Product Information:
The GD-TP-ELH hazardous material depot is designed to ensure above-ground collection and storage in demanding sectors such as commerce, industry, transportation, and the public sector, with a focus on safety and efficiency. It is specifically engineered for storing flammable to highly flammable liquids of all kinds. The tank system is explosion pressure shock resistant, providing excellent protection against internal explosions. Easy operation for everyone!
Your Benefits
- Safe Product: Compliant with Z-38.12-46
- General Building Authority Approval: Suitable as a storage container for all types of flammable liquids
- Space-Saving: Allows installation of multiple tanks with minimal spacing
- Robust and Durable: Entirely made of steel and hot-dip galvanized both inside and out
- Flexible: Can be installed indoors and outdoors
- Cost-Efficient: No additional spill containment required
Technical Specifications
Dimensions and Weight
- Material: Hot-dip galvanized steel inside and out
- Construction Principle: Double-walled with energy-independent vacuum leak monitoring of both walls

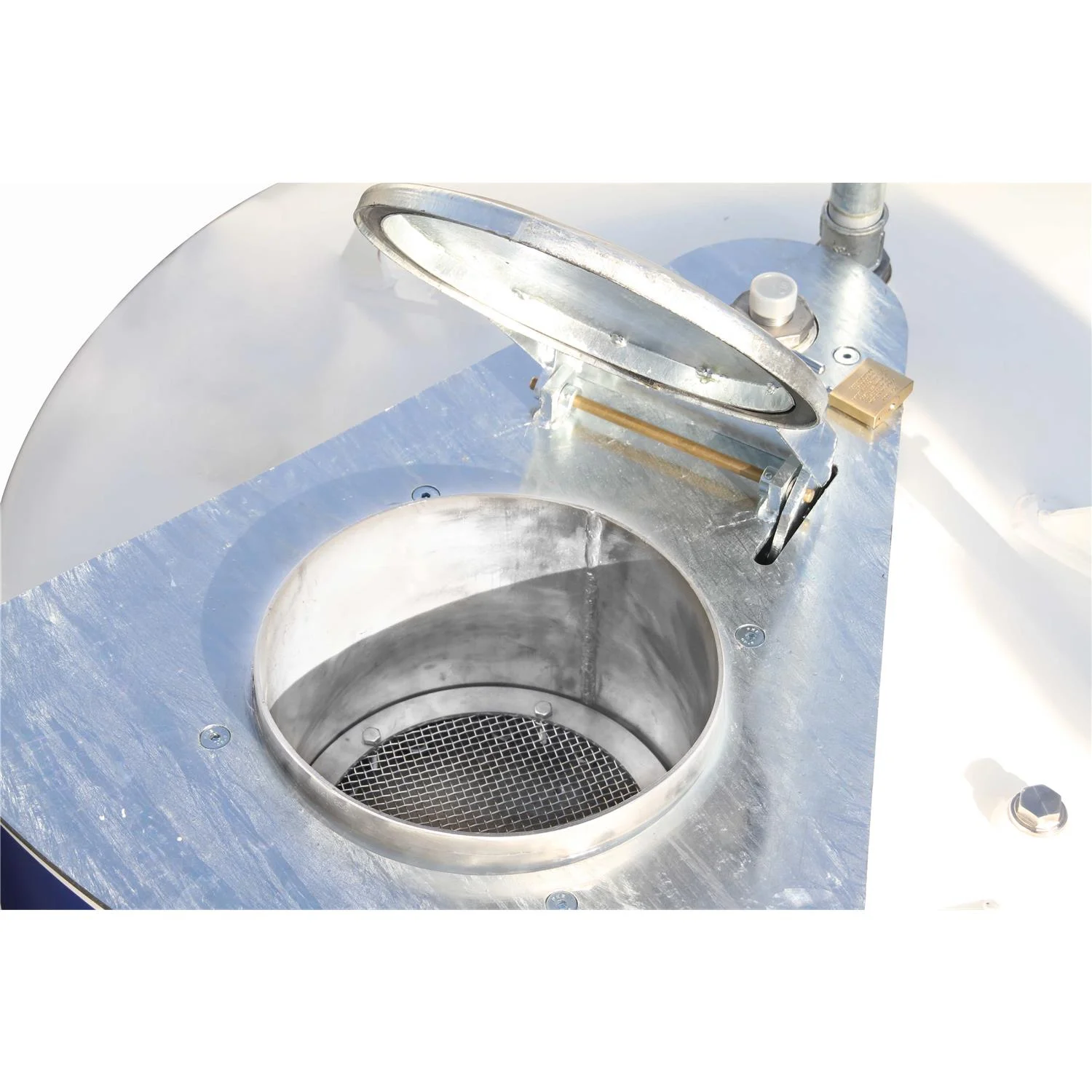

- Filling Funnel: Equipped with a coarse sieve insert, 300 mm diameter, approximately 15-liter capacity
- Shut-off Valve: Foot pedal-operated, self-closing shut-off valve in the filling line, located below the funnel
- Safety Features: Hydraulic overfill protection, ventilation line, dipstick, and suction line with lockable safety screw connection
- Transport: Equipped with 2 lifting lugs for empty transport. Crane safety in accordance with BGI 556
- Approval: Compliant with Z-38.12-288
- Model GD-TP-elh 250: Capacity 250 liters, weight 170 kg, dimensions (L x W x H) - 800 mm x 800 mm x 1200 mm
- Model GD-TP-elh 400: Capacity 400 liters, weight 200 kg, dimensions (L x W x H) - 1000 mm x 1000 mm x 1025 mm
- Model GD-TP-elh 600: Capacity 600 liters, weight 230 kg, dimensions (L x W x H) - 1200 mm x 1000 mm x 1210 mm
- Model GD-TP-elh 950: Capacity 950 liters, weight 290 kg, dimensions (L x W x H) - 1450 mm x 1250 mm x 1230 mm
Login
Skip product gallery
Zubehör Artikel

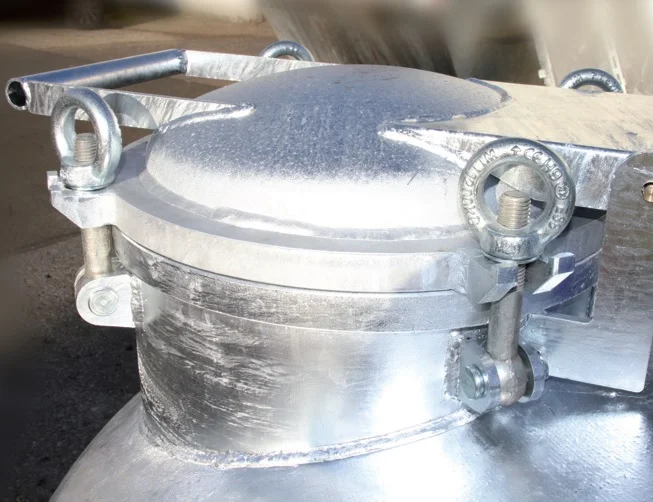

DOM II Inspection Dome for Containers with Hazardous Liquids 🛢️
Inspection dome for containers holding ELH liquids, 400mm diameter, featuring a curved hinged lid secured with 4 eye bolts. 🌟
Delivery time: 4-6 Wochen
€2,197.00*
€1,846.22 without VAT
