Rainwater Underground Storage Tank 3500L with Shaft DN 600 and Lid Included
€2,123.00*
- Nominal capacity: 3500 litres
- Dimensions (L x W x H): 2120 x 1720 x 1835 mm
- Empty weight: 170 kg
- Single-piece HDPE tank, stable in the ground
- Telescopic DN 600 dome shaft with walk-on cover, adjustable to installation depth
Delivery time: 1-3 days
Roth Round Underground Tank – Rainwater Cistern 3500 and 4500 Litres
The Roth round underground tank is a single-piece, ground-stable HDPE cistern with telescopic DN 600 dome shaft. It is available with 3500 and 4500 litres and can be extended with accessories to a complete rainwater system for house and garden.
Product features
- Single-piece HDPE tank, stable in the ground
- Telescopic DN 600 dome shaft with walk-on cover, adjustable to installation depth
- 2 DN 100 connections on the dome shaft with DN 100 special seal
- 1 DN 100 connection on the end face incl. overflow siphon
Technical data
- Manufacturer: Roth Werke GmbH
- Material: PE-HD
- Dome shaft: telescopic dome shaft DN 600
Available versions
| Item no. | Version |
|---|---|
| RW-ES-1135006757 | 3500 litres – 2120 x 1720 x 1835 mm – 170 kg |
| RW-ES-1135006758 | 4500 litres – 2480 x 1770 x 1885 mm – 190 kg |
Applications
- Rainwater harvesting for garden, WC and washing machine
- Cistern for single and multi-family houses and businesses
Notes
The 6000 litre version is available as Roth round underground tank PLUS 6000 litres (item no. RW-1135009965). Car-drivable only with the Roth car-drivable shaft cover (accessory) and installation according to the Roth instructions. Technical data subject to change by the manufacturer.
Roth Werke GmbH
Am Seerain 2
35232 Dautphetal-Buchenau, Deutschland
Login
Zubehör
- Max. flow rate: 5,7 m³/h
- Max. head: 31 m
- Max. system pressure: 3.1 bar
- Multi-stage, medium-cooled submersible pump
- Integrated flow switch with electronic on/off automatic
Delivery time: 1-3 days
- Mesh size: 0.9 mm
- Roof area: bis 210 m²
- Inlet/outlet height difference: 50 mm
- Self-cleaning filter for installation in the tank shaft
- Mesh size 0.9 mm
Delivery time: 1-3 days
- Mesh size: 1 mm
- Roof area: bis 210 m²
- Filter with integrated dirt basket
- Installation in the tank shaft
- Mesh 1 mm, for roof areas up to 210 m²
Delivery time: 1-3 days
- Connections: DN 100
- Mesh size: 0.55 mm
- Material: Stainless steel filter insert
- Underground filter for connecting several DN 100 downpipes
- Complete with telescopic extension
Delivery time: 1-3 days
- Connections: DN 100
- Mesh size: 0.28 mm
- Material: Stainless steel filter insert
- Underground filter with DN 100 connection
- Complete with telescopic extension
Delivery time: 1-3 days
- Mesh size: 1 mm
- Roof area: bis 210 m²
- Inlet: inlet calming DN 100
- Filter with integrated dirt basket for the tank shaft
- Mesh 1 mm, for roof areas up to 210 m²
Delivery time: 1-3 days

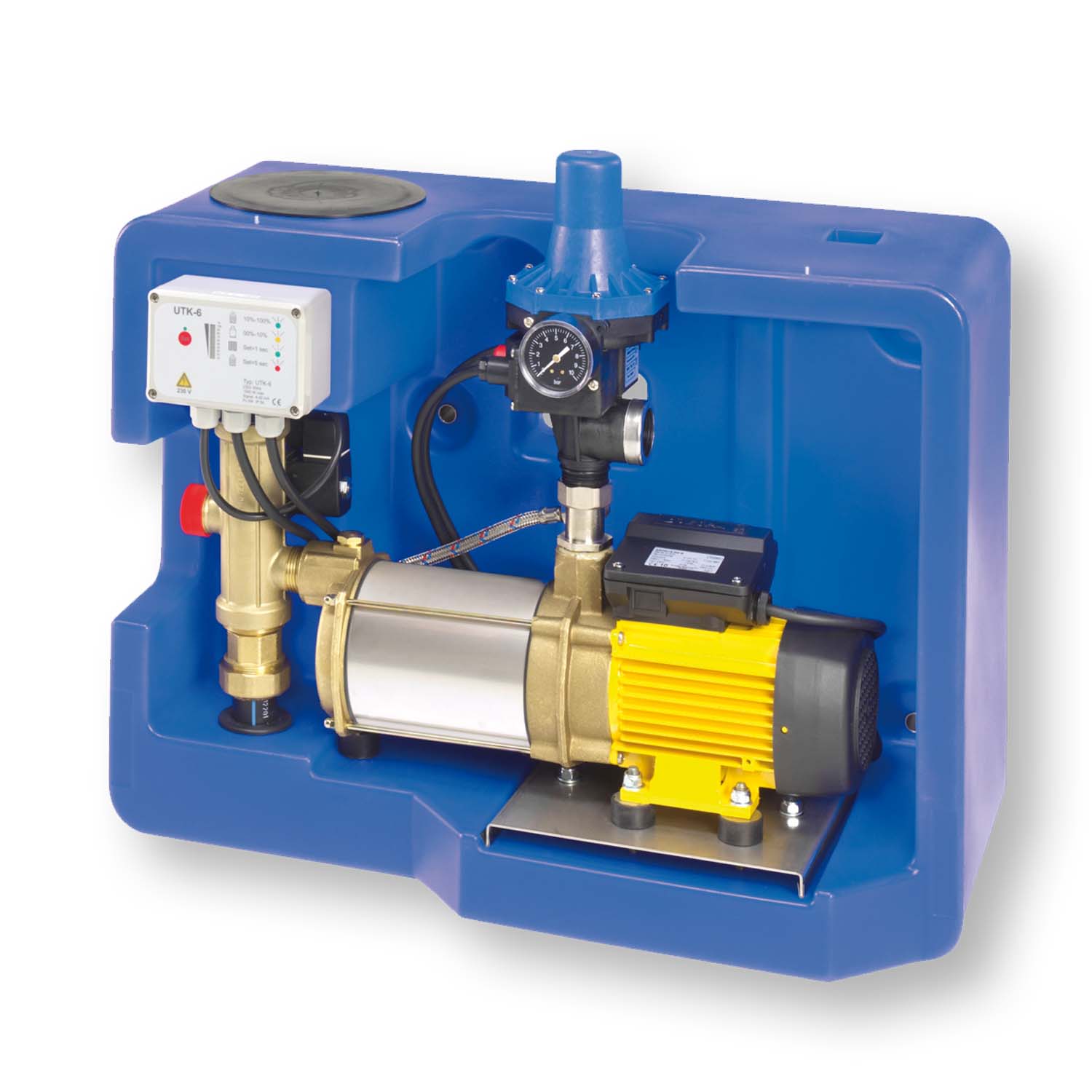

- Pump: NUVOS F-55 (Inverter)
- Max. head: 45 m
- Max. flow rate: 5.5 m³/h
- Built-in NUVOS F-55 inverter pump with speed control
- Drinking water make-up directly to the pump
Delivery time: 1-3 days

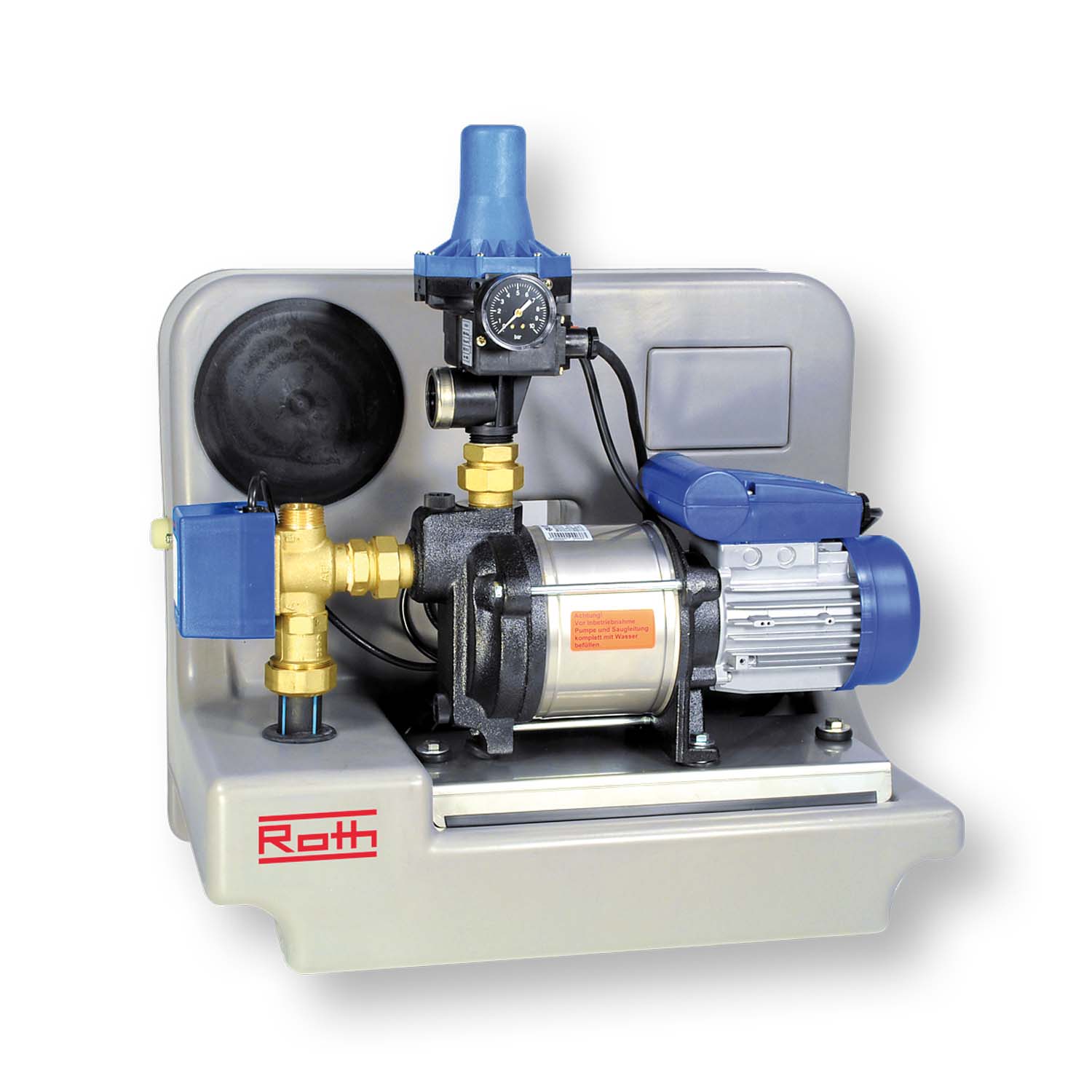

- Power consumption: 700 W
- Max. head: 42 m
- Max. flow rate: 3.5 m³/h
- 4-stage horizontal centrifugal pump, self-priming
- Integrated dry-run protection
Delivery time: 1-3 days

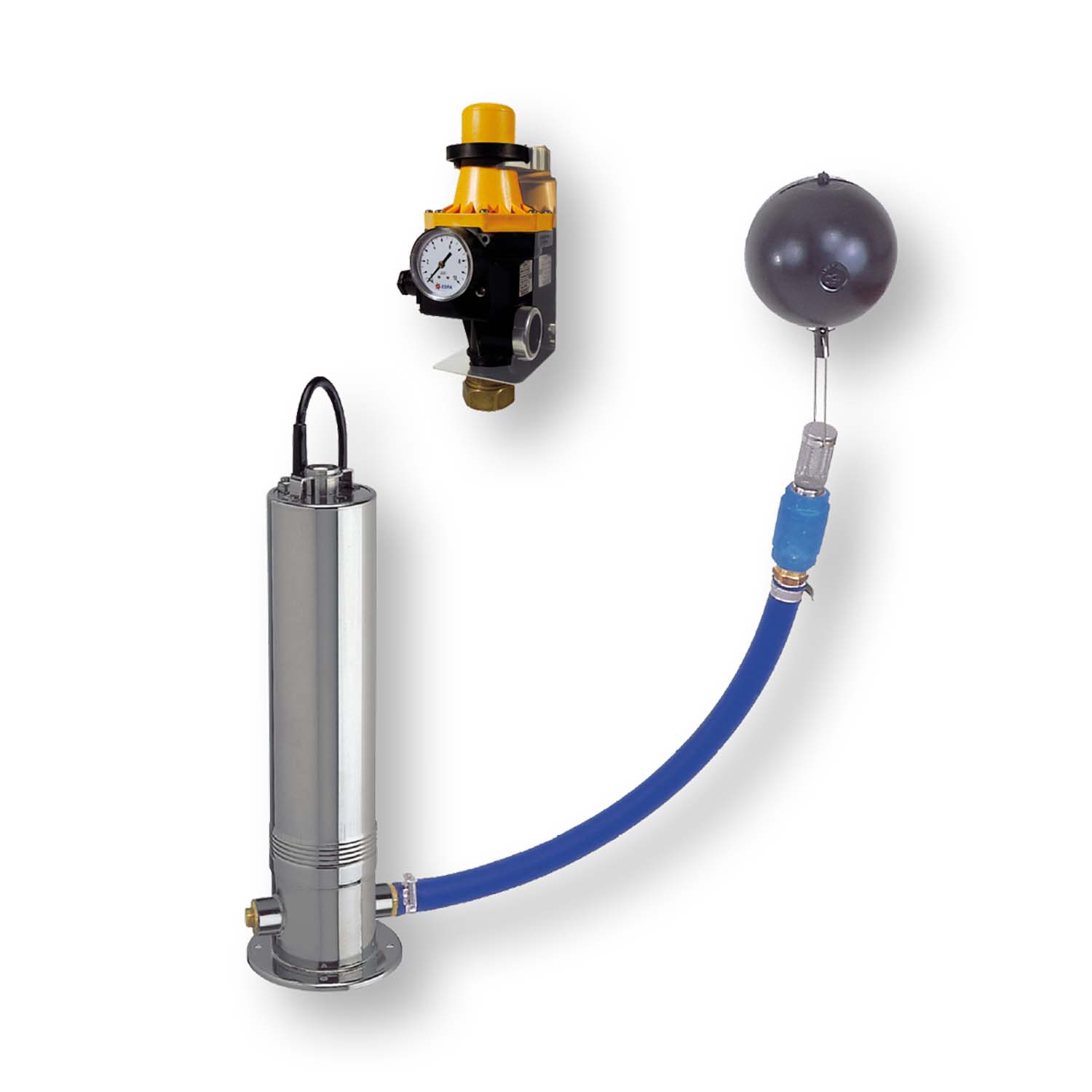

- Max. flow rate: 6 m³/h
- Max. head: 55 m
- Switch-on pressure: 2.4 bar
- Submersible pressure pump for fully or partially submerged continuous operation
- Including KIT 02 pressure switch and floating extraction
Delivery time: 1-3 days
- Pump: NUVOS F-45 (Inverter)
- Max. head: 32 m
- Max. flow rate: 4.5 m³/h
- Built-in NUVOS F-45 inverter pump with speed control
- Drinking water make-up directly to the pump without going through the tank
Delivery time: 1-3 days
- Suitable for: Roth underground tanks (DN 100 overflow)
- Optimal removal of the upper floating layers in the tank
- Small animal barrier against e.g. mice
- For retrofitting and as a spare part for Roth underground tanks
Delivery time: 1-3 days
- Length: special hose 2 m
- Connections: PE-Wasserrohr 1"
- Suitable for: Roth round underground tanks
- PE float ball with suction filter
- Integrated brass check valve
Delivery time: 1-3 days
