Load Arm Type RLA RLA-1 1500 RAL 5018 Turquoise Blue
Product number:
RR-RLA-1-1500-5018

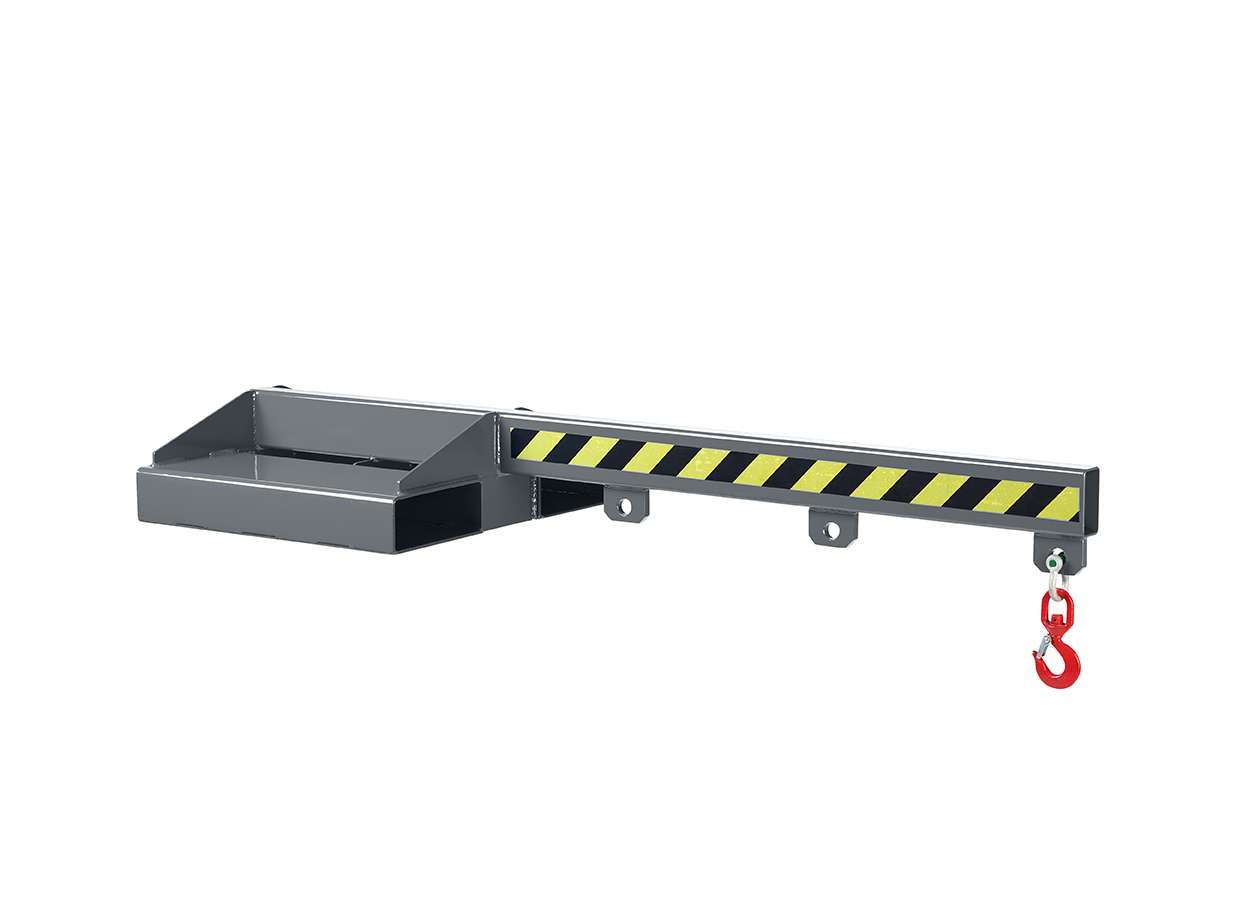

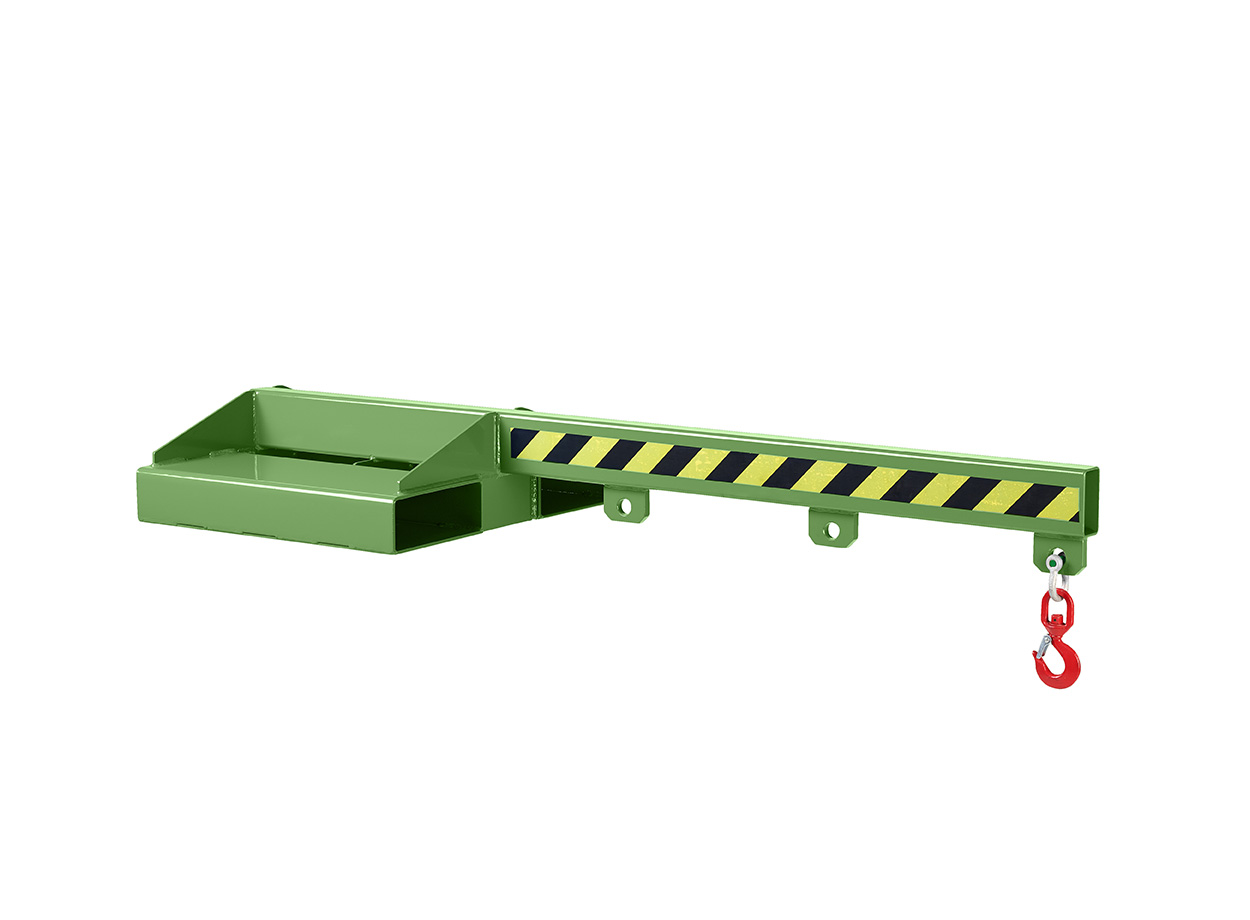

RLA Type Load Arm for Forklifts
The RLA type load arm, also known as a crane arm, is the ideal attachment to extend the reach of your forklift. This rigid variant is characterized by its construction from continuous tubing, providing very high strength. Our load arms have a load capacity of up to 5000 kg. An additional chain safety feature prevents slipping off the fork tines. With this attachment, your forklift can be transformed into a crane within seconds.
Your Advantages
Cost-Effectiveness
- Installation and removal of heavy machine parts
- For overhead load handling

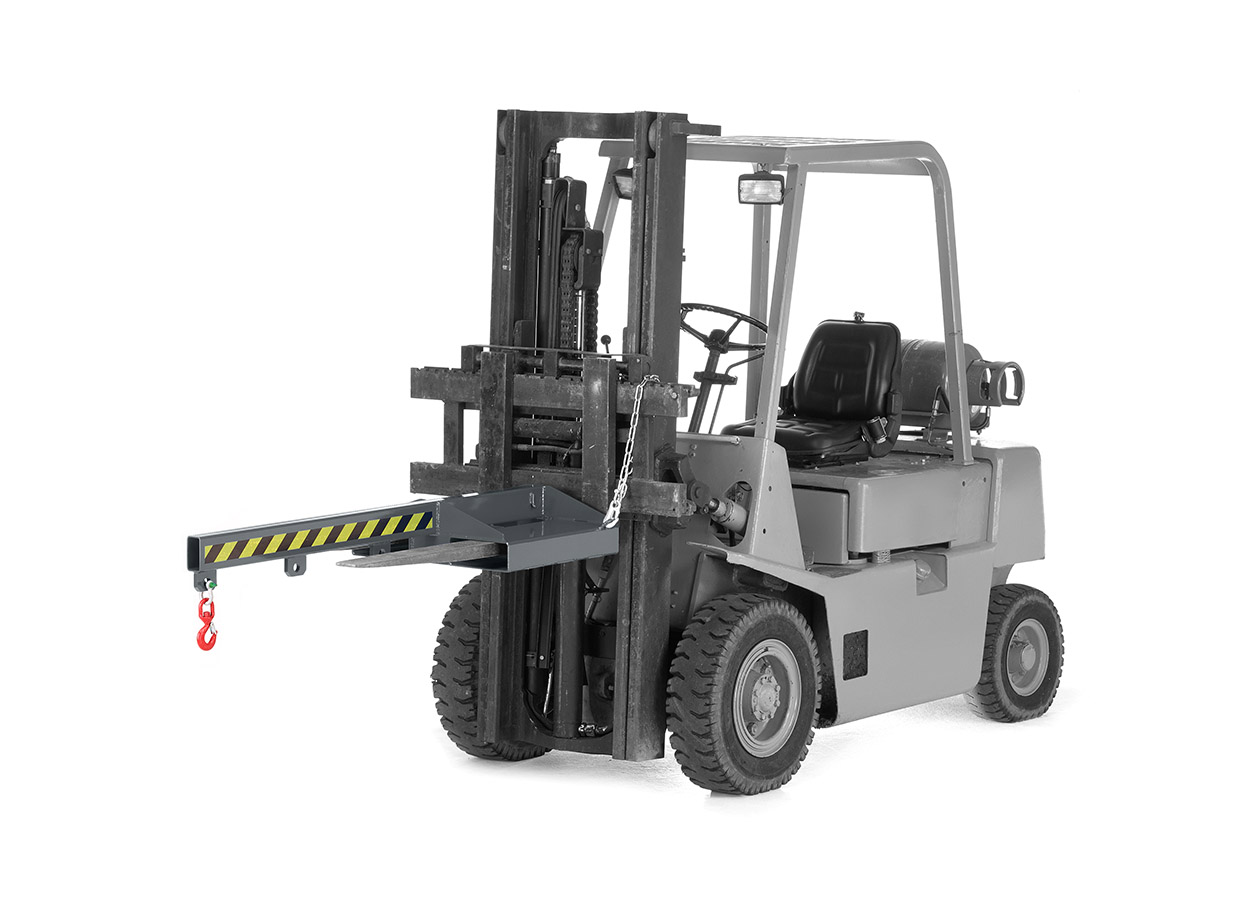

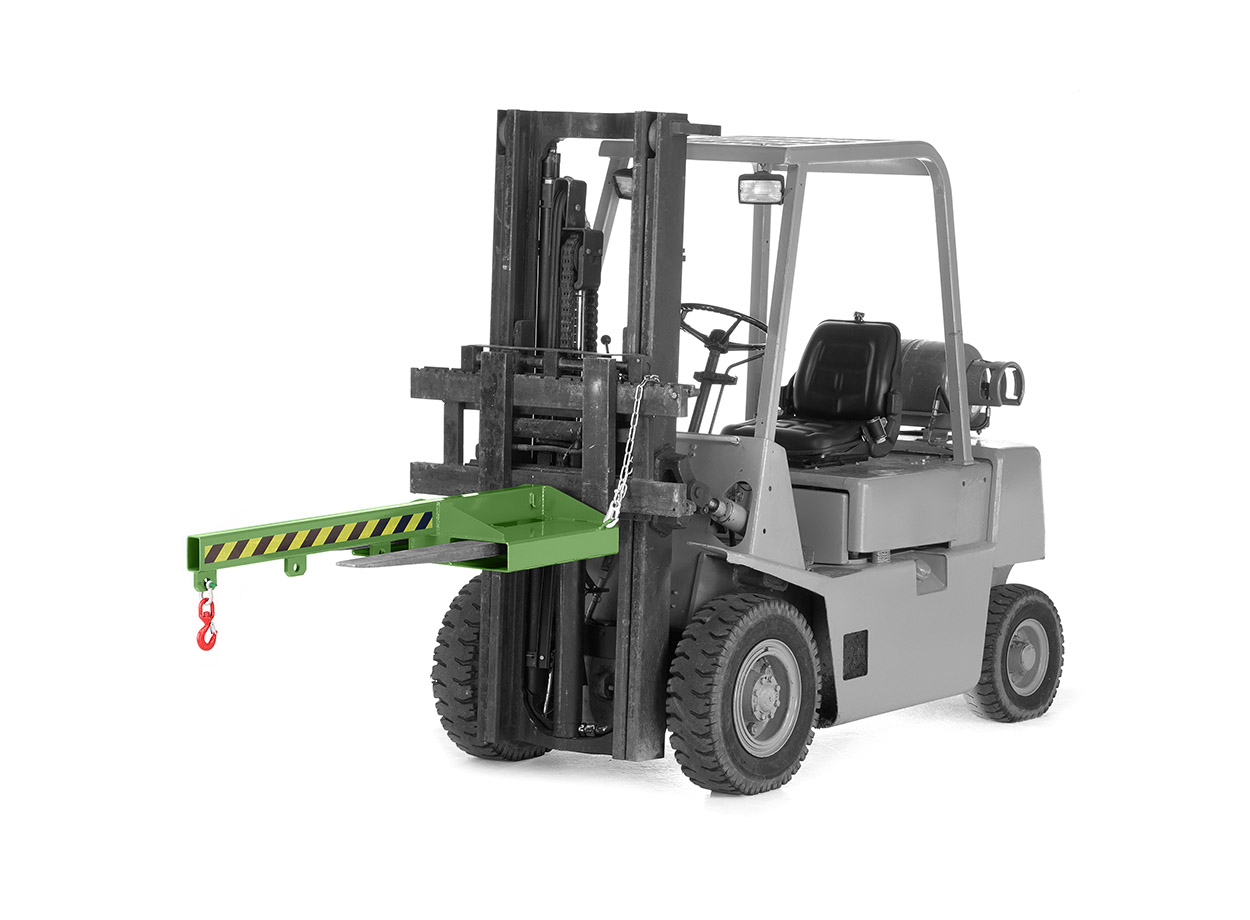

- The load arm converts the forklift into a crane
- The load arm extends the reach of the forklift
- Chain safety feature to prevent slipping off the tines
Quality
- Robust steel construction
- Swivel safety hook
- Constructed from 6 mm steel plate
- Powder-coated or hot-dip galvanized
- Yellow/black warning stripes in accordance with ASR A 1.3 marking requirements
Fork pocket dimensions in mm: (A 160, B 220, C 77)
Technical Data
Load Arm RLA-1 (1500)
- Depth: 1500 mm
- Dimensions (W x H): 620 x 190 mm
- Load capacity: 250 - 1000 kg
- Weight: 49 kg
Load Arm RLA-1 (2400)
- Depth: 2400 mm
- Dimensions (W x H): 620 x 190 mm
- Load capacity: 100 - 1000 kg
- Weight: 57 kg
Load Arm RLA-2.5 (1500)
- Depth: 1500 mm
- Dimensions (W x H): 620 x 210 mm
- Load capacity: 550 - 2500 kg
- Weight: 60 kg
Load Arm RLA-2.5 (2400)
- Depth: 2400 mm
- Dimensions (W x H): 620 x 210 mm
- Load capacity: 250 - 2500 kg
- Weight: 75 kg
Load Arm RLA-5 (1500)
- Depth: 1500 mm
- Dimensions (W x H): 620 x 250 mm
- Load capacity: 1050 - 5000 kg
- Weight: 74 kg
Load Arm RLA-5 (2400)
- Depth: 2400 mm
- Dimensions (W x H): 620 x 250 mm
- Load capacity: 500 - 5000 kg
- Weight: 93 kg
