Crane Arm Type RKA for Forklifts RKA3 RAL 5018 Turquoise Blue
€1,700.00*
Delivery time: 5-10 Tage

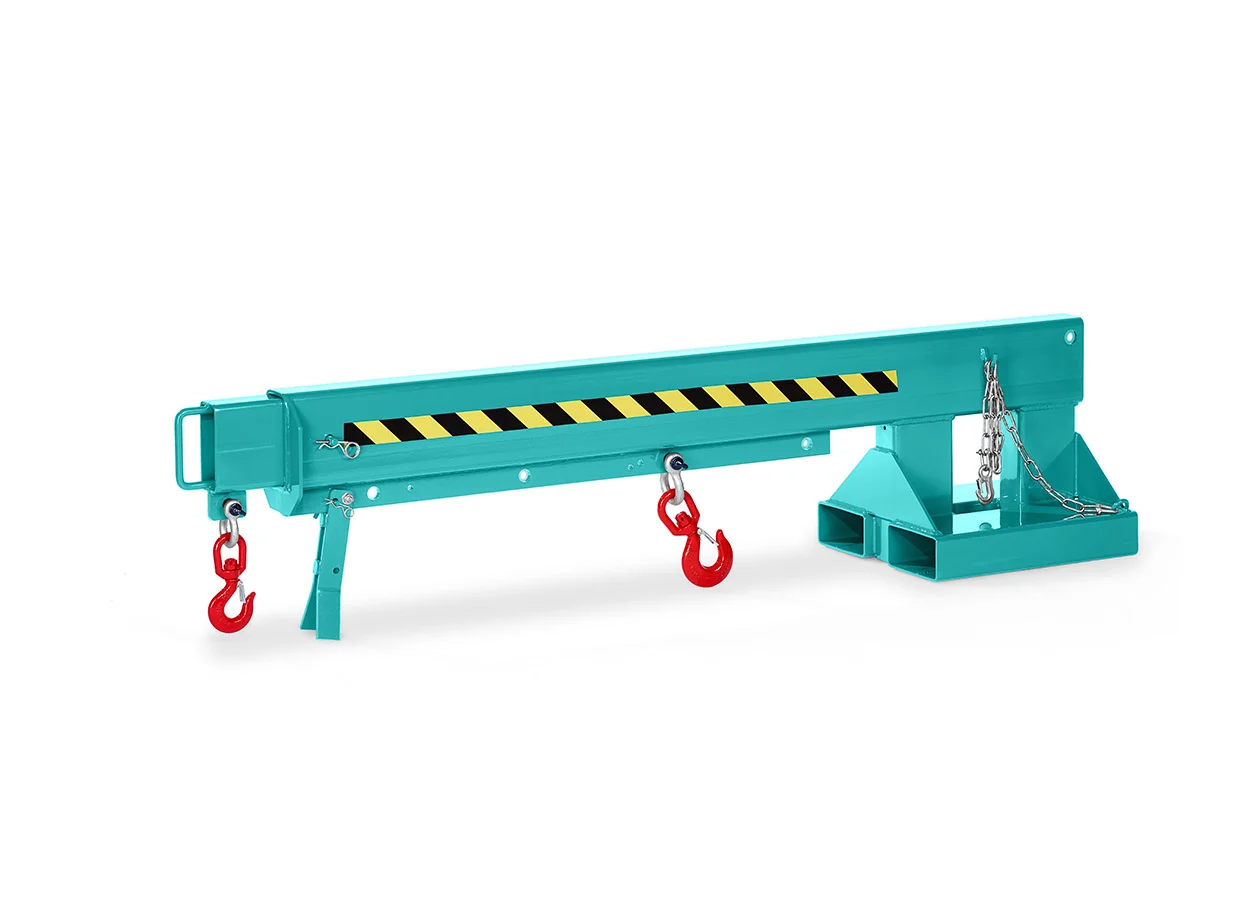

Crane Arm Type RKA for Forklifts - Efficient and Safe
The Crane Arm Type RKA is the ideal "forklift attachment" to extend the reach of your forklift. The inner section can be extended six times and secured at each position using a locking pin. When fully extended, the crane arm has a total length of 3670 mm, with the base unit measuring 2170 mm. Our crane arms have a load capacity of 3000 kg. An additional chain safety feature prevents slipping off the fork tines. With this attachment, your forklift becomes a crane in seconds.
Your Advantages
Cost-Effectiveness
- Installation and removal of heavy machine parts
- For overhead load handling

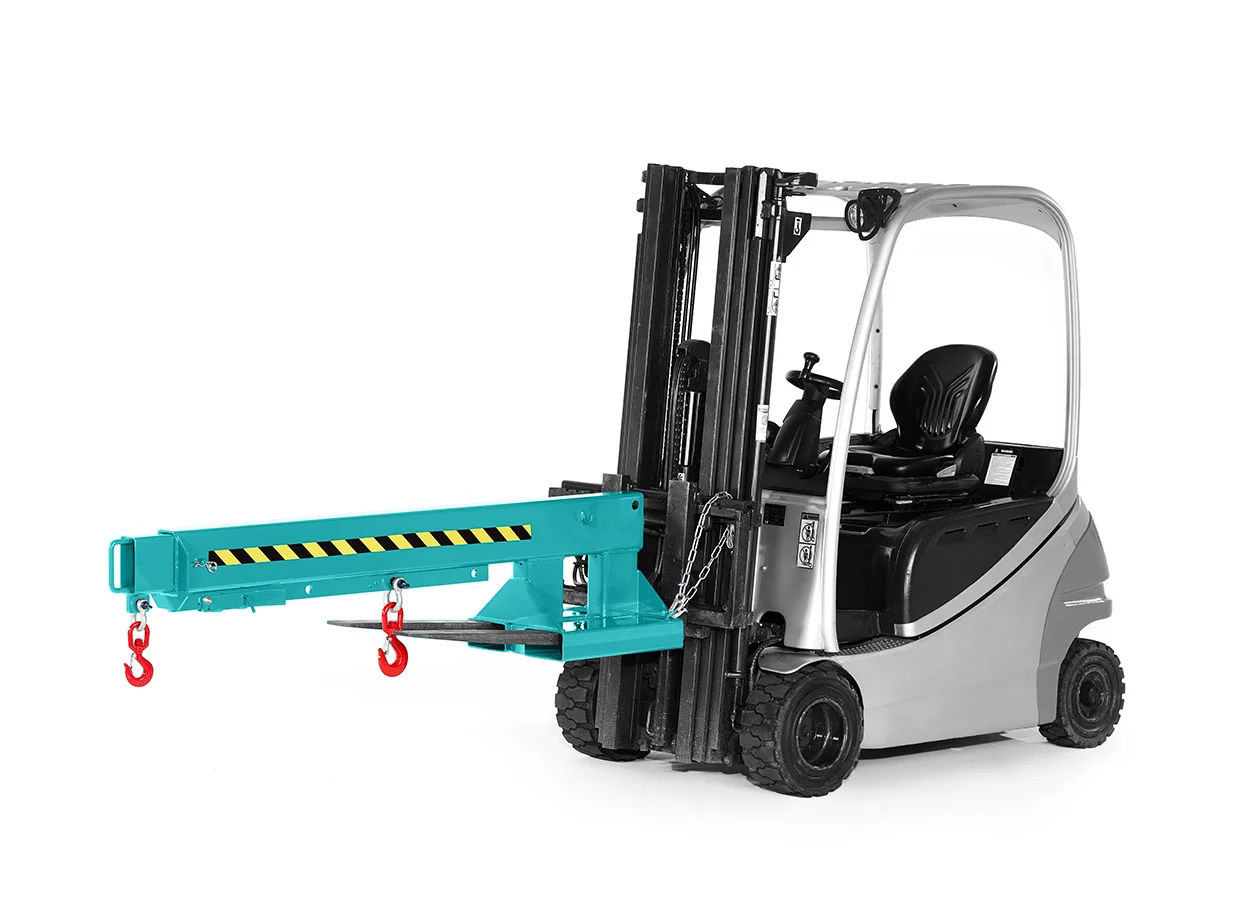

- The crane arm converts the forklift into a crane
- The crane arm extends the reach of the forklift
- Secured with a chain to prevent slipping
Quality
- Robust steel construction made of 6 mm steel plate
- Swivel safety hook
- Powder-coated or hot-dip galvanized
- Yellow/black warning stripes in accordance with ASR A 1.3 marking requirements
Entry pocket dimensions in mm: (A 102, B 188, C 88)
Technical Data
Crane Arm RKA3
- Depth: 2220 - 3720 mm
- Dimensions (W x H): 500 x 480 mm
- Load capacity: 650 - 3000 kg
- Weight: 160 kg
Crane Arm RKA5
- Depth: 2220 - 3720 mm
- Dimensions (W x H): 500 x 520 mm
- Load capacity: 1000 - 5000 kg
- Weight: 190 kg
