PIUSI Viscomat GEAR 230/3 M - 230V Lubricating Oil Pump, Oil Pump, Drum Pump 🛢️
€500.95*
Delivery time: 1-3 days

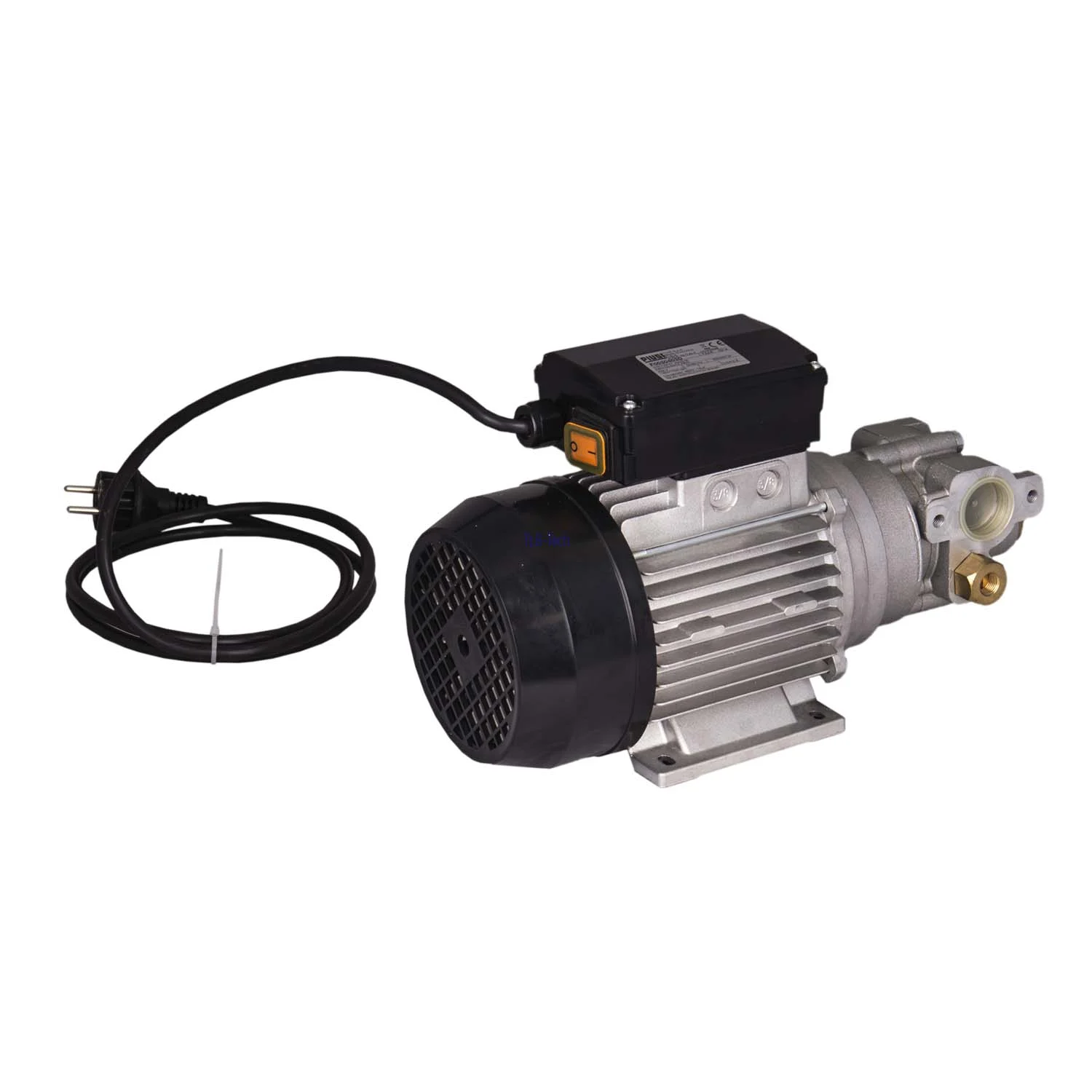

PIUSI Viscomat GEAR 230/3 M - 230V Lubricating Oil Pump
The PIUSI Viscomat GEAR 230/3 M is a high-quality lubricating oil pump specifically designed for applications requiring a pump with high suction capacity to transfer fluids with medium to high viscosity.
High Performance:
High-viscosity lubricating oil demands a powerful pump. The Viscomat GEAR features a self-priming gear pump that ensures a consistent flow rate and consistency for viscous fluids up to 2000 cSt, with a delivery rate of up to 14 l/min. Its continuous operation allows for high suction capacity at a pressure of up to 25 bar. This pump is a modern solution for transferring lubricating oils in the automotive sector.
Reliable:
The sintered steel rotor with gears provides the pump with strength and reliability. The Viscomat GEAR is a powerful oil pump manufactured by PIUSI, a brand synonymous with quality.
The pump is versatile and can be used as a drum pump, container pump, or wall-mounted pump. Thanks to the adjustable bypass valve, it is ideal for transferring oil over short distances. It is self-priming when dry, so manual priming is generally not required.
Technical Specifications:
- Model: Viscomat GEAR 230/3 M (Single Phase)
- Maximum Flow Rate: 14 l/min
- Suction Height: 2m
- Maximum Working Pressure: 16 bar
- Connections: 1" F
- Power Cable: 2m with Schuko plug
- On/Off Switch
- Integrated Bypass Valve
- Motor: 230V, 1250W, 1400 RPM
The PIUSI Viscomat GEAR 230/3 M lubricating oil pump offers outstanding performance and reliability. It is ideal for transferring high-viscosity lubricating oils and is suitable for various applications. If you are looking for a high-quality pump that meets your requirements, the PIUSI Viscomat GEAR is the right choice. 🚀
Login
Zubehör Artikel
- Dimension A: 205mm
- Dimension B: 54.7mm
- Dimension C: 44.3mm
Delivery time: 1-3 days
