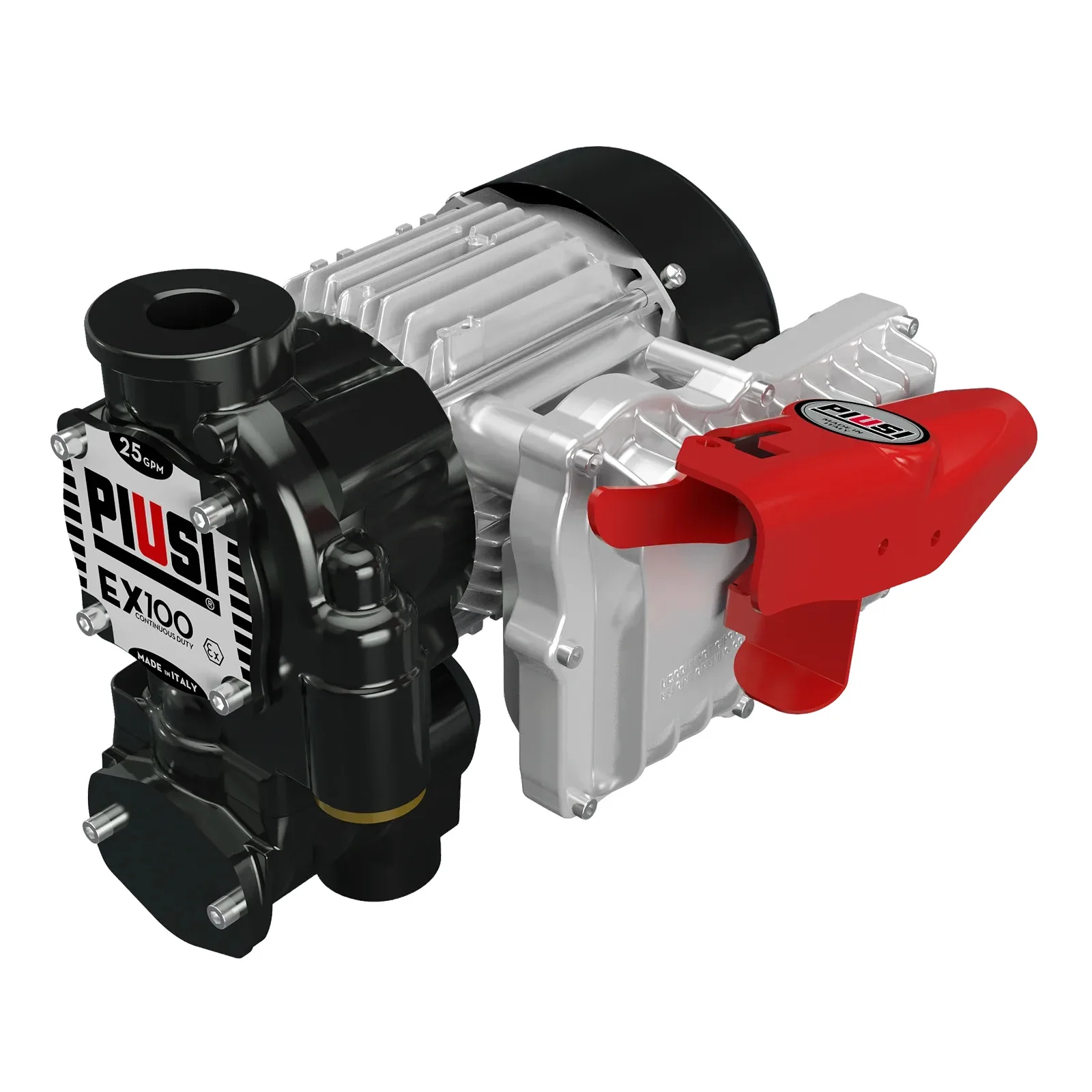

EX100 Drum Pump 230V/60Hz – Efficient Liquid Transfer for Industrial Applications

PIUSI EX100 DRUM – ATEX Transfer Kit for Flammable Liquids

The PIUSI EX100 DRUM is a powerful, ATEX-certified transfer kit for flammable and potentially explosive liquids. Designed for professional use in industry, tank farms, workshops, and hazardous (Ex) areas, the system stands out for its high flow rate, robust construction, and maximum safety.

Thanks to its compact design, the EX100 DRUM is ideal for direct mounting on drums or mobile supply units. Depending on the version, the system is available as a pump-only unit or as a complete dispensing set with meter, nozzle, and hose.

🛡️ Safety & Certifications

• ATEX & IECEx certified for hazardous areas
• Classification: II 2 G Ex d IIA T4 Gb
• Suitable for Zone 1 & 2
• Integrated overheat protection
• Built-in bypass valve

⚙️ Technical Highlights

• Flow rate: up to 100 L/min
• Voltage: 230 V AC (50 Hz)
• Power consumption: approx. 1,035 W
• Max. current draw: approx. 4.5 A
• Inlet connection: 2" BSP
• Outlet connection: 1" BSP
• Suction module: with integrated filter

alternative:

• Flow rate: up to 100 L/min
• Voltage: 230 V AC (60 Hz)
• Power consumption: approx. 874 W
• Max. current draw: approx. 3.8 A
• Inlet connection: 2" BSP
• Outlet connection: 1" BSP
• Suction module: with integrated filter

🧪 Suitable Media

• Diesel
• Gasoline
• Kerosene
• Gasoline/alcohol blends up to 15%
• AVGAS 100/100LL *
• JET A / JET A1 *

* With certain configurations (pump & meter)

Variants

• Pump only: For custom system designs or retrofitting existing systems
• Complete transfer kit:
  • ATEX meter (K150)
  • ATEX automatic nozzle
  • Delivery hose
  • Nozzle holder
  • 90° elbow & adapter

👉 Select the exact configuration under Variants.

📦 Scope of Delivery (depending on version)

• EX100 ATEX pump
• 2" connection piece
• 90° elbow
• Nozzle holder
• ATEX meter (optional)
• ATEX automatic nozzle (optional)
• Delivery hose (optional)
• User manual

💡 Conclusion

The PIUSI EX100 DRUM is the ideal solution for applications that demand high flow rates, ATEX safety, and maximum reliability. Its modular variants let you choose exactly the system that fits your needs – from a pump-only unit to a fully equipped transfer kit.
