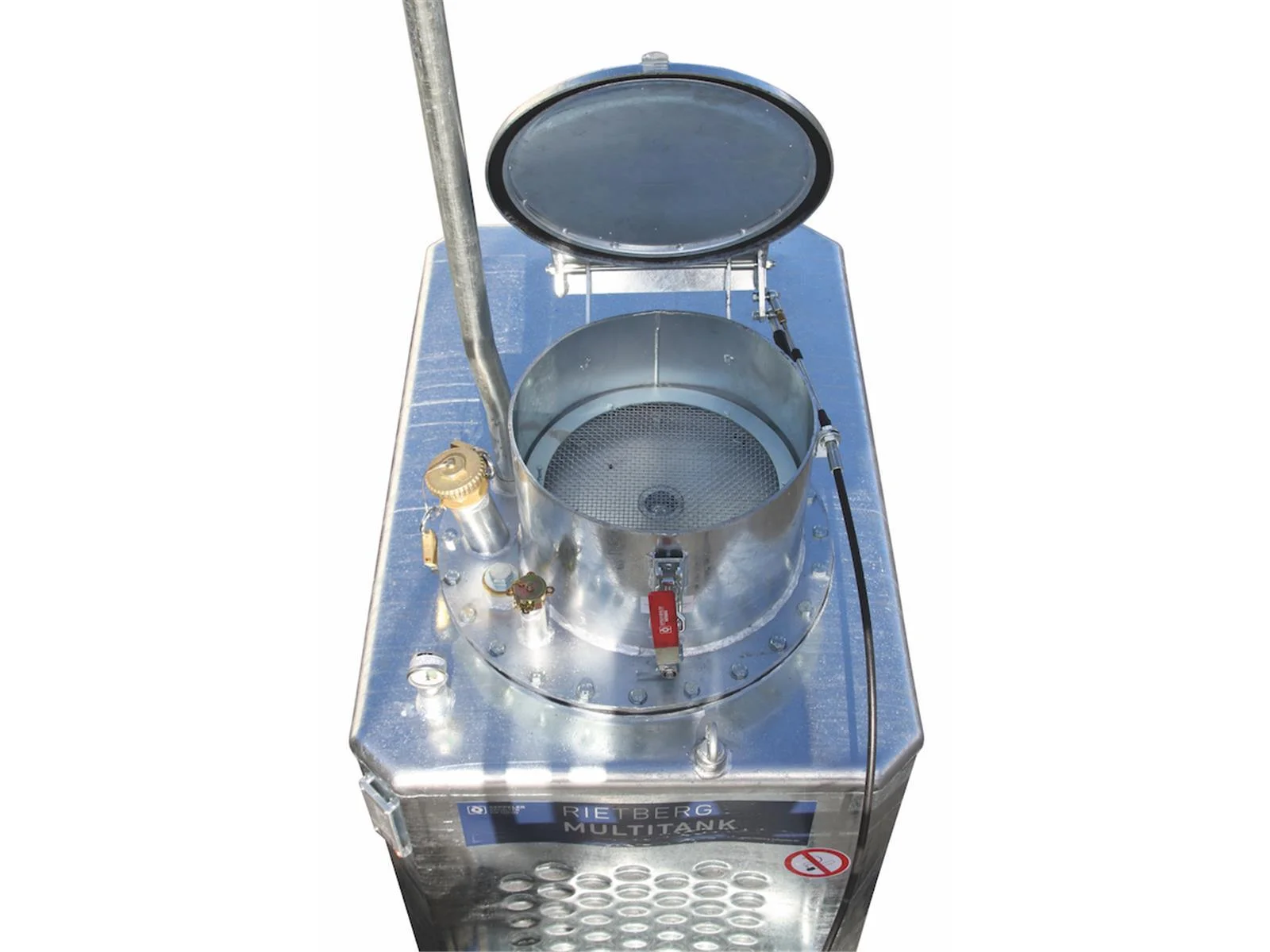

Multi-Collector MS-TP-ELH 900 🌟

Multicollector MS-TP-ELH for All Types of ELH Liquids - Galvanized

Designed and developed for the above-ground collection and disposal in agriculture, construction, industry, workshops, and depots. The double-walled multicollector is suitable for the safe collection and storage of flammable to highly flammable liquids (ELH liquids with a flash point below 55°C) such as used oil of unknown origin, gasoline, kerosene, and other water-hazardous liquids. The double-walled multicollectors are explosion pressure shock resistant and can withstand an internal explosion. The various sizes, modifications, and equipment options allow for practical customization. With Rietberg's multicollectors, you dispose of waste practically and safely!

Multicollector for ELH Liquids with Flash Point Below 55°C

Your Benefits

• Safe: manufactured according to Z-38.12-41
• Simple: general building authority approval as a storage container
• Practical: customizable with variable heights, allowing multiple tanks to be set up with minimal spacing
• Compact and space-saving: optimal space utilization due to the cubic design
• Robust and durable: entirely made of steel, galvanized inside and out
• Flexible: suitable for indoor and outdoor installation
• Cost-effective: no additional catch basin required
• Spare parts management: availability of spare parts for many years

Technical Data

• Galvanized inside and out
• Used oils up to an operating temperature of 95°C
• Dome with 500 mm diameter
• Double-walled; permanent, energy-independent vacuum leak monitoring of both walls
• Filling funnel with coarse sieve insert, 400 mm diameter, approximately 30-liter capacity with a manually operated ball valve and a self-closing lid operated by foot pedal; GS 250 and GS 400 with manually operated lid
• Manual ball valve in the filling line below the funnel
• Hydraulic overfill protection
• Ventilation line
• Dipstick
• Suction line with lockable safety screw connection
• 1 reserve socket 2''
• 2 lifting lugs for empty transport, safe craning according to BGI 556
• Operation by qualified personnel
• Approval: Z-38.12-41
• If necessary, containers can be transported empty using a forklift, pallet truck, or crane
