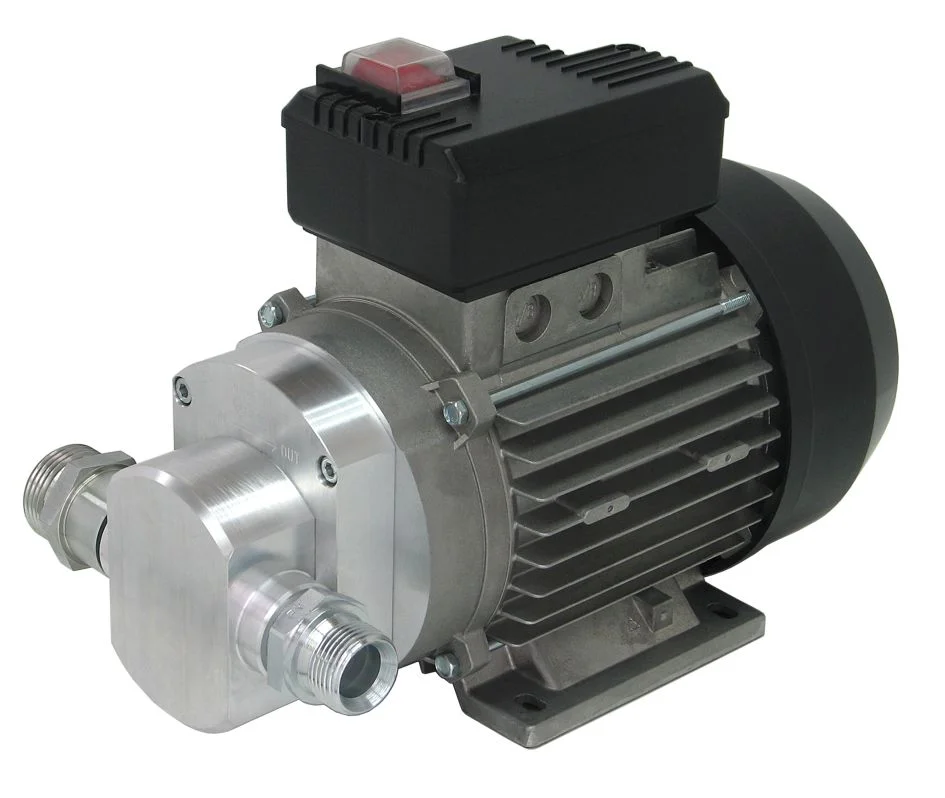

MATO Electric Gear Pump EP 100
€595.00*
- Flow rate: approx. 11 l/min (SAE 30, free outlet)
- Maximum pressure: approx. 8 bar
- Suction height: up to 2.5 m
- Self-priming gear pump with integrated bypass pressure relief
- Protected on/off switch, 3 m power cable
Delivery time: 2-5 days
MATO Electric Gear Pump EP 100 – Self-Priming Oil Pump 230 V, approx. 11 l/min
The MATO EP 100 is a self-priming electric gear pump for transferring engine, gear and hydraulic oils of low to medium viscosity. It has integrated bypass pressure relief, a protected on/off switch and a 3 m power cable.
Product features
- Self-priming gear pump with integrated bypass pressure relief
- Protected on/off switch, 3 m power cable
- For engine, gear and hydraulic oils of low to medium viscosity
- Media of hazard class A3, flash point above 55 °C
Technical data
- Manufacturer: MATO GmbH & Co. KG
- Manufacturer part number: 34 339 32
- EAN: 4016553433932
- Flow rate: approx. 11 l/min (SAE 30, free outlet)
- Maximum pressure: approx. 8 bar
- Suction height: up to 2.5 m
- Electrical data: 230 V, 50 Hz, 2.9 A, 0.37 kW, IP55
- Thread connection: R3/4" delivery / R1" suction
- Weight: approx. 11.2 kg
Applications
- Transferring oil in workshops and companies
- Oil supply from drums and tanks
Scope of delivery
- 1 × electric gear pump EP 100 with 3 m power cable
Notes
Not intended for high resistance, long delivery distances or hose reels. Switch off after filling and do not run for more than 5 minutes against a closed nozzle; retrofit with pressure relief system (MATO 34 336 97) possible. Technical data subject to change by the manufacturer.
MATO GmbH & Co. KG
Benzstraße 16-24
63165 Mühlheim am Main, Deutschland
