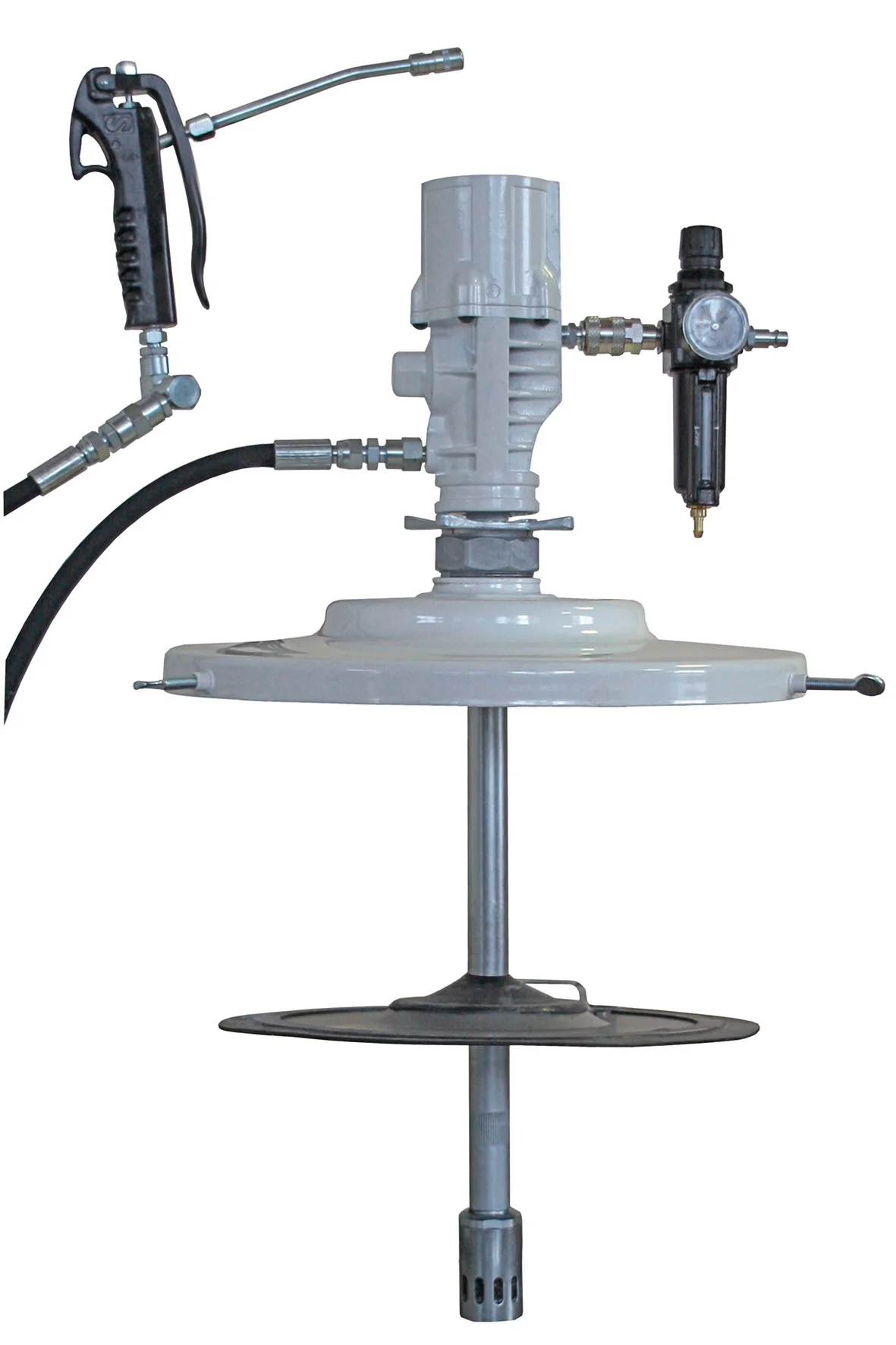

Lubrication Device Lubrication Master - PM 20 Stationary 4 Meters
€950.50*
- For 20kg fat containers
- High delivery rate due to a gear ratio of 1:55, suction connection, and safety lubrication hoses with a large inner diameter.
- Suitable for oils and greases up to consistency class 2, including bio-greases.
- Equipped with a grease follower plate, steel dust cover, and high-pressure lubrication gun.
- Compatible with 25kg fat containers.
- Available as stationary (without trolley) or mobile (with trolley).
- Features a compressed air connection G 1/4” i and grease outlet G 1/4” i.
- Operates with a minimum air pressure of 3 bar and a maximum of 10 bar.
- The maximum lubrication pressure is 400 bar, with a burst pressure of 1,600 bar.
Delivery time: 5-10 Tage
Efficient Lubrication Device Schmiermeister PM 20: Stationary or Mobile
The Schmiermeister PM 20 pneumatic lubrication device is the ideal solution for commercial users in industries such as construction, craftsmanship, and agriculture. With the ability to be used both stationary and mobile, it offers maximum flexibility and efficiency in the maintenance and care of machinery and vehicle fleets.
Advantages of the Schmiermeister PM 20
- Versatility: Can be used as a stationary or mobile device for various applications.
- Safety and Cleanliness: Includes a pressure reducer, water separator, and safety lubrication hoses.
- High Delivery Rate: Features a transmission ratio of 1:55 and a delivery rate of approximately 600 g/min.
- Environmentally Friendly: Suitable for bio-lubricants and greases up to consistency class 2.
Technical Features
- Pneumatic Connection: G 1/4" i
- Grease Outlet: G 1/4" i
- Air Pressure Range: 3 to 10 bar
- Maximum Lubrication Pressure: 400 bar
- Burst Pressure: 1,600 bar
- Pump Tube Diameter: 30 mm
- Drum Fitting: With 2” a-thread
- Suitable for 20 kg Grease Buckets
Model Overview
| Model | Type | Features |
|---|---|---|
| PM 20 Stationary | Without Cart | Ideal for fixed workstations |
| PM 20 Mobile | With Cart | Flexible use on construction sites and in large workshops |
The Schmiermeister PM 20 lubrication device is the perfect choice for professional users who value an economical, clean, and safe lubrication solution. Experience the quality and reliability of this product in your daily workflow.
