Fuel Container QUADRO-D - 770 Liter Standard (without accessories) 🚛

Quadro-D Mobile Fuel Station: Efficiency, Safety, and Modern Data Acquisition

For Diesel, HVO, and E-Fuels: The Double-Walled Tank System with Optional Smart Technology

The Quadro-D is the proven mobile fueling system for professional users who prioritize safety, precision, and digital control. With its double-walled, hot-dip galvanized steel construction, it meets the highest standards for legal storage and mobile refueling—whether on construction sites, in vehicle fleets, or agricultural operations. The Quadro-D is now optionally available with state-of-the-art metering systems and digital tank data acquisition systems. Choose between analog, digital, or cloud-based solutions—perfectly tailored to your needs.

Advantages at a Glance

• ✔ Unlimited IBC approval for road, rail, inland, and sea transport (ADR, RID, ADN, IMDG)
• ✔ Construction supervision approval for storage—valid nationwide
• ✔ Double-walled design—storage without additional spill containment
• ✔ Approved for water protection areas

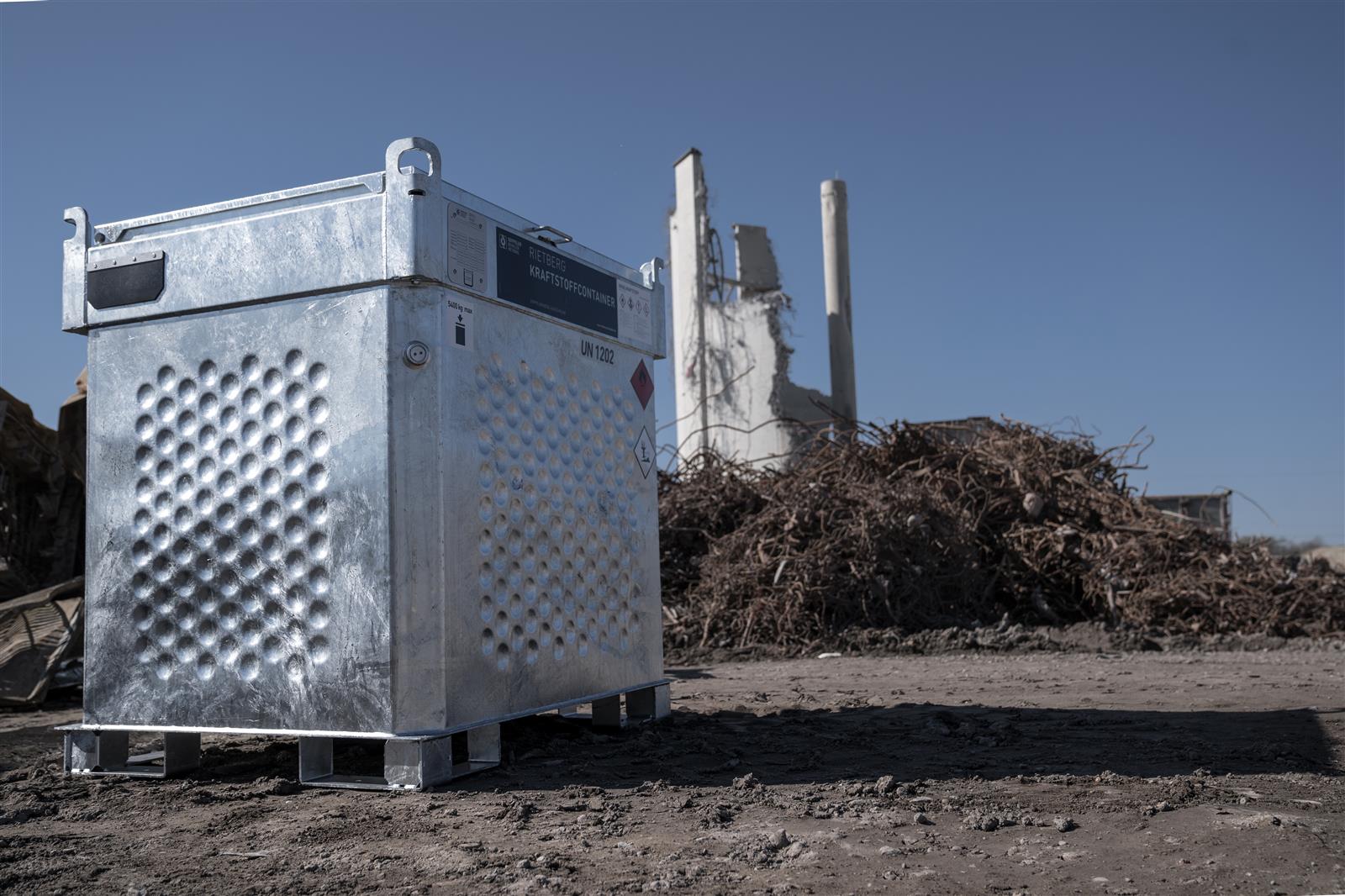

• ✔ Suitable for outdoor installation
• ✔ Transport without hazardous goods license up to 1000 liters of diesel

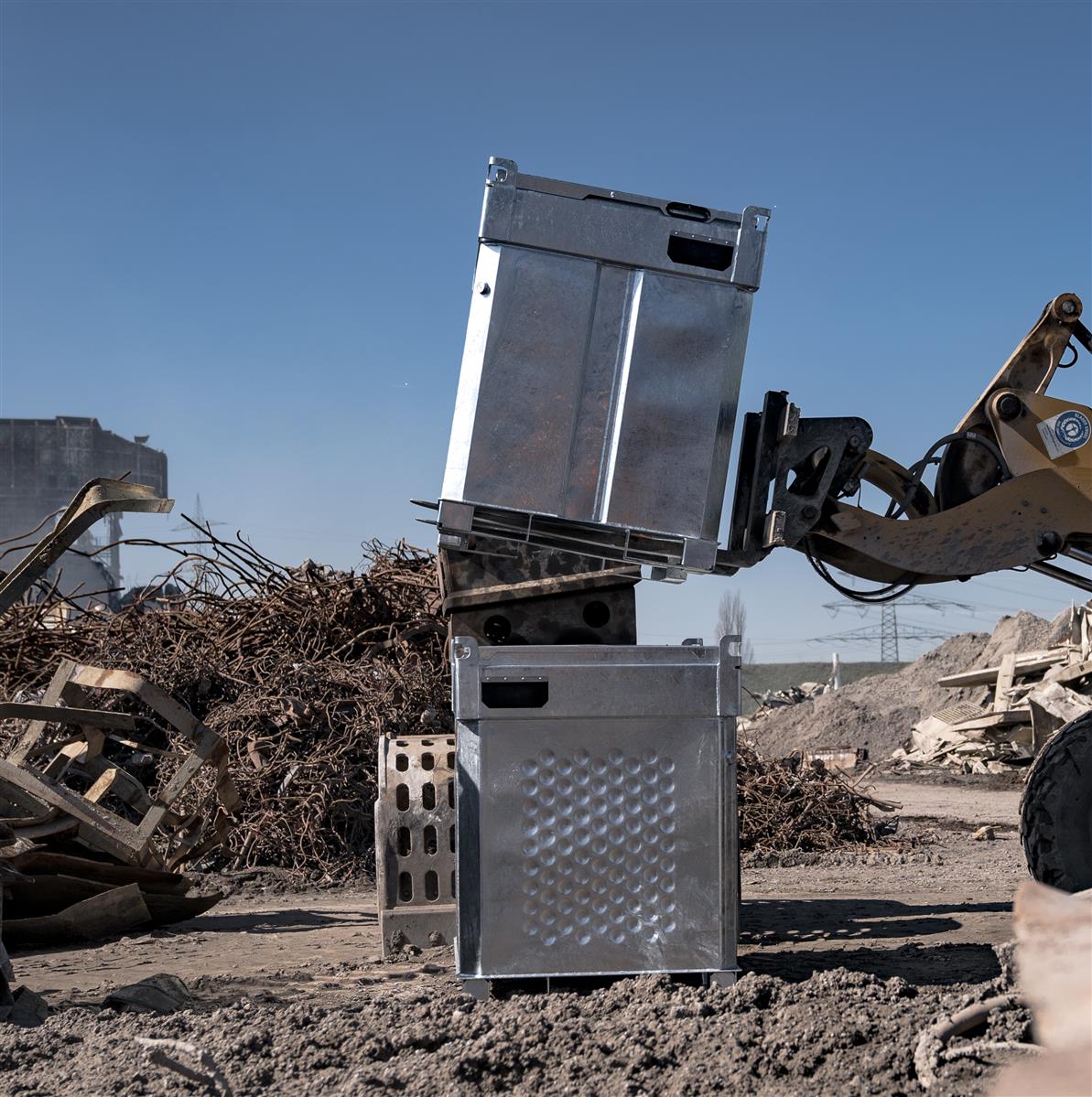

• ✔ Stackable three times (up to 1000 l) / twice (from 2000 l)
• ✔ Completely hot-dip galvanized—corrosion protection for decades
• ✔ Internal inspection only every 10 years with permanent leak indicator

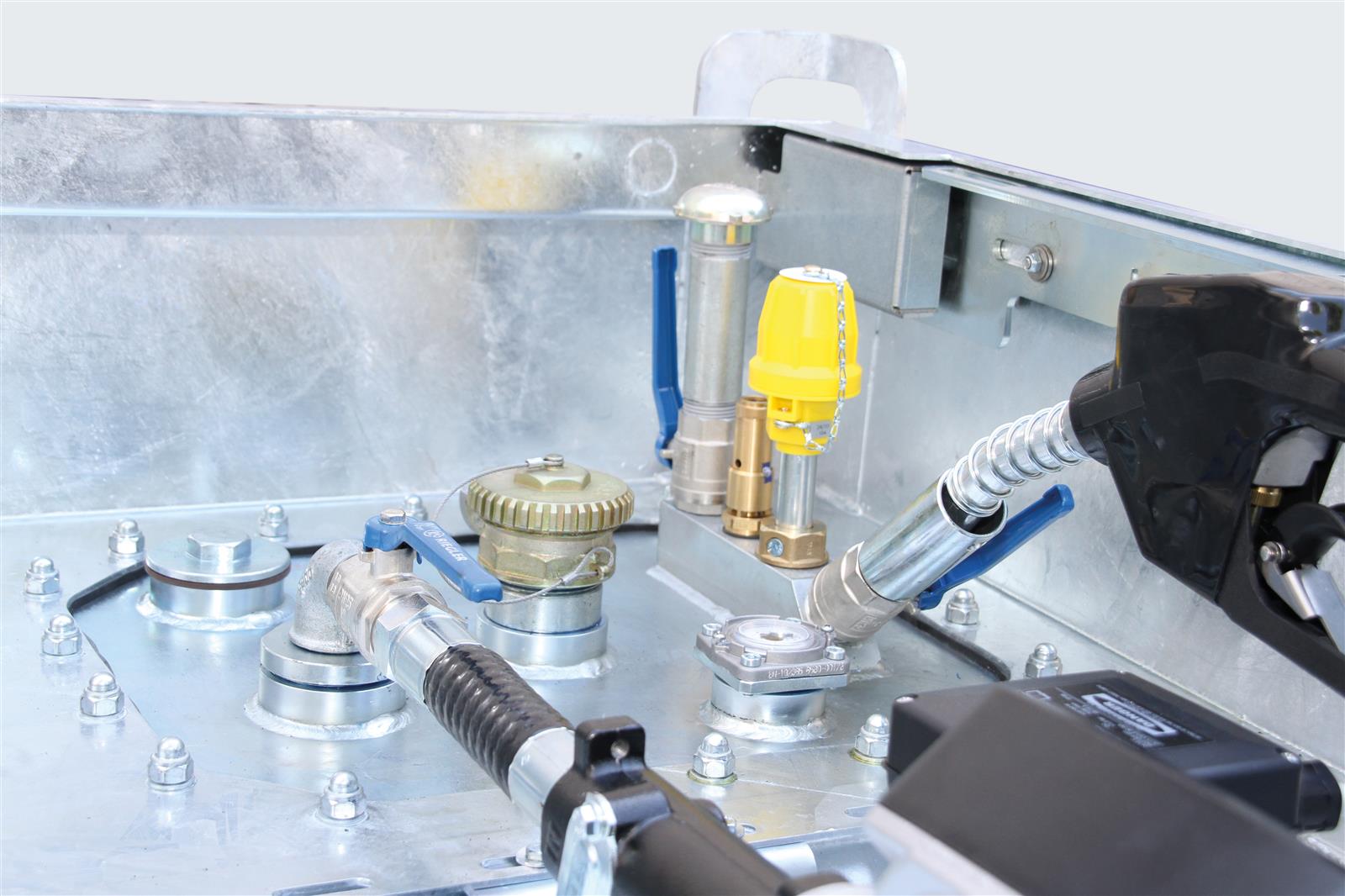

Technical Equipment

• Double-walled steel tank with energy-independent leak monitoring
• Mechanical level indicator
• Vent line with shut-off ball valve
• Lockable suction line and fill port
• Lateral conduit for hose or power lines
• Nozzle holder with return flow option
• Forklift pockets and four crane eyes according to BGI 556
• Lockable lid with gas spring and three-point locking system

Available Sizes and Data

• 770 liters: Dimensions 1200 x 800 x 1322 mm, Weight 289 kg
• 1000 liters: Dimensions 1200 x 1000 x 1322 mm, Weight 328 kg

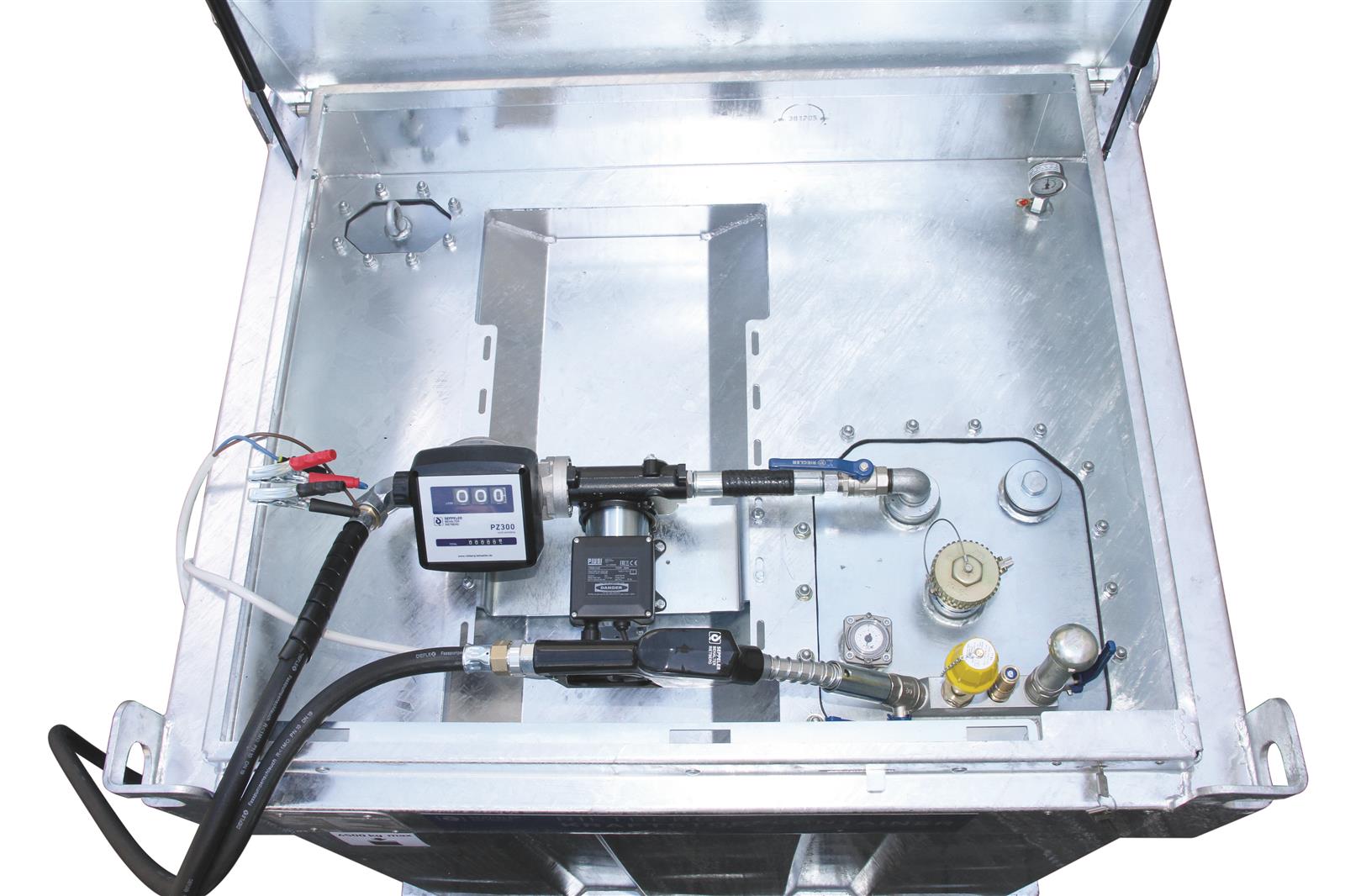

Pumps, Meters, and Options

Hand Pump (manual):

• For smaller fuel quantities
• Includes: Hand pump, 2.5 m dispensing hose, automatic nozzle

Electric Pump (vane pump):

• Dry self-priming with bypass valve
• Includes: Motor pump, 6 m hose assembly with kink protection, swivel joint, automatic nozzle, 6 m connection cable with plug or battery clamps
• Variants:
  • 12 V (50 l/min)
  • 12/24 V (30/45 l/min)
  • 230 V (50 l/min)

Flow Meters:

• PZ300 (analog): Mechanical roller counter, robust and low-maintenance. Ideal for simple control of refueling quantities.
• K24 (digital): Digital turbine wheel meter with LCD display. Precision ±0.5%, display in liters, durable and maintenance-free.

Digital Tank Data Acquisition

PIUSI B.SMART – Cloud-Based Fleet Management

• ✔ Full control over all refueling operations—record users, vehicles, and refueling activities digitally
• ✔ Cloud platform and app—real-time data access via smartphone, tablet, or PC
• ✔ Automatic reports and consumption analyses
• ✔ User management for up to 1000 drivers/vehicles
• ✔ Compatible with PIUSI 3000 Supreme pumps
• ✔ Connectivity via WiFi, GSM, or LAN

Tecalemit Flow System – Local and Cloud-Based Solution

• ✔ Flow meter TM120 with integrated LTE/GPS module (depending on version)
• ✔ Flexible power supply: 12/24V DC or 230V AC
• ✔ Cloud connection and "myTecalemit" app—data accessible in real-time
• ✔ Scalable: Management of multiple tanks and users possible
• ✔ 3" color display for local display of levels, counting, and diagnostics
• ✔ IP65 protection for mobile and stationary applications

Comparison: B.SMART vs. Tecalemit Flow

• Cloud Connection: PIUSI B.SMART ✔ via WiFi / GSM / LAN, Tecalemit Flow ✔ via LTE / "myTecalemit" Cloud
• User Management: PIUSI B.SMART up to 1000 drivers/vehicles, Tecalemit Flow scalable, flexible per tank
• On-Site Display: PIUSI B.SMART app/online only, Tecalemit Flow 3" color display on device
• Communication: PIUSI B.SMART app/cloud, Tecalemit Flow app, cloud, web portal
• Data Acquisition: PIUSI B.SMART refueling operations, quantities, users, Tecalemit Flow refueling operations, levels, location
• Typical Use: PIUSI B.SMART fleet management/companies, Tecalemit Flow tank monitoring/operations
• Identification: PIUSI B.SMART via smartphone, Tecalemit Flow transponder

Accessories and Extensions

• ✔ Limit value transmitter: Safety according to WHG for automatic filling cut-off
• ✔ Battery kit 12V (85Ah): incl. holder, battery, and charger—for autonomous operation
• ✔ Battery kit 24V (85Ah): for higher power requirements and longer runtimes

Conclusion

The Quadro-D tank system offers the highest level of safety and now also the most advanced data integration. Whether with an analog meter or a digital cloud system—you always keep an eye on your refueling operations. With robust steel construction, flexible power supply, and smart technology, the Quadro-D is the future-proof solution for mobile refueling systems.

✔ Safe
✔ Flexible
✔ Digitally connectable
