ELECTRIC PUMP for Diesel Bypass 3000/12V - Parallel In-Out 🚜
Electric Pumps for Diesel Bypass 3000/12V - Parallel Inlet-Outlet

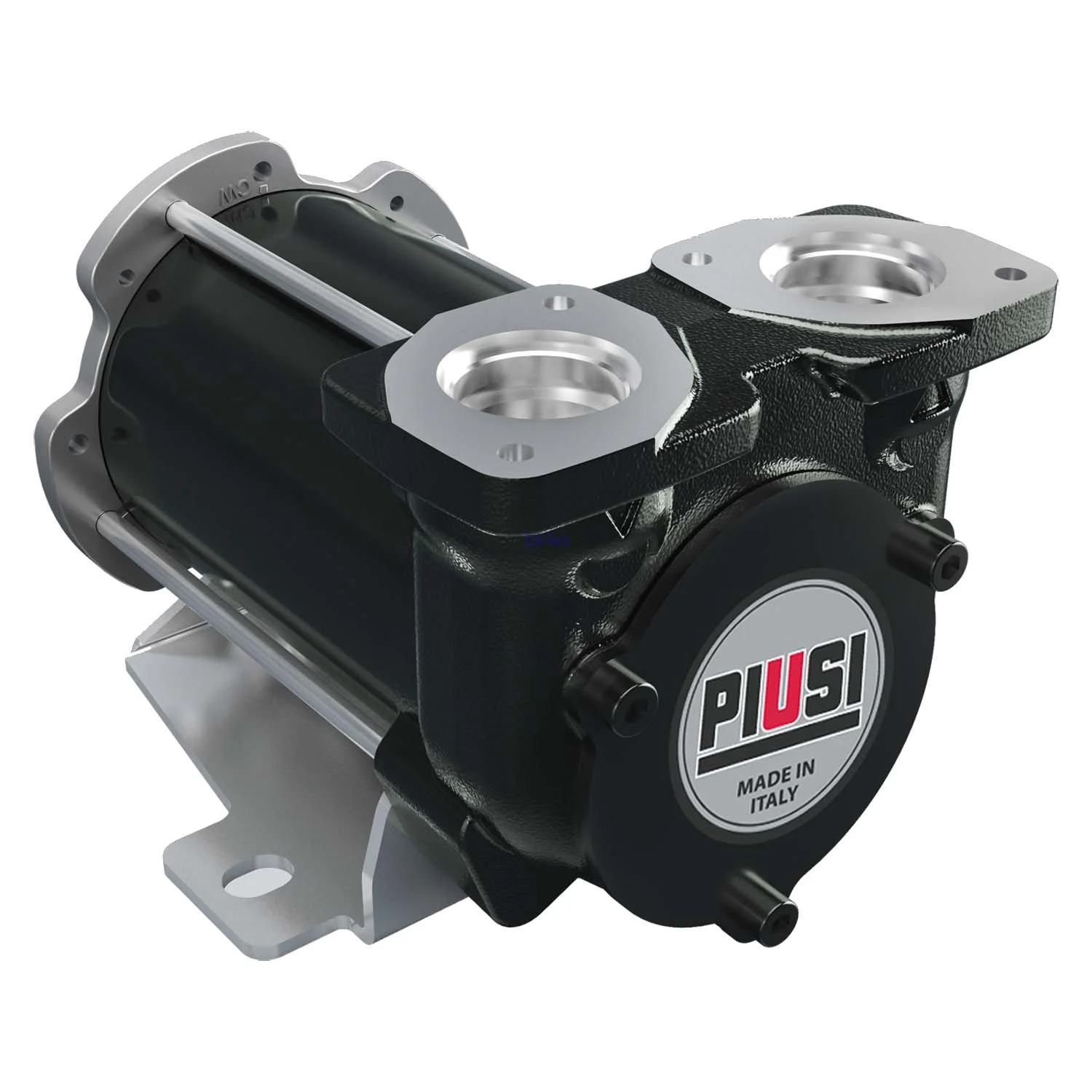

The PIUSI BP 3000 is a durable, self-priming rotary vane pump, ideal for diesel transfer. This powerful and versatile pump is compact and equipped with an integrated bypass valve. With its robust design and technical features, it proves to be a reliable solution for numerous applications. 🚜
Technical Specifications
• Pump body made of cast iron with anti-rust treatment and protective coating
• Vane pump with a sintered rotor and vanes made of acetal resin
• Built-in bypass valve within the pump body
• GS brush motor with permanent magnet stator
• Protection class IP55
• Intermittent duty with a 30-minute work cycle
- Flow rate: up to 40 liters/min
- Power supply: 12V / 300W / 24A
- Rotation speed: 2900 RPM
- Max. operating pressure: 1.5 bar
The PIUSI BP 3000 is excellently suited for use in various fields where reliable and efficient diesel transfer is required. Thanks to its sturdy construction and thoughtful engineering, it ensures long-lasting performance and reliability. ⚙️
