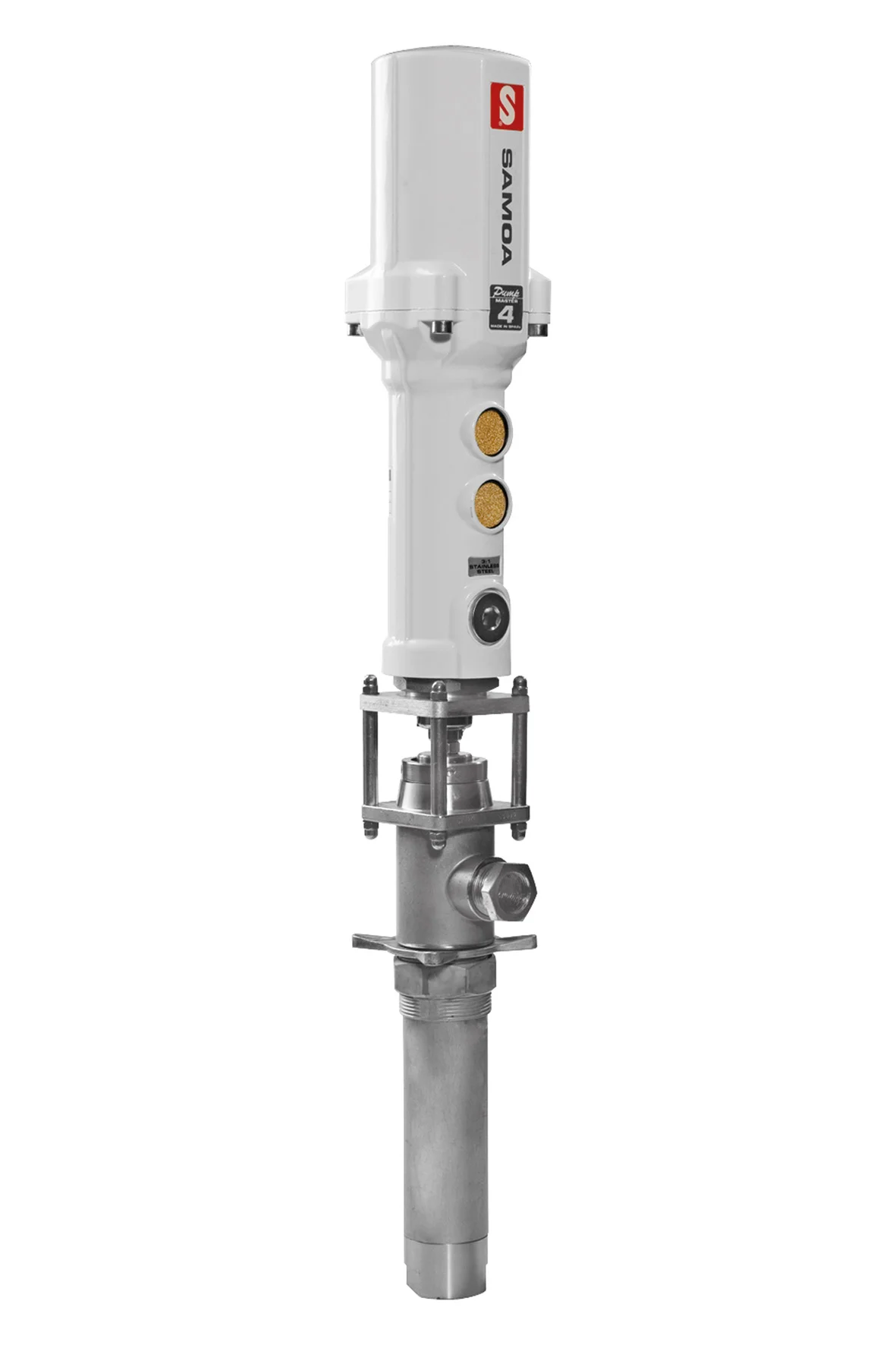

Compressed Air Pump Master4 DP-C 3:1 Acid-Resistant SAMOA-Hallbauer
€2,369.00*
- Translation Ratio: 3:1
- Max. Flow Rate: 40 l/min
- Air Pressure: 3 to 10 bar
- Parts in Contact with Media: Acid-resistant Steel AISI 316, PTFE, Viton®
Delivery time: 5-10 Tage
Acid-Resistant Compressed Air Pump PumpMaster 4 DP-C 3:1
The PumpMaster 4 DP-C 3:1 compressed air pump from SAMOA-Hallbauer is a powerful solution for demanding applications in industry, construction, craftsmanship, and agriculture. Made from acid-resistant AISI 316 steel, it offers high resistance to corrosive liquids, making it ideal for use in large piping systems with multiple dispensing points. ✔️
Advantages of the PumpMaster 4 DP-C 3:1
- ✔️ Acid resistance due to high-quality AISI 316 steel
- ✔️ High flow rate of up to 40 l/min
- ✔️ Flexible use with adjustable barrel adapter
- ✔️ Ideal for slightly corrosive liquids with low viscosity
Technical Features
- Transmission ratio: 3:1
- Suction tube diameter: 52 mm
- Air piston diameter: 51 mm
- Piston stroke length: 75 mm
- Air pressure range: 3 to 10 bar
- Max. delivery pressure: 30 bar
- Air connection: 1/4" BSPT (i)
- Pressure side: 3/4" BSP (i)
- Suction side: 1" BSP (i)
Materials in Contact with Media
- ✔️ Acid-resistant AISI 316 steel
- ✔️ PTFE
- ✔️ Viton®
Applications
The PumpMaster 4 DP-C 3:1 is ideal for transferring:
- Paint solvents
- Cleaning agents and antifreeze (glycol)
- Detergents and degreasers
- Alcohol and turpentine
- Petrochemical products and corrosion inhibitors
- Low-viscosity printing inks, varnishes, and wood preservatives
Model Overview
| Model | Flow Rate | Air Pressure | Delivery Pressure |
|---|---|---|---|
| PumpMaster 4 DP-C 3:1 | 40 l/min | 3-10 bar | 30 bar |
The PumpMaster 4 DP-C 3:1 compressed air pump is the perfect choice for reliable transfer of corrosive liquids in demanding environments. Its robust construction and high performance ensure efficient workflows in your operations. ✔️
