Compressed Air Diaphragm Pump "Directflo®" DF 100 for AdBlue® Urea Solution

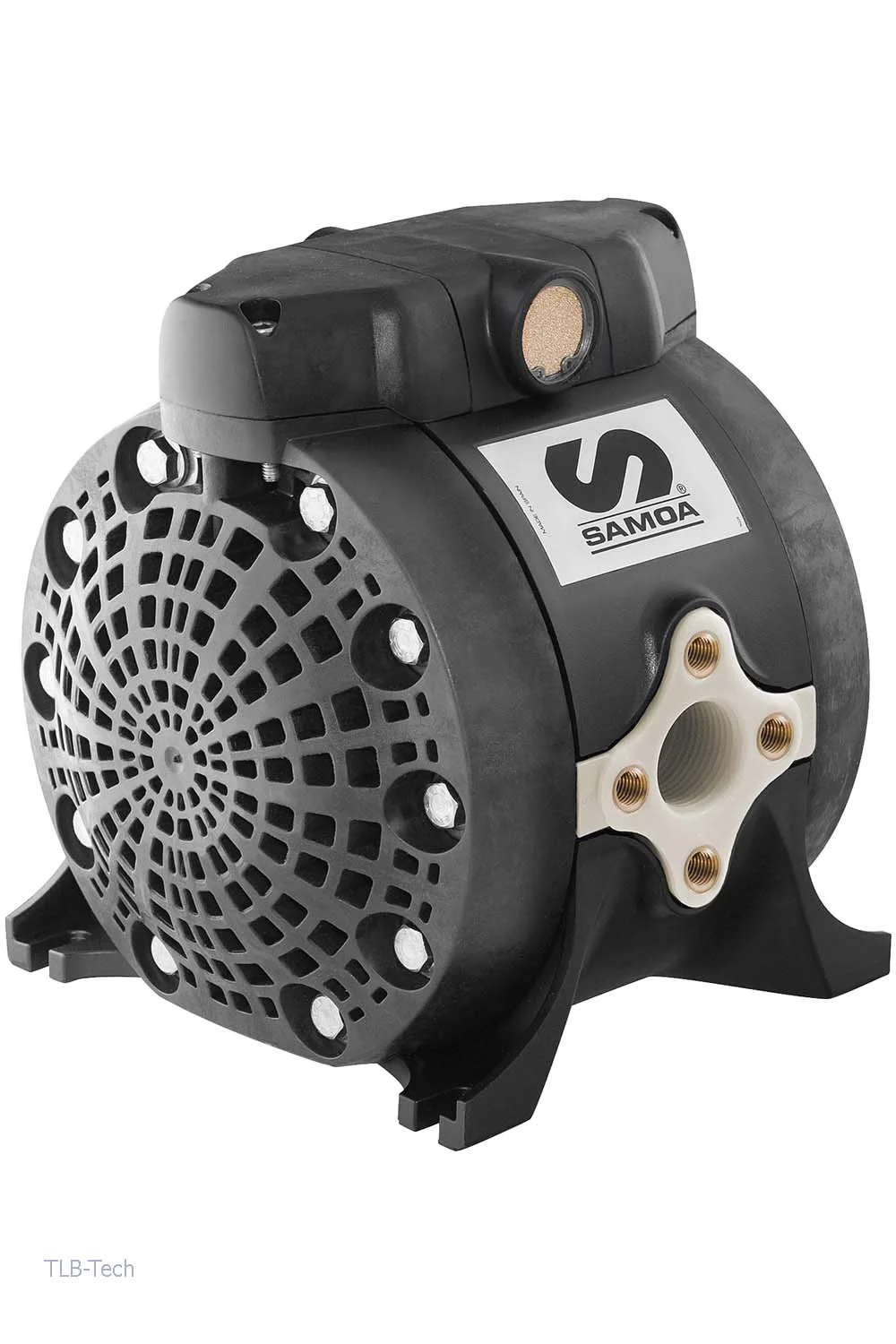

Compressed Air Diaphragm Pump "Directflo® DF 100 AdBlue®"

The Directflo® DF 100 AdBlue® is a powerful double diaphragm pump, specifically designed for dosing, transferring, and extracting a variety of liquids. This pump is perfectly suited for use with lubricants, waste oil, antifreeze, windshield washer fluid dilution, and of course, AdBlue®.

This compressed air diaphragm pump stands out with its robust construction. It is intended for professional applications and is built with an encapsulated design that operates safely, efficiently, and reliably. With fewer components, this pump requires minimal maintenance and offers a long service life.

• Highly robust and encapsulated construction for professional applications
• Simple and clear design for optimal pump utilization
• Compact, forward-thinking design
• Fewer components for easy maintenance and minimal downtime
• The diaphragm offers an extended lifespan
• Virtually vibration-free operation
• Efficient air consumption with consistent performance

Technical Specifications

• Parts in contact with media are made of:
      - Polypropylene
      - Ball valves made of PTFE
      - Diaphragms made of Hytrel®
• Transmission ratio of 1:1
• Flow rate of up to 100 l/min¹
• Volume per stroke 0.25¹
• Air pressure between 1.5 to 8 bar
• Max. particle size up to 4 mm
• Max. dry suction height up to 4.5 m¹
• Max. suction height, pre-filled up to 7 m¹
• Weight: Only 5.1 kg
• Suction side connection 1" BSP i and flange
• Discharge side connection 1" BSP i and flange
• Air connection 3/8" NPSM i

¹ Values measured at 7 bar and 20°C with water.
