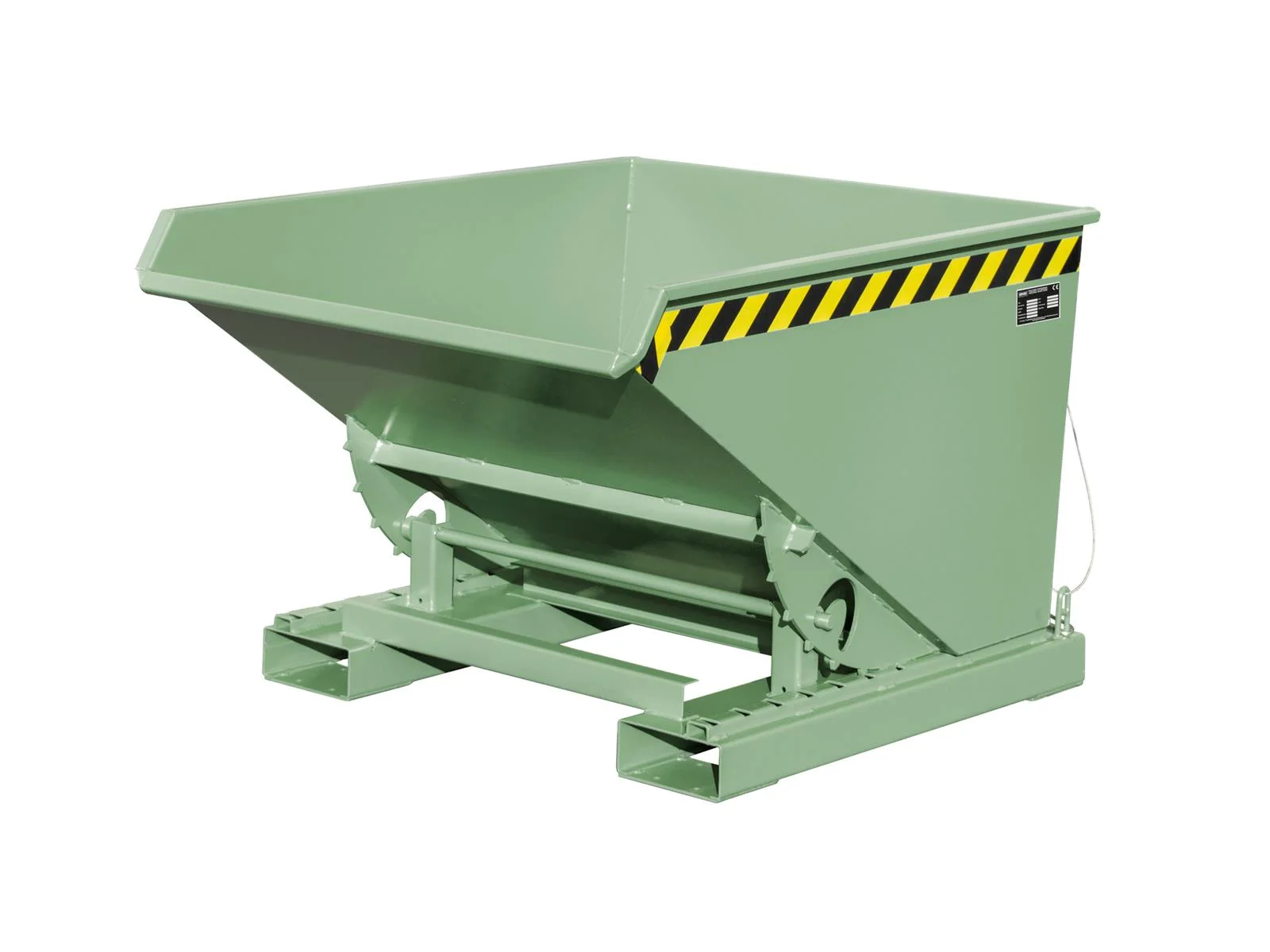

BAUER Tipping Skip EXPO 600, Painted RAL 6011 Reseda Green, 0.60 m³, 1000 kg, Roll-Off Mechanism, 1260 × 1070 × 835 mm
€876.29*
- Dimensions (L × W × H): 1260 × 1070 × 835 mm
- Capacity: 0.60 m³
- Load capacity: 1000 kg
- Version: painted RAL 6011 reseda green
- Compact tipping skip with roll-off mechanism
Delivery time: 3-4 weeks
BAUER Tipping Skip EXPO 600 – 0.60 m³, 1000 kg, Roll-Off Mechanism, 1260 × 1070 × 835 mm, 5 RAL Colours or Hot-Dip Galvanised
The BAUER tipping skip EXPO 600 is a compact tipping skip with a roll-off mechanism for use with a forklift truck. It has a favourable load centre of gravity and can be tipped at any height by pull rope from the forklift driver's seat. A safeguard protects against accidental slipping and tipping. The skip is made of a trough-shaped sheet-metal body with surrounding edge profile on a sturdy base frame; it is picked up via continuous fork pockets at the bottom with an inner size of 200 × 80 mm and 600 mm inner spacing. Castors can be retrofitted. The tipping skip holds 0.60 m³, measures 1260 × 1070 × 835 mm (L × W × H) with a discharge edge height of 740 mm and a load pick-up position of 470 mm, and has a load capacity of 1000 kg. It is not stackable. Available painted in RAL 2000 yellow orange, RAL 3000 flame red, RAL 5012 light blue, RAL 6011 reseda green or RAL 7005 mouse grey, or hot-dip galvanised. It is delivered assembled.
Product features
- Painted in 5 RAL colours (2000, 3000, 5012, 6011, 7005) or hot-dip galvanised
- Compact tipping skip with roll-off mechanism
- Favourable load centre of gravity
- Tips at any height by pull rope from the forklift driver's seat
- Safeguard against accidental slipping and tipping
- Trough-shaped sheet-metal body with surrounding edge profile, sturdy base frame with continuous 200 × 80 mm fork pockets
- Castors can be retrofitted
- Capacity 0.60 m³, load capacity 1000 kg, discharge edge height 740 mm
- Forklift attachment, delivered assembled
Technical data
- Manufacturer: BAUER GmbH (Südlohn, Germany)
- Dimensions (L × W × H): 1260 × 1070 × 835 mm
- Capacity: 0.60 m³
- Load capacity: 1000 kg
- Discharge edge height: 740 mm
- Load pick-up position: 470 mm
- Design: tipping skip type EXPO®, compact
- Tipping mechanism: roll-off mechanism
- Emptying: tipping at any height by pull rope from the forklift driver's seat
- Load centre of gravity: favourable
- Fork pockets: at the bottom, continuous; inner size 200 × 80 mm (W × H), inner spacing 600 mm
- Safety feature: against accidental slipping and tipping
- Construction: trough-shaped sheet-metal body with surrounding edge profile, sturdy base frame with fork pockets
- Castors: can be retrofitted (not included)
- Stackability: not stackable
- Accessories (separate): 2-piece lid 4498-02-0800 for EXPO 600, galvanised, 1275 × 1105 × 145 mm, approx. 22 kg; opens on two sides, front section can be locked in the open position
- Surface finish: painted (RAL 2000 yellow orange, RAL 3000 flame red, RAL 5012 light blue, RAL 6011 reseda green, RAL 7005 mouse grey) or hot-dip galvanised
- Delivery condition: assembled
- Weight: painted approx. 131 kg, hot-dip galvanised approx. 141 kg
Available versions
| Item no. | Finish | Weight |
|---|---|---|
| 4498-02-0000-1 | painted RAL 2000 yellow orange | approx. 131 kg |
| 4498-02-0000-2 | painted RAL 3000 flame red | approx. 131 kg |
| 4498-02-0000-3 | painted RAL 5012 light blue | approx. 131 kg |
| 4498-02-0000-4 | painted RAL 6011 reseda green | approx. 131 kg |
| 4498-02-0000-5 | painted RAL 7005 mouse grey | approx. 131 kg |
| 4498-02-0000-7 | hot-dip galvanised | approx. 141 kg |
Applications
- Picking up and moving with a forklift truck via the fork pockets
- Emptying by tipping at any lift height by pull rope from the driver's seat
Notes
Observe the load capacity of 1000 kg. The tipping skip is not stackable. The lid and castors are not included. Technical data subject to change by the manufacturer.
