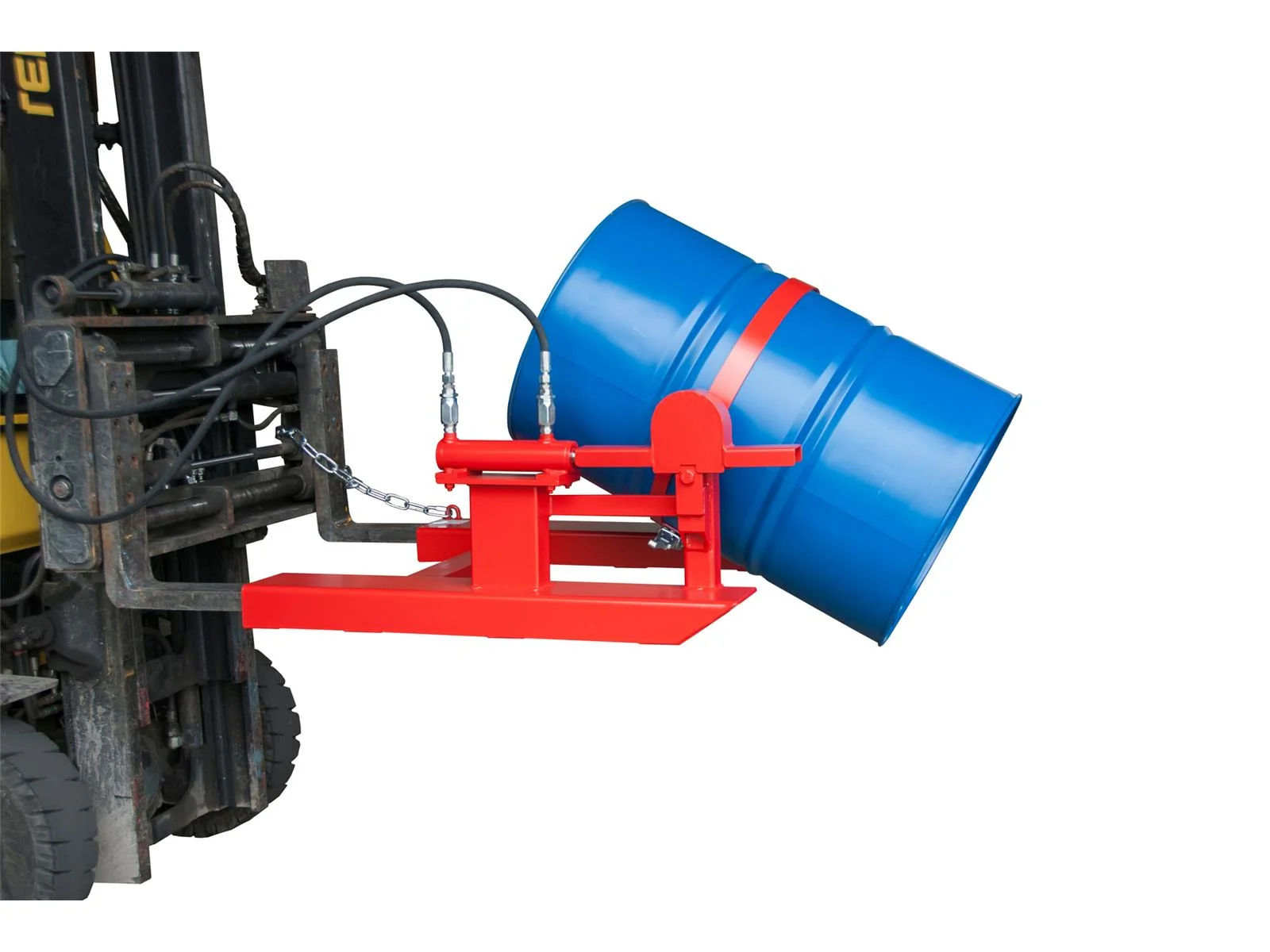

BAUER Drum Tipper FD-H, Painted RAL 3000 Flame Red, for Forklift, Lifting Cylinder, 200 l Drums, 360 kg, 1245 × 1000 × 475 mm
€2,955.29*
- Abmessungen (L × B × H): 1245 × 1000 × 475 mm
- Tragfähigkeit: 360 kg
- Geeignete Fässer: 200-l-Stahl-Spundfässer und Stahl-Deckelfässer
- Aufnehmen, Transportieren und dosiertes Entleeren von 200-l-Fässern
- Für Stahl-Spundfässer und Stahl-Deckelfässer bis Ø 590 mm
Delivery time: 3-4 weeks
BAUER Drum Tipper FD-H – for Forklift, Lifting Cylinder, 200 l Drums, 360 kg, 1245 × 1000 × 475 mm, 5 RAL Colours or Hot-Dip Galvanised
The BAUER drum tipper FD-H is a forklift attachment for picking up, moving and controlled emptying of 200 l steel bung drums and steel lidded drums. The drum is held in a drum clamp with eccentric lock and secured against unintentional slipping. Sturdy base frame and self-locking gear; tilting is operated by lifting cylinder. The drum tipper is picked up with a forklift truck via longitudinal fork pockets on the underside (inner size 170 × 75 mm, inner spacing 650 mm). It measures 1245 × 1000 × 475 mm (L × W × H), has a load capacity of 360 kg and takes drums up to 590 mm in diameter. Available painted in RAL 2000 yellow orange, RAL 3000 flame red, RAL 5012 light blue, RAL 6011 reseda green or RAL 7005 mouse grey, or hot-dip galvanised. It is delivered assembled.
Product features
- Picks up, moves and empties 200 l drums in a controlled way
- For steel bung drums and steel lidded drums up to Ø 590 mm
- Drum clamp with eccentric lock, anti-slip safeguard
- Self-locking gear, tilting by lifting cylinder
- Longitudinal fork pockets on the underside, 170 × 75 mm
- Load capacity 360 kg, dimensions 1245 × 1000 × 475 mm (L × W × H)
- Forklift attachment, delivered assembled
- Painted in 5 RAL colours (2000, 3000, 5012, 6011, 7005) or hot-dip galvanised
Technical data
- Manufacturer: BAUER GmbH (Südlohn, Germany)
- Dimensions (L × W × H): 1245 × 1000 × 475 mm
- Load capacity: 360 kg
- Suitable drums: 200 l steel bung drums and steel lidded drums
- Drum diameter: max. 590 mm
- Tilting operation: lifting cylinder
- Fork pockets: underside, longitudinal; inner width 170 mm, inner height 75 mm, inner spacing 650 mm
- Equipment: sturdy base frame, self-locking gear, drum clamp with eccentric lock, anti-slip safeguard
- Surface finish: painted (RAL 2000 yellow orange, RAL 3000 flame red, RAL 5012 light blue, RAL 6011 reseda green, RAL 7005 mouse grey) or hot-dip galvanised
- Delivery condition: assembled
- Weight: painted approx. 75 kg, hot-dip galvanised approx. 83 kg
Available versions
| Item no. | Finish | Weight |
|---|---|---|
| 4440-04-0000-1 | painted RAL 2000 yellow orange | approx. 75 kg |
| 4440-04-0000-2 | painted RAL 3000 flame red | approx. 75 kg |
| 4440-04-0000-3 | painted RAL 5012 light blue | approx. 75 kg |
| 4440-04-0000-4 | painted RAL 6011 reseda green | approx. 75 kg |
| 4440-04-0000-5 | painted RAL 7005 mouse grey | approx. 75 kg |
| 4440-04-0000-7 | hot-dip galvanised | approx. 83 kg |
Applications
- Picking up, moving and controlled emptying of 200 l steel bung drums and steel lidded drums with a forklift truck
Notes
Drums and forklift truck not included. Observe the load capacity of 360 kg. Technical data subject to change by the manufacturer.
