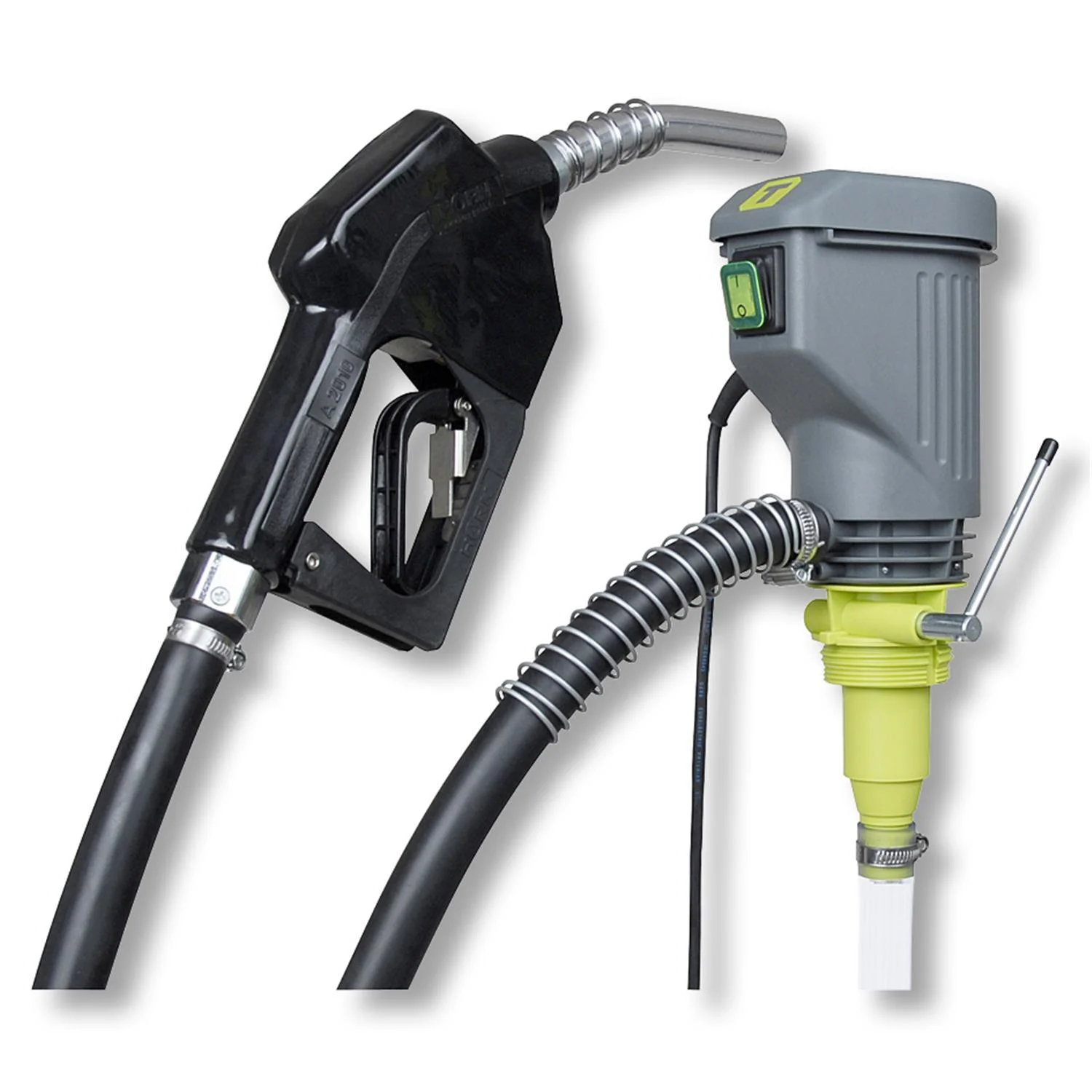

Electric Pump HORNET G 40/12 A - 12V -
€438.50*
- Pumping Capacity: approximately 35 liters/minute
- Voltage: 12V
- Includes automatic dispensing nozzle, suction hose, 4m delivery hose
- Compatible Media: Diesel, Heating Oil EL/L, Antifreeze (undiluted)
Delivery time: 1-3 days
PIUSI Bypass 3000 with 3/4" female thread – 12V / 24V electric diesel pump
The PIUSI Bypass 3000 is a compact electric pump designed for diesel transfer in mobile and stationary applications. The self-priming vane pump with integrated bypass is ideal for fuel storage systems, service vehicles, workshops, as well as agricultural and industrial use.
This pump series features 3/4" female thread connections and is available in different voltage versions. Depending on the model, different performance specifications are available for flexible applications.
Key features
- Self-priming vane pump for diesel
- Integrated bypass for safe operation
- Compact and robust construction
- 3/4" female thread connections
- Suitable for mobile and stationary tank systems
- Direct connection to 12V or 24V vehicle power systems
Variants / Versions
12 V version
- Flow rate: up to 40 l/min
- Power supply: 12 V
- Power consumption: 300 W
- Current draw: 24 A
- Speed: 2900 rpm
- Maximum operating pressure: 1.5 bar
- Connections: 3/4" female thread
24 V version
- Flow rate: up to 50 / 30 l/min
- Power supply: 24 V / 12 V
- Power consumption: 310 W / 80 W
- Current draw: 13 A / 6.5 A
- Speed: 2900 / 1500 rpm
- Maximum operating pressure: 1.5 bar
- Connections: 3/4" female thread
Applications
- Mobile tank systems
- Diesel supply for machinery and vehicles
- Agricultural operations
- Construction and municipal vehicles
- Workshops and industrial applications
Notes
- Suitable exclusively for diesel
- Not suitable for gasoline or flammable liquids
- Select the correct voltage according to the vehicle system
The PIUSI Bypass 3000 series with 3/4" female thread connections provides a reliable and compact solution for mobile diesel transfer and stands out through easy installation and robust technology for everyday use.
