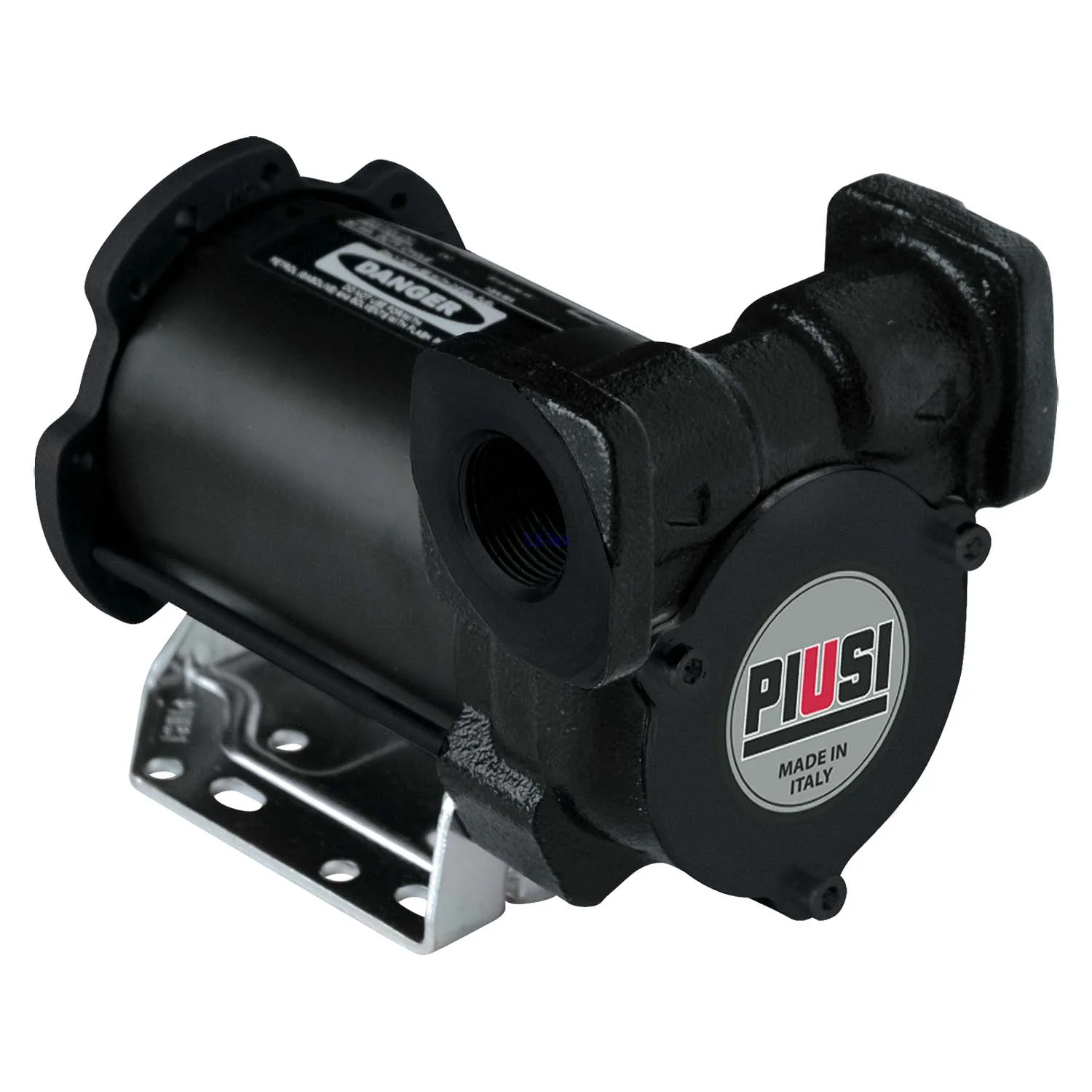

PIUSI ELECTRIC PUMP for Diesel Bypass 3000/12V - Linear In-Out 🚜💧
€162.50*
- Flow Rate: approx. 40 l/min
- Voltage: 12V
- Input-Output: linear
- Media: Diesel, Heating Oil
Delivery time: 1-3 days
PIUSI Bypass 3000 – 12V / 24V electric diesel pump
The PIUSI Bypass 3000 is a compact electric pump designed for diesel transfer in mobile and stationary applications. The self-priming vane pump with integrated bypass is ideal for fuel storage systems, service vehicles, workshops, agricultural operations and industrial use.
The pump series is available in different voltage versions and provides various performance levels depending on the model, ensuring maximum application flexibility.
Key features
- Self-priming vane pump for diesel
- Integrated bypass for safe operation
- Compact and robust construction
- Suitable for mobile and stationary tank systems
- Direct connection to 12V or 24V vehicle power systems
Variants / Versions
12 V version
- Flow rate: up to 40 l/min
- Power supply: 12 V
- Power consumption: 300 W
- Current draw: 24 A
- Speed: 2900 rpm
- Maximum operating pressure: 1.5 bar
24 V version
- Flow rate: up to 50 / 30 l/min
- Power supply: 24 V / 12 V
- Power consumption: 310 W / 80 W
- Current draw: 13 A / 6.5 A
- Speed: 2900 / 1500 rpm
- Maximum operating pressure: 1.5 bar
Applications
- Mobile tank systems
- Diesel supply for machinery and vehicles
- Agricultural operations
- Construction and municipal vehicles
- Workshops and industrial applications
Notes
- Suitable exclusively for diesel
- Not suitable for gasoline or flammable liquids
- Select the correct voltage according to the vehicle system
The PIUSI Bypass 3000 series provides a reliable solution for mobile diesel transfer and stands out through its compact dimensions, easy installation and high operational reliability.
