3000 Liter Tank System - Diesel Complete Package with Pump & Meter 💧

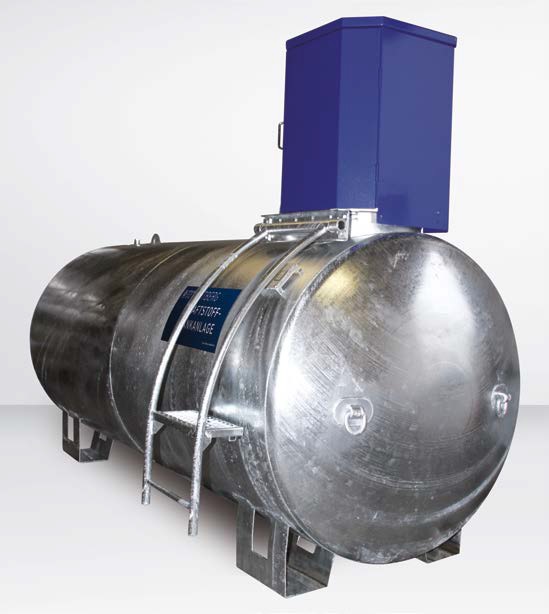

Stationary Diesel Tank System KA by Rietberg

The stationary Diesel Tank System KA is the ideal on-site fuel station for your fleet. With its 3000-liter capacity, it eliminates the need for trips to the gas station, enhancing the efficiency of your operations. The double-walled diesel tank is made from robust steel and is suitable for above-ground storage of diesel fuel. The tank system is delivered ready for operation, with the pump, fittings, and all necessary connections already installed.
Rietberg's tanks are crafted from durable steel, ensuring they are particularly long-lasting and robust. The on-site fuel station can be installed both outdoors and indoors and can be transported by crane when empty.

Your Advantages

• Manufactured according to DIN 6624/DIN 6616 standards, making it approved nationwide for the storage of diesel/heating oil or other liquids with a flash point above 55°C, as well as other water-hazardous liquids of all water hazard classes.
• Can be installed both indoors and outdoors.
• Double-walled, so no spacing is required between multiple tanks. Additionally, a storage room designed as a containment area is not necessary.
• Entirely made of steel, ensuring robustness and longevity.
• The tanks are fire-galvanized inside and out, providing optimal protection against corrosion.
• The tanks come standard with all necessary connections and fittings.
• If needed, the tanks can be transported by crane when empty.

Technical Features

• Fire-galvanized inside and out.
• Double-walled with permanent, energy-independent vacuum leak monitoring of both walls.
• Suction line with connection for a pump.
• Continuous level indicator.
• Filling line with lockable safety screw connection 2/2½”.
• Ventilation line.
• Limit sensor.
• One reserve socket each, 1” and 2”.

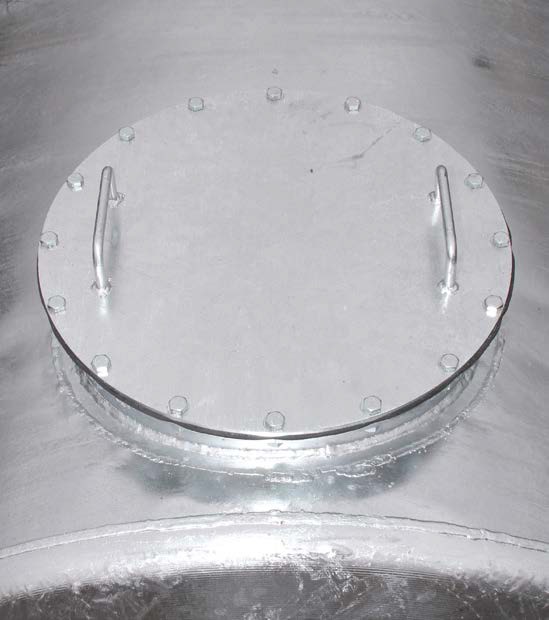

• Dome cover with side upstands to retain drip quantities.
• Two lifting lugs for empty transport, ensuring safe craning in accordance with BGI 556.

Specifications

• KA 3000-125
• Capacity: 3000 liters - Weight: 620 kg
• Approval
• Dimensions (LxWxH): 2750 mm x 1250 mm x 1700 mm
• Equipped with:

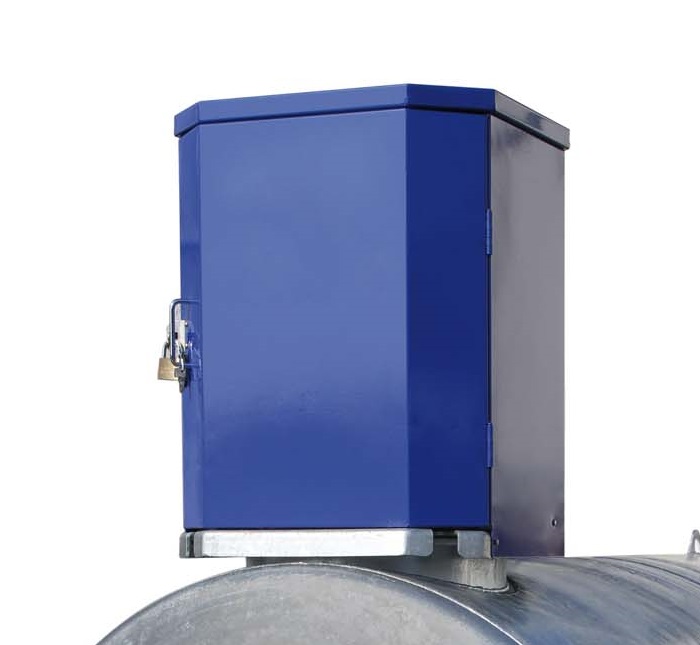

  • Wing door cabinet
  • Limit sensor

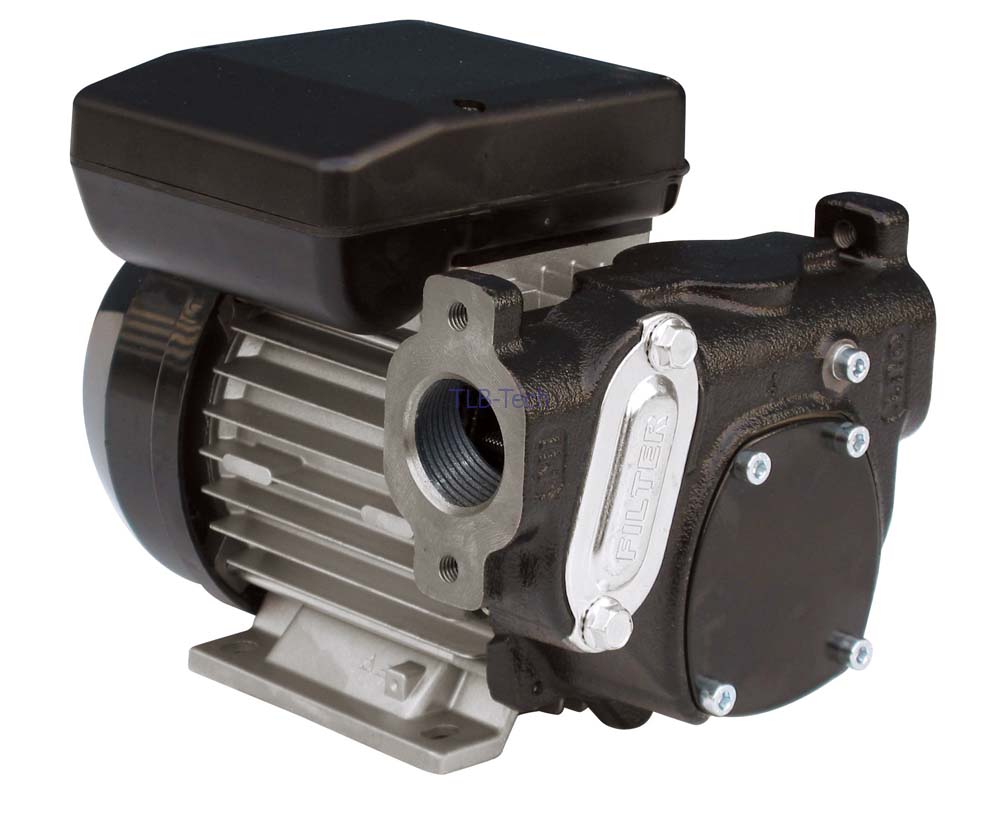

  • Motor pump R50 230V(AC) 56 l/min with 6m connection cable with Schuko plug
  • PZ300 counter
  • 4m hose assembly with swivel joint
  • Automatic dispensing nozzle
