Urea AUS32 / AdBlue® Stationary & mobile tank systems · pumps · dispensing devices · nozzles · accessories
A complete range for professional AdBlue® supply – from the simple hand pump to the fully automatic stationary tank system with climate package and tank management. Whether supplying individual vehicles from a drum or running a storage tank of up to 9,000 litres for fleets and haulage companies: Kingspan BlueMaster, PIUSI, Pressol and Elaflex offer the right solution for every requirement.
What is AdBlue® / urea AUS32?
AdBlue® (also known as urea AUS32 or DEF – Diesel Exhaust Fluid) is an aqueous urea solution with a urea content of 32.5 %, used in the SCR catalytic converters of diesel vehicles. It converts nitrogen oxides (NOx) into harmless nitrogen and water vapour. Since the Euro 6 standard, AdBlue® has been required in almost all diesel cars, trucks and construction machines – consumption is around 4–8 % of diesel consumption.
Stationary vs. mobile tank systems
Stationary tank systems (2,500–9,000 L) are the cost-effective solution for haulage companies, fleets and farms with their own AdBlue® demand – a lower purchase price when buying by IBC or tanker, plus your own refuelling infrastructure. Mobile tank systems (200–1,000 L, with pump and meter, on wheels or as a transport cube) are suited to construction sites, changing locations and smaller fleets.
Kingspan BlueMaster – STANDARD & PRO
Kingspan BlueMaster tanks are the best-selling stationary AdBlue® systems in Europe. BlueMaster STANDARD: a simple, robust solution without electronics. BlueMaster PRO TitanAccess: with a complete tank management system, user identification, consumption recording and an optional climate package for operation in freezing conditions – AdBlue® itself freezes at –11°C.
Special requirements for AdBlue® systems
AdBlue® is corrosive to copper, brass and zinc – all system components (pumps, hoses, fittings, nozzles) must be made of stainless steel or AdBlue®-resistant plastic (HDPE, EPDM). Lines, fittings and dispensing points must be kept separate from those for fuel. The Elafix 40 magnetic adapter for the vehicle tank prevents misfuelling.
Dispensing devices
Reliable dispensing devices for AdBlue® (AUS32) – clean, safe and convenient for everyday use.
Mobile tank systems
Mobile AdBlue® tank systems for flexible use on construction sites, farms and in fleets.
Stationary tank systems
Stationary AdBlue® tank systems for safe storage and professional supply of larger volumes.
AdBlue® pumps
Powerful pumps for AdBlue® – suitable for clean and efficient transfer of AUS32.
AdBlue® nozzles
High-quality nozzles for AdBlue® – precise, low-drip and easy to handle.
AdBlue® flow meters
Precise flow meters for reliable measurement and control of the AdBlue® quantities dispensed.
SAMOA G 3/4" F/F Stainless Steel Ball Valve, 3/4" BSP Ball Valve, Female Thread on Both Sides
- Type: ball valve
- Material: stainless steel
- Connections: 3/4" BSP, female both sides
- Stainless steel ball valve
- 3/4" BSP female thread on both sides
Delivery time: 2-5 days
Kingspan BlueMaster® PRO 7 4000 l Double-Walled AdBlue® Tank Station with WatchmanAccess
- Version: PRO 7, without extreme climate package
- Nominal capacity: 4,000 l
- Medium: AdBlue®
- Double-walled stationary 4,000 l AdBlue® tank with DIBt approval
- WatchmanAccess tank data management system including level monitoring
Delivery time: 3-4 weeks
Pressol AdBlue® Pump Kit for IBC, Diaphragm Pump 230 V with Meter and Car Nozzle ISO 22241-5
- Voltage: 230V
- Flow Rate: approx. 14 l/min
- Elaflex Automatic Nozzle
- Digital Counter
- Suction Height: 3m
Delivery time: 2-5 days
PIUSI AF2 Drum Connector 56 × 4 Buttress / 1" BSP Male for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: 56 × 4 buttress / M 1" BSP
- Weight: approx. 0.3 kg
- AF2 connector 56 × 4 buttress to 1" BSP male
- Materials to ISO 22241
Delivery time: 1-3 days
PIUSI IBC Bottom Connection Kit with Foot Valve, 1.5 m Suction Hose for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Length: 1,5 m
- Connection: F 2" BSP / 1" × Ø 25 mm
- External suction hose for the IBC bottom outlet
- With foot valve (check valve)
Delivery time: 1-3 days
Rietbergwerke QUADRO-PLUS-BLUE 1000, 1,000 l Mobile AdBlue® Tank Unit, Double-Walled, with 12/24 V or 230 V Pump
- Nominal capacity: 1000 l
- Medium: AdBlue® (AUS 32)
- Pump: 12/24 (24 V DC pump) or 230 V AC
- Steel container with rotomoulded plastic inner shell, hot-dip galvanised inside and out
- Unlimited UN approval as an IBC (D/BAM/15450/31A) for road (ADR), rail (RID), inland waterways (ADN) and sea (IMDG Code)
Delivery time: 3-4 weeks
Pressol AdBlue® Tank Station 2500 l, Double-Walled, Diaphragm Pump 230 V 35 l/min, with Digital Meter
- Volume: 1500 liters
- Medium: Adblue®, Urea
- Includes digital counter
- Dimensions LxWxH (mm): 1720 x 1240 x 2400
- Weight (kg): 238
Delivery time: 5-10 Tage
SAMOA Hose Reel RM-12S Single Arm, Aluminium, 15 m 1/2" Hose, 20 bar, for AdBlue, Screenwash and Cleaning Agents
- Fluids: screenwash, DEF/AdBlue, cleaning agents
- Hose: 15 m, 1/2"
- Working pressure: max. 20 bar
- Single-arm reel: aluminium base, composite arms, steel spring
- 15 m 1/2" hose, max. 20 bar
Delivery time: 2-5 days
Kingspan BlueMaster® PRO 3 5000 l Double-Walled AdBlue® Tank Station with WatchmanAccess and Extreme Climate Package
- Version: PRO 3, incl. extreme climate package
- Nominal capacity: 5,000 l
- Medium: AdBlue®
- Double-walled stationary 5,000 l AdBlue® tank with DIBt approval
- WatchmanAccess tank data management system including level monitoring
Delivery time: 3-4 weeks
Pressol AdBlue® Tank Station 5000 l, Double-Walled, Diaphragm Pump 230 V 35 l/min, with Fluid Management System (FMS)
- Content: 5000 liters
- Medium: Adblue®, Urea
- Equipped with a digital counter
- Dimensions LxWxH (mm): 2400 x 2000 x 2400
- Weight (kg): 360
Delivery time: 5-10 Tage
SAMOA Bluematic maxi Type S PVC Drum with Automatic Nozzle, IBC, AdBlue Pump Unit of the Bluematic maxi Range
- Type: Bluematic maxi Type S PVC drum
- Fluids: AdBlue
- Nozzle: automatic nozzle
- Bluematic maxi Type S, PVC drum version
- With automatic nozzle
Delivery time: 2-5 days
PIUSI Straight Connector with 2 Nuts 1" BSP Female for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Connection: F 1" BSP / F 1" BSP
- Weight: approx. 0.056 kg
- For AdBlue®, materials to ISO 22241
- Connection F 1" BSP / F 1" BSP
Delivery time: 1-3 days
Rietbergwerke QUADRO-PLUS-BLUE 450, 450 l Mobile AdBlue® Tank Unit, Double-Walled, with 12/24 V or 230 V Pump
- Nominal capacity: 450 l
- Medium: AdBlue® (AUS 32)
- Pump: 12/24 (24 V DC pump) or 230 V AC
- Steel container with rotomoulded plastic inner shell, hot-dip galvanised inside and out
- Unlimited UN approval as an IBC (D/BAM/15450/31A) for road (ADR), rail (RID), inland waterways (ADN) and sea (IMDG Code)
Delivery time: 3-4 weeks
PIUSI IBC Bottom Connection Kit with Foot Valve, 0.3 m Suction Hose for AdBlue®
- Fluids: AdBlue® (urea solution to ISO 22241)
- Length: 0,3 m
- Connection: F 2" BSP / 1" × Ø 25 mm
- External suction hose for the IBC bottom outlet
- With foot valve (check valve)
Delivery time: 1-3 days
SAMOA Hose Kit for IBC Containers, 3 m Plastic Hose, Diameter 25 x 3 mm, with 1" Female Adapter
- Suitable for: IBC containers
- Material: plastic
- Diameter: 25 x 3 mm
- For IBC containers
- Plastic hose, diameter 25 x 3 mm, length 3 m
Delivery time: 2-5 days
SAMOA Mobile AdBlue® Dispensing Unit PIVOT UP03, Air Diaphragm Pump on 205 l Drum Trolley, Meter and Nozzle
- Fluids: AdBlue®/DEF
- Pump: PIVOT UP03, PP housing, Santoprene® diaphragms, ATEX
- Flow rate: max. 31 l/min
- PIVOT UP03 double diaphragm pump, max. 31 l/min
- Electronic nozzle with meter (365 586)
Delivery time: 5-10 Tage
Pressol AdBlue® Tank Station 1500 l, Double-Walled, Diaphragm Pump 230 V 35 l/min, with Digital Meter
- Capacity: 1500 liters
- Medium: Adblue®, Urea
- Equipped with a digital counter
- Dimensions LxWxH (mm): 1720 x 1240 x 2400
- Weight (kg): 238
Delivery time: 5-10 Tage
SAMOA Bluematic EMP-230V Basic CDS with Meter, without Nozzle, AdBlue® Pump Kit 230 V, 400 W, max. 30 l/min
- Pump: self-priming multi-diaphragm pump without mechanical seal, with bypass valve
- Voltage: 230 V / 50 Hz, 400 W
- Flow rate: max. 30 l/min
- Self-priming multi-diaphragm pump 230 V, 400 W, bypass valve
- Max. 30 l/min, max. 1.6 bar, suction height up to 1.8 m
Delivery time: 2-5 days
SAMOA Bluematic EMP-230V Basic CDS with Plastic Nozzle, AdBlue® Pump Kit 230 V, 400 W, max. 30 l/min
- Pump: self-priming multi-diaphragm pump without mechanical seal, with bypass valve
- Voltage: 230 V / 50 Hz, 400 W
- Flow rate: max. 30 l/min
- Self-priming multi-diaphragm pump 230 V, 400 W, bypass valve
- Max. 30 l/min, max. 1.6 bar, suction height up to 1.8 m
Delivery time: 2-5 days
PIUSI EPDM Suction Hose Kit 1.1 m with SEC Connector for AdBlue®, 3/4", Ø 19 mm
- Fluids: AdBlue® (urea solution to ISO 22241)
- Length: 1,1 m
- Hose: EPDM, 3/4", Ø 19 mm
- EPDM spiral hose 1.1 m, 3/4" (Ø 19 mm)
- With SEC connector
Delivery time: 1-3 days
Kingspan BlueMaster 9000 l Double-Walled AdBlue® Tank Station, Standard 4 without TMS or Standard 2 with TMS
- Nominal capacity: 9,000 l
- Medium: AdBlue®
- Design: double-walled tank, stationary
- Double-walled stationary 9,000 l AdBlue® tank with DIBt approval
- 230 V submersible pump, 6 m ¾" hose on hose reel, automatic nozzle
Delivery time: 3-4 weeks

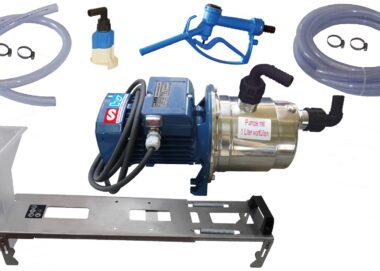

SAMOA Bluematic maxi Type E PVC Drum Version with PVC Nozzle, AdBlue® Pump Kit of the Bluematic maxi Series, without Meter
- Version: Bluematic maxi Type E, PVC drum version
- Nozzle: PVC nozzle
- Meter: none
- Bluematic maxi Type E, PVC drum version
- PVC dispensing nozzle
Delivery time: 2-5 days
Planning your AdBlue® supply – the right solution for your business
Drum, IBC or storage tank?
Drum/IBC (200–1,000 L): a flexible solution with no dedicated system required – cost-effective for low demand. Drawback: manual decanting, higher purchase price. Mobile system (200–1,000 L with pump): drum or IBC with integrated pump and meter – for construction sites and changing locations. Stationary tank system (2,500–9,000 L): your own refuelling infrastructure, lowest purchase price when supplied by tanker – economical from around 10 trucks or 2,000 L/month.
Why a climate package for the BlueMaster PRO?
AdBlue® freezes at –11°C – in frost the entire system can freeze and dispensing can fail. The optional climate package for the Kingspan BlueMaster PRO includes heating for the tank and the pump unit, so the system works reliably even in winter. For businesses in regions with harsh winters, or for systems not installed in heated rooms, the climate package is essential.
Tank management – why does it matter?
The Kingspan BlueMaster PRO TitanAccess system records every refuelling: driver ID, vehicle, quantity, timestamp. This prevents misuse, enables precise cost allocation per vehicle or department and provides reports for the fleet manager. Essential above all for haulage companies with many drivers. Data is stored locally and can be exported.
Which pump for which application?
Hand pumps: for occasional dispensing from a drum – inexpensive, no power supply needed. 12V DC pumps: for mobile systems on vehicles or construction sites – connected to the vehicle battery. 230V AC pumps: for stationary applications in the workshop or at the fleet depot. Flow rates of around 35–60 L/min are sufficient for most car/truck refuelling – trucks have AdBlue® tanks of 20–75 L.
Material compatibility – what can AdBlue® come into contact with?
AdBlue® attacks the following materials: copper, brass, zinc, galvanised steel – all parts that come into contact with AdBlue® must be made of stainless steel (V2A/V4A), HDPE, PP or EPDM. This is why all AdBlue® fittings, nozzles and pumps are specially marked and are not compatible with brass fuel fittings. ISO 22241 specifies the material requirements.
Storage & shelf life of AdBlue®
AdBlue® has a shelf life of around 12–18 months when stored between 0°C and 30°C. At higher temperatures (permanently above 30°C) or in direct sunlight, the urea decomposes more quickly. A maximum storage temperature of 35°C is recommended (ISO 22241). Storage tanks should therefore preferably be installed in covered, shaded areas. The climate package protects against frost; correct siting protects against overheating.
Frequently asked questions about AdBlue® / urea AUS32
The right AdBlue® solution for your fleet
Our specialist team will advise you free of charge – on tank size, pump system, tank management and the optimum configuration for your business.
