Diesel Pump HDM 100 eco with TECALEMIT Fuel Dispenser

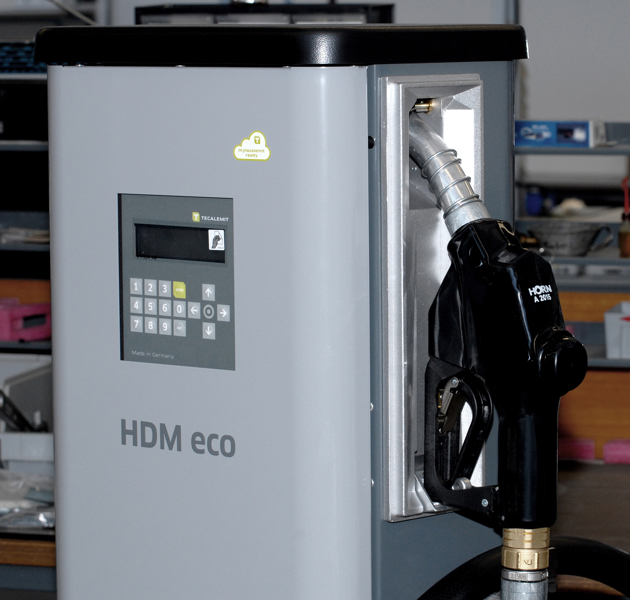

The HDM 100 ECO Diesel Pump by TECALEMIT is not only a powerful system but also sustainably efficient. It combines state-of-the-art technology with comprehensive convenience, enabling hassle-free and safe refueling. 🚗💧

Product Features and Delivery Contents

With its extensive features, the HDM 100 ECO Diesel Pump ensures you are always up-to-date:

• Fuel dispenser with PC software for up to 2,000 users
• Two identification systems for drivers and vehicles
• Identification via modern transponder technology
• Handy USB interface for easy data retrieval
• Data connectivity options via LAN and WLAN
• Optional data connectivity via GPRS and UMTS
• Includes drip tray and reliable leak monitoring
• High-performance vane pump with single-phase asynchronous motor
• Oval gear meter with precise pulse generator
• Type-approved automatic nozzle A 2015, including swivel joint
• Convenient nozzle holder
• Rear and underground suction pipe connection possible
• Suction line minimum DN 32
• Robust, powder-coated steel housing
• Two-line, easy-to-read monochrome display with font height of 8 or 19 mm
• Tank data storage for up to 10,000 dispensing records
• Menu available in German, English, and French
• Downloadable language options via USB stick
• Note: This product is not suitable for refueling cars

Technical Specifications at a Glance

The HDM 100 ECO Diesel Pump impresses with the following technical specifications:

• Flow rate: 100 l/min
• Number of dispensing points: 1
• Suction height: 2.5m
• Ambient temperature: -25 to +55°C
• Medium temperature: -10 to +35°C
• Power supply (Electrical): 230 / 50 V / Hz
• Nozzle hose length: DN 25 x 4 m
• Accuracy: < 0.5%
• Suction connection: DN 32
• Suction side connection: G 1 1/4"
• Dimensions (Width x Depth x Height): 410 x 1410 x 275 mm
• Weight: 55 kg
